INTRODUCTION
This manual describes how to use the DPE-100
Portable Radio. The DPE-100 is a synthesized, micro-
processor-based, high performance duplex portable FM
radio providing reliable two-way communications in En-
hanced Digital Access Communications System
(EDACS) trunking environments.
Duplex is provided in EDACS systems while operat-
ing in the Telephone Interconnect Mode. In an EDACS
trunked environment the user selects a communications
system.In this mode, channel selection is transparent to
the user and is controlled via digital communication with
the system controller. This provides advanced program-
mable features and fast access to communication chan-
nels.
Theexactoperationoftheradiodependsontheradio
mode,theoperatingmode,theradio’sprogramming,and
the particular radio system. Most features described in
this manual may be enabled or disabled through pro-
gramming. Consult the system administrator for the re-
quired features to be programmed into the radio.
5

6

BASIC OPERATION
TURNING THE RADIO ON
ETurntheradioonbyholdingdownthe
E
keyuntilyouhear abeep.
The display illumination comes on. All the status
indicators and all the segments in the alphanumeric and
numeric fields in the display will flash 3 times.
The radio’s LID number is displayed briefly.
A battery level indicator is shown in the upper right
corner of the display. This can be a value from B0 to B5
in proportion to the battery’s voltage level. You can read
more about this in the chapter
Batteries and Recharg-
ing
.
OnceserviceisavailablefromanEDACSsystem,the
SERV (Service) indicator comes on, together with a
signal strength meter and the CC SCAN goes off in the
display. This meter indicates the relative signal strength
by displaying from 0 to 5 "bars" ,with the number of bars
being proportional to the signal strength.

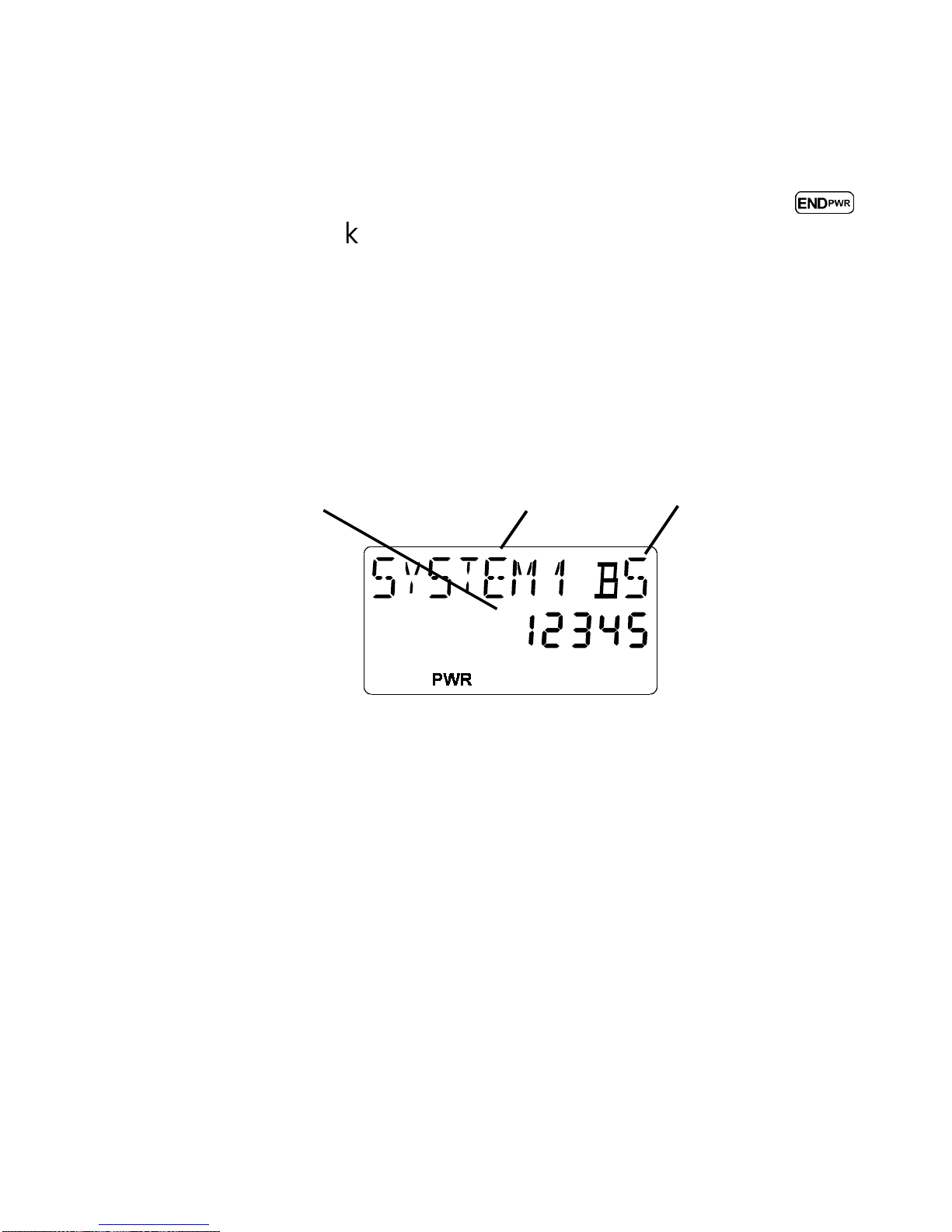

Own Logical ID Battery Level IndicatorSystem Indicator
7

Note the following points:
•If the SERV indicator does not come on, you have
lost contact with the EDACS system and cannot,
therefore, place or receive any calls. Refer to
Appendix 1 for further information.
•If no signalstrength is shown, try movingthe radio
to obtain a stronger signal. Refer to Appendix 1
for further information.
PLACING AN INTERCONNECT CALL
1. Enter the desired number on the numeric keys.
The digits are shown in the display.
If you enter a wrong digit or a wrong number:
Erase a wrong digit by pressing the C key
momentarily. You may delete all wrong digits
individually like this, or eliminate all entered dig-
its by holding the C key for approximately 1
second.Ifyouarenotinacall,pressingthe E
key will also delete all entered digits.

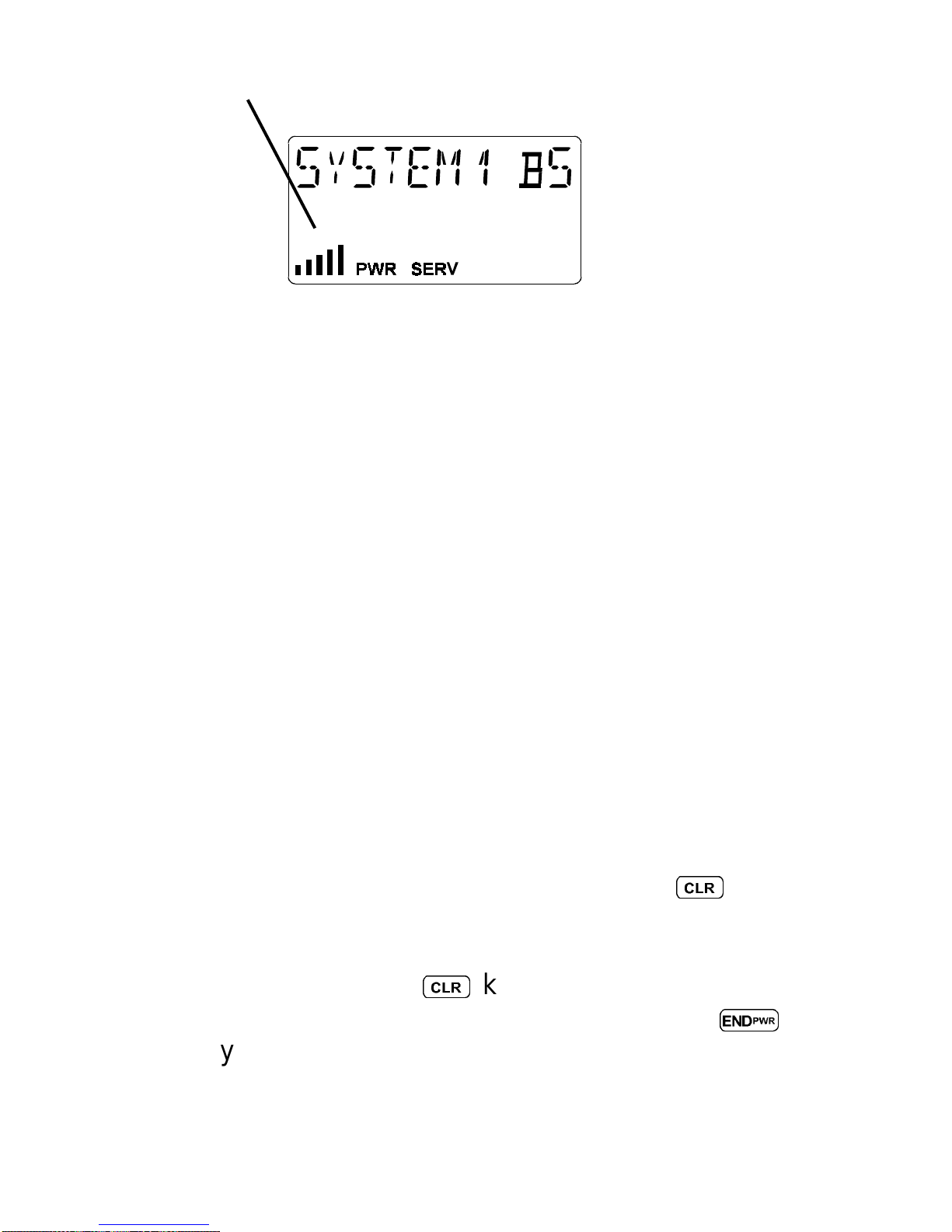

Signal strength meter
8

2. Whenyouhaveenteredthenumber,press S .
The text "
DIALING
" shows in the display and
the symbol comes on.
When you have made contact with the EDACS
system, "
DIALING
" will disappear.
The number dialedwill remain inthedisplay until
any key is pressed, or the call is ended, at which
time the minutes and seconds of the call will be
displayed.
The left two digits show minutes, and the right
two digits show the seconds (separated by two
dashes).
9

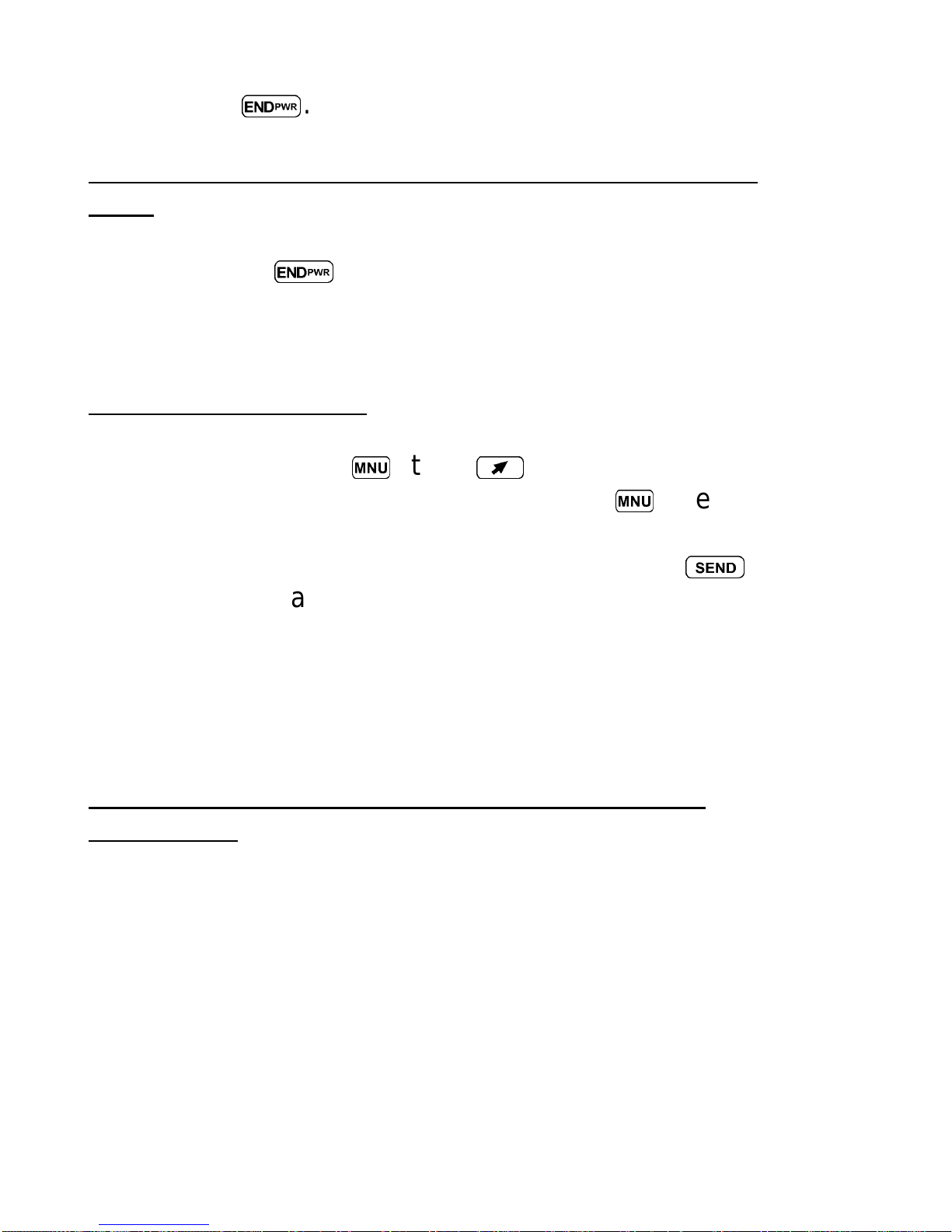

3. When the conversation is finished, press
E .
Nobody Answers or You Hear a Busy or Fast Busy
Tone
Press E . The telephone number will be re-
tained in the memory and you can easily repeat
the call.
Last Number Re-Dial
MPress
M , then > to scroll to the
RE-
CALL
function. Then press M , the word
LAST DIAL
will appearandthelastdialed
number will be displayed. Press S to
placethecall.
The last number called will remain in the
memory even though the radio is turned
off.
A Call is Unsuccessful or a Call in Progress is
Interrupted
An error signal (a short beep) is heard. Observe the
signal strength indication in the display. The signal
strength should be at least 1. Refer to Appendix 1 for
further information.
10

ANSWERING A CALL
When you are being called, the radio rings according
to the setting in the Menu Mode. The top indicator light
rapidly flashes Green while "PHN CALL" also flashes in
the display.
S

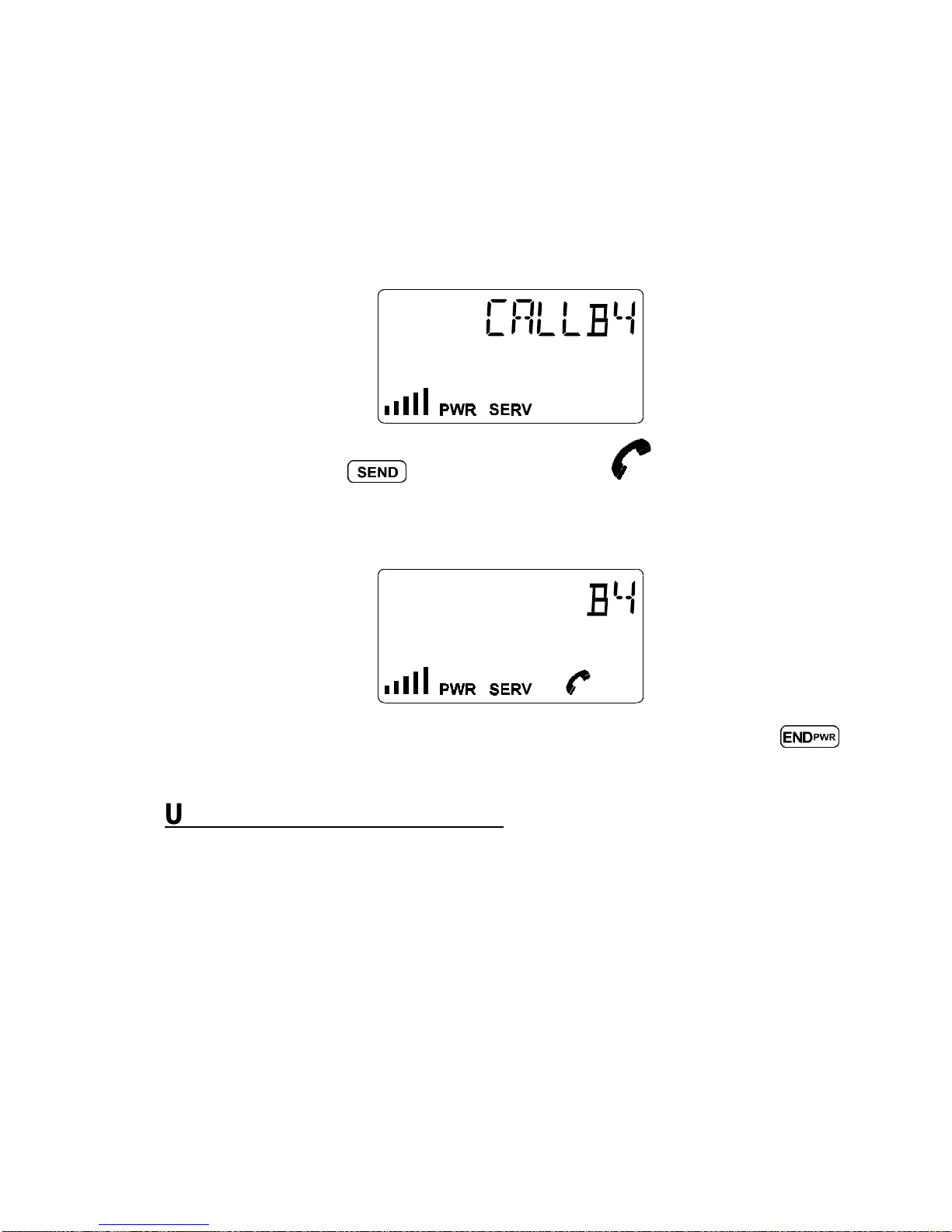

Press S to answer.The will light up and
PHN CALL
will be removed.
EWhen the conversation is finished, press
E .
Unanswered call Counter
If one or more calls have not been answered, the
number of unanswered calls will be displayed.For exam-
ple,
02 CALLS
. The unanswered call counter will reset
as soon as you press any key.
11

VOLUME CONTROL
<
>
Duringaconversationyoucanadjustthevolume
of the earpiece with these keys. Press and hold
to increase or decrease the volume.The volume
ofthekeypadtonesmaybeadjustedinthesame
manner when not in a conversation.

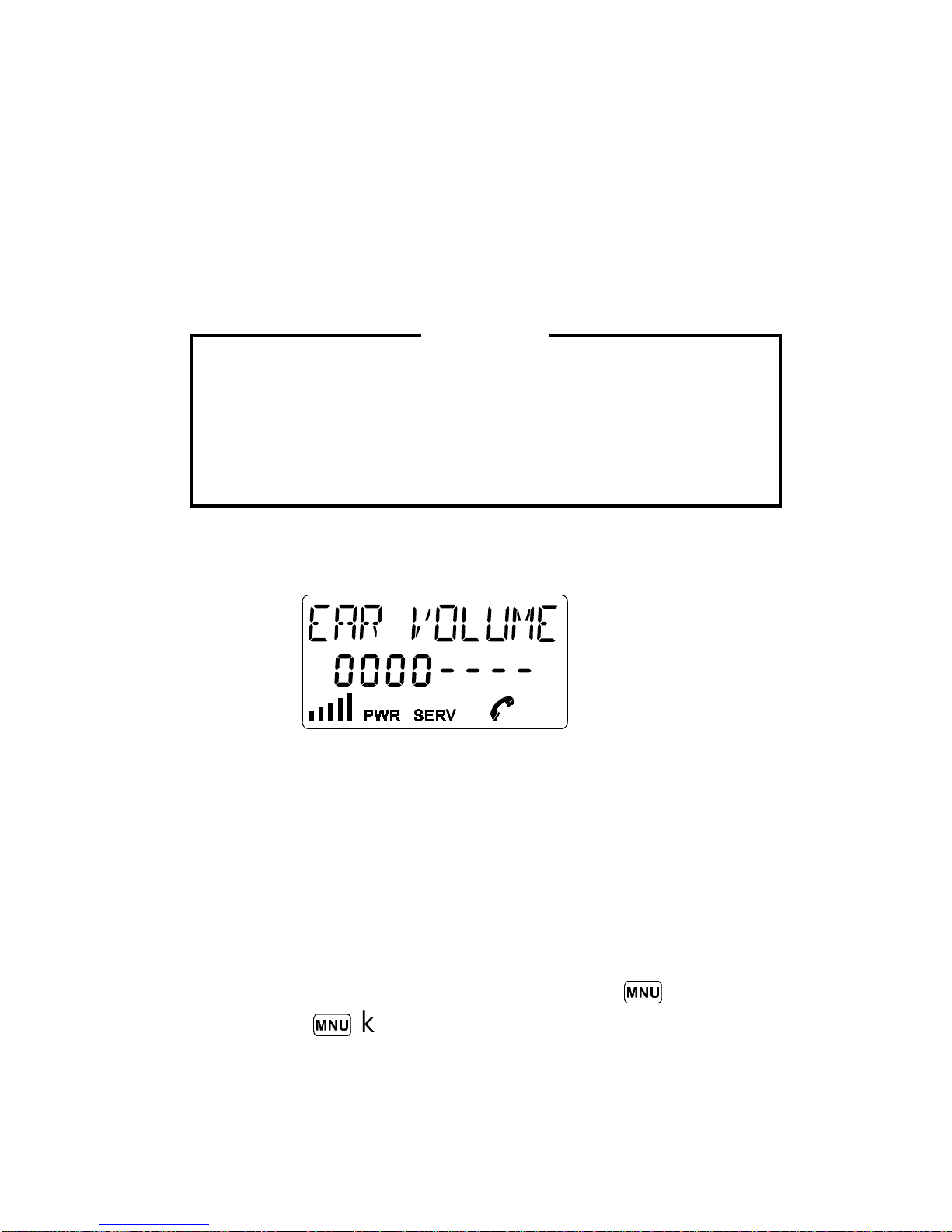

Thedisplaywillshowalineofzeroesrepresentingthe
volume level. This will remain as set, after the phone is
turned off.
MUTE KEY
MDuring a conversation, the microphone can be
deactivated by holding down the M key. Re-
lease the M key to resume the conversation.
There are separate volume levels for hand-
held & handsfree modes for both earpiece/
speaker and the keypad tones.
NOTE
12

AIR TIME METER
At end of a call, the elapsed air time, in minutes and
seconds, is displayed for two seconds.
The air time of the outgoing call includes the time
taken to connect the call.
TURNING THE TELEPHONE OFF
EPress and hold downthe
E key untilyou hear
a beep. If a call is in progress, end the call by
pressing and releasing the E key, wait a few
seconds, and then press and hold down the
E key until you hear a beep.
Minutes Seconds
The air time meter is only a guide; actual billing
time from your service provider may differ.
NOTE
13

DISPLAY, KEYPAD, AND AUDIBLE SIGNALS
DISPLAY

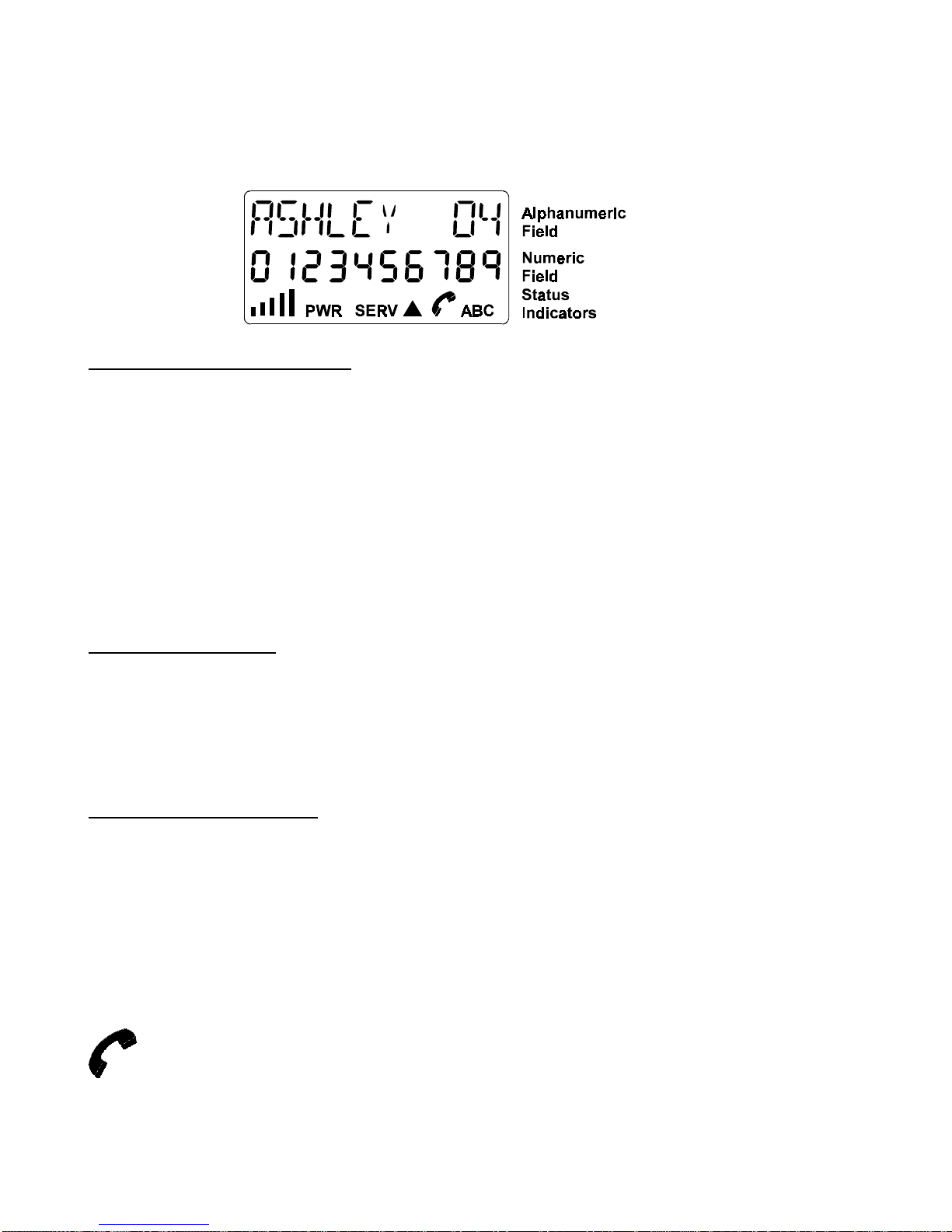

Alphanumeric Field
•Displays names and memory locations, etc.
•Displays messages, queries, and warnings.
•Displays "air time" at end of a call.
•Displays battery level indicator.
Numeric Field
Displays the telephone number entered on the key-
pad, or recalled from memory.
Status Indicators
PWR Power. Indicates that the radio is turned
on.
SERV Service.Indicatescontrolchannel.
InUse.Shownduringacallandalsowhile
anoutgoingcallisbeingconnected.
14

ABC Alpha Mode.Flashes to indicate that you
canenterletterswiththenumerickeys.
Signal Strength Indicator. From 0 to 5
bars will be displayed to show signal
strength;fivebars being the strongest sig-
nal.
KEYPAD
15

EEND ON/OFF
If a call is in progress, pressing E terminates
the call.Otherwise you can turn the radio ON or
OFF by holding down the key until you hear a
beep. This key is also used to exit from any
sub-mode and return to the standby mode.May
also be used to delete all entered digits while
outside of a call.
SSEND
Places a call after a number has been entered,
or recalled from the memory, and answers an
incoming call.
MMENU
This key has two different functions: 1) MENU
and 2) Mute Key.
MENU
MPress to select the Special Functions of
the radio. Refer to chapter,
User Menu
Functions
.
M* Press
M and, within two seconds, * to
enter an automatic two (2) second pause
before a sequence of digits that is to be
sentinaclusterasDTMFsignals.
16

M# Press
M and, within two seconds, # to
enter a manual pause before a sequence
of digits that is to be sent in a cluster as
DTMF signals. Transmission of DTMF
toneswillstopuntilre-initiatedbypressing
M andthen S .
MSPress
M and,withintwoseconds, S to
send a sequence of digits in a cluster as
DTMF signals.Refer tothe chapter
DTMF
Signaling
.
Mute Key (Microphone Mute)
MHold down
M to mute the microphone
during a conversation. If the telephone is
used with hands free equipment, the
separatemicrophonewillbemuted.
Volume Control
>
<
To change the volume simply press and
hold up or down arrows until the desired
levelisreached.Iftheradioisinhandsfree
operation, the loudspeaker volume will be
adjusted.
17

CCLEAR
Pressthe C keyforeitherofthefollowing
functions.
1. If C is pressed momentarily, it erases
the last digit or letter entered.Clear can
beexecutedrepeatedlytoeraseseveral
characters.
2. If C is held down for at least one
second, it erases all digits displayed,for
example, a telephone number from the
display.
NumericKeys
12
. . . 90
Used to enter telephone numbers to be
called,orstoredinthememory.
Used to enter memory locations when re-
callingtelephonenumbers.
Usedtoscrolltoanoptionwithinthemenu
function.
When in Alpha mode, letters and digits
can be entered.Press the appropriate nu-
merickeyonce,twice,3or4timesaccord-
ing to the position of the desired letter on
thekey.(Digitisfourthposition).
18

*
Star
Used when entering an automatic pause
before a sequence of digits that is to be
sent in a cluster as DTMF signals. Press
M andthen,withintwoseconds, * .Re-
fertothechapter,
DTMFSignaling
.
Used in Alpha mode to enter a space or a
star.
#
Pound
Used when entering a manual pause be-
fore a sequence of digits that is to be sent
in a cluster as DTMF signals. Press M
andthen,withintwoseconds # .Refer to
thechapter,
DTMFSignaling.
Illumination
The display and keys are illuminated.
The light will be on if the phone is being dialed, or if a
key has been pressed. After 10 seconds of inactivity the
light will automatically turn off. See the chapter on
User
Menu Functions
for further information on this option.
19

ALERTTONES
The DPE-100 radio generates a set of unique alert
tones to indicate operating status.The following section
identifies and describes the alert tones used in the
Duplex radio for EDACS applications.
CALL ORIGINATE ALERT
Ifprogrammed,ashort toneissoundedwheneverthe
S key is pressed and the radio has acquired a
channel.This tone indicates the user may begin com-
munications.
CALL QUEUED
If one short, high pitched tone sounds after the trans-
mitter is keyed, this indicates that the system has
placed the request in a queue. This tone sounds at
both the transmitting unit and the receiving unit(s),
indicating to the user on the receiving end that they
will receive a call shortly. If the S key is pressed
while in queue, the radio autokeys (automatically
keys) sends when a channel becomes available (see
AUTOKEY).
AUTOKEY
When the S key is pressed to place a call on the
system, but is released before the channel is as-
signed (e.g. a queued call), the radio automatically
keys onthe channel whenitgets theassignment.The
radiogeneratesalongbeepandholdsthetransmitter
keyed for two seconds.Pressing the S key keeps
the channel and sends the message before this two
second time-out has expired.
20
