Maintenance Manual
EDACSDPE-100
800 MHz Duplex Portable Radio

A
E/LZB 119 1649 R1A
2
Copyright October 1995, Ericsson Inc.
NOTE
Repairs to this equipment should be made only by an authorized service technician or facility designated by the supplier. Any
repairs, alterations or substitution of recommended parts made by the user to this equipment not approved by the
manufacturer could void the user’s authority to operate the equipment in addition to the manufacturer’s warranty.
NOTICE!
The software contained in this device is copyrighted by Ericsson Inc. Unpublished rights are reserved under the copyright
laws of the United States.
This manual is published by Ericsson Inc., without any warranty. Improvements and changes to this manual necessitated by typographical errors,
inaccuracies of current information, or improvements to programs and/or equipment, may be made by Ericsson Inc., at any time and without notice. Such
changes will be incorporated into new editions of this manual. No part of this manual may be reproduced or transmitted in any form or by any means,
electronic or mechanical, including photocopying and recording, for any purpose, without the express written permission of Ericsson Inc.

AE/LZB 119 1649 R1A
3
Page
SPECIFICATIONS......................................................................................................................................................................4
DESCRIPTION...........................................................................................................................................................................5
RELATED MANUALS...........................................................................................................................................................5
RADIO FEATURES................................................................................................................................................................5
USER PROGRAMMABLE FEATURES................................................................................................................................5
PC PROGRAMMABLE FEATURES.....................................................................................................................................5
CONTROLS AND INDICATORS..........................................................................................................................................6
Display.................................................................................................................................................................................6
Illumination..........................................................................................................................................................................7
OPTIONS AND ACCESSORIES ...........................................................................................................................................7
PLACING AN INTERCONNECT CALL...............................................................................................................................8
Volume Control ...................................................................................................................................................................8
Mute Key.............................................................................................................................................................................8
LAST NUMBER RE-DIAL.....................................................................................................................................................8
A CALL IS UNSUCCESSFUL OR A CALL IN PROGRESS IS INTERRUPTED...............................................................8
ANSWERING AN INTERCONNECT CALL........................................................................................................................9
UNANSWERED CALL COUNTER ......................................................................................................................................9
TURNING THE RADIO OFF.................................................................................................................................................9
PREVENTIVE MAINTENANCE...........................................................................................................................................9
PERSONALITY PROGRAMMING.....................................................................................................................................10
Personality Programming Mode ........................................................................................................................................10
FLASH PROGRAMMING....................................................................................................................................................10
TEK Box And Utility Software .........................................................................................................................................11
TROUBLESHOOTING ........................................................................................................................................................13
DISASSEMBLY....................................................................................................................................................................15
Radio Disassembly.............................................................................................................................................................15
Circuit Board Removal......................................................................................................................................................15
ASSEMBLY..........................................................................................................................................................................15
Circuit Board Installation...................................................................................................................................................15
Radio Assembly.................................................................................................................................................................15
TABLE OF CONTENTS

A
E/LZB 119 1649 R1A
4
SPECIFICATIONS
GENERAL
FCC Identification Number AXATR-339-A2
DOC Model Number TR339
Dimensions (H x W x D): 5” x 2” x 1” (127 x 50.8 x 25.4 mm)
Weight:8 oz (227 g) (with Medium capacity battery)
Battery Life:
Extra high capacity battery Standby: 40 hours
Continuous talk time: 1.8 hours
High capacity battery Standby: 34.5 hours
Continuous talk time: 1.5 hours
Maximum Capacity:
EDACS Systems 43
Operating Voltage: 6 VDC (nominal)
Operating Temperature Range: -22°F to + 140°F (-30°C to +60°C)
ENVIRONMENTAL
Standard: EIA/IS-19-B
High Humidity: 4.2
Vibration: 4.3
Shock 4.4
TRANSMITTER (25 kHz Channel)
Frequency Range (MHz): 806-824
Rated Output Power (Watts): 0.6
RF Output Impedance (Ohms): 50
Frequency Stability (ppm): 1.5%
Conducted and Radiated Spurious (dBc):-60
FM Hum and Noise (dB): -30
Audio Response (per EIA 603): max 5%
RECEIVER (25 kHz Channel)
Frequency Range (MHz): 851-870
RF Input Impedance (Ohms): 50
Sensitivity (dB per EIA 603 12 dB SINAD): -115
Selectivity (dB per EIA 603): -57
Frequency Stability (ppm): 1.5%
Intermodulation Rejection (dB): -55
Spurious Rejection (dB): -60
FM Hum and Noise (dB): -30
Audio Response (per EIA 603): <5%
Audio Output (Watts): 0.03

AE/LZB 119 1649 R1A
5
DESCRIPTION
The DPE-100 is a synthesized, microprocessor-based,
high performance duplex portable FM radio designed to
optimize telephone interconnect functionality on EDACS
systems. The lightweight DPE-100 provides reliable
Telephone Interconnect operation in Enhanced Digital
Access Communications System (EDACS) trunking
environments. Duplex is provided in EDACS trunked
environments while operating in the Telephone Interconnect
Mode. Dispatch features such as group calls along with
conventional operation is not offered.
The DPE-100 radio is manufactured with advanced
state-of-the-art technology and designed with a minimum of
serviceable parts. It is not practical to service the radio to
component level (in the field). Technicians servicing this
radio should only be concerned with isolating a problem to
software or hardware. Repair is limited to reloading
software or replacing the circuit board. There are no
alignments or adjustments to be made. This manual
provides the instructions for:
•• basic radio operation
•• programming the radio personality and flash code
•• isolating a problem to hardware or software
•• disassembling the radio and replacing the circuit
board
RELATED MANUALS
Operator's Manual.....................................AE/LZT 123 1877
Vehicle Handsfree Installation..................AE/LZT 123 1654
Vehicle Handsfree User's Guide ...............AE/LZT 123 1655
EDACS-2 PC Programming Guide..........................TQ-3373
RADIO FEATURES
The lightweight (8 oz) DPE-100 provides cellular-like
duplex interconnect with the power and efficiency of
EDACS trunking. The radio takes advantage of EDACS
Infinitybattery technology and provides up to 40 hours of
standby on a single charge. The DPE offers all the duplex
interconnect features in a cellular telephone including:
• full duplex interconnect
• familiar telephone - style keypad
• 99-number redial
• last number redial for fast, effortless use
• call length timer
• two-line, 10-character alphanumeric display that's
backlit for nighttime use
USER PROGRAMMABLE FEATURES
•
Store Telephone
Number (name) Stores telephone numbers (names) in
memory.
•
Recall Telephone
Number (name) Recalls telephone numbers (names)
from memory.
•
EDACS System Change current EDACS System.
•
Electronic
Lock/Call
restrictions
Locks the radio to restrict
unauthorized use and accepts
personal lock code.
•
Battery Saver Selects amount of battery savings.
•
Ring Volume Changes ring volume and type.
•
Ring Tone Selects the ring tone frequency.
•
LCD contrast Sets LCD display contrast.
•
Answering
Methods Selects the type of answering method
for incoming calls.
•
Key Burst, Tones,
Clicks Selects whether keypad numeric keys
(0-9, #, *) produce DTMF tones or
key clicks.
•
Microphone Gain Selects the microphone gain.
•
Backlight Selector Keypad or display illumination to be
automatic or switched off.
•
Unanswered Call
Counter Records the number of unanswered
calls.
•
Auto Area Code Append an area code for all numbers
dialed.
•
Battery Voltage Shows the input battery voltage to the
radio, for example, 6-3 = 6.3 volts.
•
Personality
Programming Indicates the radio is in the PC
Programming mode.
•
Total
Accumulated Time Shows total air time since radio was
programmed.
•
Resettable
Accumulated Call
Time
Used to display total air time since las
billing period.
•
Last Call Time Shows minutes and seconds of last
call made.
•
Keypad Lock Locks the keypad so unintentional
key action has no effect on receiving
calls.
PC PROGRAMMABLE FEATURES
The DPE-100 is PC Programmable, which allows the
radio to be customized or upgraded quickly and easily. All
PC programmable functions are controlled by the
microprocessor and are field programmable using the
EDACS-2 PC Programmer and a compatible DOS based
PC. The programmable parameters are stored in a EPROM
and accessed by the microprocessor as needed. Refer to the
EDACS-2 PC Programming manual for detailed
programming instructions.

A
E/LZB 119 1649 R1A
6
CONTROLS AND INDICATORS
The 18-button keypad, the internal speaker and liquid
crystal display (LCD) are all located on the front of the
radio. Viewed from the front the microphone is located in
the lower left corner and the earpiece is located above the
display. The Antenna is located on top of the radio on the
left side.
Display
PWR SERV
A
BC
Alphanumeric
Field
Numeric Field
Status Indicators
Figure 1 - Display
The Alphanumeric Field is on the top line of the
display. The Alphanumeric Field displays:
• Names and memory locations, etc.
• Messages, queries, and warnings.
• "Air Time" at end of a call.
• Battery level indicator.
The Numeric Field is on the second line of the display.
The Numeric Field displays the telephone number entered
on the keypad, or recalled from memory.
The Status Indicators are on the bottom line of the
display. The following is a description of each status
indicator
PWR Power. Indicates that the radio is turned on.
SERV Service. Indicates control channel.
In Use. Shown during a call and also while an
outgoing call is being connected.
ABC Alpha Mode. Flashes to indicate that you can
enter letters with the numeric keys.
Signal Strength Indicator. From 0 to 5 bars
will be displayed to show signal strength; five
bars being the strongest signal.
Figure 2 - DPE-100 Radio
MENU END
CLEAR
UP
NUMERIC
KEYS
POUND
STAR
DOWN
SEND
SEND
CLR
ENDPWR
MNU
1
QZ
2
AB
C
3
DE
F
4
GHI
5
JKL
6
MNO
7
PRS
8
TU
V
9
WXY
*
PHN
#
IND
0
Figure 3 - Keypad

AE/LZB 119 1649 R1A
7
Illumination
The display and keys are illuminated. The light will be
on if the phone is being dialed, or if a key has been pressed.
After 10 seconds of inactivity the light will automatically
turn off. See the Operator’s Manual for further information
on this option.
OPTIONS AND ACCESSORIES
The following is a list of the options and accessories
available for the DPE-100:
Option/Accessory Part Number
Vehicle Handsfree KRY 101 1613
Portable Handsfree Unit KRY 105 118/03
Power Adapter BML 161 57
Antenna KRE 103 1004
120Volt Rapid Charger BML 161 55
230 Volt Rapid Charger BML 161 58
Rapid Travel Charger BML 161 56
Belt Clip Kit (Standard) SXK 107 1885
Belt Clip Kit
Medium Capacity Battery SXK 107 3360/02
Standard Battery
Nickel Metal Hydride
(Slimline - 550 mAH)
BKB 193 076
Medium Capacity Battery
Nickel Metal Hydride
950 mAH
BKB 193 079
High Capacity Battery
Nickel Metal Hydride
1100 mAH
BKB 193 031
If it becomes necessary to install a belt clip, please
note: it is not possible to remove the belt clip from an
Extra High Capacity Battery without damaging the
belt clip or the battery. There is not a problem
removing the belt clip from High and Medium
Capacity batteries.
CAUTION
BASIC OPERATION
Turn the radio on by pressing the ENDPWR key until you
hear a beep.
The display illumination comes on. All the status
indicators and all the segments in the alphanumeric and
numeric fields in the display will flash 3 times. The radio's
LID number is displayed briefly:
LID
PWR
Figure 4 - LID Displayed At Power Up
A battery level indicator is shown in the upper right
corner of the display. This can be a value from B0 to B5 in
proportion to the battery's voltage level.
Once service is available from an EDACS system, the
SERV (Service) indicator comes on, together with a signal
strength meter and the CC SCAN goes off in the display.
This meter indicates the relative signal strength by
displaying from 0 to 5 "bars" ,with the number of bars being
proportional to the signal strength.
Battery Level
Indicator
Signal Strength
Indicator
Service Indicator
PWR SERV
Figure 5 - Service, Signal Strength and Battery Level
Indicators
• If the SERV indicator does not come on, you have
lost contact with the EDACS system and cannot,
therefore, place or receive any calls. Refer to
Operators Manual for further information.
• If no signal strength is shown, try moving the radio to
obtain a stronger signal. Refer to Operator's Manual
for further information.
NOTE

A
E/LZB 119 1649 R1A
8
PLACING AN INTERCONNECT CALL
1. Enter the desired number on the numeric keys. The
digits are shown in the display.
If you enter a wrong digit or a wrong number, erase a
wrong digit by pressing the CLR key momentarily. You
may delete all wrong digits individually like this, or
eliminate all entered digits by holding the CLR key for
approximately 1 second. If you are not in a call,
pressing the ENDPWR key will also delete all entered
digits.
2. When you have entered the number, press the SEND
key.
The text "DIALING" shows in the display and the
phone symbol comes on.
DIALING appears
Phone symbol
appears
PWR SERV
Figure 6 - DIALING and Phone Symbol Appears
When you have made contact with the EDACS system,
"DIALING" will disappear. The number dialed will remain
in the display until any key is pressed, or the call is ended, at
which time the minutes and seconds of the call will be
displayed. The left two digits show minutes, and the right
two digits show the seconds (separated by two dashes). The
air time of the outgoing call includes the time taken to
connect the call.
Minutes
Seconds
PWR SERV
Figure 7 - Length Of Call Displayed
The air time meter is only a guide; actual time may differ.
3. When the conversation is finished, press ENDPWR.
If nobody answers or there is a busy or fast busy
tone, press ENDPWR. The telephone number will be
retained in the memory and you can easily repeat the
call.
Volume Control
During a conversation you can adjust the volume of the
earpiece with the ì í keys. Press and hold to increase or
decrease the volume. The volume of the keypad tones may
be adjusted in the same manner when not in a conversation.
There are separate volume levels for hand held and
handsfree modes for both earpiece/speaker and the keypad
tones.
The display will show a line of zeroes representing the
volume level. This will remain as set, after the phone is
turned off.
Figure 8 - Adjusting The Volume Of The Earpiece
Mute Key
During a conversation, the microphone can be
deactivated by holding down the MNU key. Release the MNU
key to resume the conversation.
LAST NUMBER RE-DIAL
1. Press
MNU, then
ì to scroll to the RECALL function.
2. Then press
MNU.
The word LAST DIAL will appear and the last dialed
number will be displayed.
3. Press SEND to place the call.
The last number called will remain in the memory even
though the radio is turned off.
A CALL IS UNSUCCESSFUL OR A CALL IN
PROGRESS IS INTERRUPTED
An error signal (a short beep) is heard. Observe the
signal strength indication in the display. The signal strength
should be at least “1”. Refer to Appendix 1 in the Operator’s
Manual for further information.
NOTE
NOTE

AE/LZB 119 1649 R1A
9
ANSWERING AN INTERCONNECT CALL
1. When you are being called, the telephone rings
according to the setting in the Menu Mode. The top
indicator light rapidly flashes Green while "PHN
CALL" also flashes in the display. Press SEND to
answer. The phone symbol will light up and PHN
CALL will be removed.
2. When the conversation is finished, press ENDPWR.
Figure 9 - Receiving A Call
UNANSWERED CALL COUNTER
If one or more calls have not been answered, the
number of unanswered calls will be displayed. For example,
02 CALLS. The unanswered call counter will reset as soon
as you press any key.
TURNING THE RADIO OFF
Press and hold down the ENDPWR key until you hear a beep.
If a call is in progress, end the call by pressing and releasing
the ENDPWR key, wait a few seconds, and then press and
hold down the ENDPWR key until you hear a beep.
SERVICE SECTION
This Service Section provides the information necessary
for proper care and maintenance to obtain optimum
performance of the DPE-100 radio. In addition, this section
provides the steps to:
⇒ Program the radio (personality and flash)
⇒ Troubleshoot the radio (determine if a problem is
hardware or software)
⇒ Disassemble and reassemble the radio
⇒ Replace the circuit board
As stated previously, field repairs are limited to removal
and replacement of the printed circuit board and the
miscellaneous parts shown in the mechanical breakdown
on page 16.
The following is a complete list of the equipment required to
program or service the DPE-100 radio:
Equipment Description Part Number
1. Troubleshoot Box (includes):
• Test Cable
• DB9 (male) to DB9 (female) Cable
KRY 101 1612
KRY 101 1612/52
KRY 101 1612/53
2. TEK Box and Utility Software
(includes):
• PC Interface Cable
• Interface Adapter Cable
LPP 106 27
3. Alexander 4 Connector KRY 101 1062
4. No. 6 TORXdriver customer supplied
5. flat blade screwdriver customer supplied
6. IBM PC/XT/AT/286/386/486 or any
true compatible with MS-DOS
version 3.3 or later.
customer supplied
PREVENTIVE MAINTENANCE
• Keep the exterior of the radio clean. Use a soft damp
cloth.
• To ensure efficient power transfer from the battery to
the radio, periodically wipe the contacts of the battery
and radio to remove dirt or grease. Use a soft dry cloth.
• If it becomes necessary to install a belt clip, please
note; it is not possible to remove the belt clip
from an Extra High Capacity Battery without
damaging the belt clip or the battery. There is
not a problem removing the belt clip from High
and Medium Capacity batteries.
• Do not carry the radio by the antenna. Do not use
chemical cleaners, spray or petroleum based
products. They may damage the radio housing.
CAUTION
NOTE

A
E/LZB 119 1649 R1A
10
PERSONALITY PROGRAMMING
The EDACS-2 PC Programmer (TQ-3373) version 7or
later is used to edit, read or write the personality to the DPE-
100 radio. A personality is simply a computer file generated
(created) by the user of the EDACS-2 program. The
computer file (or personality) is downloaded into the radio
and contains data that will direct certain operating
characteristics of the radio unit.
The EDACS-2 PC Programming software
communicates with the radio through the Troubleshoot Box
(item 1 in the equipment list). Figure 10 provides a diagram
of the Equipment Setup required to PC Program the radio.
Refer to the PC Programming manual (TQ-3373) for
detailed software operating instruction.
If it becomes necessary to "Swap" the entire software
(personality and flash) from one radio to another, the TEK
Utility Software is used. With this process a personality
from a known good radio is downloaded to the radio in
question. However the TEK Utility cannot be used to edit
or read the personality. For more details on the TEK Utility
Software, see the FLASH PROGRAMMING Section .
Personality Programming Mode
The EDACS-2 PC Programmer cannot communicate
with the radio unless the radio is in the Programming Mode.
To place the DPE-100 radio in Programming Mode:
1. Locate PERS PROG from the user menu.
2. Press the MNU key.
3. Radio indicates programming mode by displaying
“PROGRAM”.
FLASH PROGRAMMING
The "FLASH" software is the current version of the
DPE-100 operating software. Upgrades to the Operating
Software can be Flashed to the radio.
The FLASH software is loaded into the radio using a
Personal Computer, the TEK Box (item 2 from the
equipment list) and the TEK Utility Software. The TEK
Utility Software can be used to swap the entire software
(Personality and FLASH) from one radio to another or, the
TEK Utility Software can be used to write the Flash from
disk to radio.
Figure 10 - Personality Programming Equipment Setup
ERICSSONUJKL
KRY1011612
DB-9
Serial
Port
DB-15
Test
Port
ON
OFF
MASTER PHONE
SERVICE AF PATH HOOK DIGITAL
MODE
AF IN
AF OUT
Test
Handset
12V
5V
OFF
BNC
HANDSET
ON
OFF
MODE 1
MODE 2
ON
Power Input
+15 VOLTS
Rear View Of
Computer
DB-9(M) to DB-9(F) Cable
KRY 101 1612/53
Test Cable
KRY 101 1612/52
Alexander 4
Connector
KRY 101 1062
Typical DPE-100
Radio
15 Volt
Wall Supply
KRY 101 1612/54

AE/LZB 119 1649 R1A
11
TEK Box And Utility Software
Installation
1. Insert the TEK software disk into the floppy disk drive
on the computer (item 6 on the equipment list).
2. Type "X:" <<enter>> , where "X" is the letter of the
disk drive.
3. Type "Install" <<enter >>.
4. The program will attempt to install the executable to the
C:\TEK directory. If the directory does not exist the
program will prompt to create the directory. Type "Y"
<<enter>>. The program will copy the executable.
Equipment Setup
For downloading the Flash software file, setup the items
required from the equipment list as shown in Figure 14. For
a software exchange, setup the items required from the
equipment list as shown in Figure 15.
Starting The Program
The TEK Utility Software will not run while in Windows.
Type "Flasher" to start the program. The Software
Download Screen will appear as shown in Figure 11.
----===> Flasher -- PC Download Software -- Copyright Ericsson GE, 1993 <===----
ÉÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍ Directory ÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍ»uÉÍÍÍÍÍÍÍÍÍÍ Message ÍÍÍÍÍÍÍÍÍÍ»
º Directory: º º º
º C:\TEK º º Software Download Options º
º __________________________________________ º º º
º . ºtº Arrows - Move Cursor º
º .. ºcº º
º ºoº F2 - Choose Drive º
º ºuº F3 - Enter Path º
º º º F4 - Port Selection º
º º º F8 - Telephone Exchangeº
º º º F9 - About Flasher º
º ºtÈÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍͼ
º ºcsson GE Mobile Communications
º ºobile Communications Ericsson G
º ºuÉÍÍÍÍÍÍÍÍÍÍ Status ÍÍÍÍÍÍÍÍÍÍÍ»
º º º Num of Ports: 1 COM1 º
º º º º
º º º File Name : º
º ºtº File Format : º
º ºcº º
º ºoº Baud Rate : Auto Select º
º ºuº Current Mode: File Select º
º º º º
ÈÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍͼ ÈÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍͼ
Figure 11 - Software Download
Changing Drives/Path
Press F2 - Choose Drive to select another drive or F3 -
Enter Path to change the path of the current drive. When
downloading a Flash file to the radio, these function keys are
used to select the proper drive and path where the Flash file
is located.
----===> Flasher -- PC Download Software -- Copyright Ericsson GE, 1993 <===----
ÉÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍ Directory ÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍ»uÉÍÍÍÍÍÍÍÍÍÍ Message ÍÍÍÍÍÍÍÍÍÍ»
º Directory: ÉÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍ» º º º
º C:\TEK º º º º Software Download Options º
º _____________________º Select Drive º___ º º º
º . º º ºtº Arrows - Move Cursor º
º .. º A: º ºcº º
º º B: º ºoº F2 - Choose Drive º
º º C: º ºuº F3 - Enter Path º
º º º º º F4 - Port Selection º
º ÈÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍͼ º º F8 - Telephone Exchangeº
º º º F9 - About Flasher º
º ºtÈÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍͼ
º ºcsson GE Mobile Communications
º ºobile Communications Ericsson G
º ºuÉÍÍÍÍÍÍÍÍÍÍ Status ÍÍÍÍÍÍÍÍÍÍÍ»
º º º Num of Ports: 1 COM1 º
º º º º
º º º File Name : º
º ºtº File Format : º
º ºcº º
º ºoº Baud Rate : Auto Select º
º ºuº Current Mode: File Select º
º º º º
ÈÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍͼ ÈÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍͼ
Figure 12 - Change Drive
Port Selection
Select F4 - Port Selection to define COMM port parameters
for downloading files. The screen in Figure 13 will appear.
: Change the port selected by pressing "A" until the
desired selection is displayed. Be sure the COMM port
selected here matches the physical COMM port the
programming cable is connected to on the computer.
: Change the baud rate by pressing "F" until the desired
baud rate is displayed. The maximum bit rate should be
set to 9600 bps.
: It is usually not required to change COMM port
hardware settings. But if a problem is suspected, press
"G" to change the setup. Refer to the computer manual
for proper settings.
----===> Flasher -- PC Download Software -- Copyright Ericsson GE, 1993 <===----
ÉÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍ Directory ÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍ»uÉÍÍÍÍÍÍÍÍÍÍ Message ÍÍÍÍÍÍÍÍÍÍ»
º Directory: º º º
º C:\TEK ÉÍÍÍÍÍÍÍÍÍ| Comm Port Selection |ÍÍÍÍÍÍÍÍ»ownload Options º
º _________________º º º
º . º Data will be transferred to the ºove Cursor º
º .. º following ports: º º
º º ºhoose Drive º
º º A: COM1 ºnter Path º
º º ºort Selection º
º º ºelephone Exchangeº
º º ºbout Flasher º
º º ºÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍͼ
º º E: Number of Comm Ports (1) ºe Communications
º º F: Maximum Baud Rate (Auto) ºations Ericsson G
º º G: Comm Port Hardware Setup ºtatus ÍÍÍÍÍÍÍÍÍÍÍ»
º º ºs: 1 COM1 º
º º Change which setting? º º
º º º : º
º º ( Press ESC or Return to Exit ) º : º
º ÈÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍͼ º
º ºoº Baud Rate : Auto Select º
º ºuº Current Mode: File Select º
º º º º
ÈÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍͼ ÈÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍͼ
Figure 13 - COMM Port Selection
Flash File Download
From the Software Download Screen, shown in Figure 16
use the éê arrow keys to highlight the proper Flash file to
download. As described previously, change the Drive or
Path as required.
Press <<enter>> to start the download. During the
download process, a percentage bar provides an indication
of the progress of the download.
NOTE

A
E/LZB 119 1649 R1A
12
Figure 14 - Flash Download Equipment Setup
Figure 15 - Software Exchange Equipment Setup

AE/LZB 119 1649 R1A
13
----===> Flasher -- PC Download Software -- Copyright Ericsson GE, 1993 <===----
ÉÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍ Directory ÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍ»uÉÍÍÍÍÍÍÍÍÍÍ Message ÍÍÍÍÍÍÍÍÍÍ»
º Directory: º º º
º C:\TEK º º Software Download Options º
º __________________________________________ º º º
º . ºtº Arrows - Move Cursor º
º .. ºcº º
º ºoº F2 - Choose Drive º
º ºuº F3 - Enter Path º
º º º F4 - Port Selection º
º º º F8 - Telephone Exchangeº
º º º F9 - About Flasher º
º ºtÈÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍͼ
º ºcsson GE Mobile Communications
º ºobile Communications Ericsson G
º ºuÉÍÍÍÍÍÍÍÍÍÍ Status ÍÍÍÍÍÍÍÍÍÍÍ»
º º º Num of Ports: 1 COM1 º
º º º º
º º º File Name : º
º ºtº File Format : º
º ºcº º
º ºoº Baud Rate : Auto Select º
º ºuº Current Mode: File Select º
º º º º
ÈÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍͼ ÈÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍͼ

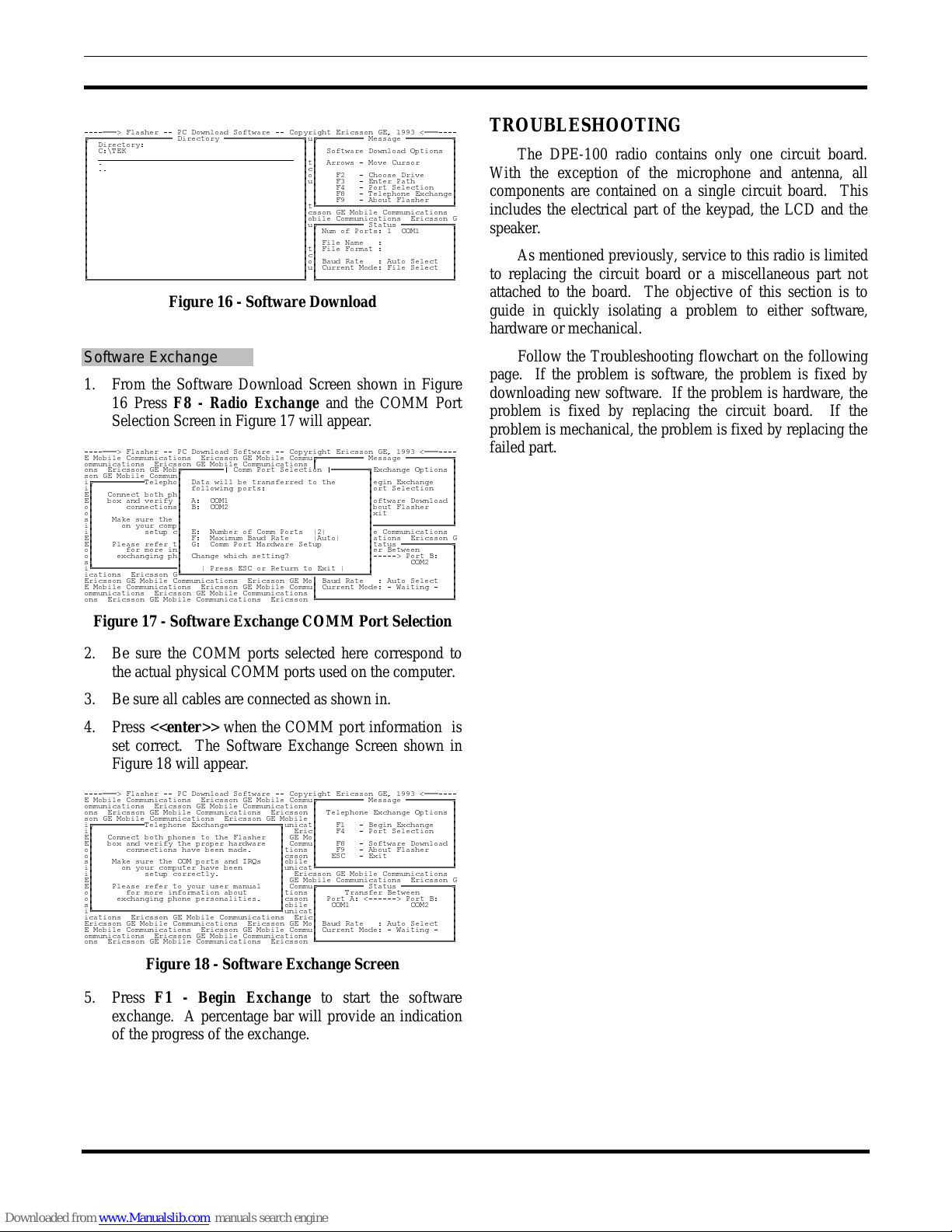

Figure 16 - Software Download
Software Exchange
1. From the Software Download Screen shown in Figure
16 Press F8 - Radio Exchange and the COMM Port
Selection Screen in Figure 17 will appear.
----===> Flasher -- PC Download Software -- Copyright Ericsson GE, 1993 <===----
E Mobile Communications Ericsson GE Mobile CommuÉÍÍÍÍÍÍÍÍÍÍ Message ÍÍÍÍÍÍÍÍÍÍ»
ommunications Ericsson GE Mobile Communications º º
ons Ericsson GE MobÉÍÍÍÍÍÍÍÍÍ| Comm Port Selection |ÍÍÍÍÍÍÍÍ»Exchange Options º
son GE Mobile Communº º º
iÉÍÍÍÍÍÍÍÍÍÍÍTelephoº Data will be transferred to the ºegin Exchange º
iº º following ports: ºort Selection º
Eº Connect both phº º º
Eº box and verify º A: COM1 ºoftware Download º
oº connectionsº B: COM2 ºbout Flasher º
oº º ºxit º
sº Make sure the º º º
iº on your compº ºÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍͼ
iº setup cº E: Number of Comm Ports (2) ºe Communications
Eº º F: Maximum Baud Rate (Auto) ºations Ericsson G
Eº Please refer tº G: Comm Port Hardware Setup ºtatus ÍÍÍÍÍÍÍÍÍÍÍ»
oº for more inº ºer Between º
oº exchanging phº Change which setting? º-----> Port B: º
sº º º COM2 º
iÈÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍͺ ( Press ESC or Return to Exit ) º º
ications Ericsson GÈÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍͼ º
Ericsson GE Mobile Communications Ericsson GE Moº Baud Rate : Auto Select º
E Mobile Communications Ericsson GE Mobile Commuº Current Mode: - Waiting - º
ommunications Ericsson GE Mobile Communications º º
ons Ericsson GE Mobile Communications Ericsson ÈÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍͼ
Figure 17 - Software Exchange COMM Port Selection
2. Be sure the COMM ports selected here correspond to
the actual physical COMM ports used on the computer.
3. Be sure all cables are connected as shown in.
4. Press <<enter>> when the COMM port information is
set correct. The Software Exchange Screen shown in
Figure 18 will appear.
----===> Flasher -- PC Download Software -- Copyright Ericsson GE, 1993 <===----
E Mobile Communications Ericsson GE Mobile CommuÉÍÍÍÍÍÍÍÍÍÍ Message ÍÍÍÍÍÍÍÍÍÍ»
ommunications Ericsson GE Mobile Communications º º
ons Ericsson GE Mobile Communications Ericsson º Telephone Exchange Options º
son GE Mobile Communications Ericsson GE Mobile º º
iÉÍÍÍÍÍÍÍÍÍÍÍTelephone ExchangeÍÍÍÍÍÍÍÍÍÍÍ»unicatº F1 - Begin Exchange º
iº º Ericº F4 - Port Selection º
Eº Connect both phones to the Flasher º GE Moº º
Eº box and verify the proper hardware º Commuº F8 - Software Download º
oº connections have been made. ºtions º F9 - About Flasher º
oº ºcsson º ESC - Exit º
sº Make sure the COM ports and IRQs ºobile º º
iº on your computer have been ºunicatÈÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍͼ
iº setup correctly. º Ericsson GE Mobile Communications
Eº º GE Mobile Communications Ericsson G
Eº Please refer to your user manual º CommuÉÍÍÍÍÍÍÍÍÍÍ Status ÍÍÍÍÍÍÍÍÍÍÍ»
oº for more information about ºtions º Transfer Between º
oº exchanging phone personalities. ºcsson º Port A: <------> Port B: º
sº ºobile º COM1 COM2 º
iÈÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍͼunicatº º
ications Ericsson GE Mobile Communications Ericº º
Ericsson GE Mobile Communications Ericsson GE Moº Baud Rate : Auto Select º
E Mobile Communications Ericsson GE Mobile Commuº Current Mode: - Waiting - º
ommunications Ericsson GE Mobile Communications º º
ons Ericsson GE Mobile Communications Ericsson ÈÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍͼ
Figure 18 - Software Exchange Screen
5. Press F1 - Begin Exchange to start the software
exchange. A percentage bar will provide an indication
of the progress of the exchange.
TROUBLESHOOTING
The DPE-100 radio contains only one circuit board.
With the exception of the microphone and antenna, all
components are contained on a single circuit board. This
includes the electrical part of the keypad, the LCD and the
speaker.
As mentioned previously, service to this radio is limited
to replacing the circuit board or a miscellaneous part not
attached to the board. The objective of this section is to
guide in quickly isolating a problem to either software,
hardware or mechanical.
Follow the Troubleshooting flowchart on the following
page. If the problem is software, the problem is fixed by
downloading new software. If the problem is hardware, the
problem is fixed by replacing the circuit board. If the
problem is mechanical, the problem is fixed by replacing the
failed part.

A
E/LZB 119 1649 R1A
14
Start
Power Switch On
Software Problem?
1. Reload Personality (Use EDACS-2
Programmer)
2. Reload Flash (Use TEK Utility Software)
3. Exchange Software with a working radio
(Use TEK Utility Software)
Hardware Problem?
1. Microphone Problem?
• check for proper contact with circuit board
• check for broken flex
• try auxilary microphone
• replace front cover
2. Antenna Problem (insufficient transmit power)?
• check for proper contact with circuit board
• try another antenna
Otherwise
3. Replace Circuit Board
Battery Problem?
1. Check to be sure battery contacts or not
broke or bent.
2. Clean battery contacts.
3. Check battery or replace battery.
Any Display
On The LCD?
Problem Fixed?
Any Display
On The LCD?
Problem Fixed?
End
No
Yes
Yes
Yes
No
Yes
No
No
Figure 19 - Troubleshooting Flowchart

AE/LZB 119 1649 R1A
15
DISASSEMBLY
Radio Disassembly
1. Be sure radio power is off.
2. Remove the battery from the radio.
3. Remove the antenna from the radio.
4. From the back of the radio, remove the (4) screws using
a No. 6 TORXdriver. See Figure 20.
5. Separate the front cover from the metal frame as shown
in Figure 21.
Circuit Board Removal
1. Use a small flatblade screwdriver (or your thumb), and
slip the two metal tabs at (A) back away from the circuit
board. Carefully work with each side to slip the board
out from under the metal tabs. See Figure 21.
2. Once the circuit board is out from under the metal tabs
at (A), slowly lift the bottom of the board out of the
metal frame and down, away from the metal tab at(B).
ASSEMBLY
Circuit Board Installation
1. Carefully place the circuit board on the metal frame.
Speaker should face away from the metal frame.
2. Be sure antenna contact/connector is aligned properly in
the metal frame and not bent.
3. Slip the top of the circuit board under the metal tab at
(B). Next, using a small flat blade screwdriver (or your
thumb) work with both sides of the board to slip the
metal tabs at (A) over the board. Press gently on the
board at all three tab location to be sure the tabs have
locked in place, securing the board. See Figure 21.
Radio Assembly
1. Mate the front cover to the rear metal frame. Be sure
the keypad is aligned properly.
2. Secure front cover to the metal frame using the (4)
screws removed previously. The longer screws (with
sleeve) should be used the two holes closest to the top
of the radio.
Remove (4) screws here
Figure 20 - Rear View Of Radio With Battery
Removed
Metal
Tabs
(A)
Metal
Tab (B)
Figure 21 - Front Cover Separated From Metal
Frame

A
E/LZB 119 1649 R1A MECHANICAL PARTS BREAKDOWN
Item Number Part Number Description
10 SXA 120 4203/2 Flip Cover.
11 ROA 117 2248 Printed Circuit Board
12 SXK 107 3368/55 Front Cover.
13 SXA 120 4202/1 Keypad.
14 SXK 107 1889/6 Rear Metal Frame.
15 SXA 120 973 Sleeve.
16 SXA 120 1029 Screw.
17 SBA 123 020/0050 Screw.
19 SXA 120 1032 Clip.
21 RLC 509 107/2 Transmitter Inset.
22 SXA 120 936 Holder.
Ericsson Inc.
Private Radio Systems
Mountain View Road
Lynchburg,Virginia 24502 AE/LZB 119 1649 R1A
1-800-528-7711 (Outside USA, 804-528-7711) Printed in U.S.A.
