Ericsson EDACS IPE-200 User manual

User’s Manual
EDACS®
Duplex Portables
IPE-200
ericssonz

NOTICE!
This manual covers Ericsson and General Electric
products manufactured and sold by Ericsson Inc.
NOTE!
Repairs to this equipment should be made only by an
authorizedservicetechnicianorfacilitydesignatedbythe
supplier. Any repairs, alterations or substitution of rec-
ommended parts made by the user to this equipment not
approved by the manufacturer could void the user’s
authority to operate the equipment in addition to the
manufacturer’s warranty.
This manual is published by Ericsson Inc., without any warranty.
Improvements and changes to this manual necessitated by typo-
graphical errors, inaccuracies of current information, or improvements
to programs and/or equipment, may be made by Ericsson Inc., at any
time and without notice. Such changes will be incorporated into new
editions of this manual. No part of this manual may be reproduced or
transmitted in any form or by any means, electronic or mechanical,
including photocopying and recording, for any purpose, without the
express written permission of Ericsson Inc.
The software contained in this device is copy-
righted by Ericsson Inc. Unpublished rights are
reserved under the copyright laws of the United
States.
NOTE
Copyright© May 1996, Ericsson Inc.
2

TABLE OF CONTENTS
INTRODUCTION . . . . . . . . . . . . . . . . . . 5
BASIC OPERATION . . . . . . . . . . . . . . . . 7
TURNING THE RADIO ON . . . . . . . . . . . . 7
PLACING AN INTERCONNECT CALL . . . . . . 8
Nobody Answers or You Hear a Busy or
Fast Busy Tone . . . . . . . . . . . . . . . . 9
Last Number Re-Dial . . . . . . . . . . . . . 9
A Call is Unsuccessful or a Call in Progress
is Interrupted . . . . . . . . . . . . . . . . . 10
ANSWERING AN INTERCONNECT CALL . . . 10
Unanswered call Counter . . . . . . . . . . 10
PLACING AN INDIVIDUAL CALL . . . . . . . . . 11
PLACING A GROUP CALL . . . . . . . . . . . . 11
PLACING AN EMERGENCY CALL . . . . . . . 12
ANSWERING AN INDIVIDUAL CALL . . . . . . 12
VOLUME CONTROL . . . . . . . . . . . . . . . 13
MUTE KEY . . . . . . . . . . . . . . . . . . . . 14
AIR TIME METER . . . . . . . . . . . . . . . . . 14
TURNING THE UNIT OFF . . . . . . . . . . . . 15
DISPLAY, KEYPAD, AND AUDIBLE SIGNALS . . . 15
DISPLAY . . . . . . . . . . . . . . . . . . . . . 15
Alphanumeric Field . . . . . . . . . . . . . 15
Numeric Field . . . . . . . . . . . . . . . . 15
Status Indicators . . . . . . . . . . . . . . . 16
BUTTON . . . . . . . . . . . . . . . . . . . . . 16
KEYPAD . . . . . . . . . . . . . . . . . . . . . . 17
MENU . . . . . . . . . . . . . . . . . . . . . . . . 18
Illumination . . . . . . . . . . . . . . . . . . 20
ALERTTONES . . . . . . . . . . . . . . . . . . . 21
AUDIBLE SIGNALS . . . . . . . . . . . . . . . . 23
Ringing Signal . . . . . . . . . . . . . . . . 23
Error Signal . . . . . . . . . . . . . . . . . 23
Malfunction Alarm Signal . . . . . . . . . . 23
ELECTRONIC LOCK AND CALL RESTRICTIONS 24
SETUP LOCK CODE . . . . . . . . . . . . . . . 25
STORING NUMBERS . . . . . . . . . . . . . . . 26
STORING A NUMBER (AND NAME) . . . . . . . 26
MEMORY PROTECTION . . . . . . . . . . . . . 28
MEMORY FULL . . . . . . . . . . . . . . . . . . 29
RECALLING NUMBERS . . . . . . . . . . . . . . 30
3

TABLE OF CONTENTS
Displaying Extended Digits . . . . . . . . . 30
Alpha Recall . . . . . . . . . . . . . . . . . 30
Recalling a Number by Entering the Memory
Location . . . . . . . . . . . . . . . . . . . 31
Appending Digits to a Recalled Number . . 32
Changing a Recalled Number . . . . . . . . 32
SPEED CALLING . . . . . . . . . . . . . . . . 32
ERASING A STORED NUMBER . . . . . . . . 33
RECALLING A NUMBER DURING A CALL . . . 33
DTMF SIGNALING . . . . . . . . . . . . . . . . . 34
DTMF SIGNALING USING THE KEYPAD . . . . 34
Pause Before Sending DTMF Signals . . . 35
SYSTEM SELECTION . . . . . . . . . . . . . . . 36
GROUP SELECTION . . . . . . . . . . . . . . . 36
GROUP SCAN . . . . . . . . . . . . . . . . . . . 37
ACCESSING USER MENU FUNCTIONS . . . . . 37
MENU FUNCTION DEFINITIONS . . . . . . . . 38
BATTERIES AND RECHARGING . . . . . . . . . 43
BATTERIES . . . . . . . . . . . . . . . . . . . 43
Battery Level Indicator . . . . . . . . . . . 43
Low Battery Alert . . . . . . . . . . . . . . 44
Care and Maintenance . . . . . . . . . . . 44
Rechargeable Battery Pack Disposal . . . . 45
Inserting and Removing a Battery . . . . . 46
RECHARGING . . . . . . . . . . . . . . . . . . 47
Using a Desk-Top Charger . . . . . . . . . 48
Restoring Battery Capacity . . . . . . . . . 49
APPENDIX 1 . . . . . . . . . . . . . . . . . . . . 50
FAULT TRACING . . . . . . . . . . . . . . . . . 50
No Power to the Radio . . . . . . . . . . . 50
SERV Indicator Does Not Come On . . . . 50
Received Signal is Weak . . . . . . . . . . 50
A Call Cannot be Placed . . . . . . . . . . 51
"LOCKED" Is Displayed . . . . . . . . . . . 51
WARRANTY . . . . . . . . . . . . . . . . . . . . 53
4

INTRODUCTION
This manual describes how to use the IPE-200 Port-
able Radios. The IPE (Infinity) is a synthesized, micro-
processor-based, duplex portable FM radio providing
reliable two-way communications in Enhanced Digital
Access Communications System (EDACS) trunking en-
vironments.
Duplex is provided in EDACS systems while operat-
ing in the Telephone Interconnect Mode. At other times,
the radio provides simplex communications, i.e. when
placing group calls in the EDACS environment. In an
EDACS trunked environment the user selects a commu-
nications system. In this mode, channel selection is
transparent to the user and is controlled via digital com-
munication with the system controller.This provides ad-
vanced programmable features and fast access to com-
munication channels.
Theexactoperationof the radiodepends on theradio
mode,theoperatingmode,theradio’sprogramming,and
the particular radio system. Most features described in
this manual may be enabled or disabled through pro-
gramming. Consult the system administrator for the re-
quired features to be programmed into the radio.
5

EMERGENCY
BUTTON
VOLUME
SPEAKER
LCD
DISPLAY
UPPER
MICROPHONE
MONITOR
BUTTON
PUSH-TO-
TALK
(PTT)
LOWER
MICROPHONE
6

BASIC OPERATION
TURNING THE RADIO ON
ETurn the radio on by holding down the
E
keyuntilyouhear abeep.
The display illumination comes on. All the status
indicators and all the segments in the alphanumeric and
numeric fields in the display will flash 3 times.
The radio’s LID number is displayed briefly.
A battery level indicator is shown in the upper right
corner of the display. This can be a value from B0 to B5
in proportion to the battery’s voltage level. You can read
more about this in the chapter
Batteries and Recharg-
ing
.
OnceserviceisavailablefromanEDACSsystem,the
SERV (Service) indicator comes on and the CC SCAN
goes off in the display.
Note the following points:
Own Logical ID Battery Level IndicatorSystem Indicator
7

•If the SERV indicator does not come on, you have
lost contact with the EDACS system and cannot,
therefore, place or receive any calls. Refer to
Appendix 1 for further information.
PLACING AN INTERCONNECT CALL
1. Enter the desired number on the numeric keys.
The digits are shown in the display.
If you enter a wrong digit or a wrong number:
Erase a wrong digit by pressing the
C
key mo-
mentarily. You may delete all wrong digits indi-
vidually likethis,oreliminate all entereddigits by
holding the
C
key for approximately 1 second.If
you are notin acall, pressing the
E
key will also
delete all entered digits.
2. When you have entered the number, press
S
.
The text "
DIALING
" shows in the display and
the TX and BSY symbols come on.
8

The number dialedwill remain inthedisplay until
any key is pressed, or the call is ended, at which
time the minutes and seconds of the call will be
displayed.
The left two digits show minutes, and the right
two digits show the seconds (separated by two
dashes).
3. When the conversation is finished, press
E
.
Nobody Answers or You Hear a Busy or Fast Busy
Tone
Press
E
.Thetelephonenumberwillberetained
inthememoryandyoucaneasilyrepeatthecall.
Last Number Re-Dial
MPress
M
, then
>
to scroll to the
RECALL
function. Then press
M
, the word
LAST
DIAL
will appear and the last dialed num-
berwillbedisplayed.Press
S
toplacethe
call.
The last number called will remain in the
memory even though the radio is turned
off.
9

A Call is Unsuccessful or a Call in Progress is
Interrupted
An error signal (a short beep) is heard. Refer to
Appendix 1 for further information.
ANSWERING AN INTERCONNECT CALL
When you are being called, the radio rings according
to the setting in the Menu Mode. The backlight flashes
Green while the word "CALL" also flashes in the display.
S
Press
S
to answer. The TX and BSY symbols
will light up and
CALL
will be removed.
EWhen the conversation is finished, press
E
.
Unanswered call Counter
If one or more calls have not been answered, the
number of unanswered calls will be displayed.For exam-
ple,
02 CALLS
. The unanswered call counter will reset
as soon as you press any key.
10

PLACING AN INDIVIDUAL CALL
1. Press the
#
key followed by the LID of the unit
you wish to call. These digits are shown in the
second line of the display.
If you enter a wrong digit or a wrong LID:
Erase a wrong digit by pressing the
C
key mo-
mentarily. You may delete all wrong digits indi-
vidually likethis,oreliminate all entereddigits by
holding the
C
key for approximately 1 second.If
you are notin acall, pressing the
E
key will also
delete all entered digits.

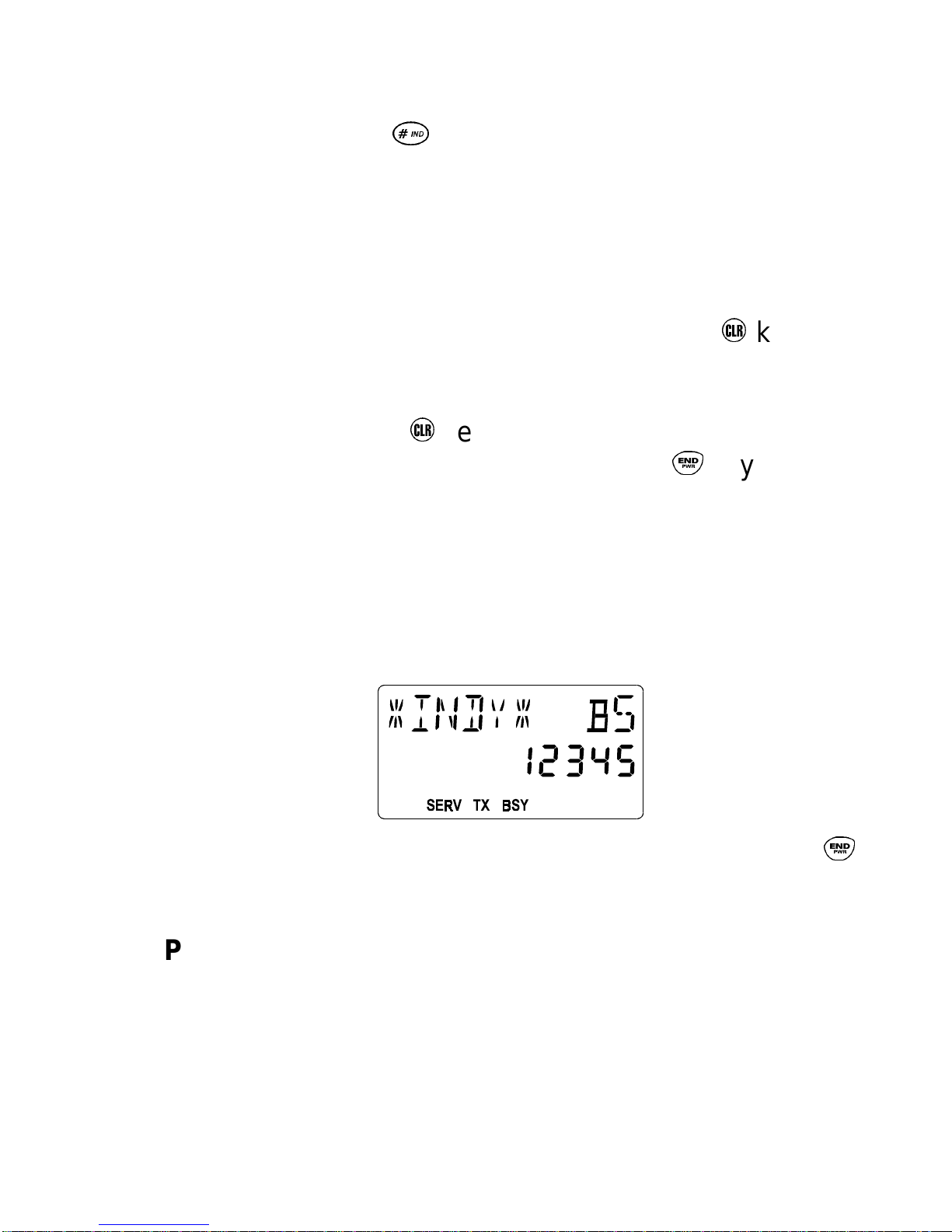

2. After you have entered the LID, press the [PTT]
key. Thetext"*INDV*"willappearonthefirstline
of the display.
3. When the conversation is finished, press the
E
key.
PLACING A GROUP CALL
ToplaceandEDACSGroupCallonthedesiredGroup
(refer to GROUP SELECTION for further information)
simply press the [PTT] key and speak into the micro-
phone.
11

PLACING AN EMERGENCY CALL
Press and hold the Emergency button for approxi-
mately 2 seconds. The Red LED will begin to flash and
the work *EMERG* will appear in the display.
To clear an EMERGENCY
(supervisory function only):
Select the Group where the Emergency is active.
Press the Emergency button and then the
C
key. The
radio will send the Clear Emergency message.
ANSWERING AN INDIVIDUAL CALL

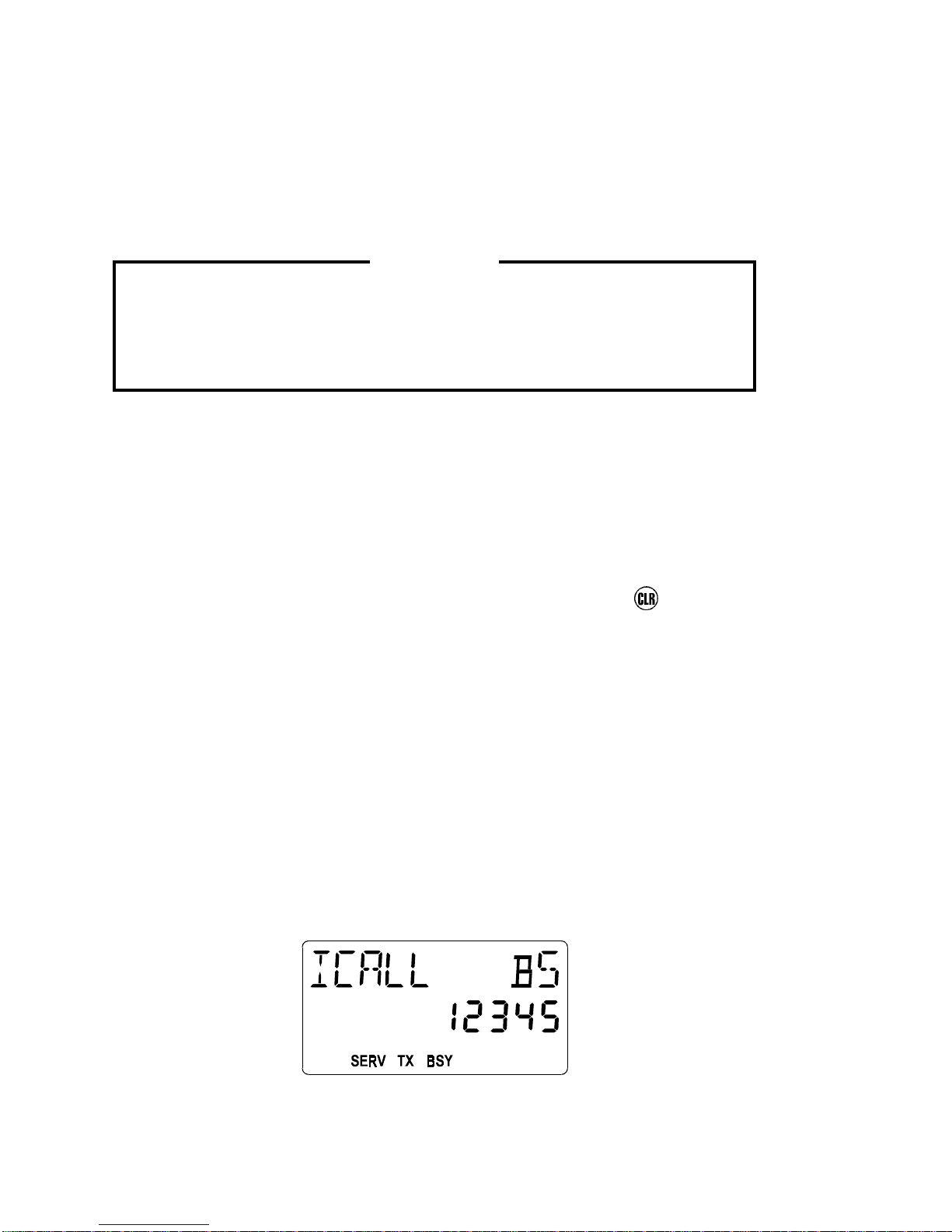

When you are being called, the radio will beep every
5 seconds to alert you of the incoming call and will
continue until any key is pressed. The backlight flashes
while the word "ICALL" and the calling unit’s LID flash in
the display.
Thisfeaturecanbedisabledintheradio’sperson-
ality.
NOTE
12

Press the [PTT] key to return the call, the flashing will
stop. The TX and BSY symbols will turn on while trans-
mitting. When the conversation is finished, press the
E
key.
Unanswered ICALLS will cause the WHC symbol to
flash. The LID of the calling radio can be recalled by
pressing
#
+
#
.

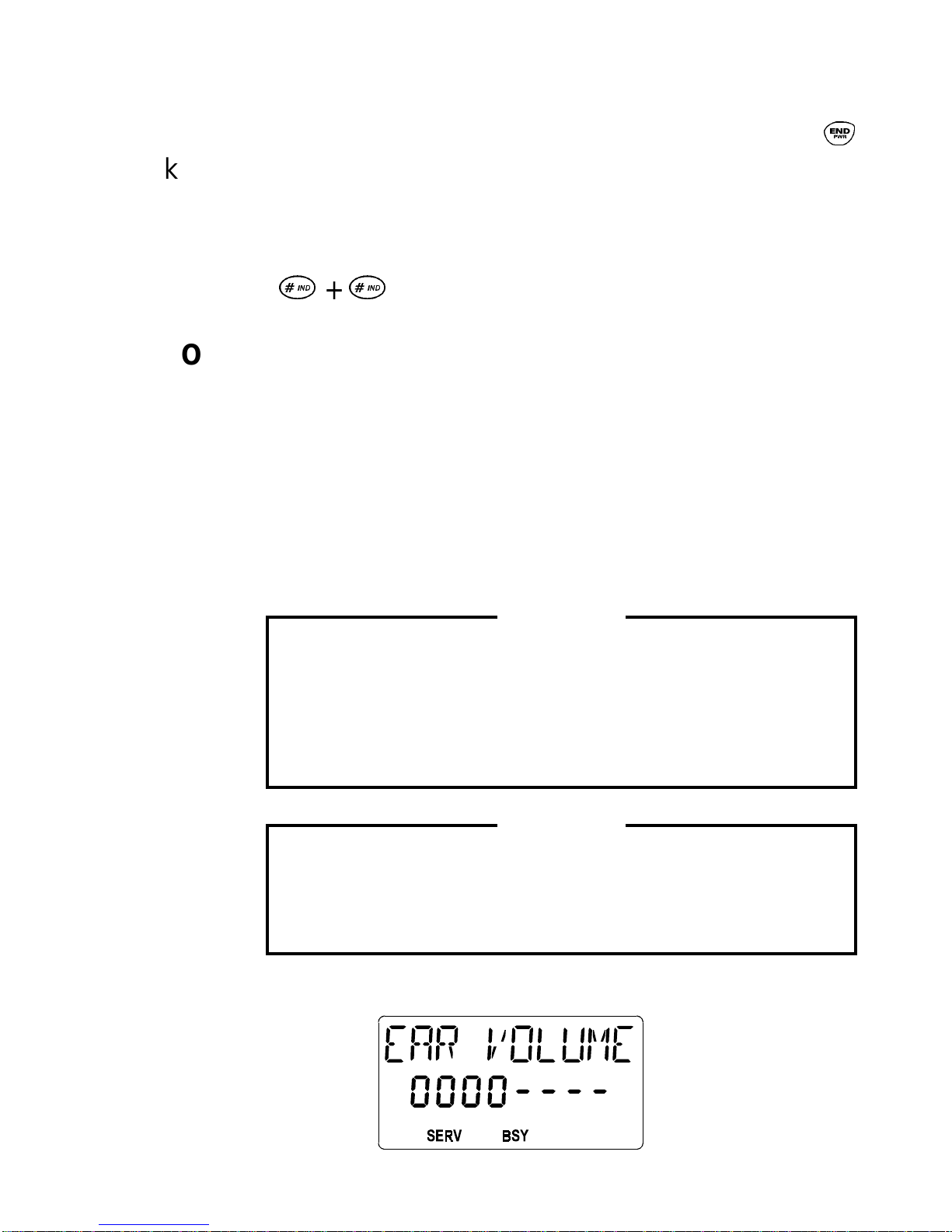

VOLUME CONTROL
<
>
Duringaconversationyoucanadjustthevolume
of the earpiece with these keys. Press and hold
to increase or decrease the volume.The volume
ofthekeypadtonesmaybeadjustedinthesame
manner when not in a conversation.
There are separate volume levels for hand-
held & handsfree modes for both earpiece/
speaker and the keypad tones.
NOTE
The volume level can also be adjusted by the
VOLUME control knob.
NOTE
13

Thedisplaywillshowalineofzeroesrepresentingthe
volume level. This will remain as set, after the radio is
turned off.
MUTE KEY
MDuring a conversation, the microphone can be
deactivated by holding down the
M
key.Release
the
M
key to resume the conversation.

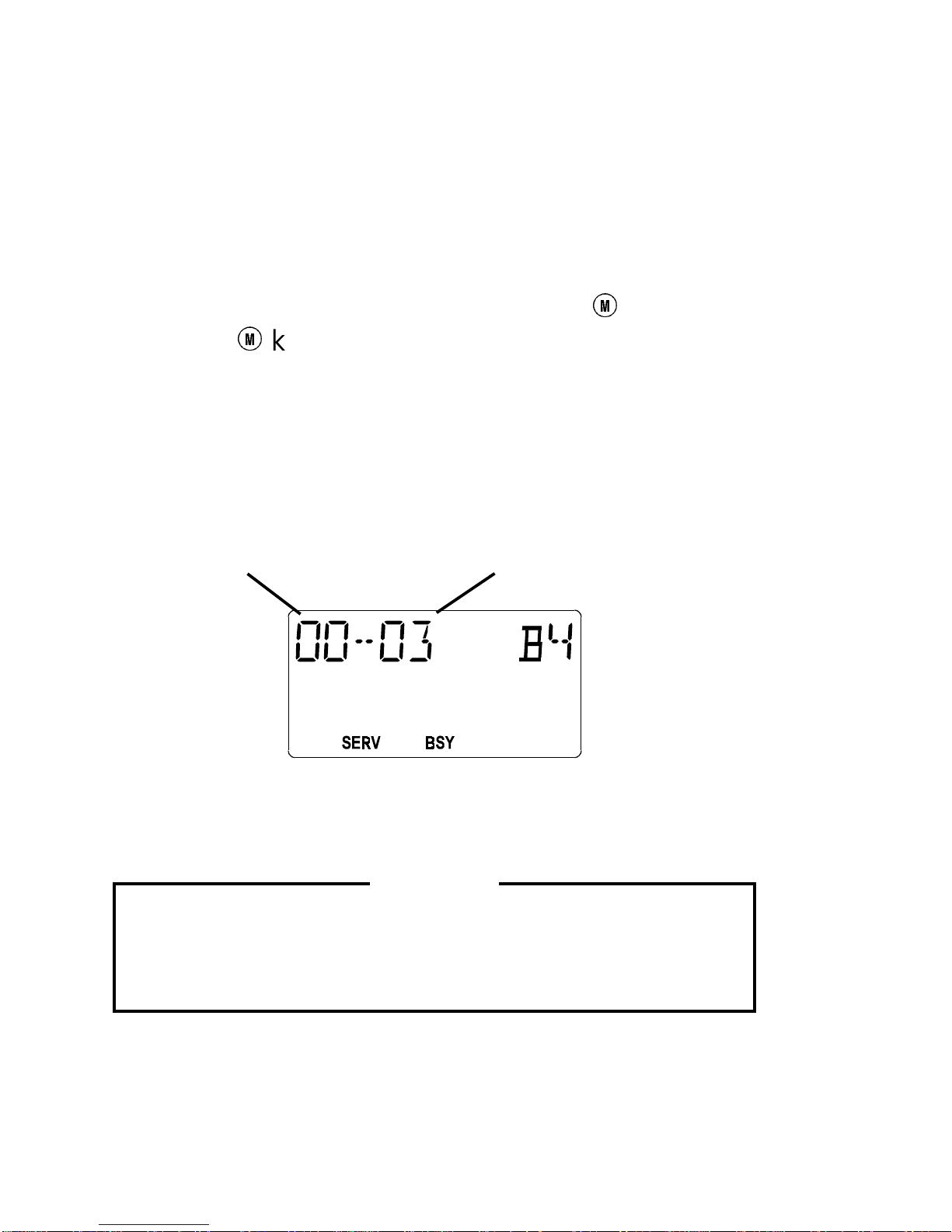

AIR TIME METER
At end of a call, the elapsed air time, in minutes and
seconds, is displayed for two seconds.
The air time of the outgoing call includes the time
taken to connect the call.
Minutes Seconds
The air time meter is only a guide; actual billing
time from your service provider may differ.
NOTE
14

TURNING THE UNIT OFF
EPress and hold down the
E
key until you hear
a beep. If a call is in progress, end the call by
pressing and releasing the
E
key, wait a few
seconds, and then press and hold down the
E
key until you hear a beep.

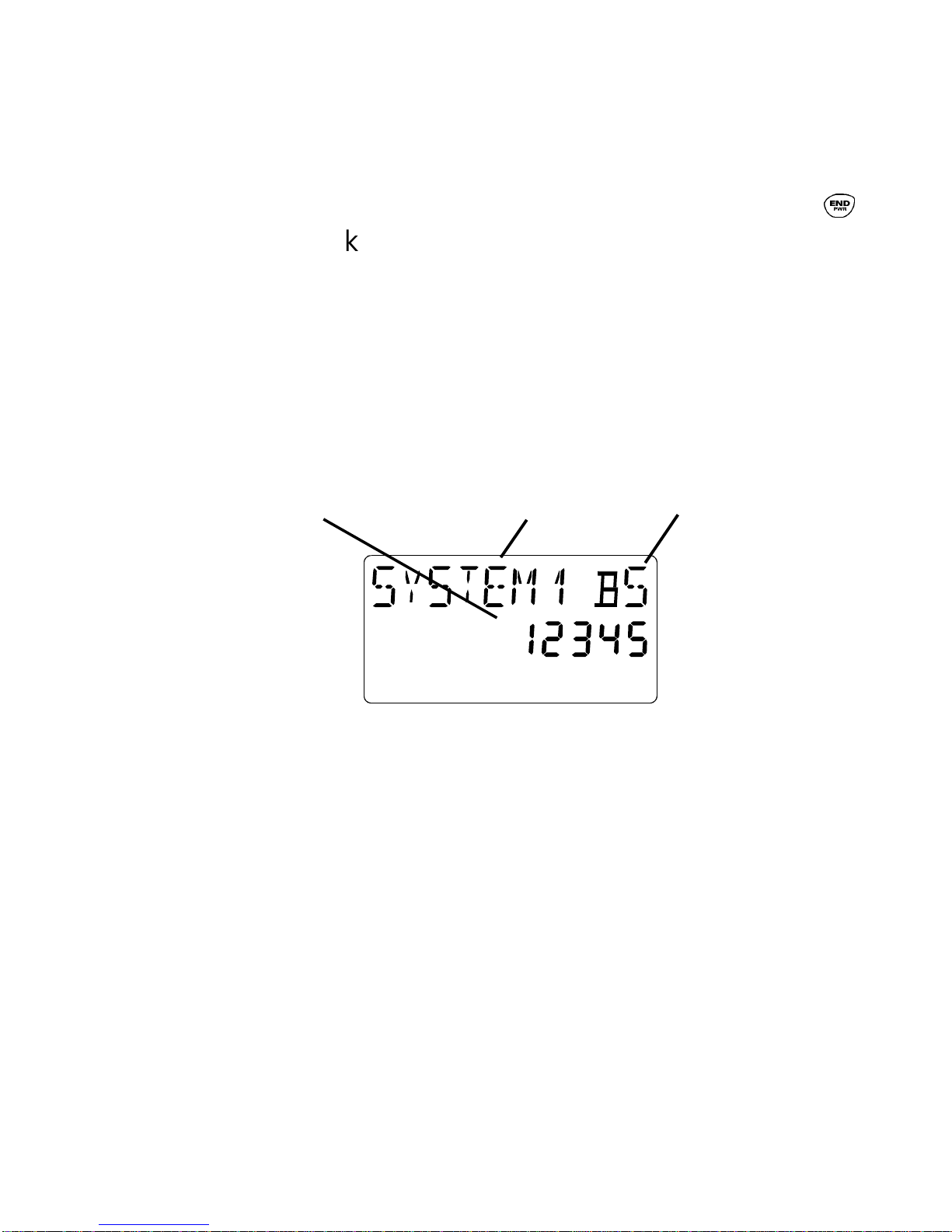

DISPLAY, KEYPAD, AND AUDIBLE SIGNALS
DISPLAY
Alphanumeric Field
•Displays names and memory locations, etc.
•Displays messages, queries, and warnings.
•Displays "air time" at end of a call.
•Displays battery level indicator.
Numeric Field
Displays the telephone number entered on the key-
pad, or recalled from memory.
15

Status Indicators
EMG Emergency.Indicates thatan emergency
isdeclaredonthecurrentgroup.
SERV Service.Indicatescontrolchannel.
TX Transmit.Indicatesunitistransmitting.
SCN Scan.Indicates Group has been added to
Group Scan List. Flashing indicates scan
functionisturnedon.
BSY Busy. Unit is active in some type of call.
Shownduring a callandalsowhileanout-
goingcallisbeingconnected.
WHC Who Has Called.Flashes to indicate that
youreceivedanIndividualCall.
Battery. Flashes when battery reaches
levelB0.
BUTTON
PUSH-TO-TALK
(PTT button) Located on side. Enables radio’s transmitter. PTTmustbehelddown
to transmit during simplex opera-
tion.
MONITOR Located on side. Same function as
C
key on keypad except it will not
turn scan on/off.
16

KEYPAD
EEND ON/OFF
If a call is in progress, pressing
E
terminates
the call.Otherwise you can turn the radio ON or
OFF by holding down the key until you hear a
beep. This key is also used to exit from any
sub-mode and return to the standby mode.May
also be used to delete all entered digits while
outside of a call.
17

SSEND
Places a call after a number has been entered,
or recalled from the memory, and answers an
incoming call.
MMENU
This key has two different functions: 1) MENU
and 2) Mute Key.
MENU
MPress to select the Special Functions of
the radio. Refer to chapter,
User Menu
Functions
.
Mute Key (Microphone Mute)
MHolddown
M
tomutethemicrophonedur-
ingaconversation.Iftheradioisusedwith
hands free equipment, the separate mi-
crophonewillbemuted.
Volume Control
>
<
To change the volume simply press and
hold up or down arrows until the desired
levelisreached.Iftheradioisinhandsfree
operation, the loudspeaker volume will be
adjusted.
18

CCLEAR
Press the
C
key for either of the following
functions.
1. If
C
is pressed momentarily, it erases
the last digit or letter entered.Clear can
beexecutedrepeatedlytoeraseseveral
characters.
2. If
C
ishelddownforatleastonesecond,
it erases all digits displayed, for exam-
ple, a telephone number from the dis-
play.
3. Pressing
C
will turn on/off Group Scan
function.
NumericKeys
12
. . . 90
Used to enter telephone numbers to be
called,orstoredinthememory.
Used to enter memory locations when re-
callingtelephonenumbers.
Usedtoscrolltoanoptionwithinthemenu
function.
When in Alpha mode, letters and digits
can be entered.Press the appropriate nu-
19

merickeyonce,twice,3or4timesaccord-
ing to the position of the desired letter on
thekey.(Digitisfourthposition).
*Star
Used when entering an automatic pause
before a sequence of digits that is to be
sentinaclusterasDTMFsignals.Press
M
andthen,withintwoseconds,
*
.Refer to
thechapter,
DTMFSignaling
.
Used in Alpha mode to enter a space or a
star.
#Pound
Used when entering a manual pause be-
fore a sequence of digits that is to be sent
inaclusterasDTMFsignals.Press
M
and
then, within two seconds
#
.Refer to the
chapter,
DTMFSignaling.
Usedwhen placing anIndividualCall. Re-
fertoPLACINGANINDIVIDUALCALL.
Illumination
The display and keys are illuminated.
The light will be on if the phone is being dialed, or if a
key has been pressed. After 10 seconds of inactivity the
light will automatically turn off. See the chapter on
User
Menu Functions
for further information on this option.
20
