Operator’s Manual
Monogram Series
EDACS®
Trunking Portable

2
NOTICE!
This manual covers Ericsson and General Electric
products manufactured and sold by Ericsson Inc.
NOTICE!
Repairs to this equipment should be made only by an authorized
service technician or facility designated by the supplier. Any repairs,
alterations or substitution of recommended parts made by the user to
this equipment not approved by the manufacturer could void the user’s
authority to operate the equipment in addition to the manufacturer’s
warranty.
NOTICE!
The software contained in this device is copyrighted by Ericsson Inc.
Unpublished rights are reserved under the copyright laws of the
United States.
Copyright © August 1995, Ericsson Inc.
This manual is published by Ericsson Inc., without any warranty. Improvements and changes
to this manual necessitated by typographical errors, inaccuracies of current information, or
improvements to programs and/or equipment, may be made by Ericsson Inc., at any time and
without notice. Such changes will be incorporated into new editions of this manual. No part of
this manual may be reproduced or transmitted in any form or by any means, electronic or
mechanical, including photocopying and recording, for any purpose, without the express
written permission of Ericsson Inc.

3
TABLE OF CONTENTS
Page
BATTERY CHARGING AND CARE ......................7
FOR BEST PERFORMANCE.............................8
EXTENDED OPERATIONS ...............................9
FCC LICENSING................................................10
TRANSCEIVER SERVICE .................................10
INTRODUCTION...................................................13
FEATURES............................................................15
QUICK REFERENCE GUIDE................................16

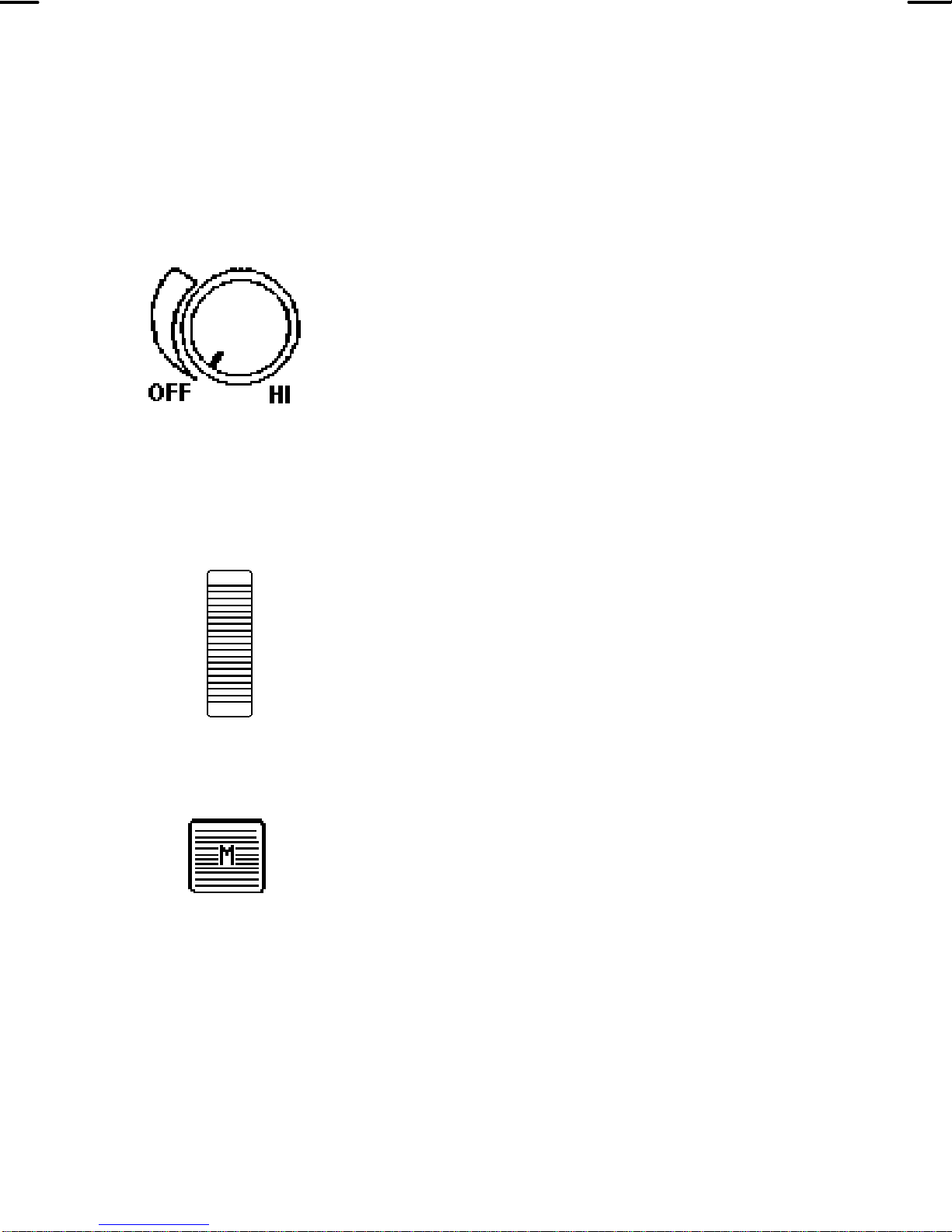

CONTROLS........................................................16

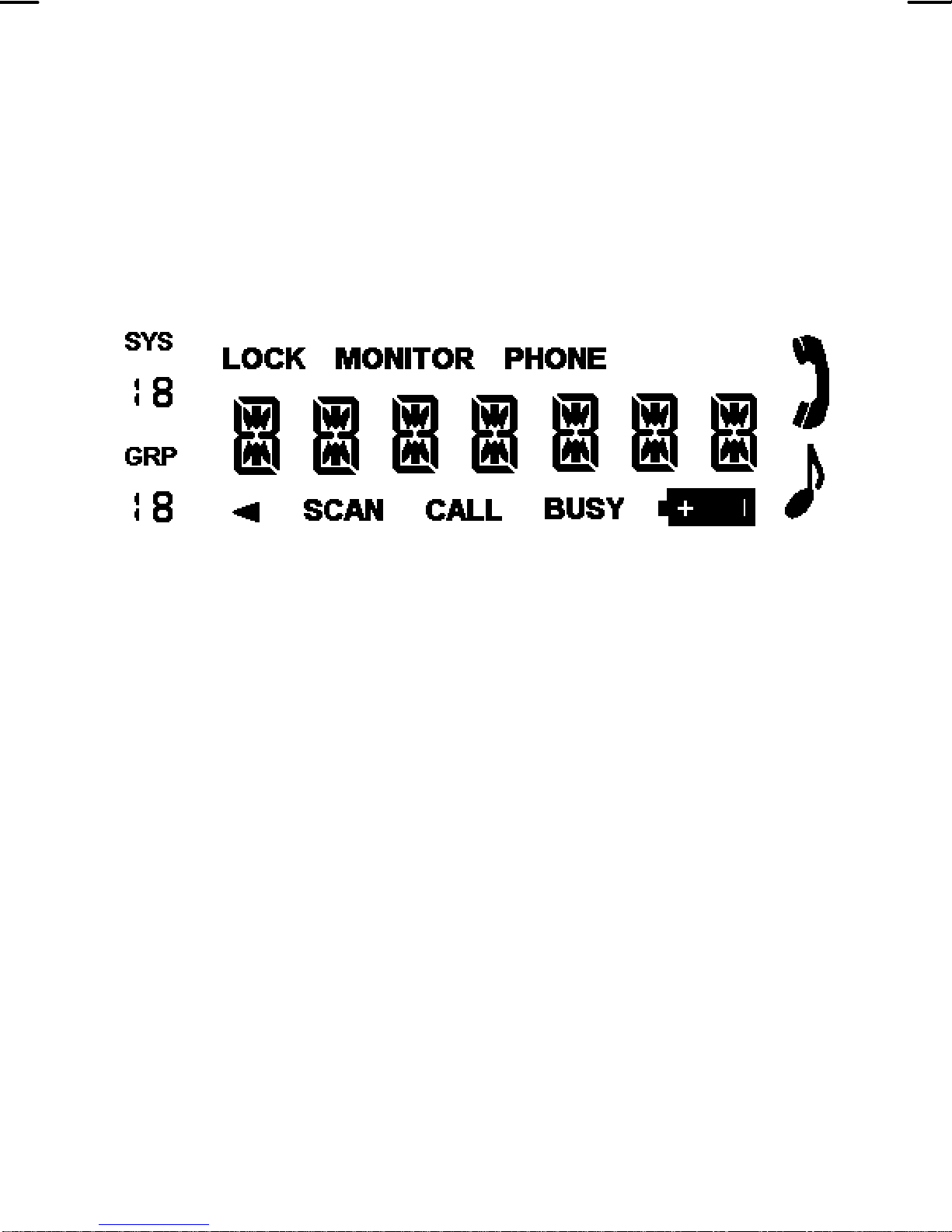

INDICATORS.........................................................18
SYS AND GRP/CHANNEL INDICATORS..........19
STATUS INDICATORS......................................20
ALERT TONES......................................................21
STANDARD TONES ..........................................21
TONES FOR TRUNKED OPERATION ONLY...22
ERROR MESSAGES.............................................24
KEYPAD LOCK......................................................25
KEYPAD MUTE.....................................................26
SCAN OPERATION...............................................26
EDACS OPERATION ............................................27
RECEIVING A MESSAGE..................................27
SENDING A MESSAGE.....................................29
SQUELCH ADJUSTMENT.................................29
SENDING A SPECIAL CALL..............................30
SENDING A MANUALLY ENTERED INDIVIDUAL
CALL............................................................32
SENDING A MANUALLY ENTERED
INTERCONNECT CALL ..............................33
STORING INDIVIDUAL AND INTERCONNECT
NUMBERS...................................................35

4
TABLE OF CONTENTS (con’t)
Page
RECALLING MANUALLY STORED INDIVIDUAL
AND INTERCONNECT NUMBERS.............36
DTMF OVERDIAL ..............................................38
SCAN OPERATION...............................................39
ENABLE/DISABLE SCAN ..................................39
ADD/DELETE GROUPS ....................................39
WIDE AREA AND PRIORITY SYSTEM
SCANNING (OPTIONAL) ............................40
PROSOUND™(OPTIONAL)...............................41
DYNAMIC REGROUPING (OPTIONAL)............41
HOME/EMERGENCY KEY DEFINITION...........42
EMERGENCY OPERATION (OPTIONAL).........42
HOME.................................................................44
GE-MARC OPERATION........................................45
RECEIVING A MESSAGE..................................45
SENDING A MESSAGE.....................................46
SENDING A SPECIAL CALL..............................48
SENDING A PREPROGRAMMED SPECIAL
CALL IN CONFERENCE CALL ...................50
SENDING A MANUALLY ENTERED
INDIVIDUAL CALL.......................................51
SENDING A MANUALLY ENTERED
INTERCONNECT CALL ..............................53
STORING INDIVIDUAL AND INTERCONNECT
NUMBERS...................................................56
RECALLING MANUALLY STORED INDIVIDUAL
AND INTERCONNECT NUMBERS.............58
WIDE AREA SYSTEM SCAN.............................61
DIRECT MODE ..................................................61
SCAN OPERATION ...........................................64

5
TABLE OF CONTENTS (con’t)
Page
CONVENTIONAL MODE OPERATION ................67
RECEIVING A MESSAGE..................................67
SENDING A MESSAGE.....................................68
SQUELCH ADJUSTMENT.................................68
SENDING A MANUALLY ENTERED
INTERCONNECT CALL ..............................69
SCAN OPERATION ...........................................70
OPERATOR’S RADIO SETUP..............................72
WARRANTIES.......................................................74
EMERGENCY NUMBERS.....................BACK PAGE

6
SAFETY INFORMATION
The Federal Communications Commission (FCC),
with its action in General Docket 79-144, March 13,
1985, has adopted a safety standard for the human
exposure to radio frequency (RF) electromagnetic
energy emitted by FCC regulated equipment. Proper
operation of this radio will result in user exposure far
below the Occupational Safety and Health Act and
Federal Communication Commission limits.
DO NOT hold the radio in such a manner that the
antenna is close to, or touching, exposed parts of the
body -- especially the eyes or face --while the radio is
transmitting.
DO NOT operate the radio near unshielded electrical
blasting caps or in an explosive atmosphere, unless it is
a type specifically designed and qualified for such use.
DO NOT operate the radio unless the antenna
connector is secure and any open connectors are
properly terminated.
DO NOT allow children to operate transmitter-
equipped radio equipment.
This device complies with Part 15 of the FCC
rules. Operation is subject to the condition that this
device does not cause harmful interference.

7
BATTERY CHARGING AND CARE
Do not dispose of the battery pack in fire - it may
explode, causing injury or death.
Do not replace the battery in hazardous atmosphere
locations.
Do not carry battery loose in your pocket or purse.
Do not attempt to repair battery.
The product you have purchased
contains a rechargeable battery. The
battery is recyclable. At the end of its
useful life under various state and local
laws it may be illegal to dispose of this
battery into the municipal waste stream.
Check with your local solid waste officials
for details concerning recycling options or
proper disposal in your area. Call Toll Free 1-800-8-
BATTERY for information and/or procedures for
returning rechargeable batteries in your state.
Your radio comes supplied with one 7.5 volt 1100
mAh Ni-Cd battery pack, which can be recharged from
500 to 1000 times before requiring replacement. The
actual number of charge / recharge cycles vary
depending upon usage. We recommend that the battery
g

8
be charged 14 to 16 hours on the first charge cycle and
then in accordance with the charger model instructions
thereafter.
To remove the battery pack, push up on the battery
latch and slide the battery pack to the right. To replace
the battery, align the battery on the track and slide to the
left until a click is heard, indicating the battery is correctly
installed.
If the battery is to be charged on the radio, ensure
that the power switch on the radio is in the off position
before charging. Failing to turn the power switch to off
during the charge cycle will result in a less than full
charge condition, which will noticeably reduce the
operating time between charges!
Normal battery operation time is 8 hours. This may
vary depending upon how much the receiver audio is
present and how much you transmit. The actual time
may vary from day to day depending upon operational
requirements.
FOR BEST PERFORMANCE
1. Charge battery to full capacity, 14 hours at the
standard C/10 rate (capacity X .10). For "rapid"
chargers, allow additional time (2-3 hours) for
"topping off" the charge after it switches from "fast"
to "slow".
2. Use the battery soon and use as much of the battery
capacity as possible or practical. A battery that is
charged and discharged completely will maintain the

9
longest running time capacity. Also, several
charge/discharge cycles are recommended to bring
a new battery up to its rated capacity.
3. Store and charge the batteries at room temperature
65°F to 75°F. Batteries that have been stored for
over a month should be recharged before putting into
service due to chemical self-discharge which occurs
at a rate of approximately 1% per day. Do not charge
cold batteries (40°F or below).
4. Reduced capacity or "memory effect" may result
from repeated identical shallow discharge/full
recharge cycles. If such a condition is suspected, run
the battery until the instrumentation loses all power,
then fully recharge and discharge again. Repeat this
cycle 3-4 times.
EXTENDED OPERATIONS
When operating in "Fringe Areas" at some distance
from the System, the other party may not receive your
transmission clearly. Also you may notice that the
background noise will increase on received signals.
Moving to higher ground or moving closer to the System
will help alleviate these problems. If moving closer to the
System is not practical, communication may be improved
by moving away from shielding structures. If you are in a
building interior, move closer to a window (preferably one
generally in the direction of the System). At 800 MHz the
wave length is very short, sometimes moving a few
inches to a few feet can make significant signal strength
changes. Finding the best location can also be done

10
while listening to the background noise while moving
about; attempt to find a spot where the background noise
is reduced to a minimum or eliminated entirely. This may
make the difference from not being heard, to being heard
loud and clear when operating in the fringe areas of your
System coverage.
The fringe distance will vary greatly from plains
areas, hilly terrain and mountain top sites.
FCC LICENSING
This unit may or may not require a specific FCC
license to operate. The FCC requires all transmitters in
the conventional and some Trunked Systems to be
licensed by the Federal Communications Commission.
Some Trunked operations now are exempt from
individual licensing requirements but must be operated in
a licensed System.
Consult your dealer regarding specific licensing
information, or contact the Federal Communications
Commission.
For more information regarding the FCC license
application (Form 571), call 717-337-1212 for additional
information or contact the FCC District Office nearest
your location.
TRANSCEIVER SERVICE
There are no user serviceable components inside
the radio. Altering the internal components or

11
adjustments may result in illegal emissions, including off-
frequency operation, or damage to the radio.
Should an UNLOCK condition be shown in the LCD
display, or the LCD fails to display information, or all
icons and display segments are shown, turn the
ON/OFF/VOLUME control OFF then ON to reset the
microprocessor. Ensure that the battery is fully charged
and check that the antenna is securely tightened.
If the unit still fails to operate properly, refer to an
Authorized Service Center for servicing.

12
This page intentionally left blank

13
INTRODUCTION
The Monogram Series EDACS Trunking Portable
Radio provides reliable trunked communication in the
800 MHz band. Advanced Dual Format technology
allows the radio to operate within the EDACS Trunked
system and the GE-MARC Trunked system. The radio
will also operate in a Conventional system.
The unit is lightweight and easy to carry. A backlit
alpha-numeric display provides clear visibility for night-
time operation.
This manual provides instructions for operating in
either of the 3 systems (EDACS, GE-MARC and
Conventional). A separate section is provided for each
System (EDACS, GE-MARC and Conventional), with a
complete set of instructions for operating the radio within
that system. The DESCRIPTION section which follows
and the Battery information at the back of the manual, is
applicable to all users.
This radio allows the operator to switch between an
EDACS system, a GE-MARC system and a
Conventional system. Special attention should be
given to the system selected and the operating
characteristics of the radio working within that
system.
NOTE

14

15
FEATURES
• Up to 9 Areas x 9 Groups (GE-MARC)
• Combined maximum of 128 System/Groups
(EDACS), 16 standard
• System scan
• System lockout when scanning
• Group Scan automatically or manually
• First Available System Scan when out of range of
Systems
• 7-character alpha-numeric LCD display with
backlight for System and Group identification and
other status information
• Operation in both Trunked and Conventional (non-
Trunked) modes
• Repeater talkaround in Conventional and Trunked
modes
• Standard telephone keypad for placing telephone
interconnect calls
• Call indicator
• User-programmable storage of up to 10 telephone
numbers and up to 10 individual numbers of up to 18
digits in length
• Automatic System ringback if System is busy
• Transmit inhibit with busy tone
• Clear-to-Talk beep tone signal indicates when
speaking can begin
System setup determines the specific operation of
some of the above features. Refer to the descriptions
in this manual for more information.
NOTE

16
QUICK REFERENCE GUIDE
CONTROLS
On/Off
Volume The top, right clockwise rotation
applies power with a mechanical
click sound, and a full counter
clockwise rotation, removes power
with a click sound. A clockwise
rotation makes the volume level
increase and a counter clockwise
rotation decreases the volume level.
The radio can be programmed to
beep once after power is applied,
indicating it is ready for use.
PTT Button Pressing the PTT button (located on
the side of the radio) will key the
radio’s transmitter and perform the
necessary steps to acquire a
communication channel.
Shift/Clear/
Monitor All alternate key functions are
accessed by pressing the
Shift/Clear/Monitor button and then
pressing the desired function key.
Trunked - Pressing the Shift/Clear/
Monitor button twice (double click)
will invoke the CLEAR function which
is used to exit the Special Call mode
and return to the normal System/
Group display.

17
Conventional - Pressing and holding
the Shift/Clear/Monitor button twice
(double click) will enable
MONITORING the channel for
activity by unsquelching the receiver.
All transmissions will be heard, even
if Channel Guard protected.
Backlight The side, uppermost mounted
momentary switch when pressed
illuminates the LCD for a pre-
programmed time perod.
System/Group
Select Switch
<
>
The Select buttons < and >
switches are used to increment or
decrement the current Group/
Channel selection. Pressing the
Shift button and then the < and
> buttons will increment or
decrement the System selection.
The Select buttons are also used to
increment or decrement the Special
Call selection while in the Special
Call mode.
HThe HOME/Emergency key is used
to automatically select a desired
Group and/or System by pressing
and holding the key for a
programmed duration. The HOME/
Emergency key is also used to
declare emergencies by pressing
and holding the key for a pre-
programmed duration. Emergency
messages may only be issued on

18
EDACS systems.
SPressing the SPC (Special) key will
put the radio in the Special Call
mode. From the Special Call mode
the radio is able to make individual
and interconnect calls. The key is
active with trunked systems only.
sThe SCAN-Add/Delete key is used to
enable the Scan mode and to add or
delete Groups/Channels to the scan
list. It is also used as a backspace
key in trunked systems only.
TThe STORE key is used to store
individual call numbers and inter-
connect calls. This key is active with
trunked systems only.
MUTE The MUTE key in conjunction with
the SHIFT/CLR/MONITOR button is
used to mute/unmute the radio.
LOCK The LOCK key in combination with
the SHIFT/CLR/MONITOR button is
used to lock the keypad. All buttons
and keys will be locked except the
PTT, H , SHIFT/CLR/MONITOR,
and the LOCK.
rThe
r (Recall) key can be used
to recall manually entered individual
and interconnect calls in the EDACS
and GE-MARC systems.

19
INDICATORS
Alpha-numeric display, is a 7 character display that
identifies the selected System/Group and those
operating modes or error conditions. In addition there are
12 status indicators that are described on the following
pages.
The LCD backlighting can be programmed to turn on
anytime the backlight switch is pressed or anytime a
button or key is pressed. It will remain on for a
programmable length of time after the button or key is
released. Backlighting is programmed on a per
Group/Channel basis or it may be programmed to
remain off at all times. Each radio that is programmed
with backlighting may also be programmed to remain on
or off when the PTT bar is pressed.
SYS AND GRP/CHANNEL INDICATORS
SYS The SYSTEM display indicates the
number of the current EDACS, GE-
MARC, or Conventional system
selected.

20
STATUS INDICATORS
BUSY The Channel Busy flag is on when
the radio receives a call or when a
conventional channel is in use. The
flag is also on when transmitting on a
trunked channel.
BThe Battery flag is on when the
battery power is low and needs
charging.
SCAN The SCAN flag is on when Scan is
activated.
LOCK The LOCK flag is on when the
keypad lock function is active.
VThe
V flag is used to indicate when a
trunked group or conventional
channel is scan enabled.
PHONE
P
In EDACS or GE-MARC, the PHONE
and
P
status flags will be illuminated
when the radio is placed in the
Special Call mode.
CALL The CALL flag will be illuminated
when the radio receives an individual
call in EDACS or GE-MARC modes.
QQ
Indicates that the “key press” tones
are heard.
Monitor Indicates that the monitor mode has
been enabled in a conventional
