Operator’s Manual
Portable Radio Unit
NPC-50
ericssonz

ThismanualispublishedbyEricsson Inc.,withoutanywarranty.
Improvements and changes to this manual necessitated by typo-
graphical errors, inaccuraciees of current information, or improve-
ments to programs and/or equipment, may be made by Ericsson Inc.,
at any time andwithout notice. Suchchanges will be incorporated into
new editions of this manual. No part ofthis manual may be reproduced
or transmitted in any form or by any means, electronic or mechanical,
including photocopying and recording, for any purpose, without the
expressed written permission of Ericsson Inc.
Copyright © January 1996, Ericsson Inc.
This manual covers Ericsson and General
Electric products manufactured and sold by
Ericsson Inc.
NOTICE!
Repairs to this equipment should be made only
by an authorized service technician or facility
designated by the supplier. Any repairs,
alterations or substitution of recommended
parts made by the user to this equipment not
approved by the manufacturer could void the
user’s authority to operate the equipment in
addition to the manufacturer’s warranty.
NOTE!
The software contained in this device is
copyrighted. Unpublished rights are reserved
under the copyright laws of the United States.
NOTE
2

TABLE OF CONTENTS
GUIDELINES FOR SAFE AND
EFFICIENT USAGE OF YOUR
RADIO . . . . . . . . . . . . . . . . . . . . . 4
OPERATING RULES AND REGULATIONS . 4
INTRODUCTION . . . . . . . . . . . . . . . . 5
AVAILABLE CHANNEL FREQUENCIES . . 5
UNPACKING YOUR RADIO . . . . . . . . . . 5
CONTROLS AND FUNCTIONS . . . . . . . . 6
FCC LICENSING . . . . . . . . . . . . . . . . 7
GETTING STARTED . . . . . . . . . . . . . . 7
GETTING YOUR RADIO READY TO USE . 7
Setting The RF Frequency . . . . . . 8
Opening The Battery Compartment . . 8

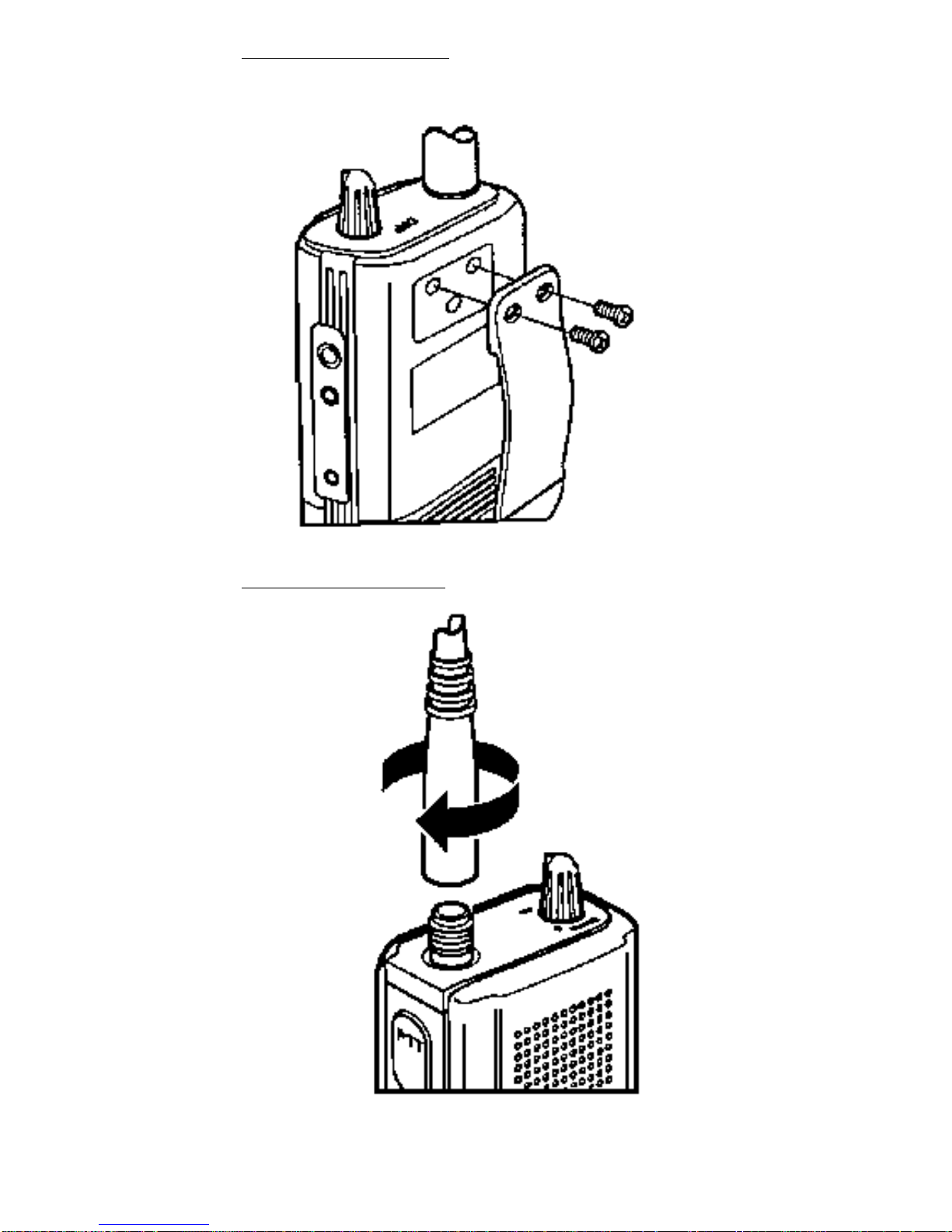

Attaching The Belt Clip . . . . . . . 12
Mounting The Antenna . . . . . . . 12
Installing Battery Pack . . . . . . . . 13
USING THE RADIO . . . . . . . . . . . . . 14
CHARGING THE BATTERY . . . . . . . . 14
TRANSMITTING AND RECEIVING . . . . 14
BATTERY INFORMATION . . . . . . . . . . 15
CHARGE BEFORE USING . . . . . . . . 15
RECHARGING THE BATTERY . . . . . . 16
Battery Low Indication . . . . . . . . 16
BATTERY CARE & MAINTENANCE . . . 16
BATTERY RECYCLING . . . . . . . . . . 16
OPERATING TIPS . . . . . . . . . . . . . . 17
EFFICIENT RADIO OPERATION . . . . . 17
ANTENNACARE AND REPLACEMENT . 17
ELECTRONIC DEVICES . . . . . . . . . 17
AIRCRAFT . . . . . . . . . . . . . . . . . 18
BLASTING AREAS . . . . . . . . . . . . 18
POTENTIALLY EXPLOSIVE
ATMOSPHERES . . . . . . . . . . . . . 18
FCC RULES PART 90 . . . . . . . . . . . . 18
ACCESSORIES . . . . . . . . . . . . . . . 20
OPTIONALACCESSORIES . . . . . . . . 20
REPLACEMENT PARTS . . . . . . . . . 20
NPS-50 PORTABLE RADIO
LIMITED WARRANTY . . . . . . . . . . . . 21
NPC-50 PORTABLE RADIO
LIMITED WARRANTY . . . . . . . . . . . . 22
3

GUIDELINES FOR SAFE AND
EFFICIENT USAGE OF YOUR
RADIO
Important: Read this Information Before Using
Your Portable Radio
OPERATING RULES AND REGULATIONS
Two-way FM radio systems must be operated in
accordance with the rules and regulations of the
FederalCommunicationsCommission(FCC).Asan
operator of two-way radio equipment, you must be
thoroughly familiar with the rules that apply to your
particular type of radio operation. Following these
rules will help eliminate confusion, assure the most
efficientuseof the existingradio channelsandresult
in a smoothly functioning radio network. The follow-
ing offenses are punishable by fine, imprisonment,
or both.
When using your two-way radio, remember these
rules:
1. It is a violation of FCC rules to interrupt any
distress or emergency message. Asyour radio
operatesinmuchthesamewayasatelephone
"party line", always listen to make sure that the
channel is clear before transmitting. Emer-
gency calls have priority over all other mes-
sages. If someone is sending an emergency
message - suchas reportinga fireor asking for
help in an accident - KEEP OFF THE AIR!
2. The use of profane or obscene language is
prohibited by Federal Law.
3. It is against the law to send false call letters or
false distress or emergency messages.
4. It is against Federal Law to repeat or otherwise
make known anything you overhear on your
radio. Conversations between others sharing
yourchannelmustberegardedasconfidential.
5. No changes or adjustments shall be made to
the equipment except by an authorized or cer-
tified electronic technician.
4

INTRODUCTION
The portable radio you have purchased will provide
you with reliable two-way communications when
properly used. It is important that you read and
understand this manual to obtain the best possible
performance and long time operation of your radio.
This radio is available in two different versions. One
versionoperatesin theVHFband(151-159MHz)on
one of sixteen (16) user selectable frequencies. The
other version operates in the UHF band (462-470
MHz)ononeofsixteen(16)userselectablefrequen-
cies.
In addition, each version can be set up with one of
thirty-eight (38) user selectable CTCSS tones.
These CTCSS tones help block the reception of
other radio messages that may be on the same RF
frequency as your particular radio. The user may
also disable this feature.
AVAILABLE CHANNEL FREQUENCIES
Each radio operates on one of 16 pre-set frequen-
cies. Refer to Table 1 (VHF) or 2 (UHF) for a listing
of available frequencies. Information is also indi-
cated on frequencies requiring no license or chan-
nels in the General Mobile Radio System (GMRS)
that may be used for personal use only under FCC
Part 95 Rules.
UNPACKING YOUR RADIO
Remove all the items from the packing box and
identify each item. Check off the items as you re-
move them from the box.
Operator’s Manual AE/LZT 123 1896
Safety Instructions AE/LZY 123 1897
VHF Portable Radio KRD 103 127/1
UHF Portable Radio KRD 103 127/2
Antenna, VHF KRE 101 1503/1
Antenna, UHF KRE 101 1503/2
Battery BKB 191 208/1
Wall Cube Charger BML 161 63/1
If any of these items are missing from the box,con-
tact your dealer for help.
5

CONTROLS AND FUNCTIONS
1. Antenna
2. Built-In Microphone
3. On/Off Switch/Volume Control
4. Built-In Speaker
5. Antenna Connector
6. Transmit LED
7. Rubberized Jack Cover
8. External Speaker Jack
9. External Microphone Jack
10. Charge Jack
11. Push-To-Talk (PTT) Switch
12. Monitor Switch
6

FCC LICENSING
Before using your radio, you must have a station
license issued by the Federal Communications
Commission (FCC). It is illegal to transmit without
the appropriate license. You must submit FCC Form
600 and any appropriate attachments to PCIA(Per-
sonal Communications Industry Association), which
is the organization responsible for coordinating con-
flicts. For more information about PCIA, call (800)
759-0300 ([n Virginia call [phone]].
To get current FCC forms and instructions, you can:
•Have the forms mailed to you by calling the
FCC forms Hotline at (800) 418-FORM.
•Have the forms faxed to you by the FCC’s
Fax-On-Demand system at [phone].
Request Document 000600 for all forms and
instructions, Document 006001 for instructions
only, Document 006002 for Form 600 Main
Form only, or Document 006003 for all sched-
ules.
For questions about the license application, call the
FCC at [phone].
You are also required to have in your possession, a
current copy of Part 90 of the
FCC Rules and Regu-
lations
before operating your radio. It is also your
responsiblitytoinsureyourradiooperatesinaccord-
ance with the guidelines established by the FCC.
See the section FCC Rules Part 90 in the back of
this manual for additional information on the opera-
tion of your radio.
GETTING STARTED
GETTING YOUR RADIO READY TO USE
Several operations must be performed before using
your radio:
•Selecting the operating frequency of the radio
•Selecting or disabling the CTCSS tone
•Attaching the belt clip
•Mounting the antenna
•Checking battery installation and charging the
battery
7

Setting The RF Frequency
Refer to Table 1 (VHF) or Table 2 (UHF) for the DIP
switch setting for the desired operating RF fre-
quency of the radio. The DIP switch bank is located
in the upper right hand corner of the battery com-
partment. Use a pencil point or small object to posi-
tion the DIP switches to the corresponding setting.
Opening The Battery Compartment
Each radio has been pre-programmed to
operate on 151.6250 (VHF) or 464.5000 (UHF)
MHz.
NOTE
The battery pack is protected with a plastic
wrap. Do not remove this because damage to
the battery may result.
1. Unlock the
battery com-
partment by
pushing on
the latches
on either
side.
2. Remove the
cover by
sliding it
down and
away from
the radio.
CAUTION
8

For example:
To change the pre-programmed RF frequency
of 151.6250 to 158.4000, set S1 to ON, S2 to OFF,
S3 and S4 to ON position.
ON = switch set towards speaker
OFF = switch set towards battery
* Itinerant frequency, no license required
S1 S2 S3 S4
ON
FREQ.(MHz)S1S2S3S4
151.6250 ON ON OFF OFF
151.6550 OFF ON ON ON
151.6850 ON OFF ON OFF
151.7150 OFF ON OFF ON
151.7750 OFF ON ON OFF
151.8050 ON OFF OFF ON
151.8350 ON ON OFF ON
151.8950 OFF OFF ON OFF
151.9250 ON ON ON OFF
151.9550 OFF OFF ON ON
154.4900 OFF ON OFF OFF
154.5150 ON OFF OFF OFF
154.5400 OFF OFF OFF ON
154.5700 OFF OFF OFF OFF
154.6000 ON ON ON ON
158.4000 * ON OFF ON ON
Table 1 - VHF RF Frequency Settings
SWITCH POSITION
9

ON = Switch set towards speaker
OFF = switch set towards battery
* Itinerant frequency, no license required
** GMRS frequency, personal use only
Setting CTCSS Tones
Refer to Table 3 for DIP switch settings for the
CTCSS tones. The DIP switches are located in the
upper left hand corner of the battery compartment.
UseapencilpointorothersmallobjecttosettheDIP
switches to the corresponding position.
For example:
To change the pre-programmed CTCSS tone
of 156.7 to 100.0, set the following switches. Set S1
to OFF, S2 to ON, S3 and S4 to OFF, S5 to ON and
leave all other switches to the ON position.
FREQ.(MHz)S1S2S3S4
462.5750 ** OFF ON OFF ON
462.6250 ** OFF ON ON OFF
462.6750 ** ON OFF OFF ON
464.3250 ON ON OFF ON
464.5000 OFF OFF ON ON
464.5500 * ON ON OFF OFF
464.8250 OFF OFF ON OFF
467.7625 ** ON ON ON ON
467.8125 OFF OFF OFF OFF
467.8500 ON ON ON OFF
467.8750 OFF OFF OFF ON
467.9000 ON OFF OFF OFF
467.9250 OFF ON ON ON
469.2625 ON OFF ON OFF
469.5000 * OFF ON OFF OFF
469.5500 * ON OFF ON ON
Table 2 - UHF RF Frequency Settings
SWITCH POSITION
The radio has been pre-programmed for a
CTCSS tone of 156.7 Hz.
NOTE
1 2 3 4 5 6 7 8
ON
10

To disable the CTCSS tone feature, set S8 to
the OFF position. All other switches can be left in
their existing positions.
FREQ.
(Hz) S1 S2 S3 S4 S5 S6 S7 S8
67.0 OFF OFF OFF OFF OFF OFF ON ON
71.9 OFF OFF OFF OFF OFF ON ON ON
74.4 ON OFF OFF OFF OFF OFF ON ON
77.0OFFOFFOFFOFFONONONON
79.7 OFF ON OFF OFF OFF OFF ON ON
82.5 ON OFF OFF OFF OFF ON ON ON
85.4 ON ON OFF OFF OFF OFF ON ON
88.5 ON OFF OFF OFF ON ON ON ON
91.5 OFF OFF ON OFF OFF OFF ON ON
94.8 OFF ON OFF OFF OFF ON ON ON
97.4 ON OFF ON OFF OFF OFF ON ON
100.0 OFF ON OFF OFF ON ON ON ON
103.5 ON ON OFF OFF OFF ON ON ON
107.2 ON ON OFF OFF ON ON ON ON
110.9 OFF OFF ON OFF OFF ON ON ON
114.8 OFF OFF ON OFF ON ON ON ON
118.8 ON OFF ON OFF OFF ON ON ON
123.0 ON OFF ON OFF ON ON ON ON
127.3 OFF ON ON OFF OFF ON ON ON
131.8 OFF ON ON OFF ON ON ON ON
136.5 ON ON ON OFF OFF ON ON ON
141.3 ON ON ON OFF ON ON ON ON
146.2 OFF OFF OFF ON OFF ON ON ON
151.4 OFF OFF OFF ON ON ON ON ON
156.7 ON OFF OFF ON OFF ON ON ON
162.2 ON OFF OFF ON ON ON ON ON
167.9 OFF ON OFF ON OFF ON ON ON
173.8 OFF ON OFF ON ON ON ON ON
179.9 ON ON OFF ON OFF ON ON ON
186.2 ON ON OFF ON ON ON ON ON
192.8 OFF OFF ON ON OFF ON ON ON
203.5 OFF OFF ON ON ON ON ON ON
210.7 ON OFF ON ON OFF ON ON ON
218.1 ON OFF ON ON ON ON ON ON
225.7 OFF ON ON ON OFF ON ON ON
233.6 OFF ON ON ON ON ON ON ON
241.8 ON ON ON ON OFF ON ON ON
250.3 ON ON ON ON ON ON ON ON
Dis-
abled XXXXXXXOFF
Table 3 - CTCSS Tone Settings
SWITCH POSITION
11

Attaching The Belt Clip
Attach the supplied belt clip as shown.
Mounting The Antenna
To install the
antenna,
align it with
the antenna
connector
on the top of
the radio.
Turn the an-
tenna clock-
wise until it
seats snugly
against the
radio.
12

Installing Battery Pack
The battery pack must be charged for at least 14
hoursbeforeusingtheradio.SeeBATTERYINFOR-
MATION section.
1. Place the
battery in-
side the
compart-
ment.
Note:
Make sure
the con-
tacts are to-
ward the
back and to
the right.
2. Replace
the cover.
3. Push the
side
latches for-
ward to
lock the
cover into
place.
13

USING THE RADIO
CHARGING THE BATTERY
TRANSMITTING AND RECEIVING
You must first charge the battery before
receiving or sending a message.
NOTE
1. Turn the VOL
switch to the
OFF position.
2. Plug the bar-
rel plug into
the radio and
the adapter
into an AC out-
let.
1. Turn the
VOL/OFF knob
clockwise to turn
the radio on.
2. Press and
hold MON to
bypass the
squelch while
adjusting the
volume to a
comfortable
level.
Note:
While
holding MON,
your radio
may detect
transmissions
from stations
both in and
out of your
system.
14

BATTERY INFORMATION
CHARGE BEFORE USING
Connectbattery chargertoCHGRconnectoronside
of radio. Connect charger to a 120 VAC outlet.
Charge the battery for the first time at least 14 hours
3. Press PTT
to transmit.
Note:
Keep
the radio 1-
2 inches
from your
mouth.
Speak in a
normal tone
towards the
microphone
located in
the lower
left corner
of the
speaker grill.
4. When
you are
through
speaking,
release
PTT and
listen for
an an-
swer.
5. Turn the
VOL/OFF
knob
counter-
clockwise to
turn the ra-
dio off.
In CTCSS operation the MON button is also
used to ensure your channel is available before
beginning a transmission.
NOTE
15

but no longer than 48 hours. Over-charging may
reduce battery life.
RECHARGING THE BATTERY
Recharge the battery when youexperience difficulty
in receiving or sending a message.
Battery Low Indication
BATTERY CARE & MAINTENANCE
•Your charger is intended for indoor use only.
Keep the charger and wall cube dry. Do Not
use in or near water.
•Never let the battery contacts touch metal ob-
jects that could short-circuit the contacts. For
example, keys or coins in your pocket.
•Do Not disassemble a battery.
•Do Not dispose of a battery in a fire.
•Use only the supplied or specified battery and
charger.
•Periodicallycondition yourbatteryforimproved
battery capacity and performance.
BATTERY RECYCLING
The product you have purchased con-
tains a rechargeable battery. The bat-
tery is recyclable. At the end of its
usefullifeundervariousstateandlocal
laws, it may be illegal to dispose of this
battery into the municipal waste
stream. Check with your local solid
waste officials for details concerning recycling op-
tions or proper disposal in your area. Call Toll Free
1-800-8-BATTERY for information and/or proce-
dures for returning rechargeable batteries in your
state.
To check the
battery while the
radio is on,
press PTT.
If the TX LED
lights there is
sufficient power
to use the radio.
Charge the battery if the
LED doesn’t light.
16

OPERATING TIPS
Antenna location and condition is important when
operatingaportableradio.Operatingtheradioinlow
areas or terrain, under powerlinesor bridges, inside
of a vehicleor ina metal orsteel framedbuilding can
severelyreducetherangeoftheunit.Mountainsand
buildings can also reduce the range of the unit.
In areas where transmission or reception is poor,
someimprovementmaybeobtainedbyinsuringthat
the antenna is vertical. Moving a few yards in an-
other direction or moving to a higher elevation may
also improve communications. Vehicular operation
can be aided with the use of an externally mounted
antenna.
Battery condition is another important factor in the
trouble free operation of a portable radio. Always
properly charge the batteries.
EFFICIENT RADIO OPERATION
Hold the portable radio approximately three inches
from your mouth and speak into the microphone at
a normal voice level.
Keep the antenna in a vertical position when receiv-
ing or transmitting a message.
Do not hold the antenna when receiving a message
and, especially, do not hold when transmitting a
message.
ANTENNA CARE AND REPLACEMENT
Do not use the portable radio with a damaged or
missing antenna. A minor burn may result if a dam-
aged antenna comes into contact with the skin.
Replaceadamagedantennaimmediately.Amissing
antenna could damage your portable radio.
Use only the supplied or approved antenna. Un-
authorized antennas, modifications or attachments
could damage the radio unit and may violate FCC
regulations.
ELECTRONIC DEVICES
RF energy from yourportable radiomay affect some
electronic equipment. Most modern electronic
equipment in cars, hospitals, homes, etc. are
shielded from RF energy. However, in areas that
17

instruct you to turn off two-way radio equipment,
always observe the rules. If in doubt, turn it off.
AIRCRAFT
Always turn off your portable radio before boarding
any aircraft.
•Use it on the ground only with crew permis-
sion
•Do not use it in the air
BLASTING AREAS
To avoid interfering with blasting operations, turn
your radio OFF when in a "blasting area" or in areas
posted "turn off two-way radio". Remote control RF
devices are used by some construction crews to set
off explosives.
POTENTIALLY EXPLOSIVE ATMOSPHERES
Areas with potentially explosive atmosphere are
often, but not always, clearly marked. Thesemay be
fueling areas, such as gas stations, fuel or chemical
transfer or storage facilities, and areaswhere the air
contains chemicals or particles, such as grain, dust
or metal powders.
Sparks in such areas could cause an explosion or
fire resulting in bodily injury or even death.
Turn OFF your radio when in any area with a
potentially explosive atmosphere. It is rare, but
not impossible that the radio or its accessories
could generate sparks.
FCC RULES PART 90
The following listing aresome of the important items
in Part 90 of the
FCC Rules And Regulations. This
list is not complete and you should be familiar with
Part 90 before operating your radio.
In part, FCC Rules Part 90 state that:
•Youmusthaveavalidlicensebeforeusingyour
radio.
•As licensee, you are responsible for proper
operationofallradiosandequipmentoperating
under your license.
•You may let unlicensed persons operate this
radio,aslongasthelicenseetakesprecautions
to prevent unauthorized transmissions.
18

•You mustusethisradioonlyforthecommercial
use of your business and restrict your commu-
nications to the minimum practical transmis-
sion time.
•This radio is only for use in the operation of
commercial activities, educational, philan-
thropic or ecclesiastical institutions, and hospi-
tals, clinics or medical associations.
•You must always yield the operating frequency
to communications involving the safety of life
or property.
•You must take reasonable precautions to pre-
vent harmful interference to other users oper-
ating on the same frequency.
•To ensure the channel programmed in your
radioisavailable,youmustmonitorthechannel
prior to transmitting. If the channel is busy, you
need to wait until the other user is finished
before transmitting.
•You must not transmit program material of any
kind used in connection with commercial
broadcasting.
•You must not provide a service that is normally
handledby telephoneor telegraphunlesssuch
broadcasts involve the safety of life or property
or in emergencies such as an earthquake,
hurricane, flood or a similar disaster where
normalcommunicationchannelsaredisrupted.
•Duringeachtransmissionorexchangeoftrans-
missions, you must identify your station with
your FCC issued call sign.
•You must keep a written record of any mainte-
nance or modification made to the radio, and
you must make this record available for inspe-
cation upon demand by the FCC.
Violating the provisions of Part 90 can result in
fines, imprisonment and/or confiscation of
equipment.
The FCC not only establishes license
requirementsbutsetsforthoperatingcriterialfor
equipment. Any adjustments or alterations
which change either the performance or the
frequency determining method so that your
radio no longer meets the original FCC type
acceptance is strictly prohibited.
WARNING
19

ACCESSORIES
OPTIONAL ACCESSORIES
The following optional accessory is available from
your dealer:
•External Microphone with Speaker (KRY 101
1614/1)
REPLACEMENT PARTS
The following replacement parts are available from
your dealer or by ordering from Ericsson Service
Parts 24-Hour Toll Free Number 1-800-368-3277
(USA only) or FAX [phone] (USA only).
Please provide the part number and description
when ordering.
•VHFAntenna KRE 101 1503/1
•UHF Antenna KRE 101 1503/2
•Rechargeable Battery Pack BKB 191 208/1
•Wall Cube Charger BML 161 63/2
•Belt Clip
Replacement or substitution of crystals,
transistors, integrated circuits, regulator diodes
or any other components other than those
recommended by the manufacturer can violate
the technical regulations of the
FCC Rules And
Regulations
or violate type acceptance
requirements established by the FCC.
WARNING
20
