MINI-LINK TN R3 ETSI
Technical Description
MINI-LINK™

MINI-LINK TN R3 ETSI
Technical Description

Copyright
© Ericsson AB 2007 - All Rights Reserved
Disclaimer
No part of this document may be reproduced in any form without the written
permission of the copyright owner.
The contents of this document are subject to revision without notice due to
continued progress in methodology, design and manufacturing. Ericsson shall
have no liability for any error or damage of any kind resulting from the use
of this document.
4/1555-CSH 109 32/1-V1 Uen B 2007-09-14

Contents
Contents
1 Introduction 1
1.1 General 1
1.2 Revision Information 2
2 System Overview 3
2.1 Introduction 3
2.2 Indoor Part with AMM 5
2.3 Indoor Part with ATU 6
2.4 Outdoor Part 7
3 Basic Node 9
3.1 System Architecture 9
3.2 Access Module Magazine (AMM) 11
3.3 Node Processor Unit (NPU) 20
3.4 E1 Interfaces 25
3.5 STM-1 Interface 27
3.6 Ethernet Traffic 31
3.7 ATM Aggregation 36
3.8 Traffic Routing 42
3.9 Protection Mechanisms 44
3.10 Synchronization 52
3.11 Equipment Handling 55
3.12 MINI-LINK E Co-siting 56
3.13 Unstructured E3 Interface 57
4 Radio Terminals 59
4.1 Overview 59
4.2 Modem Unit (MMU) 61
4.3 Radio Unit (RAU) 69
4.4 Antennas 76
4.5 PMP Functionality 79
4.6 1+1 Protection 81
4.7 Transmit Power Control 90
4.8 Performance Management 92
4/1555-CSH 109 32/1-V1 Uen B 2007-09-14

MINI-LINK TN R3 ETSI
5 Access Termination Unit (ATU) 93
5.1 Overview 93
5.2 ATU 94
5.3 ATU C 100
6 Management 105
6.1 Fault Management 105
6.2 Configuration Management 109
6.3 Software Management 109
6.4 License Management 110
6.5 Performance Management 111
6.6 Security Management 113
6.7 Data Communication Network (DCN) 114
6.8 Management Tools and Interfaces 119
7 Accessories 123
7.1 Interface Connection Field (ICF) 123
7.2 PSU DC/DC Kit 126
7.3 Small Form Factor Pluggable 128
7.4 Optical splitter/combiner 128
7.5 DCN LAN Switch 128
Glossary 131
Index 137
4/1555-CSH 109 32/1-V1 Uen B 2007-09-14

Introduction
1 Introduction
1.1 General
MINI-LINK is the world’s most deployed microwave transmission system.
The MINI-LINK TN R3 product family is the latest addition, offering compact,
scalable, and cost-effective solutions.
The system provides integrated traffic routing, high capacity traffic, PDH and
SDH multiplexing, Ethernet transport, ATM aggregation as well as protection
mechanisms on link and network level. The software configurable traffic routing
minimizes the use of cables, improves network quality and facilitates control
from a remote location. With the high level of integration, rack space can be
reduced by up to 70% compared to traditional solutions.
Configurations range from small end sites with one single radio terminal to large
hub sites where all the traffic from a number of southbound links is aggregated
into one link, microwave or optical, in the northbound direction.
07/NPU
06
05
04
03
02
08/FAU2
01/PFU3
00/PFU3
PFU3
PFU3
FAU2
NPU3
MMU2 E 155
MMU2 E 155
MMU2 E 155
MMU2 F 155
E1/DS1 E1/DS1
LTU3 12 1
E1/DS1
9716
15GHz
15GHz
ALARM
POWER
ALIGNMENT
RADIO
CABLE
15GHz
15GHz
RADIO
CABLE
ALIGNMENT
ALARM
POWER
15GHz
15GHz
RADIO
CABLE
ALIGNMENT
ALARM
POWER
15GHz
15GHz
RADIO
CABLE
ALIGNMENT
ALARM
POWER
Figure 1 A MINI-LINK TN R3 configuration
1
4/1555-CSH 109 32/1-V1 Uen B 2007-09-14

MINI-LINK TN R3 ETSI
The purpose of this description is to support the reader with detailed information
on included products and accessories, from technical and functional points
of view.
Detailed technical system data is available in MINI-LINK TN ETSI Product
Specification.
Note: If there is any conflict between this document and information in MINI
LINK TN ETSI Product Specification or compliance statements, the
latter ones will supersede this document.
Some functions described in this document are subject to license handling, that
is a license is required to enable a specific function.
1.2 Revision Information
This document is updated due to the introduction of MINI-LINK TN R3.
Information about the following products and accessories is new or updated:
• AMM 2p B, AMM 6p C/D
•PFU3B
• NPU3
• MMU2 D, MMU2 E/F 155 with XPIC functionality
• LTU3 12/1
• LTU 16/1
• DCN LAN Switch
• PMP Functionality
• Equipment and Line Protection (ELP)
• Enhanced Equipment Protection (EEP)
• Small Form Factor Pluggable (SFP)
• ServiceOn Microwave
• General document improvements
24/1555-CSH 109 32/1-V1 Uen B 2007-09-14

System Overview
2 System Overview
2.1 Introduction
This section gives a brief introduction to the system and its components.
9961
15GHz
15GHz
15GHz
15GHz
15GHz
15GHz
Indoor part with AMM
Outdoor part with Antenna
and RAU
Indoor part with ATU
02 03
02 03
MMU2 E 155
NPU3
07/NPU
06
05
04
03
02
08/FAU2
01/PFU3
00/PFU3
PFU3
PFU3
FAU2
MMU2 E 155
MMU2 F 155
NPU3
E1/DS1 E1/DS1
LTU312 1
E1/DS1

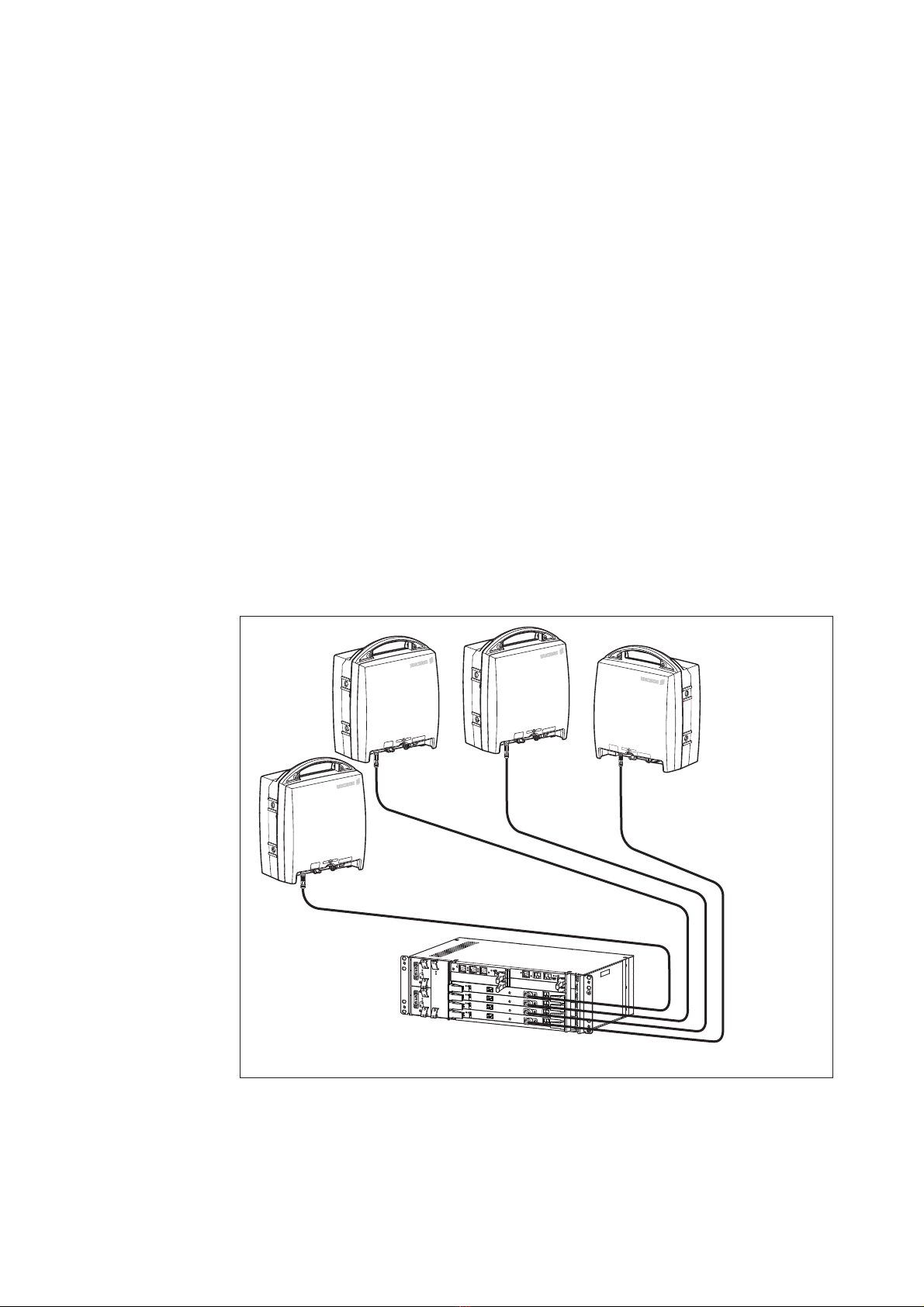

Figure 2 Outdoor and indoor parts
A MINI-LINK TN R3 Network Element (NE) can, from a hardware and
installation point of view, be divided into two parts:
• Indoor part of two types:
− Access Module Magazine (AMM) with plug-in units, see Section 2.2
on page 5.
− Access Termination Unit (ATU), see Section 2.3 on page 6.
• Outdoor part, see Section 2.4 on page 7.
An NE with AMM can from a functional and configuration point of view be
divided into the following parts:
3
4/1555-CSH 109 32/1-V1 Uen B 2007-09-14

MINI-LINK TN R3 ETSI
Basic Node The Basic Node holds the system platform providing traffic
and system control, such as traffic routing, multiplexing,
protection mechanisms and management functions.
Specific plug-in units provide traffic interfaces, PDH, SDH
and Ethernet, for connection to network equipment such as
a radio base station, ADM or LAN. ATM aggregation is also
supported.
Finally, it includes indoor mechanical housing, power
distribution and cooling.
For more information, see Section 3 on page 9.
Radio Terminals Each Radio Terminal provides microwave transmission from
2x2to155Mbit/s,operatingwithinthe6to38GHzfrequency
bands, utilizing C-QPSK and 16, 64, 128 QAM modulation
schemes. It can be configured as unprotected (1+0) or
protected (1+1).
For more information, see Section 4 on page 59.
Basic Node
External
Equipment
Radio Terminals
6731
Network Element
Figure 3 Basic Node and Radio Terminals
The Basic Node and Radio Terminal concept does not apply to an NE with
ATU. However, the self-contained unit implements applicable parts such as,
traffic interfaces, control and management functions, power, cooling and the
indoor part of an unprotected (1+0) Radio Terminal with C-QPSK modulation.
The management features and tools are described in Section 6 on page 105.
44/1555-CSH 109 32/1-V1 Uen B 2007-09-14

System Overview
2.2 Indoor Part with AMM
AMM 20p
AMM 6p D
9686
INFORMATION
PFU1
MMU2 B 4-34
LTU 16x2
LTU 155e/o
NPU1 B
AMM 2p B
02 03
02 03
MMU2 E 155
NPU3
AMM 6p C
07/NPU
06
05
04
03
02
08/FAU2
01/PFU3
00/PFU3
MMU2 E 155
MMU2 F 155
NPU3
E1/DS1 E1/DS1
LTU3 12 1
E1/DS1
PFU3
PFU3
FAU2
07/NPU
06
05
04
03
02
08/FAU2
01/PFU3
00/PFU3
PFU3
PFU3
FAU2
MMU2 E 155
MMU2 F 155
NPU3
E1/DS1 E1/DS1
LTU3 12 1
E1/DS1

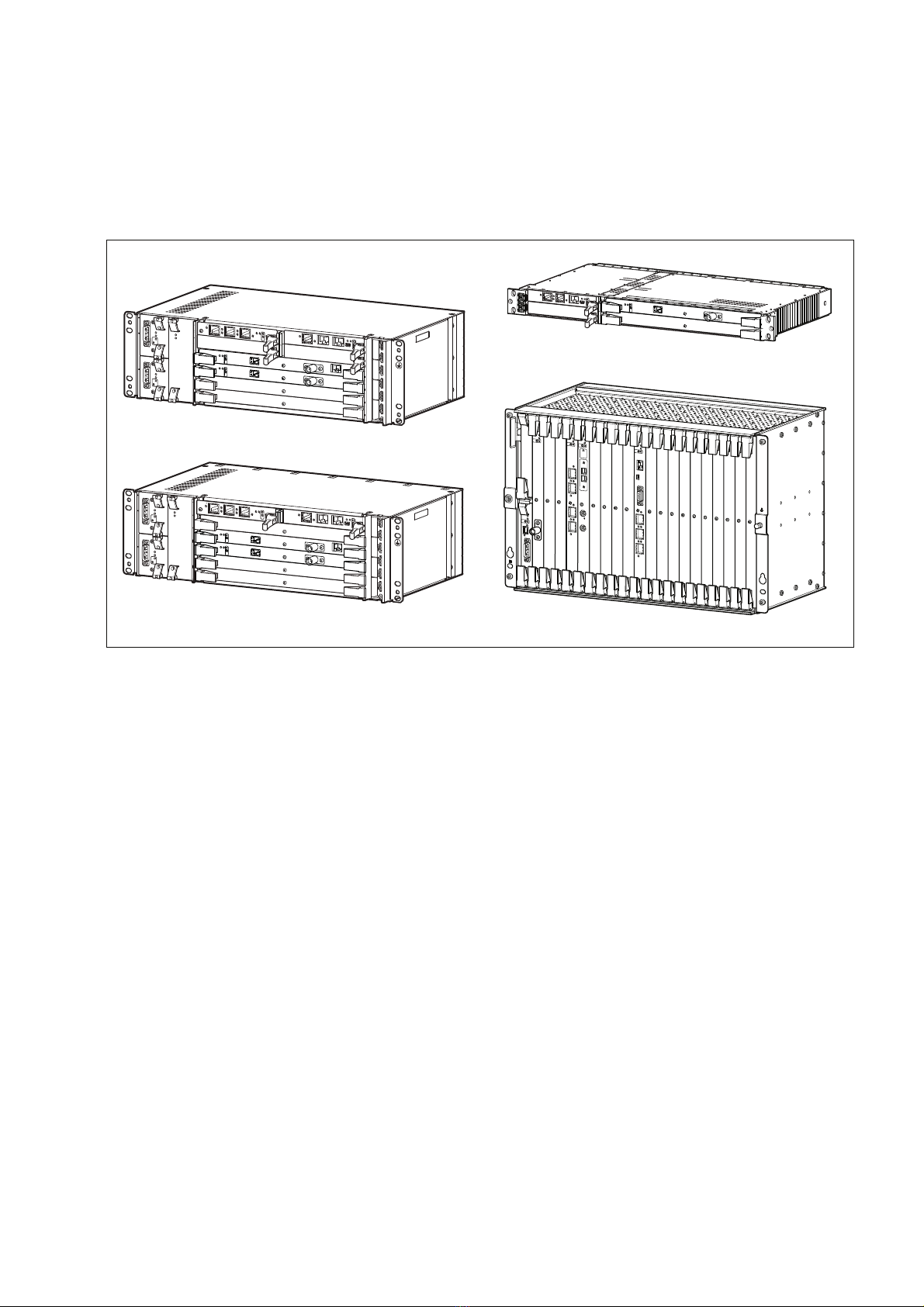

Figure 4 AMMs
The indoor part consists of an Access Module Magazine (AMM) with plug-in
units interconnected through a backplane. One plug-in unit occupies one slot in
the AMM. The AMM fits into standard 19" or metric racks.
The following text introduces the standard indoor units and their main functions.
For each unit there exist several types with different properties, further
described in Section 3 on page 9 and Section 4 on page 59.
Access Module Magazine (AMM) The AMM houses the plug-in units and
provides backplane interconnection of traffic,
power and control signals.
Node Processor Unit (NPU) The NPU handles the system’s control
functions. It also provides traffic and
management interfaces.
Line Termination Unit (LTU) The LTU provides PDH or SDH traffic
interfaces.
Modem Unit (MMU) The MMU constitutes the indoor part of a
Radio Terminal. It determines the traffic
capacity and modulation scheme.
Ethernet Interface Unit (ETU) The ETU provides Ethernet traffic interfaces.
ATM Aggregation Unit (AAU) The AAU provides ATM aggregation of traffic
on E1 links.
54/1555-CSH 109 32/1-V1 Uen B 2007-09-14

MINI-LINK TN R3 ETSI
Switch Multiplexer Unit (SMU) The SMU provides traffic and DCN interfaces
for MINI LINK E equipment.
Power Filter Unit (PFU) The PFU filters the external power and
distributes the internal power to the plug-in
units via the backplane.
Fan Unit (FAU) The FAU provides cooling for the indoor part.
The indoor part also includes cables and installation accessories.
The interconnection between the outdoor part (Radio Units and antennas)
and the indoor part is one coaxial cable per MMU carrying full duplex traffic,
DC supply voltage, as well as management data.
2.3 Indoor Part with ATU
The Access Termination Unit implements the indoor part of a MINI-LINK TN
R3 Edge Node. It can be used for transmission of PDH traffic and in Ethernet
bridge applications.
The ATU comprises one self-contained unit, with a height of 1U, for installation
in 19” or metric racks. It can also be mounted on a wall, using a dedicated
mounting set, or put on a desk.
9957
60V RAU
0V DC -48V 10BASE-T O&M
BR
LAN Bridge
E1:11
E1:10
E1:9
E1:8
E1:7
E1:6
E1:5
E1:4
10/100BASE-T
Figure 5 ATU
The ATU provides unprotected (1+0) microwave transmission within the 6 to
38 GHz frequency bands using C QPSK modulation, when connected to an
RAU with antenna. The interconnection between the ATU and the outdoor
part is one coaxial cable carrying full duplex traffic, DC supply voltage, and
management data.
Different ATU types are available offering traffic capacity from 2x2 to 17x2
Mbit/s, which can be shared between PDH traffic with a maximum of 8xE1 and
Ethernet traffic over a maximum of 16xE1.
The ATU is further described in Section 5 on page 93.
64/1555-CSH 109 32/1-V1 Uen B 2007-09-14

System Overview
2.4 Outdoor Part
The outdoor part is supplied for various frequency bands. It consists of an
antenna, a Radio Unit (RAU) and associated installation hardware. For
protected (1+1) systems, two RAUs and one or two antennas are used. When
using one antenna, the two RAUs are connected to the antenna using a power
splitter.
The RAU and the antenna are easily installed on a wide range of support
structures. The RAU is fitted directly to the antenna as standard, integrated
installation. The RAU and the antenna can also be fitted separately and
connected by a flexible waveguide. In all cases, the antenna is easily aligned
and the RAU can be disconnected and replaced without affecting the antenna
alignment.
The RAU is described in Section 4.3 on page 69.
The antennas are described in Section 4.4 on page 76.

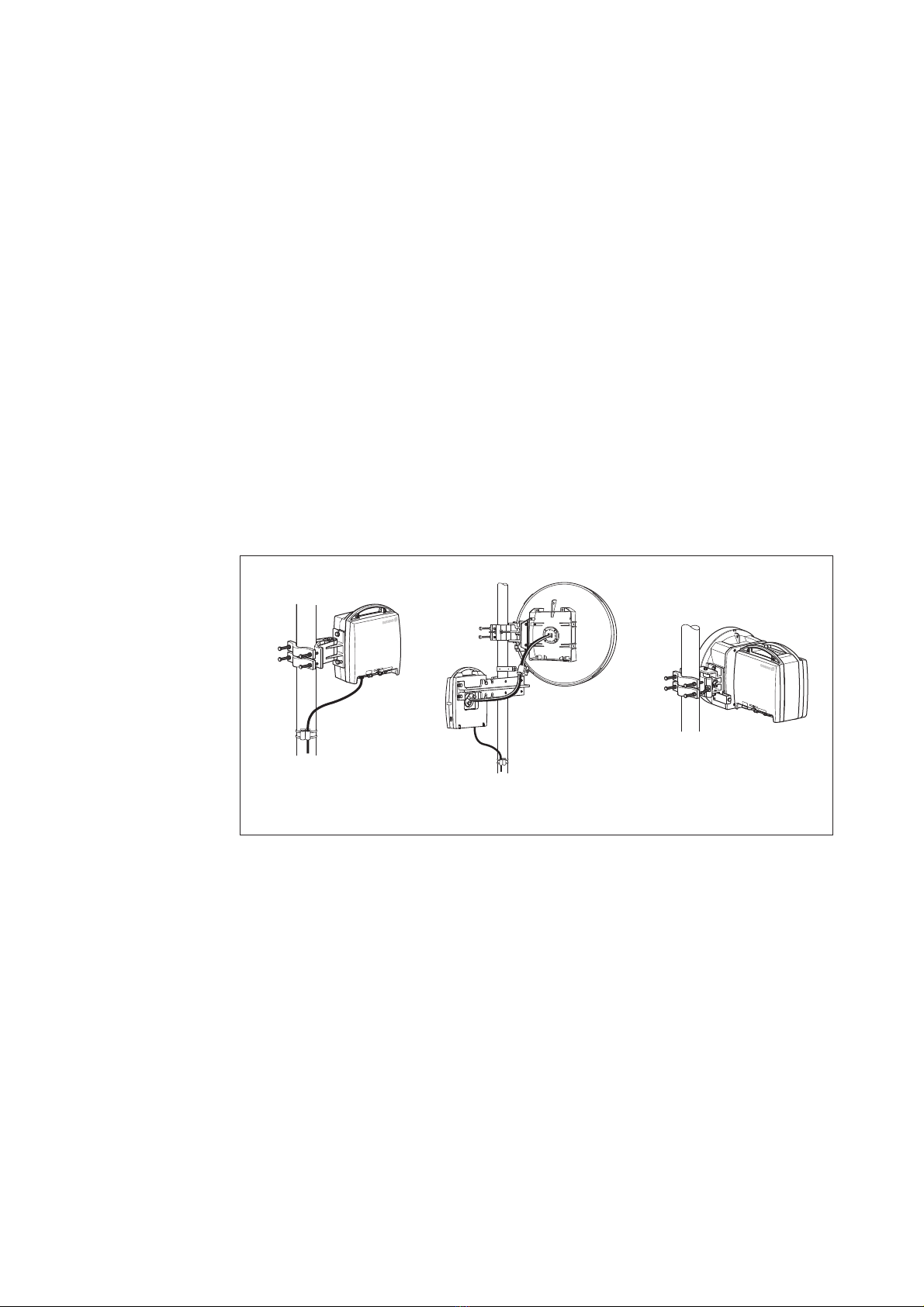

8499
1+1 terminal
integrated power splitter
1+0 terminal
separate installation
1+0 terminal
integrated installation
15GHz
15GHz
RADIO
CABLE
ALIGNMENT
ALARM
POWER
15GHz
15GHz
ALARM
POWER
ALIGNMENT
RADIO
CABLE
Figure 6 RAUs and antennas in different installation alternatives
7
4/1555-CSH 109 32/1-V1 Uen B 2007-09-14

MINI-LINK TN R3 ETSI
84/1555-CSH 109 32/1-V1 Uen B 2007-09-14

Basic Node
3 Basic Node
This section describes the Basic Node functions, hardware and traffic interfaces.
3.1 System Architecture
The system architecture is based on a Node Processor Unit (NPU)
communicating with other plug-in units, via buses in the AMM backplane. The
buses are used for traffic handling, system control and power distribution.
6625
Plug-in Unit Plug-in Unit
Power Filter
Unit Node Processor
Unit
Backplane
TDM
PCI
SPI
Power
BPI

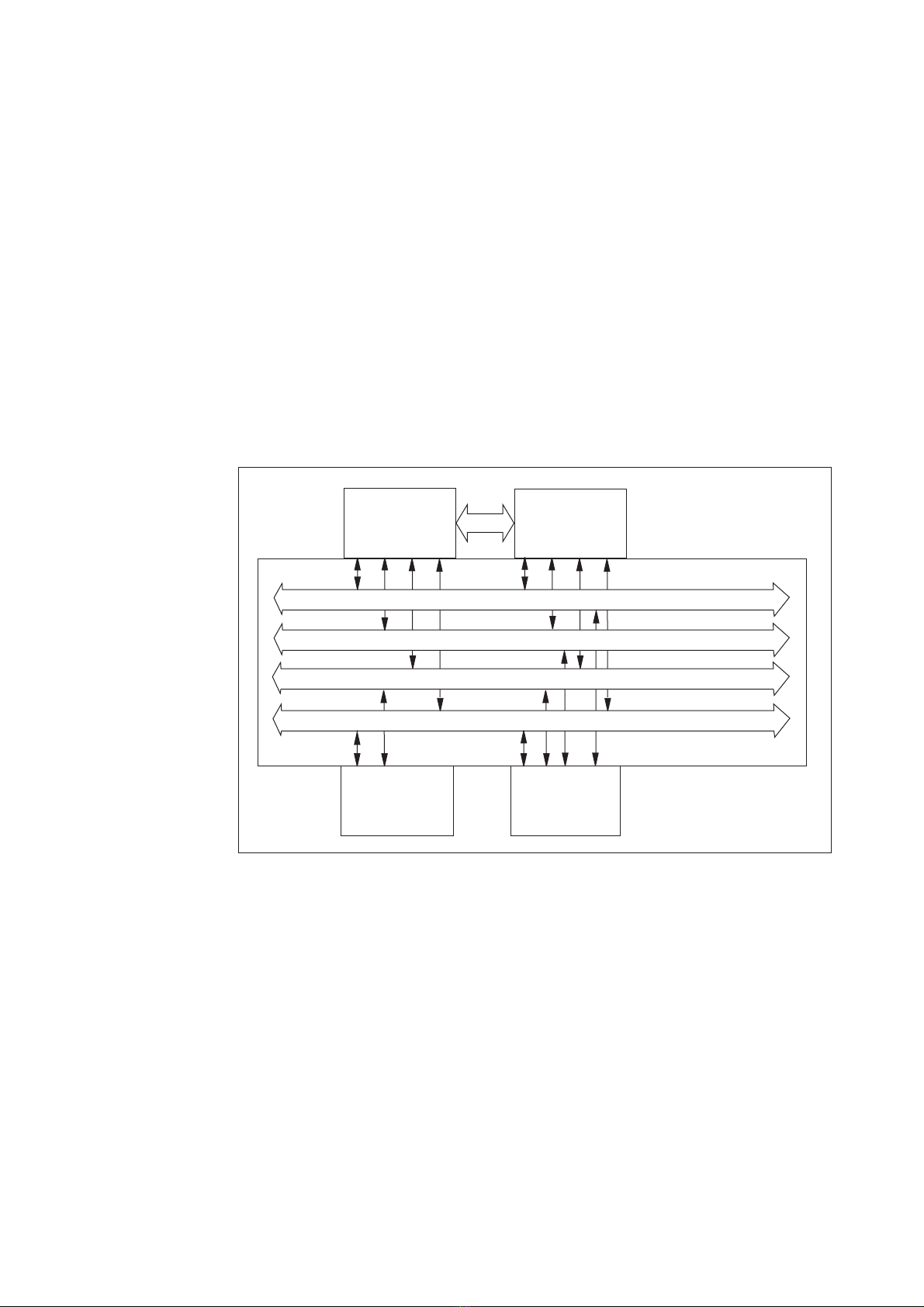

Figure 7 System architecture
3.1.1 TDM Bus
The Time Division Multiplexing (TDM) bus is used for traffic routing between
the plug-in units. It is also used for routing of the DCN channels, used for
O&M data transport. The lowest switching level is E1 for traffic connections
and 64 kbit/s for DCN channels. The traffic connections on the TDM bus are
unstructured with independent timing.
The bus has a switching capacity of 820 Mbit/s. It is redundant for additional
protection against hardware failures.
9
4/1555-CSH 109 32/1-V1 Uen B 2007-09-14

MINI-LINK TN R3 ETSI
3.1.2 PCI Bus
The Peripheral Component Interconnect (PCI) bus is a high bandwidth
multiplexed address/data bus used for control and supervision. Its main use is
for communication between the NPU software and other plug-in units’ software
and functional blocks
3.1.3 SPI Bus
The Serial Peripheral Interface (SPI) is a low speed synchronous serial
interface bus used for:
• Unit status control and LED indication
• Board Removal (BR) button used for unit replacement
• Inventory data
• Temperature and power supervision
• User I/O communication
• Reset of control and traffic logic
3.1.4 Power Bus
The external power supply is connected to a PFU (or NPU2/NPU3 B for AMM
2p/AMM 2p B). The internal power supply is distributed via the Power bus to
the other plug-in units. When using two PFUs in an AMM, the bus is redundant.
3.1.5 BPI Bus
The Board Pair Interconnect (BPI) bus is used for communication between two
plug-in units in a protected (1+1) configuration, for example when using two
LTU 155 units in a Multiplexer Section Protection (MSP)1+1 configuration.
It also interconnects groups of four plug-in units, enabling board protection
schemes including three and four plug-in units.
3.1.6 PTP Connection
The Point-to-Point (PTP) connection joins services to services (for example
Ethernet over VCs dropped by ADM) and services to line interfaces (for example
Ethernet over modem or ATM over SDH modem), see Figure 8 on page 11.
104/1555-CSH 109 32/1-V1 Uen B 2007-09-14

Basic Node
Line
Interface Radio Modem
LTU Radio
Modem
ATM Ethernet ADM
Ethernet ADM Services
Line interface
PTP Connections
9746

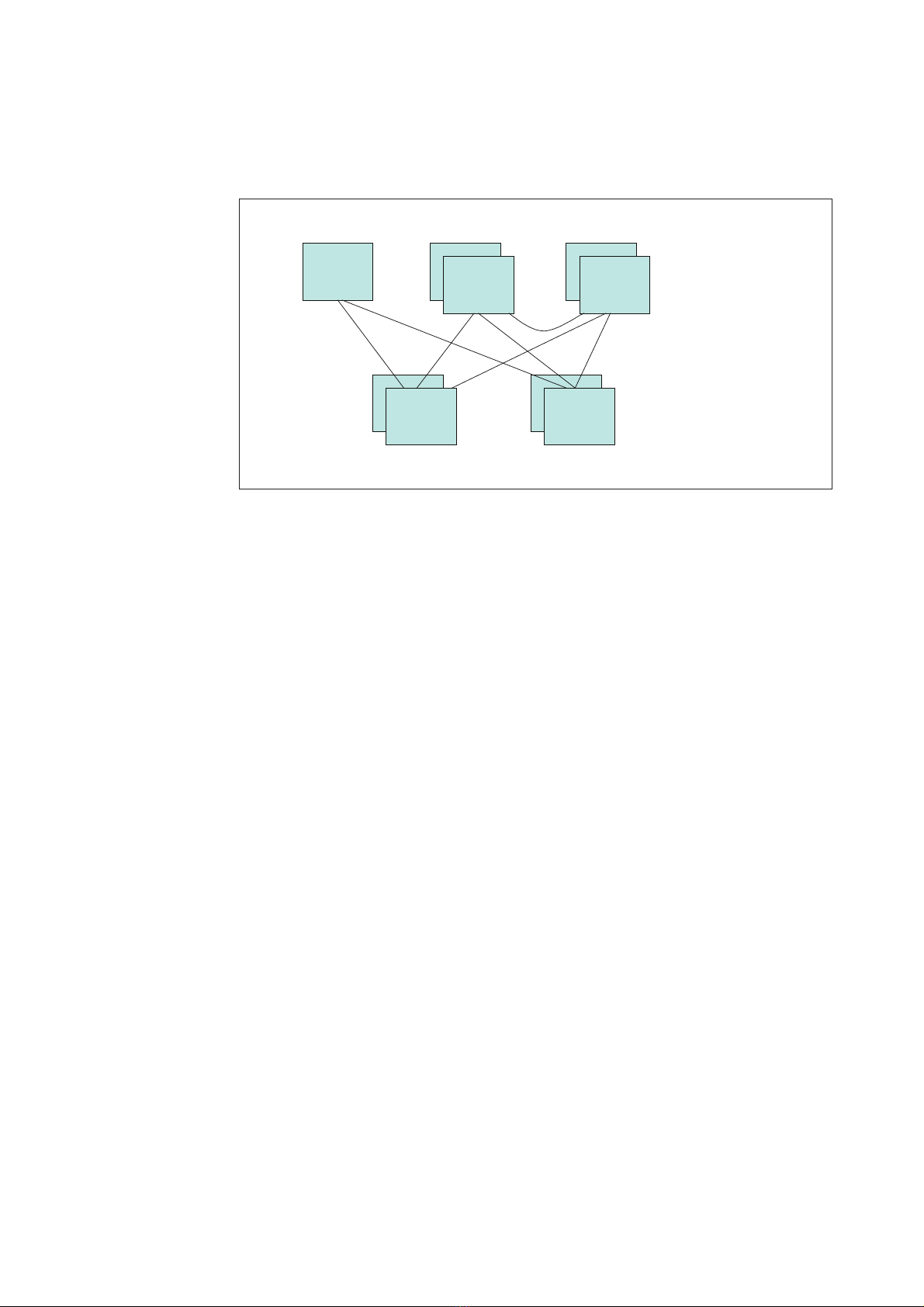

Figure 8 PTP Connections
3.2 Access Module Magazine (AMM)
The indoor part consists of an Access Module Magazine (AMM) with plug-in
units. This section describes the AMM types and their associated cooling and
power supply functions.
3.2.1 AMM 2p and AMM 2p B
AMM 2p is suitable for end site and repeater site applications. There are two
models:
• AMM 2p has two half-height slots equipped with one NPU2 and the optional
LTU 12/1 Kit.
• AMM 2p B has two half-height slots equipped with one NPU3 and the
optional LTU3 12/1.
Two full-height slots can be equipped with MMU, LTU or ETU. The height of
an AMM 2p or an AMM 2p B is 1U.
The FAU4 is used depending on the configuration, see Section 3.2.1.2 on
page 13.
AMM 2p and AMM 2p B can be fitted in a standard 19" or metric rack or on a
wall using a dedicated mounting set.
11
4/1555-CSH 109 32/1-V1 Uen B 2007-09-14

MINI-LINK TN R3 ETSI
01/NPU
00
02
03
NE Name
IP addr.+mask
Far
end 01
00 03
02
ID
LIFT
LIFT
NPU2 FAU4
9976
L
LTU3 12/1
Figure 9 AMM 2p
02 03
02 03
NPU3
LTU3 12/1
FAU4
9972
L
LIFT
LIFT
Figure 10 AMM 2p B
3.2.1.1 Power Supply
AMM 2p is power supplied by –48 V DC or +24 V DC, connected to the NPU2.
The power is distributed from the NPU2 to the plug-in units, via the power bus
in the backplane of the AMM.
+
_
External Power
Supply
–48 V DC or
+24 V DC
7019
NPU2
Figure 11 Power supply for AMM 2p
AMM 2p B is power supplied by –48 V DC or +24 V DC redundant power. Two
DC connectors at the left side of the front panel are connected to the backplane.
To achieve redundant power, two power sources must be connected.
124/1555-CSH 109 32/1-V1 Uen B 2007-09-14

Basic Node
9958
NPU3
+
_
+
_
Redundant Power
Supply
–48 V DC or
+24 V DC

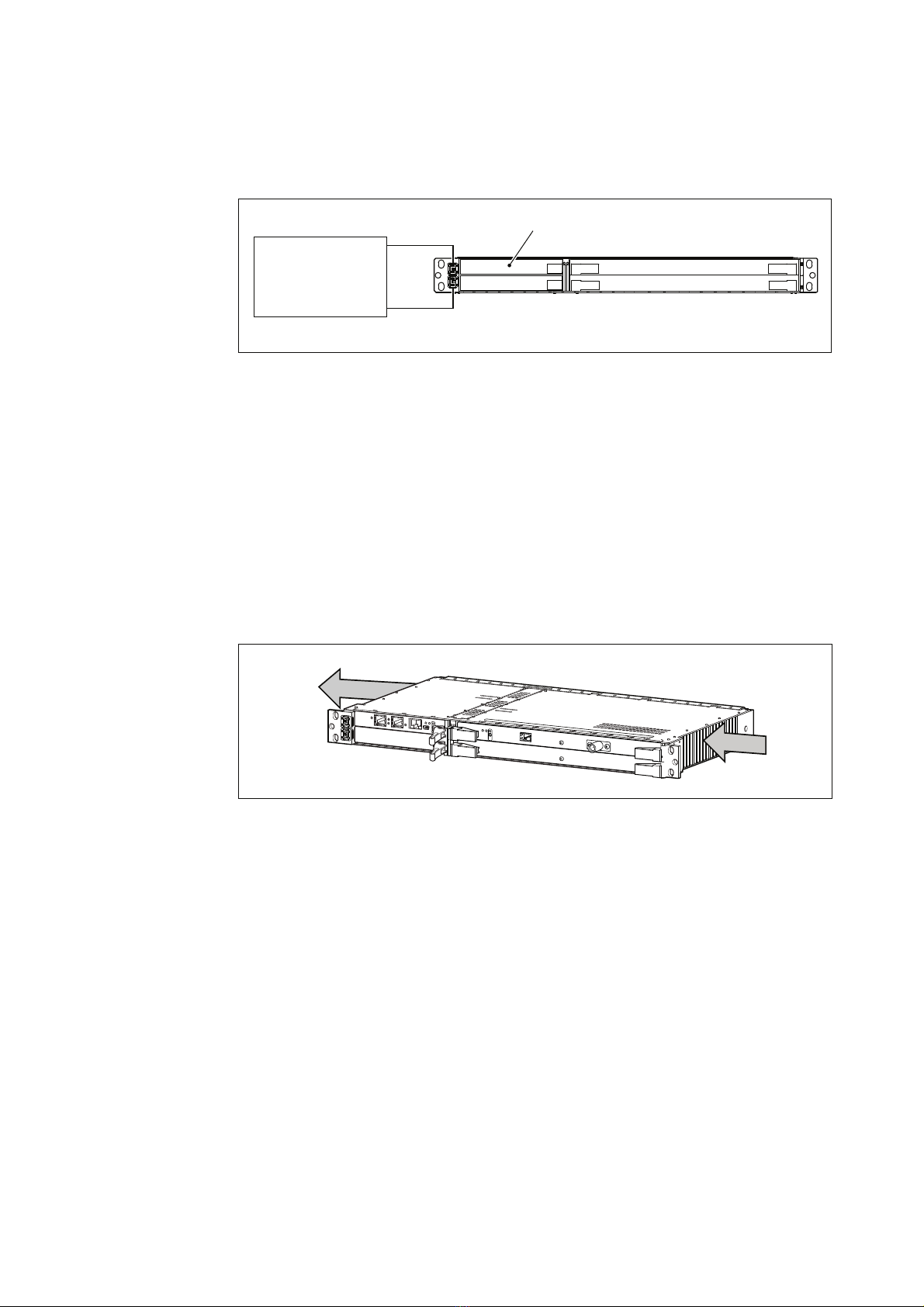

Figure 12 Power supply for AMM 2p B
3.2.1.2 Cooling
AMM 2p and AMM 2p B can be used with or without forced air-cooling,
depending on the configuration. Forced air-cooling is provided by FAU4, placed
vertically inside the AMM. FAU4 holds three internal fans.
If the indoor location has other fan units, which provide sufficient cooling
through the AMM, the FAU4 can be omitted. However, air filters should be
present in the cabinet door.
Complete rules for cooling are available in MINI-LINK TN ETSI Product
Specification and the Product Catalog.
Air in
Air out
9715
02 03
02 03
MMU2 E 155
NPU3
Figure 13 Cooling airflow in AMM 2p B
The air enters at the right hand side of the AMM and exits at the left hand
side of the AMM.
3.2.2 AMM 6p B/C/D
AMM 6p B/C/D is suitable for medium-sized hub sites or prioritized small-sites
with 1+1 protection.
AMM 6p B has six full-height horizontal slots and two half-height vertical slots.
It houses one NPU1 B, one or two PFU3 and one FAU2, see Figure 14 on
page 14.
AMM 6p C or D have four (D) or five (C) full-height horizontal slots, four (D) or
two (C) half-height horizontal slots and two half-height vertical slots. They
house one or two NPU3, one or two PFU3 B and one FAU2, see Figure 15 on
page 14 and Figure 16 on page 14.
13
4/1555-CSH 109 32/1-V1 Uen B 2007-09-14

MINI-LINK TN R3 ETSI
The remaining slots in AMM 6p B/C/D can be equipped with MMU, LTU, ETU,
AAU or SMU. Protected pairs, for example two MMUs in a protected (1+1)Radio
Terminal, are positioned in adjacent slots starting with an even slot number.
AMM 6p B/C/D can be fitted in a standard 19" or metric rack or on a wall using
a dedicated mounting set. The height of AMM 6p B/C/D is 3U.
PFU3
07/NPU
06
05
04
03
02
08/FAU2
01/PFU3
00/PFU3
LTU 155e
MMU2 B 4-34
MMU2 B 4-34
LTU 155e/o
LTU 16x2
PFU3
PFU3
FAU2
NPU1 B
7855
FAU2
NPU1 B
Figure 14 AMM 6p B
PFU3 B
FAU2
NPU3
9974
07/NPU
06
05
04
03
02
08/FAU2
01/PFU3
00/PFU3
MMU2 E 155
MMU2 F 155
NPU3
E1/DS1 E1/DS1
LTU3 12 1
E1/DS1
PFU3
PFU3
FAU2
MMU2 F 155
Figure 15 AMM 6p C
07/NPU
06
05
04
03
02
08/FAU2
01/PFU3
00/PFU3
PFU3
PFU3
FAU2
MMU2 E 155
MMU2 F 155
NPU3
E1/DS1 E1/DS1
LTU3 12 1
E1/DS1
PFU3 B
FAU2
NPU3
9975
Figure 16 AMM 6p D
144/1555-CSH 109 32/1-V1 Uen B 2007-09-14
