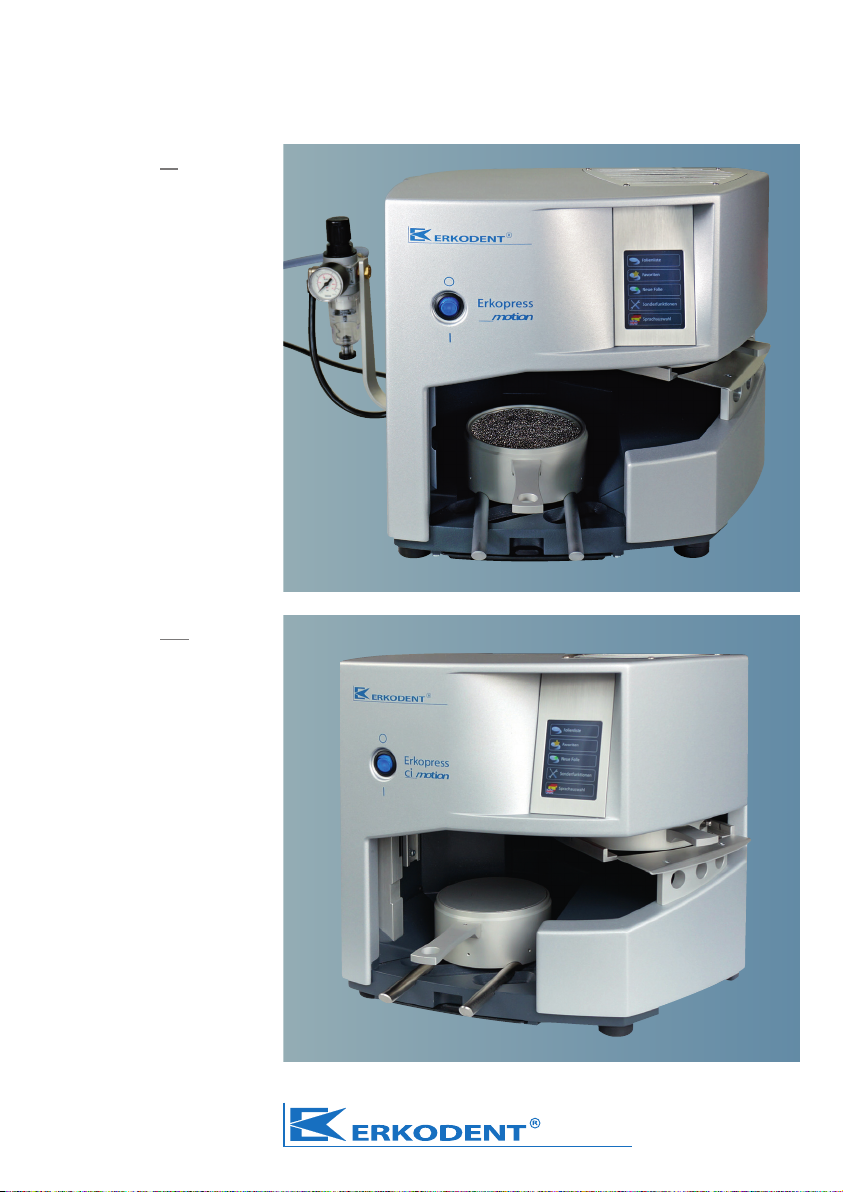

erkodent Erkopress Motion User manual

Erkopress _ motion
Erkopress ci motion
Instructions:

1
Pressure forming unit with automated thermo-
forming process to connect to the existing
compressed air system.
Erkopress _ motion
Erkopress ci motion
Instructions:
Pressure forming unit with automated thermo-
forming process and integrated production of
compressed air with reserve compressed air.*
* Pat. 19518211
The Erkopress motion/ ci motion units are in
accordance with the respective legal standards
that are listed in the declaration of conformity
on page 2 of this operating manual.
Safety:
• Before starting please carefully read this operating manual.
• The operating company has to ensure that the operator has
read and understood the operating manual.
• The operational safety of the unit is only guaranteed when it
is used in accordance with the legal accident prevention and
the safety guidelines are observed by the operator.
• Do not keep highly inflammable materials in direct area of
the machine.
• Only operate the unit under supervision.
• The voltage of the power source has to be identical to the
voltage indicated on the type plate.
• Attention hot, do not touch the heating element.
• Do not reach into the unit.
• Unplug the appliance when not in use.
• Before cleaning, maintenance and repairing always unplug
the unit and allow to cool down.
• The unit should only be cleaned with a damp cloth. Do not
use any solvents or other cleaning agents.
• Maintenance see page 12
• Repairs of the units must only be carried out by trained
personnel using original spare parts. Otherwise the
manufacturers liability and warranty expire.
Usage as directed:
• The units are intended for the use in the dental thermoform-
ing technique.
• They must only be operated by instructed personnel and only
using thermoforming material in Ø 120 mm and up to 5.5 mm
thickness to adapt on suitable models. Otherwise the product
liability expires.
Installation instructions:
• Place the unit on a plane ground. Pay attention to the fact
that the weight of the unit with accessories is approx. 30 kg.
• Install the unit in a dry and low-dust environment.
• Avoid draught (air-conditioning, ventilator, open window) at
the installation place since this might cause errors during
the temperature measurement by the sensor.
• The Erkopress _motion is connected to the compressed air
equipment available (mains pressure > 6 bar, inner diameter
of the feed cable at least 4 mm) and to electricity.
• The Erkopress ci motion will be connected to electricity
independently of a compressed air equipment.
• A reliable operation of all functions is only guaranteed at a
unit temperature of 15 °C.
Erkodent Erich Kopp GmbH
Siemensstraße 3 •72285 Pfalzgrafenweiler • Germany
Tel.: [phone] • Fax: [phone]
www.erkodent.com • [email protected]

• DE: EG-Konformitätserklärung
• EN: EC Declaration of Conformity
• FR: Déclaration de conformité pour la CE
• ES: CE Declaración de Conformidad
• IT: Dichiarazione CE di conformità
• entsprechend der EG-Richtlinie Maschinen 2006/42/EG
• according to directives for machines 2006/42/EC
• conforme aux directives pour des machines de la CE 2006/42
• según las normativas para máquinas 2006/42/CE
• conforme alle direttive per apparecchi 2006/42 CE
Wir • We • Nous • Nosotros • Noi
Erkodent Erich Kopp GmbH - Siemensstraße 3 - 72285 Pfalzgrafenweiler
• erklären in alleiniger Verantwortung, dass das Druck-Tiefziehgerät
• declare under our sole responsibility, that the pressure forming machine
• déclarons sous notre seule responsabilité que l’appareil de thermoformage à pression
• declaramos bajo propia responsabilidad que la máquina de presión para plastificación
• dichiara sotto la propria responsabilità che la termoformatrice a pressione
Modell • model • modèle • modelo • modello:
Erkopress motion, Erkopress ci motion
DE: den folgenden Bestimmungen in der jeweils aktuellen Version entspricht:
Richtlinie Maschinen 2006/42/EG • EMV-Richtlinie 2014/30/EU • DIN EN 12100 Sicherheit von Maschinen •
EN 13849-1 Sicherheitsbezogene Teile von Steuerungen • DIN EN ISO 14120 Sicherheit von Maschinen - Trennende
Schutzeinrichtungen • Richtlinie 2011/65/EU (gefährliche Stoffe, RoHS)
EN: complies with the following regulations:
guideline 2006/42/EC • guideline 2014/30/EC • EN 12100 • EN 13849- • EN ISO 14120 • guideline 2011/65/EC
FR: est conforme aux normes suivantes:
directive 2006/42/CE • directive 2014/30/CE • norme européenne EN 12100 • norme européenne EN 13849-1 • norme
européenne EN ISO 14120 • directive 2011/65/CE
ES: está en conformidad con las prescripciones siguientes:
normativas 2006/42/CE • normativas 2014/30/CE • EN 12100 • EN 13849-1 • ISO 14120 • normativas 2011/65/CE
IT: è conforme secondo le normative seguenti:
direttive 2006/42/CE • direttive 2014/30/CE • EN 12100 • EN 13849-1 • EN ISO 14120 • direttive 2011/65/CE
Unterlagenbevollmächtigte Person • authorized person for documents • agent pour les documents • comisionado
para documentos • incaricato per i documenti
Hans-Peter Kopp, Siemensstraße 3, D-72285 Pfalzgrafenweiler
Pfalzgrafenweiler, 26.07.2017
Hans-Peter Kopp
Geschäftsführer • Managing director • Gérant de société • Gerente
2

3
a b c d
2a
4
6 6 7 7
5
2b 3
c d
Erkopress _ motion +Erkopress ci motion
1
Delivery form for Erkopress motion / ci motion on page 12, please check concerning completeness.
Start-up:
(Pay attention to the installation
instructions)
Erkopress ci motion:
Connect to the power supply
Erkopress motion:

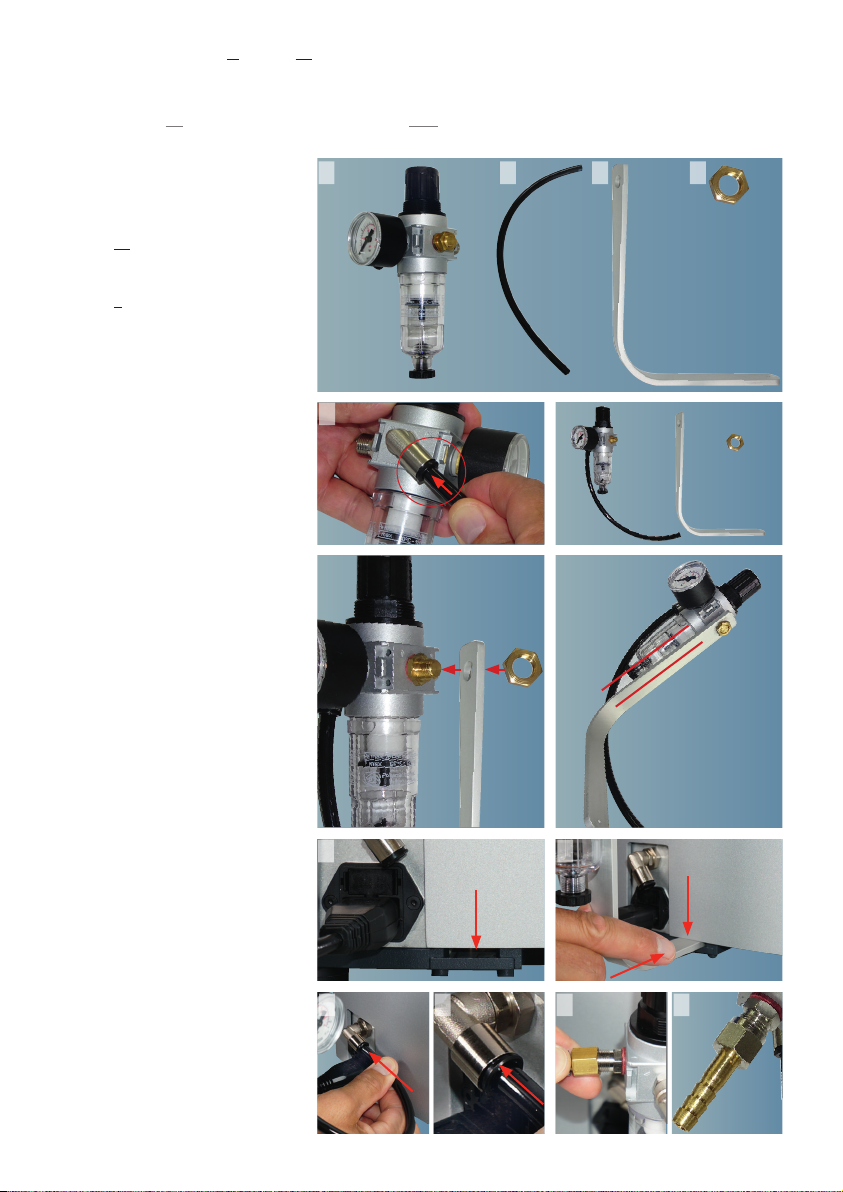

Install pressure regulator
Components pressure regulator:
a) Pressure regulator with water
separator.
b) Black pressure hose
c) Support bracket
d) Brass nut
Installation:
Push the black pressure hose into the
compressed air connector at the
pressure regulator (1).
Arrangement (2a)
Fasten the support bracket (c) to the
pressure regulator with the brass nut
(d) (2b), paying attention to a parallel
alignment (3) of pressure regulator and
support bracket.
Push the support bracket into the
provided opening until it stops (4 + 5).
Push the black pressure hose into the
compressed air connector at the
unit (3).
Screw on the hose connection (7) and
connect to the compressed air supply
(7). (compressed air settings, see
technical data)

4

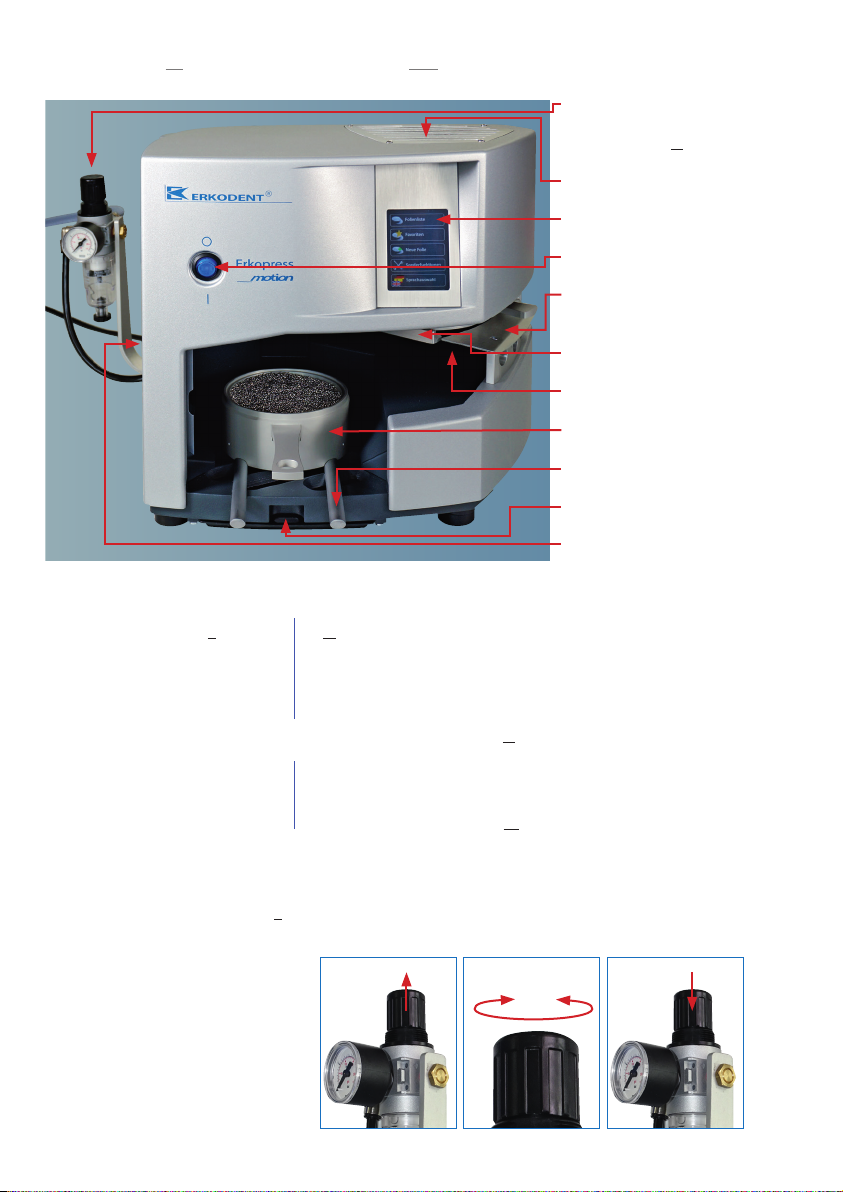

Compressed air connection and
pressure regulator
(only Erkopress _ motion)
Medium-wave infrared heater
Touchpanel
Main switch
Insertion ramp for foil reception
Fixation for foil frame
Sensor window
Form pot
Insertion rail for the form pot
Granules collecting device
Mains connection (at the side)
Erkopress _ motion +Erkopress ci motion
Technical data:
Dimensions: Erkopress _motion ci motion
Height 320 mm 320 mm
Width 350 mm 350 mm
Depth 430 mm 430 mm
Weight 18.9 kg 21.3 kg
Electricity: ~220 - 240 (100,110 - 120) volts, 50 - 60 hertz
max. 380 watt 440 watt
Fuse: 230/240 V 2 x T-2 A 2 x T-2.5 A
100/115 V 2 x T-4 A 2 x T-5 A
Heater: medium-wave infrared heater, 280 watt
Temperature sensor: touchless infrared sensor,
measuring range up to 240 °C
Foil dimensions: Ø120 mm, thickness 0 - 5.5 mm
Form pot inner dimensions: Ø 101 mm, height 44 mm
Erkopress_ motion, operating pressure 3 - 6 bar,
required mains system pressure > 6 bar,
pressure regulator, factory setting 4.5 bar,
noise level < 70 dB(A) at 30 cm distance
Erkopress ci motion with integrated compressor
and reserve compressed-air, operating pressure up
to 6 bar, noise level < 70 dB(A) at 30 cm distance
Pressure regulator, only Erkopress motion:
The operating pressure of the Erkopress motion device can be set between 3 and 6 bar,
the factory setting is 4.5 bar.
Increase or decrease pressure:
• Pull up the pressure regulator head
• Select operating pressure (3 - 6 bar)
• Press the pressure regulator head back

5
form pot with granules form pot with model disc model disc with dental arch (not included in delivery)
Unit components:
foil reception insert foil foil securing ring foil reception with foil
The symbols of the touchpanel:
ok continue
list of foils
rated temperature
abort
favourites
delete
change presettings
special functions
heating on
add favourite
new foil
heating off
foil thickness
language selection
move support for
foil reception
continue
refer to
instructions
foil temperature
start
thermo-
forming
back
main menu
cooling time
Attention
risk of
crushing
Recommendation, always thermoform with filling
granules, work in the enclosed white worktray.
Remove granules with the supplied mag-
net. Never clean by blowing out!

6
The sensor window
is located behind the
insertion ramp.

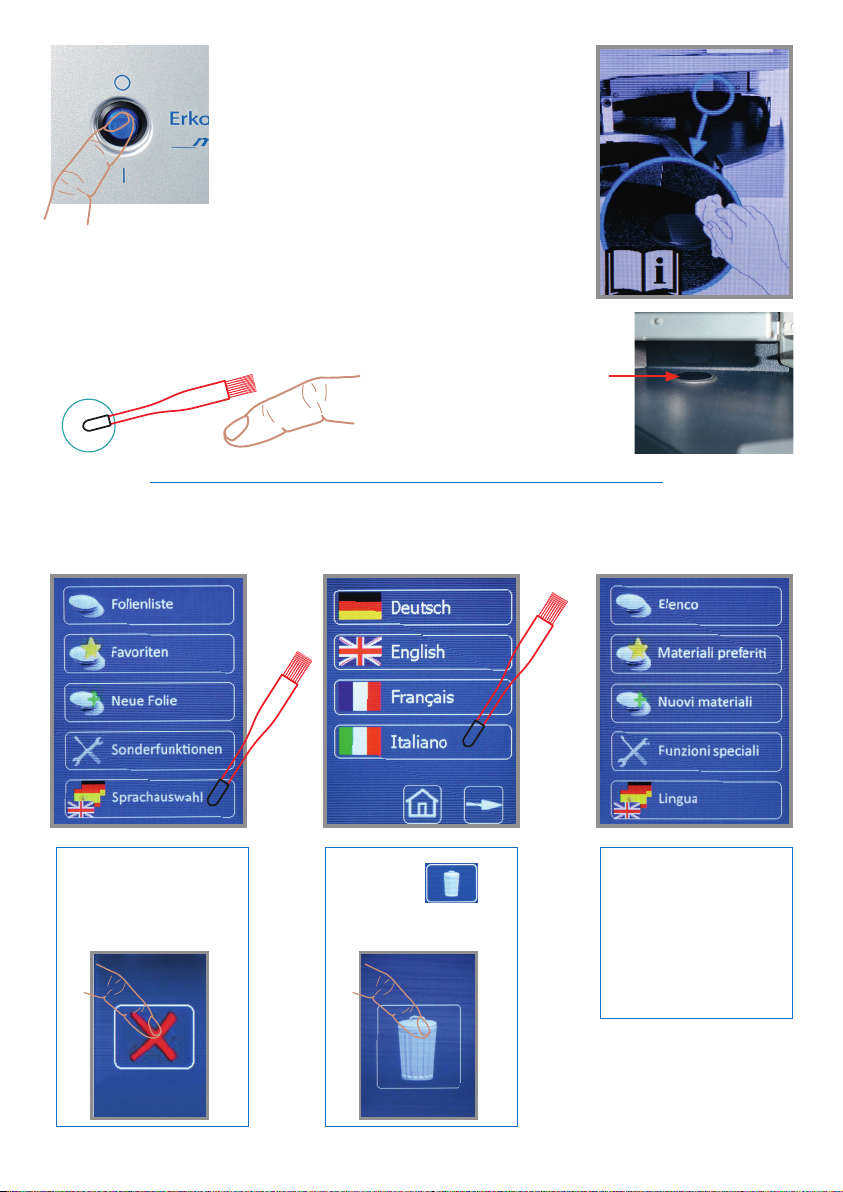

main switch
Switch on the unit
Switch on the unit at the main switch.
The touchpanel first shows the Erkodent Logo and
then it requires to check if the sensor window is dusty
or dirty. If so, dust off or clean with a damp cloth (no
cleaning agents!).
After a few seconds the basic display automatically
appears.
The touchpanel responds in the framed function
fields on slight pressure. For input the enclosed brush
for granules is equipped with a rubber cap. However,
input is also possible with fingers.
Basic display: Select language, for any further use of the unit the language selected last time is used.
1. Select language selection 2. Select language 3. Menu, selected language
Note: The function field »X«
interrupts the respective
process. Each termination
has to be confirmed.
Note: The
function field
»delete“
has to be confirmed.
Note:
If within 10 seconds the
next required working step
will not be performed, the
working program will be
switched off for safety
reasons.

7

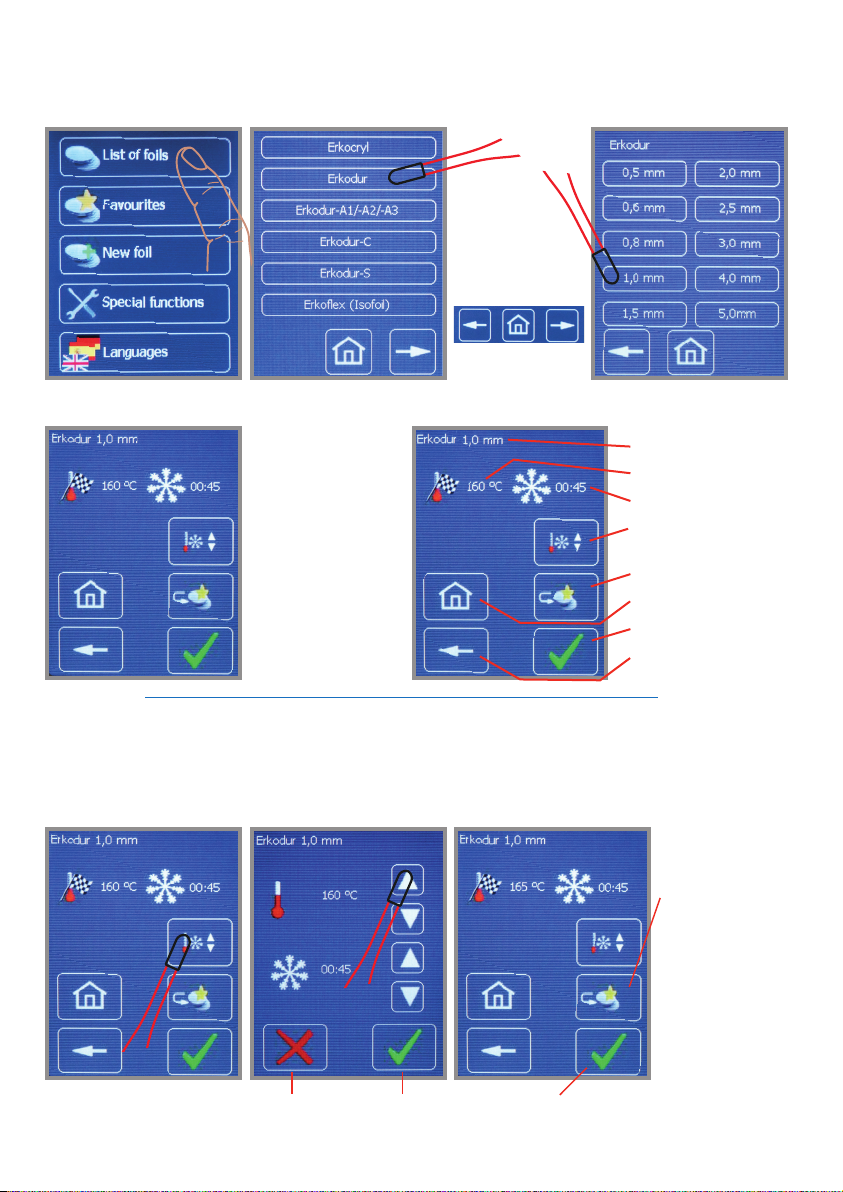

Select foil: The list of foils contains all foils of the Erkodent product range that can be used with this machine and
that have been available at the time of production of this unit. (Example, Erkodur, thickness 1.0 mm)
1. Select List of foils 3. Select 1.0 mm2. Select Erkodur
4. Selected foil
Thumb list of foils:
back continue
menu
Functions of this display
selected foil
rated temperature
cooling time
change rated temperature
and cooling time
save as favourite
menu
OK, next step
one step back
Change factory settings for a foil: The rated temperature and the cooling time can be changed for one single
thermoforming process or constantly, in the latter case as favourite. The rated temperature (factory setting) can
be only be changed by +/- 5 °C. The changes are made in the window „selected foil“ or „favourite“, please also
see “select foil” and “save favourites”.
1. Select change 2. Change rated temperature and cooling time 3. Thermoform or ...
Abort Save Thermoform one time with the changed data.
... save as favour-
ite.
As favourite the
changed data and
the foil name will
remain.

8

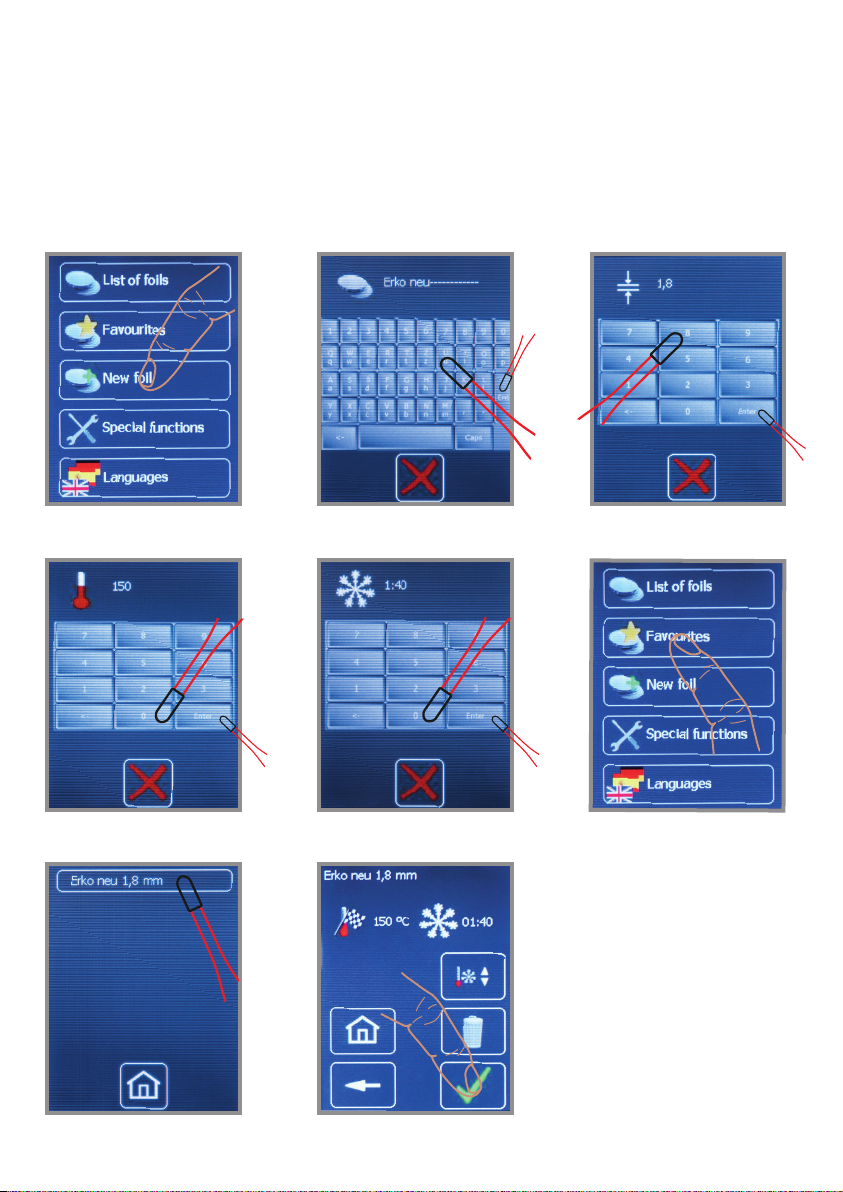

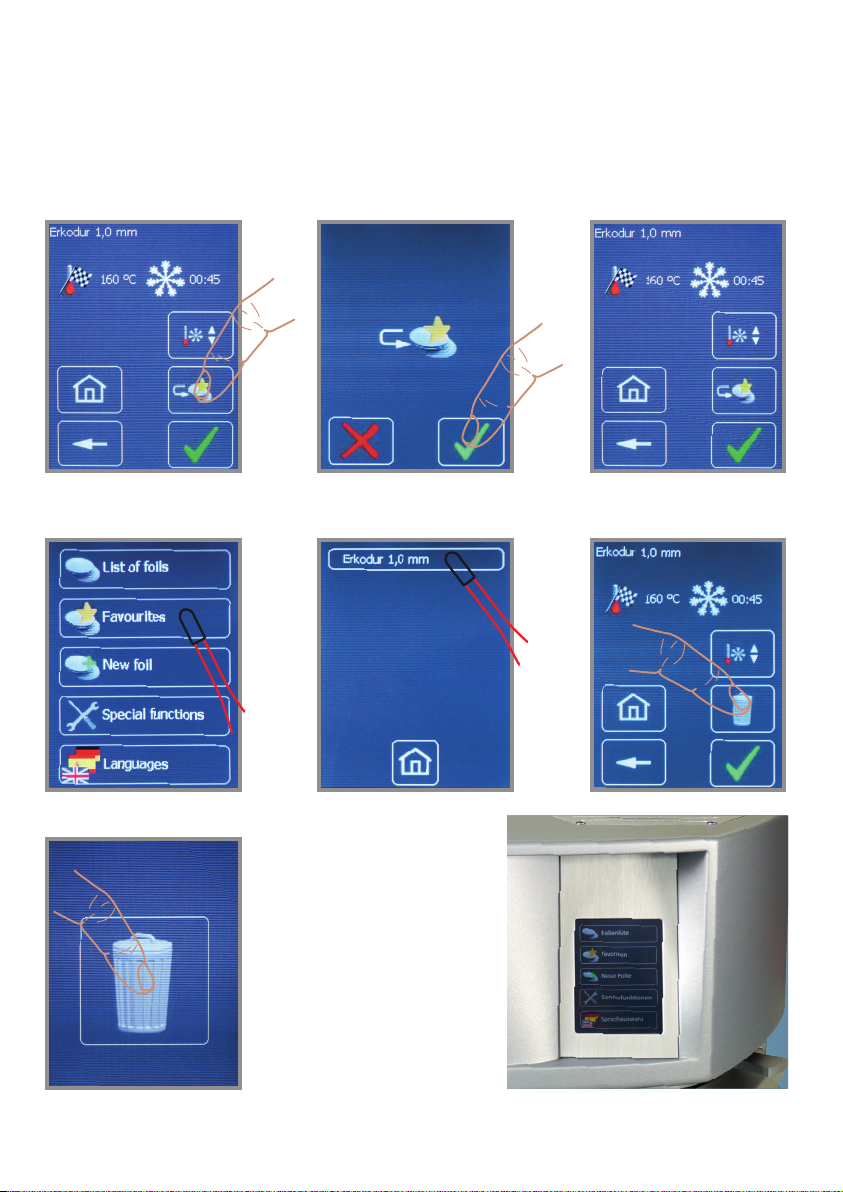

Save favourites: The list of favourites allows a quicker selection of often used foils. To save a foil in the list of
favourites, this foil is selected out of the list of foils as described under “select foil“. New foils, either future
Erkodent foils or foreign foils, are entered with the functional field »New foil« and are saved in the list of
favourites.
After the desired foil is selected from the list of foils, the display shown at point 1. will be visible. To save the foil
as favourite, select »to favourites«.
Recommendation: If an Erkodent
foil will be saved with the factory
parameters, the changed one
should be saved as new foil with
a different name in order to avoid
any mix-up.
1. Select add favourite
Delete favourite:
2. Add favourite and confirm
2. Select favourite
1. Select Favourites
4. Confirm delete favourite
3. The favourite appears and
can be processed
3. Select delete favourites

9

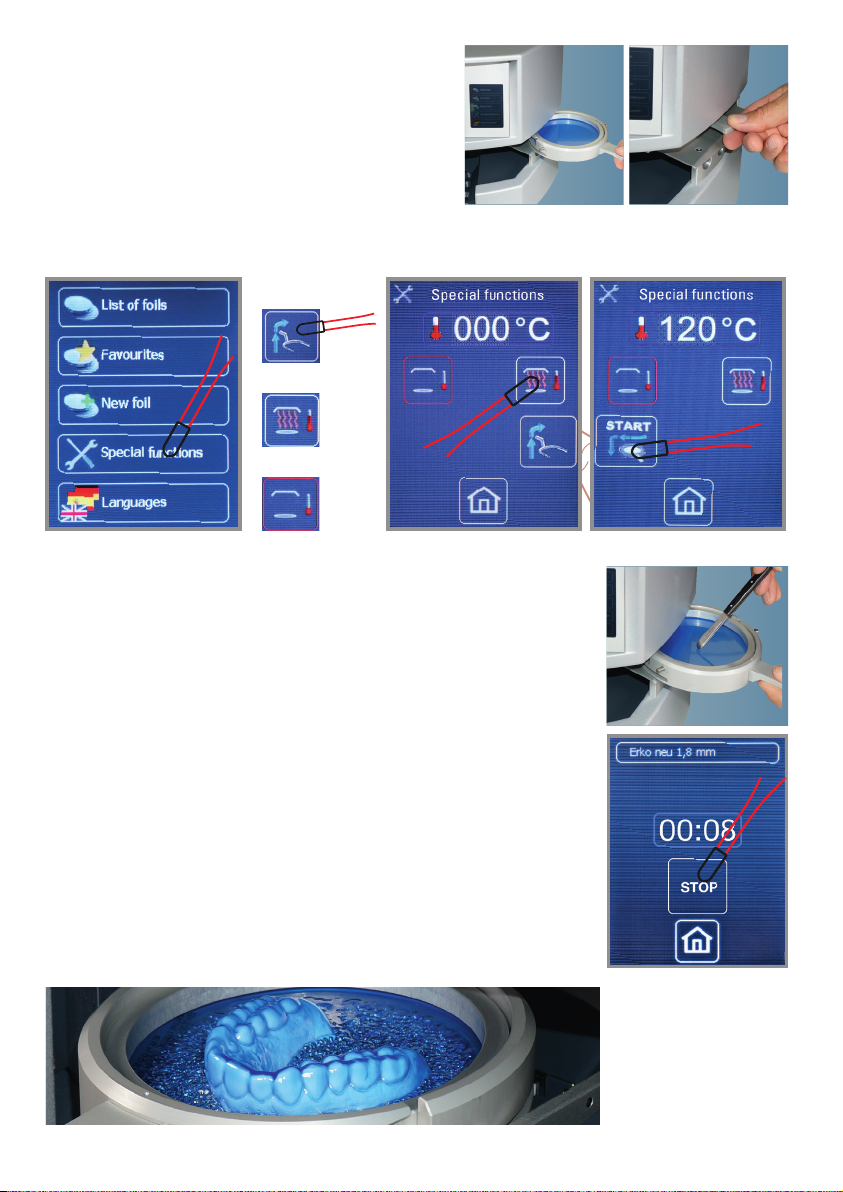

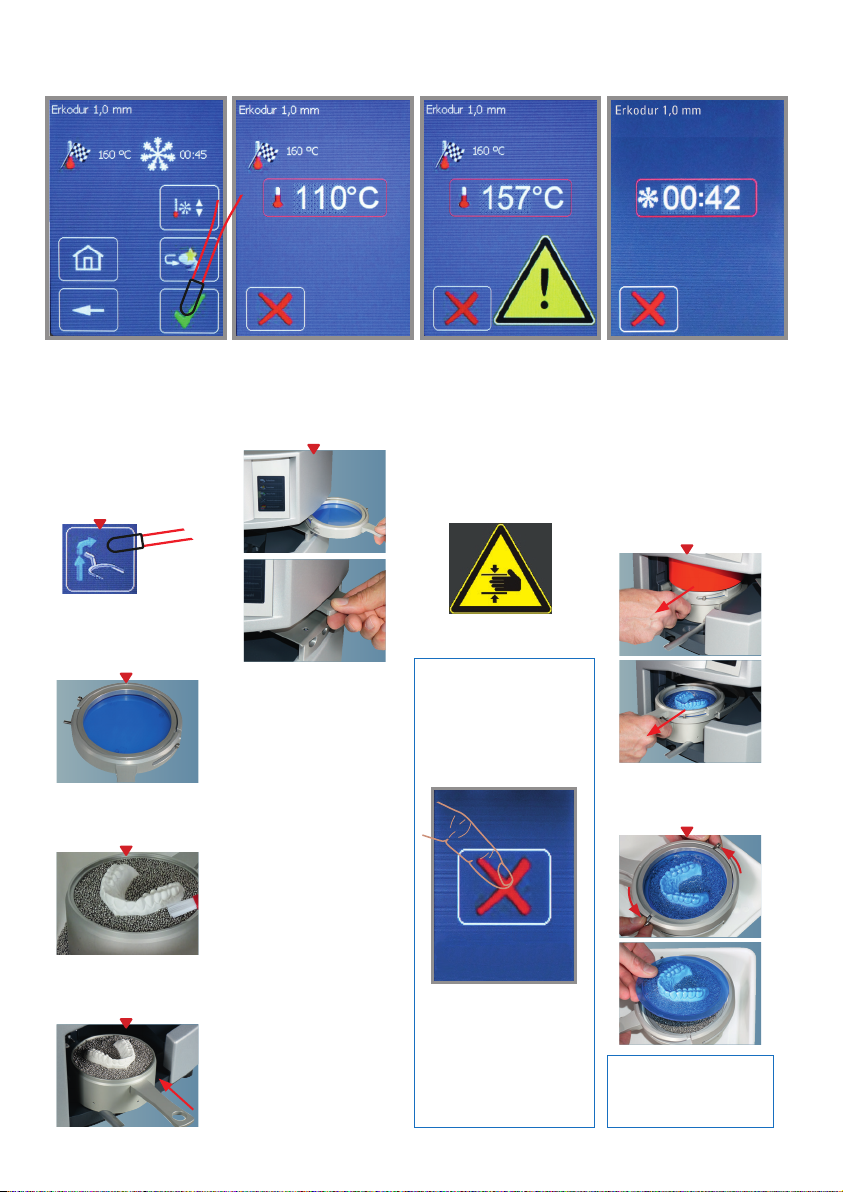

to 4. After thermoforming
the cooling time runs.
Afterwards further working
steps are indicated on the
display.
Pull form pot out of the
unit, in doing so the red
protection shield moves
upwards.
Take model and foil out of
the foil reception.
to 3. 10 °C before reaching
the rated temperature, a
signal sounds and a warn-
ing sign flashes. As soon
as the rating temperature is
reached, the thermoforming
process will be automati-
cally released.
Do not reach into the unit!
Risk of crushing! Risk of
serious injuries
Notes:
The function field »X«
interrupts the respective
process.
Each termination has to be
confirmed.
If within 10 seconds the
next required working step
will not be performed, the
working program will be
switched off for safety
reasons.
to 2. Place foil reception
with foil onto the insertion
ramp and push it thus far
under the heater that it
clicks into place.
The foil temperature
appears in the display,
the foil is heated.
The function field »X«
interrupts the heating
process and leads back
to the display 1.
If the foil is pulled out of
the heating area (max.
3 sec., otherwise the
heating process will be
stopped), the working steps
described under “to 1.“
appear again in the display.
When the rated
temperature is reached,
the heating switches off.
to 1. Correct foil?,
if yes, confirm. In the
display further working
steps are indicated. The
visualisation disappears
with the next step.
If necessary, move support
for foil frame in the upper
position.
Put the selected foil in the
foil reception and clamp
with the foil securing ring.
Now or during the heating
process embed the model
in the granules.
Push form pot with model
backwards into the unit
until it clicks into place.
1. Selected foil 2. Foil will be heated 3.
Attention,
thermoforming process
4. Cooling time
Thermoforming (Pay attention to the notes)
error 001: blocked
support for foil
reception, see page 11

10
Enter new foil: New foils can be future Erkodent foils or foreign foils.
If Erkodent launches a new foil the necessary data will be found on the label (example: Erko new, thickness 1.8
mm, rated temperature 150 °C, cooling time 1:40 min.).
The foil will be saved under input »New foil«. In case of foreign foils the rated temperature and cooling time have
to be determined using the special functions (page 9). The new foils can be saved in the list of favourites and
selected via this list.
Note: Max 240 °C can be entered as rated temperature. The cooling time has to be at least 30 sec. Otherwise
there might be malfunctions.
1. Select New foil 2. Enter foil name 3. Enter foil thickness
5. Enter cooling time 6. Select favourites
7. Select new foil
4. Enter rated temperature
8. Thermoform new foil To 6.,the new foil is saved as
favourite, the menu appears.

11
Special functions: The special functions allow to switch the
heating on and off independently of the program.
To determine the rated temperature (thermoforming tempera-
ture) of a foreign foil, select »heating on« and clamp the foil in
the foil frame as described at “thermoforming“. As soon as the
foil frame clicks into place under the heater (illustrations), the
heater switches on and the sensor measures the temperature
of the foil. If afterwards the foil shall be thermoformed, select
»START« to initiate the thermoforming process.
No information in regard to rated temperature and cooling time is available:
To check the thermoformability, pull the foil out and touch with a blunt instrument.
If permanent impressions result, generally the foil is ready for thermoforming
(illustration).
The heating switches off if the foil is pulled out of the heating area, »heating out« is
selected or if the sensor measures >240 °C. The temperature shown on the display
is the temperature measured at last. If the foil is thermoformable, this temperature
corresponds to the rated temperature.
To determine the cooling time, stop the time from beginning of the adaptation. For
the first time after approx. 1 minute select cooling time »STOP«, the cylinder moves
upwards, the foil can be pulled out. Manually check the foil temperature, attention
risk of burning! The right cooling time is achieved if the foil has approx. room tem-
perature on the surface. The foil can now be saved as described under “enter new
foils“.
1. Select special functions 2. Select heating on 3. Rated temperature reached,
select START
If necessary, move
support for foil
reception in the
upper position.
Heating on:
Heating off:

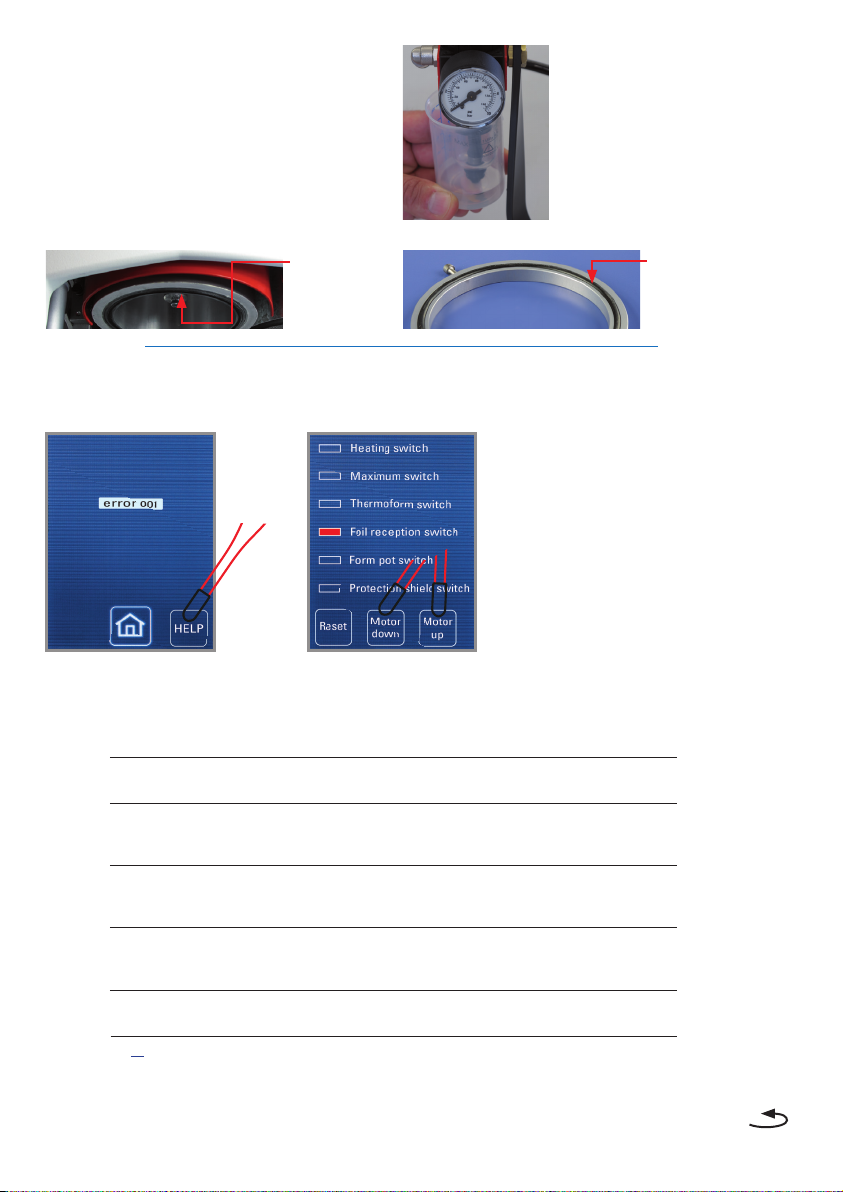

Troubleshooting: The »HELP« key appears on the display in the case of Error 001/002/003/004 and 021.
Example, Error 001: blocked support for foil reception in the travel path downwards (motor switches off).
Error message:
Error 002: Disorder protection shield,
microswitch not reached or actuated.
Error 003: Microswitch for form pot
not operated
Error 004: Heating position switch not
reached.
Error 010: Program abort
(timeout foil reception)
Error 011: Program abort
(timeout form pot)
Error 021: Disorder of the
temperature measurement
only Erkopress ci motion
Error 031: Runtime of compressor
too long.
possible cause:
The support for the foil reception has not
moved down the red protection shield.
Form pot position changed during thermo-
forming/switch defective.
When the support for foil reception is
raised, the heating position switch is not
reached/switch defective.
Foil reception was not in the heating posi-
tion for more than 10 sec. during heating.
The form pot was not in the thermoforming
position for more than 10 sec. at the end of
the heating time.
Heating was for longer than 10 min. in oper-
ation/IR temperature sensor defective.
Compressor needs longer than 90 seconds
to build enough pressure,
pressure system untight.
possible elimination: *Customer Service
Make sure that the foil reception is snapped
into place, push it completely into the unit,
otherwise CS*.
Do not pull out the form pot during the thermo-
forming process/CS *.
See Error 001, »Heating switch« must light up/
CS *.
The foil reception must be pulled out
only briefly and must be pushed back
into place within 10 seconds.
The form pot must be in the rearmost, locked
position for the thermoforming process. If not,
the program is aborted after 10 sec.
After 10 minutes of heating, the heater switch-
es off for safety reasons / CS *.
Check compressed air system, CS*.
Drive support for foil reception step
by step downwards (motor down) or
upwards (motor up) in the respective
end position. (Several times press
touch fields)
Example: red light up, position switch
is switched on.
Maintenance:
• To ensure that the unit maintains its full function,
the rubber seals require replacing once a year
when the unit is permanently in use. The new
sealing rings should be firmly pushed into position.
• Extremely dirty high-grade steel granules should
be purified or replaced.
• The air discharge apertures at the side of the
model pot must not be blocked.
Maintenance Erkopress _ motion
The condensation water level
in the water separator must not
exceed the max. marquage.
To release water push the black
drain for water removal upwards
using an appropriate cup.
Sealing
cylinder
110 857
Sealing
foil securing ring
110 857
12

13
Troubleshooting:
Error
Machine not ready to use, no display
in the touch panel
Heater does not start
Pressure cylinder does not, or incom-
pletely extend
Pressure cylinder does not seal
(blowing sound)
Program reacts absurdly
Absurd temperature indication
Adaptation not sufficient
Note, only Erkopress ci motion:
When processing thin flexible foils,
holes may form in the foil. If the
pressure drops below 1.5 bar, this will
be displayed.
Do not interrupt the thermoforming
process! A good thermoforming
result is most likely.
Possible cause:
Power supply defective, room
temperature below 15 °C
Foil reception not locked under the heating
Protection shield not extended
Form pot is not in the rearmost
position
Not enough pressure
(Erkopress __motion)
Worn sealings
Not enough pressure
(Erkopress __motion)
System crash
Sensor window soiled, draught disturbs the
sensor, sensor defective
Granules on sealings
Sealings used
Hole in the foil
System pressure too low
Display pressure loss:
Possible elimination:
Check wall socket, machine plug, fuses,
operating temperature > 15 °C.
Check position of the foil reception.
Foil reception must be in the rearmost,
locked position, or CS (Customer Service).
Push form pot with model backwards into the
unit until it clicks into place.
System pressure at least 6 bar,
pressure line with min. 6 mm inner
diameter, without creases.
Replace sealings
System pressure at least 6 bar,
pressure line with min. 6 mm inner
diameter, without creases.
Restart, switch machine off for 30 sec. and
switch on again.
Clean sensor window, avoid draught near the
unit, if necessary CS sensor check.
Remove granules from the sealings.
Replace sealings
Remove the sharp edges on the model,
embed the model deeper, if necessary
choose thicker foil material.
System pressure at least 6 bar,
pressure line with min. 6 mm inner
diameter, without creases.

14

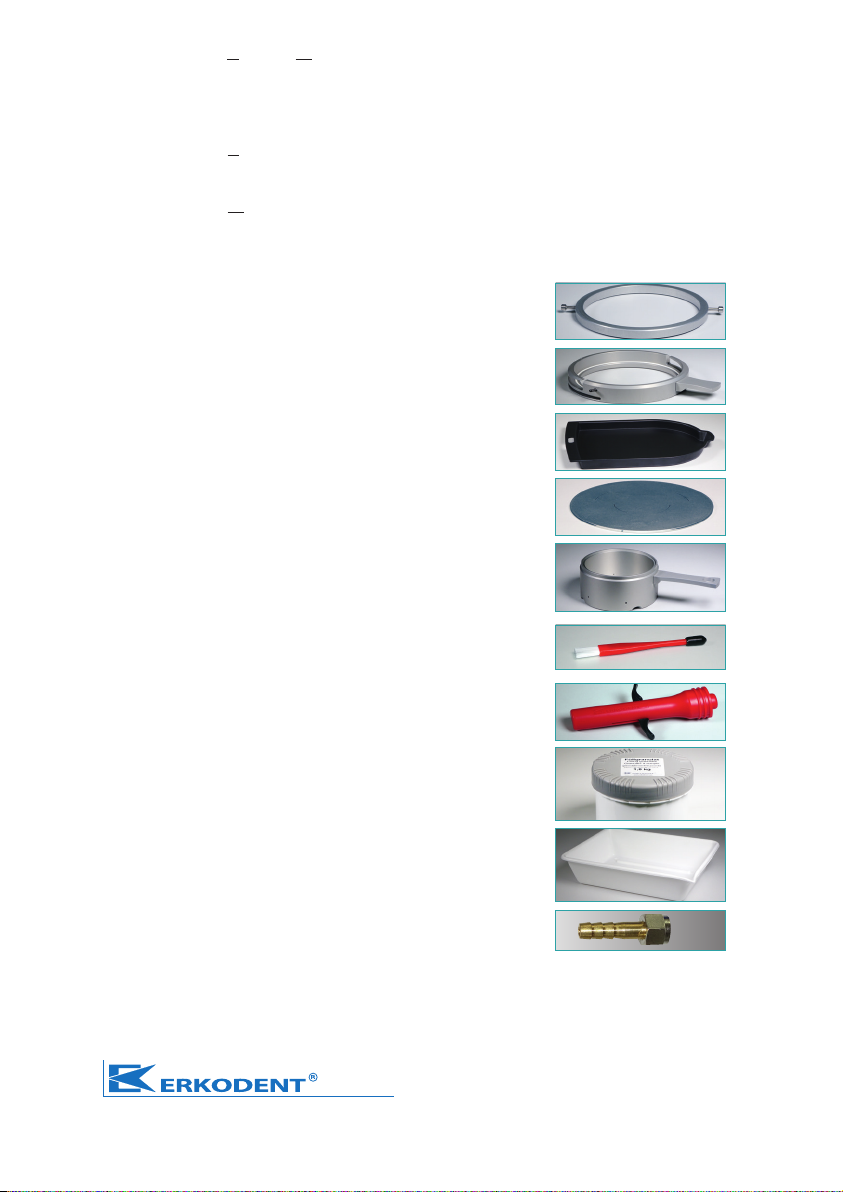

Delivery form for Erkopress motion / ci motion
please check concerning completeness
piece: article: order number:
1 Erkopress motion 173 000
with pressure regulator / water separator
1 Erkopress ci motion 173 500
with integrated compressor and reserve
compressed air
with accessories as follows:
1 foil securing ring 173 050
1 foil reception 173 023
1 granules collecting device 173 025
1 model disc 173 026
1 form pot 173 021
1 brush for filling granules with rubber cap 188 530
can also be used as input pen
1 on-off Magnet red or green red, 110 890
to collect filling granules green, 110 891
1 filling granules (subsequent supply) 110 852 (1.3 kg)
(supplied with the unit 1.8 kg)
high-grade steel granules (magnetique)
with rounded edges
1 worktray white 222 100
1 power supply cable 170 001
1 foil trial package including list of contents
1 machine documents (folder), instructions, thermoforming technique manual,
material card, Erkodent program, guarantee card
Erkodent Erich Kopp GmbH Siemensstraße 3 •72285 Pfalzgrafenweiler • Germany
Tel.: [phone] • Fax: [phone] • www.erkodent.com • [email protected]

Erkodent Erich Kopp GmbH Siemensstraße 3 •72285 Pfalzgrafenweiler • Germany
Tel.: [phone] • Fax: [phone] • www.erkodent.com • [email protected]
BA-Erkopressmotion-anl-EN-04-04-2019
