Erskine attachments 900320 User manual

Land Planer

For

Skid Steer Loaders

Operator’s Manual

Set-Up Assembly

Maintenance

Parts Information

Read this Manual Before Use

2

TABLE OF CONTENTS

REFERENCE INFORMATION

Write the serial number for your attachment in the spaces below. Always refer to this serial

number when calling for service or parts.

Serial Number………….._____________

YOUR ATTACHMENT DEALER

ADDRESS:

PHONE:

CONTACT:

SAFETY

3-4

SERIAL NUMBER/DECAL LOCATION

5-6

USER’S MOUNTING INSTRUCTIONS

7-8

OPERATING INSTRUCTIONS

9-10

ROUTINE MAINTENANCE

11-13

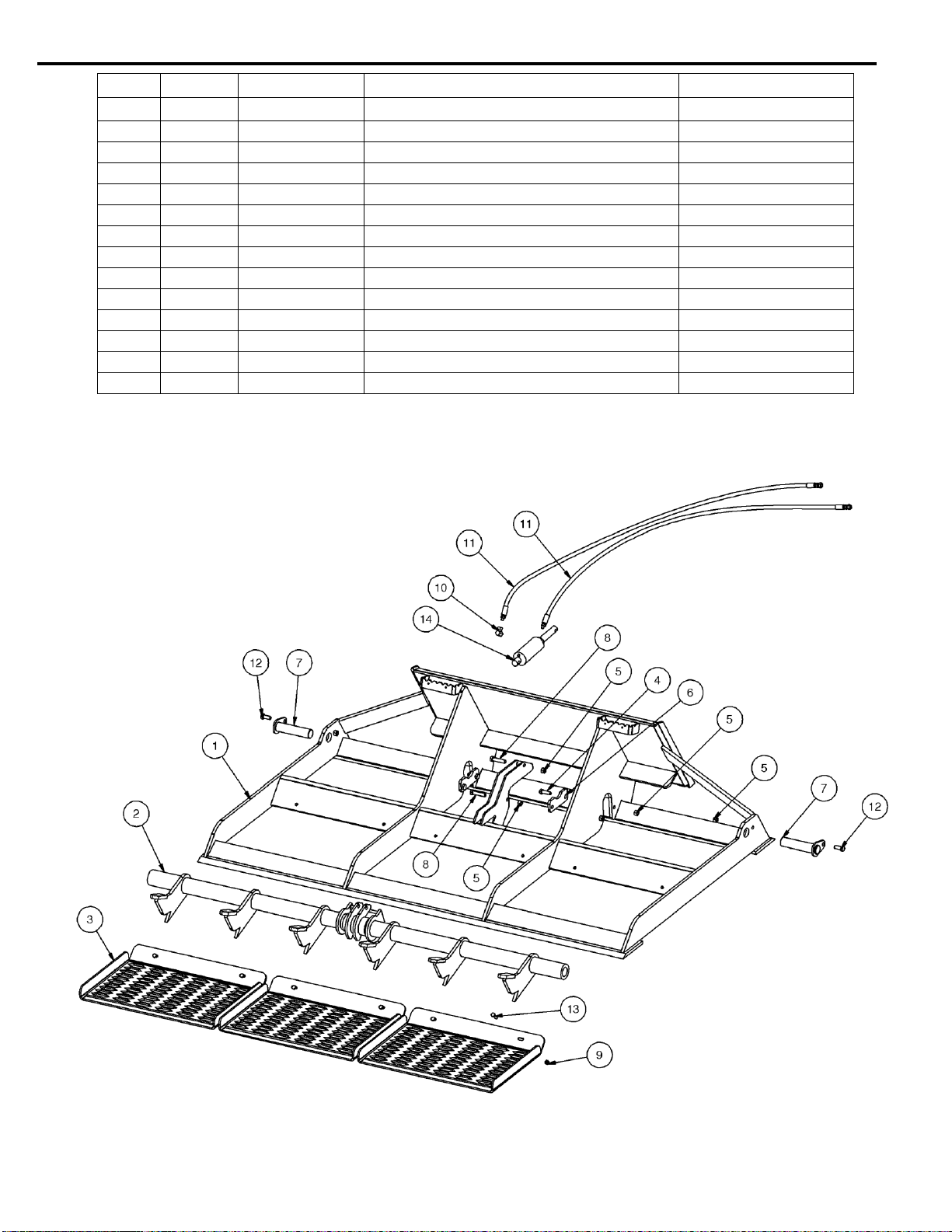

PARTS INFORMATION

14

GENERAL SPECIFICATIONS

15

BOLT TORQUE INFORMATION

16

NOTES

17-18

WARRANTY

19

NOTE: Erskine Attachments LLC reserves the right to make

improvements in design or changes in specifications at any time without

notice and without incurring any obligations to install them on units

previously sold.

3

The signal words CAUTION, WARNING, or

DANGER are used to indicate hazards.

Indicates a potentially

hazardous situation which, if not avoided,

may result in minor or moderate injury.

Indicates a potentially

hazardous situation which, if not avoided,

could result in death or serious injury.

Indicates a potentially

hazardous situation which, if not avoided,

will result in death or serious injury.



The word IMPORTANT is used in the text when

immediate damage will occur due to improper

technique or operation.



The word NOTE is used to convey information that

is out of context with the manual text; special

information such as specifications, techniques,

reference information, and other information of a

supplementary nature.

The user is responsible for inspecting the machine

daily, and for having parts repaired or replaced when

continued use of the machine would cause damage,

excessive wear to other parts or make the machine

unsafe for continued operation.

If an operating procedure, tool device, maintenance

or work method not specifically recommended is

used, you must satisfy yourself that it is safe for you

and others. You must also ensure that the

attachment will not be damaged or made unsafe by

the procedures you choose.

Erskine Attachments LLC cannot anticipate every

possible circumstance that might involve potential

hazard. The safety messages found in this manual

and on the machine are therefore not all inclusive.

Throughout this manual, reference may be made to

the left hand (LH) and right hand (RH) side. These

terms are used as viewed from the operator’s seat

facing front.

SAFETY

DO NOT use or perform maintenance on this machine until this manual has been

read and understood. In addition, read the Operation and Maintenance

Manual(s) pertaining to the attachment and the attachment carrier (“Loader”).

4

SAFETY

Improper operation can cause serious

injury or death.

Pre-operation

This machine is designed to grade and level dirt.

NEVER use this machine for any other purpose.

Read the operator’s manual for the “Skid Steer

Loader.”NEVERallow untrained people to

operate.

Operating instructions must be given to everyone

before operating this attachment and at least once

a year thereafter in accordance with OSHA

regulations.

NEVER exceed the maximum recommended input

power or speed specifications for the attachment.

Over-powering or over-speeding the attachment

may cause personal injury and/or machine

damage.

Keep all shields, guards, and covers in place.

Do not modify equipment or add attachments that

are not approved by Erskine Attachments LLC.

Use adequate safety warning lights and devices as

required by local regulations. Obey all local laws

and regulations regarding machine operation on

public property.

Operation

Hydraulic connections may be hot after use. Use

gloves if connecting or disconnecting after use.

Check and be sure all operating controls are in

neutral before starting the engine.

Always stay in the operator position when using

the attachment.

Keep people away from loader and attachment

when in use. This attachment has moving parts.

Operation (continued)

NEVER operate near embankments or terrain that

is so steep that rollover could occur.

Before leaving the operators position, lower the

attachment to rest flat on the ground, stop engine,

relieve hydraulic pressure to the attachment, set

park brake, and wait for all motion to stop.

NEVER place hands near moving parts or clear

debris while engine is running.

Avoid High Pressure Fluids Hazard

Escaping fluid under pressure can

penetrate the skin causing serious

injury.

Avoid the hazard by relieving the

pressure before disconnecting

hydraulic lines.

Use a piece of paper or cardboard, NOT BODY

PARTS, to check for suspected leaks. Wear

protective gloves and safety glasses or goggles

when servicing or performing maintenance on

hydraulic systems.

If an accident occurs, see a doctor immediately.

Any fluid injected into the skin must be surgically

removed within a few hours or gangrene may

result.

Maintenance

NEVER make adjustments, lubricate, clean, or

perform any service on the machine while it is in

operation.

Make sure the attachment is serviced on a daily

basis. Improper maintenance can cause serious

injury or death in addition to damage to the

attachment and/or your equipment.

5

SERIAL NUMBER AND SAFETY DECAL LOCATIONS

Serial Number Location:

It is important to refer to the serial number of the attachment when making repairs or ordering parts. Early or later

models (identification made by serial number) may use different parts, or it may be necessary to use different

procedures in doing a specific operation.

6

Part number: 200001

Location: On front of mount plate, centered

Quantity: 1 (w/ Optional Scarifying Teeth)

SERIAL NUMBER AND SAFETY DECAL LOCATIONS________

Small Brand Decal

Location: On outside of each middle plate

Quantity: 2

Safety Decals Locations:

The locations of the safety decals are shown. If

these decals are missing, damaged, or painted over

they must be replaced. Call Erskine Attachments

LLC (218-435-4045) for replacement decals.

A

7

USER’S MOUNTING INSTRUCTIONS

After the initial set-up assembly is completed, use the following procedure to mount the attachment to the loader.

Coupler wedges or pins must extend through holes in attachment. Levers must be fully

down and locked. Failure to secure wedges or pins can allow the attachment to come off and cause injury

or death.

1. Use the step, safety treads, and grab handles to

get on and off the loader and attachment.

2. Sitting in the operator’s seat, lower seat bar (if so

equipped) and fasten the seat belt.

3. Drive the loader to the rear of the attachment. Put

the loader quick attach coupler intothe attachment

mounting bracket.

4. Tilt the loader coupler backward a small amount

until it is fully engaged in the attachment mounting

bracket.

5. Stop the engine and engage the park brake.

6. Secure the coupler locking mechanism that

attaches the attachment to the loader.

8

USER’S MOUNTING INSTRUCTIONS

7. If attachment is equipped with optional hydraulic

scarifying teeth, connect the hydraulic quick

couplers from the attachment to the loader.

IMPORTANT: Wipe the ends of the hydraulic

quick couplers (both lead and loader) with a rag

to remove any possible contamination.

Contamination can cause hydraulic components

to fail and is not covered under warranty.

IMPORTANT: Make sure the quick couplers are

fully engaged. If the quick couplers do not fully

engage, check to see that the couplers are the

same size and brand. Do not force the quick

couplers together.

NOTE: See the loader’s operator’s manual for

auxiliary hydraulic specifications and connection

instructions.

NOTE: Attachment is shipped with 8FJX (1/2”

Female JIC Swivel) fittings on the ends of the

lead hoses.

8. Make sure the hoses are properly routed to fit

your specific loader. If the hoses are not routed

correctly, hoses may get pinched or rub on tires.

Be sure to check the hose routing through the full

range of intended motion of the attachment

before operating it.

More than one routing may be acceptable

depending on the loader. Pick the routing that

best suits your loader.

IMPORTANT: Proper hose routing is the

responsibility of the owner and/or operator.

Pinched or stretched hoses are not covered

under warranty.

Mounting is now complete and the attachment is

ready for operation. Use reverse order of above

instructions to dismount the attachment from the

loader.

9

OPERATING INSTRUCTIONS

With the operator in the seat of the loader, seat belt

fastened, and seat bar lowered (if so equipped), start

the engine.

Cutting the Ground

1. Raise the loader lift arms and tilt the attachment to

the desired angle.

2. If operating while movingforward, lower the loader

lift arms until the front cutting edge enters the

ground.

3. If operating in reverse, lower the loader lift arms

until the rear cutting edge enters the ground.

4. Use the loader tilt and lift functions to adjust

cutting depth and increase traction. Keep the

digging depth even in order to obtain the desired

grade angle.

Using the Scarifying Teeth

When the scarifying teeth are engaged, they break up

hard or compacted soil while the cutting edge levels

the soil.

1. Raise the attachment slightly above the ground,

and activate the auxiliary hydraulics to lower the

scarifying teeth into the operating position.

IMPORTANT: The scarifying teeth are designed

to be used in the fully lowered position. If the

scarifying teeth are used when not fully lowered,

damage may occur to the cylinder, cylinder mount,

or frame. When not using the scarifying teeth,

make sure they are fully raised.

NOTE: The scarifying tooth bar may be stiff when

new and not fully lower at first. The tooth bar will

operate more freely after an initial break-in period.

10

OPERATING INSTRUCTIONS

2. Lower the loader lift arms until the rear cutting

edge is on the ground. Control the digging depth

by raising or lowering the front cutting edge.

Leveling the Ground

1. To level the ground, raise the loader lift arms and

position the attachment at the desired angle.

2. If operating while moving forward tilt the

attachment so that there is more pressure on the

rear cutting edge than there is on the front cutting

edge.

3. If operating in the reverse direction, tilt the

attachment so that there is more pressure on the

front cutting edge than there is on the rear cutting

edge.

4. When operating in the forward direction, the

optional expanded metal grates will allow the soil

to fall through, but will catch and hold rocks and

debris.

11

ROUTINE MAINTENANCE

Lower the attachment to rest flat on the ground, shut down the engine, relieve the

hydraulic pressure to the attachment, set the park brake, and wait for all motion to stop before leaving

the operator’s seat to perform service of any kind.

It is the operator’s responsibility to make daily inspections of the loader and attachment for damage, loose bolts,

fluid leaks, or anything else that could cause a potential service or safety problem. Preventive maintenance is

the easiest and least expensive type of maintenance.

IMPORTANT: Bolts can loosen after initial usage. After the first hour of operation check all bolts.

Scarifying Teeth

Inspect the scarifying teeth before each use. If the

teeth get worn to the point of replacement, the teeth

may be replaced by either welding new teeth onto the

tooth shanks, or by replacing the tooth mount.

Tooth Mount Removal

NOTE: It is recommended to perform this tack with

two persons and to use either a hoist or loader to

move the attachment.

1. Position the attachment flat on the ground, and

make sure the attachment hydraulic couplers are

disconnected from the loader.

2. Loosen the cylinder mounting bolts and remove

the cylinder. Make sure the cylinder is secured

out of the way.

3. Loosen the bolts securing the tooth mount support

plates and remove the two plates.

4. Loosen the bolts securing the tooth mount pins

and remove the two pins.

12

ROUTINE MAINTENANCE

B

A

5. Using either a hoist or the loader, lift the main

frame up and away from the tooth mount.

Tooth Mount Installation

1. Secure the cylinder pivot [B] to the new tooth

mount [A].

2. Position the new tooth mount on the ground in the

lowered position as shown.

3. Carefully lower the main frame onto the new tooth

mount. Line up the holes for the tooth mount pins,

and install the pins, nuts, and bolts.

13

ROUTINE MAINTENANCE

4. Position the attachment flat on the ground with the

tooth mount in the raised position as shown.

5. Install the tooth mount support plates and secure

with bolts.

6. Install the cylinder on the frame and tooth mount

cylinder pivot, and tighten cylinder mount bolts.

Expanded Metal Grate Removal and Installation

1. Position the attachment flat on the ground,

engage the park brake, and shut off the loader

engine.

2. To remove the expanded metal grates, remove

the two bolts at the rear of each grate.

3. Lift up on the rear of the grate and remove it from

the frame.

Expanded metal grates may

have sharp edges. Wear gloves to prevent

cuts when removing and installing expanded

metal grates.

4. To install expanded metal grates, use reverse

order of above instructions.

14

PARTS INFORMATION

ITEM

QTY

PART NO.

DESCRIPTION

STOCK NO.

1

313001

MAIN FRAME WELDMENT

2

1

313002

SCARIFIER WELDMENT

SCARIFIER PKG

3

313003

GRATE WELDMENT

GRATE PKG

4

13209

BOLT HEX 1/2 X 1 1/2 NC GR 5

SCARIFIER PKG

5

8

37214

NUT HEX LOCK 1/2 NC

SCARIFIER PKG

6

2

313041

TOOTH HOLDER BAR

SCARIFIER PKG

7

2

313027

PIN 1.43 X 6 W/A

SCARIFIER PKG

8

2

13212

BOLT HEX 1/2 X 2 1/4 NC GR 5

SCARIFIER PKG

9

6

37212

NUT HEX LOCK 3/8 NC

GRATE PKG

10

1

320064

ADPT REST ELB 2MP-2FPX-90-1/16

SCARIFIER PKG

11

2

313031

HOSE 1/4 X 90 2MP-6FJX

SCARIFIER PKG

12

2

13207

BOLT HEX 1/2 X 1 1/4 NC GR 5

SCARIFIER PKG

13

6

13107

BOLT HEX 3/8 X 1 1/4 NC GR 5

GRATE PKG

14

1

103273

CYLINDER 2 X 4

SCARIFIER PKG

15

GENERAL SPECIFICATIONS

All dimensions are in INCHES.

Model

Land Planer

Working Width

78”

Cutting Edge

1/2” x 6” (2)

Operating Weight (standard)

520 lbs.

Scarifying Teeth

AR400 tips (6)

Operating Weight (w/ scarifying teeth)

640 lbs.

Optional Grates Weight

85 lbs.

16

BOLT TORQUE INFORMATION

17

____________________________________________________

NOTES

18

____________________________________________________

NOTES

19

LIMITED WARRANTY

Erskine Attachments LLC warrants each new machine manufactured by us to be free from defects

in material and workmanship for a period of twelve (12) months from date ofdelivery to the original

purchaser.

Our obligation under this warranty is to replace free of charge, at our factory or authorized

dealership, any part proven defective within the stated warranty time limit.

All parts must be returned freight prepaid and adequately packaged to prevent damage in transit.

This warranty does not cover:

1.

New products which have been operated in excess of rated capacities or negligence

2. Misuse, abuse, accidents or damage due to improperly routed hoses

3.

Machines which have been altered, modified or repaired in any manner not authorized

by our company

4. Previously owned equipment

5.

Any ground engaging tools in which natural wear is involved, i.e. tooth tips, cutting

teeth, etc

6. Normal maintenance

7. Fork tines

8. Hydraulic motors that have been disassembled in any manor

In no event will the Sales Representative, Dealership, Erskine Attachments LLC, or any other

company affiliated with it or them be liable for incidental or consequential damages or injuries,

including but not limited to the loss of profit, rental or substitute equipment or other commercial

loss. Purchaser’s sole and exclusive remedy being as provided here in above.

Erskine Attachments LLC must receive immediate notification of defect and no allowance will be

made for repairs without our consent or approval.

This warranty is in lieu of all other warranties, express or implied by law or otherwise, and there

is no warranty of merchantability or fitness purpose.

No agent, employee, or representative of Erskine Attachments LLC has any authority to bind

Erskine Attachments LLC to any warranty except as specifically set forth herein. Any of these

limitations excluded by local lawshall be deemed deleted from this warranty; all other terms apply.

This warranty may not be enlarged or modified in any manner except in writing signed by an

executive officer of Erskine Attachments LLC to improve its products whenever it is possible and

practical to do so. Erskine Attachments LLC reserves the right to make changes and or add

improvements at any time without incurring any obligation to make such changes or add such

improvements to products previously sold.

Erskine Attachments LLC

P.O. Box 1083 Alexandria, MN 56308

Phone (218) 435-4045 Fax (218) 435-5293

20

P/N 320049 Date Printed: 2/21/2018

Erskine Attachments LLC Printed in U.S.A.

Erskine Attachments 900320 User manual

Popular Planer manuals by other brands
