ESP GuardCamDeco User manual

1

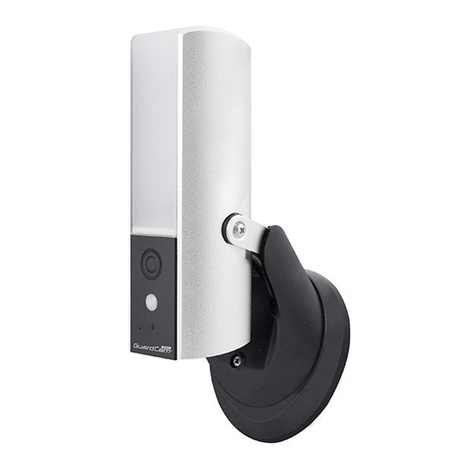

GUARDCAMDECO:COMBINED WI-FI SECURITY CAMERA LED FLOODLIGHT SYSTEM
www.espuk.com
PRODUCT MANUAL
GUARDCAMDECO Manual.indd 1 12/03/2018 14:23:51

2
For best system performance:
iOS: iPhone5 / iPad2 / Mini iPad with iOS 7.0 or above.
Android: 1.5G dual core processor dual core processor with 1G RAM or above.
Storage: Class 10 memory card.
Bandwidth: 1Mbps or above upload/download speed suggested.

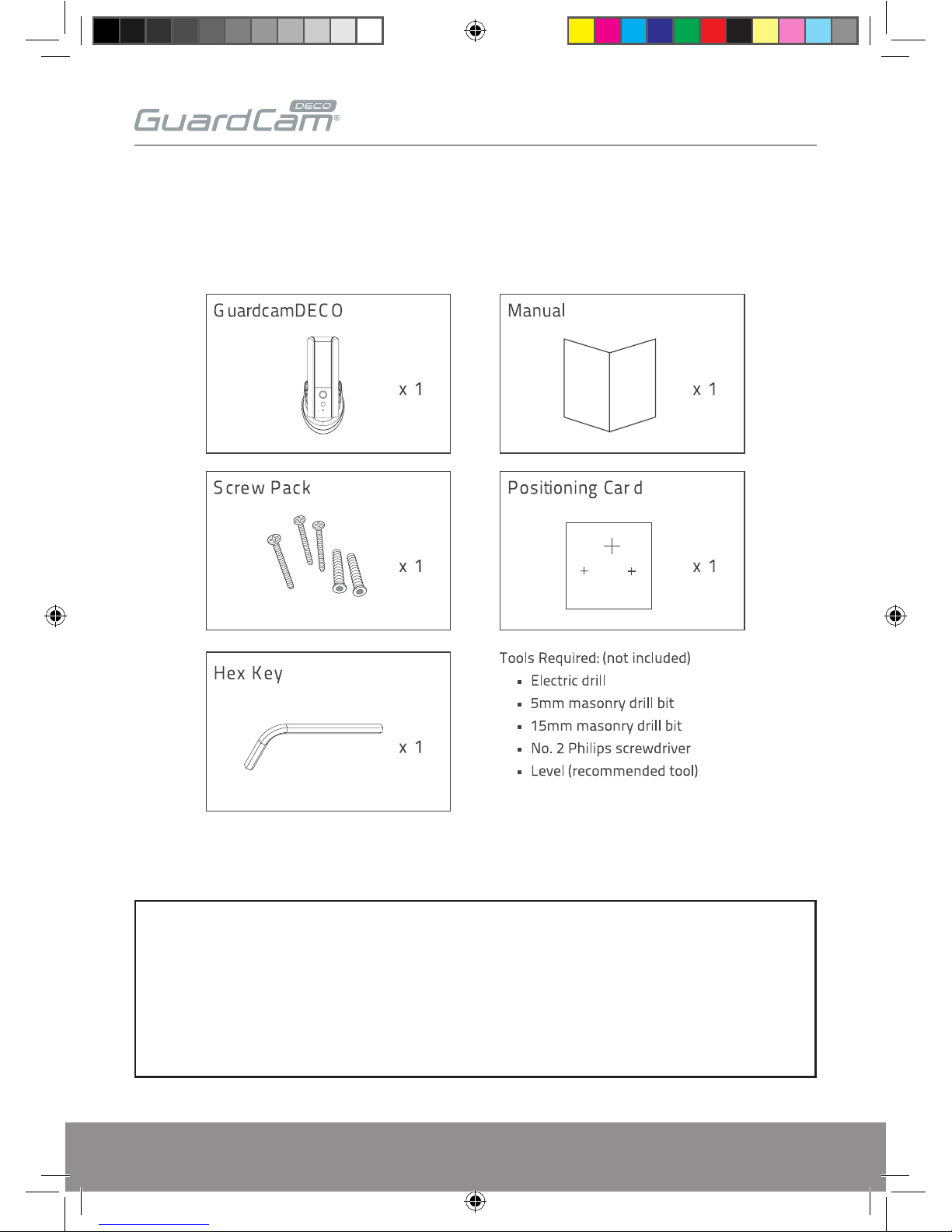

KIT CONTENT
GUARDCAMDECO Manual.indd 2 12/03/2018 14:23:51

3
INSTALLATION TIPS
It is strongly recommended APP & registration is complete prior to permanently fixing
the installation.
After APP registration, where possible temporarily power the device to check a strong Wi-Fi signal
is being received at the intended installation site.
Wi-Fi devices rely on a strong and stable signal from the network. Performance and reliability
of Wi-Fi devices can become unpredictable if the signal strength is not sufficient for whatever
the reason.
If Wi-Fi signal is a possible issue, one solution is the numerous Wi-Fi signal enhancing devices on
the market to improve a network’s performance.
In addition, network connection for all devices (Wi-Fi or LAN) is limited by the bandwidth allowance
of the network, ensure that the bandwidth is suitable for the number of devices which are
being supported.
Please note; Guardcam requires 2.4GHZ Wi-Fi signal band.
APP Connection
Viewing from a mobile phone relies on a strong Wi-Fi signal or ensure a strong 3G or 4G signal
is available.
For IOS it is recommended that the APP is left running in the background in order to benefit from
the best performance.
For Android, the APP must be left running in the background to receive any service from the
Door Station.
ESP are unable to guarantee that every device will be compatible with any ESP product and
software supplied.
Specific models of phone, tablet or other device, the hardware it contains, the service provider, the
types of data services offered and specific phone / device plan will all affect the performance of PC
/ mobile device for remote viewing.
SAFETY TIPS
Do not attempt to open the product to avoid any risk of personal injury.
When installing CCTV camera(s), always follow manufacturer’s advice when using power tools,
steps, ladders, etc. and wear suitable protective equipment (e.g. safety goggles) when drilling
holes. Before drilling holes through walls, check for hidden electricity cables and water pipes.
The use of cable/pipe detector is advisable.
GUARDCAMDECO Manual.indd 3 12/03/2018 14:23:51

4

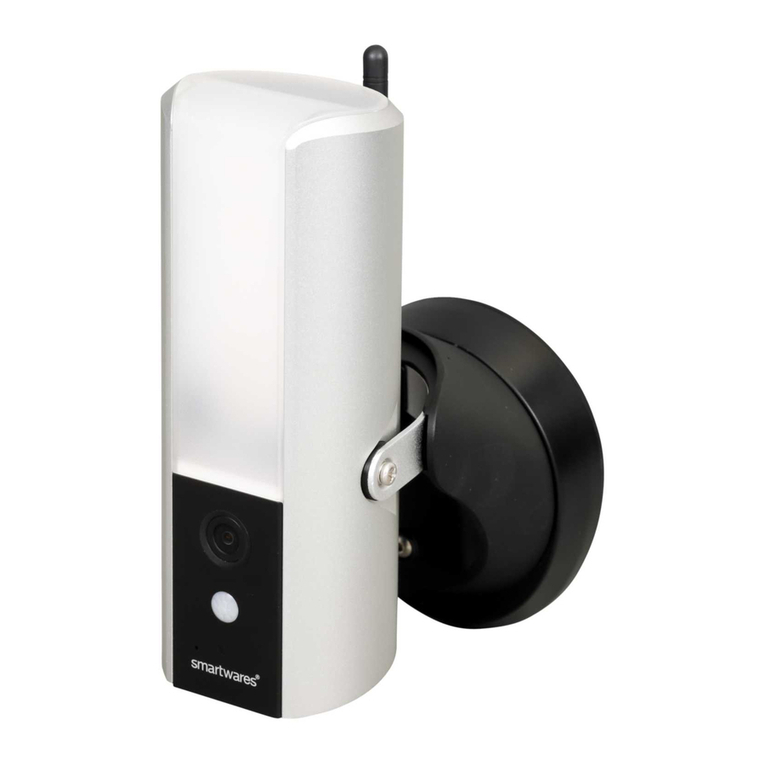

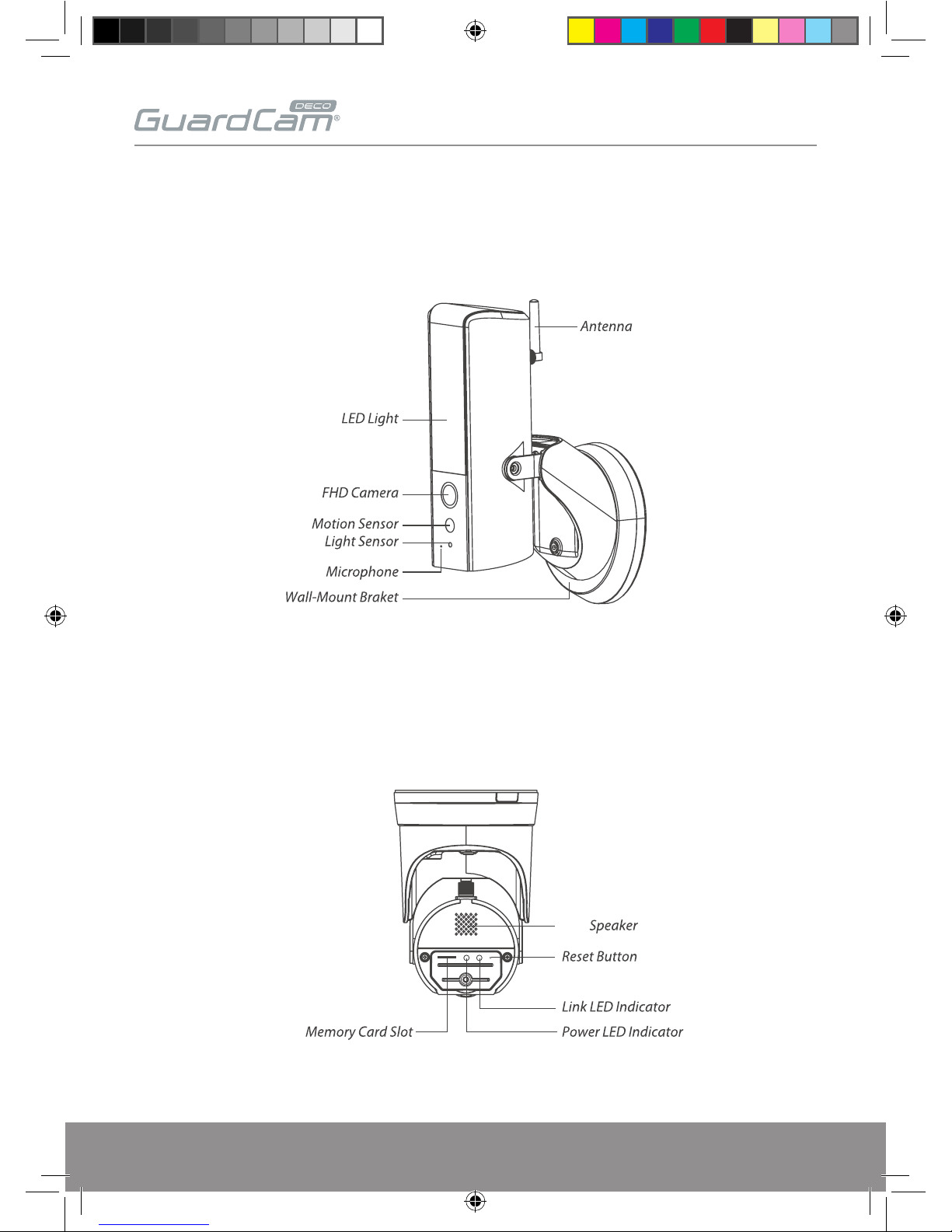

PRODUCT OVERVIEW
FRONT VIEW
UNDERSIDE VIEW
GUARDCAMDECO Manual.indd 4 12/03/2018 14:23:51

5
DEVICE INSTALLATION

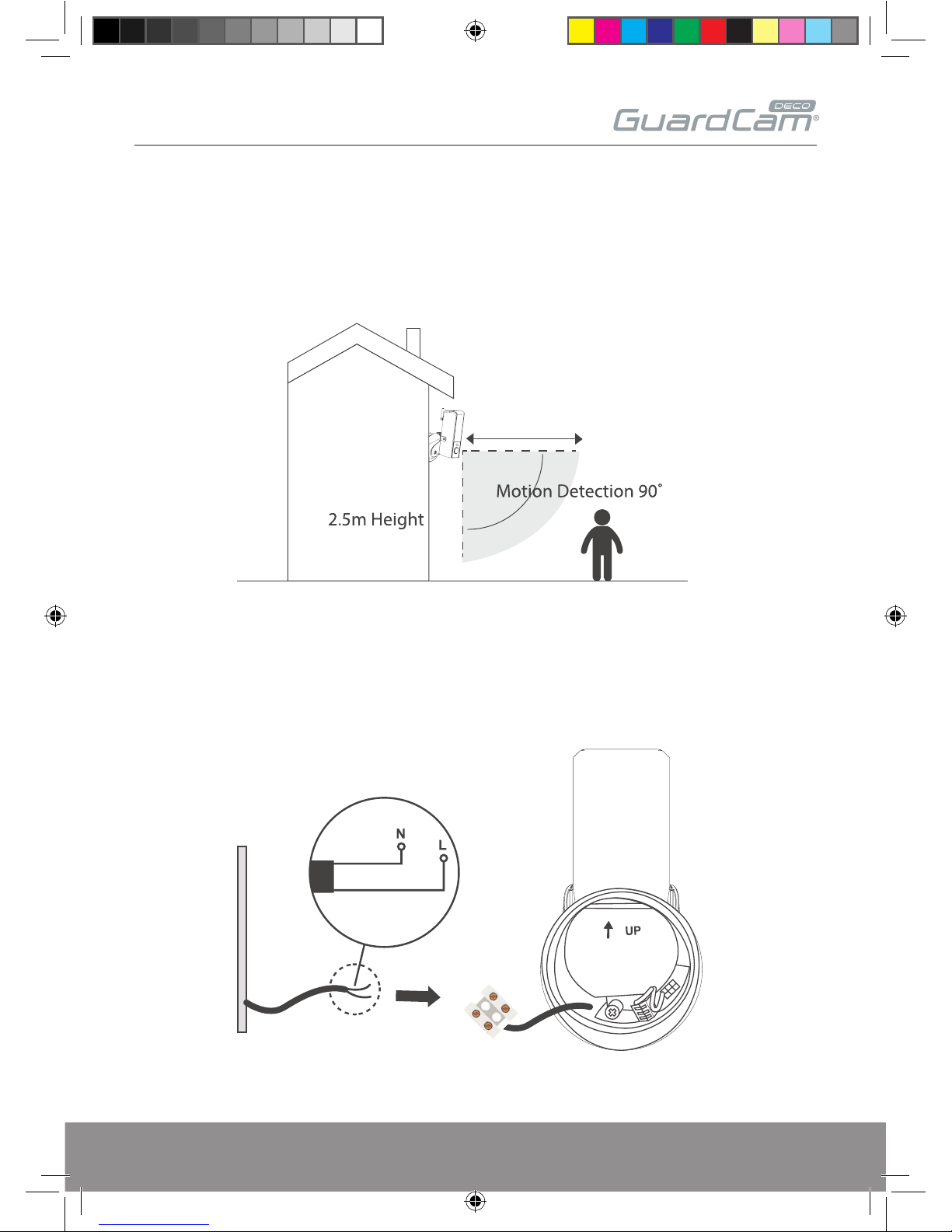

For optimal performance install the lighting camera at a hight of 2.5 meters or to suit application.
Disconnect power at fuse or circuit breaker before proceeding to the installation.
Plug the N&L pole connector in to the junction box.
The unit is double insulated, therefore does not require a earth/ground connection.
Rear of GuardcamDECO base
GUARDCAMDECO Manual.indd 5 12/03/2018 14:23:51

6

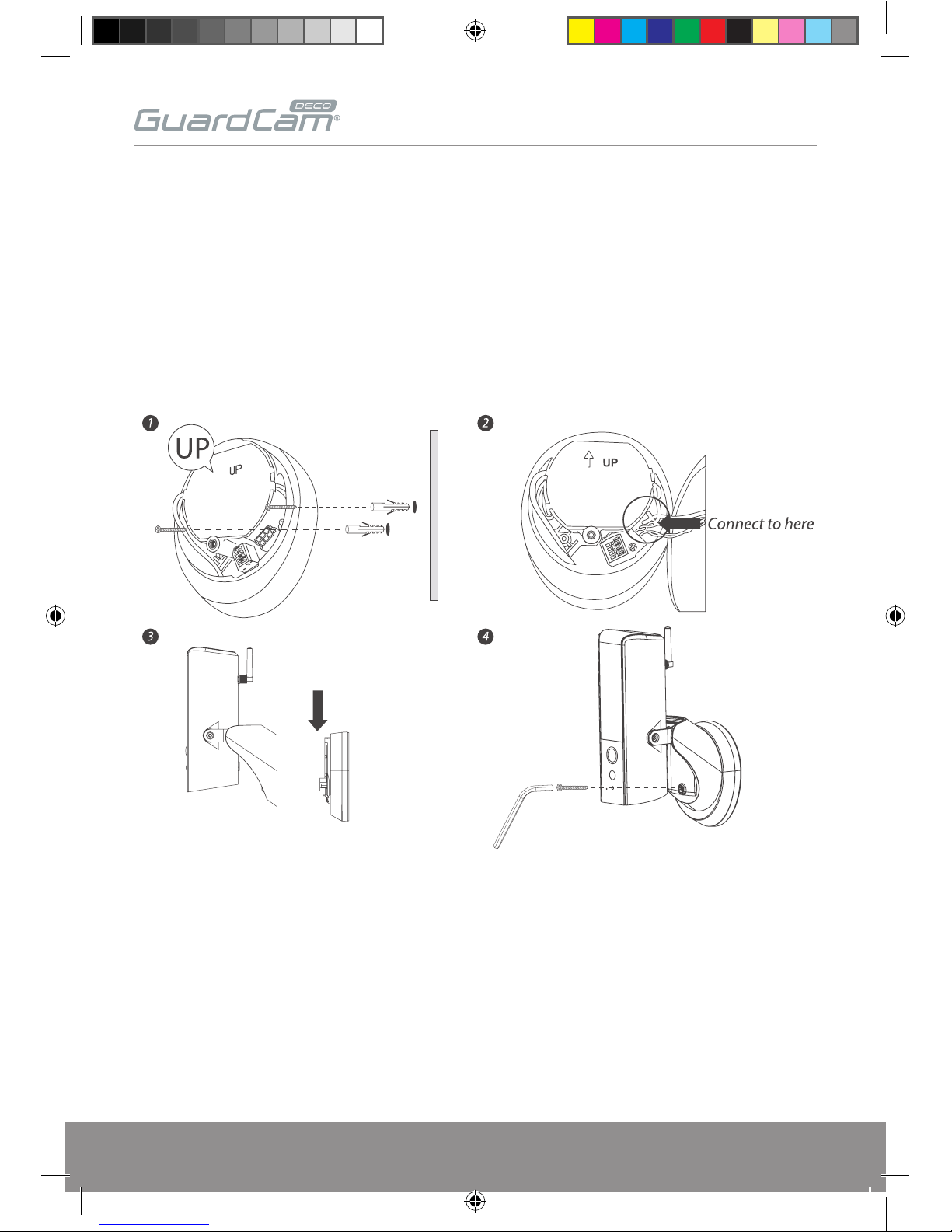

1. Fasten the junction box to the wall. Make sure that the UP sign is at the top.
2. Connect the power cable to the junction box.
3. Place the device securely on the junction box.
4. Fasten the screw by using the hex key provided.
DEVICE INSTALLATION (CONTINUED)
GUARDCAMDECO Manual.indd 6 12/03/2018 14:23:51

7
5. Once completed, turn on the power from the breaker and the light/camera will power up.
6. The LED light will be at its full brightness when initial start due to the regulation.
Adjust the brightness to prefer level once the camera has setup completed.
7. It is recommended to install the lighting camera at the flat surface of the wall or position to have
better waterproof protection.
DEVICE INSTALLATION (CONTINUED)
GUARDCAMDECO Manual.indd 7 12/03/2018 14:23:52

8
APP INSTALLATION
Please download and install the “ESP GuardcamDECO” APP to the smart-phone/ tablet
1. Apply power to the GuardcamDECO, after 1 minute the unit will produce its own Wi-Fi hotspot.
2. Via the settings on the smart-phone/ tablet connect to the Wi-Fi hotspot, the SSID will begin
HD-XXXXXX.
If a password is required please use the default 12345678
3. Once the smart-phone/ tablet is connected to the GuardcamDECO’s Wi-Fi, launch the APP.
4. Select the ‘+’ button to add the device to the APP
5. Enter a custom ‘System Name’ (example; ‘Front Door’)
6. Select ‘Scan QR Code’, and locate the QR code on the GuardcamDECO unit.
7. Enter the default security code; 123456
8. Select ‘Save’
GUARDCAMDECO Manual.indd 8 12/03/2018 14:23:52

9
APP INSTALLATION (CONTINUED)
9. The APP will now display the GuardcamDeco’s camera image;
10. Select the camera icon and then the setting option
11. Select the ‘Advanced’ setting and use the default Admin Password ‘123456’
12. Scroll down to the Wi-Fi setting page, select the router, enter the password and select save;
Please follow the additional steps to connect the device to the intended network.
Note:
If you do not see your Wi-Fi router in the WI-FI SETTING section, please
enable your router's SSID broadcasting function, which usually is the name
of your HOME WI-FI NETWORK. Most of the Wi-Fi routers broadcast the
Service Set Identifier (SSID) by default.
The unit can only accept SSID composed with English alphabet characters.
Non-English characters (! @#$%^&*) cannot be accepted.
GUARDCAMDECO Manual.indd 9 12/03/2018 14:23:52

10
MAIN PAGE
Add a device
Access to; advanced settings, delete device & recorded file list
Refreshes connections & settings of all devices in the list.
Information: Access WAPP/App firmware version information and app
PIN Lock setup.
The main page lists all registered devices.
Tap the camera to enter Live-View.
MAIN PAGE OVERVIEW
The APP MAIN PAGE section offers you an overview to access & manage different functions.
GUARDCAMDECO Manual.indd 10 12/03/2018 14:23:52

11
SETTING
Tap and additional setup selection icons will appear. Tap to exit.
Access Advanced Setting
Delete Device
Event List: View and playback the list of motion triggered event(s)
GUARDCAMDECO Manual.indd 11 12/03/2018 14:23:52

12
SETUP PIN LOCK
Set a PIN code when launching the APP.
1. Enable “Enable lock when starting” and enter your PIN code.
2. Confirm PIN code entered.
PUSH NOTIFICATION
The camera supports motion detection. When motion is detected, you’ll receive push notification
on the mobile devices for the event recognized by the camera.
For Android
To Enable;
1. Launch Settings from your Home screen.
2. Tap Notifications.
3. Find & select ‘ESP GuardcamDECO’
4. Adjust the notification settings, such as On/Off, Sounds, Alert Display, etc.
Note:
If you forgot the PIN code, please delete and reinstall the app.
Note:
It takes time for the changes to take effect in iOS.
GUARDCAMDECO Manual.indd 12 12/03/2018 14:23:53

13
LIVE VIEW / SNAPSHOT / EVENTS
Set a PIN code when launching the APP.
1. Enable “Enable lock when starting” and enter your PIN code.
2. Confirm PIN code entered.
Live View
Tap to take snapshot image(s) of the video. The captured snapshots on the mobile device.
Tap to turn ON/OFF the volume.
Tap to Start/Stop recording. The recorded video file will be stored in the memory card of
your camera.
Tap once to speak with visitor in hand-free mode, tap again to mute.
Manual Alarm trigger.
Return to main page.
GUARDCAMDECO Manual.indd 13 12/03/2018 14:23:53

14
VIEWING YOUR SNAPSHOTS
For iOS
Snapshots are named with the time stamp and saved into the Camera Roll location of the
mobile device.
For Android
Snapshots will be named with the time stamp and saved into the Photo Gallery > snapshot folder
mobile device.
Events
The recorded video file(s) on your camera is automatically saved to the memory card inserted in
the camera.
Tap the to access the edit menu.
GUARDCAMDECO Manual.indd 14 12/03/2018 14:23:53

15
Playback
When you record a video clip from your camera. You can pause/play the video during the playback,
to deactivate/activate the audio function.
Delete
Tap the edit icon, then select the file(s) you would like to delete from list.
GUARDCAMDECO Manual.indd 15 12/03/2018 14:23:53

16
Download
Download the video file(s) in the EVENT LIST section. Tap the search icon, you can specify a date
and time period to search for events. Then press the download icon to save the video clip into your
device.
Note:
During the download process, system will stop both the live view and recording functions.
APP will automatically inform any user accessing the camera that the system is busy and the
connection has been terminated.
GUARDCAMDECO Manual.indd 16 12/03/2018 14:23:54

17
ADVANCED SETTING
Admin Password The security code required to enter Advanced Setting for
system setting management
Device Security Password The password required for remote access
Time Zone Setup your time zone
Wi-Fi Setting Manage your Wi-Fi Network
Time Setup Setup the appropriate time zone
Email Setting Setup your email account for E-mail alert
Video Setting Configure the video quality and local power frequency
Sensitivity Setting Setup the camera detect mode
Lighting Setting Setup the camera lighting auto mode
SD Card Setting Format or overwrite SD card
Device Information Check the App and API Kernel version
Note:
It may take a few minute for some routers to update the registered devices. When you
complete advanced settings and return to device list, please wait for a while allowing your
router to finish the camera registration.
GUARDCAMDECO Manual.indd 17 12/03/2018 14:23:54

18
Note:
If you forgot your admin password, long press the reset button on the camera for 5 seconds to
restore the password into factory default value 123456. All settings will be restored to factory
default. And you need to configure your camera again.
Note:
1. Change password in system information page accordingly.
2. If you forget the Device Security Code, long press the reset button for 5 seconds to reset
the system to factory default. All settings will be restored to factory default. Needing to
reconfigure your camera.
BASIC SETTINGS
Admin Password
The Admin Password is a specific security code for the administrator to change the advanced
settings. The default admin password is 123456.
Use this function to change the default admin password into your personal admin password.
For the protection of your system configuration, every time you change the advanced settings,
needing to enter the admin password. Please change the admin password periodically.
Device Security Code
The Device Security Code is a specific security code to access the camera.
The default password of the camera is 123456. Please use this function to change the default
password into your personal security code.
1. Type in the old password.
2. Type in the new password and confirm the new password again.
3. Tap OK to save the setting.
Time Setup
The drop-down list shows the world time zone. Select the time zone that will work the best for you.
If your date/time is during the daylight saving time period, please check the Daylight Saving box to
adjust the system time properly.
GUARDCAMDECO Manual.indd 18 12/03/2018 14:23:54

19
WI-FI SETTING
The Wi-Fi setting displays the connection and setup of the Wi-Fi function.
“Manage Wi-Fi network” automatically scans the nearby network and shows the available Wi-Fi
routers in the drop-down list/
Select the Wi-Fi network that your camera will connect to. Due to security concerns, it is highly
recommended that you use the WPA/WPA2/ WPA2-PSK protocol for Wi-Fi network.
EMAIL SETTING
The email setting allows you to configure the email environment, email account and password.
Gmail account is suggested.
Click the “Use SSL” check box will transmit the data in encryption. This setting requires the Simple
Mail Transfer Protocol (SMTP) configuration. Most ISPs use the SMTP method to transfer outbound
mail via the internet. Only use the SMTP that supports SSL.
Gmail Setting (suggested)
SMTP Server smtp.gmail.com Enter the gmail SMTP server
SMTP Port 465 Enter the SMTP port 465
User-name [email protected] Enter your email address
Password XXXXXXXX Enter the password for this Gmail account
Email to [email protected] Enter the email address for the recipient who
receives the email alert.
GUARDCAMDECO Manual.indd 19 12/03/2018 14:23:54

20
VIDEO SETTINGS
This section allows you to configure the video quality and environment mode.
Video Quality
The Video Quality setting section allows you to adjust the quality of the video streaming. Select
better streaming image that allowing you to view high resolution image. Select HD video that
allowing the video to display more smoothly (quality depend on local internet environment).
Only select better image when you have sufficient bandwidth and updated mobile device(s).
Environment Mode
The Environment Mode settings allows you to select the power line frequency used at the location
of the camera. The power line frequency varies depending on geographic region. It may cause
image flicker if wrong frequency is selected. Please check with local authorities for proper setting.
There are two type video colour tone, user can change the video colour tone between warm yellow
(indoor) and cool-white (outdoor).
Low Light Enhancement
The Low Light Enhancement Mode is for improving the night view video image by providing 5 levels
to select from (5 = brightest).
SENSITIVITY SETTINGS
Detection Mode
PIR is hardware-based biomass detection.
LIGHTING SETTINGS
This function allows you set up the lighting auto mode. There are 2 mode you can choose.
GUARDCAMDECO Manual.indd 20 12/03/2018 14:23:54
