Essential Garden Callaway Gazebo User manual

USE AND CARE GUIDE
Date of Purchase: _____/ _____/ _____
Caution: Carefully Read Instructions and Procedures for Safe Operation
KSN: 0-08814128-8
UPC Code: 841057103074
PRODUCT NAME: Callaway Gazebo
garden

1
Table of Contents ........................... 1
Safety Information........................... 2
Care and Maintenance ................... 3/4
3
Warranty ......................................... 3
Limited Warranty ..........................
Exclusions .................................... 3
Pre-Assembly................................. 4/5
4
4
Planning Assembly .......................
Hardware Included ......................
5
Package Contents ......................
Assembly Instructions
..................... 6~9
Customer Service........................... 10
Table of Contents
Thank you for your purchase!
Thank you for your purchase!
We are pleased that you have chosen Sears for your outdoor
gazebo purchase. We hope that you enjoy the unmatched
quality, comfort, and style of your new patio item. Every piece
is meticulously considered all the way down to the smallest
details, exclusively for you, by our world class design team.
We know you have a choice when it comes to your patio
gazebo needs, so from our team to yours, thank you for letting
us be a part of your outdoors.

2
Safety Information
WARNING
When assembling and using this product, basic safety
precautions should always be followed to reduce the risk of
personal injury and damage to equipment. Please read all
instructions before assembly and use.
Some parts may contain sharp edges, wear protective gloves
if necessary. At least three or more people are recommended
for safe assembly.
Keep all children and pets away from assembly area.
Begin assembly not less than 6 feet from any obstruction such
as fence, garage, house, overhanging branches, laundry line
or electrical wires.
Install on level ground. This gazebo cannot be permanently
staked or attached to concrete floor or platform. The provided
stakes are for soft ground use only. If assembling on a hard
surface like a deck or concrete, other forms of attachment
must be used such as expansion bolts that can be purchased
locally.
This gazebo is intended for decorative and sunshade
purposes only and is not meant to withstand inclement
weather including high winds, rain and snow. Gazebo
fabric is water resistant, not water proof and may leak during
exposure to precipitation.
Please lay out all parts before assembling, checking to make
sure all parts are there. If any parts are missing, please call
1-866-578-6569 and parts will be expedited to you.
KEEP ALL FLAME AND HEAT SOURCES AWAY FROM
THIS TENT FABRIC. This Tent meets the flammability
requirements of CPAI - 84. The fabric may burn if left in
continuous contact with any flame source. The application of
any foreign substance to the tent fabric may render the
flame-resistant properties ineffective.

3
Warranty
Care and Maintenance
1 YEAR WARRANTY FOR FRAME AND FINISH
Limited Warranty
The item is warranted to be free from defects in material or
workmanship for a period of 1 year. However, we don't
reimburse for transportation or delivery costs, or compensate
the individual or any outside party for assembling or
disassembling the product. This limited warranty is extended
to the original purchaser and applies to defects in materials
and workmanship of your item, provided the item is maintained
with care and used only for personal, residential purposes.
Exclusions
It remains the customer's responsibility for freight and
packaging charges to and from our service center. Items used
for commercial, contract, or other non-residential purposes, or
items damaged due to acts of nature, vandalism, misuse, or
improper assembly are not covered. Corrosion or rusting of
hardware is not covered. Proof of purchase (dated register
receipt) is required for warranty claims. Warranty is to the
original purchaser and is non-transferable. Any replacement of
warranted items will be in the original style and color, or a
similar style and color if the original is unavailable or has been
discontinued. As some states do not allow exclusions or
limitations on an implied warranty, the above exclusions and
limitations may not apply. This warranty gives you specific
rights, and you may also have other rights, which vary from
state to state.
It is advised that the Canopy should be removed in the winter
for best protection and length of use. Our steel components for
garden accessories and furniture are treated with rust
inhibiting paint that protects them from rusting. However, due
to the nature of steel, surface oxidation (rusting) will occur
once these protective coatings are scratched. This is a natural

4
Care and Maintenance
PLANNING ASSEMBLY
HARDWARE INCLUDED
GG
FF ￠6*180MM Stake 16 PCS
Hook 48 PCS
Pre-Assembly
To prevent damage, place all parts on a soft surface during
assembly.Remove all protective caps before beginning
assembly. It takes about 30 minutes for four persons to
complete all the assembly.
process and is not a defect! To minimize this condition, we
recommend care when assembling & handling the product to
prevent scratching the paint. Should any scratching or
damage occur, it is strongly recommended that consumers
buy touch up paint prior to the assembly process so that any
parts they scratch during assembly are touched up. Surface
rust can also be easily removed with a very light application of
common cooking oil. If surface oxidation (rusting) occurs and
if no measure is taken to prevent this, the oxidation may start
dripping on to deck or patio and cause damaging stains, which
may be difficult to remove. This can be prevented if the
measure is taken to keep the product from oxidizing. Also the
use of wax candle to lubricate the zippers once a year will
keep them running smoothly.
IMAGE QTYNO. DESCRIPTION

5
Package contents
Pre-Assembly (continued)
A
B
D
C
E
F
G1
G2
H
I
J
K
L
M
QTY
4
4
8
4
4
4
1
1
4
1
4
1
1
1
Screen
Crossbeam I
Crossbeam II
Corner Bar I
Corner Bar II
Middle Bar
Big Top Connector
Small Top Connector
Small Top Corner Bar
Hook
Shelf
Small Canopy
Big Canopy
Mosquito Netting
NO. IMAGE DESCRIPTION

6
Assembly Instructions

7
Step. 1
Assembly Instructions
Fig.1: Unfold the Screen (A).
Fig.2: Insert Crossbeam II (C) to Crossbeam I (B).
Fig.3: Insert the other ends of Crossbeam II (C) to Screen (A).

8
Assembly Instructions
Step. 2
Fig.4: Insert Corner bar I (D) into Corner bar II (E).
Fig.5: Insert organized Corner bar I (D) into Big Top Connector (G1).
Fig.6: Insert Corner Bar II (E) into Screen (A).
Fig.7: Insert Middle Bar (F) into Big Top Connector (G1), then attach
Hook (I) to Big Top Connector.
Fig.8：Insert Middle Bar (F) to Crossbeam I (B), then put Big
Canopy (L) on the top, but do not secure it.
Fig.9: Insert Small Top Corner Bar (H) into Small Top Connector
(G2).
Fig.10: Insert Small Top Corner Bar (H) into the tube of Corner
Bar I (D).
Fig.11: Put Small Top Canopy (K) on the top, and secure it on four
corners.
Fig.12: Secure Big canopy (L) to four sides.

9

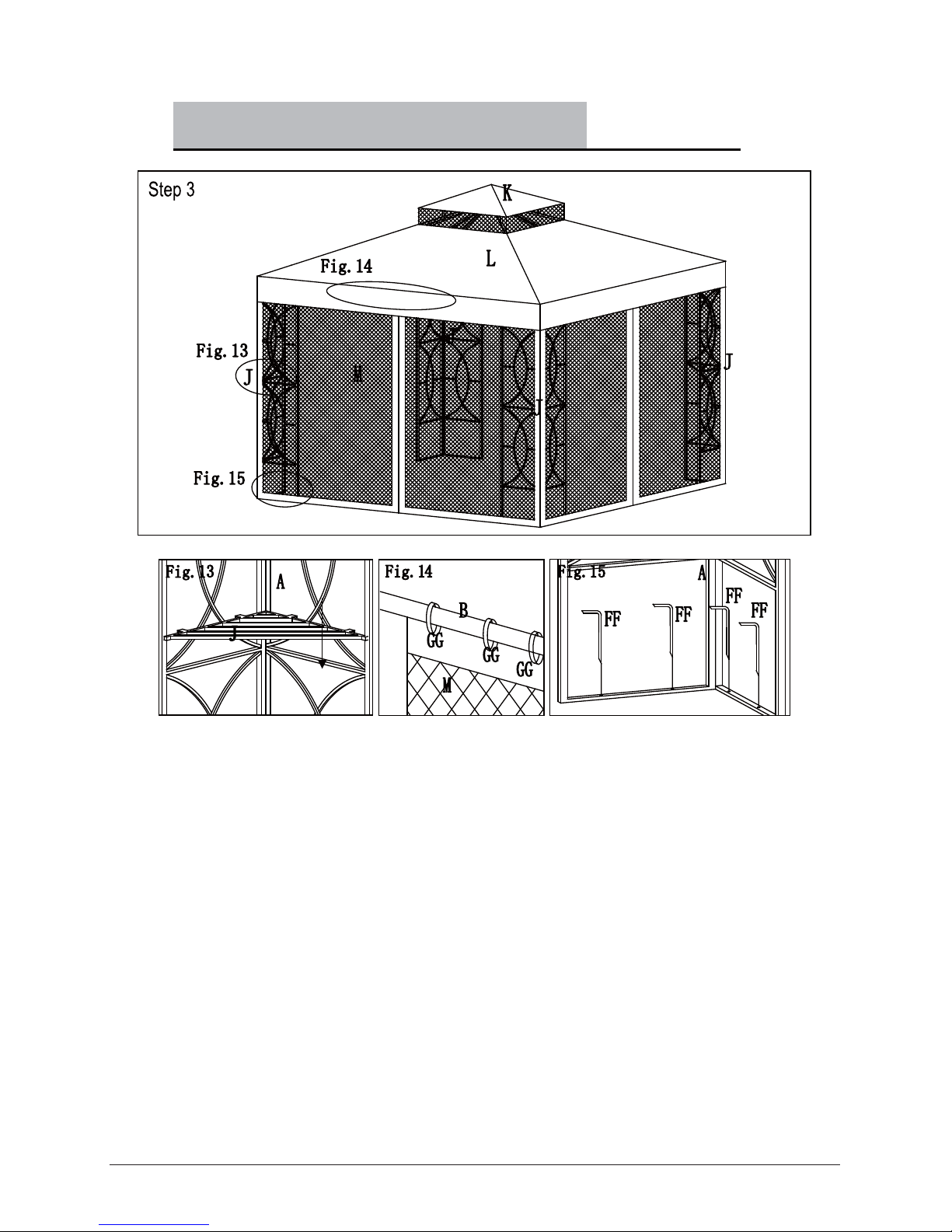

Assembly Instructions
Fig.13: Put Shelf (J) into Screen (A).
Fig.14: Hang the Mosquito netting (M) onto Crossbeam I (B) with
Hook (GG).
Fig.15: Use the Stake (FF) to fasten the gazebo.

10
SUNJOY INDUSTRIES GROUP LIMITED.
HOME OFFICE: SUITE 2802, LIPPO CENTRE TOWER 2, 89
QUEENSWAY, ADMIRALTY
CUSTOMER SERVICE HOT LINE: 1-866-578-6569
SERVICE HOURS: MONDAY-FRIDAY 8:30 AM to 4:30 PM (EST)
EMAIL: [email protected]

For questions or comments about product:
Email: [email protected] or Call toll-free: 1-866-578-6569
Please refer to part numbers when reordering
See our extensive assortment of outdoor living products
on-line at www.sears.com and www.kmart.com
Made in / Hecho en CHINA
Distributed by Sears, Roebuck and Co., Hoffman Estates, IL 60179
