Esser 784765 User manual

Installationsanleitung
LWL-Konverter für essernet®
Installation Instruction
FOC converter for essernet®
(Art.-Nr. / Part No. 784765)
798963.10 Technische Änderungen vorbehalten!
Technical changes reserved!
07.2009 DGB © 2009 Honeywell International Inc.
Novar GmbH a Honeywell Company
Dieselstraße 2, D-41469 Neuss
Internet: www.esser-systems.de
E-Mail: [email protected]
D
Ergänzende und aktuelle Informationen
Die Produktangaben entsprechen dem Stand der
Drucklegung und können durch Produktänderungen,
geänderte Normen / Richtlinien ggf. von den hier
genannten Informationen abweichen.
Aktualisierte Dokumentationen, Informationen und
Konformitätserklärungen stehen zum Abgleich auf
der Internetseite www.esser-systems.de zur
Verfügung.
esserbus®und essernet®in Deutschland eingetragenes
Warenzeichen.
GB
Additional and updated Information
The product specification relate to the date of issue
and may differ due to modifications and/or amended
Standards and Regulations from the given
information.
Updated documentations, information and declaration of
conformity are available for comparison on the www.esser-
systems.de homepage.
esserbus®and essernet®are registered trademarks in
Germany.
D
Achtung!
Diese Anleitung ist vor der Inbetriebnahme genau
durchzulesen. Diese Installationsanleitung ist eine
ergänzende Information zur der technischen
Dokumentation des Herstellers. Bei Schäden die durch
Nichtbeachtung dieser Anleitung verursacht werden,
erlischt der Garantieanspruch. Für Folgeschäden, die
daraus resultieren wird keine Haftung übernommen.
Allgemein
Der LWL-Konverter setzt elektrische in optische Signale um.
Somit ist auch unter kritischen Umgebungsbedingungen, in
denen z.B. der Einsatz von Kupferleitungen nicht
geeignet ist, eine störsichere Datenübertragung möglich.
Der Mischbetrieb von LWL (Lichtwellen-Leiter) und
konventioneller Verdrahtung innerhalb eines Netzwerkes
ist möglich (Abb. 3).
Abhängig vom Glasfaser-Typ und der Strecken-
dämpfung kann zwischen zwei Zentralen eine Distanz
von bis zu 22 Kilometern realisiert werden.
Montage
Der LWL-Konverter muss direkt in das Zentralen-
gehäuse der BMZ bzw. im selben Schaltschrank
eingebaut werden; z.B. direkt auf der C-oder Hutschiene
(Art.-Nr. 788602 bzw. 788652).
Datenleitung
Die Länge des 2-poligen Datenkabels, zwischen dem
essernet®-Mikromodul und dem LWL-Konverter, darf
2 Meter nicht überschreiten. Innerhalb des 500 KBd
essernet®-Netzwerkesmussfür alle Verbindungen der für
diese Übertragungsgeschwindigkeit geeignete Kabeltyp
(z.B. IBM Typ 1 oder 6 bzw. CAT5 mit Geflechtschirm)
eingesetzt werden.
Durch den Anschluss der Kabelabschirmung werden die
essernet®-Leitungen gegen Störeinflüsse geschützt.
Spannungsversorgung
Die Spannungsversorgung (24 V DC) für jeden LWL-
Konverter erfolgt über den Spannungskonverter (Art.-Nr.
781335). Zur Vermeidung von Schäden am LWL-
Konverter ist beim Anschluss der Versorgungsspannung
unbedingt auf die richtige Polarität an den
Anschlussklemmen zu achten (Abb. 4).
Anforderungen / Einschränkungen
•Pro Segment werden zwei Mono- oder
Multimodefasern benötigt.
•Die Fasern müssen ohne Unterbrechung direkt
verbunden werden (z.B. keine Anschaltung über
Multiplexer zulässig).
•Zur Vernetzung von Brandmelderzentralen über LWL
ist pro Zentrale ein essernet®-Mikromodul sowie
mindestens ein LWL-Konverter erforderlich.
•Max. 16 LWL-Strecken pro essernet®-Netzwerk bei
einer Übertragungsrate von 62,5 KBd.
•Max. 20 LWL-Strecken pro essernet®-Netzwerk bei
einer Übertragungsrate von 500 KBd.
Systemreserve / Streckendämpfung
Überbrückbare Entfernungen in Abhängigkeit der LWL-
Faser.
Fasertyp Mögliche Distanz
E 10/125 (0,5 dB/km) 0 – 22 km /13 dB
G 50/125 (1,0 dB/km) 0 – 16 km /18 dB
Systemvoraussetzungen
essernet®-Mikromodul:
•62,5 KBd (Art.-Nr. 784840 oder 784840.10)
•500 KBd (Art.-Nr. 784841 oder 784841.10)
Einstellung auf dem essernet®-Mikromodul
Die Anschlussart für die Mikromodul-Anschlusstechnik
(LWL oder Kupferkabel) wird auf dem essernet®-
Mikromodul mit den Steckbrücken X4 und X5 eingestellt
(Abb. 2).
In einem essernet®-Netzwerk nur essernet®-
Mikromodule mit gleicher Übertragungs-
geschwindigkeit einsetzen.
Hinweise zum essernet®in der Dokumentation
der BMZ IQ8Control beachten.
Technische Daten
Betriebsspannung : 18 V DC bis 24 V DC
Stromaufnahme : ca. 200 mA
Umgebungstemperatur : -25 °C bis +70 °C
Lagertemperatur : -25 °C bis +80 °C
LWL-Anschlussstecker : F-ST (BFOC/2,5)
Schutzart : IP 20
Gehäuse : Zink-Druckgusslegierung
Gewicht : ca. 214 g
Maße (B x H x T) : 35 x 162 x 114 mm
(mit Anschlüssen)
GB
Important!
Read these instructions carefully before starting assembly.
This manual is an additional information to the supplied
installation manual of the manufacturer. Any damage
caused by failure to observe the installation instructions
voids the product guarantee. Furthermore, no liability can
be accepted for any consequential damage arising from
such failure.
General
The FOC converter is used to convert electrical into optical
signals for reliable data communication under critical
conditions e.g. where conventional copper cables are not
suitable. Mixed operation of fibre optical and conventional
wiring within a common network is possible (Fig. 3).
Depending on the optical cable type and the related
damping the distance between two FACPs may be up to 22
kilometers.
Mounting
The FOC converter must be mounted in the FACP housing
or in the same control cabinet, e.g. on a C-profil rail (Part
No. 788602 or 788652).
Data cable
The maximum length of the 2-pole data cable between the
essernet®micro module and the FOC converter must not
exceed 2 meters.
The wiring within a common essernet®network with a
transfer rate of 500 KBd must be suited for this purpose
and used for all connections (e.g. IBM Typ 1 or 6,
respectively CAT5 with gauze screen).
Connection of the cable shield to the ground terminal
protects the essernet®lines against interference.
Power supply
The Power supply (24 V DC) of each FOC converter must
be provided only by the DC/DC-converter (Part No.
781335). In order to prevent damage to the FOC converter,
the correct polarity at the terminals must be observed
(Fig. 4).
Requirements / Limitations
•Two mono or multi-mode fibres are required per network
section.
•The fibres must be connected without break directly to
each other (not via a multiplexer).
•At least one essernet®-micro module and one FOC
converter per Fire Alarm Control Panel is required for a
FOC network wiring.
•Max. 16 FOC connections per essernet®network at a
transfer rate of 62.5 KBd.
•Max. 20 FOC connections per essernett® network at a
transfer rate of 500 KBd.
System capacity / Path damping
Possible distances relating to the FOC fibre type.
Fibre optics type Possible range
E 10/125 (0,5 dB/km) 0 – 22 km /13 dB
G 50/125 (1,0 dB/km) 0 – 16 km /18 dB
System requirements
essernet®micro module:
•62,5 KBd (Part No. 784840 or 784840.10)
•500 KBd (Part No. 784841 or 784841.10)
Settings on the essernet®micro module
The required operating mode and connection of the micro
module terminals (FOC or conventional) is selected by
means of jumpers X4 and X5 on the essernet®-micro
module (Fig. 2).
In a network you may only use essernet®-micro
modules with the same transmission speed.
Observe the documentation of the FACP
IQ8Control for more essernet®informations.
Specifications
Power supply : 18 V DC to 24 V DC
Current consumption : approx. 200 mA
Ambient temperature : -25 °C to +70 °C
Storage temperature : -25 °C to +80 °C
FOC connector : F-ST (BFOC/2,5)
Protection rating : IP 20
Housing : Zinc, die-casting alloy
Weight : approx. 214 g
Dimensions (w x h x d) : 35 x 162 x 114 mm
(incl. terminals)
S2
S3
S4
RT+
K1+
K1+
K1-
K1-
RT-
RT-
K2-
K2-
K2+
K2+
RT+
Port 1
01
S1
P1
DA/STAT
P2
132
System
S0
RM
Ua2
Ua3
GND
+24V (P1)
+24V (P2)
0V FAULT
0V
Port 2
Port 3
Abb.1: Lage der Klemmen / Port-Anschlüsse und LED Anzeigen
Fig. 1: Localization of the terminals / ports and LED indicators
S2
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
S1 X4 X5
Einstellung der Steckbrücken für den LWL-Anschluss
Jumper setting for FOC wiring
Jumper setting for conventional copper cable wiring
(factory setting)
Einstellung der Steckbrücken für den Anschluss von
konventionellen Kupferkabeln (werkseitige Einstellung)
Zentrale 2
Panel 2
Basismodul /
Basic module
+ 12 V DC
0 V / GND
Lichtwellen-Leiter (LWL)
Fibre optics cable (FOC)
Konventionelle essernet®-Verdrahtung
Conventional essernet®wiring
Zentrale 1
Panel 1
Basismodul /
Basic module
4 3 2 1
X4 X5
essernet®-Modul /
essernet® module
LWL
FOC
DCDC
+ 12 V DC
0 V / GND
LWL
FOC
DCDC
4 3 2 1
X4 X5
essernet®-Modul /
essernet® module
Abb.2: Lage der Steckbrücken X4/X5 auf dem essernet®-Mikromodul (Beispiel)
Fig. 2: Localization of the jumper X4/X5 on the essernet® micro module (example) Abb.3 Prinzipdarstellung mit erforderlicher Einstellung der Steckbrücken X4/X5

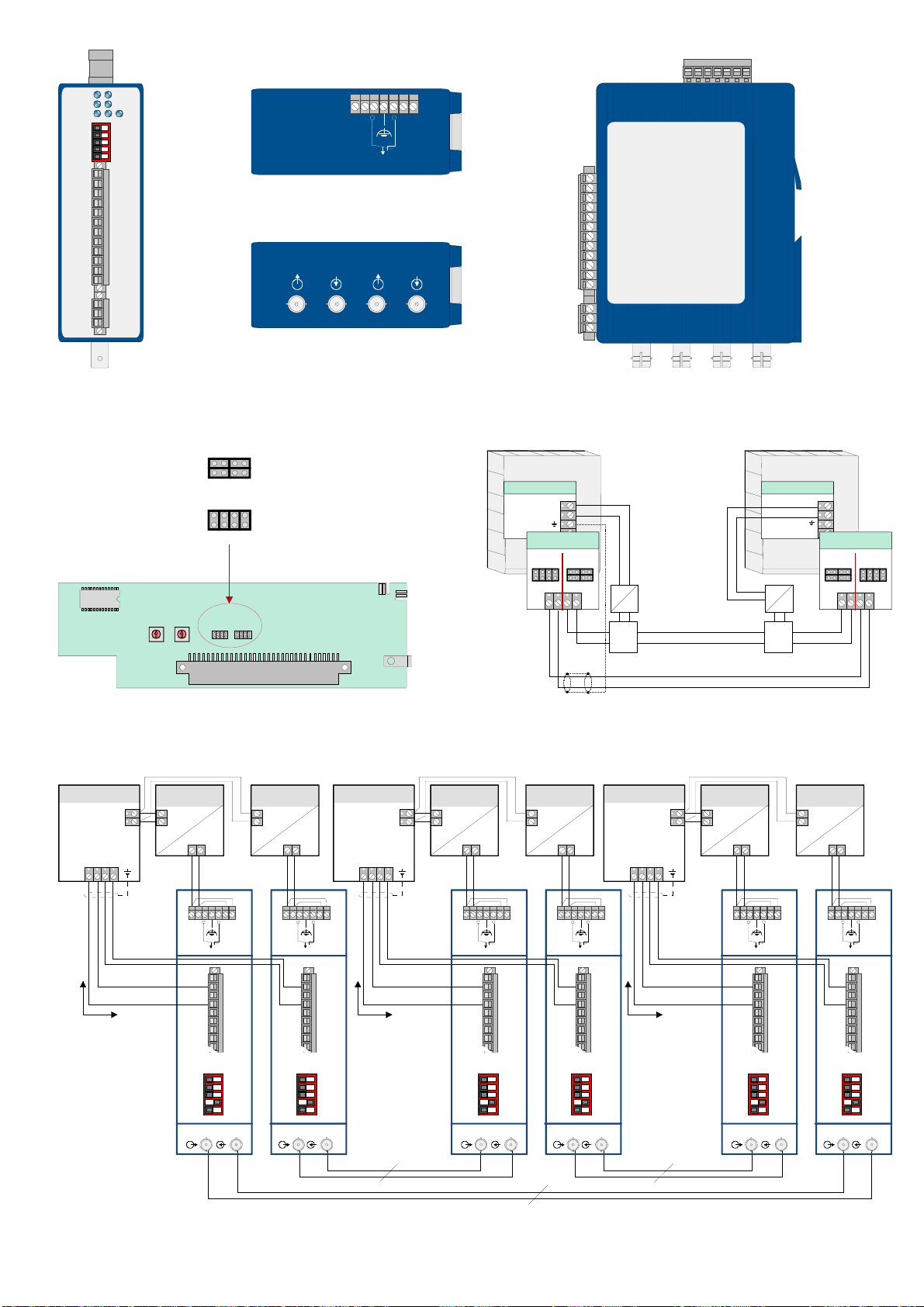

Fig. 3: Schematic diagram with required jumper settings X4/X5
