Irenis BLANKOM SDE-265 User manual

[email protected] www.blankom.de
Encoder & IPTV Streamer with HD-SDI Input
h.265 and h.264 encoder & IP streamer as boxed or 19’’ 1RU
HD-SDI or SD-SDI input for encoding
Stereo Audio embedded or external Input (3.5mm stereo)
HD Resolution 1080p, 1080i, 720p.
IP output: RTSP, RTMPs, UDP/RTP, HTTP, HLS, FLV
Distribution of Video Camera HD-SDI and other sources
content over LAN, WAN or internet.

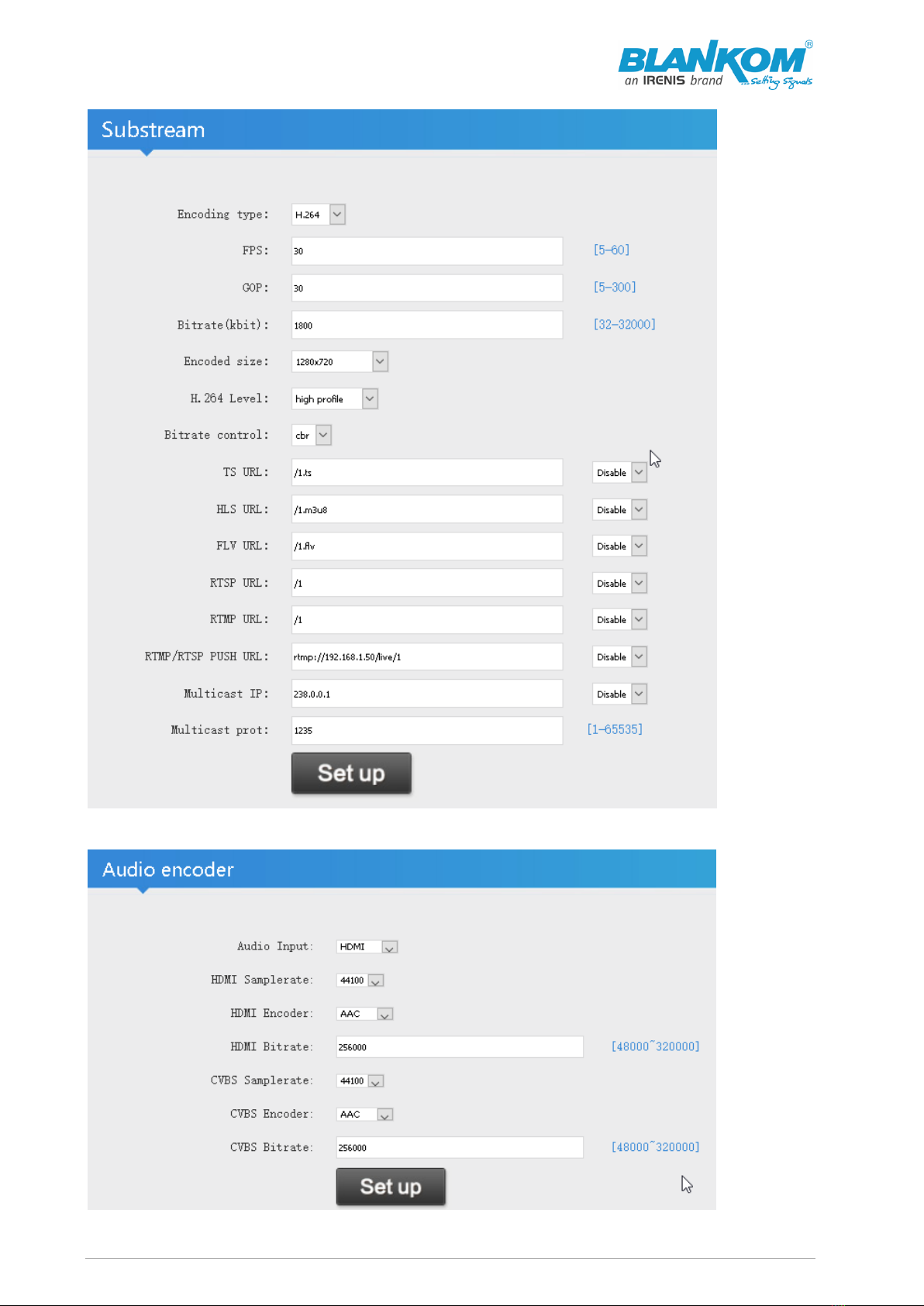

2 simultaneous and independent Live stream broadcast
encoder engines to multiple destinations
Video-over IP applications (Studio signal distribution)
IPTV/OTT applications
Video conferencing, Camera streaming
IPTV on LAN applications, Corporate IPTV for Broadcasters
HD and SD video encoding (incl. 1080p)
Complementary products:
- HSD-340 HDMI to SDI converter
- HDD-275 Decoder IP to 4K/HDMI/HD-SDI/VGA/CVBS outputs
- IPTV Set Top Box 6600+ or 7500+
- IPQAM-801: 8 service UDP/RTSP to 1 ch. DVB-C Modulator
- HDC-5016: 512 IP to 16 DVB-C channels
BLANKOM SDE-(1)265 encoder serves the
distribution of SD and HD TV/video content
through IP networks in digital quality.
The live video can be received
by Internet media server
by TV sets with IPTV Set-Top Boxes,

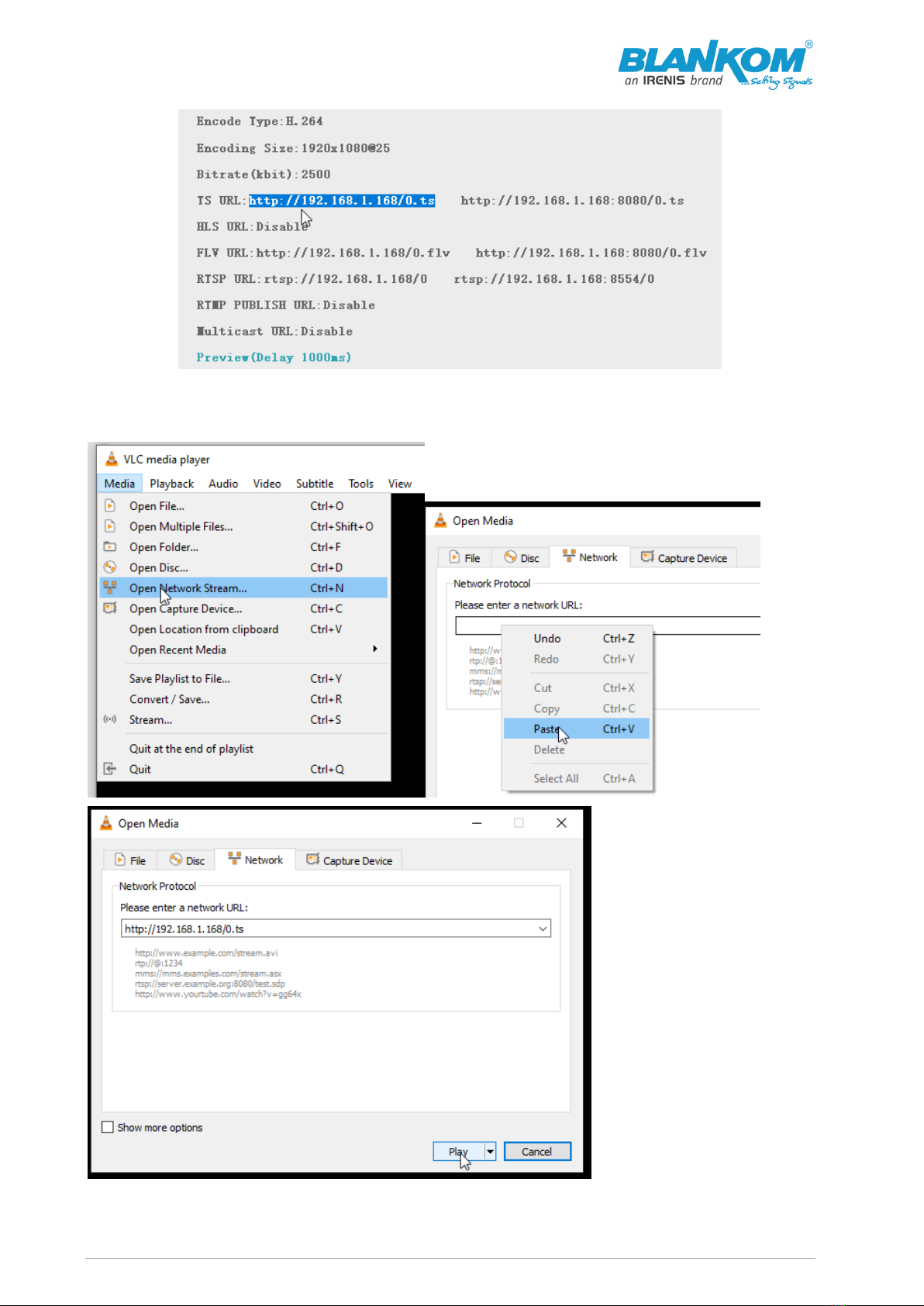

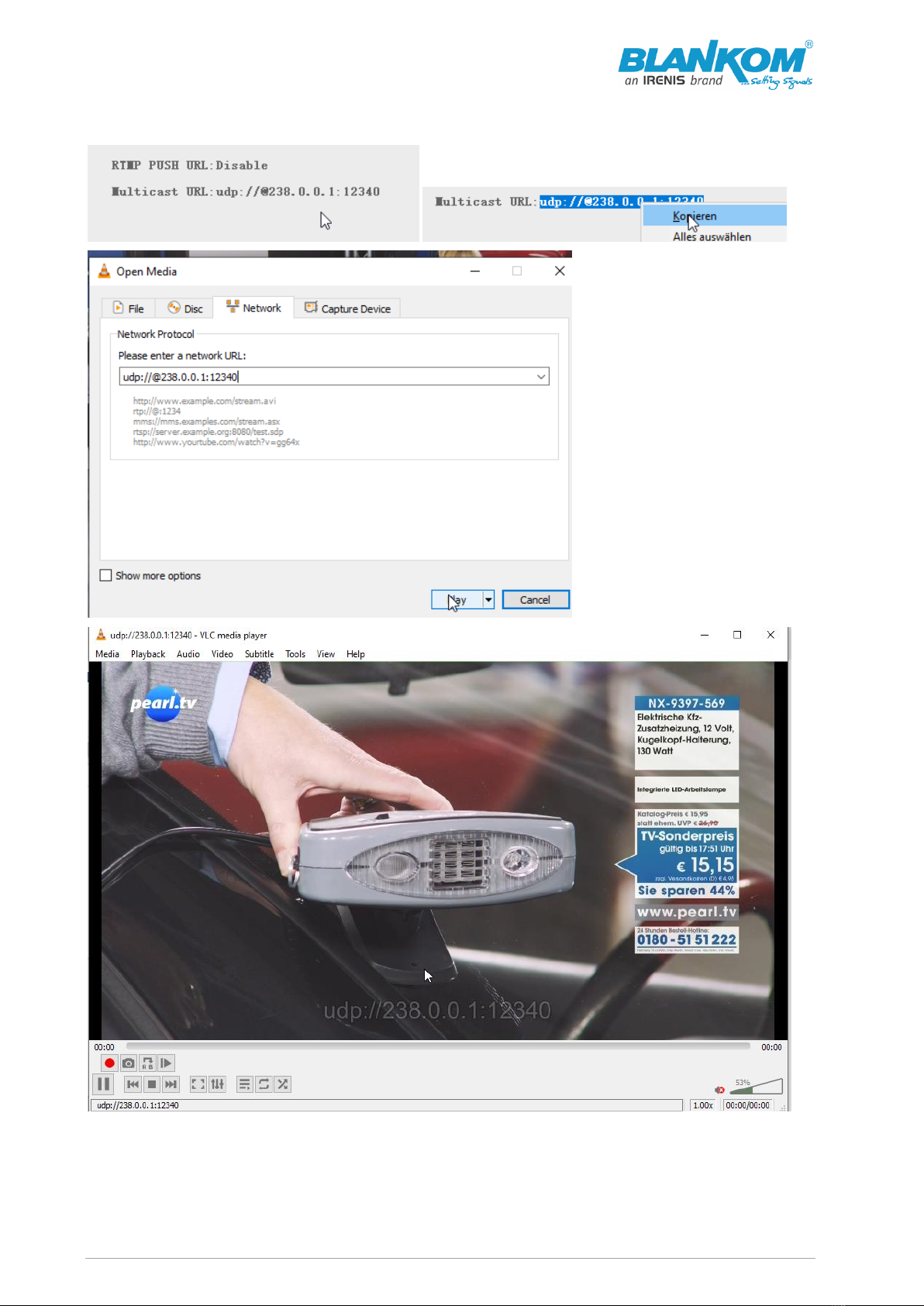

on PC’s and tablets with VLC Player.
BLANKOM SDE-265 &
SDE-1265
IPTV encoder is designed for
TV signal distribution in
excellent quality over LAN
and INTERNET.
The h.265 (HEVC) compatible
compression technology
features low-latency and low
bit rates for IPTV/OTT
systems. The high-efficient
encoding chips saves
bandwidth cost through all
its resolution range.
Distribution of SD and HD TV
channels through the
IPTV/OTT network using
state-of-art IP technology
from almost any kind of
video input.
Excellent video and audio
quality. High reliability. No
regular service and
maintenance need during
operation.
Remark: SDE-264 is not
available any more
SDE-(1)265

All technical data are subject to change w/o further notice .... © Irenis GmbH 01-2020
Function
h.265 (HEVC compatible) and h.264 (MPEG4 compatibel) Encoder and IP Streamer
INPUT
HD-SDI / SD-SDI (BNC type) input and loopthrough output
Resolution
1080p, 1080i, 720p and below
Video encoder
h.265 (HEVC) or h.264 (AVC) or MJPEG
Audio encoder
AAC, AAC++, MP3, MPEG1Layer2, AC-3 stereo compatible
Audio Bit-rate:
Bit-rate: 32k/48k/96k/128k/160k/192k, Data-rate: 64 kbps-384 kbps
SYSTEM
Data interface
RJ45, 1000BaseT Ethernet interface, management by web browser
Protocol
HTTP, RTSP, RTMPs, UDP/RTP, FLV, HLS ; unicast/multicast
Data Rate
32 kbps –32 Mbps
Encoding bitrate process
CBR or VBR
SMPTE 425
Support Level A & B
GOP Structure
IBBP
ONVIF 2.x
Supported by RTSP: G711A
Picture adjust
De-interlacing, Noise reduction, Sharpening
OSD
4 Logo and Text Insertion as transparent overlays possible
Power supply
12V DC, 1A
Dimensions
165x85x24mm
Weight
0.5 kg
Consumption
5W

All technical data are subject to change w/o further notice .... © Irenis GmbH 01-2020
Quick QQuickstart

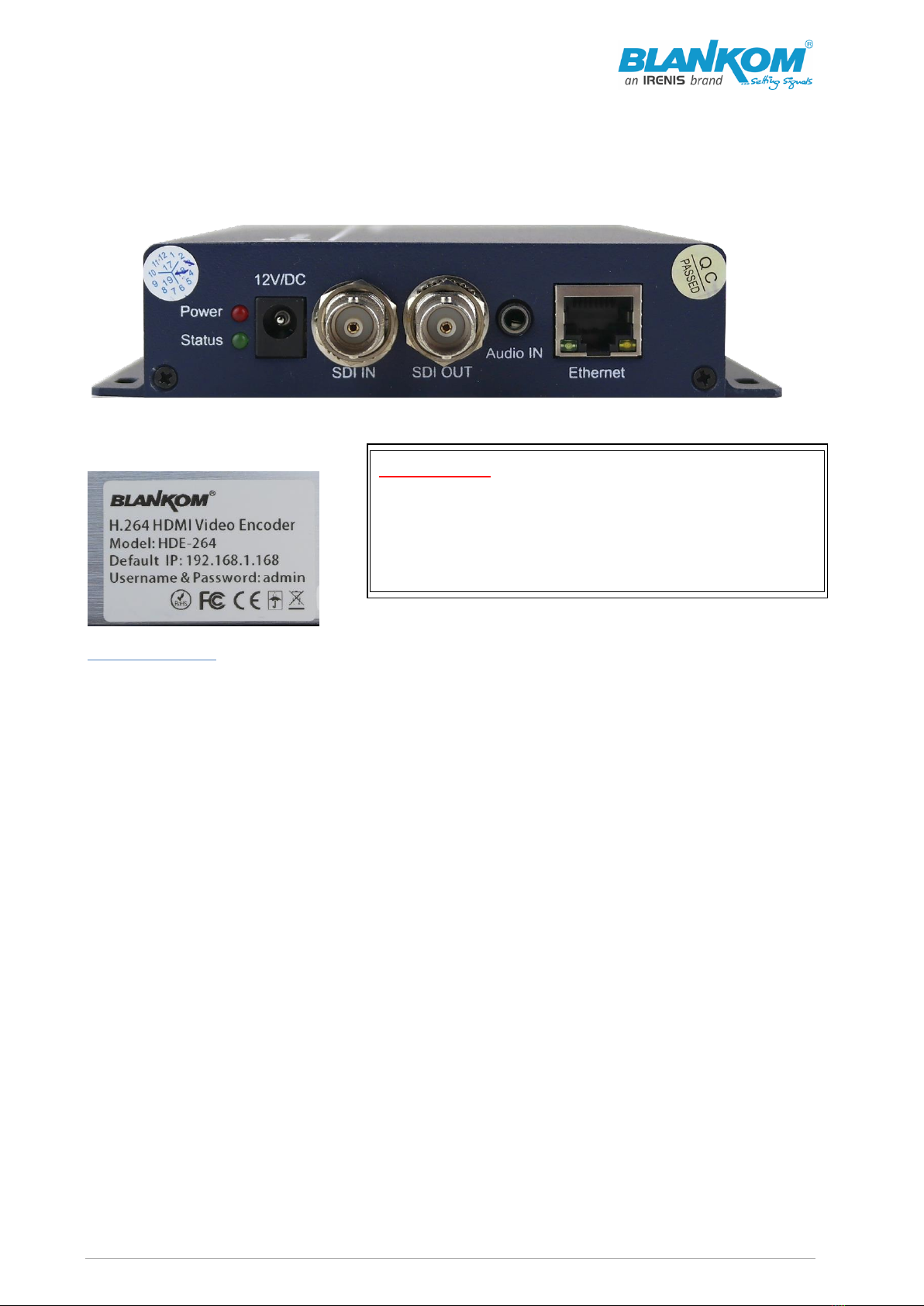

Variant with SDI Inputs: SDE-265 (no 264 available any more)
SDI-Versions have a loop through to cascade the Input to other SDI-devices...
Sticker with default settings (MAC may be different)
Notes and Hints:
The Gigabit-Ethernet-port does not support PoE so please take care of not accidently using a PoE
switch- you can damage the port and the unit will be not accessible anymore.
We recommend to use an IGMP-V2/3 protocol capable GBE- Switch to avoid flooding your
network with unmanaged multicast streams. Also some consumer Internet routers do not like
Multicasts (UDP/RTP) and might reboot periodically.

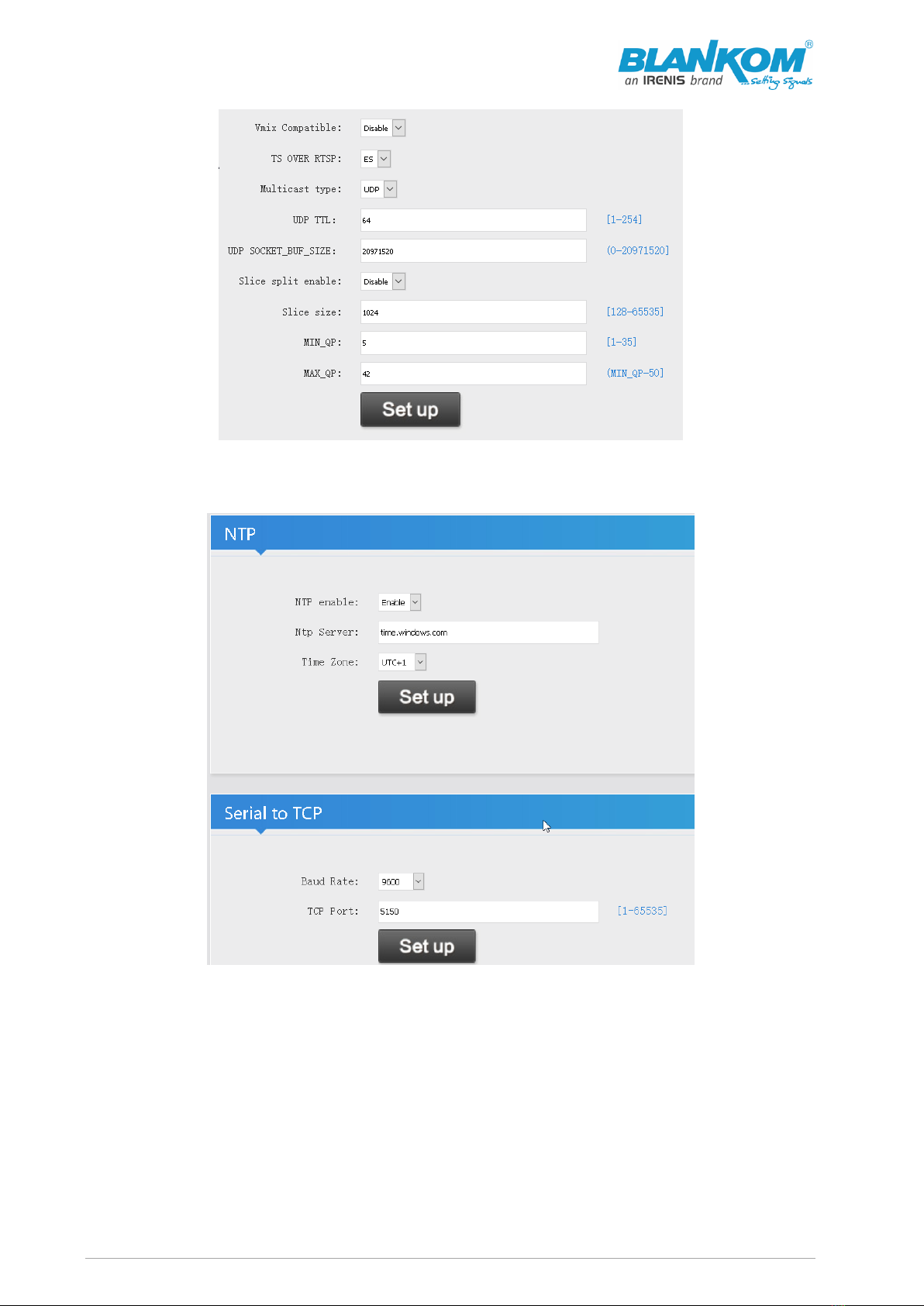

An Internet-connection is not necessary as long as you need to use NTP and does not have an
own NTP server in your network.
Please asure that your HDMI –Output you like to encode is set to max. HD with 1080p60 or lower.
Higher values will not work.
The embedded Linux system takes some seconds to fully boot. After the System-LED is on, you

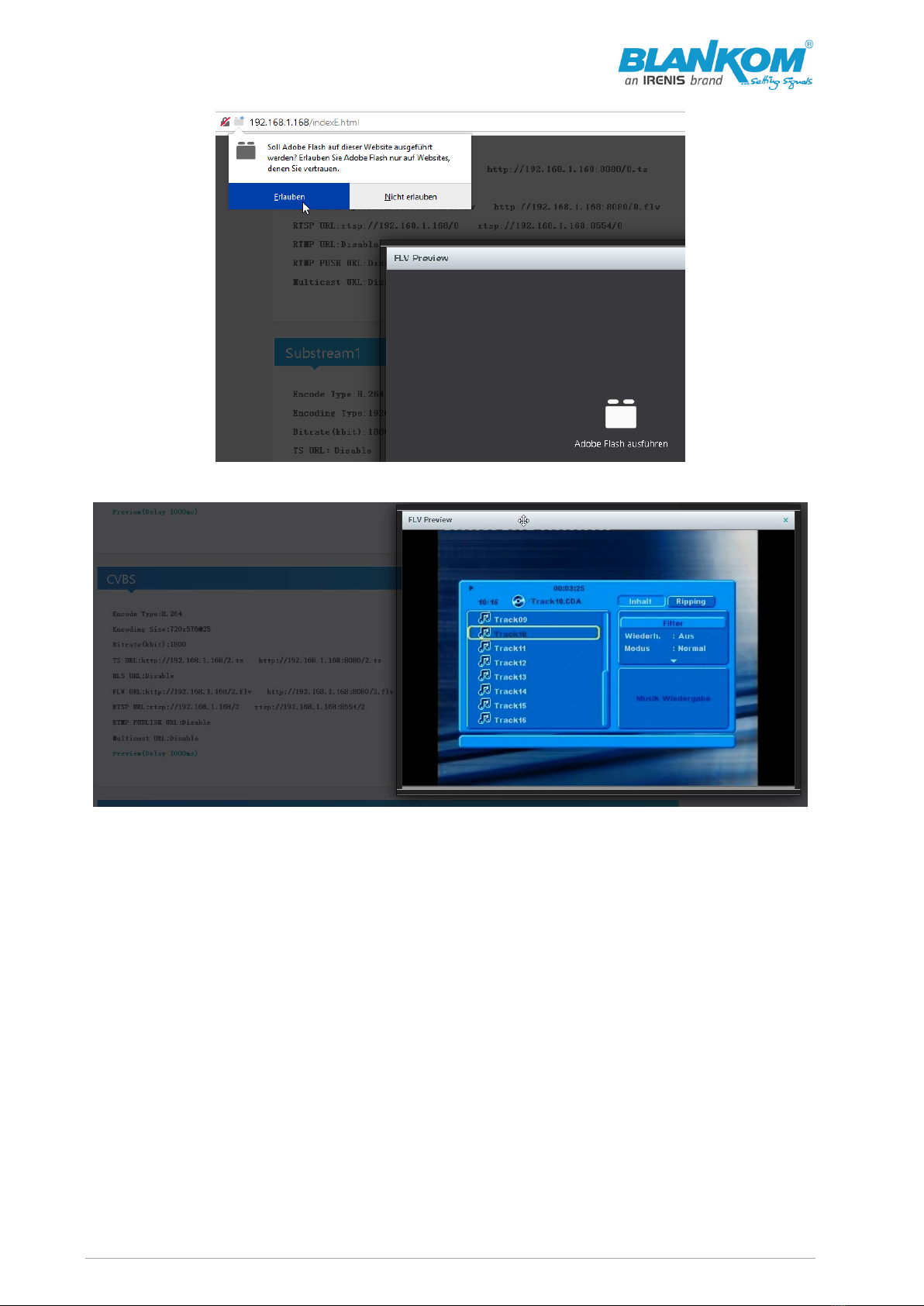

can connect your browser to it. We recommend Chrome, Opera, and Mozilla. For a preview
PopUp in the browser, a flash-player addon need to be installed for the browser.

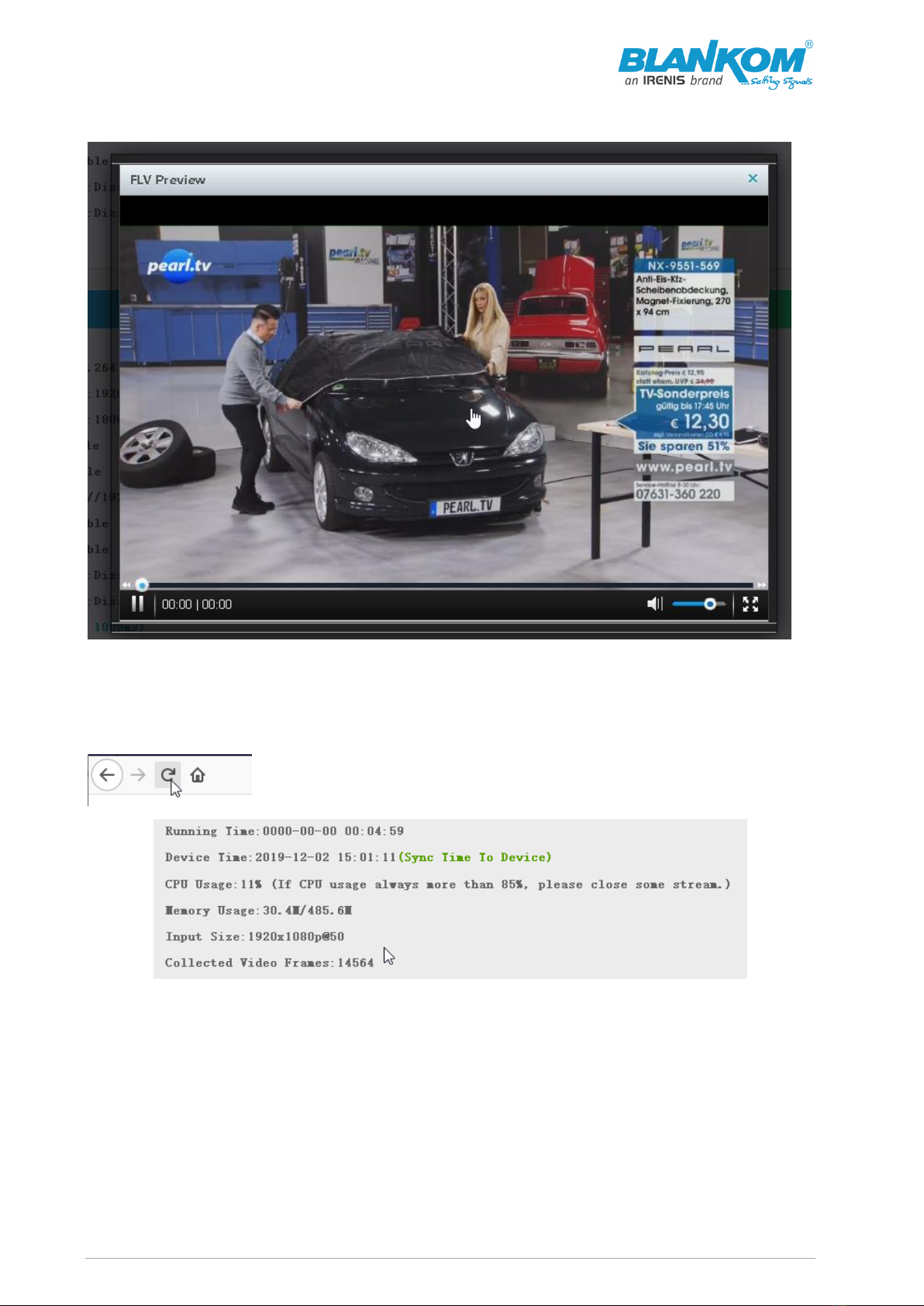

Sometimes it is helpful to reload the browser –page to get the changed settings and values
because of different browser behaviours...
The RESET button will erase all your settings and the unit will be forced to start with factory
defaults. Use a thin wire to pass the small hole and press the inside button by it for at least 5-10
seconds until the System LED will go off. The encoder would perform a restart than after releasing
the button.
The Web-Interface lookalike may vary between different Versions but basically its selfexplaining.
The SDI versions supporting the first embedded Stereo-Audio-Pair to be encoded.
ATTENTION:
Please do not feed the SDI BNC Input with
remote powering like some Cameras doing with
12V DC. This will destroy the SDI Input circuit

All technical data are subject to change w/o further notice .... © Irenis GmbH 01-2020

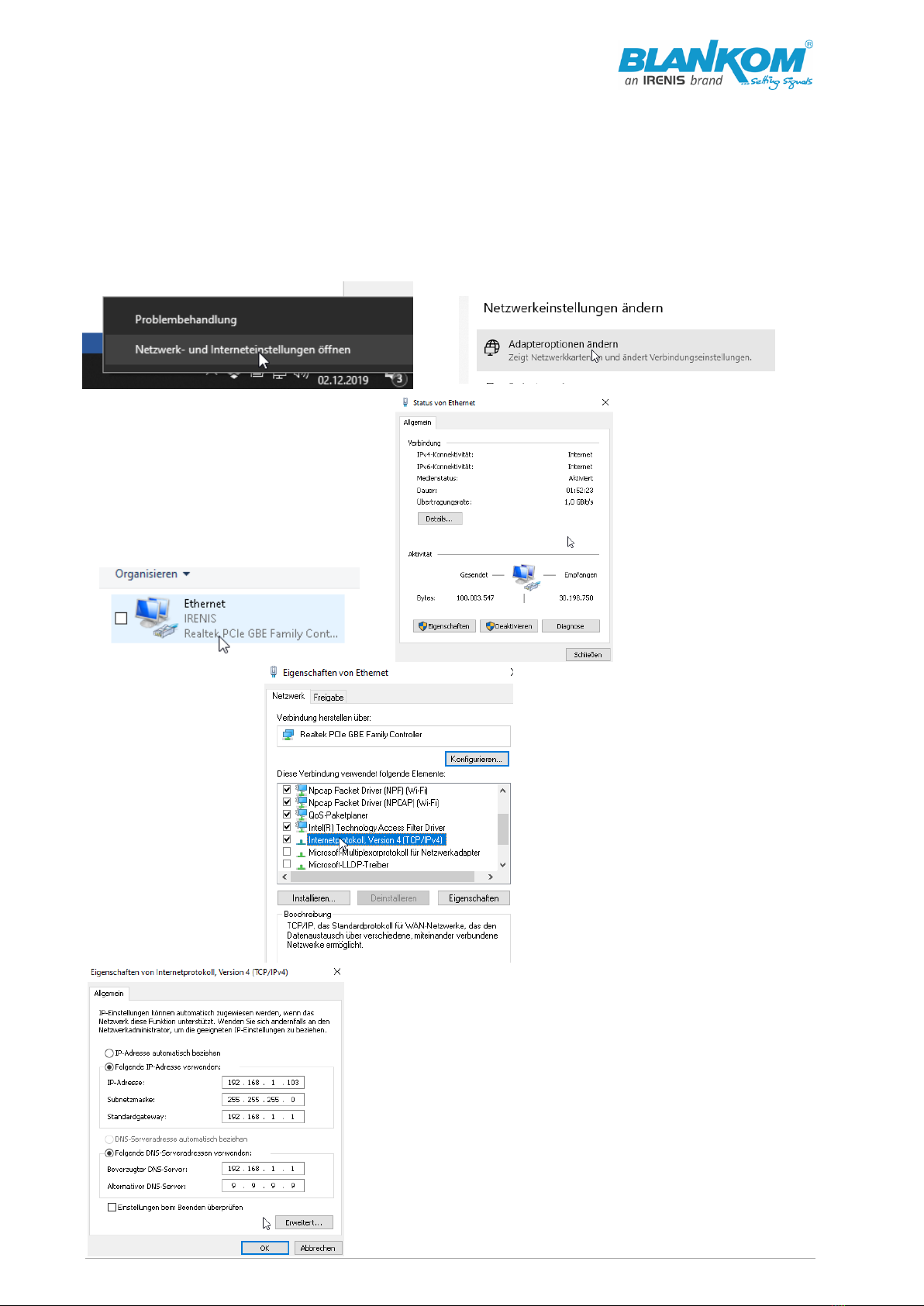

Setting up your PC/Laptop before connecting:
If you use a Windows based PC, you should assign its ethernet adapter into the same range like
the encoder: Use a static IP like follows:
1st: Open your network settings in System Menu:

-> Maybe confirm
Administrator access-> Change IPv4 settings:

All technical data are subject to change w/o further notice .... © Irenis GmbH 01-2020
And confirm please. Linux users should know how to change the ethernet or WIFI settings.

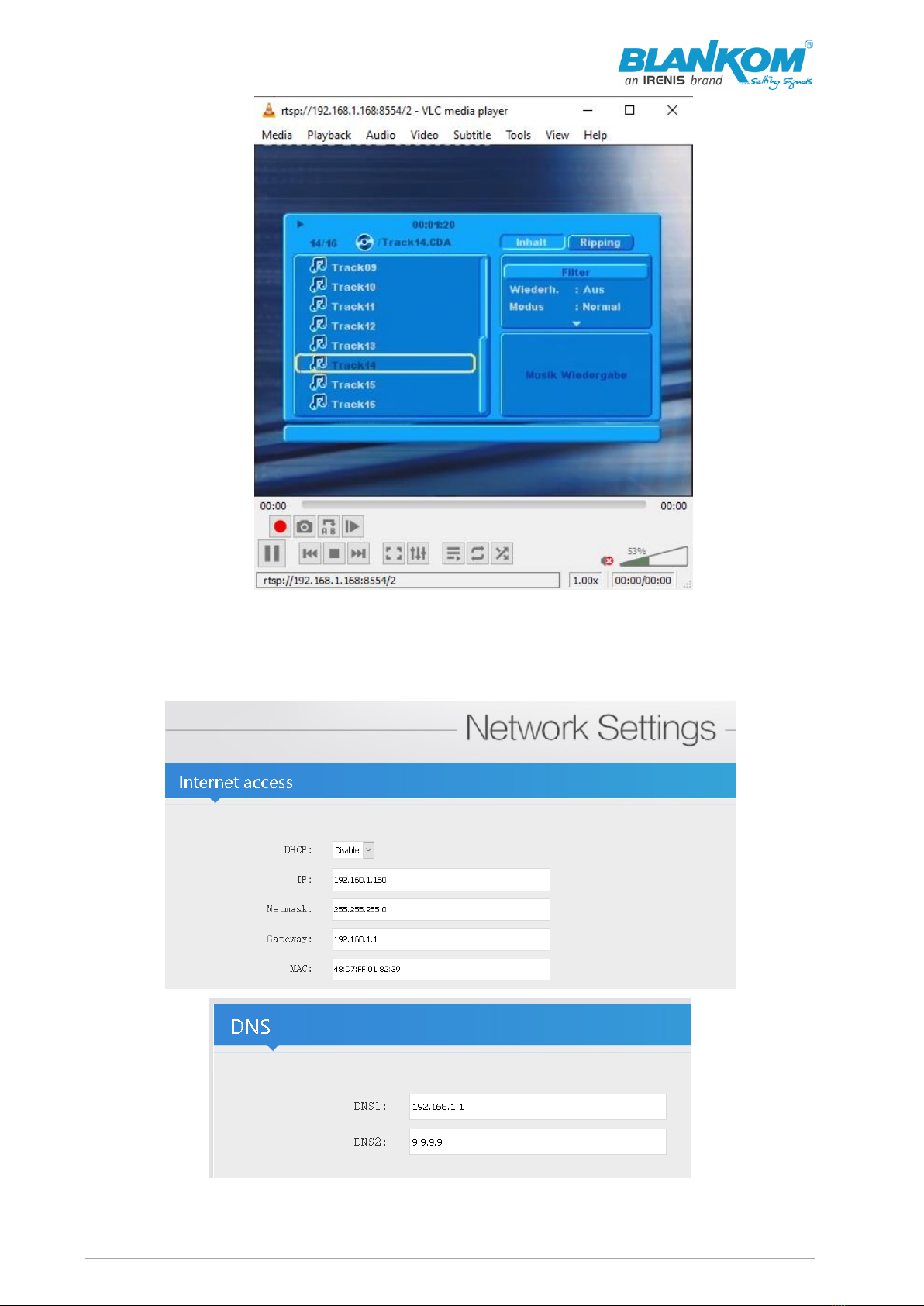

Than open your browser and enter the http- Address of the box 192.168.1.168 (w/o https):
Depending on browser you’ll get a log-in-screen window:

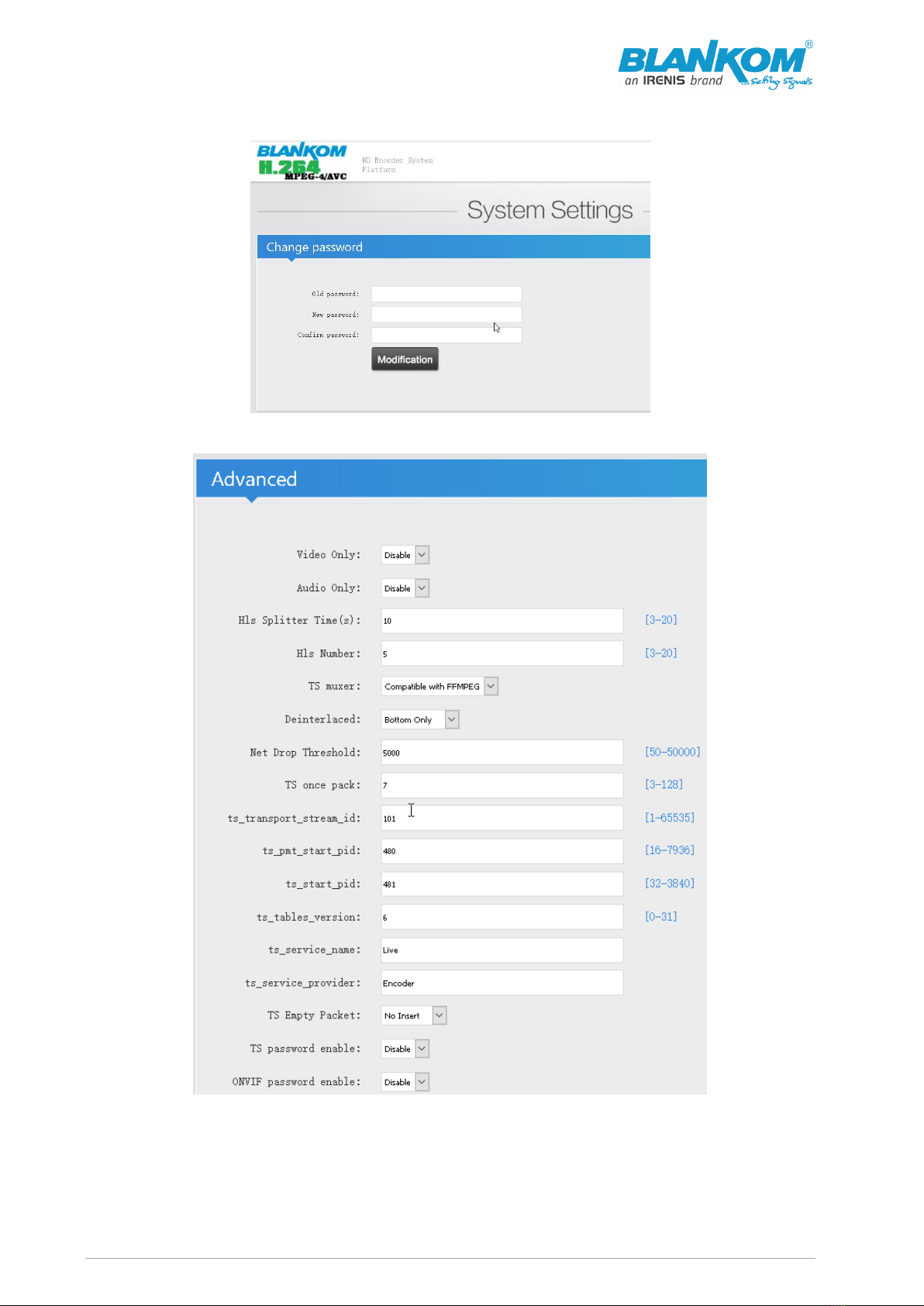

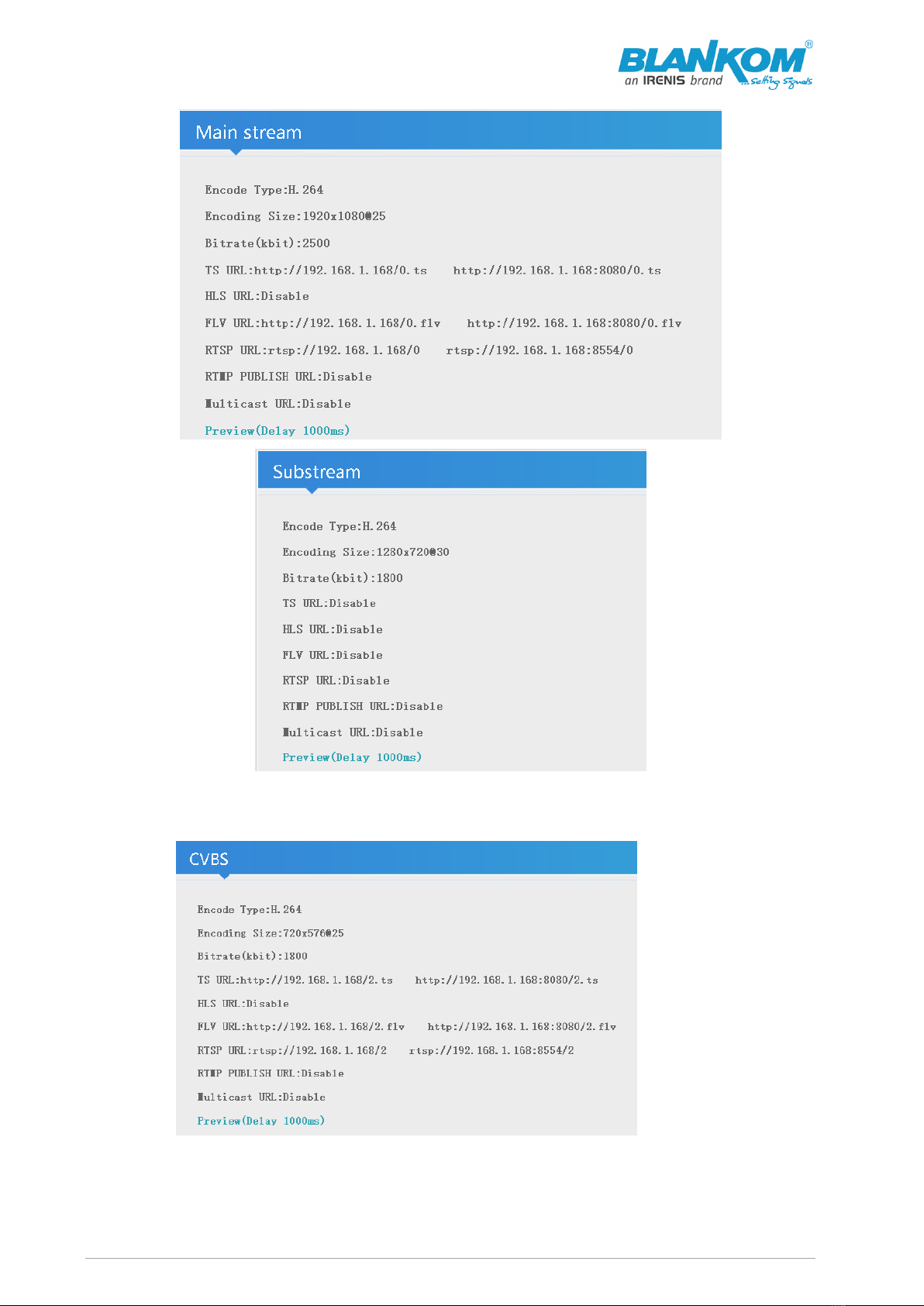

Enter the default username = admin, default password = admin .... and here we go:
