Essick MoistAIR MA1201 User manual

CAUTIO : READ ALL I STRUCTIO S CAREFULLY BEFORE I STALLATIO .
SAVE THIS OW ERʼS MA UAL FOR FUTURE REFERE CE.
Part No. SP6615 Printed in U.S.A.
MA1201
Evaporative Console
Humidifier Owner’s Manual
®
MD
Model o.
MA12010
TM
MC

6. Do not allow to be used as a toy.
Close attention is necessary when
used by or near children.
7. Never use your humidifier while any
part is missing or damaged in any
manner.
8. To reduce the risk of electrical hazard
or damage to humidifier, do not tilt, jolt
or tip humidifier while unit is running.
9. To reduce the risk of damage to
humidifier, unplug when not in use.
10. To reduce the risk of accidental
electrical shock, do not touch the cord
or controls with wet hands.
11. To reduce the risk of fire, do not use
near an open flame such as a candle
or other flame source.
12. Note the warning label shown below.
GE ERAL SAFETY I STRUCTIO S
2
WAR I G: To reduce risk of fire,
electric shock, or injury always unplug
before servicing or cleaning.
Safety Signal Words
DA GER: means if the safety information
is not followed someone will be seriously
injured or killed.
WAR I G: means if the safety
information is not followed someone
could be seriously injured or killed.
CAUTIO : means if the safety information
is not followed someone may be injured.
1. To reduce the risk of fire or shock
hazard, plug humidifier directly into a
120V, A.C. electrical outlet. Do not use
extension cords.
2. eep the electric cord out of traffic
areas. To reduce the risk of fire hazard,
never put the electric cord under rugs,
near heat registers, radiators, stoves or
heaters.
3. Always unplug the humidifier before
moving it, removing the fan assembly
section, before cleaning, or whenever
the humidifier is not in service.
4. eep the humidifier clean.
5. Do not put foreign objects inside the
humidifier.
Limited Warranty
This product is warranted against defects in workmanship and materials for one year from the date
of sale except for motors, which are warranted for two years. This warranty does not apply to
damage from accident, misuse, alteration, unauthorized repairs, unauthorized use, mishandling,
unreasonable use, abuse, including failure to perform reasonable maintenance, normal wear and
tear, nor where the connected voltage is more than 5% above the nameplate voltage, nor to the
equipment or products being improperly installed or wired or maintained in violation of this Ownerʼs
Manual. THIS WARRANTY DOES NOT APPLY TO FILTERS WHICH ARE CUSTOMER
REPLACEABLE PARTS. THIS PRODUCT IS NOT INTENDED FOR COMMERCIAL USE. THIS IS
THE SOLE AND EXCLUSIVE WARRANTY GIVEN BY MANUFACTURER WITH RESPECT TO THE
PRODUCTS AND, TO THE MAXIMUM EXTENT PERMITTED BY LAW, IS IN LIEU OF AND
EXCLUDES ALL OTHER WARRANTIES AND CONDITIONS, EXPRESS OR IMPLIED, ARISING
BY OPERATION OF LAW OR OTHERWISE, INCLUDING WITHOUT LIMITATION,
MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR PURPOSE. No employee, agent,
dealer or other person is authorized to give any warranties or conditions on behalf of the
manufacturer. The customer shall be responsible for all costs incurred in the removal or
reinstallation and shipping of the product for repairs.
Within the limitations of this warranty, inoperative units should be returned, with a copy of the sales
receipt, freight prepaid to an authorized repair service center and the manufacturer will repair or
replace the product, at its option, at no charge to the customer with return freight paid by the
manufacturer. It is agreed that such repair or replacement is the exclusive remedy available from
the manufacturer and that TO THE MAXIMUM EXTENT PERMITTED BY LAW, THE
MANUFACTURER IS NOT RESPONSIBLE FOR DAMAGES OF ANY IND, INCLUDING
INCIDENTAL AND CONSEQUENTIAL DAMAGE OR LOSS OF PROFITS OR REVENUES. Some
provinces and states do not allow the exclusion or limitation of incidental or consequential damages,
so the above exclusion or limitation may not apply in some cases.
The warranty gives the customer specific legal rights, and the customer may also have other rights
which vary from province to province, or state to state.
SALES RECEIPT REQUIRED AS PROOF OF PURCHASE FOR WARRANTY CLAIMS.

3
Know Your Humidifier
Description MA1201
Output/24 hrs 12 Gallons(45.4L)
Capacity of Bottle 1.9 Gallons(7.2L)
Capacity of Base 2 Gallons(7.5L)
Sq. Ft. Coverage 2500
Fan Speeds 3
Replacement Filter MAF-1
Fill Light Yes
Auto Humidistat Yes
Auto Shut Off Yes
Controls
Electronic (Push Button)
Casters Yes (4)
CUL Listed Yes
Volts 120 A.C.
Hertz 60
Amps (High Speed) 0.80
Watts (High Speed) 80
* Based on an area with average insulation and an 8ʼ
ceiling height ANSI/AHAM HU-1-1997. SEC. 8.1, results
may vary.
*
*

4
How Your Humidifier Works
Your new MoistAIR®Evaporative
humidifier is designed to satisfy home
humidity requirements through the
principle of evaporation of water in
the air.
Once the filter becomes saturated, air is
drawn in, passes through the filter and
moisture is absorbed into the air.
All evaporation occurs in the humidifier
so any residue remains in the filter.
This natural process of evaporation
virtually eliminates white dust.
CAUTIO : To reduce the risk of
injury, fire or damage to humidifier,
use only cleaners specifically
recommended for humidifiers.
Never use flammable, combustible
or poisonous materials to clean your
humidifier.
To reduce the risk of scalds and
damage to humidifier, never put hot
water in humidifier.
Step 1. Getting Your Humidifier Up and Running
Assembly
Remove casters, water bottle, housing
assembly, and filter from the box and
reverse the base. Press casters into the
bottom of the base manually. Do not use
tools. Set the base upright.
Replace the filter, housing assembly and
bottle (See “Replacement and Care of
Filters”, page 11 for reference).
MD

5
Electrical Hook-Up
Locate nearest 120V A.C. wall socket in
the location desired, preferably on inside
wall. With the humidifier in the desired
location, route the electrical cord safely
so no one will trip or upset the humidifier.
Plug in the electrical cord.
To reduce the risk of electrical shock,
this humidifier has a polarized plug (one
blade is wider than the other). This plug
will fit in a polarized outlet only one way.
Step 2. Location and Electrical Hook Up
Selecting A Location
Place humidifier on a flat level surface,
take extra care in leveling when placing
the unit on carpet. Position the humidifier
where the most humidity is needed or
where the most air will be circulated
throughout the house such as near a
cold air return.
Moist air (humidity) produced will
disperse into the whole house, but the
area closest to the unit will have the
highest humidity. If the unit is positioned
close to a window, condensation may
form on the window pane. If this occurs
the unit should be repositioned in another
location.
OTE: Due to release of cool, moist air
from humidifier, it is best to direct air
away from thermostat and hot air
registers and to position humidifier next
to an inside wall. Unit should not be
placed where cold air from outside walls
or warm air from a hot air register blows
directly on it.
WAR I G: For your own safety, do
not use humidifier if any parts are
damaged or missing.
Positioning The Unit
The humidifier should be positioned with
the back (cord exit side) and left side, at
least 2 inches(5cm) away from the wall.
Air needs to enter through all of the
louvres in the housing assembly in order
for the humidifier to operate at peak
efficiency.
WAR I G: To reduce the risk of fire
or shock hazard, humidifier should
be plugged into a 120V A.C. outlet.
Do not use extension cords.
If the plug does not fit fully in the outlet,
reverse plug. If it still does not fit, contact
a qualified electrician to install the proper
outlet. Do not change the plug in any
way.
OTE: Be sure that the humidistat, which
is located on the power cord, is free from
obstruction and away from any hot air
source.

6
Step 3. Water Fill
After the humidifier is positioned where it
will be operating you are ready to fill the
humidifier. The bottle lifts straight up and
away from the base. Take care not to
bump or damage fill valve assembly on
the bottom of the bottle.
Remove the side fill cap and fill with
water. Replace cap and twist by hand
until secure. Hold the bottle upright over
the sink. Press up on the valve plunger
for one second to release a small amount
of water. If you hear air bubbles or see
leaks around the side fill cap or Spring
Valve Assembly, retighten and recheck.
WAR I G: To reduce the risk of fire
or shock hazard, do not pour or spill
water into control or motor area.
If controls get wet, let them dry
completely and have unit checked by
authorized service personnel before
plugging in.
CAUTIO : Use only EPA Registered
Bacteriostat. Under no circumstances
should you use water treatment
products designed for Roto belt or
Ultrasonic humidifiers.
Place the water bottle back into the
humidifier base. When positioned
properly, the plunger will open and the
water will flow into the base. The base
will hold the entire contents of the water
bottle. Once the bottle is empty, remove it
and repeat the filling process. The
humidifier is now filled to capacity. To
benefit from less frequent filling let the
humidifier exhaust both the water from
the bottle and the base before filling.

Step 4. Operating the Controls
Where you set your desired humidity
levels depends on your personal comfort
level, outside temperature and inside
temperature. A starting set point of 30% -
40% ROOM humidity is recommended
but there may be conditions that require
a different setting.
7
IMPORTA T: Water damage may
result if condensation starts to form
on windows or walls. Humidity SET
point should be lowered until
condensation no longer forms. We
recommend room humidity levels do
not exceed 50%.
-10° F
2° F
10° F
20° F
20%
25%
30%
35%
When Outdoor Recommended Indoor
Temperature is: Relative Humidity (RH) is:
* and above
**
To Operate the Controls
Digital Display
Press the power button once to
display the digital readout*. Initially there
is a slight delay while the electronics
calibrate.
Two bars (- -) flash during this time.
Once calibration is complete a ROOM
humidity reading between 20% - 95% will
be displayed. A flashing 20 display
indicates that the room humidity is less
than 20%.
OTE: The default settings at initial
startup are ULTRA QUIET fan speed and
65% SET humidity. After desired settings
are selected by the user, they remain as
long as the unit remains plugged in and
there is no power interruption. If the unit
is unplugged the original default settings
are employed.
* Humidifier fan should operate at initial start
up. If it does not, refer to, “Fan not operating
(digital display is illuminated)” in the “Trouble
Shooting” section on page 13 of this manual.
-24° C
-18° C
-12° C
-6° C

Humidity Control
These buttons allow you to adjust the
humidity to suit your needs. This
humidifier will automatically cycle on and
off as required to maintain the selected
setting. Press the humidity buttons
to cycle the SET humidity readout in 5%
increments between 25% and 65% RH.
Once you have set the desired humidity,
after 5 seconds the readout will change
to the actual room humidity.
OTE: When the ROOM humidity is
displayed, pressing the set humidity
buttons once will display the current SET
point. To increase or decrease the current
SET point, press either the “+” or “-”
button until the desired SET point is
reached.
ASET point of 65% RH operates the
humidifier continuously regardless of the
ROOM reading. The humidistat that
senses the readings is located on the
power cord. Insure that it is free from
obstruction.
8
Operating the Controls (contʼd.)
Speed Button
This humidifier is equipped with a
3-speed fan control. Each push of the
speed button advances the mode through
the settings of HIGH, MEDIUM, ULTRA
QUIET, and AUTO. The selected setting
is displayed on the digital readout. The
higher the setting, the faster water is
evaporated and released into the air.
ULTRA QUIET is the quietest setting and
is provided for conditions that do not
require a rapid evaporation rate.
How Auto Control Works
The AUTO setting allows the humidifier to
manage its speed range to maintain your
desired humidity setting. It will
automatically cycle to the most efficient
speed to achieve the desired humidity.
Here is how the fan will operate:
•HIGH speed if room humidity is 10% or
greater RH (Relative Humidity) below
the SET point.
•MEDIUM speed if room humidity is
10 - 5% RH below the SET point.
•ULTRA QUIET speed if room humidity
is 5% or less RH below the SET point.
If the room humidity is not increasing at
the current fan speed during a 15 minute
period, the fan speed increases to the
next higher speed until the humidity SET
point is reached.
OTE: The humidifier may run on HIGH
for an extended period of time if the
actual room humidity is extremely low.

Check Filter Indicator
The ability of any humidifier to efficiently
supply humidity output relies heavily on the
condition of the filter. As the filter loads with
impurities it gradually loses its wicking
capability. When this happens, moisture
output is reduced and the humidifier has to
work longer to satisfy the selected setting.
This humidifier has a check filter reminder
timed to appear after 720 hours of
operation. When the CK FILTER message
is displayed, disconnect the power cord
and check the condition of the filter.
If a build-up of deposits or severe
discolouration is evident replace the
filter to restore maximum efficiency.
The CK FILTER message is reset when
the humidifier is plugged back in.
9
Using Your Humidifier
Refill Light
For maximum run time both the bottle
and the base should be filled. When both
the bottle and the base are empty the red
REFILL light will flash, informing
additional water is required. Also at this
time the unit will automatically switch into
DRY OUT and continue to run on ULTRA
QUIET speed for a 2 hour period. The
message DRY OUT will appear on the
digital display and the fan speed will
switch to ULTRA QUIET speed.
OTE: During this time the room
humidity level will continue to be
monitored and the humidifier will cycle
the fan on and off until the filter is
completely dry. The fan will shut off
leaving you with a dry humidifier that is
less prone to mold and mildew growth.
If DRY OUT is not desired, refill the
humidifier with water.
OTE: Once the dry out cycle is
complete, the fan will shut off and the
REFILL light will continue to flash. The
humidifier will automatically start again
when it is refilled.

10
OTE: Be sure that the humidistat, which
is located on the power cord, is free from
obstruction and away from any hot air
source.
Humidistat
The humidistat located on the power cord
senses the percentage of humidity in the
air. It causes the humidifier to cycle on
and off to maintain the selected humidity
SET point. The fan will turn on if the
ROOM reading falls 3% below the SET
point and will continue to run the
humidifier until a reading of 1% above the
SET point is achieved. The fan will turn
off until the ROOM reading falls 3%
below the SET point again.
Using Your Humidifier (contʼd.)

11
Replacement and Care of Filters
WAR I G: To reduce the risk of
shock or injury from moving parts,
always unplug humidifier before
removing or replacing any parts.
CAUTIO : To help retard bacteria
growth and keep maximum efficiency,
the filter should be replaced at least
once per season, or more often
under hard water conditions. Use
MoistAIR®MAF-1 recommended
replacement filter.
Replace the evaporative wicking filter at
least once per humidification season or
more depending on water conditions in
your area.
Filter Replacement
1. Unplug humidifier. Before removing
the filter, we recommend moving the
humidifier to an area where floor
coverings are not susceptible to water
damage. (i.e. kitchen or bath areas.)
2. Remove the water bottle and set aside.
Be sure not to bump or damage the fill
valve.
3. Grasp the housing assembly and lift
straight up and away from the base
and set aside. The filter is now
accessible.
4. Take note of the filter position.
Remove the filter. You may want to
clean the base at this time. See the
"Cleaning and Maintenance" section of
this manual.
5. Install a new filter (MAF-1) into the
base. Coil the filter and position it
between the uprights in the bottom of
the base. The start and finish of the
coil should be captured at the centre
of the base (see diagram) and the
filter should be resting on the floor of
the base.
6. Return the housing assembly to the
top of the base. Reposition the
humidifier to its operating position.
7. The humidifier is now ready to be filled
for operation.
MD

12
Cleaning and Maintenance
WAR I G: To reduce the risk of injury,
fire or damage to humidifier, use only
cleaners specifically recommended for
humidifiers. Never use flammable,
combustible or poisonous materials to
clean your humidifier. To reduce the
risk of scalds and damage to
humidifier, never put hot water in
humidifier.
CAUTIO : Local water purity varies
from area to area and under certain
conditions water impurities and
airborne bacteria may promote the
growth of microorganisms in the
reservoir of the humidifier.
To retard bacteria growth that may
cause odours and be harmful to your
health, use only MoistAIR®replacement
filters. We also recommend using EPA
approved bacteriostat, and humidifier
cleaner, available at your local store.
Step 1
To make cleaning easier, the humidifier
base should be empty and completely
dried out. To accomplish this, use the
following method:
a. Allow the humidifier to run until the
REFILL light flashes and the DRY
OUT mode has stopped the humidifier
fan.
b. Unplug humidifier.
Step 2
To Remove Parts
See “Replacement and Care of Filters”
page 11.
OTE: There may be a little water still in
the base. Carefully dump the water out or
remove with a sponge.
WAR I G: To reduce the risk of shock,
always unplug humidifier before
cleaning or servicing. If humidifier is not
unplugged, fan could start after
housing is removed.
Step 3
Bi-Weekly Maintenance
End of Season Maintenance
1. Follow “Bi-Weekly Maintenance”
instructions at end of humidification
season.
2. Remove filter.
3. Let humidifier dry completely before
storing.
4. Store in cool, dry location.
5. Install a new filter in clean humidifier
before next season begins.
OTE: “Bi-Weekly Maintenance”
procedure is also recommended if you
do not plan to run the humidifier for
one week or more.
Removing Scale
1. Fill the humidifier base with water
and add one 8 ounce cup(236ml)
of undiluted white vinegar.
Let solution stay 20 minutes.
2. Clean all interior surfaces with a
soft brush. Dampen a soft cloth
with undiluted white vinegar and
wipe out the base to remove scale.
3. Rinse thoroughly with clean warm
water to remove scale and
cleaning solution.
Disinfecting Base
1. Pour 1/2 gallon(1.89L) of water
and 1/2 teaspoon(2.5ml) chlorine
bleach into the base. Let solution
stay for 20 minutes, carefully
swishing every few minutes.
Wet all surfaces normally exposed
to water.
2. Empty base after 20 minutes.
Rinse with water until bleach smell
is gone. Allow unit to dry out
completely.
OTE: The water bottle should be
cleaned in the same manner as the
base. Rinse thoroughly with clean
water after all steps are complete.
MD

Troubleshooting
13
Trouble
Digital display not illuminated.
Fan not operating (digital display is
illuminated).
Fan running continuously.
Poor evaporation of water.
Bottle empties completely.
Bottle continues to empty
after complete filling.
Bottle not emptying.
C FILTER message does not
appear even when filter is dirty or
humidifier performance is clearly
reduced.
Fan operating slower than speed
registered on digital display.
Humidifier not shutting off during
DRY OUT mode.
Probable Cause
• No Power.
•Power button has not been
depressed.
• ROOM humidity level is not 3% or
more below SET humidity level.
• SET humidity level is 65%.
• ROOM humidity level has not
reached 1% or more above SET
humidity level.
• C FILTER message flashing.
• This is normal for initial filling.
• Air is entering water bottle.
• Base full of water.
• A loss of power has caused the
C FILTER message to
prematurely reset.
• Humidifier is in DRY OUT mode.
• Filter not dry.
Remedy
• Check 120 volt power source.
•Press power button once to turn
on.
• Raise SET humidity level if
desired.
• A SET humidity percentage of
65% operates fan continuously.
Adjust SET level between 25% -
60%.
• Continue to run until desired
humidity level is achieved. This
may take up to 48 hours initially.
• Change to a fresh new filter.
• NOTE: Local water varies from
are to area and under certain
conditions mineral will build up
more rapidly in the filter.
• Refill bottle for maximum run time.
• Ensure fill cap is tight with no
interfering debris.
• Check for leak in water bottle.
• The base will hold the contents of
water bottle (1.9 gallons/7.2L).
Continue to run humidifier to
deplete water from base.
• Replace filter.
• Humidifier automatically switches
fan speed to ULTRA QUIET when
DRY OUT mode message is
displayed.
• During DRY OUT mode the
humidifier will continue to run on
ULTRA QUIET speed as required
for a 2 hour period.

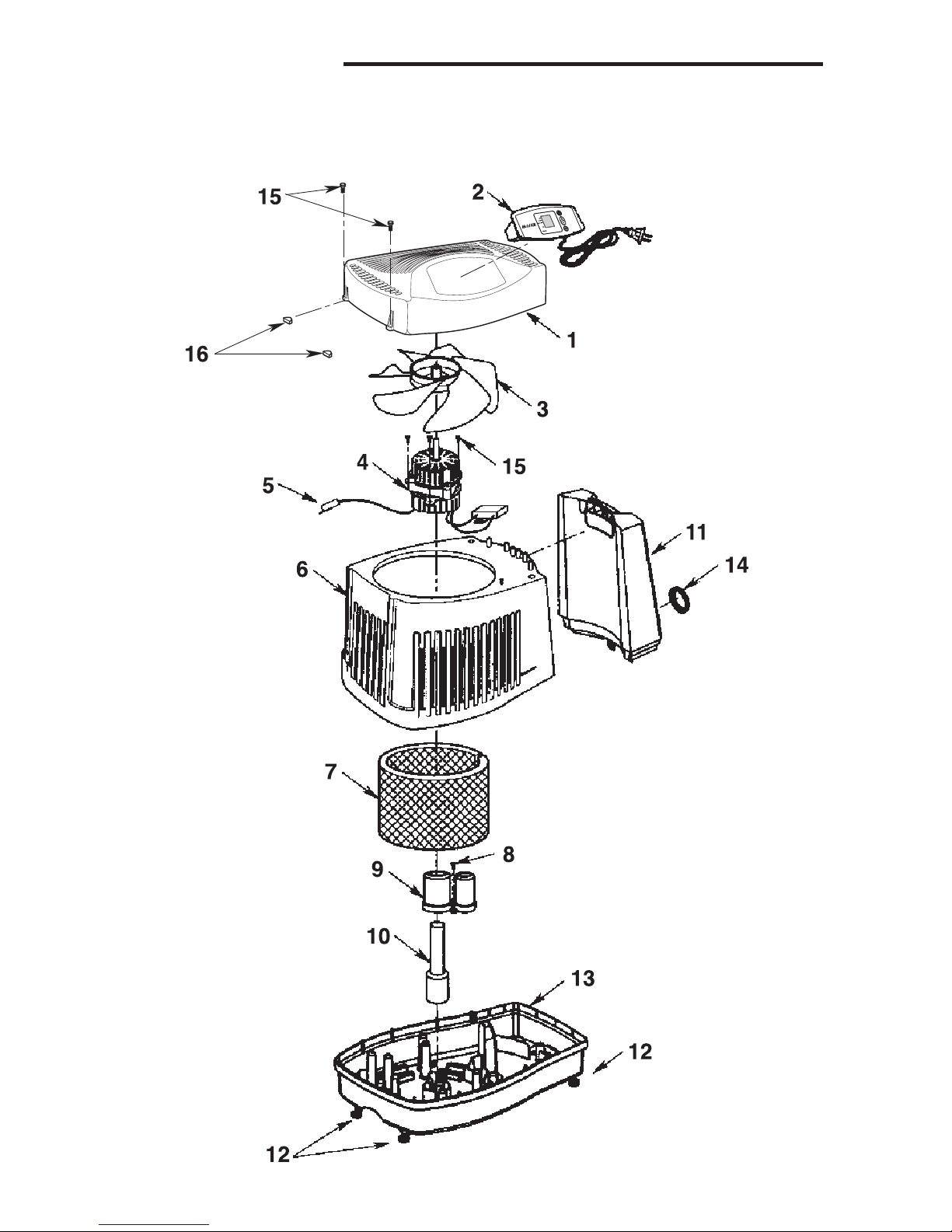

Repair Parts
14
Parts List for MoistAIR®Evaporative Console Humidifier
MoistAIR®Model o. MA12010
MD
MD

Always order by part number - ot by key number
† Stock item - Purchase at your local retail store.
• Any attempt to repair the control assembly or motor may
create a hazard unless repair is done by a qualified service
technician.
* Standard hardware item - May be purchased locally.
To order parts, call:
U.S.A.: 1-800-654-3545
Canada: 1-866-808-6500
15
Key o Part o. Description
1 830488 Housing, Upper
2 831342 • Assembly, Control
3 829821 • Blade, Fan
4 830778 • Motor
5 828854 Switch, Micro
6 830489-1 Housing, Lower
7 MAF-1 †Filter
8 829815 * Screw, Pan Hd. Ty. AB #6 x 1/2 SS
9 830496-1 Support, Float
10 829816 Float, Reservoir
11 830537-1 Bottle, Includes ey #14
12 829812 Casters (Includes 4)
13 830484-1 Base
14 824690-2 Cap, Fill
15 829805 Screw, Pan Hd. Trx. Hi-Lo #6 x 3/4
16 830587 Cap, Screw
17 SP6615 Ownerʼs Manual (not shown)
Parts List for MoistAIR®Evaporative Console Humidifier
MoistAIR®Model o. MA12010
MD
MD

c 2007 EssickAir
Part No. SP6615 Form No. SP6615-1 Printed in U.S.A. 05/07
Essick Air Products
For more information about MoistAIR®humidifiers, visit our website at
www.moistair.com
MD
TM
MC
®
MD
FOR TECHNICAL HELP, CALL
[phone] FROM USA OR [phone] FROM CANADA
(Please have complete model number)

MISE EN GARDE : LISEZ SOIGNEUSEMEN OU ES LES INS RUC IONS AVAN D’INS ALLER CE
L’APPAREIL.CONSERVEZ LE PRÉSEN MODE D’EMPLOI AFIN DE POUVOIR VOUS Y REPOR ER À L’AVENIR.
N° de pièce : SP6615 Imprimé en U.S.A.
MA1201
Mode d’emploi de l’humidificateur
console à évaporation
®
MD
° de modèle
MA12010
TM
MC

6. Ne laissez pas des enfants se servir de cet appareil
comme d’un jouet. Il faut faire très attention quand
cet appareil est utilisé par des enfants ou à
proximité d’enfants.
7. N’utilisez jamais votre humidificateur quand une
pièce est absente ou endommagée de quelque
façon que ce soit.
8. Pour réduire le risque de danger électrique ou
d’endommagement de l’humidificateur d’air, n’incli-
nez pas, ne heurtez pas et ne faites pas basculer
l’humidificateur d’air quand il est en marche.
9. Pour réduire le risque d’endommager l’humidifi-
cateur d’air, débranchez-le quand il n’est pas utilisé.
10. Pour réduire le risque de choc électrique accidentel,
ne touchez pas le cordon ou les commandes si vos
mains sont mouillées.
11. Pour réduire le risque d’incendie, n’utilisez pas
l’humidificateur près d’une flamme vive comme une
bougie ou une autre source de flammes.
12. Tenez compte de l’étiquette d’avertissement ci-
dessous.
CONSIGNES DE SÉCURI É GÉNÉRALES
18
ermes relatifs à la sécurité
DANGER : si les informations relatives à la sécurité ne
sont pas respectées, quelqu’un sera gravement blessé
ou tué.
AVER ISSEMEN : si les informations relatives à la
sécurité ne sont pas respectées, quelqu’un risqued’être
gravement blessé ou tué.
MISE EN GARDE : si les informations relatives à la
sécurité ne sont pas respectées, quelqu’un sera
peut-être blessé.
1. Pour réduire le risque d’incendie ou de choc élec-
trique, branchez l’humidificateur d’air directement
dans une prise de courant alternatif de 120 V c.a.
N’utilisez pas de rallonges.
2. Ne laissez pas le cordon électrique traîner dans des
passages très fréquentés. Pour réduire le risque
d’incendie, ne placez jamais le cordon électrique
sous un tapis, ou à proximité d’un registre de
chaleur, d’un radiateur, d’un four ou d’un appareil
de chauffage.
3. Débranchez toujours l’humidificateur d’air avant de
le nettoyer ou de le déplacer, de retirer la section de
ventilation, ou chaque fois que l’humidificateur
n’est pas en service.
4. Veillez à ce que l’humidificateur reste propre.
5. Ne placez pas de corps étrangers à l’intérieur de
l’humidificateur.
Garantie limitée
Ce produit est garanti contre les défauts de façon et de matériau pendant un an à compter de la date de la vente, à
l’exception des moteurs, qui sont garantis pendant deux ans. La présente garantie ne s’applique pas aux dommages
résultant d’un accident, d’un emploi non conforme, d’une altération, de réparations non autorisées, d’un emploi non
autorisé, d’une manipulation sans précaution, d’une utilisation déraisonnable, d’un abus, y compris le fait de ne pas
avoir procédé à une maintenance raisonnable, de l’usure normale, d’un emploi sur un circuit électrique caractérisé
par une tension supérieure de plus de 5 % à la tension nominale indiquée sur la plaque signalétique, ou d’une
installation, d’un câblage ou d’un entretien d’équipements ou de produits ne respectant pas les instructions de ce
Mode d’emploi. LA PRÉSENTE GARANTIE NE S’APPLIQUE PAS AUX FILTRES, QUI SONT DES PIÈCES
REMPLAÇABLES PAR LE CLIENT. CE PRODUIT N’EST PAS CONÇU EN VUE D’UN EMPLOI COMMERCIAL. C’EST LA
SEULE ET UNIQUE GARANTIE ACCORDÉE PAR LE FABRICANT EN RAPPORT AVEC LES PRODUITS ET, DANS LA
MESURE MAXIMALE AUTORISÉE PAR LA LOI, ELLE SE SUBSTITUE À TOUTES LES AUTRES GARANTIES ET
CONDITIONS, EXPLICITES ET IMPLICITES, OCTROYÉES PAR LA LOI OU AUTREMENT, Y COMPRIS, MAIS DE
FAÇON NON LIMITATIVE, LES GARANTIES DE QUALITÉ MARCHANDE ET/OU D’ADÉQUATION À UN BUT
PARTICULIER, ET ELLES EXCLUT DE TELLES GARANTIES ET CONDITIONS. Aucun employé, agent, revendeur ou
autre individu n’est autorisé à offrir de garanties ou de conditions de la part du fabricant. Le client devra assumer
tous les coûts en rapport avec l’enlèvement ou la réinstallation et l’expédition du produit en vue de réparations.
Dans les limites de la présente garantie, les appareils défectueux doivent être renvoyés, avec une copie du reçu, en
port payé, à un centre de service après-vente/réparation agréé, et le fabricant réparera ou remplacera le produit, à
son choix exclusif, sans facturer le client, le fabricant prenant à sa charge les frais de transport pour le renvoi du
produit au client. Il est convenu qu’un tel remplacement ou une telle réparation est le seul remède offert par le
fabricant et que, DANS LA MESURE MAXIMALE AUTORISÉE PAR LA LOI, LE FABRICANT NE SAURAIT ÊTRE TENU
RESPONSABLE DE DOMMAGES QUELCONQUES, Y COMPRIS DES DOMMAGES ACCESSOIRES OU SECONDAIRES,
OU DE PERTES DE BÉNÉFICES OU DE REVENUS. Étant donné que certaines Provinces et certains États ne
permettent pas l’exclusion ou la limitation des dommages accessoires ou secondaires, l’exclusion ou la limitation
qui précède peut ne pas s’appliquer dans certains cas.
La garantie confère des droits spécifiques au client, et ce dernier peut également jouir d’autres droits en fonction de
la Province ou de l’État dans lequel il réside.
REÇU EXIGÉ COMME USTIFICATIF D’ACHAT POUR TOUTE RÉCLAMATION VISANT À FAIRE OUER LA GARANTIE.
AVER ISSEMEN : Pour réduire le risque
d’incendie, de choc électrique ou de blessure,
débranchez toujours l’appareil avant d’effectuer
une réparation ou un nettoyage.

Familiarisez-vo s avec votre h midificate r d’air
Description MA 1201
* Débit /24 h 12 gallons/45,4 litres
Capacité du bidon 1,9 gallons/7,2 litres
Capacité de la base 2 gallons/7,5 litres
* Couverture en pi22 500
Vitesses de ventilation 3
Filtre de rechange MAF-1
Voyant de remplissage Oui
Humidostat automatique Oui
Fermeture automatique Oui
Commandes Électroniques (bouton-poussoirs)
Roulettes Oui (4)
Classification CUL Oui
Volts 120 (c.a.)
Hertz 60
Ampères (haute vitesse) 0,80
Watts (haute vitesse) 80
* Pour une pièce avec isolation moyenne et un plafond à une hauteur de
8 pieds, selon la norme ANSI/AHAM HU-1-1997. SEC. 8.1. Les résultats
peuvent varier.
Ensemble de
ventilateur
Bâti
Humidostat
(sur le cordon
électrique)
Roulettes
Filtre :
N° de remplacement
MAF-1
Base
Bidon
Commandes de
vitesse et
d’humidité
Poignée du bidon
19

20
Comment fonctionne votre h midificate r d’air
Votre nouvel humidificateur évaporatif MoistAIR®est
conçu pour satisfaire les besoins d’humidité d’une
habitation par le principe de l’évaporation de l’eau dans
l’air.
Une fois que le filtre est saturé d’eau, de l’air est attiré
dans l’appareil, il passe à travers le filtre et l’humidité est
absorbée dans l’air. Toute évaporation se produit à
l’intérieur de l’humidificateur, c’est pourquoi tous les
résidus restent dans le filtre. Ce processus naturel
d’évaporation élimine virtuellement la poussière
blanche.
Première étape : mise en état de marche
Montage
Retirez les roulettes, le bidon à eau, le bâti et le filtre
de la boîte, et mettez la base sens dessus dessous.
Enfoncez les roulettes dans le dessous de la base à la
main. N’utilisez pas d’outils. Remettez la base dans le
bon sens.
Remettez en place le filtre, le bâti et le bidon (cf.
«Remplacement et entretien des filtres», page 27,
pour référence).
MD
MISE EN GARDE : pour réduire le risque de vous
blesser, de causer des incendies ou d’endommager
l’humidificateur, n’utilisez que des détergents
spécialement recommandés pour les humidifi-
cateurs. N’utilisez jamais de produits inflam-
mables, combustibles ou toxiques pour nettoyer
votre humidificateur.
Pour réduire le risque de vous ébouillanter et
d’endommager l’humidificateur, ne mettez jamais
d’eau chaude dans l’humidificateur.
L’air humidifié est
ensuite libéré depuis
la partie supérieure de
l’appareil
De l’air sec
entre par la
grille
d’aération
sur le bâti
