Essilor PRO-E 600 User manual

User Manual

CONTENTS
INTRODUCTION 5
I. FIRST STEPS WIT PRO-E 600 7
1. Descriptive diagrams 8
2. Using the edger 10
a. Turning on the edger 10
b. Switching off the edger 10
c. Using the touch screen and keypads 11
d. Edging screen 12
II. EDGING A LENS 15
1. Edger working environment 16
a. Menu screen 16
b. Calling up a shape 18
c. Lens set-up and feeling 19
2. Perform a Beveling 21
a. Automatic beveling 21
b. Legend screen for customized bevels 23
c. Customized beveling 24
d. Modifying the bevel curve 26
e. Modifying the bevel curve at a particular point 27
f. Displacing the bevel curve 28
3. igh-base beveling 28
a. Captioned screens 29
b. igh-base beveling 31
4. Perform a Step bevel 36
a. Install the step bevel tool 37
b. Captioned screens 41
c. Perform a Step bevel 42
5. Grooving 48
a. Automatic grooving 49
b. Customized groove legend screen 50
c. Customized grooving 51
d. Modifying the groove curve 53
e. Modifying a point in the groove curve 54
f. Displacement of the groove curve 55
6. Produce a Flat-edge finish 56
7. Do a mixed job 57
a. Legend screens 57
b. Configuring the mixed finish 59
8. Perform a Drilled job 61
a. Automatic drilling 62
b. Legend screen for customized drilling 63
c. Customized drilling 64
9. Perform a Polishing 65
10. Chamfering 66
USER MANUAL> CONTENTS

11. Perform a Retouching 67
III. CONFIGURING T E EDGER 69
1. Configure the edger 70
a. Time, date and language 70
b. Connections 71
c. Screensaver 72
2. Adjusting the precision of the edger 72
a. Adjusting the diameter of the finished lenses 72
b. Adjusting the position of the bevel and groove 73
c. Adjusting the diameter of drill-holes 74
d. Adjusting the chamfer 75
e. Adjusting the groove 76
f. Adjust the position of high-base bevel 77
g. Adjust the position of the step bevel 78
IV. MAINTENANCE & SERVICING 81
1. Carrying out the autotests 82
2. Calibrating the touch screen 83
3. Consulting the preventive maintenance screen of the “small tools” modul 84
4. Changing or cleaning the edger tools 86
a. Changing or cleaning the drill bit 87
b. Changing or cleaning the mill bit 91
c. Changing the Step bevel wheel 94
d. Changing the chamfering wheel 97
5. Statistics and technical log 100
a. Edger cycles 100
b. Technical log and errors 101
6. Maintaining and cleaning the edger 102
a. Precautions required 102
b. Clean the door, the “small tools” module and the wheels 103
c. Dressing the wheels 104
TEC NICAL DATA 107
1. Edger 108
2. Environment 109
GENERAL INFORMATION 111
1. Symbols 112
2. Modifications 112
3. Declaration of conformity 113
4. Copyright 113
5. Materials and products 113
6. Safety instructions: 113
7. Electromagnetic waves 114
GLOSSARY 115
USER MANUAL> CONTENTS

INTRODUCTION
To take full advantage of the functions on you Pro-E 600 edger, we encourage you to consult the entire
manual.
You need to have at least memory version: V 1.0.0
USER MANUAL> INTRODUCTION
5
Pro-E 600 > v1 -02.17

I. FIRST STEPS WIT PRO-E 600

This chapter contains all the information relating to the first use of the edger:
•Description of the edger (F p.8)
•Using the device (F p.10)
1. DESCRIPTIVE DIAGRAMS
This section consists of descriptions and lists of accessories.
1. USB plug
2. Trough
3. Screen
4. ON/OFF button
5. Cycle start button
6. Barco e rea er
7. Screen tilt buttons
8. Fans
9. Manufacturer plate
10. Main switch
Connectors
Pro-E 600 > v1 -02.17
8
USER MANUAL> I. FIRST STEPS WIT PRO-E 600

1. Power socket
2. Solenoi valve socket
3. Pump socket (tank + pump) / Solenoi valve socket (town)
Accessories
Stylus
Posiblock removal pliers
Triangular key
White dressing stone for finishing wheel
Square dressing stone for polishing wheel
Transport wedges to be kept
Accessory box
- Usage :
•22 mm posiblock holder
•18 x 14 mm posiblock holder
•22 mm stop
•18 x 14 mm stop
•Mill/drill bit replacement tool (blocking key)
•Ø 1.0 mm drill bit (quantity 2, including one mounted on the module)
•Ø 0.8 mm drill bit
•Ø 1.5 mm edging mill bit (quantity 2, including one mounted on the module)
•Ø 20 mm grooving wheel (mounted on the module)
•Chamfering wheel (mounted on the module)
•Step bevel wheel
- Maintenance
•Blocking key for tool changes (drill bit/mill bit)
•Adjustable wrench for tool changes (drill bit/mill bit)
•Accessory for Step bevel wheel assembly/dismantling
•Adjustable wrench for tool changes (drill bit, mill bit, chamfering wheel)
O tions
•Open or closed circuit spraying kit
•Milling chip recovery tray
•Posiblock holder and “Weco” posiblock stop” accessory kit
•M’Eye Sign Box
Connection accessories
•220 V power cable
•RJ45 cable for the tracer-edger connection
•Essibox connection cable
•Wastewater evacuation pipe with attachment ring
•2 connectors to clip onto two internal water pipes and connect to the rinsing kit
USER MANUAL> I. FIRST STEPS WIT PRO-E 600
9
Pro-E 600 > v1 -02.17

2. USING T E EDGER
In this section, you will find all the information concerning the following:
•Turning on (F p.10) andoff (F p.10) the edger,
•the use of the touch screen and the keyboards (F p.11),
•the description of the work screens of the edger (F p.12).

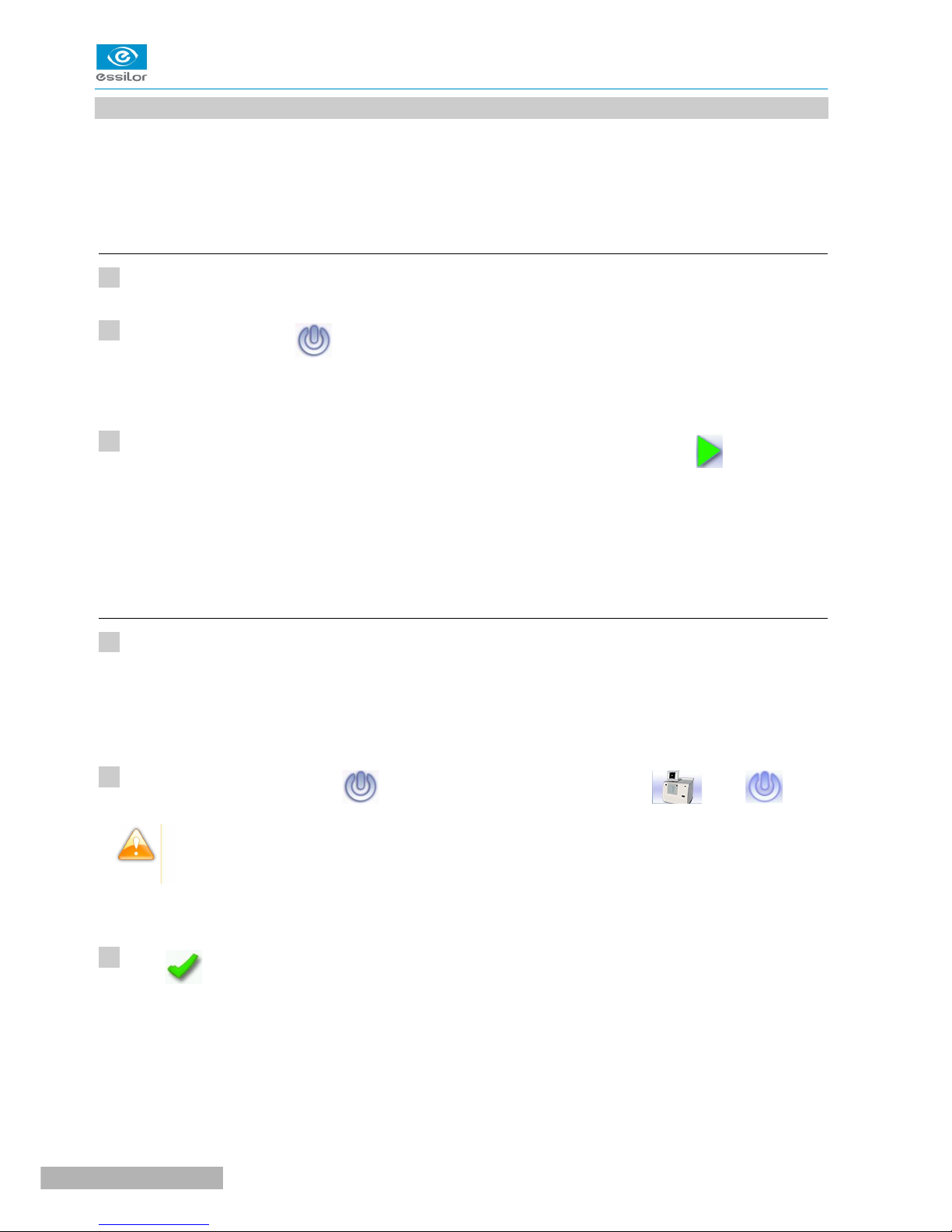

a. Turning on the edger
Press the main switch, located behind the edger on the left, to power it up.
Press the ON/OFF button located under the touch screen.
The edger will initialise.
On the edger screen, press on the “cycle start” button on the front surface or on the icon to end the
initialization phase.
A beep indicates that the initialisation was successful.
The edger is ready for use when the initial screen is displayed.
b. Switching off the edger
Before switching off the edger:
•Check that there is no glass in the trough
•Check that the lens clamp shafts are loosened and that the trough door is open
•Select the edging screen
Briefly press the ON/OFF button located under the touch screen or press , then .
Do not press the ON/OFF button for several seconds. This would result in a shut-down of the
machine and a warningmessage would be displayed at the next switch-on.
A confirmation message is displayed on the screen.
Press to confirm.
The edger will switch off.
>
>
>
>
1
2
3
1
2
3
Pro-E 600 > v1 -02.17
10
USER MANUAL> I. FIRST STEPS WIT PRO-E 600

Extended eriod of non-use
For a prolonged period of non-use (a few days), it is preferable to turn off the edger using the main
switch.
It must be powered off at least once a week.

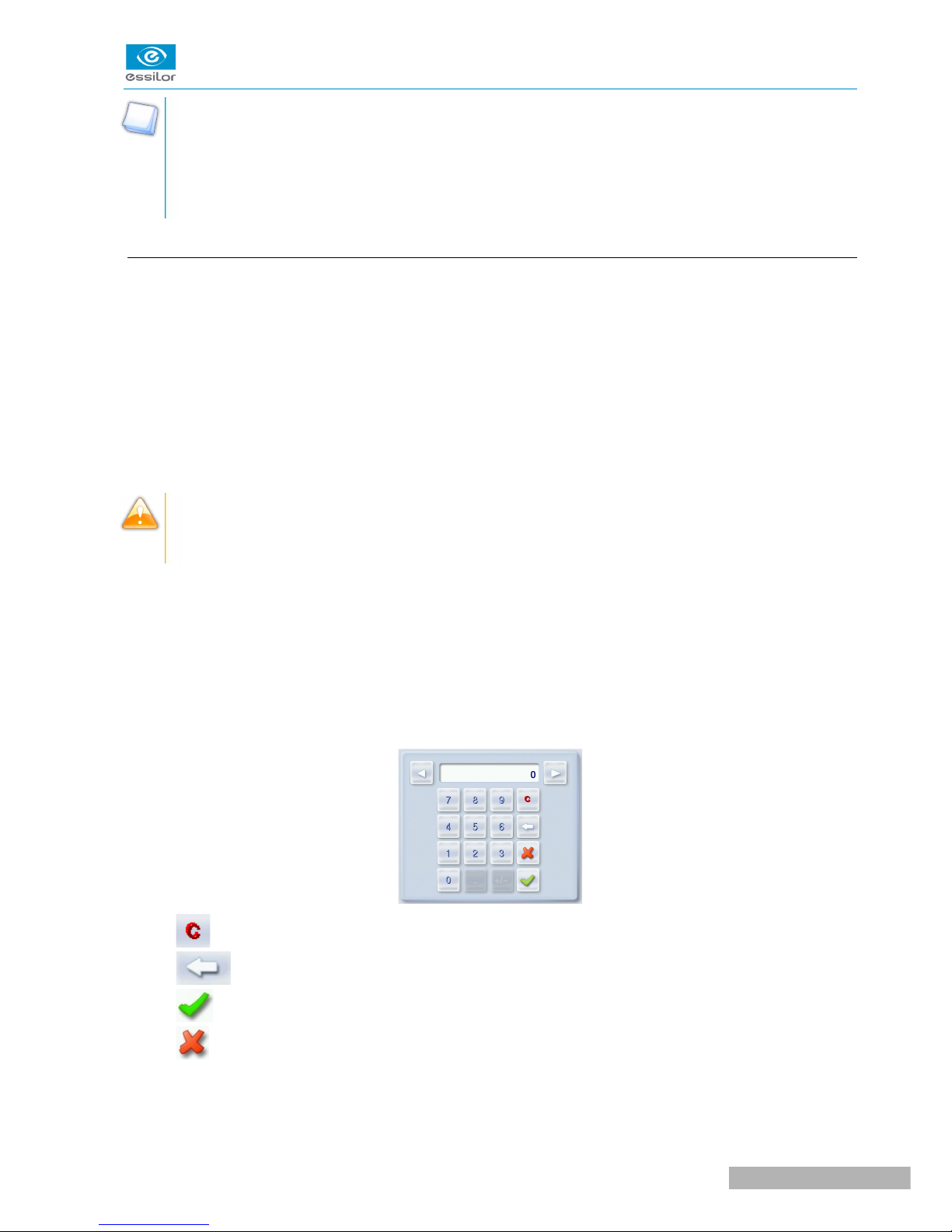

c. Using the touch screen and key ads
Using the touch screen
Use the stylus supplied with the machine to use with the touch screen.
You can also touch the screen with your finger.
•If the screen is not sensitive enough to finger pressure, press lightly with a fingernail.
•If the response area does not correspond to the position of the key, you need to calibrate the touch
screen. For further information, refer to the section Maintenance and servicing > Check and calibrate
> Calibrate the touch screen (F p.83).
•Never press hard on the screen as this could break it.
•Never press on the screen with sharp objects such as pens, scissors, clamps, etc.
•Screen breakage is not covered by the guarantee.
On the screen, press the icon buttons to access the desired menus and job functions .
Using the key ads
When you need to enter or modify data, two types of keypads are automatically displayed, according to the
information to be entered.
•The numeric keypad is displayed for entering values.
•Reset the fields
•Go back
•Confirm
•Cancel and go back to the work screen

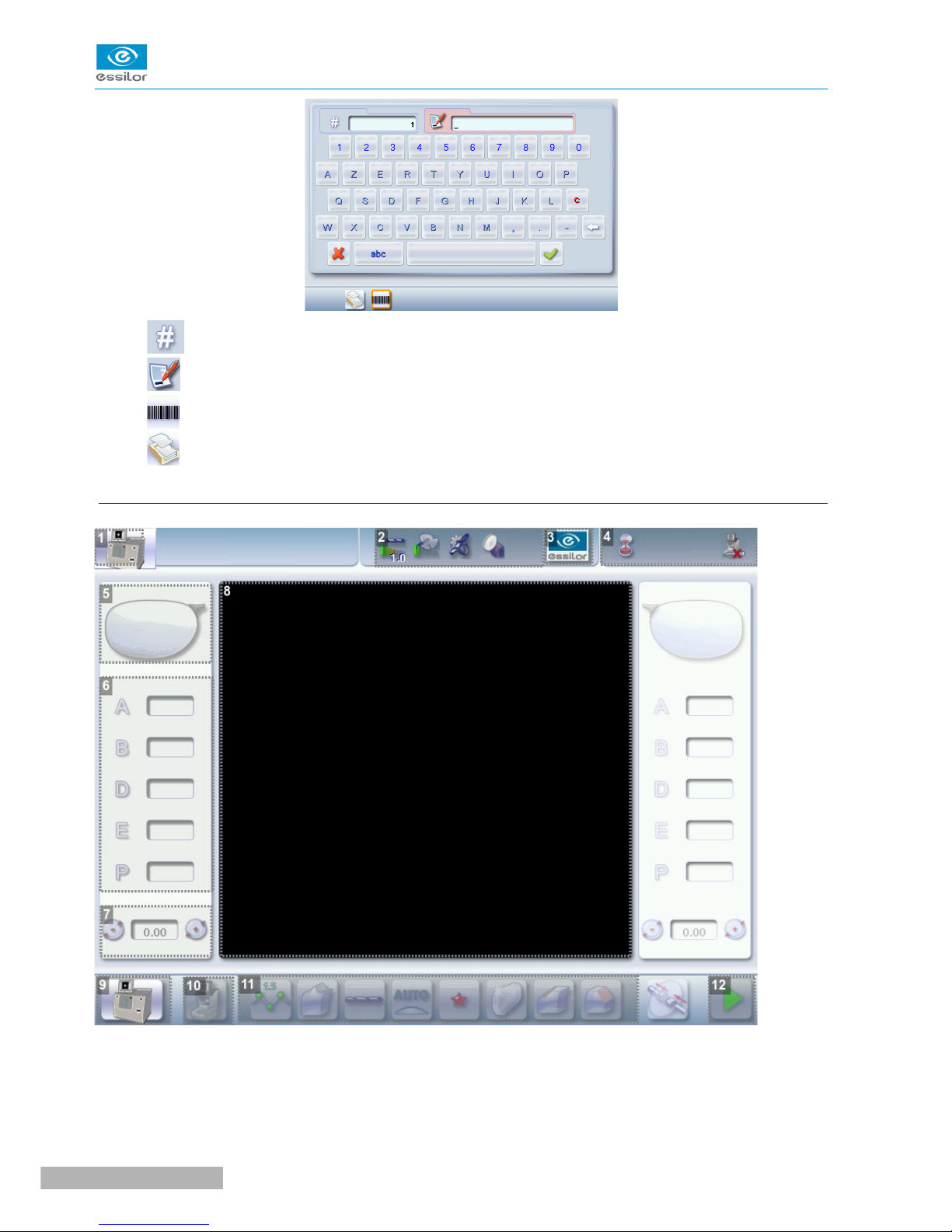

•The alphanumeric keypad is displayed to save or search for jobs.
USER MANUAL> I. FIRST STEPS WIT PRO-E 600
11
Pro-E 600 > v1 -02.17

•Job ID
•Job reference (alphanumeric characters)
•Job list&
•Collection list (when the edger is connected to a Essilor range tracer)
d. Edging screen
1. Work screen in icator
2. Tool wear in icators
3. Settings
Pro-E 600 > v1 -02.17
12
USER MANUAL> I. FIRST STEPS WIT PRO-E 600

4. Devices connecte
5. Active eye
6. Information on the shape
7. Size increase/re uction
8. Work area
9. Turning off the pro uct/e ging screen
10. Job call: Tracer menu
11. Actions available for the current screen
12. Start the e ging cycle
Detailed functions
For more information, consult the section Edging a lens > Work environment of the edger > Captioned
screen. (F p.16)
USER MANUAL> I. FIRST STEPS WIT PRO-E 600
13
Pro-E 600 > v1 -02.17

II. EDGING A LENS

This chapter describes the work environment of the edger and the procedures for edging any type of lens:
•Edger working environment (F p.16)
•Perform a Beveling (F p.21)
•Beveling for a high-base frame (F p.28)
•Produce a step bevel for a high-base frame of a sporting type or a safety frame, (F p.36)
•Grooving (F p.48)
•Produce a Flat-edge finish (F p.57)
•Do a mixed job (F p.57)
•Perform a Drilled job (F p.61)
•Perform a Polishing (F p.65)
•Perform a Chamfering (F p.66)
•Perform a Retouching (F p.67)
1. EDGER WORKING ENVIRONMENT
This section describes the edger working environment and the initial stages of the edging of a lens.
•Description of the edging screen (F p.16)
•Shape call-up procedure (F p.18)
•Putting the lens in place (F p.19)

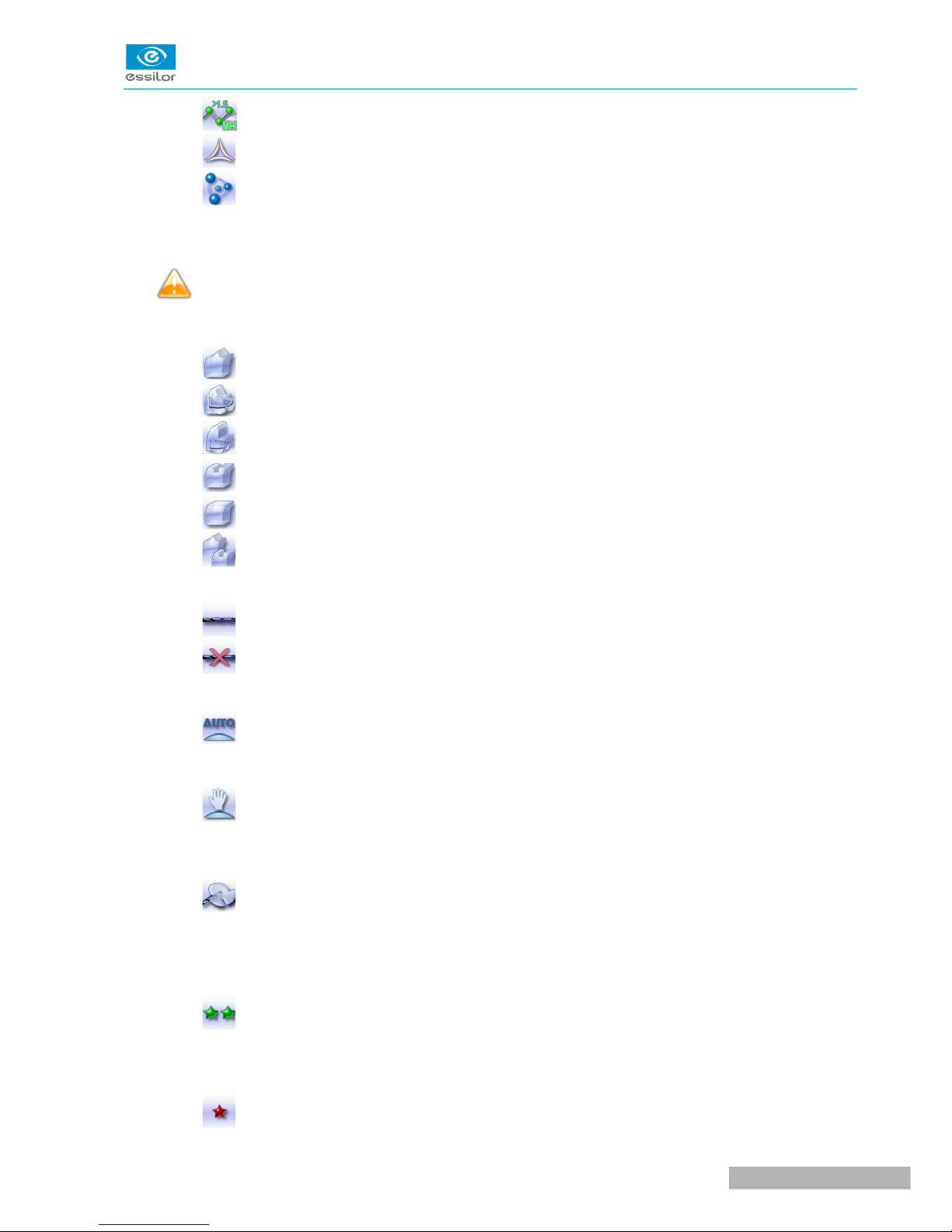

a. Menu screen
1. Lens material
◦Plastic lens -index 1.5&
◦Polycarbonate lens
Pro-E 600 > v1 -02.17
16
USER MANUAL> II. EDGING A LENS

◦Medium or high index plastic lens - index > 1.5
◦Trivex lensTM
◦Tribrid lensTM
The configuration of the edging cycles depends on the type of material. An incorrect choice may result in
material damage.
The Pro-E 600 edger does not edge glass lenses.
2. Type of finish
◦Bevel
◦igh-base bevel
◦Step bevel
◦Groove
◦Flat-edge finish
◦Mixed job
3. Drilling
◦Drilling enabled
◦Drilling disabled
4. E ging mo e
◦Automatic mode
The finish parameters are automatically calculated according to the information acquired when
tracing the frame and feeling the lens.
◦Customized mode
The finish settings can be fully customized.
5. Type of cycle
◦Milling cycle
This cycle is recommended for lenses with a hydrophobic coating. It works with all types of
materials. Milling involves a specific feeling cycle: the edger will feel the contour of the shape to
be edged twice, then four feeling operations will be required every 90° to define the segments to
be cut.
◦2 stars Cycle
For all types of material. This cycle offers a more sophisticated edging mode than the standard
cycle, dedicated to thin lenses or to hydrophobic lenses when milling is not possible (lens too
quick for example).
◦Standard cycle
USER MANUAL> II. EDGING A LENS
17
Pro-E 600 > v1 -02.17

For all types of material.

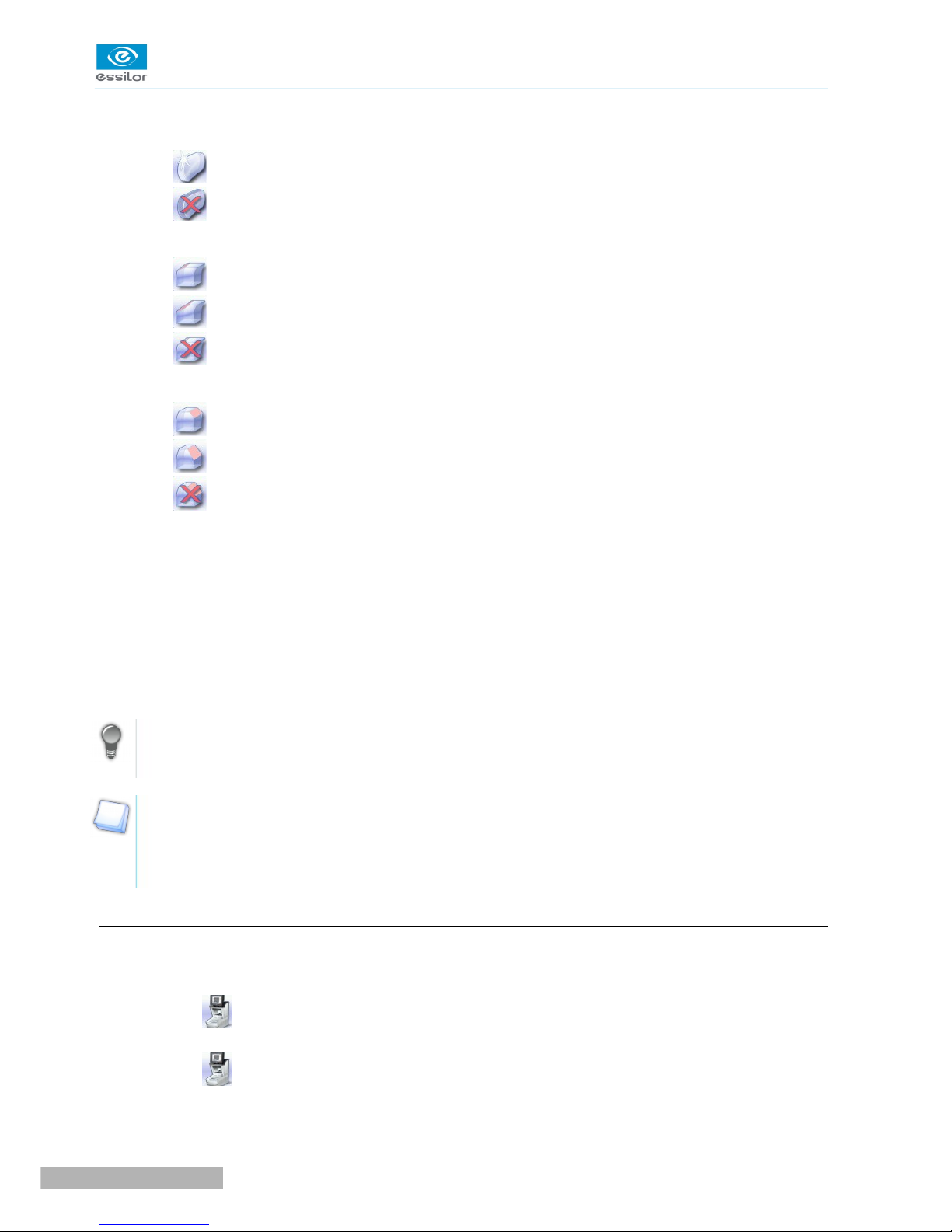

6. Polishing
◦Polished lens
◦Non-polished lens
7. Front surface chamfering
◦Small chamfer
◦Large chamfer
◦No chamfering
8. Rear surface chamfering
◦Small chamfer
◦Large chamfer
◦No chamfering
9. Size re uction/increase (mm)
10. Manual lens clamping
Press and hold to close the lens clamp shafts manually.
11. Start the e ging cycle
The door closing and lens clamping are automatic.
Function also available via the “cycle start” button on the front surface.
Always browse from left to right: depending on your selection, certain menus will be available while
others will not.
Your habits taken into account
The edger memorises your working habits: as time goes by, the buttons of the functions you use most
often will be displayed by default.
b. Calling u a sha e
There are 3 ways of calling up the shape you want to edge:
•Calling up the current job:
> Press to display the shape being processed on the tracer.
•Calling up the number of a shape saved on the tracer:
> Press for a few seconds to open the numeric keypad.
> You can then call up a shape via the ID allocated to it.
•Job call via a barcode:
Pro-E 600 > v1 -02.17
18
USER MANUAL> II. EDGING A LENS

> Scan the barcode using the barcode reader (optional).
Always lock down your 2 lenses before proceeding with the edging. If a job in the course of modification on
the tracer (display of the symbol beside the reference) is called up on the edger, a warning message is
displayed.
> Press to continue and display the job on the edger. The modifications underway are then ignored.
> Press to prevent the display of the job and finish the modifications underway on the tracer.
A reminder of the type of posiblock required is displayed on the shape. It is crucial to use the proper
accessory to edge the lens. Otherwise, an error message is displayed at the start of the cycle.
c. Lens set-u and feeling
Prerequisite: the lens must be centered and blocked before placing it in the edger.

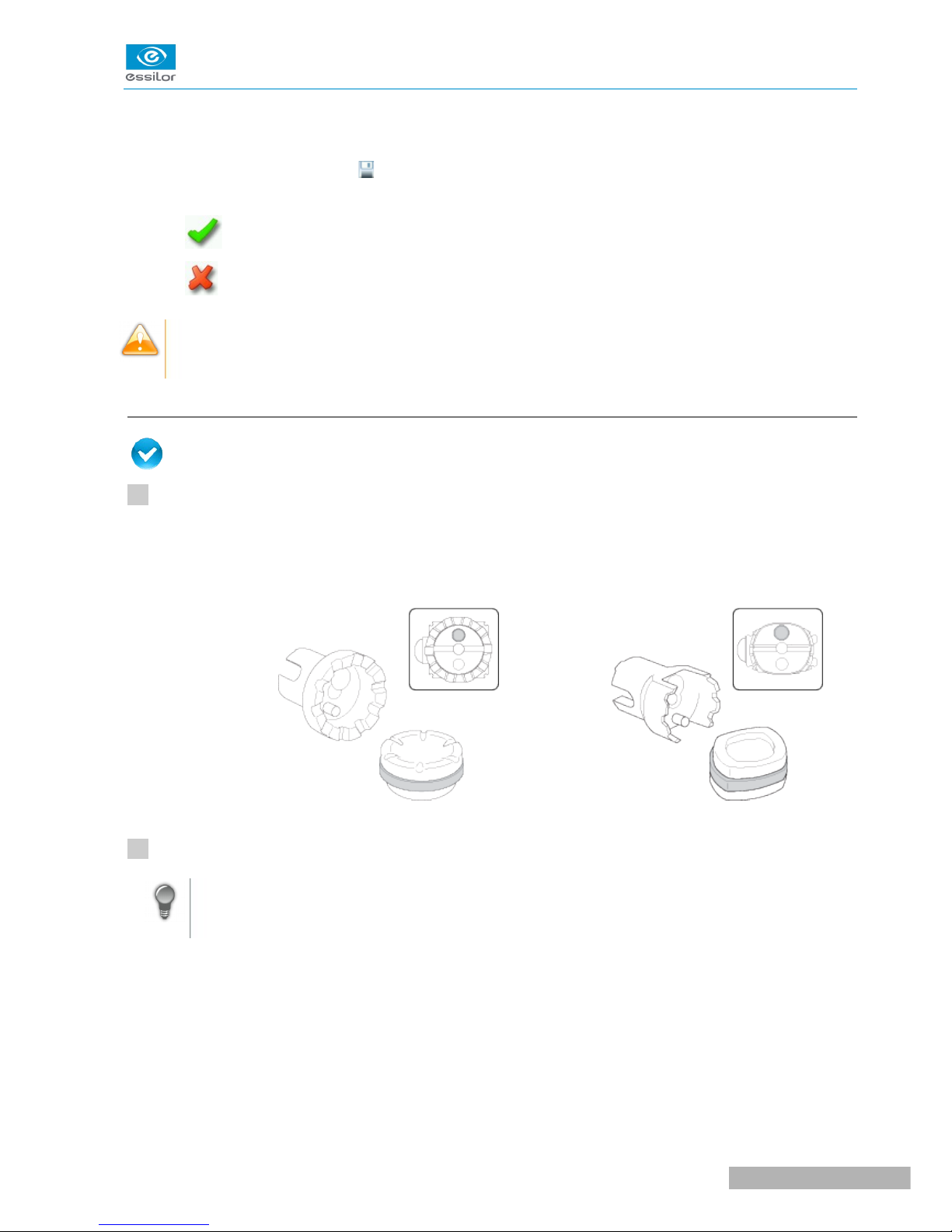

Check that the posiblock holder and the stop correspond to the posiblock used. Otherwise, you will need
to remove them from the lens clamp shafts and replace them with the tools matching the diameter of the
posiblock.
•For a 22 mm posiblock •For an 18 × 14 mm posiblock
Place the lens in the posiblock holder.
Place the metal peg of the posiblock upwards and the positioner downwards: a magnet is used to
hold the lens in position on the axis.
1
2
USER MANUAL> II. EDGING A LENS
19
Pro-E 600 > v1 -02.17

You can clamp the lens manually by pressing . Manual lens clamping is particularly suited to
hydrophobic lenses, thick lenses and high-camber lenses, as it ensures that the lens won't come
off the pad before clamping.
Make sure you move your hand well away before you start the edging cycle.
Press the “cycle start” button (front face) or
The door closes then the lens clamping operation starts.
The size of the posiblock holder is checked then the feeling cycle starts.
To interrupt the feeling cycle at any time, press .
As the lens is felt, its shape appears on screen. The double tracing represents the profile of the front
surface of the shape (inner shape) and its rear surface (outer shape).
In the case of edging mode selection:
>
>
>
>
3
Pro-E 600 > v1 -02.17
20
USER MANUAL> II. EDGING A LENS

•automatic, you do not have to configure anything, all the data is automatically recovered from
the tracer. The lens edging starts automatically after the feeling cycle.
•customized, the finish parameters can be fully customized.
For further information, refer to the section concerning your type of finish.
The different lens edging stages appear on the screen.
2. PERFORM A BEVELING
This section describes the procedures for the creation of a bevel:
•In automatic mode (F p.21), you do not have to configure anything. All the data is automatically
retrieved from the tracer. The lens edging starts automatically after the feeling cycle.
•In customized mode (F p.24), you can opt for front/rear surface tracking, a distributed bevel,
lens curve tracking or frame rim tracking. You can also do the following:
◦a general modification of the bevel curve (F p.26)
◦a modification at a point of the bevel curve (F p.27)
◦a displacement of the bevel curve (F p.28)
•You can consult the description of the customized bevel screen (F p.23).
a. Automatic beveling
Call up the desired shape located on the tracer or on the job management program.
The shape is displayed on the edger work screen.
After the tracing of a rimmed frame:
•The bevel finish is selected by default.
•The automatic mode is selected by default.
If you want to produce a bevel less than 0.75mm high, configure the bevel directly on the
screen.
>
>
>
1
USER MANUAL> II. EDGING A LENS
21
Pro-E 600 > v1 -02.17

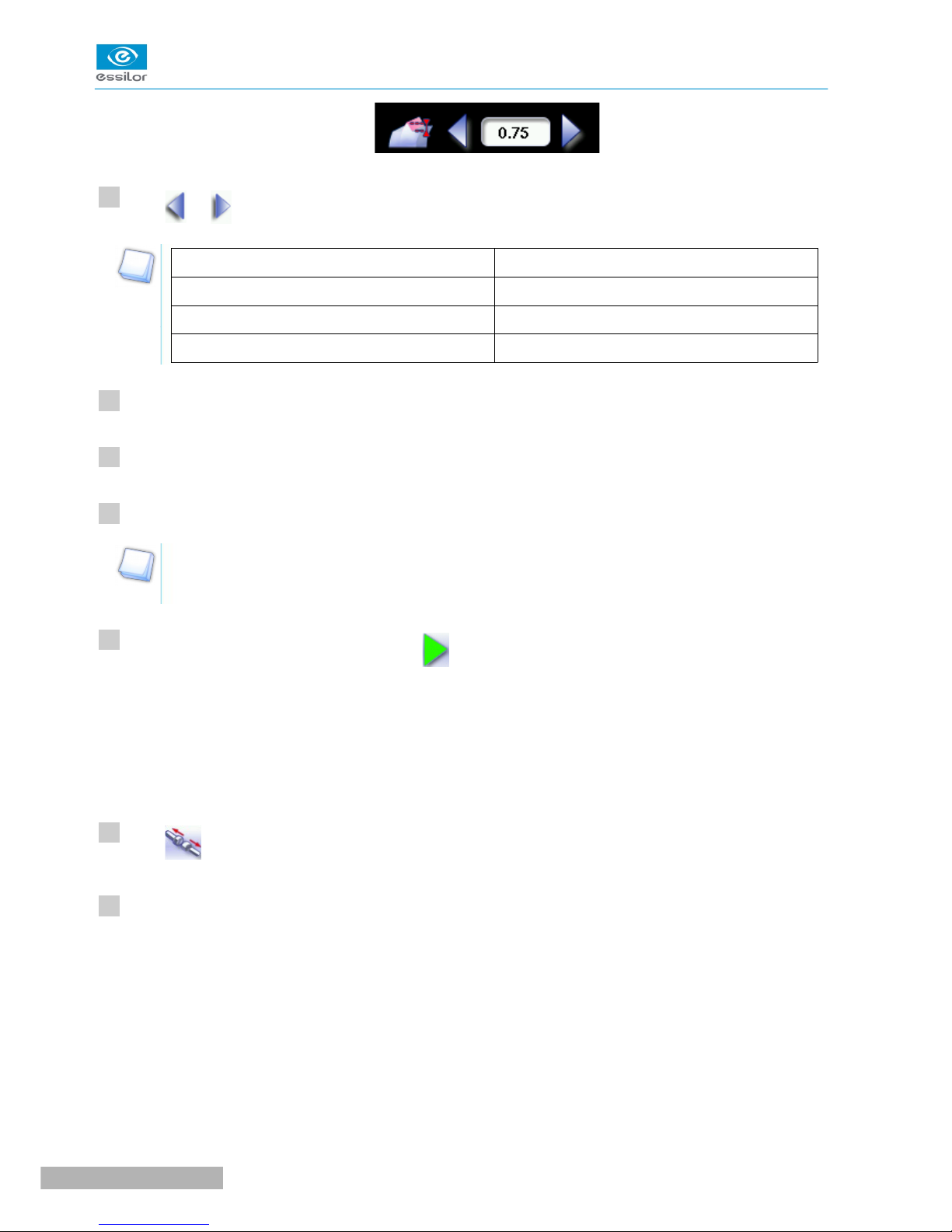

Press and to adjust the height of the bevel.
eight (mm)
By default 0.75
Minimum 0.30
Maximum 0.75
Select lens material.
Select the type of cycle.
Choose whether or not to polish and/or chamfer your lens.
For more information, consult the section Edging a lens > Perform a polishing (F p.65) and Edging a
lens > Perform a chamfering (F p.66).
Press the “cycle start” button (front face) or .
The door closes, the lens is clamped, then the feeling operation starts.
The edging cycle starts.
When the edging cycle is finished, the retouch screen is displayed.
Press to release the lens.
If necessary, retouch the lens.
Otherwise, start edging the second lens. Select the lens directly on the screen, on the left or right of the
work area.
The edging screen for the second lens is displayed. All finishes chosen and the modifications made
are kept.
>
>
>
>
2
3
4
5
6
7
8
Pro-E 600 > v1 -02.17
22
USER MANUAL> II. EDGING A LENS

b. Legend screen for customized bevels
1. Automatic bevel
2. Customize bevels
◦Front surface tracking: the crest of the bevel is positioned at a constant distance from the
front surface.
◦Rear surface tracking: the crest of the bevel is positioned at a constant distance from the
rear surface.
◦Distributed bevel: the position of the crest of the bevel is proportional to the thickness of
the lens, with respect to the front surface.
◦Lens curve tracking: the camber of the bevel is adjustable.
◦Frame rim tracking: the bevel tracks the groove precisely, according to the data obtained on
frame tracing.
3. Lens thickness
◦Maximum lens thickness - represented by the white square along the shape.
◦Minimum lens thickness - represented by the red square along the shape.
4. Cursor movement
The cursor is represented by the green square along the shape. To move it, select it directly or use the
and buttons.
5. Zoom win ow
Represents the bevel profile and indicates the distance between the bevel crest and the front and rear
surfaces of the lens at the cursor position.
USER MANUAL> II. EDGING A LENS
23
Pro-E 600 > v1 -02.17
