ESTeem 195Ed User manual

QUICK START GUIDE
MODEL 195Ed
1
Before You Begin
•The ESTeem Model 195Ed wireless Ethernet radio modem is compatible with many different applications. The most common
application is to bridge two or more Ethernet devices or networks. This guide will demonstrate the basic configuration and testing of
a pair of 195Ed’s. For more detailed information, please see the ESTeem Model 195Ed User’s Manual.
•This guide assumes you have a working knowledge of Ethernet networking, TCP/IP protocol and how to identify and set the TCP/IP
address on your computer.
•The 195Ed can be configured using any current web browser software such as Internet Explorer, Netscape or Mozilla.
•The following procedure will provide an initial communication link between two or more Model 195’s for testing purposes. All the
example commands listed in this guide can be adjusted to fit your communication network. Please consult the ESTeem Model
195Ed User’s Manual for more details.
Unpack Contents
Each node in your ESTeem Model 195Ed’s network may have different hardware components based upon the final installation location
(i.e Outdoor, Indoor, Point-to-point or Muti-Point). Antenna types, cable lengths, power supplies may be different, but the following
items will be required for basic setup:
Model 195Ed AA109 Resource Disk
Antenna
(AA20DMEs
Displayed)
(2) Ethernet Cables
Power Supply
(AA175 Displayed)
Serial Interface Cable
(AA6021.1)
Note: Your accessory model numbers may vary from the above, but you will need to locate each of above items to continue
configuration.

2
Front Panel Overview
(RS-232 Data Port and Second Ethernet Port Optional)
12 VDC Input
(Auxiliary
Connector )
Reset Switch RS-232
Configuration RJ-45 10/100BaseT
Ethernet Port
Transmit
LED
Receive
LED
Status
LED
Power over
Ethernet LED
Aux Power
LED
RS-232
Data Port
Second
Ethernet
Port
Antenna Overview
Antenna Connectors
(TNC Female-RP)
Antenna Port A
(Single Receive Antenna)
Antenna Port B
(Dual Receive Antennas)

3
Begin Programming
1. Assemble the ESTeem Model 195Ed using the following:
Antenna Conne
ctions
Leave
Open
Single Antenna
Configuration Dual Antenna Configuration
Power and Data Connection

4
2. The Model 195Ed will link to other Model 195Ed’s on the network via the WLAN Media Access Control (MAC) address found on
the bottom of the case. This MAC address is six hexadecimal digits separated by colons and is configured at the factory. Every
MAC address in the world is unique and can not be changed. Complete the following chart to aid in your configuration:
Name Serial Number IP Address Ethernet MAC WLAN MAC
Example Modem 1 E-14001
172.16.8.101 00:04:3f:00:01:01 00:04:3f:00:01:02
3. Configuration of the Model 195Ed is completed through the product’s internal web server. To access this configuration page, you
will need to enter the 195Ed’s IP address in your web browser. The IP address set at the factory is Class B (i.e. 172.16.x.x) address
and is printed on the Quality Assurance sheet sent with each 195Ed. If the factory default address matches your network
configuration, please proceed to Using Setup, otherwise continue to step 4.
4. Install the ESTeem Discovery Utility. The ESTeem Discovery Utility will allow you to configure the IP address on the Model
195Ed to match your network. Install the Discovery Utility on your computer by inserting the Resource Disk in your CD drive.
Note: The ESTeem Resource Disk is stand-alone copy of the ESTeem Web site (Figure 1). Navigation of the Resource Disk is as
simple as using your web browser. All technical documentation, User’s Manuals and the ESTeem Utility Program is available on
the disk.
Place the ESTeem Utility CD in your CD-ROM drive. The CD will auto load the ESTeem main page
Note: If the page does not auto load, open your web browser and set your address line to D:\index.html (Where D: is the drive letter
for your CD-ROM drive).
From the Main Page select Support and click on ESTeem Utility.
Figure 1 –ESTeem Resource Disk Main Page

5
Note: This program is saved in a compressed file format. Microsoft
Windows XP® will open the file directly, but other operating systems
will require a common compression program such as WinZip
available for download at http://www.winzip.com
Double click on the 195EdiscoverySetup.exe file listed in the
window to install the program.
5. Set IP Address on the 195Ed. Connect the Model 195Ed to
your computer either direct to the Ethernet card or through a
HUB/Switch using a CAT-5e Ethernet cable. The Ethernet port
on the 195Ed supports Auto-Negotiation so either a patch cable
or crossover cable will work. Open the ESTeem Discovery
Program and press the Discover Modems button. The Model
195Ed will be displayed in the program by the Ethernet MAC
address and Current IP Address (Figure 3).
Note: The SSID and Mode of Operation will be adjusted later in
the configuration.
Double-click on the 195Ed you wish to program and the Configure IP Address window will be displayed (Figure 4). Enter an IP
address and Subnet Mask for the 195Ed that matches your network subnet and press the OK button to save this to the ESTeem. You
will receive notification that the Configuration was Successful and the 195Ed will reboot. Proceed to ESTeem Setup to continue
configuration.
Setup Programming
You should now be ready to configure the Model 195Ed through your web browser. Open the web browser program and enter the IP
address of the ESTeem in the address line and press enter.
Figure 2- ESTeem Utility Download
Figure 3 – Discovery Program Main Page
Figure 4 – Change IP Address Window

6
1. When prompted, enter admin for both the username and password and press the OK button.
2. Select Setup on the top menu.
3. Press the drop-down menu and select AP Bridge and press the Next button.
Step 1 – Sign-In Screen
Step 3 – Select AP Bridge

7
4. Set the DHCP services to NONE and press the Next button.
5. Verify the IP address and netmask for the 195Ed (listed as bridge device) are correct press the Next button.
Step 4 – Turn DHCP Off
Step 5 – Verify IP Address

8
6. Enter in the Gateway address in the default route IP address block and any DNS information for the server. If this is not know or on
a network without a Gateway, leave these items at factory default.
7. All 195Ed modems in the network must be have the exact same Service Set Identification (SSID). The default SSID is ESTeem and
we will use this for demonstration. Enter the SSID as listed above and turn off the wireless security features by selecting the NO
radial. Press the Next button to continue.
Note: It is recommended that security be used in all wireless applications. This procedure will forgo the security configuration for
brevity. Please see the example applications and the security appendix for further information.
Step 6 – Enter Gateway Address
Step 7 – Enter SSID

9
8. A warning that wireless security is not enabled will be displayed. Press the Next button to continue.
9. All ESTeem 195Ed on the network must use the same RF bandwidth. Set the RF Bandwidth to 5 MHz and press the Next button to
continue.
10. All Model 195Eds on the network must be on the same radio channel, representing a particular frequency. If a particular channel has
not been assigned for use, leave the 195Ed at a default value of 5 (912 MHz) and press the Next button.
Step 8 – Security Warning Screen
Step 9 – Bandwidth Selection
Step 10 – Set Radio Channel

10
11. Configure the repeater peer list by
selecting Enable the repeater
capability radial to YES (Step
11). Press the Add button to the
right of the repeater peer table
and, using the chart created in the
Begin Programming section of
this guide, enter the Wireless
MAC (WLAN MAC) address of
the opposite 195Ed (the 195Ed
this unit you are programming
will communicate with) in the
Peer 1 – MAC Addr field
(below). Leave the Priority Path
Cost settings at the default values,
Encryption Type to None and
change the Enable Link radial to
Enable and press the Create
Repeater Peer button. Press the
Next button.
Step 11 – Repeater Peer Configuration
Example Addresses
Name Serial Number IP Address Ethernet MAC WLAN MAC
195Ed We Are
Programming E-14096 172.16.48.189 00:04:3f:00:01:01 00:04:3f:00:01:02
Opposite 195Ed We
Will Create Wireless
Link
E-14034
172.16.38.114 00:04:3F:00:0B:00 00:04:3F:00:11:02

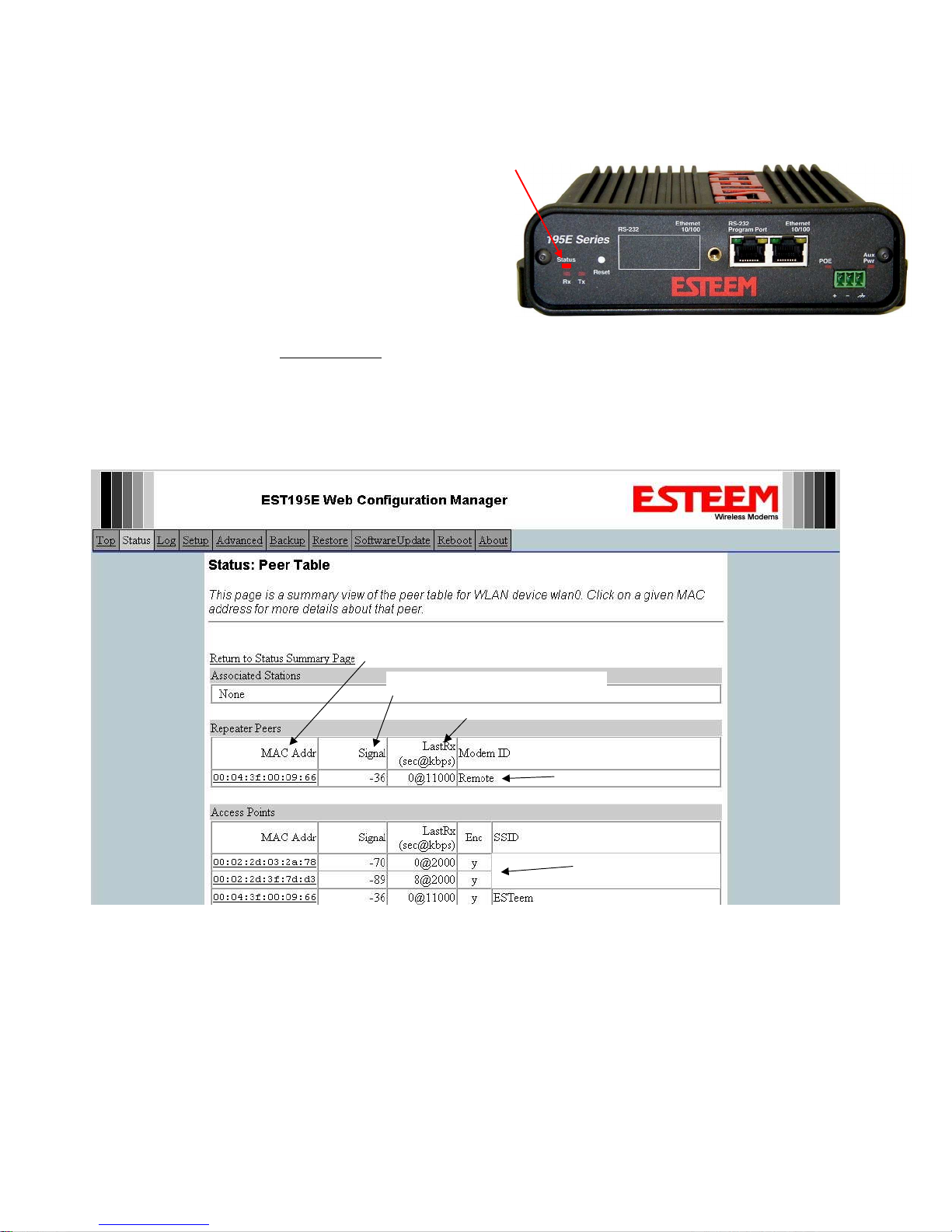

Step 12 – Configure Peer Table
