Estes Proto-X User manual
FCC STATEMENT AND INDUSTRY CANADA NOTICE:
1. This device complies with Part 15 of the FCC Rules and RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
2. Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Remark: This device is in accordance with the digital device grade B limitation and the
15th regulation of FCC. This limitation requires reasonable anti-interference protection
around the residence. The device can transmit radio wave during use and can interrupt
the mobile communication without proper installment. Interruption will occur for special
device. If the device do interrupt the radio or television, please turn the device off then turn
it on to adjust. Below are some resolution for your reference:
•Move the receiving antenna
•Enlarge the distance between the device and receiver
•Try to not connect the device and the receiver on the same circuit
•Ask for professional help from experts
3. This digital apparatus does not exceed the Class B limits for radio noise emissions
from digital apparatus set out in the Radio Interference Regulations of Industry Canada.
Estes-Cox Corp.
1295 H Street, PO Box 227
Penrose, CO 81240-0227
Made In Dongguan, Guangdong,
China
• Do not turn on Proto-X unless controller has been turned on first.
• Keep hands, hair and loose clothing away from spinning blades.
• Turn off controller and Proto-X when not in use.
• Parental guidance is recommended.
• Do not submerge into water. This could damage electronic assemblies.
• Follow operating instructions exactly.
• Not intended for children under 12 years old.
• Replace any damaged or broken parts before attempting to fly.
• Do not drop the Proto-X by suddenly reducing the throttle. This could
lead to severe damage.
• The Proto-X’s range will also be affected if the battery is not fully
charged.
• Do not touch the motors after flying. They can become hot.
• The battery in the Proto-X is not replaceable.
CAUTION: Changes or modifications to
this product not expressly approved by
the party responsible for compliance may
void the user’s authority to operate the
equipment.
90 DAY LIMITED WARRANTY
PLEASE DO NOT RETURN YOUR PRODUCT TO THE STORE – Estes will repair or replace factory defects for 90 days from the date of purchase. This warranty
specifically does not cover crash damage, misuse or abuse. To make a warranty claim, please contact our product support team at 1-217-398-8970 or
If requested by Product Support, please send defective product to: Hobby Services, 3002 N Apollo Dr., Suite #1, Champaign, IL 61822
This warranty applies only if the product is operated in compliance with the instructions and warnings provided with each model. Estes assumes no liability except for
the exclusive remedy or repair of parts as specified above. Estes shall not be liable for consequential or incidental damages. Some states do not allow the exclusion
of consequential or incidental damages so the above exclusion may not apply to you. This warranty gives you specific legal rights and you may also have other rights
which vary from state to state.
Battery Requirements for Controller:
Requires: 2 x 1.5V AAA size batteries (not included)
Requirements for USB Charge Cord:
USB Output Jack (not included)
Battery Cautions:
• Parental guidance is recommended when installing batteries.
• Do not power controller by mixing different types of batteries, or old and new batteries.
• Use only batteries of the same or equivalent type as those recommended.
The Proto-X is equipped with a rechargeable 3.7V LiPo battery.
Please pay attention to the following cautions for safe use:
• Do not dispose of battery into fire or heat.
• Do not use or leave battery near a heat source, such as fire or a heater.
• Do not strike battery or throw it against a hard surface.
• Do not pierce battery.
• Do not disassemble or alter battery.
• Turn off power switch after use.
• Recycle used batteries.
Contents
Do not touch the
spinning blades or
fly over another person’s
head. Adult supervision is
required.
12
ON OFF
3 4 5

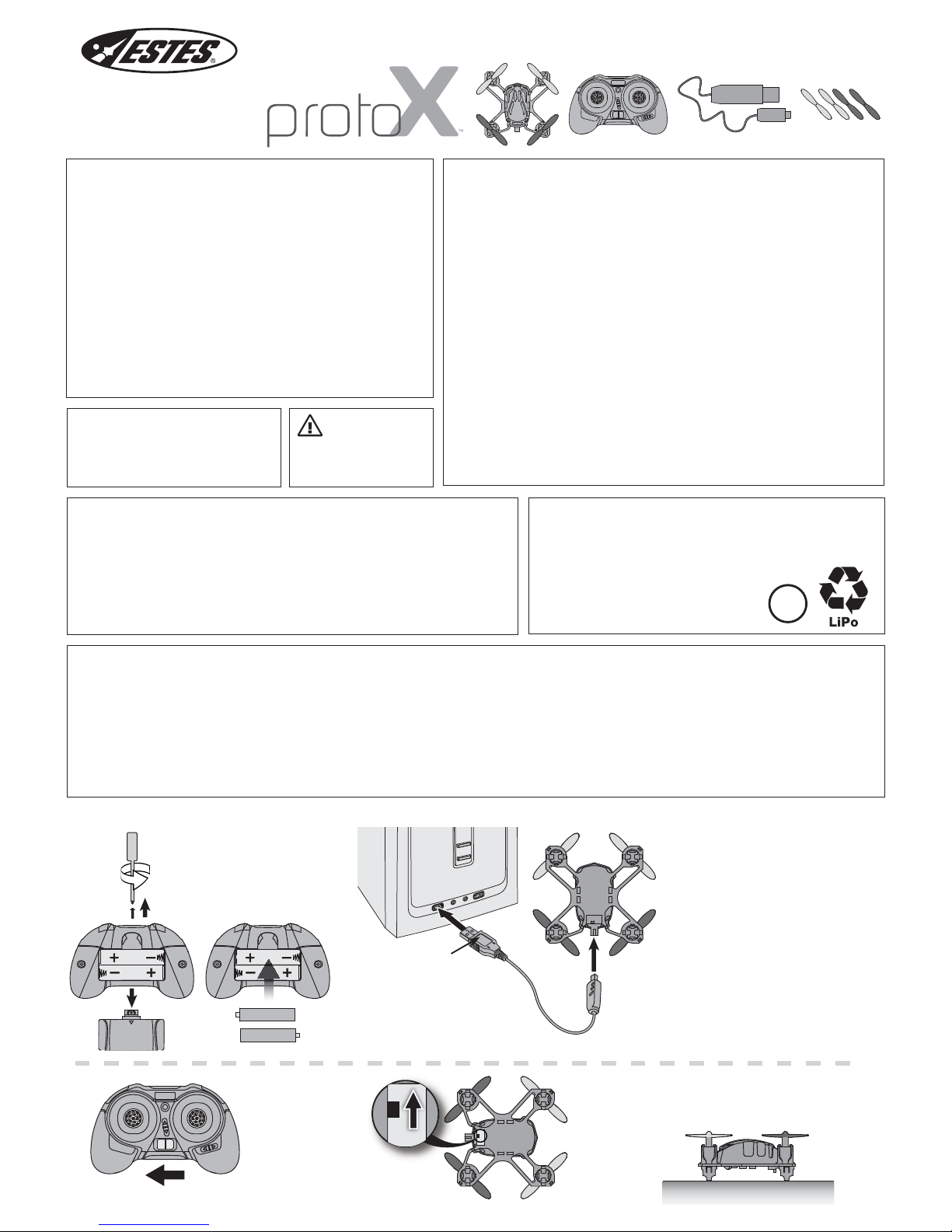

GET READY TO FLY
Plug the charger into a USB port and
the Proto-X as shown. (The battery
connector will only fit in one way. Do
not force the connectors together.)
The red LED will light when charging.
The red LED will shut off once the
charge is complete.
Set the Proto-X on a level surface until the
blue LEDs change from blinking to solid.
Switch on controller.
LED
Off
On
NEVER leave the Proto-X unattended when charging.
DO NOT allow the USB port to power down when
connected to the Proto-X.
ALWAYS unplug the Proto-X when charging is
complete.
The Proto-X must be powered
off before charging.
BC
UP
FORWARD
FORWARD
DOWN
ROTATE LEFT ROTATE
LEFT LEFT
LEFT
ROTATE RIGHT ROTATE
RIGHT RIGHT
RIGHT
BACKWARD BACKWARD
DOWN
UP

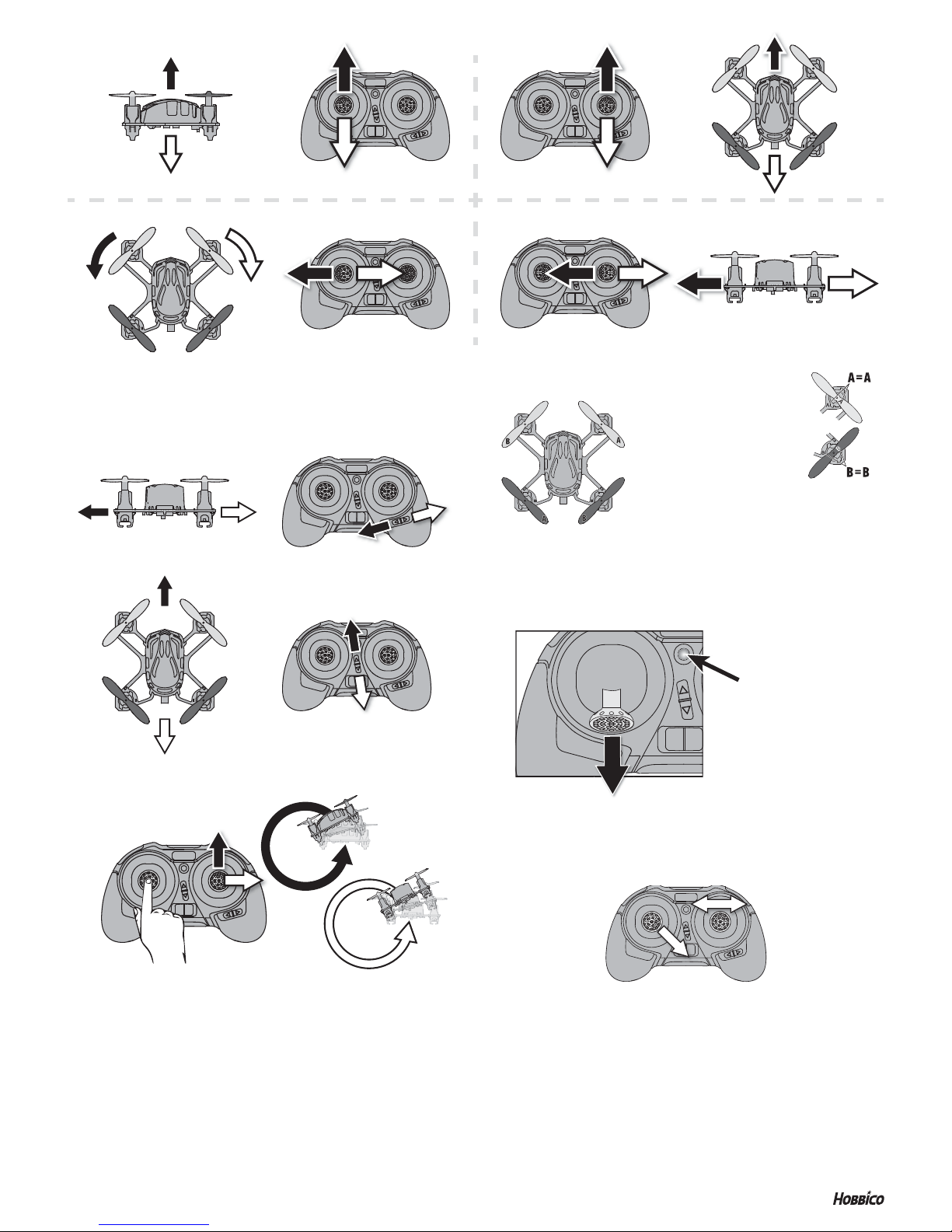

HOW TO FLY
CORRECTING DRIFT
TROUBLESHOOTING
REPLACEMENT BLADES
FRONT
Gray Blades, Blue LEDs
REAR
Black Blades, Red LEDs
It is normal for the Proto-X to drift slightly. However, if it drifts in any
direction consistently press the trim button opposite the movement
as many times a needed to eliminate the drift.
LEFT TRIM
FORWARD TRIM
FORWARD TRIM
LEFT TRIM
RIGHT TRIM
BACKWARD TRIM
BACKWARD TRIM
RIGHT TRIM
LINK THE CONTROLLER
LED
Hold the throttle stick at full down and turn on the controller.
Wait until the red LED turns green.
LANDING SAFELY
When the battery voltage begins to run low, the LEDs will begin
to flash. It is time to land before the built in low voltage cut off
reduces power to the motors.
PROBLEM: Controller cannot be linked to the Proto-X.
SOLUTION: Throttle position needs to be at zero.
PROBLEM: Controller LED flashing after binding.
SOLUTION: Replace batteries.
PROBLEM: Proto-X shaking.
SOLUTION: Check if the canopy, chassis and rotors are damaged.
PROBLEM: Will not take off.
SOLUTION: Check that the rotor blades are properly installed. © 2015 Estes-Cox Corp. A subsidiary of Hobbico, Inc.
4703-08 v2
Match the blade
to the motor.
First, push the left stick. You will hear continuous beeps. Next, move
the right stick any direction and the Proto-X will flip that direction.
PERFORMING AERIAL FLIPS
PUSH
CALIBRATING THE SENSORS
If the Proto-X doesn’t trim well,
recalibrate the sensors.
1. Turn on the controller and the Proto-X. Place the Proto-X on a flat surface.
2. Hold the left stick to the lower right. At the same time, quickly move the
right stick left and right several times until the blue LED’s flash.
Other Estes Quadcopter manuals
