T-2443 USA / T-2443F USA 493024432
Assembly instructions
LUCK
Metallic pendant with direct and indirect light.
Transparent glass ball shade, diagonal opening on the
bottom. Adjustable height.
B

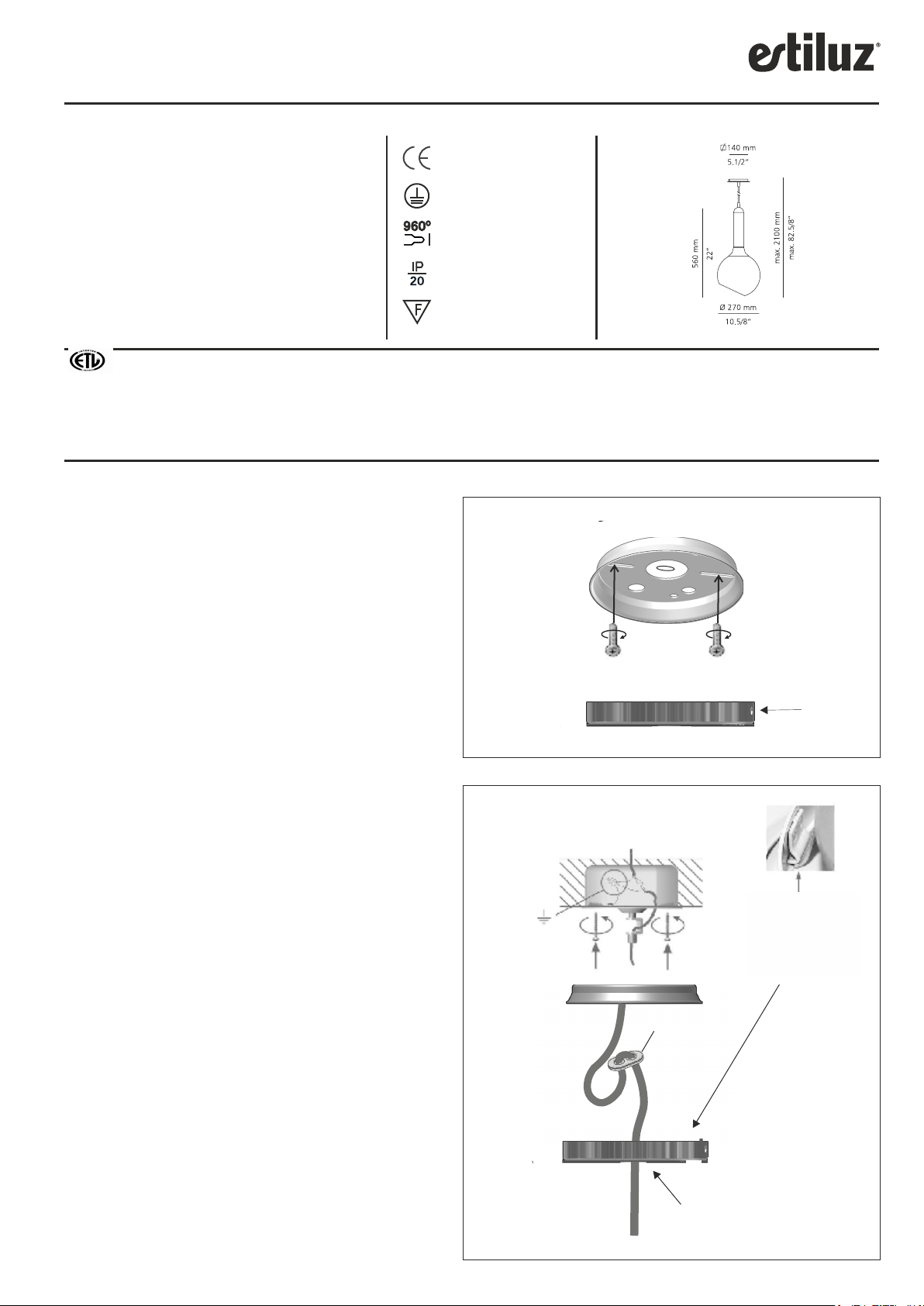

1- Remove the lateral screw (A) to separate the
canopy from the mounting bracket. Figure 1.
C
U L 1 5 9 8 E L E C T R I C A L I N S T R U C T I O N S F O R F L U S H M O U N T S , W A L L S C O N C E S A N D P E N D A N T S
S A V E T H E S E I N S T R U C T I O N S . M I N 9 0 C S U P P L Y C O N D U C T O R S . C A U T I O N - R I S K O F F I R E . U S E S T A T E D W A T T O R S M A L L E R . C A U T I O N - R I S K O F
S H O C K . D I S C O N N E C T P O W E R B E F O R E S E R V I C I N G . T O R E D U C E T H E R I S K O F A B U R N D U R I N G R E L A M P I N G , A L L O W T H E B U L B T O C O O L D O W N .
S U I T A B L E F O R D R Y L O C A T I O N S O N L Y . T H I S P R O D U C T M U S T B E I N S T A L L E D I N A C C O R D A N C E W I T H T H E A P P L I C A B L E I N S T A L L A T I O N C O D E B Y A
P E R S O N F A M I L I A R W I T H T H E C O N S T R U C T I O N A N D O P E R A T I O N O F T H E P R O D U C T A N D T H E H A Z A R D I N V O L V E D .
W A R N I N G : A L L W I R E S A N D W I R E N U T S U S E D I N T H E I N S T A L L A T I O N M U S T B E R A T E D 1 9 5 F ( 9 0 º C ) . F O R IN D O O R U S E O N L Y . T H E S E P R O D U C T
M U S T B E I N S T A L L E D B Y A Q U A L I F I E D E L E C T R I C I A N .
1
!!! IMPORTANT ¡¡¡
MAKE SURE THE BACK
PLATE SLIPS
UNDERNEATH THE TWO
METAL CLIPS AND THEN
FASTEN SCREW
2
A
2- Insert the electrical wire through the finished
knob (B). Insert the electrical wire through the
cable strap as shown (C). Connect the electrical
wires. Affix the mounting bracket to the ceiling or to
the electrical junction box. Figure 2.

3
Instrucciones /Assembly instructions
3- Unscrew and remove the ring (E) from the
socket. Figure3.
E
4- Set the glass shade over the socket with the
concave side facing down. Screw the metal ring
back in place (E). Insert the bulb. Figure 4. 4
E
