ETAS CBEB100.1-1m0 User manual

www.etas.com
CBEB100.1-1m0
CBEB100.1-1m0 - Slave
CBEB105.1-1m0
CBEB105.1-1m0 - Slave
Media Converter
User’s Guide

Copyright
The data in this document may not be altered or amended without special noti-
fication from ETAS GmbH. ETAS GmbH undertakes no further obligation in
relation to this document. The software described in it can only be used if the
customer is in possession of a general license agreement or single license.
Using and copying is only allowed in concurrence with the specifications
stipulated in the contract.
Under no circumstances may any part of this document be copied, reproduced,
transmitted, stored in a retrieval system or translated into another language
without the express written permission of ETAS GmbH.
© Copyright 2020 ETAS GmbH, Stuttgart
The names and designations used in this document are trademarks or brands
belonging to the respective owners.
CBEB10x.1-1m0 - User’s Guide R07 EN - 02.2020

ETAS Contents
Contents
CBEB10x.1-1m0 - User’s Guide 3
1 About this Document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.1 Classification of Safety Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.2 Presentation of Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.3 Typographical Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.4 Presentation of Supporting Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.5 Scope of Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2 Basic Safety Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.1 General Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.2 Requirements for Users and Duties for Operators . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.3 Intended Use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3 Hardware description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.1.1 Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.1.2 Properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.2 Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.2.1 Housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.2.2 Connections CBEB100.1-1m0 / CBEB100.1-1m0 - Slave. . . . . . . . . . . . . 12
3.2.3 Connections CBEB105.1-1m0 / CBEB105.1-1m0 - Slave. . . . . . . . . . . . . 13
3.2.4 LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3.3 Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

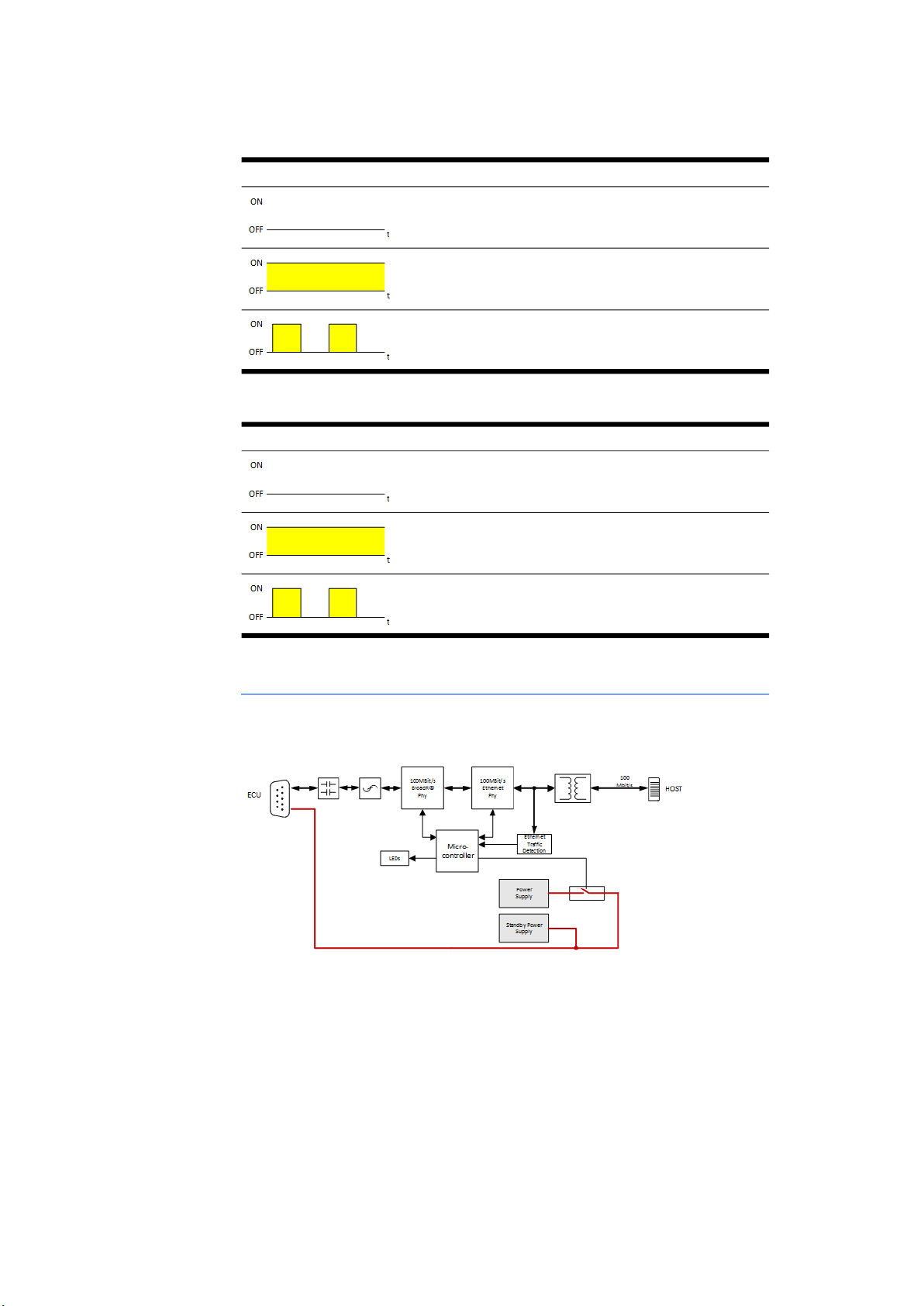

3.3.1 Block Diagram CBEB100.1-1m0 / CBEB100.1-1m0 - Slave . . . . . . . . . . . 15
3.3.2 Block Diagram CBEB105.1-1m0 / CBEB105.1-1m0 - Slave . . . . . . . . . . . 16
3.3.3 Standby . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
3.3.4 Master-Slave Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4 Startup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4.1 Cabling Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4.2 Cabling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
4.2.1 Cabling of CBEB100.1-1m0 / CBEB100.1-1m0 - Slave . . . . . . . . . . . . . . . 19
4.2.2 Cabling of CBEB105.1-1m0 / CBEB105.1-1m0 - Slave . . . . . . . . . . . . . . . 19
5 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
6 Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
6.1 General Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
6.1.1 Product Labeling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
6.1.2 Standards and Norms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
6.1.3 Environmental Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
6.1.4 Cleaning the Product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
6.1.5 Mechanical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
6.2 RoHS Conformity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
6.2.1 European Union . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
6.2.2 China. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
6.3 CE Marking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
6.4 Product Return and Recycling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Contents

ETAS Contents
CBEB10x.1-1m0 - User’s Guide 4
6.5 Use of Open Source Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
6.6 System Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
6.7 Pin Assignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
6.7.1 D-SUB9 Plug . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
6.7.2 CBEB100.1-1m0 / CBEB100.1-1m0 - Slave: RJ45 Plug . . . . . . . . . . . . . . 26
6.7.3 CBEB105.1-1m0 / CBEB105.1-1m0 - Slave: LEMO Plug. . . . . . . . . . . . . . 26
6.8 Electrical Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
7 Cables and Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
7.1 Ethernet Adapter Cable. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
7.1.1 CBAE210.1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
7.2 Automotive Ethernet Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
7.2.1 CBEB120.1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
7.2.2 CBEB121.1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
8 Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
8.1 CBEB100.1-1m0. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
8.2 CBEB100.1-1m0 - Slave . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
8.3 CBEB105.1-1m0. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
8.4 CBEB105.1-1m0 - Slave . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
8.5 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
8.5.1 Cables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
8.5.2 Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
9 ETAS Contact Addresses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Figures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

ETAS About this Document
CBEB10x.1-1m0 - User’s Guide 5
1 About this Document
1.1 Classification of Safety Messages
The safety messages used here warn of dangers that can lead to personal
injury or damage to property:
1.2 Presentation of Instructions
The target to be achieved is defined in the heading. The necessary steps for his
are in a step-by-step guide:
Target definition
1. Step 1
2. Step 2
3. Step 3
> Result
DANGER
indicates a hazardous situation with a high risk of death or serious injury if
not avoided
WARNING
indicates a hazardous situation of medium risk which could result in death or
serious injury if not avoided.
CAUTION
indicates a hazardous situation of low risk which may result in minor or
moder-ate injury if not avoided.
NOTICE
indicates a situation which may result in damage to property if not avoided.

ETAS About this Document
CBEB10x.1-1m0 - User’s Guide 6
1.3 Typographical Conventions
Hardware
1.4 Presentation of Supporting Information
1.5 Scope of Supply
Prior to the initial commissioning of the module, please check whether the
module was delivered with all required components and cables (see chap-
ter“Ordering Information” on page 29).
Additional cables and adapters can be obtained separately from ETAS. A list of
available accessories and their order designation is located in chapter “Order-
ing Information” on page 29 of this manual or in the ETAS product catalog.
Bold Menu commands, buttons, labels of the product
Italic Emphasis on content and newly introduced terms
NOTE
Contains additional supporting information.

ETAS Basic Safety Notices
CBEB10x.1-1m0 - User’s Guide 7
2 Basic Safety Notices
This chapter contains information about the following topics:
• “General Safety Information” on page 7
• “Requirements for Users and Duties for Operators” on page 7
• “Intended Use” on page 7.
2.1 General Safety Information
Please observe the Product Safety Notices ("ETAS Safety Notice") and the fol-
lowing safety notices to avoid health issues or damage to the device.
ETAS GmbH does not assume any liability for damages resulting from
improper handling, unintended use or non-observance of the safety precau-
tions.
2.2 Requirements for Users and Duties for Operators
The product may be assembled, operated and maintained only if you have the
necessary qualification and experience for this product. Improper use or use by
users without sufficient qualification can lead to damages or injuries to one’s
health or damages to property.
The safety of systems that are using the product is the responsibility of the
system integrator.
General safety at work
The existing regulations about safety at work and accident prevention must be
followed. All applicable regulations and statutes regarding operation must be
strictly followed when using this product.
2.3 Intended Use
Application area of the product
This product was developed and approved for applications in the automotive
sector. The product is designed for use in the interior, in the passenger cells or
in the trunk of vehicles.
For use in other application areas, please contact your ETAS contact partner.
NOTE
Carefully read the documentation (Product Safety Advice and this User's
Guide) that belongs to the product prior to the startup.

ETAS Basic Safety Notices
CBEB10x.1-1m0 - User’s Guide 8
Requirements for the technical state of the product
The product is designed in accordance with state-of-the-art technology and
recognized safety rules. The product may be operated only in a technically flaw-
less condition and according to the intended purpose and with regard to safety
and dangers as stated in the respective product documentation. If the product
is not used according to its intended purpose, the protection of the product
may be impaired.
Requirements for operation
• Use the product only according to the specifications in the correspond-
ing User's Guide. In case of any deviating use, the product safety is not
ensured.
• Observe the requirements on the ambient conditions.
• Do not use the product in potentially explosive atmospheres.
Electrical safety and power supply
• Observe the applicable regulations as well as the statutes and regula-
tions on safety at work at the location site!
• Connect only current circuits with safety extra-low voltage in accordance
with EN 61140 (degree of protection III) to the connections of the prod-
uct.
• Ensure that the connection and setting values are being followed (see
the information in the chapter “Technical Data” on page 22).
• Do not apply any voltages to the connections of the product that do not
correspond to the specifications of the respective connection.
Power supply
• The power supply for the product must be safely disconnected from the
supply voltage. For example, use a car battery or a suitable lab power
supply.
• Use only lab power supplies with double protection to the supply net-
work (with double / reinforced insulation (DI / RI)).
• The lab power supply must be designed for an operating altitude of
5,000 m and for an ambient temperature of up to 70 °C.
• For regular operation of the products as well as for very long standby
operation, it is possible that the vehicle battery will be depleted.
Connection to the power supply
• Use the media converter only in vehicles with central load dump protec-
tion.
• The power supply cable may not be connected directly to the vehicle bat-
tery or the lab power supply but, instead, via a suitable fuse.
• Ensure that the connectors of the lab power supply, the power supply at
the product and the vehicle battery are easily accessible!

ETAS Basic Safety Notices
CBEB10x.1-1m0 - User’s Guide 9
• Route the power cord in such a way that it is protected against abrasion,
damages, deformation and kinking.
• Do not place any objects on the power cord!
De-energizing CBEB100.1-1m0 / CBEB100.1-1m0 - Slave
The CBEB100.1-1m0 does not feature an operating voltage switch. The prod-
uct can be de-energized as follows:
• Switching off the lab power supply
or
• Disconnecting the product from the lab power supply (disconnect device
is the lab plug of the power cord)
or
• Disconnecting the product from the vehicle battery (disconnect device is
the lab plug of the power cord)
or
• Disconnecting the vehicle battery.
De-energizing CBEB105.1-1m0 / CBEB105.1-1m0 - Slave
The CBEB105.1-1m0 does not feature an operating voltage switch. The prod-
uct can be de-energized as follows:
• Disconnect the LEMO plug of the media converter from the module
or
• De-energize the module connected to the LEMO plug.
Cabling
Approved cables:
• Use exclusively ETAS cables at the connections of the product!
• Adhere to the maximum permissible cable lengths!
• Do not use any damaged cables! Cables may be repaired only by ETAS!
DANGER
Dangerous electrical voltage!
Connect the power cable only with a suitable vehicle battery or with a suitable
lab power supply! The connection to power outlets is not allowed!
To prevent an inadvertent insertion in power outlets, ETAS recommends to
equip the power cables with safety banana plugs in areas with power outlets.
CAUTION
Never apply force to insert a plug into a socket.
Ensure that there is no contamination in and on the connection, that the plug
fits the socket, and that you correctly aligned the plugs with the connection.

ETAS Basic Safety Notices
CBEB10x.1-1m0 - User’s Guide 10
For detailed information about cabling, see the User's Guide of the module.
Requirements for the place of installation
• Place the product on a smooth, even and solid ground.
• Securely fasten the product.
Requirements on the ventilation
• Keep the product away from heat sources and protect it against direct
exposure to the sun.
• The free space above and behind the product must be selected so that
sufficient air circulation is ensured.
Damage of the product and loss of properties in accordance with
IP40
Transport
• Do not transport the product using the cable of the product or any other
cable.
• Prior to the transport, disconnect the cables from the product.
Maintenance
The product is maintenance-free.
Repair
If an ETAS hardware product should require a repair, return the product to
ETAS.
Cleaning the module housing
• Use a dry or lightly moistened, soft, lint-free cloth for cleaning the module
housing.
• Do not use any sprays, solvents or abrasive cleaners which could dam-
age the housing.
• Ensure that no moisture enters the housing. Never spray cleaning agents
directly onto the product.
CAUTION
Potential equalization in the vehicle is possible via the shield of the
connecting cables of the modules!
Install the products only at locations with the same electrical potential or iso-
late the products from the installation location.
CAUTION
Loss of Properties in accordance with IP40!
Do not open or modify the product housing!
Work on the product housing may be performed only by qualified technical
personnel.

ETAS Hardware description
CBEB10x.1-1m0 - User’s Guide 11
3 Hardware description
This chapter contains information about the following topics:
• “Overview” on page 11
• “Design” on page 12
• “Functions” on page 15
3.1 Overview
3.1.1 Description
Fig. 3-1Media Converter CBEB100.1-1m0 (left) and CBEB105.1-1m0 (right)
Media Converter CBEB100.1-1m0 and CBEB105.1-1m0 are set up as masters
by default. Media Converter CBEB100.1-1m0 - Slave and CBEB105.1-1m0 -
Slave are set up as slaves by default.
The Media Converters CBEB100.1-1m0 and CBEB105.1-1m0 are functionally
identical. They are referred to as CBEB10x in the following. Differences
between the two devices are marked accordingly in the manual.
The Media Converter CBEB10x converts Automotive Ethernet to Standard
Ethernet (IEEE 802.3). It connects ETKs with Automotive Ethernet interface
(BR_XETK) and modules with integrated Standard Ethernet interface.
3.1.2 Properties
The most important properties of the CBEB10x Media Converter:
• Converting Automotive Ethernet (100BASE-T1) to Standard Ethernet
(IEEE 802.3)
• Automotive-capable product that is suitable for use in the development
environment and in the vehicle on test courses.
– Immune to ambient conditions (temperature, EMC)
– Wide supply voltage range
– High level of mechanical stability and robustness
• Display of operating status and error states
• CBEB100.1-1m0 / CBEB100.1-1m0 - Slave: RJ45 plug for connecting the
product with the PC
• CBEB105.1-1m0 / CBEB105.1-1m0 - Slave: LEMO plug for connecting
the product with ETAS modules
• Standby operation

ETAS Hardware description
CBEB10x.1-1m0 - User’s Guide 12
• Master operation
• Configurable for Master / Slave operation
• No additional drivers required
• Together with BR_XETKs, the product supports measurement, applica-
tion and flash programming.No additional drivers required
Complete technical data for the Media Converter can be found in the chapter
“Technical Data” on page 22.
3.2 Design
3.2.1 Housing
The housing consists of a colored thermoplastic elastomer with rubber design.
The housing, plugs and plug connectors of the cables meet degree of protec-
tion IP40.
3.2.2 Connections CBEB100.1-1m0 / CBEB100.1-1m0 - Slave
Fig. 3-2Connections CBEB100.1-1m0 / CBEB100.1-1m0 - Slave
CAUTION
Loss of Properties in accordance with IP40!
Do not open or modify the product housing!
Work on the product housing may be performed only by qualified technical
personnel.
No. in Fig. 3-2 Connection Protocol
1 D-SUB9 Automotive Ethernet
2 RJ45 Standard Ethernet

ETAS Hardware description
CBEB10x.1-1m0 - User’s Guide 13
3.2.3 Connections CBEB105.1-1m0 / CBEB105.1-1m0 - Slave
Fig. 3-3Connections CBEB105.1-1m0 / CBEB105.1-1m0 - Slave
No. in Fig. 3-2 Connection Protocol
1 D-SUB9 Automotive Ethernet
2 LEMO 1B Standard Ethernet

ETAS Hardware description
CBEB10x.1-1m0 - User’s Guide 14
3.2.4 LEDs
The CBEB10x Media Converter features 3 LEDs. They indicate the following
states:
3.2.4.1 ON ER - power supply / operating status
LED code Display State
Off No power supply
Green illuminated Operational, Master
Flashing green
(0.5 s on / 0.5 s reduced)
Operational, Slave
Flashing green
(0.1 s on / 1.9 s off)
Standby
Flashing red Boot error - restart
required:
CBEB100.1-1m0 /
CBEB100.1-1m0 - Slave:
Disconnect the cable
from the DSUB9 plug for 5
s.
CBEB105.1-1m0 /
CBEB105.1-1m0 - Slave:
Disconnect the LEMO
plug from the module for
5 s.
Hardware error:
If the LED continues to
permanently flash even
after a reboot, send the
product to ETAS.

ETAS Hardware description
CBEB10x.1-1m0 - User’s Guide 15
3.2.4.2 HOST - Standard Ethernet
3.2.4.3 ECU - Automotive Ethernet
3.3 Functions
3.3.1 Block Diagram CBEB100.1-1m0 / CBEB100.1-1m0 - Slave
Fig. 3-4Block Diagram CBEB100.1-1m0 / CBEB100.1-1m0 - Slave
The CBEB100.1-1m0 / CBEB100.1-1m0 - Slave Media Converter features an
Automotive Ethernet interface at the D-SUB9 plug as well as a Standard Ether-
net interface (IEEE 802.3) at the RJ45 plug.
LED code Display State
Off Link inactive
Yellow illuminated Link active
Flashing yellow acc. to
network activity
Network activity
LED code Display State
Off Link inactive
Yellow illuminated Link active
Flashing yellow acc. to
network activity
Network activity

ETAS Hardware description
CBEB10x.1-1m0 - User’s Guide 16
3.3.2 Block Diagram CBEB105.1-1m0 / CBEB105.1-1m0 - Slave
Fig. 3-5Block Diagram CBEB105.1-1m0 / CBEB105.1-1m0 - Slave
The CBEB105.1-1m0 / CBEB105.1-1m0 - Slave Media Converter features an
Automotive Ethernet interface at the D-SUB9 plug as well as a Standard Ether-
net interface (IEEE 802.3) at the LEMO plug.
3.3.3 Standby
If a BR_XETK is connected to the Media Converter, the product checks a con-
nection on the HOST side. If the product does not detect a connection within
5 minutes, it switches to standby mode.
3.3.4 Master-Slave Configuration
To configure the media converters CBEB100.1-1m0 and CBEB105.1-1m0 as
slave or CBEB100.1-1m0 - Slave and CBEB105.1-1m0 - Slave as master, please
contact your ETAS contact partner.

ETAS Startup
CBEB10x.1-1m0 - User’s Guide 17
4 Startup
This chapter contains information about the following topics:
• “Cabling Example” on page 17
• “Cabling” on page 19
4.1 Cabling Example
CBEB100.1-1m0 / CBEB100.1-1m0 - Slave
Connection of CBEB100.1-1m0 / CBEB100.1-1m0 - Slave to BR_XETK and
directly to a PC.
Fig. 4-1Connection of CBEB100.1-1m0 / CBEB100.1-1m0 - Slave to
BR_XETK and directly to a PC
Cables in
Fig. 4-2
Function Short name
1 Cable for the "ECU to BR_XETK" connection CBEB121
Cable for the "ECU to BR_XETK" connection
(customer-specific - Please contact your ETAS
contact partner.)

ETAS Startup
CBEB10x.1-1m0 - User’s Guide 18
CBEB105.1-1m0 / CBEB105.1-1m0 - Slave
Connection of CBEB105.1-1m0 / CBEB105.1-1m0 - Slave to BR_XETK via
ES59x
Fig. 4-2Connection of CBEB105.1-1m0 / CBEB105.1-1m0 - Slave to
BR_XETK via ES59x
Cables in
Fig. 4-2
Function Short name
1 Cable for the "FE-HOST" connection CBE100
2 Cable for the "7-29 V DC" connection CBP120,
CBP1205
3 Cable for the connection “ECU with BR_XETK” CBEB120
Cable for the connection “ECU with BR_XETK”
(customer-specific - Please contact your ETAS con-
tact partner.)

ETAS Startup
CBEB10x.1-1m0 - User’s Guide 19
4.2 Cabling
The CBEB10x can be integrated into the measuring setup without any prob-
lems and without first having to de-energize other modules. Chapter 4.2.1 and
chapter 4.2.2 describe the startup in an energized cabling system.
4.2.1 Cabling of CBEB100.1-1m0 / CBEB100.1-1m0 - Slave
You can startup the CBEB100.1-1m0 with ETAS cables or with customized
cables:
Startup of CBEB100.1-1m0 / CBEB100.1-1m0 - Slavewith ETAS cables
1. Connect the D-SUB9 plug of the Media Converter with the
cable CBEB121.
2. Connect the CBEB121 with the power supply.
The ON ER LED lights green.
3. Connect the LEMO plug of the cable CBEB121 via the cable
CBAM290 with the ECU with integrated BR_XETK.
The ECU LED lights yellow.
4. Connect the RJ45 plug of the Media Converter with the PC.
The HOST LED lights yellow.
Startup of CBEB100.1-1m0 / CBEB100.1-1m0 - Slave with customized cables
1. Connect the D-SUB9 plug of the Media Converter with your
customized cable.
2. Connect your customized cable with the power supply.
The ON ER LED lights green.
3. Connect your customized cable with the ECU with integrated
BR_XETK.
The ECU LED lights yellow.
4. Connect the RJ45 plug of the Media Converter with the PC.
The HOST LED lights yellow.
4.2.2 Cabling of CBEB105.1-1m0 / CBEB105.1-1m0 - Slave
You can startup the CBEB105.1-1m0 / CBEB105.1-1m0 - Slave with ETAS
cables or with customized cables:
The following steps describe the startup in a an energized cabling system:
Startup of CBEB105.1-1m0 / CBEB105.1-1m0 - Slave with ETAS cables
1. Connect the LEMO plug of the Media Converter with an ETAS
Bus Interface Module oder with a Network Module.
The ON ER LED lights green.
The HOST LED lights yellow.
2. Connect the D-SUB9 plug of the Media Converter with the
cable CBEB120.
3. Connect the LEMO plug of the cable CBE120 via the cable
CBAM290 with the ECU with integrated BR_XETK.
The ECU LED lights yellow.

ETAS Startup
CBEB10x.1-1m0 - User’s Guide 20
Startup of CBEB105.1-1m0 / CBEB105.1-1m0 - Slave with customized cables
1. Connect the LEMO plug of the Media Converter with an ETAS
Bus Interface Module oder with a Network Module.
The ON ER LED lights green.
The HOST LED lights yellow.
2. Connect the D-SUB9 plug of the Media Converter with your
customized cable.
3. Connect your customized cable with the ECU with integrated
BR_XETK.
The ECU LED lights yellow.
