Etec EKEC Series User manual

User's Manual of EKEC series
AC electric vehicle charging pile

preface 03
03
Safety precautions
04
Product brief introduction
04
Technical standard
05
internal structure diagram
05
Installation
07
Quick Rapid debugging
08
Indicator and working status description
09
RS485 communication description
06
EKEC4 series electric vehicle AC charging pile
10
Warranty Agreement
05
Mechanical and electrical installation

Preface
This product is designed and manufactured according to the IEC61851 & SAEJ1772 international standards.
Operating Environment:
The operating environment of this charging station :Altitude ＜ 2000m,-40℃ ~45℃，relative humidity ＜ 85%.
If you need to use in more harsher environments please provide us the special instructions .
Safety recautions and dangers
Safety precautions: Please comply with the safety instructions and legal notes.
This device will be installed in di󽗈erent countries, regions and jurisdictions, the installer must ensure that the
installation meets the legal installation requirements.
1)Do not bring any 󽗊ammable, explosive or combustible materials, chemicals, 󽗊ammable vapors and other
dangerous articles near the charging station .
2)Keep the charging plug head clean and dry. If it was dirty, please wipe it with a clean dry cloth. It is strictly
prohibited to touch the charging plug core with hands when it is charging.
3)It is strictly prohibited to use the charging station when the charging plug or the cable has defects, cracks,
abrasion, exposure, etc. If you 󽗉nd any problem, please contact the sta󽗈 in time.
4)Please don’t attempt to disassemble, repair,or modify the charging station.
If there is a need for maintenance or modi󽗉cation,please contact the sta󽗈.
Any improper operation may cause some problems such as damage ,water leakage , electricity leakage etc.
5)In case of rain and thunder ,please charge carefully.
6)In order to avoid injury,children should not approach or use the charging station when it is charging.
7)The vehicle is prohibited from driving when it is charging and only can be charged when it is stationary.
Please turn o󽗈 the hybrid electric vehicle before charging.
Repair
Repair is not allowed, and the defective device shall be disposed (discarded) under the condition of
meeting the environmental protection requirements.
-03-
Danger: voltage hazard
If you touch the internal parts when it is working, it will cause serious injury.
Please disconnect the working power after use.
Warning: opening the device without permission will cause danger.
Opening the device without permission will cause harm to the user or cause signi󽗉cant damage or
property loss.
Attention: illegal modi󽗉cation of the device will invalidate the manufacturer's warranty.
It is not allowed to modify the device in violation of regulations.
If you don’t comply with this requirement , the manufacturer's warranty will be revoked.

Product description
1.3 Technical date
-04-
Cable type Socket type
EKEC1-C-T1/T2-1P EKEC1-C-T1/T2-3P EKEC1-S-T1/T2-1P EKEC1-S-T1/T2-3P
Power mode 1P+N+PE 3P+N+PE 1P+N+PE 3P+N+PE
Operation voltage AC230V±10%50Hz AC400V±10%50Hz AC230±10%50Hz AC400V±10%50Hz
Output current 10A、16A、20A、25A、32A、63A
Output voltage AC230V±10%50Hz AC400V±10%50Hz AC230±10%50Hz AC400V±10%50Hz
Output power 7.3KW/14.5KW 22KW/43.5KW 7.3KW/14.5KW 22KW/43.5KW
Cable length 5m 5m - -
Plug/socket standard (American standard / European standard)Type1/Type2
Additional function
(Optional)
1.RCMU leakage monitoring mode(0-20mA/0-200mA) 2.Non-contact IC Card
3.DLB current balance mode 4.Current sensor access mode(DC+12V Output 0-5V) 5.With LCD display
Communicationfunction(optional) 1 way RS485(Modebus-RTU)/RS232
Ambient temperature -40℃ ~+50℃
Humidity ≤ 85%
IP degree IP55
Cooling method Natural cooling
Installation method Portable type / wall mounted type / Column type
Weight
Overall dimension 357*245*123 357*245*123 357*245*123 357*245*123
Installation dimension 180*280 180*280 180*280 180*280
1.1 Product brief introduction
This product is a single or three-phase AC charging pile, which is mainly used for AC charging of electric
vehicles. The equipment adopts industrial design principles. The protection level of the whole machine
reaches IP55, with good dustproof and waterproof functions, and can be safely operated and maintained
outdoors. The AC charging pile is divided into two categories: with cable version and without cable version.
Model
speci󽗉cation
Technical date
EK EC P
- -
Blank:Without additional function and communication function
Additional function
1.RCMU leakage monitoring mode (0-20mA/0-200mA)
2.Contactless IC card
3. DLB current balance mode
4.Current sensor access mode (DC+12V Output 0-5V)
5.With LCD display
Communication function
1 Way RS485(Modebus-RTU)/RS232
Current:10A, 16A,20A, 25A, 32A,63A
1P:Single phase ,3P:Three phase
Plug/Socket:T1 American standard T2 European standard
S:Socket type C:Cable type
Product series: EC1 Single plug EC2 Double plug EC4 Series AC EV Charging Station
Company code
1.2 Naming rules

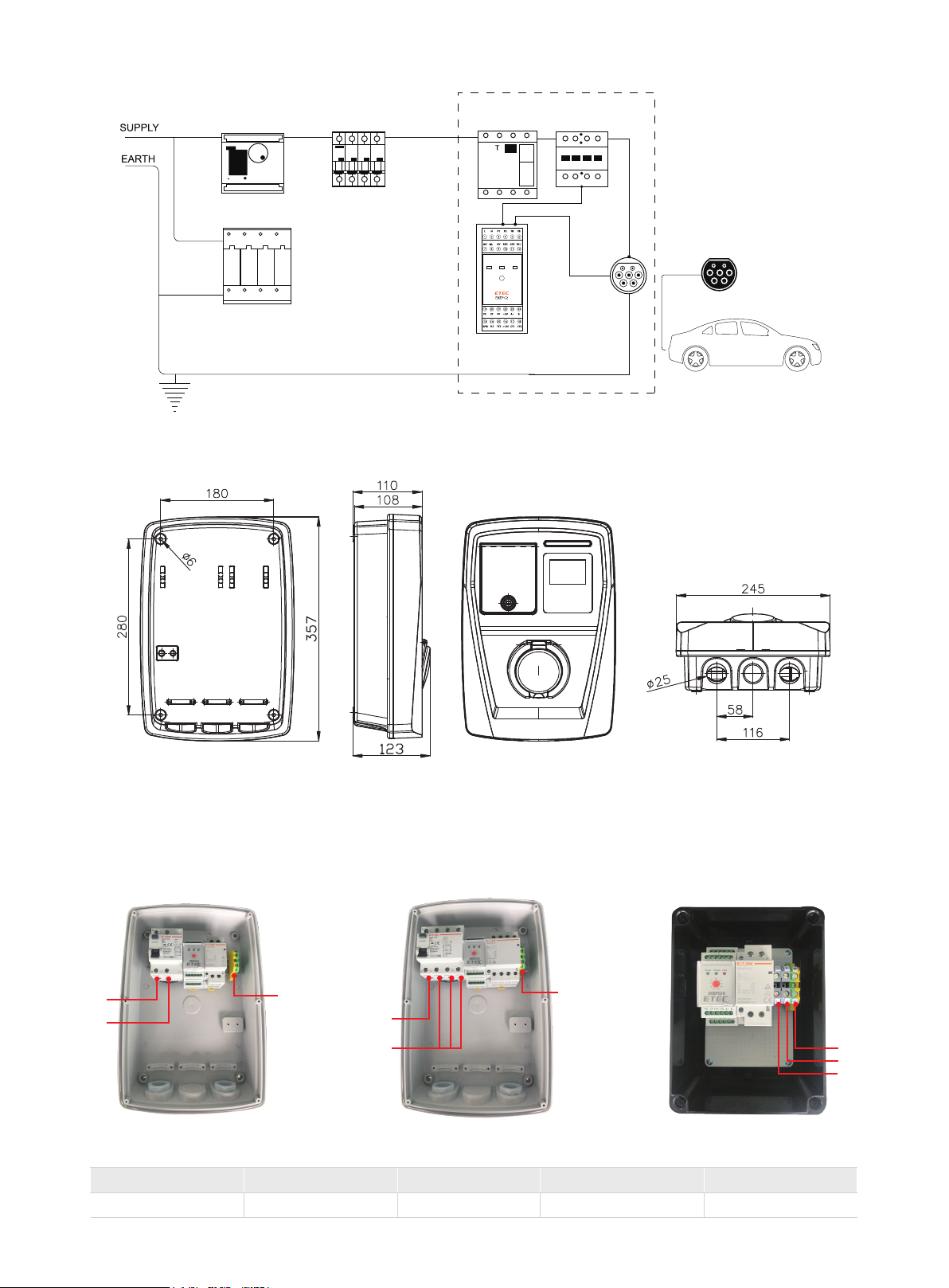

2 Mechanical and electrical installation
2.1 Internal structure drawing
2.2 Installation
A、Overall dimension and installation size
B、 Drill 4xø6 35mm counterbore holes on the wall with the size of the mounting holes, insert the expansion screw plastic tube,
and then screw in the M4x30 self-tapping screws from the internal mounting holes of the charging pile.
C、The power cord is connected to a type B leakage circuit breaker, the single-phase charging pile is connected to N and L, and
the three-phase charging pile is connected to N\L1\L2\L3,
The ground wire (PE wire) is connected to the yellow and green two-color terminals, the schematic diagram is as follows:
Recommended cable section:
PE
EKEC4EKEC1-1 EKEC1-3
PE PE
N
L1
L2
L3
L
EKEC1
Current value(A) 10 16 20 32
Wire area(mm2) 2.5 2.5 4 6
Digital E Meter
Surge Arrester
Type2
BLU(N/C) GRE(CHG)
Current adjustment
RED(ERR)
PLUG
MCB RCCB(Type B)
16/32A
Contactor
-05-
L
N
N

EKEC4 Series AC EV Charging Station
-06-
Cable type Socket type
EKEC4-C-T1/T2-1P EKEC4-C-T1/T2-3P EKEC4-S-T1/T2-1P EKEC4-S-T1/T2-3P
Power mode 1P+N+PE 3P+N+PE 1P+N+PE 3P+N+PE
Operation voltage AC230V±10%50Hz AC400V±10%50Hz AC230±10%50Hz AC400V±10%50Hz
Output current 10A、16A、20A、25A、32A、63A
Output voltage AC230V±10%50Hz AC400V±10%50Hz AC230±10%50Hz AC400V±10%50Hz
Output power 7.3KW/14.5KW 22KW/43.5KW 7.3KW/14.5KW 22KW/43.5KW
Cable length 5m 5m - -
Plug/socket standard (American standard / European standard)Type1/Type2
Additional function
(Optional)
1.RCMU leakage monitoring mode(0-20mA/0-200mA) 2.Non-contact IC Card
3.DLB current balance mode 4.Current sensor access mode(DC+12V Output 0-5V) 5.With LCD display
Communicationfunction(optional) 1 way RS485(Modebus-RTU)/RS232
Ambient temperature -40℃ ~+50℃
Humidity ≤ 85%
IP degree IP55
Cooling method Natural cooling
Installation method Portable type / wall mounted type / Column type
Installation dimension 128*178 128*178 128*128 128*128
Overall dimension 150*200*140 150*200*140 150*200*140 150*200*140
Weight 2.6kg 2.9kg 1.4kg 1.5kg
Model
speci󽗉cation
Technical date
Product description
1.1 Technical date
1.2 Overall installation drawing

3.1 Inspect before operation
Before operation, please check carefully and make sure the following items :
The installation position of the AC charging station must convenient for operation and maintenance.
The AC charging station and its accessories must be correctly connected and installed 󽗉rmly.
Reasonable selection of the protection switch for the AC input end.
Don't left external objects or components on the top of the AC charging station.
3.2 Power on the device
a. Make sure that the above inspection items meet the requirements before operation.
b. Switch on the power input end residual current circuit breaker.
c. After the AC charging station is connected to the power supply: there is about 7 seconds
power-on self-test time, and the indicator lights will display red, blue, and green alternately.
d. After the power on self-test is completed, the blue indicator 󽗊ashes at 1Hz.
3.3 Get started
a. Remove the charging gun head cable from the charging pile and correctly insert it into the AC
charging terminal block (cable version) on the vehicle end. Or plug one end of the charging gun
cord into the socket of the charging pile, and plug the other end into the AC charging terminal
block on the vehicle end (socket version).
b. At this time, the AC charging pile will automatically exchange data with the vehicle and
automatically start the charging process. For the status indication status during the operation of
the AC charging pile, please refer to the next 3.4 indicator and working status description.
c. If the AC charging pile fails, please refer to the next 3.4 indicator and working status description
for its failure status.
-07-
3 Fast Debugging

3.4 Indicator light and working status description
No. State
Code LED Color LED State PE、CP、PP state Controller state Remark
0 K Red 5Hz 󽗊ashing Power self detect failed Fault--1#
Power self-check
failed!Please turn
the power back
on!
1 A Blue 1Hz 󽗊ashing CP disconnection Ready
2 I Blue 2Hz 󽗊ashing Waiting for IC card RFID
Waiting
3 B Blue Stabilization CP connect to diode+2.7KΩ Connected
4 B Blue Stabilization CP connect to diode+1.3KΩ Connected
5 C Green Green
brightening
CP connect to diode+2.7KΩ
parallelconnect1.3KΩ Charging
6 D Red Stabilization
CP connect to diode+2.7KΩparallelconnect1.3KΩ
parallel connect 270R or CP connect to diode+270R
Or CP connect to diode+270R parallel connect 2.7KΩ
Or CP connect to diode+270R parallel connect 1.3KΩ
Fault--2# Need Ventilation!
7 F Red 1Hz 󽗊ashing CP line short circuit with PE line Fault--3#
CP- PE short
circuit!
Please check the
CP line
8 H Red 5Hz 󽗊ashing RCMU occurs residual
current or self detect failed Fault--4#
RCMU leakage or
self-inspection
failure
9 E Red 2Hz 󽗊ashing
Diode short circuit
(Requirement waiting the CP
disconnected)
Fault--5# EV-Charing
Socket Fault
10 G Blue+Red 2Hz 󽗊ashing PP line disconnection Fault--6#
SPLIT PP wire，
Please check the
PP line
11 J Red+Green
+Blue 2Hz 󽗊ashing Electromagnetic Lock failed Fault--7# Electronic Lock
Disabled
12 L Blue 5Hz 󽗊ashing IC card failed Fault--8# RFID card is not
valid
13 M Red+Green 1Hz 󽗊ashing Circuit overload，
DLB Mode activated Fault--9#
Circuit overload，
DLB Mode
activated
-08-

Register
address
number
Data description (power failure protection) Read and write Type of data Defaults
100 (Device address number) Read and write 16-bit integer 255
101 DLB maximum starting current Read and write 16-bit integer 9000
102 DLB maximum current (100.00A) Read and write 16-bit integer 10000
103 Reference current: DLB/current transformation ratio (100.00A) Read and write 16-bit integer 10000
104 Reference current calibration value input Read and write 16-bit integer 1270
105 Charging pile current transformation ratio 50-200A Read and write 16-bit integer
106 Charging pile current value correction 0-100.0A Read and write 16-bit integer
107 Charging pile voltage value correction 0-500.0V Read and write 16-bit integer
108 Charging pile power value correction 0-22000W Read and write 16-bit integer
109 Maximum output PWM duty cycle of charging pile Read and write 16-bit integer 90%
110 RCMU function selection 0 disabled 1 enabled, other values are selected by DIP switch Read and write 16-bit integer 3
111 RFID function selection 0 disabled 1 enabled, other values are selected by DIP switch Read and write 16-bit integer 3
112 Lock function selection 0 disabled 1 enabled, other values are selected by DIP switch Read and write 16-bit integer 3
113 Cable function version selection 0 disable 1 enable, other values are selected by DIP switch Read and write 16-bit integer 3
114 DLB function selection 0 disable 1 enable, other values are selected by DIP switch Read and write 16-bit integer 3
115 PID control parameter P of DLB Read and write 16-bit integer 100
116 PID control parameters of DLB I Read and write 16-bit integer 1
117 DLB PID control parameter D Read and write 16-bit integer 100
118-119 Controller ID number up to 9 digits Read and write 32-bit integer
120-139 spare Read and write
140 Software version Read only 16-bit integer 1002
141 Current working status: Corresponding status 0-13 Read only 16-bit integer
142 PWM value of cable speci󽗉cation Read only 16-bit integer
143 RCMU status 00 Not selected 01 Normal operation 02 Self-check failed 03 There is leakage in the charging circuit Read only 16-bit integer
144 RFID status 00 not selected 01 IC card not operating 02 IC card closed 03 IC card open Read only 16-bit integer
145 Lock status 00 not selected 01 locked 02 unlocked 03 fault Read only 16-bit integer
146 The current current, the decimal place is determined by the value of the reference current Read only 16-bit integer
147 Current value of charging pile 0-200.0A Read only 16-bit integer
148 Current voltage value of charging pile 0-500.0V Read only 16-bit integer
149 Current power value of charging pile 0-22000W Read only 16-bit integer
150 Calibration value AD value of reference current Read only 16-bit integer
151 The PWM duty cycle corresponding to the current set by the rotary switch Read only 16-bit integer
152 Current output PWM duty cycle Read only 16-bit integer
153-160 spare Read only 16-bit integer
RS485 Communication description(Modbus-RTUmodel , Baud rate: 38400, 󽗉xed , address: 1-255default : 255(Broadcast address ))
Communication function
-09-

4 Warranty Agreement
1) The warranty period of this product is 36 months (it is subject to the barcode information of the product). During
the warranty period, if the product has malfunction or damage under normal use according to the manual, we can
provide free maintenance for you.
2)During the warranty period, if the damage is caused by the following reasons, it will need to charge repair fee:
A The damage which is caused by mistaken use , unauthorized repairs and modi󽗉cations;
B The damage which is caused by 󽗉re, 󽗊ood, abnormal voltage, and other natural disasters, secondary disasters, etc.
C Hardware damage caused by falling and transportation after purchase;
D The damage which is caused by not operation in accordance with the user manual ;
3) If you have any questions during the service process, please contact us or our agent in time;
4) The right to interpret this agreement belongs to our company.
