Eternal Lighting Blast 5R User manual

ECT.JitITY
[P
WARNING!!! To reduce the risk of fire, electric shock, or
injury to persons, follow these important safety instructions:
•
non-professionals, not to disassemble the light arbitrarily and
lighting accessories inside.
• rated voltage range: AC110V-120V/60Hz or AC200V-240V / 50HZ
(to be selected).
• not beam irradiate the flammable materials, flammable materials
and the lamp should be maintained at least 1M over the distance.
• lamps used in ambient temperature: -15 
-40 °C, the highest
temperature of the surface of the lamp: 60 ° C.
• to keep away from the liquid substance and humid environment.
• before using the lights must ensure the good grounding, can not
install charging and remove any parts.
•
the installation of lamps, must be fixed screw fasteners with
additional security cable and regular inspection.
• lamps consecutive working hours is not recommended more than
10 hours.
• should stop using the lights in time when happens unusual
conditions during the process
• lamp parts of the rotation, external accessories and paste parts
should be regular inspected, such as the emergence of loose and
rock, should be reinforced in a timely manner to prevent the
accident.
• lamps adopt strong winds to refrigerate, it is easy to accumulate the
dust, so you have to clean it weekly especially the cooling air
opening, otherwise the dust will plug leading to poor lighting
ERENCE
1.
Power: Auto Switching 100ac to 240ac 50-60hz
2. Power Consumption: 350W
3. Lamp:200W Phillips 5R lamp
4. LED: 16x3w Tianxin 3-in-1 Leds
5. Outline Size: 44x33x58cm Packing Size: 50x39x50cm
6. N. W: 16.5kg G. W: 18.5kg
2

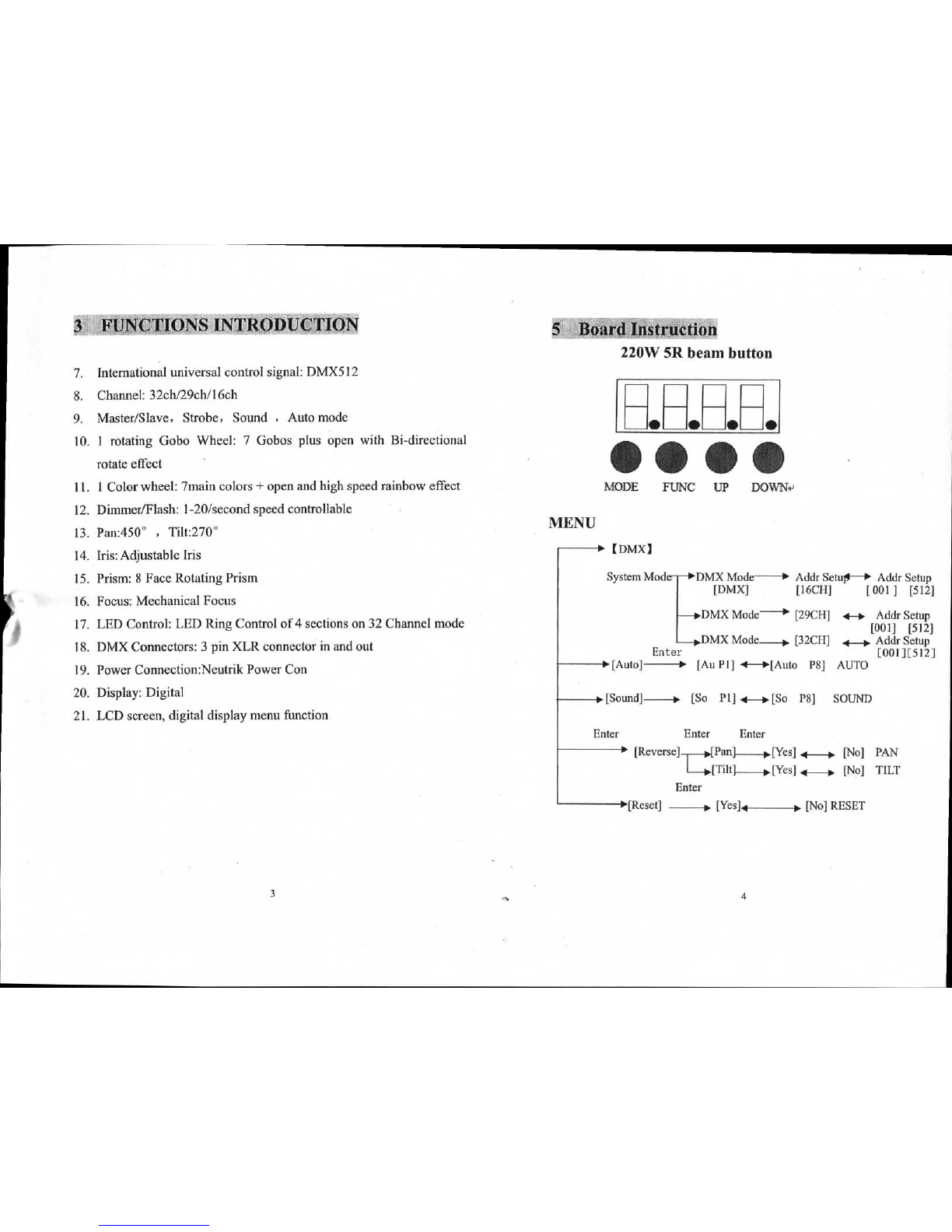

220W 5R beam button
7.
International universal control signal: DMX512
8.
Channel: 32ch/29ch/16ch
9.
Master/Slave, Strobe, Sound , Auto mode
10.
1 rotating Gobo Wheel: 7 Gobos plus open with Bi-directional
rotate effect
11. 1 Color wheel: 7main colors + open and high speed rainbow effect
•
MODE FUNC UP DOWN+)
12. Dimmer/Flash: 1-20/second speed controllable
13.
Pan:450°
 , 
Tilt:270°
14.
Iris: Adjustable Iris
MENU
► [DMX]
15.
Prism: 8 Face Rotating Prism
Addr Setup
System Mod
DMX Mode
— ► Addr Setup
— ♦
[DMX] 
[16CH]
[ 001 ] 
[512]
16. Focus: Mechanical Focus
17. LED Control: LED Ring Control of 4 sections on 32 Channel mode
♦
■ —
►
 Addr Setup
[001]
 [512]
DMX Mode[29CH]
18. DMX Connectors: 3 pin XLR connector in and out
Enter
DMX

[32CII]
Addr Setup
[00I][512]
19. Power Connection:Neutrik Power Con
[Au PI] H[Auto
 P8]
AUTO
►
[Auto]---•
20. Display: Digital
[Sound]---- ►
►
[So 
P1] 1--
►
[So 
P8] SOUND
21. LCD screen, digital display menu function
Enter  Enter  Enter
).[Pan]_____±[Yes]
4_4.
[No]
 PAN
►
[Reverse]
[No]  TILT
Enter
►
[Reset] 
[Yes]1 
t o . [No] RESET

EgT

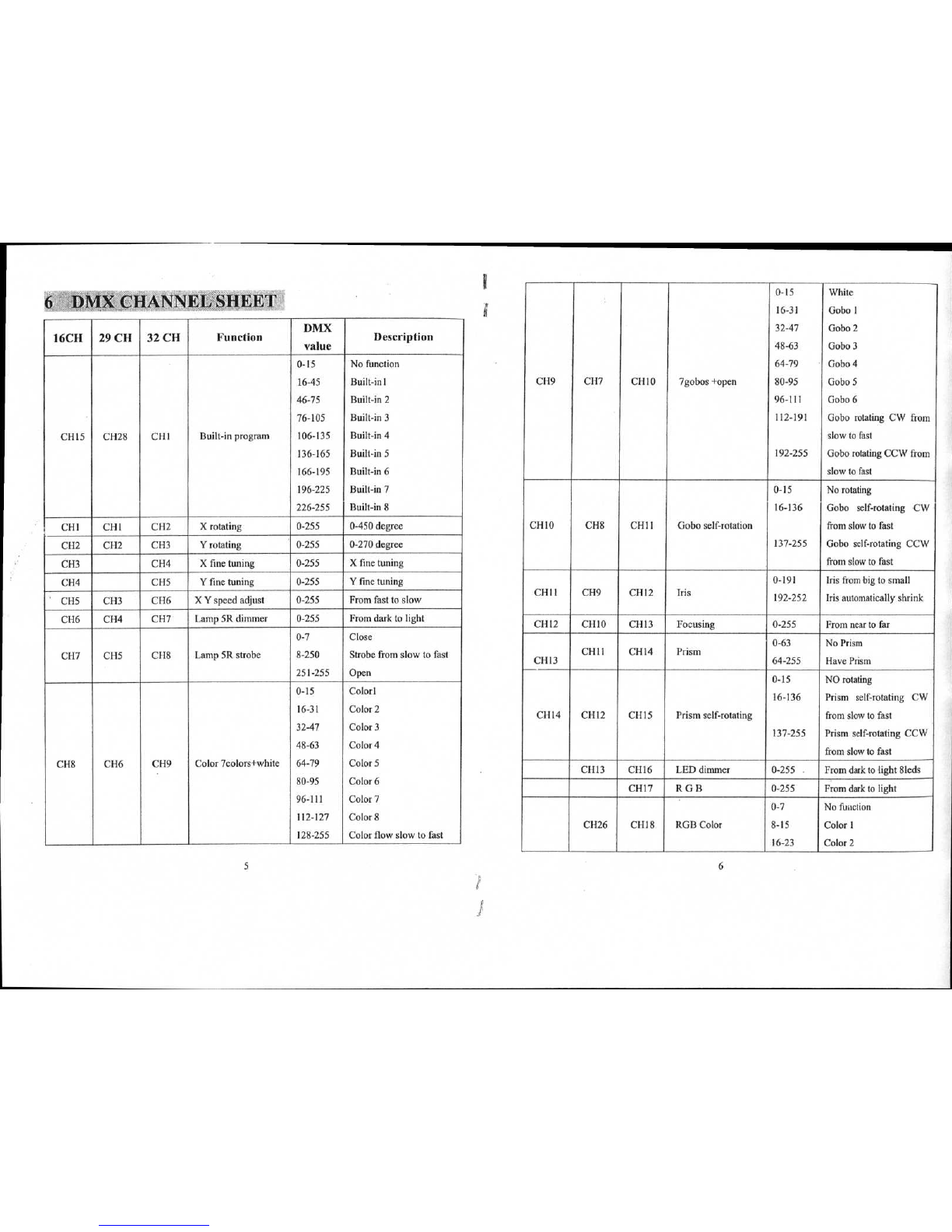

16CH 29 CH 32 CH
Function
DMX
value
Description
0-15 No function
16-45
Built-in]
46-75
Built-in 2
76-105
Built-in 3
CH15 CH28
CH I
Built-in program
106-135
Built-in 4
136-165 Built-in 5
166-195
Built-in 6
196-225 Built-in 7
226-255 Built-in 8
CHI
CHI
CH2
X rotating
0-255
0-450 degree
CH2
C112
CH3
Y rotating
0-255 0-270 degree
CH3
CH4 X fine tuning
0-255
X fine tuning
CH4
CH5
Y fine tuning 0-255
Y fine tuning
'  CH5
CH3
CH6
X Y speed adjust
0-255
From fast to slow
CH6
CH4 CH7
Lamp 5R dimmer 0-255
From dark to light
0-7
Close
CH7 CH5
CH8
Lamp 5R strobe
8-250
Strobe from slow to fast
251-255 Open
0-15 Colorl
16-31
Color 2
32-47 Color 3
48-63 Color 4
CH8
CH6 CH9
Color 7colors+white
64-79 Color 5
80-95 Color 6
96-111 Color 7
112-127 Color 8
128-255 Color flow slow to fast
0-15
16-31
32-47
48-63
64-79
White
Gobo 1
Gobo 2
Gobo 3
Gobo 4
CH9 CH7
CH 1 0 7gobos +open
80-95
Gobo 5
96-111
Gobo 6
112-191
Gobo rotating CW from
slow to fast
192-255
Gobo rotating CCW from
slow to fast
0-15 No rotating
16-136 Gobo  self-rotating
 CW
CHIO
CH8 CH11 Gobo self-rotation
from slow to fast
137-255 Gobo self-rotating CCW
from slow to fast
0-191 Iris from big to small
CH11 CH9 CHI2 Iris 192-252
Iris automatically shrink
CHI2 CHI 0 CH13 Focusing 0-255
From near to far
0-63 No Prism
CH11 CH14 Prism
CH I3
64-255
Have Prism
0-15 NO rotating
16-136 Prism self-rotating  CW
CH14 CHI2 CH15 Prism self-rotating
from slow to fast
137-255 Prism self-rotating CCW
from slow to fast
CH13 CH16 LED dimmer
0-255. From dark to light 81eds
CHI7
R GB
0-255 From dark to light
0-7 No function
CH26 CH I 8 RGB Color 8-15
Color 1
16-23 Color 2

24-31
Color 3
32-39
Color 4
40-47
Color 5
48-55 Color 6
56-63 Color 7
64-71 Color 8
72-79
Color 9
80-87 Color 10
88-95
Color 11
96-103 Color 12
104-111
Color 13
112-119 Color 14
120-127 Color 15
128-135 Color 16
136-195 Color  gradual 
change
from slow to fast
196-255 Color hop change from
slow to fast
CH27
CH19 LED Strobe 0-255 From slow to fast
CH14 CH2O
Red 1 0-255 From dark to light
CHI 5
CH21 Green 1 0-255 From dark to light
CH I 6 CH22
Blue 1
0-255
From dark to light
CH17 CH23
Red 2 0-255 From dark to light
CH 1 8
CH24 Green 2 0-255 From dark to light
CH19 CH25
Blue 2 0-255 From dark to light
CH2O
CH26 Red 3 0-255 From dark to light
CH21 CH27 Green3 0-255 From dark to light
CH22 CH28 Blue 3 0-255 From dark to light
CH23 CH29 Red 4 0-255 From dark to light
CH24 CH30 Green 4 0-255 From dark to light
CH25
CH31 Blue 4 0-255 From dark to light
The following is a list of problems and resolution, and other
malfunction preparing work should be professionally qualified staff to
deal with.
1. Bulb not working
a) Check whether approaching the service life of light bulbs, then
change it
b) Check whether bulbs circuitry leak, loss or connect poorly
2. Beam appears bleak
a) The bulbs maybe approach the service life, then change it, or
the optical components are unclean.
b) Bulbs have accumulation of dust, so the bulbs and other parts
inside the lamp should be cleaned and maintained in regular
period.
3. Computer lamp work intermittently
a) Check whether the fan process naturally and become dirty
b) Check inner temperature-response control plug is off
c)
Check whether the circuitry is good
4. The computer lamp not controlled by controller during lighting
a)
Check numeral starting address and the connection of
communication control circuit
b) The corresponding channel button of controller is open or not
8

End User
Company Name:
Add:
Warranty Card
r
Name 7
Model — I [Production
— Purchase]
Sale Store
Link man:
Tel:

Stamp
Description: These must be truthfully fill, seal by the end-user and point-of-sale, or else the
warranty will not work (warranty period and terms, see the following)
warranty period: one year since purchase warranty terms: 1, If fail when using the product
in normal state, you can made under the provisions of the warranty, show the warranty card
and purchase bills(copy), and enjoy free maintenance service in a specific service center or
the manufacturer.
2. The following will be the implementation of paid service:
(1)Without the effective warranty card
(2)There's blank, alter and no point-of-sale name
(3)Fail caused by unresistance
(4)Fail caused by transportation or unloading
(5)Fail caused by not operate by manual
(6)Fail caused by disassemble without unauthorized
(7)Fail caused by using the unauthorized control system
c) Check whether the fuse on power supply input jack is broken
off
1.
Our company offer technical consultation to customers for ever.
2.
If the machine is wrong and need repairmen, please truthfully fill in
the related content and feedback us the problems timely, as well as
we have to improve the product.
3.
In addition to the lamp, also matching accessories are as follows:
accessories: Power line 1 piece
 Optional parts: (customers )
Note:
Based on our company continue to improve the product, the statement
containing data may have changed, and will not notice the change any
more. Company retains its right to change specifications related when
product is improved. Thanks for your understanding.
