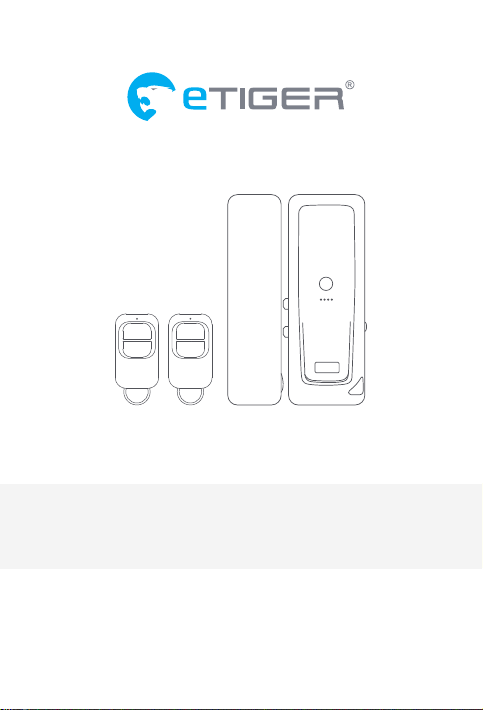

eTIGER ES-DLS-02 User manual

ES-DLS-02
Wireless Security DockLock Base Set
www.etiger.com
ON
OFF
ON
OFF

Smart Access Door Lock set inter gate the Wireless technology, compatible with Etiger
Home secure Alarm Set S5/S6/secure Box V2/ secure Bub/ secure Hub Heating.The Main
lock is fixed inside of door, it is highly protected to be destroyed by thief from outside.
Thief can not Use kind of Electric drill to touch the lock.
This is a wireless smart lock kit for home use. It consists of a Wireless Lock and two Remote
Transmitters. Super strong 3M stickers provide a simple way for installation, no door
destroy, no hole,wireless,no power cab. 433Mhz Rolling Code of encryption algorithm and
the split design guarantee higher-secure.
The Keypad can store 500 PIN/card users. Because of ultra low power consumption, the
Keypad and Remote Transmitters can work as long as one year (bases on 30 times /day),
Wireless Lock can work 6 months. It will remind people to replace batteries intelligently if
low battery.
- 500 PIN/card users
- 4-8 digits PIN, 13.56 MHz M1 Card(Alternative)
- With two Remote Transmitters
- 433MHz Rolling Code technology
- Communication distance: 50m Max
- Ultra low power consumption
FEATURES
INTRODUCTION

User Capacity:
PIN Length:
Card Type:
Operating Voltage
Wireless Lock:
Remote Transmitter:
Idle Current:
Working Current
Wireless Lock:
Remote Transmitter:
Communication Frequency:
Communication Distance:
Operating Temperature
Remote Transmitter:
Wireless Lock:
Operating Humidity:
Physical
Wireless Lock:
Remote Transmitter:
Dimensions
Wireless Lock:
Remote Transmitter:
Unit Weight
Wireless Lock:
Remote Transmitter:
500
4-8 Digits
13.56M Hz M1 Card
4 units of AA batteries
1 unit of 2032 Lithium battery
All items ≤10uA
≤42mA
≤3mA
433MHz
50m Maximum
-40°C～+60°C(-40°F～+140°F)
-20°C～+60°C(-4°F～+140°F)
0%～86%RH
Zinc-Alloy + ABS Shell
ABS Shell
L184*W122*D26(mm)
L55*W32*D10(mm)
800g
16g/pc
SPECIFICATIONS

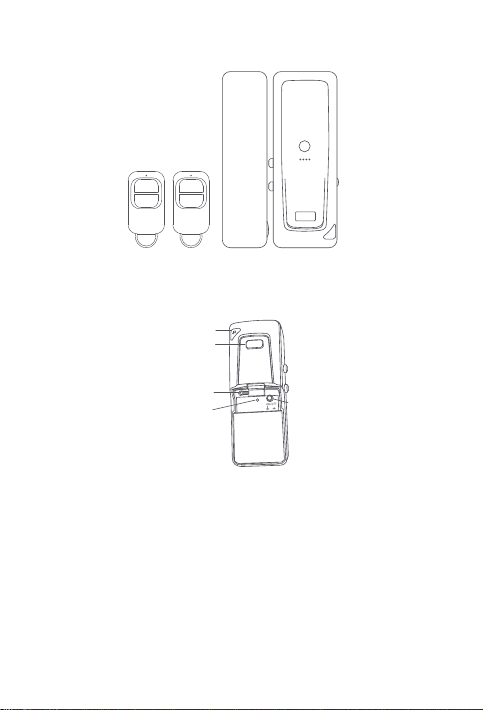

Major Parts
ON
OFF
ON
OFF
Remote Transmitters Wireless Lock
The user can select the following accessories (another sale) to unlock the lock as required:
Instruction of the keys on lock body
Note:
1.Mechanical Switch: Used for installation and equipment trouble, please don’t press it often
in the normal condition. When press the Mechanical Switch, the lock will be unlocked all the
time until open the door one time by valid card, or valid PIN, or press the Exit button, or unlock
button on Remote Transmitter.
2. ON/OFF Switch: When the button is off, the power of lock is off, all keys are useless except
Mechanical Switch.
a.When the lock is unlocked, and you want to keep it unlocked, you can press the button OFF.
The lock will work normally after press button ON.
b.When the lock is locked, and you want to keep it locked, you can press the Switch OFF, and
then no one can access the door.The lock will work normally after press button ON.
When the button is on, the power of lock is on, the lock will be locked automatically in seconds
and all keys can work normally.
Exit Button
Mechanical Switch
Pairing Key
LED Light ON/OFF Switch
OFF: Power off
ON: Power on

The device packed with 3M double-side stickers, can easily stick the Wireless Keypad and
Wireless Lock on glass door (We use high-quality 3M stickers, the stickiness will be the best after
sticking in 24 hours).
Below introduction for how to installWireless Lock intensively, the way of installing Wireless
Keypad is almost the same.
Stick by 3M stickers
Stick the 3M stickers on the back of the lock as below picture.
Stick the 3M stickers on the lock
Stick the 3M stickers on the back of the lock as below picture.
Clean the stick part of glass door by dry cloth. Put the batteries into lock, press the lock button
on Remote Transmitter to make the spring bolt protruded (This is for aligning the other part).
Take out the 3M stickers on the lock, align the other part, stick on the glass door, press them for
some seconds (We used high-quality 3M stickers, the stickiness will be the best after sticking in
24 hours).
Stick the lock on glass door
After stick the lock on glass door, people can see the 3M sticker outdoor from the glass door, it
looks inaesthetic. We prepare an opposite paster which to stick the other side of lock on glass
door.
Stick the opposite paster
3M
3M
Lock body The other part
Lock body The other part
Spring Bolt
Induced Magnet
(For lock automatically)
INTRODUCTION

Simplified Instruction
Function description
Enter the Program Mode:
Change the Master Code:
IMPORTANT NOTE: Please remember
the New Master Code as it can’t be reset
to default if forgotten
Add PIN User:
Add Card User:
Add fingerprint User:
Delete User:
Exit from the Program Mode:
How to release the door
PIN Access:
Card Access:
PIN+Card Access:
Fingerprint Access:
Enter and Exit Program Mode
Operation
*(123456)#
(123456 is the factory default master code)
0 (New Code) # (Repeat New Code) #
(code: 6 digits)
1 (User ID) # (PIN) #(Repeat PIN) #
1 (Read Card)
1 (User ID) #（Read fingerprint）
#(Repeat Read fingerprint) #
2 (User ID) #
2 (Read Card)
*
PIN #
(Read Card)
(Read Card) (PIN) #
(Read Fingerprint)
Programming Step Keystroke Combination
1. Enter Program Mode:
2. Exit:
* (Master Code) #
(Factory default is 123456)
*
Set Master Code
Programming Step Keystroke Combination
1. Enter Program Mode:
2. Update Master Code:
3. Exit:
Please do remember your Master Code because the Master Code can’t be reset if forget it.
* (Master Code) #
0（New Master Code）#
（Repeat New Master Code）#
Master code is any 6 digits
*
PROGRAMMING

Change PIN
Programming Step Keystroke Combination
1.Change PIN:
By Card(There will be auto allocate
PIN (8888) to cards when adding)
OR
Change PIN: By User ID
2. Exit:
Note: Below is done outside programming mode, users can undertake this themselves
* (Read Card) (Old PIN) # (New PIN) #
(Repeat New PIN) #
* (User ID) # (Old PIN) # (New PIN) #
(Repeat New PIN) #
Exit automatically
Add Users PIN(s)
Programming Step Keystroke Combination
1. Enter Program Mode:
2. Add PIN:
3. Exit:
User ID: 0~499
PIN length: 4~8 digits
* (Master Code) #
1 (User ID) # (PIN) # (Repeat PIN) #
The users can be added continuously
*
Add Users Card(s)
Programming Step Keystroke Combination
1. Enter Program Mode:
2. Add Card:
Using Auto ID(Allows to assign Card
tonext available User ID number)
OR
2. Add Card:
Select Specific ID(Allows Master to
define a Specific User ID to associate
the card)
3. Exit
User ID: 0~499
Card type: 13.56MHz M1 Card
* (Master Code) #
1 (Read Card) #
The cards can be added continuously.
1(User ID) # (Read Card) #
*
Add finger print (s)
Programming Step Keystroke Combination
1.Enter Program Mode:
2. Add fingerprint:
Select Specific ID(Allows Master to
define a Specific User ID to associate
the fingerprint)
3. Exit:
User ID: 0~499
* (Master Code) #
1(User ID) #(Readfingerprint)#(Read
fingerprint)#
*

Set Safety Mode
In safety mode, it can be set to deny access for 10 minutes after 10 failed PIN/card attempts in
10 minutes
(Factory default is OFF).
Delete Users
Programming Step Keystroke Combination
1. Enter Program Mode:
2. Delete user:
OR
Delete Card:
OR
Delete all users:
3. Exit:
* (Master Code) #
2 (User ID) #
The users can be deleted continuously.
2 (Read Card) #
2 (Master Code) #
*
Set Access Mode
Programming Step Keystroke Combination
1. Enter Program Mode:
2. Ad2. PIN Access:
OR
PIN + Card Access:
OR
PIN or Card:
3. Exit:
* (Master Code) #
3 0 #
3 1 #
3 2 # (factory default)
*
Programming Step Keystroke Combination
1. Enter Program Mode
2. Strike-Out OFF
OR
2. Strike-Out ON
3. Exit
* (Master Code) #
6 0 # (factory default)
6 1 #
*
Set Buzzer
Programming Step Keystroke Combination
1. Enter Program Mode
2. Buzzer OFF
OR
2. Buzzer ON
3. Exit
* (Master Code) #
7 0 #
7 1 # (factory default)
*

The Wireless Lock will be locked automatically around 8-10 seconds after we open it. If we want
to lock it faster, please press“0 #”on the Keypad, or the lock button on the Remote Transmitter, it
will lock immediately.
Lock in Urgent Situation
(They are already paired when out of factory, if no problem, the users do not need to do this
operation in using.)
Pair Wireless Keypad / Remote Transmitter with Wireless Lock
OTHERS
Users Operation
Programming Step Keystroke Combination
PIN User Access:
Card User Access:
Fingerprint Access:
PIN + Card User Access:
By Remote Transmitter:
(PIN) #
(Read Card)
(Read Fingerprint)
(Read Card) (PIN) #
Press
Note: 1. The Wireless Lock can pair 16 parts (Keypad + Remote Transmitter) maximum.
2. When pairing, all parts must be paired, then exit paring mode. If need adding one more
part, you still need to pair all parts again.
Step 1: Enter pairing mode
Open the battery cover of Wireless Lock, press the small round button left of battery with a
slender rod, hold it for 2 seconds until hearing two beeps, that means in the pairing status.
Step 2: Pairing Wireless Keypad
Press the button“9 #”on the keypad, hold it for 2 seconds until hearing two beeps from Lock,
that means pairing successfully.
Step 3: Pairing RemoteTransmitter
Press any button on the Remote Transmitter, hold it until hearing two beeps from Lock, that
means pairing successfully.
Step 4: Exit pairing mode
After pairing all parts, press the small round button in the Wireless Lock again, hold it until
hearing two beeps, that means exit pairing successfully.

Operation
Status
Device
Sound and Light Indication
Low battery
reminding
Standby
Enter into
program
mode
Shines
per 1.5
seconds
Unlock
the lock
Press key
Wrong
operation
Invalid
PIN/Card/
fing erprint
ON for 1
second
ON for 1
second
ON for 1
second
LED ON for
1 second
ON for 1
second
Keypad
(finger-
print)
Remote
Trans-
mitter
Exit from the
program
mode
Any key press low
battery icon turn
on 5’S then off
Low battery
reminding
Pairing ON
Unlock
the lock
Lock
Lock
Low battery
reminding
LED shining, and beeps
Press button
Red LED
（Note: The lock will open automatically when the battery is
too low or run out, please change the battery INTIME!）
-- --
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
ON for 3
seconds
Green
LED
Low battey
ICON
When the
LED is dim,
please change
the battery
Buzzer
One beep
One beep
One beep
One beep
One beep
Two beep
Three beeps
Three beeps
Three beeps
when press
any button
One long beep

Name:
Packaging box:
Wireless Lock:
Remote Transmitters:
Manual:
Screw Driver:
Wall Fixing Plus:
Self Tapping Screws for keypad:
(Smaller ones)
Self Tapping Screws for lock:
(Bigger ones, just in case if needed)
3M Stickers:
Opposite paster:
Packing List
Quantity
1pc
1pc
2pcs
1pc
1pc
4pcs
4pcs
10sets
4pcs
2pcs
