eTIGER ES-DL02 User manual

ES-DL02
Smart Security Door Lock Access Set
www.etiger.com
ON
OFF ON
OFF

Smart Access Door Lock set inter gate the Wireless technology, compatible with Etiger Home
secure Alarm Set S5/S6/secure Box V2/ secure Bub/ secure Hub Heating.The Main lock is fixed
inside of door, it is highly protected to be destroyed by thief from outside.Thief can not Use
kind of Electric drill to touch the lock.
This is a wireless smart lock kit for home use. It consists of a Metal WaterproofWireless Keypad
with Biometric fingerprint, Wireless Lock and two RemoteTransmitters and two RFIDTag. Super
strong 3M stickers provide a simple way for installation, no door destroy, no hole,wireless,no
power cab. 433Mhz Rolling Code of encryption algorithm and the split design guarantee
higher-secure.
The Keypad can store 500 PIN/card users. Because of ultra low power consumption, the Keypad
and Remote Transmitters can work as long as one year (bases on 30 times /day), Wireless Lock
can work 6 months. It will remind people to replace batteries intelligently if low battery.
- 500 PIN/card users
- 6 digits PIN, 13.56M Hz M1 Card
- With two RemoteTransmitters
- 433MHz Rolling Code technology
- Communication distance: 50m Max
- Ultra low power consumption
FEATURES
INTRODUCTION

User Capacity:
PIN Length:
CardType:
OperatingVoltage
Wireless Keypad with fingerprint:
Wireless Lock:
Remote Transmitter:
Idle Current:
Working Current
Wireless Keypad with fingerprint:
Wireless Lock:
Remote Transmitter:
Communication Frequency:
Communication Distance:
OperatingTemperature
Wireless Keypad:
Wireless Lock:
Operating Humidity:
Physical
Wireless Lock:
Wireless Keypad:
Others:
Dimensions
Wireless Lock:
Wireless Keypad with fingerprint:
Remote Transmitter:
UnitWeight
Wireless Lock:
Wireless Keypad with fingerprint:
Remote Transmitter:
500
6 Digits
13.56M Hz M1 Card
3 units of AAA batterys
2 units of AA batteries
1 unit of 2032 Lithium battery
All items ≤10uA
≤90mA
≤42mA
≤3mA
433MHz
50m Maximum
-40°C～+60°C(-40°F～+140°F)
-20°C～+60°C(-40°F～+140°F)
0%～86%RH
Zinc-Alloy + ABS Shell
ABS Shell
ABS Shell
L150*W95*D39(mm)
L105*W105*D31(mm)
L55*W32*D10(mm)
800g
145g
16g/pc
SPECIFICATIONS

Major Parts
ON
OFF ON
OFF

The device packed with 3M double-side stickers, can easily stick the Wireless Keypad and
Wireless Lock on smooth surface (We used high-quality 3M stickers, the stickiness will be the
best after sticking in 24 hours).

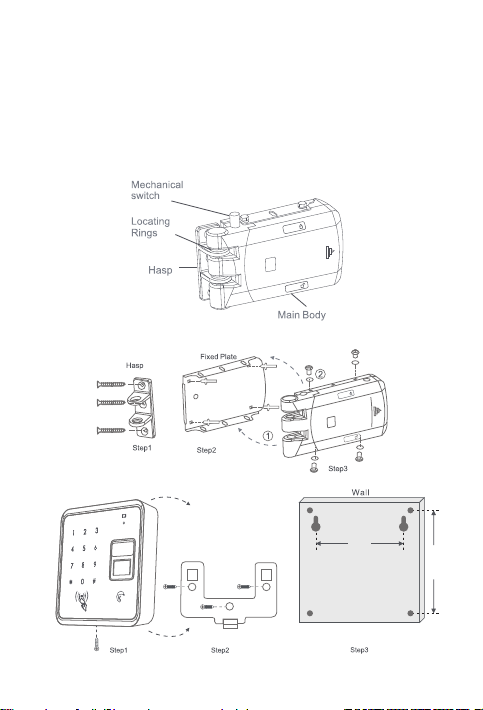

Below introduction for how to installWireless Lock intensively:
Method 1: Stick by 3M stickers
Confirm the direction and position of Hasp, meanwhile, make sure the Hasp align the
doorframe.
(So please make sure the direction of Hasp is fit for main body of lock before installation.)

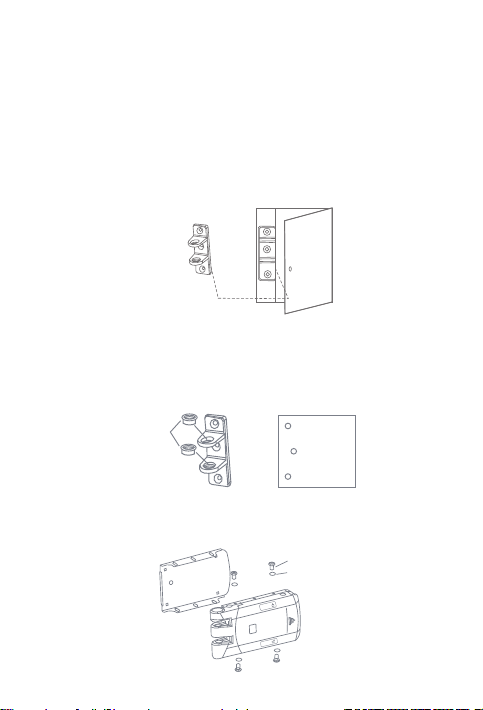

Attentions of installing the Hasp
Put the Locating Rings into Hasp, and stick the 3M sticker at the back side of Hasp (You can
screw the hasp on the Reinforcing Plate if needed, then stick 3M sticker at the back of plate. It
can increase the stick area to make the Hasp stronger).
Installing the Hasp
Fix the main body of lock and the Fixed Plate by M5*6 hex screws in the packaging, and stick the
3M sticker on the back of Fixed Plate.
Installing the main body of lock
OPEN
CLOSE
INTRODUCTION

Press the Mechanical Switch on the main body of lock to open the lock mechanically, and
match the Hasp. Make sure it can be combined with Hasp perfectly, then stick the mail body of
lock on the door.
Combining the lock
Note: Mechanical Switch, it is used for installation and equipment trouble, please don’t
press it often in the normal condition.
When press the Mechanical Switch, the lock will be unlock all the time until open the
door one time by valid card, or valid PIN, or touch the close icon on the lock, or unlock
button on Remote Transmitter.
Method 2: Install by screws
OPEN
CLOSE
OPEN
CLOSE
87mm
77mm

Simplified Instruction
Function description:
Enter the Program Mode:
Change the Master Code:
IMPORTANT NOTE: Please remember
the New Master Code as it can’t be reset
to default if forgotten
Add PIN User:
Add Card User:
Add fingerprint User:
Delete User:
Exit from the Program Mode:
How to release the door
PIN Access:
Card Access:
By Remote Transmitter:
By Wireless Lock:
Fingerprint Access:
Lock Immediately
By Keypad:
By Remote Transmitter:
By Wireless Lock
PROGRAMMING
Enter and Exit Program Mode
Operation
*(123456)#
(123456 is the factory default master code)
0 (New Code) # (Repeat New Code) #
(code: 6 digits)
1 (User ID) # (PIN) #(Repeat PIN) #
1 (Read Card)
1 (User ID) #（Read fingerprint）
2 (User ID) #
2 (Read Card)
*
PIN #
(Read Card)
Press
Touch
(Read Fingerprint)
Press“0#”
Press
Touch
Programming Step Keystroke Combination
1. Enter Program Mode:
2. Exit:
* (Master Code) #
(Factory default is 123456)
*
OPEN
Set Master Code
Programming Step Keystroke Combination
1. Enter Program Mode:
2. Update Master Code:
3. Exit:
Please do remember your Master Code because the Master Code can’t be reset if forget it.
* (Master Code) #
0（New Master Code）#
（Repeat New Master Code）#
Master code is any 6 digits
*

Add Users PIN(s)
Programming Step Keystroke Combination
1. Enter Program Mode:
2. Add PIN:
3. Exit:
User ID: 0~99
PIN length: 6 digits
* (Master Code) #
1 (User ID) # (PIN) # (Repeat PIN) #
The users can be added continuously
*
Add Users Card(s)
Programming Step Keystroke Combination
1. Enter Program Mode:
2. Add Card:
Using Auto ID (Allows to assign Card
tonext available User ID number)
OR
Add Card:
Select Specific ID (Allows Master to
define a Specific User ID to associate
the card)
3. Exit:
User ID: 100~399
Card type: 13.56MHz M1 Card
* (Master Code) #
1 (Read Card) #
OR
1(User ID) # (Read Card) #
*
Add finger print (s)
Programming Step Keystroke Combination
1. Enter Program Mode:
2. Add fingerprint: Using Auto ID (Allows
to assign fingerprin to next available
User ID number)
Add fingerprint: Select Specific ID
(Allows Master to define a Specific User
ID to associate the fingerprint)
3. Exit:
User ID: 400~499
* (Master Code) #
1(Readfingerprint)#
1(User ID) #(Readfingerprint)#
*
Change PIN
Programming Step Keystroke Combination
1.Change PIN:
By Card (There will be auto allocate PIN
(8888) to cards when adding)
OR
Change PIN: By User ID
2. Exit:
Note: Below is done outside programming mode, users can undertake this themselves
* (Read Card) (Old PIN) # (New PIN) #
(Repeat New PIN) #
* (User ID) # (Old PIN) # (New PIN) #
(Repeat New PIN) #
Exit automatically

Set Buzzer
Programming Step Keystroke Combination
1. Enter Program Mode:
2. Buzzer OFF
OR
Buzzer ON
3. Exit:
* (Master Code) #
7 0 #
7 1 # (factory default)
*
Set Safety Mode
In safety mode, it can be set to deny access for 10 minutes after 10 failed PIN/card attempts in
10 minutes
(Factory default is OFF).
Programming Step Keystroke Combination
1. Enter Program Mode:
2. Strike-Out OFF
OR
Strike-Out ON
3. Exit:
* (Master Code) #
6 0 # (factory default)
6 1 #
*
Set Access Mode
Programming Step Keystroke Combination
1. Enter Program Mode:
2. PIN Access
OR
PIN + Card Access
OR
PIN or Card or fingerprint Access
3. Exit:
* (Master Code) #
3 0 #
3 1 #
3 2 # (factory default)
*
Delete Users
Programming Step Keystroke Combination
1. Enter Program Mode:
2. Delete user
OR
Delete Card
OR
Delete all users
3. Exit:
* (Master Code) #
2 (User ID) #
The users can be deleted continuously.
2 (Read Card) #
2 (Master Code) #
*

OTHERS
Users Operation
Programming Step Keystroke Combination
PIN User Access
Card User Access
Fingerprint Access
PIN + Card User Access
By Remote Transmitter
(PIN) #
(Read Card)
(Read Fingerprint)
(Read Card) (PIN) #
Press
How to Open & Close the lock when the user is inside the door?
Programming Step Keystroke Combination
Open the lock
Close the lock
By Remote Transmitter
Touch on the lock
Touch on the lock
Press
OPEN
CLOSE
The Wireless Lock will be locked automatically around 5 seconds after we open it. If we want to
lock it faster, please press“0 #”on the Keypad, or press on the Remote Transmitter, or touch
on the wireless lock, it will lock immediately.
Lock Immediately
(They are already paired when out of factory, if no problem, the users do not need to do this
operation in using.)
PairWireless Keypad / RemoteTransmitter withWireless Lock
CLOSE
Note: 1.TheWireless Lock can pair 16 parts (Keypad + RemoteTransmitter) maximum.
2. When pairing, all parts must be paired, then exit paring mode. If need adding one more
part, you still need to pair all parts again.
Step 1: Enter pairing mode
Open the battery cover of Wireless Lock, press the small round button left of battery with a
slender rod, hold it for 2 seconds until hearing two beeps, that means in the pairing status.
Step 2: PairingWireless Keypad
Press the button“0 #”on the keypad, hold it for 2 seconds until hearing two beeps from Lock,
that means pairing successfully.
Step 3: Pairing RemoteTransmitter
Press any button on the Remote Transmitter, hold it until hearing two beeps from Lock, that
means pairing successfully.
Step 4: Exit pairing mode
After pairing all parts, press the small round button in theWireless Lock again, hold it until
hearing two beeps, that means exit pairing successfully.

Operation
Status
Device
Sound and Light Indication
Low battery
reminding
Standby
Enter into
program
mode
Unlock
the lock
Press key
Wrong
operation
Invalid
PIN/Card/
fing erprint
Shines per
2S seconds
Shines per
2S seconds
Shines per
2S seconds
ON for 1
second
ON for 1
second
LED ON for
1 second
ON for 1
second
Keypad
(finger-
print)
Remote
Trans-
mitter
Exit from the
program
mode
Any key press low
battery icon turn
on 5’S then off
Low battery
reminding
Pairing ON
Unlock
the lock
Lock
Lock
Low battery
reminding
LED shining, and beeps
Press button
* LED
（Note:The lock will open automatically when the battery is
too low or run out, please change the battery INTIME!）
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
ON for 10
seconds
# LED Low battey
ICON
When the
LED is dim,
please change
the battery
Buzzer
One beep(2S)
One beep
One beep(2S)
One beep
One beep
Two beep
Four beeps
Four beeps
Three beeps
when press
any button
One long beep

Name
Packaging box
Wireless Lock
Wireless Keypad
Remote Transmitters
Rfid card
Manual
Screw Driver
Wall Fixing Plus
Self Tapping Screws
Accessories ofWireless Lock
3M Stickers
Packing List
Quantity
1pc
1pc
1pc
2pcs
2pcS
1pc
1pc
4pcs
4pcs
4pcs
4pcs

kit Smart Access Door Lock, technologie sans fil intégrée, compatible avec les systèmes d'alarme
Etiger S5/S6/Secure BoxV2/Secure Hub/Secure Hub Heating. La serrure principale est montée
sur la face interne de la porte pour être plus protégée et difficile à détruire par le cambrioleur. Il
ne peut ainsi pas utiliser d'outils électriques pour percer la serrure
Il s'agit d'un kit de serrure intelligente sans fil pour la maison. Il se compose d'un clavier
métallique sans fil et étanche, d'une serrure sans fil, de deux télécommandes et de deux badges
RFID.
Les adhésifs extra forts 3M offrent une fixation simple qui préservera votre porte : sans
dégradation, sans trou, sans fil, sans câble ni alimentation. Algorithme de cryptage à code
tournant 433 MHz et conception en plusieurs parties pour une sécurité accrue.
Le clavier peut stocker 500 PIN/cartes utilisateur. En raison de leur consommation électrique
ultra faible, le clavier et les télécommandes peuvent fonctionner jusqu'à un an (à raison de 30
fois par jour). La serrure sans fil dispose quant à elle d'une autonomie de six mois. Intelligente,
elle vous invitera à remplacer ses piles quand celles-ci faiblissent.
Fonctionnalités
- 100 PIN+ 400cartes utilisateur
- PIN à 6 chiffres, carte 13,56 MHz M1
- Avec deux télécommandes
- Technologie de cryptage à code tournant 433 MHz
- Distance de communication : 50 m maximum
- Consommation électrique ultrafaible
INTRODUCTION

Caractéristiques techniques :
Nombre d'utilisateurs
Longueur du PIN
Type de carte
Tension de service
Clavier sans fil
Serrure sans fil
Télécommande
Courant de veille
Courant de fonctionnement
Clavier sans fil
Serrure sans fil
Télécommande
Fréquence de communication
Distance de communication
Température de fonctionnement
Clavier sans fil
Serrure sans fil
Humidité de fonctionnement
Matériaux
Serrure sans fil
Clavier sans fil
Autres
Dimensions
Serrure sans fil
Clavier sans fi
Télécommande
Poids
Serrure sans fil
Clavier sans fil
Télécommande
500
6 chiffres
Carte 13,56 MHz M1
3piles AAA
2 piles AA
1 pile lithium 2032
Pour tous les éléments ≤10 uA
≤90mA
≤42mA
≤3mA
433MHz
50m Maximum
-40°C～+60°C(-40°F～+140°F)
-20°C～+60°C(-40°F～+140°F)
0%～86% (HR)
Alliage de Zinc + Coque ABS
Coque ABS
Coque ABS
150 x 95 x 39 mm (L x l x P)
L105*W105*D31(mm)
55 x 32 x 10 mm (L x l x P)
800g
145g
16 g/pièce

ON
OFF ON
OFF
Pièces principales

INSTALLATION
L'appareil est livré avec un jeu d'adhésifs double-face 3M qui permettent de le fixer facilement
sur une surface lisse. Nous utilisons les meilleurs adhésifs 3M, leur pouvoir collant est maximal
après 24 heures.
Vous trouverez ci-dessous les instructions détaillées pour installer la serrure sans fil :
Méthode 1 : Collage au moyen des adhésifs 3M
Choisissez la position et la direction du moraillon et vérifiez en même temps que le moraillon
est aligné avec le cadre de la porte.
Avant l'installation, veillez donc à ce que le moraillon soit bien aligné avec le corps de serrure
principal.
Précautions pour l'installation du moraillon :
Placez les bagues d'arrêt dans le moraillon et collez les adhésifs 3M au dos du moraillon. Au
besoin, vous pouvez visser le moraillon à la plaque de renfort et coller ensuite au dos les
adhésifs 3M. La zone de collage est ainsi plus importante ce qui renforce la tenue du moraillon.
Installation du moraillon
Fixez le corps de serrure principal au support métallique au moyen des 6 boulons M5 fournis et
collez l'adhésif 3M au dos du support métallique.
Installation du corps de serrure principal
OPEN
CLOSE
Moraillon
Support métallique
Boulons
Rondelle
Moraillon
Intérieur
Ce bord du moraillon doit être aligné
avec celui du cadre de porte
Plaque de renfort
Bagues d'arrêt

87mm
77mm
Pressez l'interrupteur mécanique du corps de serrure principal pour ouvrir la serrure
mécaniquement et alignez-vous sur le moraillon.Veillez à ce que les deux s'insèrent
parfaitement et collez alors le corps de serrure principal à la porte.
Assemblage de la serrure
Remarque : L'interrupteur mécanique est utilisé pour l'installation et pour résoudre
d'éventuels problèmes, ne prenez pas l'habitude de l'utiliser en temps normal.
Une fois actionné, l'interrupteur mécanique restera ouvert jusqu'à que la porte soit
réouverte par une carte ou un PIN valide ou encore, en appuyant sur le bouton de la
serrure avec l'icône "Close (fermer)" ou via le bouton de déverrouillage de la
télécommande.
Méthode 2 : Installation avec les vis
OPEN
CLOSE
OPEN
CLOSE
Interrupteur mécanique
Bagues d'arrêt
Moraillon
Corps principal
Moraillon
Support métallique
Étape 1 Étape 2
Étape 3
Étape 1 Étape 2 Étape 3
Mur
