Etlin-Daniels RTP42 Series User manual

SAVE THESE INSTRUCTIONS - READ ALL INSTRUCTIONS CAREFULLY
WARNING
INSTALLATION FOR RTP42 SERIES
Head Ofce - 1850 Wilson Ave. · Toronto, ON · M9M 1A1 · Tel: 416.741.7336 · Fax: 416.741.9104
Toll free: in Canada. 1.800.661.9610 · in USA. 1.888.762.5384 (SOCKETS4U)
www.etlin-daniels.com· For sales/service questions - [email protected]
PLEASE READ ALL INSTRUCTIONS BEFORE ATTEMPTING INSTALLATION.
• Luminaire must be installed, checked and repaired by an authorized electrician.
• This product must be installed in accordance with the applicable installation code by a person familiar
with the construction and operation of the product and the hazards involved.
• For proper operation, make sure to connect the luminaire to the proper voltage and install it according
to these instructions.
• For safety purposes, cut off the power and allow the luminaire to cool before installing or removing it.
• Don't install the panel light to an unstable ceiling or near combustible materials.
• Cut off the power if there are any unexpected occurrences.
• Do not alter or modify the luminaire or change any of the components.
• Do not use the luminaire under conditions of direct sunlight, humidity, fog, rain, corrosive gas, dust, or liquid.
0 - 10VDC DIMMABLE
WIRE CONNECTION
RECESSED IN PLASTER OR GRID CEILINGS
UTILIZATION OF EARTHQUAKE CLIPS
1. For installation in plaster ceilings, cut an opening
of the appropriate size, and then connect the panel
light to an incoming power line.
1. Pull earthquake clip away from panel until facing perpendicular to
the panel surface. 2. Bend earthquake clip 90°. 3. Install panel light on grid supports.
3. Pass the panel through the ceiling surface.
2. Rotate the panel light by 45 degrees.
4. Lay in the panel light on the ceiling surface or grid.
MODEL INPUT
VOLTAGE FREQUENCY POWER
CONSUMPTION INSTALLATION METHOD
RTP4214
100 - 277Vac
120 - 347Vac 50-60Hz
40W Recessed in plaster or
grid ceilings. Utilization of
Earthquake Clips
Surface-Mounted
RTP4222 40W
RTP4224 50W
SAVE THESE INSTRUCTIONS - READ ALL INSTRUCTIONS CAREFULLY
INSTALLATION FOR RTP42 SERIES
Head Ofce - 1850 Wilson Ave. · Toronto, ON · M9M 1A1 · Tel: 416.741.7336 · Fax: 416.741.9104
Toll free: in Canada. 1.800.661.9610 · in USA. 1.888.762.5384 (SOCKETS4U)
www.etlin-daniels.com· For sales/service questions - [email protected]
SURFACE MOUNT
CABLE SUSPENDED MOUNTING
1. Assemble the mounting frame with the 8 screws(included)
2. Mount the frame on the ceiling with the screws (not included). Make sure that the wire is long enough for Step4
3. After mounting the frame on ceiling, REMOVE one side of the mounting frame
4. Connect the wires from mains to the LED driver. Then,slide in the LED panel unit to the frame.
5. Put back the side on removed frame.
gure #1
gure #1 gure #1
gure #4 gure #5
gure #2 gure #3
1. Release the back's screw and lock again with the provided brackets which are used for fixing adjustable cables (Four brackets for 2x2 & 1x4, six ones for 2x4).
2. Pull the end cap of cable (A) through the provided ceiling device and make sure the end cap positioned in the ceiling device. Fix the devices onto the ceiling by the self-tapping screws.
3. Pull the end of cable (A) to adjust the cable (A) to the desired height of luminaire.
4. Hook the luminaire up to the hooks attached to the other end of cable (B) and make a final adjustments.
5. Connect LED driver to AC main power.
ceiling device
cable A
self-tapping screw
cable B

This manual suits for next models

3

Other Etlin-Daniels Lighting Equipment manuals

Etlin-Daniels HBRA7 Series User manual

Etlin-Daniels

Etlin-Daniels HBRA7 Series User manual

Etlin-Daniels EC302WHM-A13-BB-GU-10RC User manual

Etlin-Daniels

Etlin-Daniels EC302WHM-A13-BB-GU-10RC User manual

Etlin-Daniels ER372D-WHM-A13-BB-14RC User manual

Etlin-Daniels

Etlin-Daniels ER372D-WHM-A13-BB-14RC User manual

Etlin-Daniels EE202WH-A13BB-GU User manual

Etlin-Daniels

Etlin-Daniels EE202WH-A13BB-GU User manual

Popular Lighting Equipment manuals by other brands

nordlux VEJERS Mounting instruction

nordlux

nordlux VEJERS Mounting instruction

Trebs Comfortlight 99741 instruction manual

Trebs

Trebs Comfortlight 99741 instruction manual

Dale Tiffany TA10897 Assembly instructions

Dale Tiffany

Dale Tiffany TA10897 Assembly instructions

Magnum MLT4150 operating manual

Magnum

Magnum MLT4150 operating manual

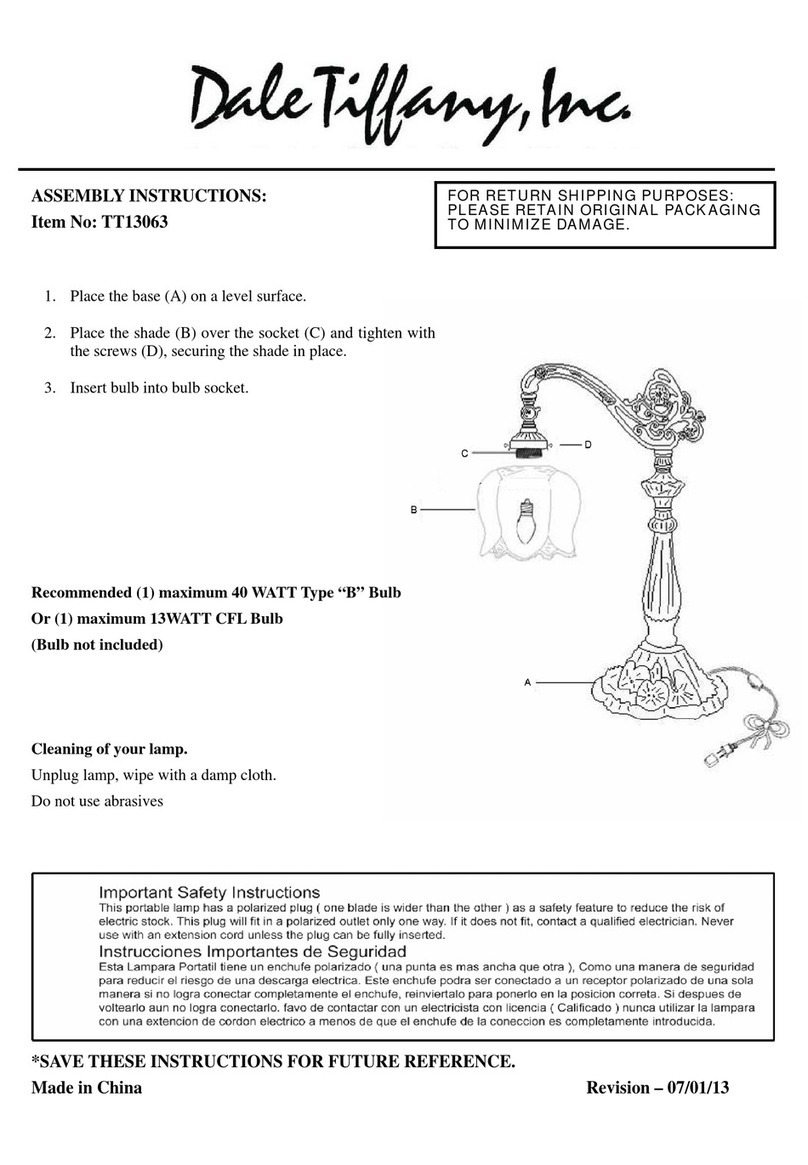

Dale Tiffany TT13063 Assembly instructions
