Leviton Leo led00 User manual

LEO™

LEO™ LED Zoom Ellipsoidal

Cat. No. LED00

User’s Guide

P1

CATALOG LOGIC

LED00-30B; LED00-50B

Fixture Part Color Temperature Housing

LED: LED Ellipsoidal 00: Light Engine -30: 3200K B: Black Housing

08: 8-22°Zoom -50: 5600K

18: 18-36°Zoom -LT: Lens Tube

30: 30-55°Zoom

SPECIFICATIONS

CAT. NO. LED00

WATTAGE 200W

STANDBY LOAD

WEIGHT 18.3 lbs. (8.3 kg)

SIZE W 9.8" (250mm) x H 18.5" (470mm) x D 13.8" (350 mm)

ELECTRICAL 100-240 VAC, 50/60Hz

AGENCY ETL, cETL, CE, FCC

WARNINGS AND CAUTIONS

• TO AVOID FIRE SHOCK OR DEATH; TURN OFF POWER at circuit breaker or fuse and test that

power is off before installation.

• TO AVOID SERIOUS PERSONAL INJURY, always connect this product to a grounded circuit.

• To be installed and/or used in accordance with electrical codes and regulations.

• If you are unsure about any part of these instructions, consult an electrician.

SAFETY NOTES

WARNING: TO AVOID DEATH, SERIOUS PERSONAL INJURY OR PROPERTY DAMAGE:

• Do not open the housing or attempt any repairs. In the unlikely event the unit may require service

please contact Leviton Technical Support. Opening the housing or attempting to repair product will

void the warranty.

• Do not expose this product to rain or moisture. This product is for indoor use only! (IP20) When

transferring product from extreme temperature environments, (e.g., cold truck to warm humid

ballroom) condensation may form on the internal electronics of the product. To avoid causing a

failure, allow product to fully acclimate to the surrounding environment before connecting it to power.

• Do not operate this product if you see damage on the housing, lenses, or cables.

P2

PRODUCT INTRODUCTION

LEO™ LED Zoom Ellipsoidal is a high-performance Ellipsoidal-style LED lighting ﬁxture that delivers

bright and long throw in a choice of color temperatures (3200K and 5600K) with high color rendering index

(CRI 90+). It also features beam shaping shutters, gobo/iris slots, and lens tubes that are interchangeable.

The ﬁxture is fully dimmable from 0% to 100% and can be controlled manually or via DMX controller. It

also supports power linking with built-in powerCON®connectors. Virtually quiet operation makes it ideal

for use in any situation. The ﬁxture is RDM-ready for precise monitoring of the LED chip’s performance

and status to make maintenance easy.

GETTING STARTED

Thank you for choosing LEO™ LED Zoom Ellipsoidal by Leviton

®

. Every LEO™ LED Zoom Ellipsoidal has

been thoroughly tested and has been shipped in perfect operating condition. Your package should include:

Power cords with alternate connectors, and, powerCON®extension cables are available. Please contact

Leviton and review product data sheets for details.

Important: Unpack the product and check the box to make sure all the parts are in the package and

are in good condition. If any of them are damaged, please contact the shipper to make a claim. If any

components are missing, please contact our Customer Service Department at 1-800-736-6682.

• Light Engine

• Fuse, glass tube, 6A (for 110V)

• Fuse, glass tube, 3A (for 220V)

• Safety Cable, 31.5" (800mm) with Spring Clips

• 36" - 39.5" (1m) power lead with powerCON®

& PBG (NEMA 5-15P Connector)

• powerCON®B connector

• User’s Guide

P3

Safety Cable

Rear View

Power in

Power switch

12 mm Hole

mounting yoke

Yoke fastening

knob

Display control

knob

Fuse

DMX input

(XLR5-pin male)

Handle

LCD display

DMX output

(XLR5-pin

female)

loop out

Light Engine Lens Tube 30-55 Lens Tube 18-36 Lens Tube 08-22

Note: Light Engine and Lens Tubes (sold separately)

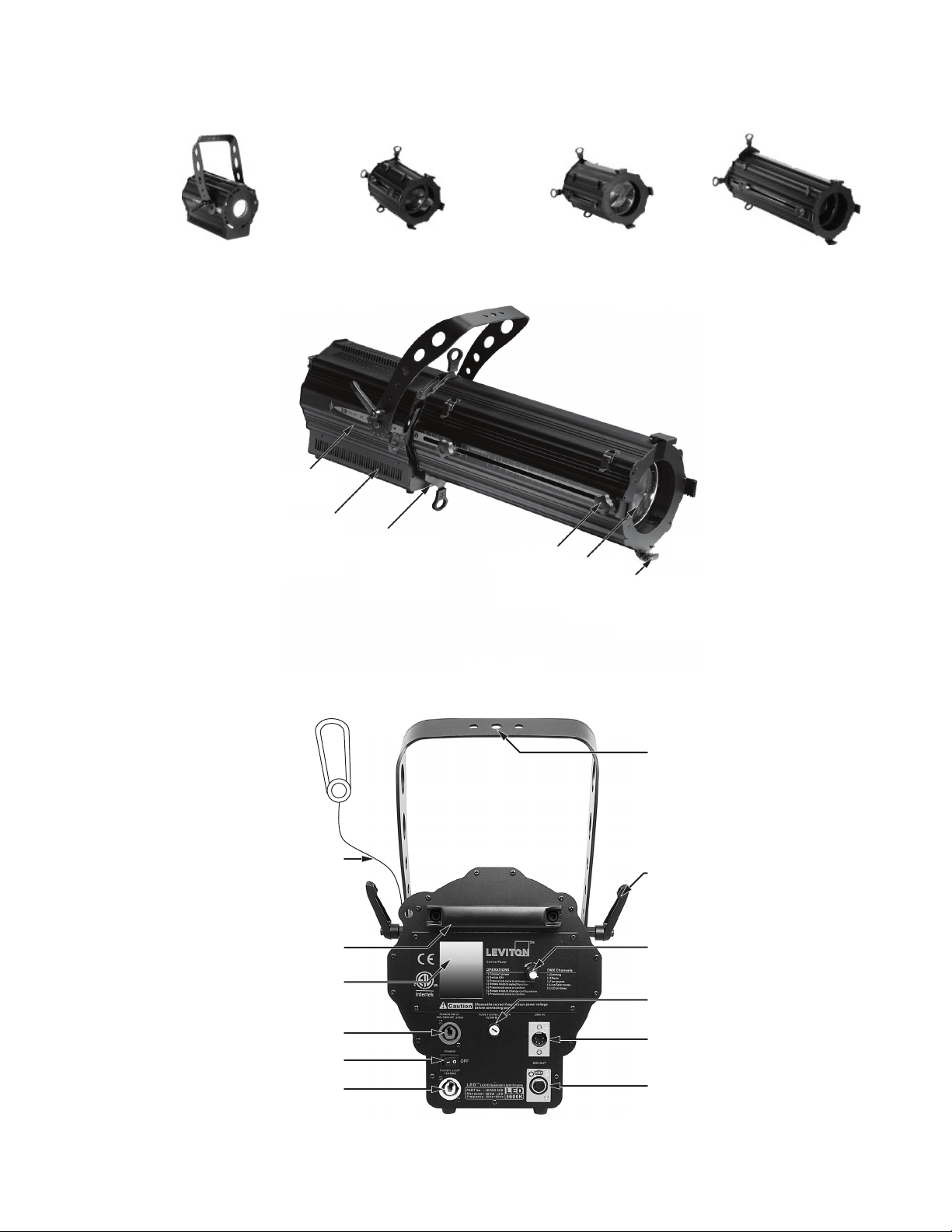

IDENTIFY THE PARTS

Power

Supply

Inside

Super quiet

cooling fan

less than

28dbA

@ 1m

4-Black Ended

shutters

Front View

Optical zoom

adjusting

knob

Glass

Lens 3-slot accessory

runners

P4

SAFETY NOTES

• This product contains no user-serviceable parts. Do not open the housing or attempt any repairs,

doing so will void the manufactures warranty. In the unlikely event the unit may require service please

contact Leviton Technical Support.

• Do not operate this product if you see damage on the housing, lenses, or cables.

• This product is for indoor use only! (IP20) To prevent risk of ﬁre or shock, do not expose this product to

rain or moisture. When transferring product from extreme temperature environments, (e.g. cold truck

to warm humid ballroom) condensation may form on the internal electronics of the product. To avoid

causing a failure, allow product to fully acclimate to the surrounding environment before connecting

it to power.

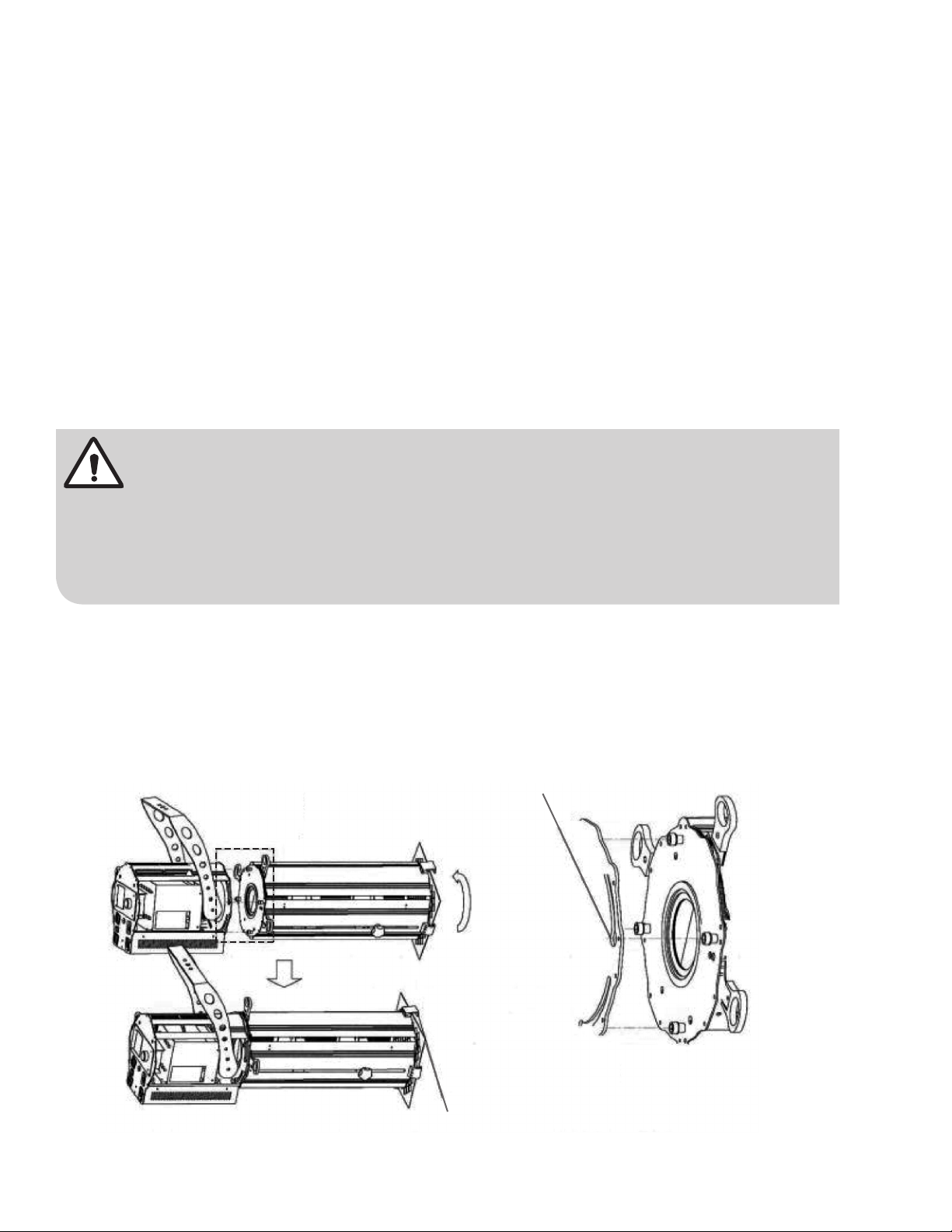

INSTALL LENS TUBE

CAUTION:

Do not operate the ﬁxture without a lens tube installed.

A complete ﬁxture requires a light engine and lens tube.

Open the lens tube cover and remove metal packing frame before use.

Rotate the tube to make sure it is attached and locked to the ﬁxture; otherwise the tube

assembly may inadvertently separate from the light engine.

To attach the lens tube, align the lens with the light engine’s lens mount index and turn the lens tube as

shown by the arrow until it clicks in place.

To detach the lens tube, turn the lens as shown by the arrow while pulling the two spring clips on each

side of the tube. Turn the lens until it stops, and then detach it.

Make sure the lens tube is attached and locked to

the ﬁxture while the retaining clip is facing on top.

ATTACH LENS TUBE

ZOOM IN

ATTACH LENS TUBE

Align the lens with the light engine’s lens mount

index. Turn the lens tube as shown by the arrow

until it clicks in place.

P5

Fuse pre-installed in BLACK fuse cover supports 220V AC Power only

Fuse pre-installed in GREY fuse cover supports 110V AC Power only

Always make sure you are connecting this product to the proper voltage in accordance

with the speciﬁcations in this manual or on the product’s speciﬁcation label.

Choose the correct fuse for your voltage before connecting power.

REPLACE FUSE

CAUTION:

Step 1: Unplug the product from power.

Step 2: Use a slotted screwdriver, push slightly and rotate counterclockwise

to open the fuse cap.

Step 3: Take out the fuse cap and fuse. Put a new fuse inside the fuse cap.

Step 4: Screw the fuse cap back in place and reconnect power.

CONNECT POWER

CAUTION:

LEO™ LED Zoom Ellipsoidal comes with a power lead terminated with a powerCON®A connector on

one side, and a PBG NEMA 5-15P connector on the other side. Other connector options are available

from Leviton or may be installed by your contractor. In addition, the ﬁxture is designed for "Feed-Thru"

operation using single power source connection at the ﬁrst ﬁxture, then, using powerCON®extensions

between ﬁxtures. The maximum load supported is 16A through the powerCON®connectors which is

reduced to 15A if you use a 15A source power connector like a NEMA 5-15P.

If creating your own powerCON®connectors, use the table below to wire the included powerCON®B

connector, or a local plug to the power lead.

Connection Wire

AC Live Brown

AC Neutral Blue

AC Ground Green / Yellow

WARNING: TO AVOID SERIOUS PERSONAL INJURY, always connect this product to

a grounded circuit.

FUSE 110V/6A; 220V/3A

SLOW BLOW

OPEN LOCK

P6

MOUNT FIXTURE

CAUTION:

LEO™ LED Zoom Ellipsoidal may be mounted in any position (max. tilting +45° to -90° from horizontal);

however, make sure there is adequate room for ventilation, conﬁguration, and maintenance.

The ﬁxture comes with a hanging/mounting yoke to which you can attach mounting clamps. The bracket

has a 0.5" (12mm) hole, which is appropriate for this purpose. Make sure the clamps are capable of

supporting the weight of this product.

FIXTURE ANGLE ADJUSTMENT

The ﬁxture can be tilted up and down to position the light where it is needed.

Step 1: Loosen the yoke fastening knob, use the handle on the rear of the unit to keep the ﬁxture

steady.

Step 2: With the ﬁxture turned on, use the handle to tilt it to the desired angle.

Step 3: Tighten the yoke fastening knob.

CONNECT DMX

LEO™ LED Zoom Ellipsoidal uses 5-pin XLR connectors for signal transmission and can be controlled

via DMX-512 protocol. The diagram below shows the ﬁxture’s XLR-5 signal ports.

Step 1: Connect the (male) 5-pin connector side of the DMX cable to the output (female) 5-pin connector

of the DMX console.

Step 2: Connect the end of the cable coming from the console which will have a (female) 5-pin connector

to the ﬁxture’s input port ("DMX IN") consisting of a (male) 5-pin connector.

Step 3: Then, proceed to connect from the output port ("LOOP") as stated above to the input of the

following ﬁxture and so on.

Always mount this product in a safe position with adequate ventilation and away from

a heat source, at least 20" (50 cm) from adjacent surface, and no ﬂammable materials

close by while it is operating, at least 8" (20 cm) from adjacent surfaces.

Always connect the provided Safety Cable to the ﬁxture and a suitable anchor. The safety

cable should loop through the ﬁxture yoke and be connected to a secure attachment at

the other end.

XLR Pin # Signal

1 common

2 data -

3 data +

4 NC

5 NC

1

2

3

4

5

4

3

2

1

DMX IN LOOP

XLR-5 si

g

nal ports

P7

ACCESSORIES

LEO™ LED Zoom Ellipsoidal can accommodate many different accessories.

ACCESSORY SLOTS

CAUTION:

LEO™ LED Zoom Ellipsoidal has the drop-in slot for gobo holder and 3 accessory slots in the front of the

ﬁxture, and is equipped with a spring-loaded barndoor clip that prevents color frames and accessories

from falling out.

Step 1: Release the barndoor clip by pushing it sideways while gently pulling backwards.

Step 2: Insert the media/accessories, secure with a safety cable where necessary.

Step 3: Lock the barndoor clip by pushing sideways while gently pushing forward.

Accessories such as barn doors and color scrollers must be secured by a safety cable

to the mounting structure.

Make sure all color / diffusion media are locked in position with the barndoor clip before

hanging the ﬁxture.

BEAM SHAPING

The LEO ellipsoidal spotlight has several features which allow you to shape the beam to your needs.

These features are best learned by experience and practice.

The beam can be shaped using the built-in shutters, a gobo pattern, a drop-in iris, or by rotating the lens tube.

The ﬁxture also features a variable beam, altered by adjusting the front and rear zoom lenses in relation

to each other. The front lens deﬁnes the beam spread, the rear lens the focus degree of ‘softness’ or

‘hardness’ of the beam edge or shutters.

CAUTION:

Always close the shutters when transporting or storing the product.

Description Part Number

Lens tube 08-22 LED08-LTB

Lens tube 18-36 LED18-LTB

Lens tube 30-55 LED30-LTB

Metal Color Frame 9.65" x 9.65" (245 x 245mm) LEDAC-CFB

Safety Guard 9.65" x 9.65" (245 x 245mm) LEDAC-SGB

"B" Size Pattern Holder (W 3-3/4", Open Dia 2-3/4") LEDAC-PTN

Safety Cable (included) TA0SC-000

P8

OPERATION

CAUTION:

LEO™ LED Zoom Ellipsoidal will start a self-checking process when power is applied. The unit will

display the DMX address for dimming when ready to use. For standard operation, connect the ﬁxture to a

power source (100~240V AC single phase), and a DMX signal cable. The LCD Display will turn on after

the power switch is turned to "ON" position. Now you are ready to set the desired conﬁguration and DMX

addresses.

You can assign a DMX channel to control dimming, cooling fan speed, LCD display-on time, built-in

effects and live/safe modes according to the DMX value on the "Menu Map". These parameters can also

be assigned through a console.

Do not touch this product’s housing during operation because it may be very hot if

overheated.

The maximum ambient temperature is 95˚F (35˚C). Do not operate this product at a

higher temperature.

Do not cover the ventilation holes when operating to avoid internal overheating.

Avoid direct eye exposure to the light source while the product is on.

In case of a serious operating problem, stop using this product immediately!

CONTROL INTERFACE

LEO™ LED Zoom Ellipsoidal comes with a LCD Display and a control knob on the rear of the unit for

control settings:

1. LED Temperature

2. DMX dimming address

3. Built-in effects

4. Cooling Fan speed control

5. Operation Mode: Live or Safe

6. LCD display on time

7. Control mode: DMX or Manual

8. DMX dimming address setting

9. Status-bar

10. Rotary-press-knob

1

2

3

4

5

6

9

8

7

10

CONTROL BASICS

CAUTION:

Connect power to the powerCON®connector at the rear side of LEO™ LED Zoom Ellipsoidal and switch

the power switch to the "ON" position. The LCD display will turn on and the ﬁxture is ready to operate.

The ﬁxture is defaulted for DMX control, press the rotary-press-knob once and rotate to move the cursor

to the desired operation icon.

SETTING DMX ADDRESS OF THE FIXTURE

Move the cursor to DMX Dim Address (see ﬁgure on page 8, #8) and press the rotary-press-knob. The

selected icon background will change to a red color. The DMX address for dimming the ﬁxture can be

changed by rotating the knob. A large 3-digit display (see ﬁgure on page 8, #2) and a small ﬁgure below

the DMX address icon (see ﬁgure on page 8, #8) will show the DMX address simultaneously. Press once

to conﬁrm the selected number of DMX address. The background color then returns to normal.

Note: LEO™ LED Zoom Ellipsoidal requires only one DMX channel for dimming, and that is the minimum

number of DMX channels needed for the ﬁxture.

SETTING CONTROL MODE TO "MANUAL CONTROL"

Repeat the steps to move the cursor over the DMX icon (see ﬁgure on page 8, #7) and press once. The

status-bar will appear "DMX" and "manual," rotate the knob to move the cursor over "manual" and press

once.

The Manual icon will replace the DMX and the status-bar will appear "STD" and "FINE". Select "STD" for

standard dimming (5 knob-rotations), and "FINE" for super ﬁne dimming (about 13 knob-rotations).

Press once to conﬁrm selection. The ﬁxture is ready for manual dimming control. The percentage of local

dimming will be shown at the status-bar. Press once to leave manual control mode.

SETTING THE TIME OF LCD DISPLAY-ON

Repeat the steps to select the LCD Display icon (see ﬁgure on page 8, #6) and press once. Rotate the

knob to change the DMX address for remote control. Press once again to conﬁrm DMX address and the

status-bar will appear "Esc" and the on time of the LCD, rotate the knob to select and press again to

conﬁrm. Rotate the knob to move the cursor to "Esc" at the status-bar and press once to leave.

P9

Check the fuse before connecting power.

P10

SETTING SAFE OPERATION MODE

CAUTION:

Repeat the steps to select the ﬁxture Operation Mode (see ﬁgure on page 8, #5) and press once. Rotate

the knob to change the DMX address for remote control. Press once again to conﬁrm DMX address and

the status-bar will appear "Esc"/"Live"/"Safe" for selection. Rotate the knob to select Live or Safe mode.

Press once to conﬁrm mode selection or press "Esc" to return to main menu.

At Safe mode, LEO™ LED Zoom Ellipsoidal will limit the light output when the LED temperature rises

above 149°F (65°C) in order to protect the LED light source from overheating. The light output will be the

ﬁrst priority when Live Mode is selected.

SETTING COOLING FAN SPEED

Repeat the steps to select the Cooling Fan Speed control (see ﬁgure on page 8, #4) and press once.

Rotate the knob to change the DMX address for remote control. Press once again to conﬁrm DMX address

and the status-bar will appear "Esc"/"Auto" and "Speed 1" to "Speed 4". Auto fan mode is recommended

in order to provide full cooling power for the ﬁxture at all times. Select lower fan speed for lower fan noise

operation. "Speed 1" to "Speed 4" represents 90%, 80%, 70% and 60% of full fan speed respectively.

Press once to conﬁrm selection or press "Esc" to return to main menu.

Note: By default the fan starts to operate in the slowest speed (60%) when LED temperature is detected

at 95 °F (35 °C) or above to maintain the lowest fan noise. The cooling fan cannot be turned off as heat

generated by the LED light source will affect the lifetime and performance of the ﬁxture.

SETTING BUILT-IN EFFECTS

LEO™ LED Zoom Ellipsoidal has 8 built-in ﬂashing and dimming effects for demonstration. Repeat the

steps to select the built-in effects (see ﬁgure on page 8, #3) and press once. Rotate the knob to change

the DMX address for remote control. Press once again to conﬁrm DMX address and the status-bar will

appear "Esc", and "Effect 1" to "Effect 8". Press once to conﬁrm selection or press "Esc" to return to main

menu.

"Live" mode allows the LED light source to operate at over-temp conditions which might

shorten the lifetime and even burn out the LED chip!

It is recommended to use the factory default "Safe" mode for normal operations.

P11

CONTROL ATTRIBUTES AND DEFAULT SETTINGS

The LEO™ LED Zoom Ellipsoidal ﬁxtures have several different control attributes. With the exception of

the dimming attribute which must be assigned a DMX value for remote control, all other attributes may be

manually set only at the ﬁxtures, or, remote controlled from your DMX console. Therefore, from a DMX

perspective, your ﬁxture may be a 1, 2, 3, or 4 channel ﬁxture depending on which attributes are assigned

to a channel. Some customers will assign a unique DMX address for each dimming attribute, then, a

common channel for all other attributes so ﬁxtures are always controlled together. The system is ﬂexible

so the speciﬁc conﬁguration is up to you.

Control Attribute Value

Range

Default

Value

Options

DMX Value Level Remarks

Dimming Address 1-512 1 Mandatory to assign DMX

channel to this attribute

Dimming mode Option 0-2 0 0

1

2

Dimming according to

DMX value

Dimming according to

manual knob

Restore to factory setting

LCD display on

time

Option 1-5 1 0-50

51-100

101-150

151-200

201-255

1

2

3

4

5

Continuously on

LCD display off after 30

seconds

LCD display off after 1

minute

LCD display off after 2

minutes

LCD display off after 3

minutes

LCD display on

time

Address 1-512 0 0-255

Operation mode Option 0/1 1 0-127

128-255

0

1

Live: Light output will be

the ﬁrst priority

Safe: LED over-temp

protection, light output will

be limited when temp. over

149°F (65°C)

Operation mode Address 1-512 0 0-255

P12

Menu Items Value

Range

Default

Value

Options

DMX Value Level Remarks

Fan speed Option 1-5 1 0-50

51-100

101-150

151-200

201-255

1

2

3

4

5

Auto

90% of full speed

80% of full speed

70% of full speed

60% of full speed

Fan speed Address 1-512 0 0-255

Built-in effects Option 0-8 0 0-20

21-40

41-70

71-100

101-130

131-160

161-190

191-220

221-255

0

1

2

3

4

5

6

7

8

Normal dimming

Flash effect 1 – super fast

Flash effect 2 – fast

Flash effect 3 – medium

Flash effect 4 – slow

Fade-in & fade-out effect 1

Fade-in & fade-out effect 2

Fade-in & fade-out effect 3

Fade-in & fade-out effect 4

Built-in effects Address 1-512 0 0-255

DEFAULT SETTINGS

MAINTENANCE

To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect

the product from power via breaker or by unplugging it.

EXPECTED LED LIFESPAN

LEDs gradually decline in brightness over time, mostly because of heat. Packaged in clusters, LEDs

exhibit higher operating temperatures than in ideal, single-LED conditions. For this reason, using

clustered LEDs at their fullest intensity signiﬁcantly reduces the LED's lifespan. Under normal conditions,

this lifespan can be 50,000 hours at 77 °F (25 °C). If extending this lifespan is vital, lower the operating

temperature by improving the ventilation around the product and reducing the ambient temperature to an

optimal operating range. In addition, limiting the overall projection intensity may also help to extend the

LED's lifespan.

P13

LENS

The lens in your ﬁxture is made of a high quality glass and reﬂective coating which should require little

maintenance. However, due to fog residue, smoke and dust, lens cleaning must be carried out periodically

to optimize light output. To maintain optimum performance and minimize wear, clean this product at least

twice a month. However, usage and environmental conditions contribute to increased cleaning frequency.

CAUTION:

Step 1: Unplug the product from power and wait until the product is at room temperature.

Step 2: Open the lens compartment door by lifting the two spring clips on the top of the lens tube.

Step 3: Remove dust with a blast of oil-free air or wipe with a clean, lint-free cloth. Isopropyl alcohol

may be used on the cloth.

Step 4: Make sure to dry all parts completely before plugging the product back in.

Do not use ammonia-based or other harsh commercial cleaners. They may damage the

glass surface and the Anti-Reﬂective coatings.

Replace lenses if they contain visible damage (cracks or deep scratches).

P14

WARRANTY INFORMATION

LEVITON LIGHTING & ENERGY SOLUTIONS DIVISION of Leviton manufacturing Co. Inc. warrants its

Entertainment Products to be free of material and workmanship defects for a period of two years after

system acceptance or 26 months after shipment, whichever comes ﬁrst. This Warranty is limited to repair

or replacement of defective equipment returned Freight Pre-Paid to Leviton Lighting & Energy Solutions

Division at 20497 Teton Ave., Tualatin, Oregon 97062, USA. User shall call 1-800-959-6004 and request

a return authorization number to mark on the outside of the returning carton, to assure that the returned

material will be properly received at Leviton. All equipment shipped back to Leviton must be carefully

and properly packed to avoid shipping damage. Replacements or repaired equipment will be returned to

sender freight prepaid, F.O.B. factory. Leviton is not responsible for removing or replacing equipment on

the job site, and will not honor charges for such work. Leviton will not be responsible for any loss of use

time or subsequent damages should any of the equipment fail during the warranty period, but agrees only

to repair or replace defective equipment returned to its plant in Tualatin, Oregon. This warranty is void

on any product that has been improperly installed, overloaded, short circuited, abused, or altered in any

manner. Neither the seller nor Leviton shall be liable for any injury, loss or damage, direct or consequential

arising out of the use of or inability to use the equipment. This Warranty does not cover lamps, ballasts,

and other equipment which is supplied or warranted directly to the user by their manufacturer. Leviton

makes no warranty as to the Fitness for Purpose or other implied Warranties.

TRADEMARK DISCLAIMER

Use herein of third party trademarks, service marks, trade names, brand names and/or product names

are for informational purposes only, are/may be the trademarks of their respective owners; such use is

not meant to imply afﬁliation, sponsorship, or endorsement.

FOR CANADA ONLY

For warranty information and/or product returns, residents of Canada should contact Leviton in writing at

Leviton Manufacturing of Canada Ltd to the attention of the Quality Assurance Department, 165 Hymus

Blvd, Pointe-Claire (Quebec), Canada H9R 1E9 or by telephone at 1 800 405-5320.

Leo is a registered trademark of Leviton Mfg. Co., Inc. in the U.S.A.:

NOTES

__________________________________________________________________________________

P15

P16

NOTES

__________________________________________________________________________________

DI-000-LED00-05A

LEVITON MANUFACTURING CO., INC.

LIGHTING & ENERGY SOLUTIONS DIVISION

20497 SW Teton Avenue. Tualatin, OR 97062

Telephone: 1-800-736-6682 FAX: 503-404-559

Tech Line (6:00 AM-4:00 PM P.S.T. Monday-Friday): 1-800-959-6004

Email: [email protected]

Leviton Manufacturing Co., Inc.

201 North Service Road, Melville, N.Y. 11747

Telephone: 1-800-323-8920 • FAX: 1-800-832-9538

Information and speciﬁcations are subject to change without notice.

DISCARD ANY OLDER VERSIONS OF THIS USER’S GUIDE AND REPLACE WITH THIS VERSION.

Visit Leviton’s Web site at http://www.leviton.com

LEO™

Leviton LEO LED00 User manual

Popular Lighting Equipment manuals by other brands
