Eton SOLARLINK FR500 User manual

American Red Cross
Radio Line By:
American Red Cross

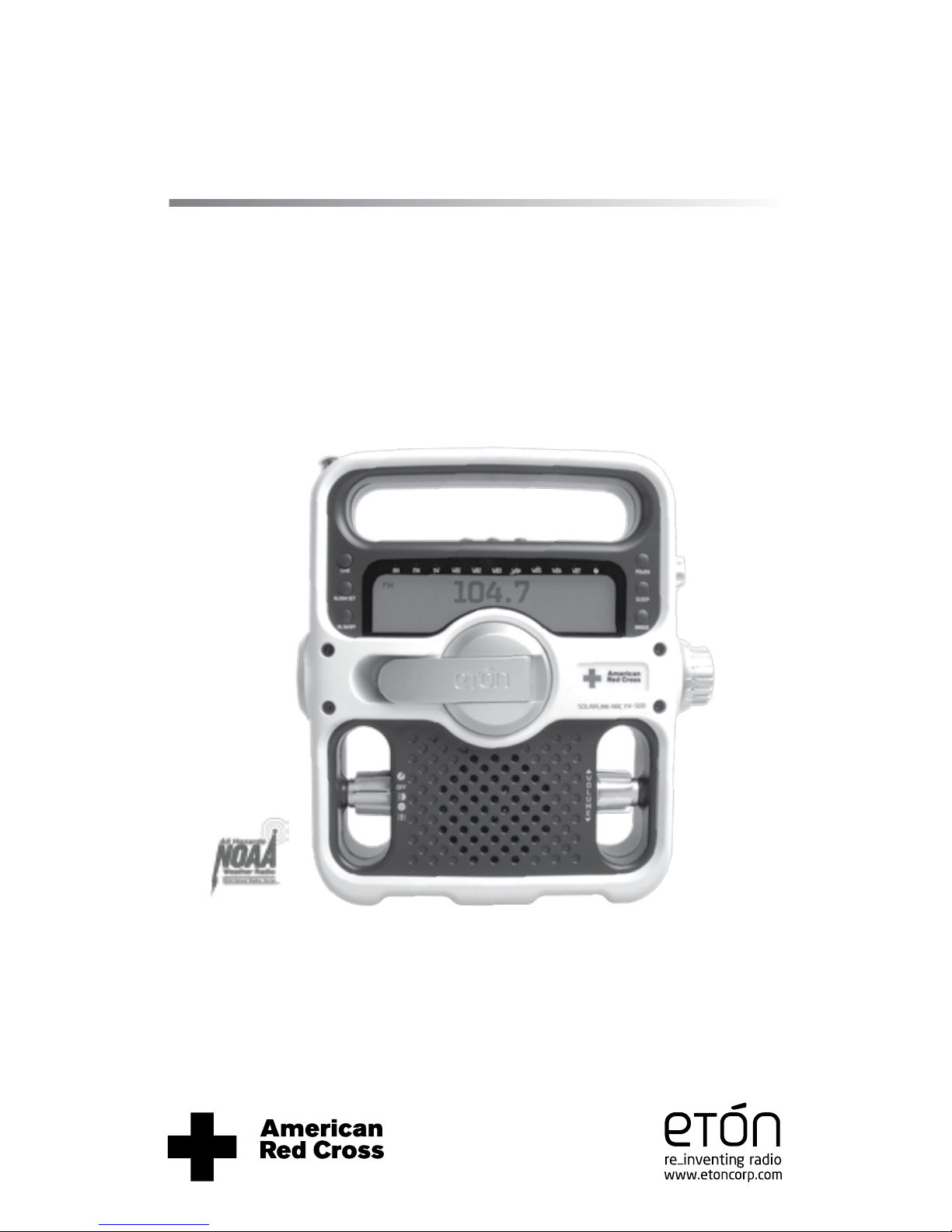

SOLARLINK FR500 by Etón
Self-Powered and Solar-Powered AM/FM/Shortwave Radio with
NOAA Weatherband, Flashlight, Siren and Cell Phone Charger
Owner’s Manual

3
AMERICAN RED CROSS SOLARLINK FR500 OWNER’S MANUAL
DO YOU NEED HELP?
If you need help, please contact us:
Monday-Friday, 8:30 a.m.-4:00 p.m., North American Pacific Time.
1-800-872-2228 from the U.S ; 1-800-637-1648 from Canada
650-903-3866, worldwide ; FAX: [phone] ; www.etoncorp.com
Etón Corporation, 1015 Corporation Way, Palo Alto, CA 94303, USA
WARNING
• Do not expose this appliance to rain or moisture.
• Do not submerge or expose for extended period to water.
• Protect from high humidity and rain.
• Only operate within specied temperature range (0 °C to 40 °C).
• Unplug immediately if liquid has been spilled or object have fallen into the
apparatus.
• Clean only with a dry cloth. Do not use detergents or chemical solvents as
this might damage the nish.
• Unplug and disconnect external antennas (not included) during lightning
storms.
• Do not remove cover [or back].
• Refer servicing to qualied service personnel.
Disposal
According to the European Directive 2002/96/EC all
electrical and electronic products must be collected
separately by a local collection system.
Please act according to your local rules and do not dispose of your
old products with your normal household waste.
ENVIRONMENT
American Red Cross Radio Line By:

4
AMERICAN RED CROSS SOLARLINK FR500 OWNER’S MANUAL
The FR500 plays AM (520-1710 KHz), FM (88-108 MHz), SW
(shortwave, 5.8 – 12.2 MHz) and 7 NOAA Weather Channels:
Channel 1 162.400 MHz
Channel 2 162.425 MHz
Channel 3 162.450 MHz
Channel 4 162.475 MHz
Channel 5 162.500 MHz
Channel 6 162.525 MHz
Channel 7 162.550 MHz
MIN: Minute Adjusting
Power Supply Knob
Frequency Tuning Knob
Bouton de sélection des
bandes
Band Selecting Knob
DC in Jack (Adaptor)
Earphone Jack
Audio in Jack
PHONE CHARGER: USB Jack for
Charging the Cellphone (big)
DC in: USB Jack for Charging the
Radio (small)
Battery Compartment
Telescopic Antenna
Charging Light (left)
Power Light (right)
Multifunctional Knob
Hand Crank
Focus Lamp
Speaker
POWER: Power On/OFF
SLEEP: Sleep Power
SNOOZE: 5 Min Snooze
LIGHT: LCD Backlight
HR: HourAdjusting
TIME : clock adjust button
ALARM SET : set alarm time
AL/ON/OFF:open/close alarm function

5
AMERICAN RED CROSS SOLARLINK FR500 OWNER’S MANUAL
VOLUME CONTROL
Turning the Volume Adjusting Knob (located on the lower right
of the radio) clockwise turns up the volume; counterclockwise
turns down the volume. Always turn down the volume before
using earphones.
POWERING AND TURNING ON THE FR500
The FR500 is powered with 3 AA batteries, the solar cell, the Dy-
namo (rechargeable Ni-MH battery), the AC adapter (not included)
or the DC computer input. Select BATTERY, SOLAR or DYNAMO
power with the Power Supply Knob on the upper right side of the
radio. The power sockets are on the back of the radio, under the
rubber covers. After applying power, select the correct position
with the Power Supply Knob and by pressing the POWER button.
Turn it off by placing the Power Supply Knob in the Off position.
Note: the radio can be played while it’s charging.
BATTERY POWER
Install 3 AA batteries and set the power selector switch to the BAT-
TERY position.
POWER: Power On/OFF
SLEEP: Sleep Power
SNOOZE: 5 Min Snooze

6
AMERICAN RED CROSS SOLARLINK FR500 OWNER’S MANUAL
SOLAR POWER
When you’re in sunlight set the power switch to the SOLAR posi-
tion. This position also recharges the Ni-MH rechargeable battery.
DYNAMO POWER
The rechargeable Ni-MH (nickel-metal-hydride) battery is in the
battery compartment. To use it plug the battery into the socket
adjacent to it, then set the power switch to the DYNAMO position.
You may have to charge the battery; to do this turn the crank for
90 seconds. The rechargeable battery will eventually lose its ability
to hold a charge. Call Eton Corporation to order another one.
DC-IN 5V AC ADAPTER (not included)
This socket is located on the back of the radio, under the rubber
plugs. Plug in the AC adapter to the DC IN 5 volt socket. This also
charges the Ni-MH battery.
DC-IN USB COMPUTER SOCKET (USB cord not included)
This socket is located on the back of the radio, under the rubber
plugs. Plug in the AC adapter to the DC IN 5 volt socket. This also
charges the Ni-MH battery.

7
AMERICAN RED CROSS SOLARLINK FR500 OWNER’S MANUAL
ANSWERS TO YOUR QUESTIONS
REGARDING CHARGING
How much operating time does hand cranking provide?
Cranking 120 times per minute, for 1 minute, plays the radio for
about 4 minutes at low volume. Since volume is relative this may
be higher or lower depending on how loud the volume is.
How long does it take to fully charge the battery by hand
cranking? It is not practical to charge the battery via hand
cranking. Since the battery capacity is 600mAh (milliamp hours).
Fully charging it by cranking would take 3 hours at 120 turns per
minute.
How do you switch from hand crank direct power to just
charging the battery? When in the OFF position, cranking or
solar cell is charging the cell phone or MP3; when the switch is at
the other 3 positions, both the solar cell and cranking can charge
the battery.
Can the solar cell power the radio on its own, or is it just
used to charge the battery? Yes, the solar cell can power the
radio on its own, and also charge the battery.
How long does it take the solar cell to charge the battery? It
will take 12-15 hours for the solar cell to charge the battery.
A fully charged battery will last about 6 hours at low volume when
receiving radio programs and about 5 hours at low volume when
receiving aircraft band.

8
AMERICAN RED CROSS SOLARLINK FR500 OWNER’S MANUAL
ORDERING A CELL PHONE ADAPTER TIP
Send Eton Corporation a post card with your name, address and
preferably your email address (telephone number is OK). Include
the radio model and the brand and model of your cell phone (the
model is often found on the body of the cell phone, under the
battery). The rst adapter tip is free of charge; additional adapter
tips are $5 each.
Alternately, you may call and order an adapter tip via our toll-free
number or send an email (go to www.etoncorp.com).
CHARGING CELL PHONES
If you revolve the Power Supply Knob to the OFF/PHONE CHAR-
GER position the radio will charge cell phones. Plug the cell phone
charging cord into the USB PHONE.
CHARGER
Jack at the rear of the radio. Plug the cell phone charging adapter
tip into the other end of the cord and then into the jack of the cell
phone. Then put the radio in the sun or revolve the hand crank to
charge the cell phone. About 10 minutes of cranking results in one
or two short emergency calls.

9
AMERICAN RED CROSS SOLARLINK FR500 OWNER’S MANUAL
CHARGING AND POWER LIGHT
Charging Light
• If charged by turning the hand crank, the charging light is green.
• If charged by solar, the charging light is orange.
• If charged by the external adaptor, the charging light is red.
Power Light
• If the battery power is full, the power light is green.
• If the battery power is medium, the power light is orange.
• If the battery power is low, the power light is red, please charge.
LCD BACKLIGHT
Press the LIGHT button to turn on the LCD backlight. It will light
for 5 seconds and then turn off.
SELECTING BANDS AND TUNING IN STATIONS
Turn the radio on. Select the band with the BAND Selection Knob
and by looking at the red light above the radio’s display. The red
light appears to the left of the band or the weather channel that
you’ve selected.
When listening to FM, Shortwave and Weather channels, pull up
the telescopic antenna all the way. When tuning AM stations the
telescopic antenna is not needed and can be lowered. Tune in sta-
tions by revolving the Frequency Tuning Knob.
The weather frequencies are on channels WB1 through WB7. Try
all of them and nd the one that’s strongest; the strongest one is
your weather station. Tune to it before setting the Weather Alert
feature, described below.

10
AMERICAN RED CROSS SOLARLINK FR500 OWNER’S MANUAL
SETTING THE WEATHER ALERT FEATURE
NOAA weather alerts warn you when a severe weather system is
approaching.
Turn on the radio and tune in the weather channel that has the
strongest signal. Then turn the Multifunction Knob (on the lower
left side of the front of the radio) up to the Weather Alert position
.Note that the weather alert LED lights up to the left of the
weather alert symbol above the display and to the farthest right.
After you’ve done this, the radio can be played on any other band,
when an alert comes it will be heard and you can change to the
weather channel.
SETTING THE TIME AND ALARM
IThe clock is a 12-hour clock, showing PM in the display starting
at Noon. Turn off the radio. While pressing and holding the TIME
or ALARM SET button, toggle the HR button (located above the
display) to adjust the hour. Then toggle the MIN button (located
above the display) to set the minutes.
TURNING THE ALARM ON AND OFF
With the radio on or off press the AL ON/OFF button. Notice that
when it’s on, ALARM appears in the lower right of the display.

11
AMERICAN RED CROSS SOLARLINK FR500 OWNER’S MANUAL
SNOOZE BUTTON
When the alarm activates, pressing the SNOOZE button deacti-
vates it for 5 minutes, then it starts again.
SLEEP FEATURE
The sleep timer can be activated with the radio turned on or off.
Activating the sleep timer enables the radio to play for 90, 60, 30
and 10 minutes, then shut off automatically.
To activate it press the SLEEP button (in the upper right corner of
the front of the radio). 90 minutes appears. If you don’t want it to
play for 90 minutes, keep pressing the button over and over and
notice that the other minute selections appear. When it’s on the
one you want, stop pressing. The radio plays for the number of
minutes and then stops.

12
AMERICAN RED CROSS SOLARLINK FR500 OWNER’S MANUAL
MULTIFUNCTION KNOB (lower left corner) continued
The function switch has ve positions. The top position is the
ALERT position, then the OFF, LIGHT, SOS and SIREN position. All
positions except OFF are labeled with an icon.
The ALERT position sets the Weather Channel alerts with the
radio on or off.
The OFF position turns the function switch off.
The LIGHT position turns the white lights on (left side of radio)
with the radio on or off.
The SOS position turns the red ashing light on. Can be used
with the radio on or off.
The SIREN position turns on the siren. Can be used with the
radio on or off.
EARPHONE JACK
Located on the back of the radio, under the rubber plugs. Plug in
any stereo earphones. Audio is heard in mono only. Always turn
down the volume before using earphone/headphoness.
AUDIO-IN JACK
Located on the back of the radio, under the rubber plugs, it en-
ables you to listen to other devices, such as an iPod, using a stereo
3.5 mm (1/8 inch) cord to connected to it.

13
AMERICAN RED CROSS SOLARLINK FR500 OWNER’S MANUAL
WARRRANTY REGISTRATION
To ensure full warranty coverage or product updates, registration
of your product should be completed as soon as possible after
purchase or receipt. You may use one of the following options to
register your product:
1. By visiting our website at http://www.etoncorp.com.
2. Mail in enclosed warranty card.
3. Mail your warranty card or information to following address;
include your name, full mailing address, phone number, email
address, model purchased, date purchased, retail vendor name:
Etón Corporation
1015 Corporation Way
Palo Alto, CA 94303 USA
LIMITED WARANTY
Retain the warranty information from your warranty card with your
proof of purchase or the Limited Warranty information can also be
viewed at www.etoncorp.com.
SERVICE FOR YOUR PRODUCT
To obtain service for your product, we recommend rst con-
tacting an Etón service representative at 1-800-872-2228 US,
1-800-637-1648 Canada, [phone], customersvc@etoncorp.
com or your respective country distributor in Europe (see enclosed
list) for problem determination and trouble-shooting. If further
service is required, the technical staff will instruct how to proceed
based on whether the radio is still under warranty or needs non-
warranty service.

14
AMERICAN RED CROSS SOLARLINK FR500 OWNER’S MANUAL
WARRRANTY
If your product is still in warranty and the Etón service representa-
tive determines warranty service is needed, a return authorization
will be issued and instructions will be given. DO NOT ship your
radio back without obtaining the return authorization.
NON-WARANTY
If your product is no longer under warranty and requires service,
the Etón service representative will refer you to the nearest repair
facility that will best handle the repair.
For service outside North America, please refer to the distributor
information included at time of purchase/receipt.
NOTE FCC
The manufacturer is not responsible for any radio or tv interference
caused by unauthorized modications to this equipment. Such
modications could void the user’s authority to operate the equip-
ment.

15
AMERICAN RED CROSS SOLARLINK FR500 OWNER’S MANUAL

GUÍA DE OPERACIÓN DE AMERICAN RED CROSS SOLARLINK FR500
17
¿NECESITA AYUDA?
Si necesita ayuda, contáctenos de
lunes a viernes, de 8:30 a.m. a 4:00 p.m., hora estándar del Pací-
fico de EE. UU. 1-800-872-2228 desde los EE UU; 1-800-637-1648
desde Canadá; 650-903-3866 desde el resto del mundo; FAX:
650-903-3867; sitio Web, www.etoncorp.com; Etón Corporation,
1015 Corporation Way, Palo Alto, CA 94303, EE UU.
ADVERTENCIA
• No exponga este dispositivo a lluvia o humedad.
• No exponga o sumerja este aparato al agua durante un período largo.
• Proteja el aparato de gran humedad y lluvia.
• Utilice la unidad solamente dentro de un rango de temperatura especicado
(0 °C a 40 °C).
• Desenchufe la unidad inmediatamente si ha caído líquido algún objeto dentro
de la radio.
• Limpie la unidad solamente con un paño seco. No utilice detergentes o disol-
ventes que puedan dañar la cubierta del dispositivo.
• Desenchufe y desconecte las antenas externas durante tormentas con relámpagos.
• No quite la cubierta [o la parte posterior].
• Si este producto muestra algún problema, póngase en contacto con personal
cualicado de servicio.
Eliminación
De acuerdo a la Directiva Europea 2002/96/EC,
todos los aparatos eléctricos y electrónicos deben
ser recolectados en forma separada por un
sistema local de recolección.
Por favor, actúe según las normas de su localidad y no elimine los
aparatos antiguos en su basura del hogar usual.
MEDIO AMBIENTE

GUÍA DE OPERACIÓN DE AMERICAN RED CROSS SOLARLINK FR500
18
El FR500 reproduce AM (520-1710 KHz), FM (88-108 MHz), SW
(onda corta, 5.8 – 12.2 MHz) y 7 canales de tiempo NOAA:
Canal 1 162.400 MHz
Canal 2 162.425 MHz
Canal 3 162.450 MHz
Canal 4 162.475 MHz
Canal 5 162.500 MHz
Canal 6 162.525 MHz
Canal 7 162.550 MHz
MIN: Ajuste de minutos
Botón de alimentación de
corriente
Botón de sintonización de
frecuencia
Botón de selección de banda
Botón de ajuste de volumen
Enchufe de entrada DC
(adaptador)
Entrada de auriculares
Enchufe de entrada de audio
Entrada DC: Enchufe USB para
carga de radio (pequeño)
Compartimento de baterías
Antena telescópica
Luz de carga (izquierda)
Luz de potencia (derecha)
Bouton multifonction
Manivela
Lámpara de enfoque
Altoparlantes
POTENCIA: Potencia ON/OFF
SLEEP: Ajuste de sleep
SNOOZE: Activación de snooze de 5
minutos
LUZ: Luz de fondo LCD
HR: Ajuste de hora
TIEMPO: Botón de ajuste
de reloj
AJUSTE DE ALARMA: Ajuste
del tiempo de alarma:
AL ON/OFF: Iniciar/cerrar
alarma

GUÍA DE OPERACIÓN DE AMERICAN RED CROSS SOLARLINK FR500
19
CONTROL DE VOLUMEN
Con el giro del botón de ajuste de volumen (ubicado en la parte
derecha inferior de la radio) en sentido de las agujas del reloj se au-
menta el volumen, mientras se reduce con un giro contra el sentido
de las agujas del reloj. El volumen debe bajarse siempre antes de
usar los auriculares.
ALIMENTACIÓN DE POTENCIA
Y ACTIVACIÓN DEL FR500
El FR500 es alimentado con 3 baterías del tipo AA, la célula solar, el
dinámo, (batería NI-MH recargable), el adaptador AC (no incluido)
o la entrada del computador DC. Seleccione la alimentación de
potencia por BATERÍA, SOLAR o DINÁMO con el botón de aliment-
ación de potencia ubicado en la parte derecha superior de la radio.
Los enchufes de potencia se encuentran en la parte posterior de la
radio, cubiertos con tapas de caucho. Después de la alimentación
de potencia, debe seleccionarse la posición correcta con el botón
de alimentación de potencia y pulsando a continuación el botón
POTENCIA. La radio se apaga mediante colocación del botón de
alimentación de potencia en la posición Off.
Nota: La radio puede seguir reproduciendo tocando durante su
carga
POTENCIA DE BATERÍA
Instale 3 baterías del tipo AA y coloque el selector de potencia en
la posición BATERÍA.
POTENCIA: Potencia ON/OFF
SLEEP: Ajuste de sleep
SNOOZE: Activación de snooze de 5
minutos

GUÍA DE OPERACIÓN DE AMERICAN RED CROSS SOLARLINK FR500
20
POTENCIA SOLAR
Instale 3 baterías del tipo AA y coloque el selector de potencia en
la posición BATERÍA.
POTENCIA POR DINÁMO
La batería recargable Ni-MH (níquel-metal-hidruro) se encuentra
en el compartimento de batería. Para usarla, debe enchufarse
la batería en el enchufe adyacente y colocar luego el botón de
potencia en la posición DINÁMO. Eventualmente tendrá que cargar
la batería, en este caso debe girarse la manivela durante aprox. 90
segundos. La batería recargable perderá eventualmente su capaci-
dad para mantener la carga. En este caso recomendamos contactar
a Eton Corporation para pedir el suministro de otra batería.
ADAPTADOR AC DE ENTRADA DC 5V (no incluido)
Cette douille se trouve au dos de la radio sous les protections en
caoutchouc. Branchez l’adaptateur AC à la douille DC IN de 5 volts.
Ceci permet également de recharger la pile Ni-MH.
ENCHUFE USB DE ENTRADA DC DE
COMPUTADOR (cable USB no incluido)
Este enchufe se encuentra en la parte posterior de la radio, cubi-
erto con una tapa de caucho. Permite la alimentación de potencia
desde un computador y recarga también la batería Ni-MH. Enchufe
el cable USB en el computador y en el enchufe USB de la radio.
