User Manual
EUROPORT EPA900
Ultra-Compact 900-Watt
8-Channel Portable PA System
with Digital Effects and
FBQ Feedback Detection
Thank you
Thank you for purchasing the EUROPORT EPA900. The
EPA900 is a portable, ultra-compact powered mixer/loudspeaker
combination with enormous power, unbelievable sound, and
an extremely low weight. The mixer unit has 8 input channels
(4 mono and 2 stereo channels), an internal 24-bit studio-
quality effects processor, and a 7-band graphic equalizer with
FBQ feedback detection. All channels have ultra-high precision
2-band EQs and CLIP LEDs for total control. At 900 Watts, the
high-performance power amp is properly sized, and with the
2 supplied loudspeakers a microphone, including cable, you can
get going right away!
With the EPA900, you can quickly and easily master any sound
situation.
We at BEHRINGER hope you enjoy your new acquisition.
Table of Contents
Thank you..................................................................... 1
Important Safety Instructions ................................... 2
1. Before You Get Started........................................... 3
2. Installation............................................................... 4
3. Control Elements and Connections...................... 5
4. Applications ............................................................ 9
5. Technical Specifications....................................... 10
6. Effects Table........................................................... 11
Legal Disclaimer ........................................................ 12
Warranty ..................................................................... 13

ENGLISH
EUROPORT EPA900 User Manual
2
Important Safety Instructions
Caution
*
To reduce the risk of electric shock, do not remove the top
cover (or the rear section). No user serviceable parts inside;
refer servicing to qualified personnel.
Warning
!
To reduce the risk of fire or electric shock, do not expose
this appliance to rain and moisture. The apparatus shall not
be exposed to dripping or splashing liquids and no objects
filled with liquids, such as vases, shall be placed on the
apparatus.
Caution
*
This symbol, wherever it appears, alerts you to the presence
of uninsulated dangerous voltage inside the enclosure—
voltage that may be sufficient to constitute a risk of shock.
Caution
!
This symbol, wherever it appears, alerts you to important
operating and maintenance instructions in the accompany-
ing literature. Please read the manual.
Caution
!
Read these instructions. {1}.
Keep these instructions. {2}.
Heed all warnings. {3}.
Follow all instructions. {4}.
Do not use this apparatus near water. {5}.
Clean only with dry cloth. {6}.
Do not block any ventilation openings. Install in accordance with the {7}.
manufacturer’s instructions.
Do not install near any heat sources such as radiators, heat registers, stoves, {8}.
or other apparatus (including amplifiers) that produce heat.
Do not defeat the safety purpose of the polarized or grounding-type plug. A {9}.
polarized plug has two blades with one wider than the other. A grounding
type plug has two blades and a third grounding prong. The wide blade or the
third prong are provided for your safety. If the provided plug does not fit into
your outlet, consult an electrician for replacement of the obsolete outlet.
Protect the power cord from being walked on or pinched particularly at [10].
plugs, convenience receptacles, and the point where they exit from the
apparatus.
Only use attachments/accessories specified by the manufacturer. [11].
Use only with the cart, stand, tripod, bracket, or table [12].
specified by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when
moving the cart/apparatus combination to avoid
injury from tip-over.
Unplug this apparatus during lightning storms or [13].
when unused for long periods of time.
Refer all servicing to qualified service personnel. Servicing is required when [14].
the apparatus has been damaged in any way, such as power supply cord or
plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
CAUTION - These service instructions are for use by qualified service [15].
personnel only. To reduce the risk of electric shock do not perform any
servicing other than that contained in the operation instructions.
The apparatus shall be connected to a MAINS socket outlet with a protective [16].
earthing connection.
Where the MAINS plug or an appliance coupler is used as the disconnect [17].
device, the disconnect device shall remain readily operable.

ENGLISH
EUROPORT EPA900 User Manual 3
Before You Get Started1.
Shipment1.1
Your EPA900 was carefully packed at the factory, and the
packaging was designed to protect the unit from rough handling.
Nevertheless, we recommend that you carefully examine the
packaging and its contents for any signs of physical damage that
may have occurred during transit.
If the unit is damaged, please do NOT return it to ◊
BEHRINGER. Instead, notify your dealer and the shipping
company immediately. Otherwise, claims for damage or
replacement may not be honored.
Always use the original packing carton to prevent damage ◊
during storage or transport.
Make sure that no children are left unsupervised with the ◊
unit or its packaging.
Please ensure proper disposal of all packing materials. ◊
Initial operation1.2
Be sure that there is enough space around the unit for cooling.
To avoid overheating, please do not place the EPA900 near
radiators and other equipment emanating heat.
Blown fuses must be replaced by fuses of the same type and ◊
rating! Please refer to the “TECHNICAL SPECIFICATIONS”
section for the correct rating. To avoid an electric shock,
turn off and unplug the unit before replacing the fuse. For
more information, please see Chapter 3.8 and Figure 3.9.
The mains connection is made using the enclosed power cord
and a standard IEC receptacle. It meets all of the international
safety certication requirements.
Before connecting the unit to the mains, please check that ◊
it is set to the correct supply voltage.
You have to use another fuse if you set the unit to another ◊
supply voltage. The correct value is specied in Chapter
“TECHNICAL SPECIFICATIONS”.
Please make sure that all units have a proper ground con- ◊
nection. For your own safety, never remove or disable the
ground conductor from the unit or of the AC power cord.
The unit shall always be connected to the mains socket
outlet with a protective earthing connection.
Please ensure that only qualied people install and operate ◊
the mixing console. During installation and operation, the
user must have sufcient electrical contact to earth, other-
wise electrostatic discharges might affect the operation of
the unit.
The sound quality may diminish within the range of pow- ◊
erful broadcasting stations and high-frequency sources.
Increase the distance between the transmitter and the
device and use shielded cables for all connections.
Online registration1.3
Please do remember to register your new BEHRINGER equip-
ment right after your purchase by visiting www.behringer.com
(alternatively www.behringer.de) and kindly read the terms and
conditions of our warranty carefully.
Should your BEHRINGER product malfunction, our goal is to
have it repaired as quickly as possible. To arrange for warranty
service, please contact the retailer from whom the equipment
was purchased. Should your BEHRINGER dealer not be located
in your vicinity, you may directly contact one of our subsidiaries.
Corresponding contact information is included in the original
equipment packaging (Global Contact Information/European
Contact Information). Should your country not be listed, please
contact the distributor nearest you. A list of distributors can be
found in the support area of our website (www.behringer.com/
support).
Registering your purchase and equipment with us helps us
process your repair claims quicker and more efciently.
Thank you for your cooperation!

ENGLISH
EUROPORT EPA900 User Manual
4
Installation2.
The EPA900 mobile PA system consists of two loudspeakers and
a powered mixer that easily join into a portable, wheeled unit for
easy transportation. In the following sections, you will nd out
how to set up and start up the PA system.
Setup Preparations2.1
Follow the instructions to ensure straightforward and reliable
operation of the EPA900.
Open the upper latch.1.
Open the latches on the sides of the PA unit by pressing and2.
then lifting them.
With one hand, grab hold of the recessed handle above the3.
latch on the side of the loudspeaker and hold the upper
handle with the other hand. Then, carefully remove the loud-
speaker sideways from the mixer.
Be careful to prevent the loudspeaker from accidentally ◊
falling on your foot.
Repeat Step 3 for the second loudspeaker.4.
Place the mixer in an upright position.5.
To assemble the PA unit for transportation, perform the ◊
steps in the reverse order.
Setup2.2
Separate the three pieces of the PA unit as described in1.
Chapter 2.1.
Place the mixing console and loudspeakers in the required2.
positions in the venue.
Use of the optional loudspeaker stands ensures a wider, ◊
more even dispersion of sound.
Using the supplied cables, connect the loudspeakers to the3.
rear loudspeaker outputs.
Caution
!
ONLY connect the EPA900’s loudspeakers, never other equip-
ment, via the rear loudspeaker connectors. Otherwise, your
equipment could get damaged.
Connect instruments, microphones, and additional4.
equipment via the remaining connectors on the mixer
(see Chapter 4).
If you have an active subwoofer available (not included),5.
connect it to the SUB OUT socket.
Ensure that the two volume control knobs in the MAIN6.
LEVEL CONTROL have been turned counterclockwise as
far as possible.
Use the IEC power cord to connect the mixer’s power inlet to7.
an AC outlet.
Turn on the mixer.8.
Make the desired settings.9.
Caution
!
We would like to point out that high volume levels
could damage your hearing. Always make sure that the
appropriate volume is set.

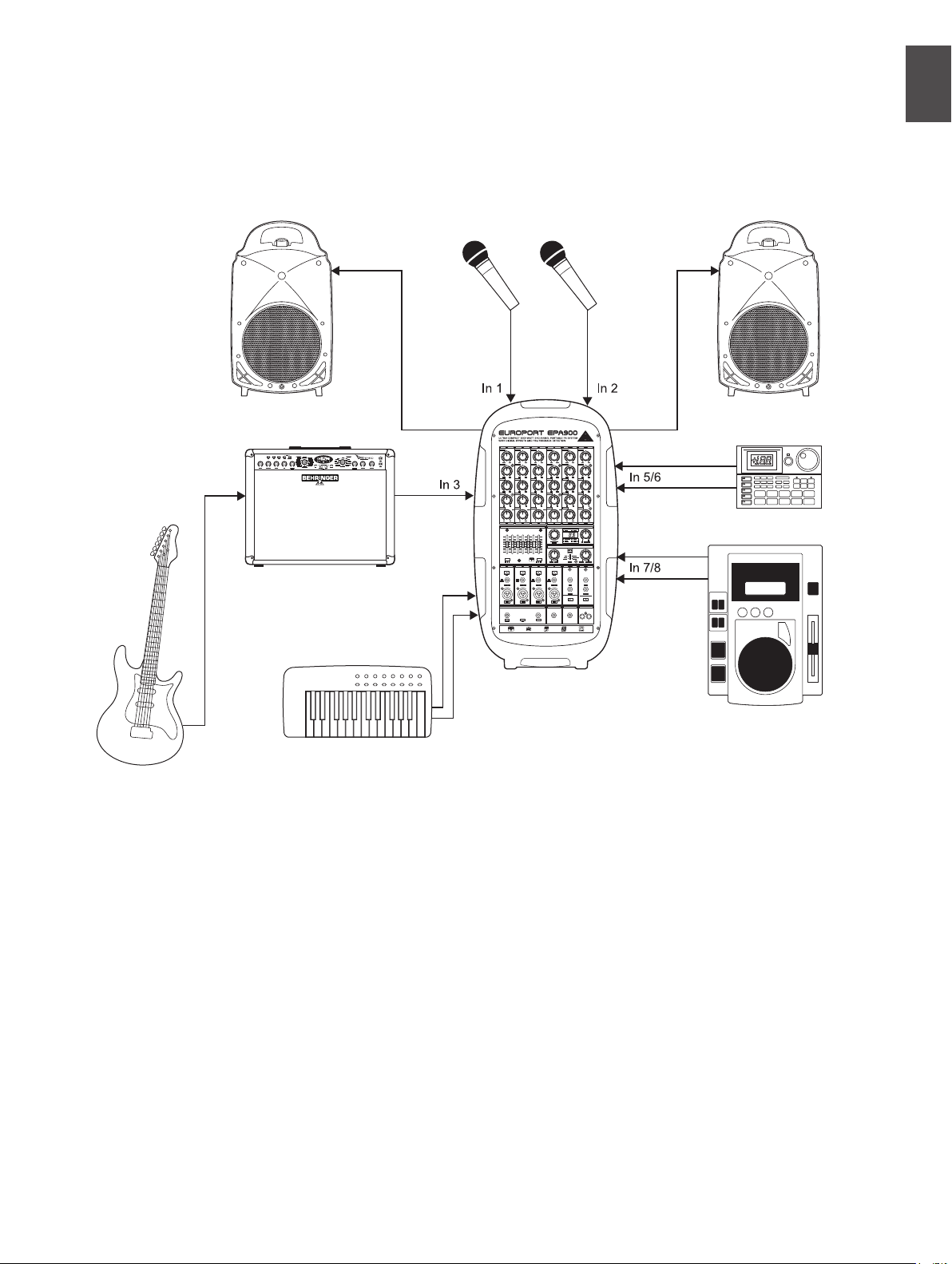

Fig. 2.1: EPA900 setup

ENGLISH
EUROPORT EPA900 User Manual 5
Control Elements and3.
Connections
The EPA900 mixer is equipped with 4 mono and 2 stereo inputs
and an additional AUX input. The input signals are internally
distributed to a stereo bus. It is also possible to use its channels
separately (mono), such as when used for FOH/PA and stage.
Depending on the requirements, one stereo or two independent
mono sounds can be run. An internal effect can be used as an
AUX effect from each channel. The 7-band graphic equalizer is
used to process the stereo bus or the two mono paths.

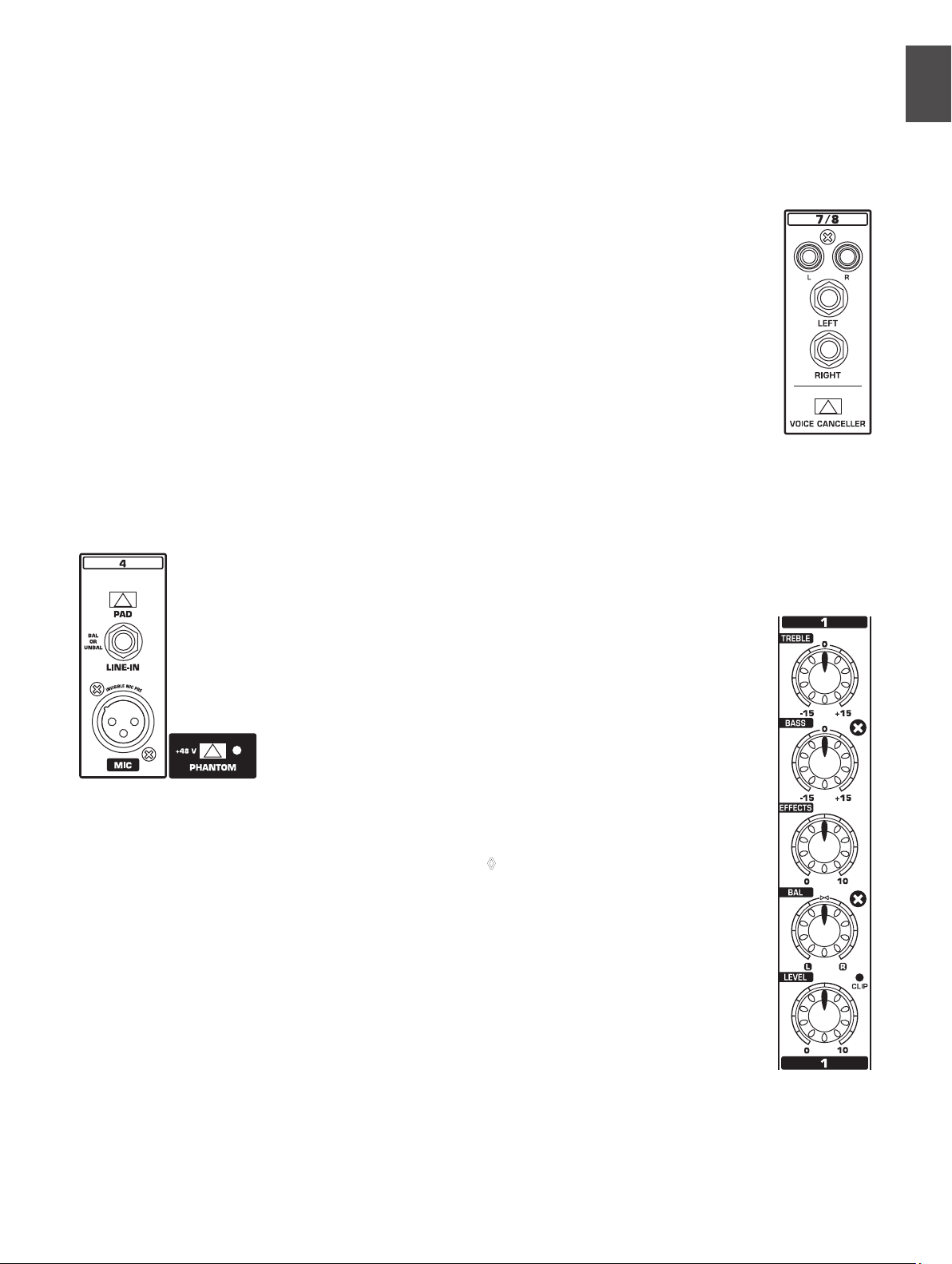

Mono Channels (1-4)3.1
Channels 1-4 are designed as mono channels and are used to
connect microphones or mono line-level sources. The connectors
are balanced to ensure high interference resistance. If possible,
you should use balanced cable connectors to prot from the
advantages of this type of connection.
Microphone/Line Inputs3.1.1
MIC
You can connect either dynamic
microphones or condenser
microphones to the MIC
connector using XLR plugs.
LINE IN
Via the LINE IN connector,
you can connect instruments
(e.g., keyboards, electric guitars)
or other line-level sources
(e.g., CD player, external
mixers, notebook sound card). The ¼" jack accepts both balanced
and unbalanced connectors.
PAD
With the PAD switch, you can weaken loud input signals by
20 dB. Use this function if the CLIP LED is lit up and the level
cannot be reduced any further using the LEVEL control.
PHANTOM
With the PHANTOM switch, you can activate the phantom
power supply for all microphone channels. Use the supply for
condenser microphones.
Stereo Channels (5/6-7/8)3.2
Channels 5/6-7/8 are designed as stereo channels and are used
to connect stereo line-level sources.
Line Inputs3.2.1
LEFT L / RIGHT R
Via these connectors, you can connect stereo
line-level sources (e.g., keyboard, CD player,
external mixers, notebook sound card). Either
the cinch jacks or the ¼" jacks can be used, but
not both at the same time.
VOICE CANCELLER CHANNEL 7/8
The VOICE CANCELLER function enables
voice to be ltered out of stereo signals. This
function is useful for karaoke applications with
a player (CD/MP3 player, etc.).
Channel Strips3.3
Each channel strip is equipped with an equalizer section, an
effects control, and one control each for signal routing and
volume control.
TREBLE/BASS
The equalizer section comprises these two
controls. With the TREBLE control, you can
modify the high frequencies, and with the
BASS control the low frequencies. Rotate the
control knob:
clockwise to boost the frequency range by•
max. 15 dB.
counterclockwise to cut the frequency range•
by max. 15 dB.
If you use the equalizer section to boost ◊
frequencies, the signal level of the channel
increases. If the CLIP LED lights up,
you need to reduce the level using the
corresponding LEVEL control.
EFFECTS
With the EFFECTS control, you can specify
the portion of the channel signal to be routed
to the effects unit. The further clockwise you
turn the control knob, the greater the effect
that is applied to the signal. Turning the knob
counterclockwise as far as possible results in a
signal with no effects.
Fig. 3.1: Mono channel connectors
Fig. 3.2: Stereo
channel
connectors
Fig. 3.3: Channel
strip for a mono
channel

ENGLISH
EUROPORT EPA900 User Manual
6
BAL
Use the BAL control of the mono channels to adjust the position
of the signal within the stereo image (left/right) or for both mono
paths. Turn the control:
completely to the left to hear the signal only on the left side,•
that is the LEFT/MAIN path.
completely to the right to hear the signal only on the right•
side, that is the RIGHT/MAIN path.
Positions between these settings will result in a proportionate
signal allocation between LEFT/MAIN and RIGHT/MAIN.
The BAL control determines the levels of a stereo source’s
left and right input signals in relation to each other. Turn the
control:
completely to the left to hear only the left signal component of•
the stereo source on the LEFT/MAIN path.
completely to the right to hear only the right signal compo-•
nent of the stereo source on the RIGHT/MAIN path.
Positions between these settings will result in a proportionate
signal allocation of the left/right signal component between
LEFT/MAIN and RIGHT/MAIN.
CLIP
When lit up, the CLIP LED indicates that the corresponding
channel is being overdriven. If this LED lights up regularly,
you need to reduce the level of the respective channel using the
LEVEL control and/or the PAD switch.
LEVEL
The LEVEL control is used to set the volume of the channel
signal. If the CLIP LED is lit up, the level has to be reduced
using this control.
Additional Connections3.4
The EPA900 is equipped with additional inputs and outputs as
well as a footswitch connector.
STEREO AUX IN
The STEREO AUX IN sockets are designed as separate ¼" jacks
and as a stereo minijack. You can connect additional devices
with adjustable line levels (e.g., other mixers, MD player) here.
The signal is sent directly to the output busses, with no further
adjustment possible. Use either the minijack or the two ¼" jacks,
not both types at the same time. For mono sources, use the
LEFT connector.
EFFECTS FOOTSW
The EFFECTS FOOTSW socket is used to connect a footswitch.
You can switch the effect on and off with the foot switch.
SUB OUT
You can connect an active subwoofer to the SUB OUT socket.
TAPE OUT
You can connect a 2-track recorder (DAT, MD, etc.) to the TAPE
OUT sockets. The two TAPE OUTs carry the output bus signals.
SPEAKER OUTPUTS
The SPEAKER OUTPUTS connectors on the back of the unit
are used to connect the supplied loudspeakers.
Fig. 3.4: Connectors for additional devices
Fig. 3.5: Powered connectors for passive loudspeakers

ENGLISH
EUROPORT EPA900 User Manual 7
Caution
!
The outputs are powered outputs, which put out a strong,
amplified signal (not a low-level LINE signal!). For this reason,
only PASSIVE loudspeaker systems can be connected. Other
devices could get damaged.
If loudspeakers with an impedance of 4 Ω are used, the two •
outputs have a maximum power of 900 W.
If loudspeakers with an impedance of 8 Ω are used, the two •
outputs have a maximum power of 800 W.
Graphic Equalizer3.5
The EPA900 is equipped with a 7-band graphic equalizer, which
enables you to adapt the sound to the room conditions and your
own ideas for the sound. The equalizer always processes the
LEFT/MAIN and RIGHT/MAIN bus equally.
EQ ON
You can activate the equalizer using the EQ ON switch.
FBQ ON
Using the FBQ ON switch, you can activate the feedback
detection circuit. This function only has an effect if the equal-
izer is active. For every frequency that causes feedback, the
corresponding LED on a slide control lights up. Lowering the
displayed frequency minimizes feedback.
Effects Unit3.6
The EPA900 is equipped with an internal stereo effects proces-

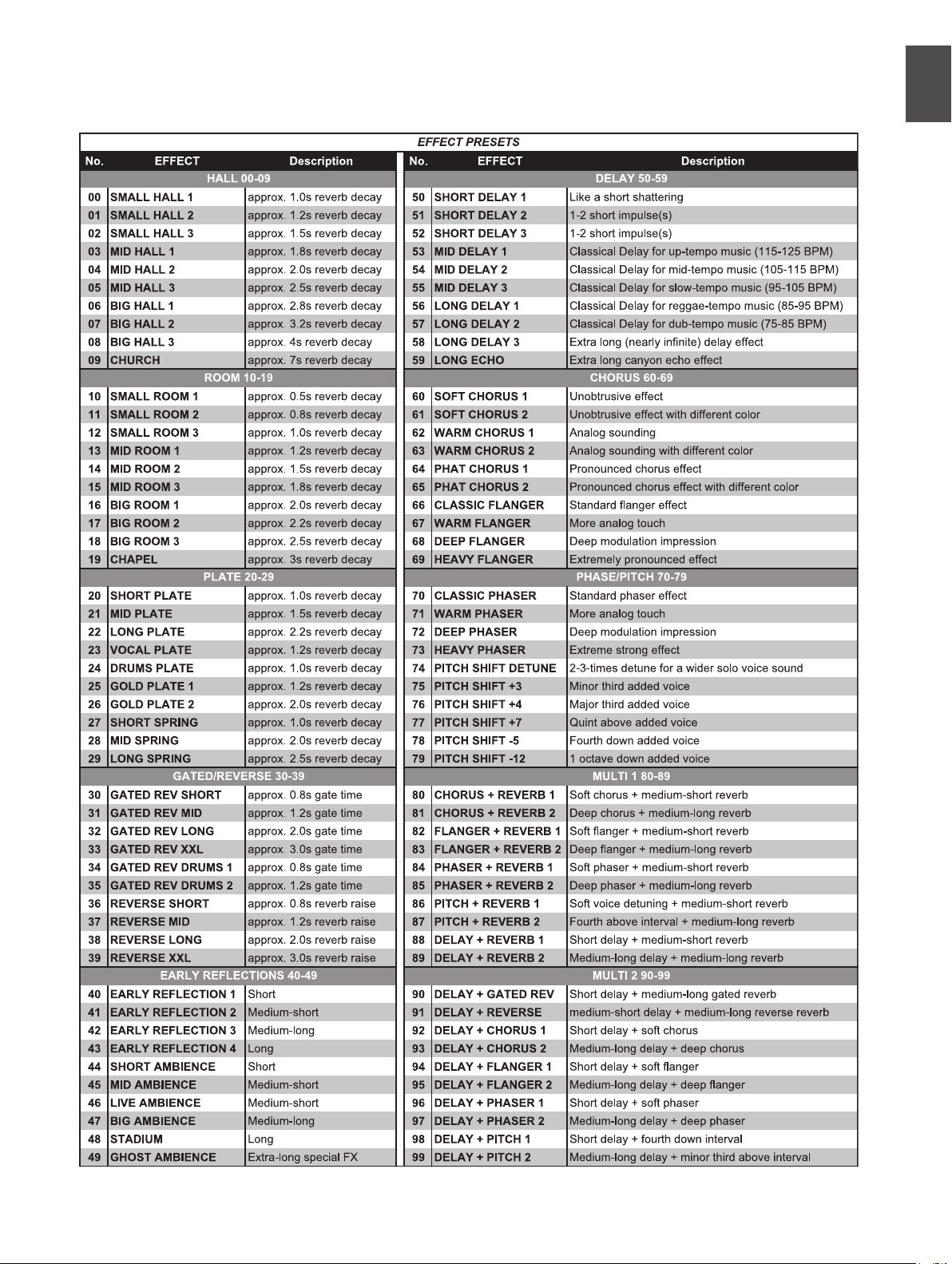

sor, which offers 100 different standard effects, including reverb,
chorus, anger, and echo, as well as various multieffects. It is
permanently integrated into the mixer as a Send/Return effect;
i.e., an adjustable signal portion can be routed to the effects unit
from every input channel. The selected effect is applied to the
signal portions of the channels, and the signals are then mixed
with the direct signals via the stereo bus.
CLIP/SIG
The CLIP and SIG LEDs provide information on the signal level
on the effects unit.
When continuously lit up, the CLIP LED indicates a signal•
overdrive. In this case, the effects unit input level should
be reduced through lowering of the Send level using the
EFFECTS controls for the input channels.
The SIG LED signalizes that the effects processor is receiv-•
ing a signal and is working. If the LED is not lit up, the input
signal is too weak.
PROGRAM PUSH
You can turn the PROGRAM control knob to select an effects
preset. Then press the knob to activate the selected effect.
EFFECTS LEVEL
The EFFECTS (LEVEL) control is used to adjust the effects
signal volume.
Fig. 3.6: Graphic equalizer section
Fig. 3.7: Internal 24-bit multieffects unit

ENGLISH
EUROPORT EPA900 User Manual
8
Main Power Section3.7
The operating volume of the sound system is set via the main
power section (MAIN LEVEL CONTROL).
LEFT/MAIN AND RIGHT/MAIN
The two controls are used to adjust the volume of the corre-
sponding loudspeaker outputs.
MODE
With the MODE switch, the power amplier section can be
switched to stereo or mono mode. Depending on the setting,
the limiter, which provides overdrive protection for the system,
works in coupled stereo or independent mono mode.
Always remember to set the switch according to the given ◊
application to avoid incorrect limiter behavior!
Power Supply and Serial Number3.8
FUSE HOLDER/IEC SOCKET
Connection to an AC power supply is made via an IEC socket. It
complies with applicable safety regulations. A suitable AC power
cord is included. Replace the fuse with a fuse of the same type.
To avoid an electric shock, turn off and unplug the unit ◊
before replacing the fuse.
POWER SWITCH
Use the POWER switch to start up the unit. The POWER switch
should be in the “Off” position when you connect the unit to the
AC power supply.
To disconnect the unit from the power supply, pull out the power
plug. When starting up the unit, ensure that the power plug is
easily accessible.
Please note: Switching the POWER switch off does not com- ◊
pletely disconnect the unit from the power supply. For this
reason, you should unplug the power cord if the unit is not
going to be used for a long period of time.
VOLTAGE SELECTOR
The VOLTAGE SELECTOR switch lets you set the correct
operating voltage.
Before connecting the unit to the mains, please check that ◊
it is set to the correct supply voltage.
You have to use another fuse if you set the unit to another ◊
supply voltage. The correct value is specied in Chapter
“TECHNICAL SPECIFICATIONS”.
SERIAL NUMBER
The serial number can be found on the back of the mixer. It is
needed for online registration.

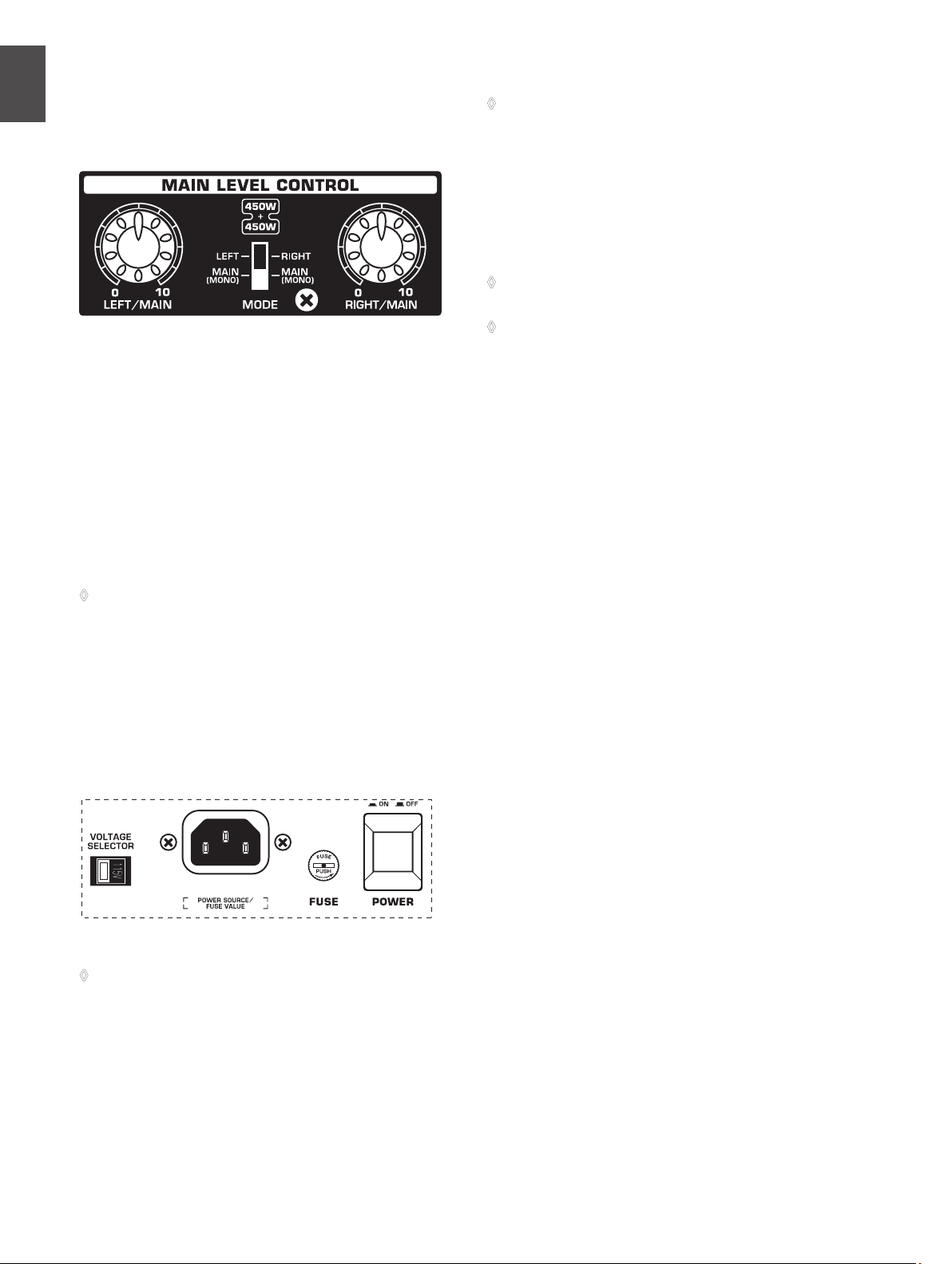

Fig. 3.8: Control elements in the main power section
Fig. 3.9: Power supply and fuse

ENGLISH
EUROPORT EPA900 User Manual 9
Applications4.
EPA900
Keyboard
CD player
Drum Computer
Speaker Output
Right/Main
ULTRAVOICE XM8500
Electric Guitar
V-AMPIRE LX112 Stereo
AUX In
Speaker Output
Lef/Main
Fig. 4.1: Sound example
The EPA900 can be used for simple sound tasks, e.g., ampli-
cation of the presenter’s voice, playback sound, or karaoke
applications, as well as for demanding tasks such as band
amplication or stage monitor sound. A typical example of use
as a sound system for music with live instruments and players is
given below.

ENGLISH
EUROPORT EPA900 User Manual
10
Technical Specifications5.
INPUTS 1-4
Type 4 x XLR, electronically balanced, 4 x ¼" TRS
jack, electronically balanced
Impedance approx. 2.2 kΩ , balanced,
approx. 1.1 kΩ , unbalanced
Input sensitivity - 21 dBu @ PAD/OFF
Max. gain + 30 dB to + 10 dB
Phantom power supply + 48 V
Signal-to-noise ratio - 90 dB, A-weighted
Channel separation 70 dB
INPUTS 5-8
Type 4 x ¼" TS jack, unbalanced 4 x RCA phono
jack, unbalanced
Impedance approx. 20 kΩ , unbalanced
Input sensitivity - 15 dBu
Max. gain + 20 dB
Signal-to-noise ratio - 85 dB, A-weighted
STEREO AUX IN
Type 1 x ¼" TS jack, unbalanced
1 x stereo minijack, unbalanced
Impedance approx. 100 kΩ , unbalanced
Input sensitivity - 8 dBu
Signal-to-noise ratio - 90 dB, A-weighted
TAPE OUT
Type 2 x cinch jack, unbalanced
Impedance approx. 1 kΩ
Max. output level + 17 dBu, unbalanced
Channel separation > 70 dB
SUB OUT
Type 1 x ¼" stereo jack, unbalanced
Impedance approx. 1 kΩ
Max. output level + 21 dBu, unbalanced
CHANNEL EQ
BASS ± 15 dB @ 80 Hz
TREBLE ± 15 dB @ 27 kHz
EFFECTS
Converter 24-bit delta-sigma
Sampling frequency 40 kHz
Display 2-digit, 7-segment
EQ
Type 7-band
LOUDSPEAKER OUTPUTS
Type 2 x ¼" TS jack
Load impedance 8 Ω
OUTPUT POWER
RMS @ 1% THD (sine signal) 8 Ω 2 x 360 W; 4 Ω 2 x 400 W
Peak power 8 Ω 2 x 400 W; 4 Ω 2 x 450 W
SYSTEM SPECIFICATIONS
Frequency response 50 Hz to 44 kHz, ± 3 dB
Distortion (THD + N) 0.32% @ 1 W
POWER SUPPLY
Power consumption 1,000 W
Fuse T 10 A H 250V
(100 – 120 V~, 50/60 Hz)
T 10 A H 250 V
(220 – 240 V~, 50/60 Hz)
DIMENSIONS/WEIGHT
Dimensions (H x W x D) approx. 660 mm x 354 mm x 883 mm
(26.0" x 13.9" x 34.8")
Weight approx. 37.5 kg (82.5 lb)
BEHRINGER is constantly striving to manintain the highest professional standards. As a result of these
efforts, modifications may be made from time to time to existing products without prior notice.
Specifications and appearance may differ from those listed or liiustrated.

ENGLISH
EUROPORT EPA900 User Manual 11
Effects Table6.

ENGLISH
EUROPORT EPA900 User Manual
12
FEDERAL COMMUNICATIONS
COMMISSION COMPLIANCE
INFORMATION
Responsible party name: BEHRINGER USA, Inc.
Address: 18912 North Creek Parkway,
Suite 200 Bothell, WA 98011,
USA
Phone/Fax No.: Phone: [phone]
Fax: [phone]
hereby declares that the product
EUROPORT EPA900
complies with the FCC rules as mentioned in the following
paragraph:
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause
harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more
of the following measures:
Reorient or relocate the receiving antenna.•
Increase the separation between the equipment and•
receiver.
Connect the equipment into an outlet on a circuit different•
from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician•
for help.
This device complies with Part 15 of the FCC rules. Operation
is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
Important information:
Changes or modifications to the equipment not expressly
approved by BEHRINGER USA can void the user’s authority
to use the equipment.
Legal Disclaimer
Technical specications and appearance are subject to change without notice.
The information contained herein is correct at the time of printing. All
trademarks (except BEHRINGER, the BEHRINGER logo and JUST LISTEN)
mentioned belong to their respective owners and are not afliated with
BEHRINGER. BEHRINGER accepts no liability for any loss which may be
suffered by any person who relies either wholly or in part upon any description,
photograph or statement contained herein. Colors and specications may vary
slightly from product. Products are sold through our authorized dealers only.
Distributors and dealers are not agents of BEHRINGER and have absolutely
no authority to bind BEHRINGER by any express or implied undertaking or
representation. No part of this manual may be reproduced or transmitted in
any form or by any means, electronic or mechanical, including photocopying and
recording of any kind, for any purpose, without the express written permission of
BEHRINGER International GmbH.
ALL RIGHTS RESERVED. © 2008 BEHRINGER International GmbH.
Hanns-Martin-Schleyer-Str. 36-38, 47877 Willich, Germany.
Tel. [phone], Fax [phone]
EUROPORT EPA900

ENGLISH
EUROPORT EPA900 User Manual 13
Other warranty rights and national law§ 1
This warranty does not exclude or limit the buyer’s statutory rights provided [1].
by national law, in particular, any such rights against the seller that arise
from a legally effective purchase contract.
The warranty regulations mentioned herein are applicable unless they
[2].
constitute an infringement of national warranty law.
Online registration§ 2
Please do remember to register your new BEHRINGER equipment right after
your purchase by visiting http://www.behringer.com and kindly read the terms
and conditions of our warranty carefully. Registering your purchase and equip-
ment with us helps us process your repair claims quicker and more ef ciently.
Thank you for your cooperation!
Warranty§ 3
BEHRINGER (BEHRINGER International GmbH including all [1].
BEHRINGER subsidiaries, except BEHRINGER Japan) warrants the
mechanical and electronic components of this product to be free of defects in
material and workmanship for a period of one (1) year*from the original date
of purchase, in accordance with the warranty regulations described below. If
the product shows any defects within the speci ed warranty period that are
not excluded from this warranty as described under § 5, BEHRINGER shall,
at its discretion, either replace or repair the product using suitable new or
reconditioned parts. In the case that other parts are used which constitute
an improvement, BEHRINGER may, at its discretion, charge the customer
for the additional cost of these parts.
If the warranty claim proves to be justi ed, the product will be returned to
[2].
the user freight prepaid.
Warranty claims other than those indicated above are expressly excluded.
[3].
Return authorization number§ 4
To obtain warranty service, the buyer (or his authorized dealer) must [1].
call BEHRINGER during normal business hours BEFORE returning the
product. All inquiries must be accompanied by a description of the problem.
BEHRINGER will then issue a return authorization number.
Subsequently, the product must be returned in its original shipping carton,
[2].
together with the return authorization number to the address indicated by
BEHRINGER.
Shipments without freight prepaid will not be accepted.
[3].
Warranty regulations§ 5
Warranty services will be furnished only if the product is accompanied by a [1].
copy of the original retail dealer’s invoice. Any product deemed eligible for
repair or replacement under the terms of this warranty will be repaired or
replaced.
If the product needs to be modi ed or adapted in order to comply with appli-
[2].
cable technical or safety standards on a national or local level, in any country
which is not the country for which the product was originally developed and
manufactured, this modi cation/adaptation shall not be considered a defect
in materials or workmanship. The warranty does not cover any such modi -
cation/adaptation, irrespective of whether it was carried out properly or not.
Under the terms of this warranty, BEHRINGER shall not be held respon-
sible for any cost resulting from such a modi cation/adaptation.
Free inspections and maintenance/repair work are expressly excluded from
[3].
this warranty, in particular, if caused by improper handling of the product
by the user. This also applies to defects caused by normal wear and tear, in
particular, of faders, crossfaders, potentiometers, keys/buttons, tubes, guitar
strings, illuminants and similar parts.
Damage/defects caused by the following conditions are not covered by this
[4].
warranty:
improper handling, neglect or failure to operate the unit in compliance•
with the instructions given in BEHRINGER user or service manuals;
connection or operation of the unit in any way that does not comply with•
the technical or safety regulations applicable in the country where the
product is used;
damage/defects caused by force majeure or any other condition that is•
beyond the control of BEHRINGER.
Any repair or opening of the unit carried out by unauthorized personnel
[5].
(user included) will void the warranty.
If an inspection of the product by BEHRINGER shows that the defect in
[6].
question is not covered by the warranty, the inspection costs are payable by
the customer.
Products which do not meet the terms of this warranty will be repaired ex-
[7].
clusively at the buyer’s expense. BEHRINGER will inform the buyer of any
such circumstance. If the buyer fails to submit a written repair order within
6 weeks after noti cation, BEHRINGER will return the unit C.O.D. with
a separate invoice for freight and packing. Such costs will also be invoiced
separately when the buyer has sent in a written repair order.
Warranty transferability§ 6
This warranty is extended exclusively to the original buyer (customer of retail
dealer) and is not transferable to anyone who may subsequently purchase this
product. No other person (retail dealer, etc.) shall be entitled to give any war-
ranty promise on behalf of BEHRINGER.
Claim for damage§ 7
Failure of BEHRINGER to provide proper warranty service shall not entitle
the buyer to claim (consequential) damages. In no event shall the liability of
BEHRINGER exceed the invoiced value of the product.
* Customers in the European Union please contact BEHRINGER Germany Support for further details.
Warranty

ENGLISH
This manual is available in English, German, French,
Spanish, Italian, Russian, Polish, Dutch, Finnish, Swedish,
Danish, Portugese, Greek, Japanese and Chinese. There may
also be more current versions of this document. Download them
by going to the appropriate product page at:
www.behringer.com
