EUROPRO 50TH User manual

USER MANUAL
THERMAL COMPRESSORS
EUROPRO 50TH & 100TH
Ref. 91318 & 80312
EUROPE PROJECTION - Z .I. Rousset Parc Club - 343, avenue Francis Perrin - 13106 Rousset sur Arc Cedex
Tél : [phone] – Fax : [phone]
SAS au capital de 400 000€ - SIREN 394 961 510 – 2892 Z
Edition of 23/03/2017

User manual - EUROPRO 50TH & 100TH compressors 201703-211-ENG
P2

201703-211-ENG User manual - EUROPRO 50TH & 100TH compressors
P3
SUMMARY
1. INTRODUCTION...........................................................p. 4
2. USER MANUAL ...........................................................p. 5
2.1. Importance of the manual .................................................p. 5
2.2. Receivers of the manual ..................................................p. 5
3. WARNING.................................................................p. 6
3.1. Safety ...................................................................p. 6
3.2. End-of-life of the product ..................................................p. 7
4. YOUR COMPRESSOR .....................................................p. 8
4.1. Description ..............................................................p. 8
4.2. Technical characteristics ..................................................p. 8
4.3. Identication of the components of the compressor EUROPRO 50TH .........p. 9
4.3. Identication of the components of the compressor EUROPRO 100TH ........p.11
5. USE OF THE MACHINE....................................................p.13
5.1. Prerequisites.............................................................p.13
5.2. Starting up ...............................................................p.13
5.3. Stopping of the compressor ...............................................p.13
6. MAINTENANCE AND SERVICING ..........................................p.14
6.1. Once per week ...........................................................p.14
6.2. Every 200 working hours ..................................................p.14
7. DEFECTS AND REMEDIES ................................................p.14
8. DECLARATION OF CONFORMITY .........................................p.15
9. WARRANTY...............................................................p.17
9.1. Warranty conditions ......................................................p.17
9.2. Warranty certicate .......................................................p.19

User manual - EUROPRO 50TH & 100TH compressors 201703-211-ENG
P4
1. INTRODUCTION
You just acquired a thermal compressor and all the team of Europe Projection thanks you for the
condence you have granted us.
Manufacturer of professional equipments for paint and llers, we have put our know-how for 20 years
at the service of the users of our machines.
Our technical and commercial team is at your disposal for any further information you may need about
the machine you just acquired.
EUROPE PROJECTION
Z .I. Rousset Parc Club - 343, avenue Francis Perrin - 13106 Rousset sur Arc Cedex
Tél : [phone] – Fax : [phone]
SAS au capital de 400 000€ - SIREN 394 961 510 – NAF 2892 Z

201703-211-ENG User manual - EUROPRO 50TH & 100TH compressors
P5
2. USER MANUAL
2.1. IMPORTANCE OF THE MANUAL
This manual is a key part for the use of your machine. It summarizes the procedures of starting-up,
cleaning and maintenance of the device and also the safety instructions you need to observe.
Read carefully all the working and safety instructions and the warnings included in this manual before
starting your machine.
Most of the accidents are caused by the non-compliance of the safety standards and rules.
This manual must be kept near the machine, within reach of the user and held in good condition until
the nal destruction of the machine.
In case of loss or deterioration of the manual, you can ask the machine manufacturer mentioned on
page 4 for a copy at any moment.
2.2. RECEIVERS OF THE MANUAL
This manual is intended to any staff which will manipulate the machine :
- people in charge of the transport of the machine
- people in charge of the use of the machine
- people in charge of the cleaning and maintenance of the machine
- people in charge of the nal destruction of the machine

User manual - EUROPRO 50TH & 100TH compressors 201703-211-ENG
P6
3. WARNING
3.1. SAFETY
Using the machine in an incorrect way or in non-compliance of the safety instructions
indicated in this manual can cause death or serious injuries.
Read carefully all the working and safety instructions and the warnings contained in this
manual before starting your machine.
• Respect all the safety standards before running the equipment.
• Use the equipment only for the applications specied in the manual.
• Always remain alert when using the equipment.
• Transport the machine using the handles or the appropriate grips.
• Let at least 50 cm of free space between the equipment and any obstacle so that the air
ow is not blocked.
• Know how to quickly stop the equipment in case of necessity.
• Never use the equipment while it is running abnormally or it is defective.
• Do not direct a water jet or ammable liquid on the machine.
• Never direct an air jet or product jet on a person or an animal.
• Do not touch warm surfaces of the equipment.
• Always wear adequate body protections (glasses, gloves, overall and mask) and pay
attention to long hair.
• Never touch moving parts.
• Do not insert any object or the hands inside the protection grids to avoid any accident or
damage to the machine.
• For any outside job, only use appropriate extension cords.
• Maintain the equipment carefully and clean it properly after every use.
• Avoid absolutely to unscrew any connection while the machine is under pressure.
• Check the damaged parts.
• Do not clean the plastic parts with solvant.
• In case of needed After-Sale Service, always specify the machine model and its serial
number.
• For any replacement of parts, only use genuine parts.
• Do not modify the machine.
• Do not cut or dismantle the protection grids.

201703-211-ENG User manual - EUROPRO 50TH & 100TH compressors
P7
3. WARNING (continued)
3.1. SAFETY (continued)
WORKSPACE
• Maintain the workspace clean and clear.
• Ambient operating temperature must be from 5°C and 35°C.
• Do not use the equipment in a potentially explosive area.
• Do not place any potentially inammable objects in close proximity to the machine.
• Take away every not qualied person from the working area of the machine, as well as children and
animals.
• In case of installation of the machine on scaffolding or a plan above ground level, attach the machine
to avoid any fall while operating.
•
Do not install the equipment on an inclined surface to avoid the risks of unexpected moves or falls.
,
HOSES
• Always use hoses and connections (genuine parts) with maximal pressure characteristics adapted
to the machine.
• Do not try to x a hose when it is defective.
• Do not walk on the hoses, do not bend them.
• Do not use the hoses to pull the machine.
STORAGE
• Keep the equipment in a clean and clear area in which the temperature does not exceed +35°C.
IN CASE OF NECESSITY, WE SAVE OURSELVES THE RIGHT TO MAKE ANY USEFUL
MODIFICATION WITHOUT ADVANCED NOTICE.
3.2. END-OF-LIFE OF THE MACHINE
At its end-of-life, the machine must not be eliminated with the other household waste. The
uncontrolled elimination of waste can harm the environment or human health. Individuals are
invited to contact the distributor which sold them the product or to inquire with their city hall
to know where and how to get rid of the product so it can be recycled while respecting the
environment.
For any further information, please contact our hotline to [e-mail] or
04 42 29 08 96.

User manual - EUROPRO 50TH & 100TH compressors 201703-211-ENG
P8
4. YOUR COMPRESSOR
4.1. DESCRIPTION
The EUROPRO 50TH & 100TH compressors are machines designed for intensive use on all types of
jobs.
Equipped with a petrol engine, they operates on unleaded 98. They are equipped with an automatic
valve that controls the pressure in the tank, an air outlet with quick-connect half-coupling and 4 folding
transport arms.
Uses: sprayer, mini-sandblaster, pneumatic paint-stripper, slurry and paint spray-gun, inator, stapler,
etc.
Do not use the compressors for dietary or medical applications.
In certain applications, the addition of an air dryer and/or oil separator can be necessary.
4.2. TECHNICAL CHARACTERISTICS
EUROPRO 50TH EUROPRO 100TH
Rotation speed 1215 RPM 1100 RPM
Flow-rate of air absorbed 820 L/min (49 m3/h) 1080 L/min (65 m3/h)
Quantity of oil (crankcase) 1,4 L 1,6 L
Oil consumption 1,5 g/h 1,2 g/h
Tank capacity 1,64 L 2,64 L
Maximum pressure 10 bar 10 bar
Safety valve yes yes
Air coupling quick-connect quick-connect
Transmission by belt by belt
Engine Honda Yamaha
Motor power 6,75 kW 8,8 kW
Fuel used unleaded 98 unleaded 98
Fuel consumption 2,5 L/h 4 L/h
Fuel tank capacity 7,9 L 7,3 L
Dimensions (L x w x h) 98 x 69 x 73 cm 109 x 70 x 85 cm
Weight 113 kg 163 kg
Noise level 104 Lwa 107 Lwa

201703-211-ENG User manual - EUROPRO 50TH & 100TH compressors
P9
4. YOUR COMPRESSOR (continued)
4.3. IDENTIFICATION OF THE COMPONENTS OF THE COMPRESSOR
EUROPRO 50TH
ACompression head
BAir lter
CCompression head oil reservoir plug
DCompression head oil level eye
ETank pressure manometer
FFuel reservoir
GAir outlet coupling
HMotor (see next page)
The complete list of the components of the machine is available on our website
www.euromair.com
A
B
C
D
E
G
F
H

User manual - EUROPRO 50TH & 100TH compressors 201703-211-ENG
P10
4. YOUR COMPRESSOR (continued)
4.3. IDENTIFICATION OF THE COMPONENTS OF THE COMPRESSOR

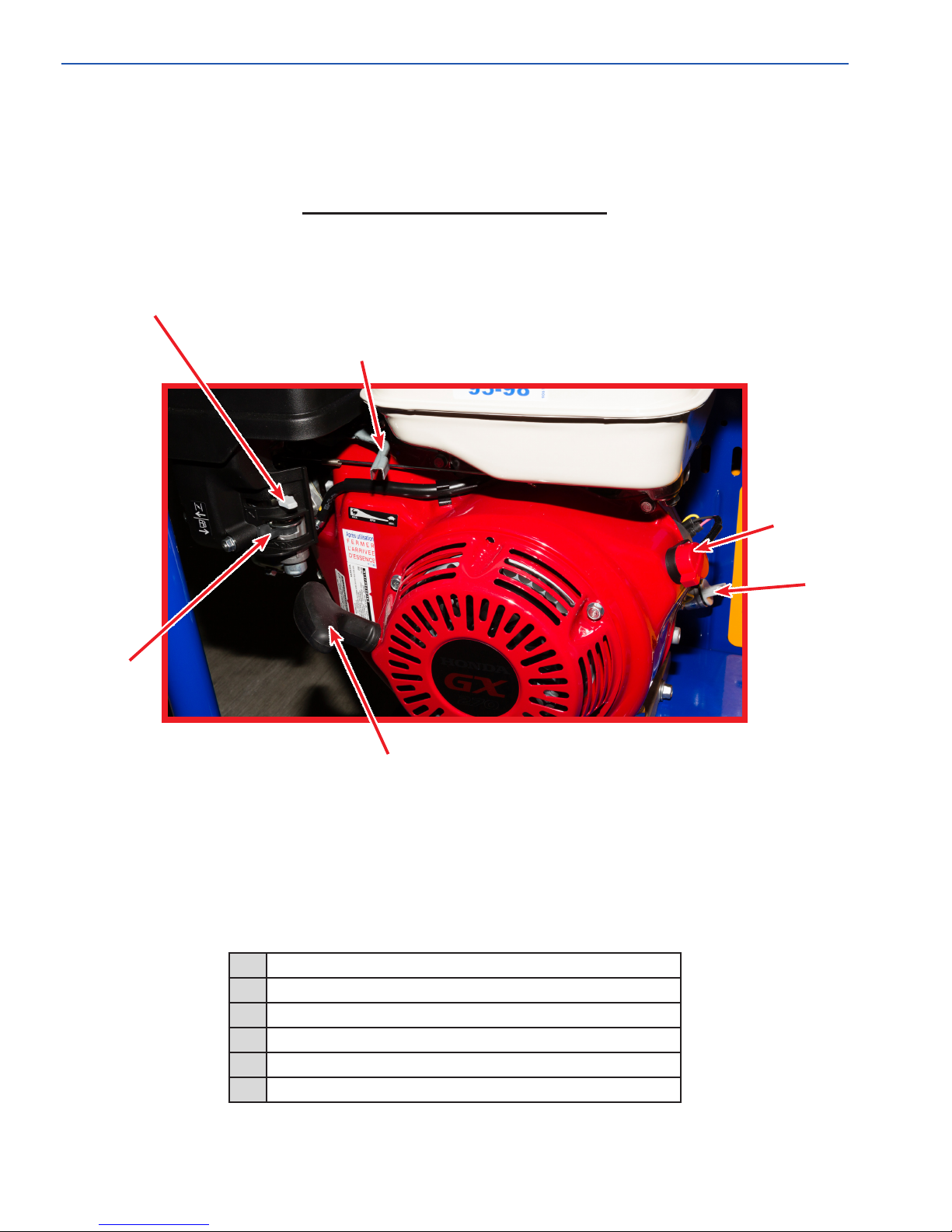

EUROPRO 50TH
IStarter
JFuel valve
KLauncher
LMotor starting switch
MMotor oil level and lling plug
NMotor accelerator
The complete list of the components of the machine is available on our website
www.euromair.com
L
M
I
N
J
K

201703-211-ENG User manual - EUROPRO 50TH & 100TH compressors
P11
A
B
C
D
E
F
H
G
4. YOUR COMPRESSOR (continued)
4.3. IDENTIFICATION OF THE COMPONENTS OF THE COMPRESSOR

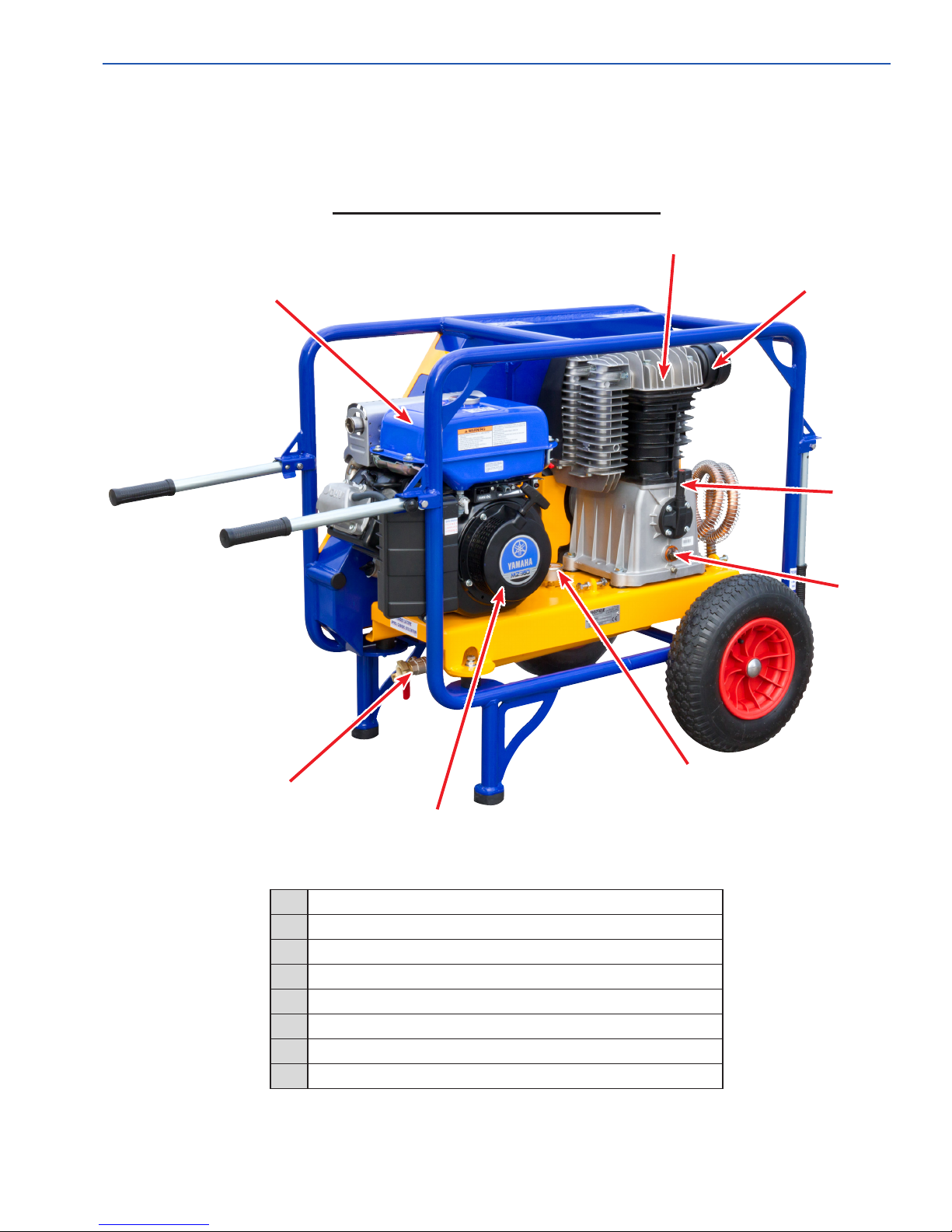

EUROPRO 100TH
ACompression head
BAir lter
CCompression head oil reservoir plug
DCompression head oil level eye
ETank pressure manometer
FFuel reservoir
GAir outlet coupling
HMotor (see next page)
The complete list of the components of the machine is available on our website
www.euromair.com

User manual - EUROPRO 50TH & 100TH compressors 201703-211-ENG
P12
L
M
IN
J
K
4. YOUR COMPRESSOR (continued)
4.3. IDENTIFICATION OF THE COMPONENTS OF THE COMPRESSOR
EUROPRO 100TH
IStarter
JFuel valve
KLauncher
LMotor starting switch
MMotor oil level and lling plug
NMotor accelerator
The complete list of the components of the machine is available on our website
www.euromair.com

201703-211-ENG User manual - EUROPRO 50TH & 100TH compressors
P13
5. USE OF THE MACHINE
5.1. PREREQUISITES
• Before every use of the compressor, verify the fuel level into the reservoir (F) and rell if needed.
• Verify the oil level into the motor using the (M) plug.
If needed, rell with 15W40 oil until you reach the level "Max".
• Verify the oil level into the compression head using the (D) eye.
If needed, rell with ISO INH 100 until you reach the level "Max".
• Open the air valve (G) to avoid the increase of the pressure into the tank.
5.2. STARTING UP
1. Open the fuel valve (J).
2. Put the starter (I).
3. Turn the (L) motor switch to the "ON" position.
4. Position the accelerator lever (N) to the middle.
5. Pull the launcher to start the compressor.
6. After a few seconds, remove the starter and close the air valve (G).
7. Connect the coupled device (spraying machine, etc...) onto the valve (G) and open it.
8. The compressor is ready for use.
5.3. STOPPING OF THE COMPRESSOR
1. Close the valve (G), then drain the air remaining into the hose.
2. Disconnect the coupled device.
3.
Open the drain screw and let the compressor run for about 2 minutes to evacuate all the condensation
which was created in the tank.
4. Turn the switch (L) to the "OFF" position to stop the compressor.
5. Close the drain screw.

User manual - EUROPRO 50TH & 100TH compressors 201703-211-ENG
P14
6. MAINTENANCE AND SERVICING
6.1. ONCE PER WEEK
Blasting air lter
EUROPRO 50TH : unscrew and unclip the air lter (B) and blast it with help of a pressure cleaner.
EUROPRO 100TH : unclip the air lter (B) and blast it with help of a pressure cleaner.
6.2. EVERY 200 WORKING HOURS
Replace the air lter
Unscrew and/or unclip the air lter (B) and replace it.
Oil change
Contact our After-Sale Service : [phone].
Used oil must not be spilled into the environment or the sewage system, but into a
specialized collection site.
In case of the intensive utilization of the compressor, repeat the above mentioned
operations more regularly.
7. DEFECTS AND REMEDIES
Defect Cause Remedy
The pressure of the
compressor does not go up
• Filter is clogged up
• Drain screw is open
• Air leakage
• Broken valve plate
• Replace the lter
• Screw up or replace the drain screw
• Verify that there is no leakage
• Replace the regulator lter
• Contact the After-Sale Service
The engine roars but does
not start • Lack of oil • Verify the oil level
The compressor loses
pressure
• Suction lter is clogged
up
• Clean the lter or replace it if it is
damaged
In case of an unknown defect or a doubt on the good running of the machine, do not try to
repair it by yourself or to dismantle it.
Contact an authorized After-Sale Service or our hotline : [phone].

201703-211-ENG User manual - EUROPRO 50TH & 100TH compressors
P15
8. DECLARATION OF CONFORMITY
THE MANUFACTURER : EUROPE PROJECTION
Z.I Rousset Parc Club
343 bd Francis Perrin
13106 ROUSSET CEDEX
DECLARES THAT THE EQUIPMENT DESIGNATED BELOW :
Trademark : EUROPE PROJECTION
Type : Thermal compressor
Model : EUROPRO 50TH or EUROPRO 100TH
COMPLIES WITH THE ARTICLE:
• the R.233-73 article of the Labour Code
THE DIRECTIVES :
• Machines 2006/42/CE
• CEM 2014/30/UE
• ROHS 2011/65/UE
• Noise emissions 2005/88/CE
AND WITH THE STANDARDS:
• NF EN ISO 12100
• NF EN ISO 13857
ROUSSET, APRIL 20th 2016
Patrick BOREL
President
Distributed by : EUROMAIR DISTRIBUTION
Z .I. Rousset Parc Club, 343 boulevard Francis Perrin - 13106 Rousset sur Arc Cedex
Tél : [phone] – Fax : [phone]
SAS au capital de 40 000€ - SIREN 444 797 310 000 – NAF 4673 B

User manual - EUROPRO 50TH & 100TH compressors 201703-211-ENG
P16

201703-211-ENG User manual - EUROPRO 50TH & 100TH compressors
P17
9. WARRANTY
9.1. WARRANTY CONDITIONS
• The manufacturer guarentees the products in case of a defect in design or manufacture for a period
of 12 months from the date of invoice.
• The wearing parts are excluded from the warranty.
• Any warranty intervention must be exclusively performed by the manufacturer or an authorized
After-Sale Services.
• The shipping of any product to the manufacturer, for whatever the type of warranty service, is
subject to its acceptance.
• The warranty covers the free of charge repair or the replacement of the defective components
identied by our technicians.
• The warranty is void in case of damages caused by an accident, resulting from negligence, an
incorrect use or installation, improper or not in accordance with the warnings contained in the user
manual.
• The warranty is also void in case of modication or repairs performed by unauthorized staff.
• The warranty excludes any type of compensation in case of damage to persons or problems caused
by incorrect or inappropriate use.
•
This warranty will be applied only to buyers who have complied with the contracual and administrative
standards and will be able to present a specic documentation mentioning the date of purchase.
• This is the only valid warranty recognized by the manufacturer. No one is allowed to deliver another
one, oral or written, or modify its terms.
All our terms of sales and shipping are available on our general catalogue of the ongoing
year and also on our website www.euromair.com.

User manual - EUROPRO 50TH & 100TH compressors 201703-211-ENG
P18

201703-211-ENG User manual - EUROPRO 50TH & 100TH compressors
P19
9. WARRANTY (continued)
9.2. CERTIFICATE OF WARRANTY
IT IS COMPULSARY TO RETURN THIS DOCUMENT DULY COMPLETED
BY E-MAIL : [e-mail] OR BY FAX : [phone]
IMPERATIVE
The manual must be provided to the user of the equipment.
It must be read before starting up the machine.
For any intervention under warranty, the purchase invoice must be presented.
WARRANTY
Each product is delivered inspected and tested.
Moreover, it is guaranteed for 12 months from the date of purchase.
This guarantee only applies if the buyer respects the safety regulations, contractual and administrative
standards and if the use was in conformity with the instructions present in the user manual.
Based on this warranty, the manufacturer will repair or replace free of charge any part that can deteriorate
itself or be defective during this period.
The "nal judgment" rests solely with our After-Sale Service technicians.
The guarantee does not cover parts which, because of their specic use, are subject to wear and tear.
If the identied defects could not be attributed to our liability, costs will be charged to the buyer.
MODEL : Thermal compressor EUROPRO 50TH or EUROPRO 100TH
SERIAL NUMBER :
DELIVERY NUMBER :
Rousset, dated
Signature of the dealer Signature of the nal user Stamp of the nal user
Distributed by : EUROMAIR DISTRIBUTION
Z .I. Rousset Parc Club, 343 boulevard Francis Perrin - 13106 Rousset sur Arc Cedex
Tél : [phone] – Fax : [phone]
SAS au capital de 40 000€ - SIREN 444 797 310 000 – NAF 4673 B

User manual - EUROPRO 50TH & 100TH compressors 201703-211-ENG
P20
EUROPE PROJECTION - Z .I. Rousset Parc Club - 343, avenue Francis Perrin - 13106 Rousset sur Arc Cedex
Tél : [phone] – Fax : [phone]
SAS au capital de 400 000€ - SIREN 394 961 510 – NAF 2892 Z
