Hyundai HHC315C User manual

HHC315C
User Manual

1
HYUNDAI
©2022 Hyundai Power Equipment. All Rights Reserved.
Licensed by Hyundai Corporation Holdings, Korea.
HHC315C_UG_EN_2022-03-03
HHC315C

2HHC315C
This product is supported by Midland Power. Contact us
directly for assistance and warranty help. Do not return this
product to store.
You must register online for your warranty to be valid.
It only takes a minute, do it now while you still have your
purchase receipt.
Support for your product is available online, including
parts, service center locations, and live expert advice.
Or call us anytime at 1-877-528-3772.
Register Your Product Online
www.hyundaipower.ca/register-warranty
Visit us Online at
www.hyundaipower.ca

3
HYUNDAI
THIS PRODUCT MEETS ALL CERTIFICATION REQUIREMENTS FROM:
READ THIS ENTIRE GUIDE BEFORE USING THIS
PRODUCT AND SAVE FOR LATER USE.
This user guide contains important instructions including
safety, setup, operation, and maintenance that must be
followed. All information in this guide is based on information
available at the time of print. This guide or revised editions
can be found on our website for download. No part of this
publication may be reproduced without written permission.
Thanks for choosing the HCC Series!
You're excited to get started, we'll keep this brief.

TABLE OF CONTENTS
1. Safety 5
2. Learn About Your Air Compressor 8
2.1 Component Identification 8
2.2 Control Functions 9
2.3 Make Sure You Have Everything 10
3. Getting Started 11
3.1 Initial Inspection 11
3.2 Assembly 11
4. Operation 13
4.1 Starting Your Air Compressor 13
4.2 Stopping your Air Compressor 14
5. Maintenance 15
5.1 Maintenance Schedule 15
5.2 Draining the Air Tank 16
5.3 Checking for Air Leaks 16
5.4 Checking the Safety Relief Valve 17
6. Storage 18
7. Troubleshooting 19
9. Limited Warranty 21

5
HYUNDAI
1. SAFETY
DANGER!
NEVER breathe air from the air compressor. The air may
contain carbon monoxide, toxic vapours, and/or solid particles.
Compressed air will damage your lungs and may cause injury
or death.
1.1 OPERATOR SAFETY
WARNING!
ALWAYS inspect air compressor, air hose, and air tools for damage or
obstruction before each use. Repair or replace damaged items before
use.
ALWAYS operate air compressor in a well-ventilated area free of
combustible or ammable materials.
ALWAYS operate air compressor in an open area at least 12 inches away
from any wall or obstruction that could restrict airow.
NEVER operate the air compressor in an enclosed area.
NEVER move air compressor while power switch is set to ON.
NEVER point any nozzle or sprayer toward yourself or another person.
ALWAYS wear certied eye and ear protection. Long durations of use
may contribute to hearing loss.
ALWAYS wear certied breathing masks to reduce the risk of inhaling
harmful particles and vapours. Sprayed materials such as paint or
solvents contain harmful vapours and poisons.
ALWAYS keep air compressor at least 20 feet away while spraying
ammable materials.
ALWAYS keep ammable materials in a secure location away from the air
compressor.
NEVER restrict ventilation openings of the air compressor. This may
cause overheating and re.
NEVER touch exposed motor or pump components during or
immediately after use of the air compressor. These components will
remain hot for some time after shutdown.
Condensation will form inside the air tank. Make sure to completely
drain condensed water from the tank after each use to prevent rust and
thinning of air tank.
ALWAYS use ear and eye protection when draining the air tank, escaping
air may contain moisture and debris.
All air tools have a recommended air pressure. Operating an air tool

6HHC315C
at a pressure that exceeds its rating may damage the tool and causes
a risk of bursting. Before using any air tool, check the manufacturer’s
recommended air pressure and set the outlet pressure accordingly.
This air compressor has a duty rating of 50%. Do not allow the air
compressor to run continuously for more than 30 minutes, doing so will
decrease the service life of the compressor.
Air compressors vibrate in normal use. During and after each use, inspect
the equipment as well as the power cord for damage resulting from
vibration. Have damaged items repaired or replaced as necessary. Do not
use plugs or cords that show signs of damage.
Make sure that the air compressor is in a stable and secure position
before operating.
Shut OFF air compressor immediately if the device begins to operate
abnormally. Then disconnect power and air hose and investigate the
problem.
Secure loose clothing, hair, and jewellery that may be caught in the
moving parts of the air compressor.
1.2 AC SAFETY
WARNING!
NEVER modify the provided plug.
All electrical work must be performed by a qualied electrician.
Plug the air compressor power cord directly into a grounded wall socket.
Do not use an extension cord unless necessary. Use a longer air hose
instead.
If you must use an extension cord, use only a 3-wire extension cord with
a grounding wire. Cords must have a gauge of 12AWG or thicker and
should not exceed 25-feet.
Make sure air compressor is properly grounded. Failure to ground the unit
may increase the risk of electrical shock.
Check with a qualied electrician if in doubt as to whether the product is
properly grounded.
If air compressor is stored outdoors, check all the electrical components
on the control panel before each use. Moisture can damage the
compressor and can lead to an electric shock.

7
HYUNDAI
1.3 MAINTENANCE SAFETY
WARNING!
ALWAYS release pressure, shut power OFF, and disconnect hose before
performing maintenance or repairs.
NEVER modify or repair the air tank. Never drill, weld, or make any
modications of any kind to the air tank or its attachments.
NEVER modify the power switch, safety release valve, or any other
component that controls air tank pressure. The air tank is designed to
withstand specic operating pressures. NEVER adjust or substitute parts
to alter the factory set operating pressures.
NEVER remove or modify safety guards or covers. NEVER operate the air
compressor if guards or covers are damaged or removed.
The air compressor should only be serviced by an authorized service
center unless you have the proper tools and are mechanically procient.
Allow the air compressor to cool down for one hour after use before
performing any maintenance.
If the air tank develops a leak, shut power OFF and replace immediately
with a new tank.

8HHC315C
2. LEARN ABOUT YOUR AIR COMPRESSOR
This section will show you how to identify key parts of your air compressor. Going
over the terminology below will make sure we’re on the same page.

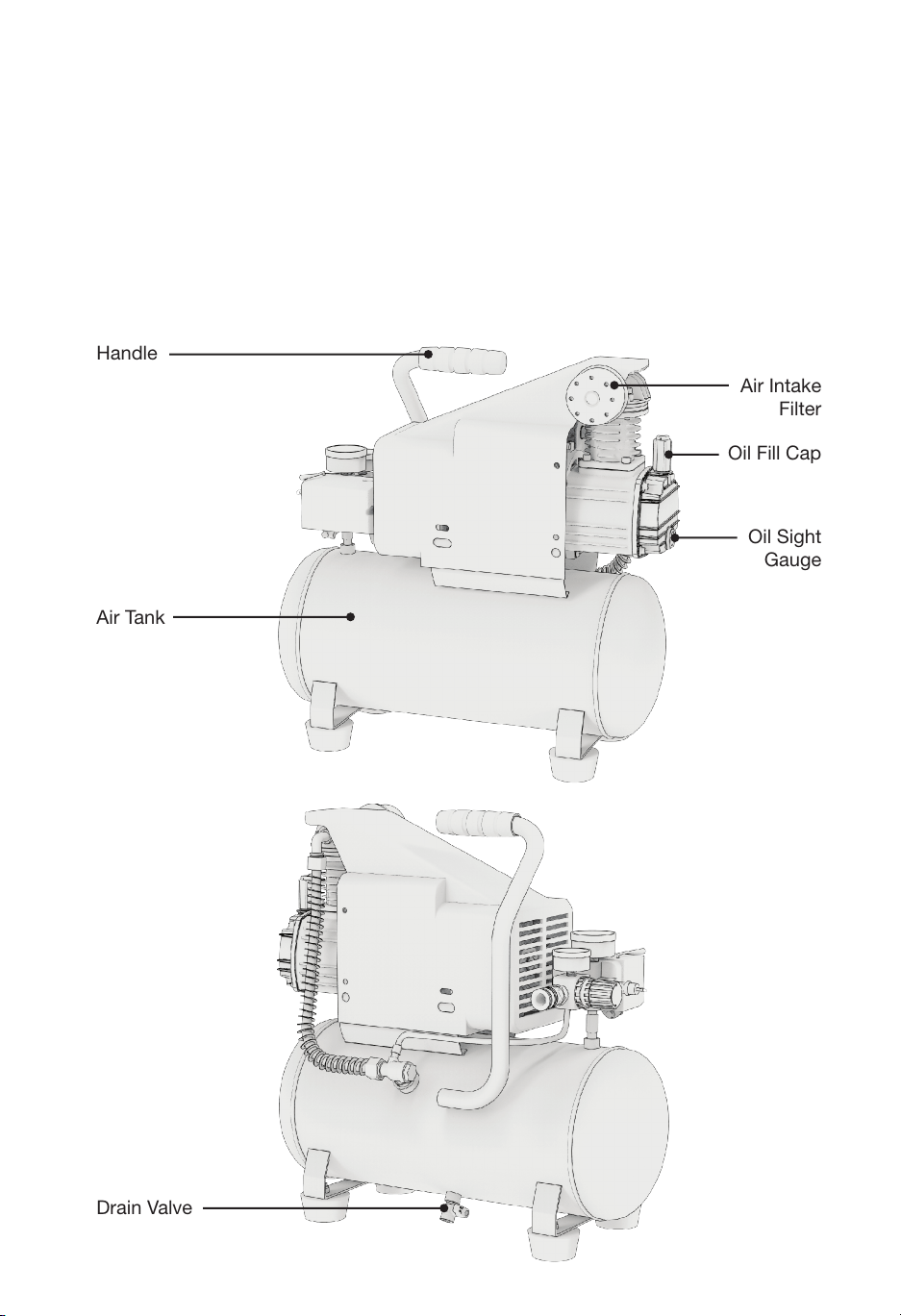

2.1 COMPONENT IDENTIFICATION
Air Tank
Drain Valve
Oil Sight
Gauge
Oil Fill Cap
Air Intake
Filter
Handle

9
HYUNDAI

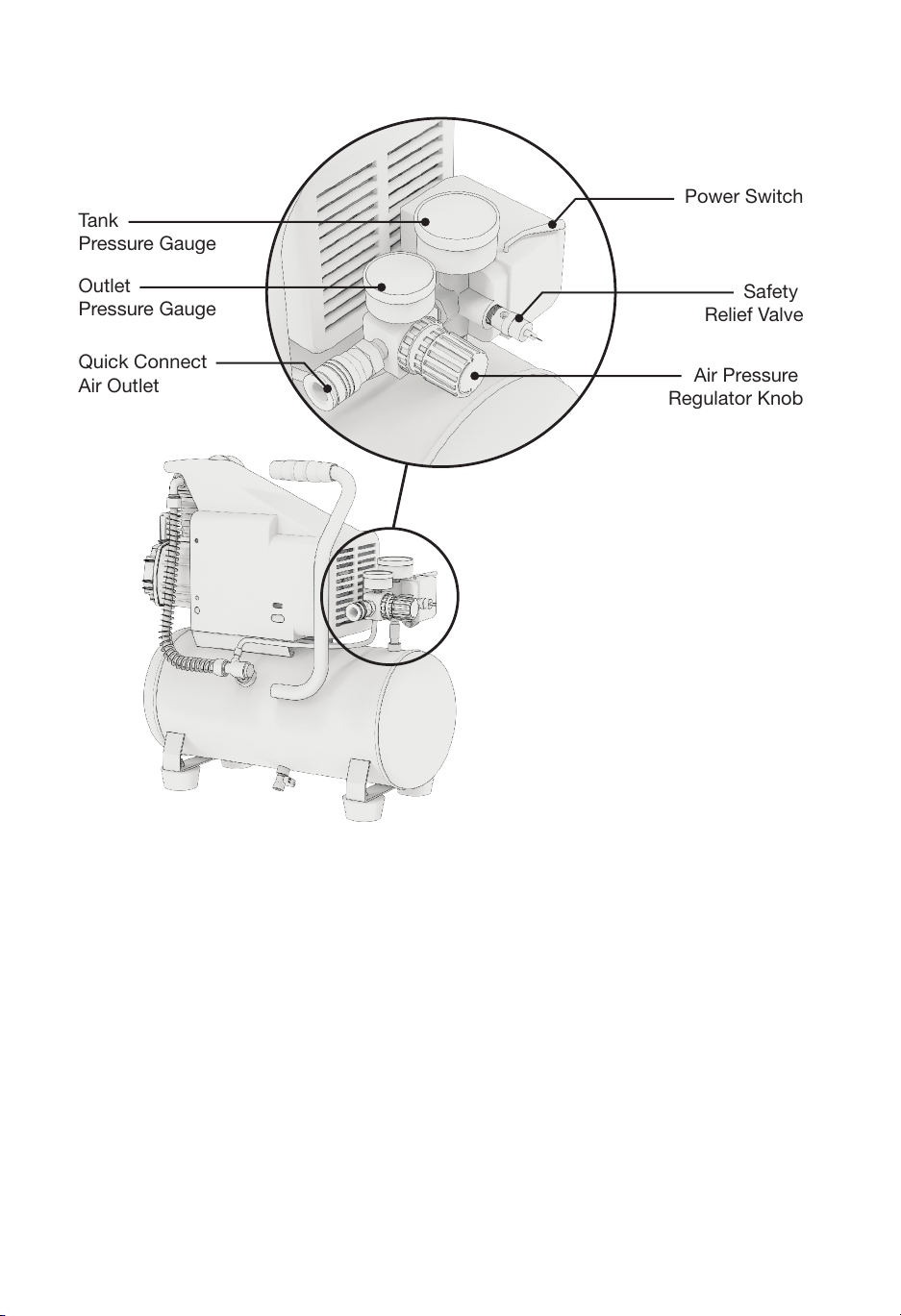

2.2 CONTROL FUNCTIONS
Air Pressure Regulator Knob
Controls the air pressure that will be delivered to your air tool.
To increase the pressure, turn the knob clock wise, and to decrease the
pressure, turn the knob counterclockwise.
Can only decrease the amount of pressure being delivered from the air
tank, can not increase pressure.
Air Intake Filter
Prevents dust and debris from entering and damaging the air compressor.
Drain Valve
Used to drain excess moisture and condensation from the tank.
Quick Connect
Air Outlet
Outlet
Pressure Gauge
Tank
Pressure Gauge
Power Switch
Air Pressure
Regulator Knob
Safety
Relief Valve

10 HHC315C
Tank Pressure Gauge
Indicates the reserve air pressure in the tank.
Output Pressure Gauge
Indicates the outgoing air pressure as set by the air pressure regulator
knob.
Power Switch
Powers ON and OFF the air compressor.
Quick Connect Air Outlet
Allows easy attachment and removal of the air hose.
Safety Relief Valve
This valve allows excess tank pressure to escape. It should open when
tank pressure exceeds the maximum pressure rating.
2.3 MAKE SURE YOU HAVE EVERYTHING
Make sure your air compressor has everything listed in the table below.
Part Name Quantity
Air Compressor 1
User Guide 1
Air Filter 1

11
HYUNDAI
3. GETTING STARTED
3.1 INITIAL INSPECTION
All air compressors are inspected before leaving the factory, but it is possible
that poor handling during transport caused some damage. Fully inspect the air
compressor from top to bottom before rst use. If any parts are found to be damaged,
contact customer support for help, we’ve got you covered. See the Warranty chapter
for more info.
3.2 ASSEMBLY
3.2.1 INSTALL THE AIR FILTER
1. Remove the plastic plug from the air intake port.
2. Install the air intake lter into the air intake port.
Air Intake
Filter
Air Intake
Port
Oil Sight
Gauge
Oil Fill Cap
SAE 30 Oil
Oil capacity
2.7 oz / 80 ml

12 HHC315C

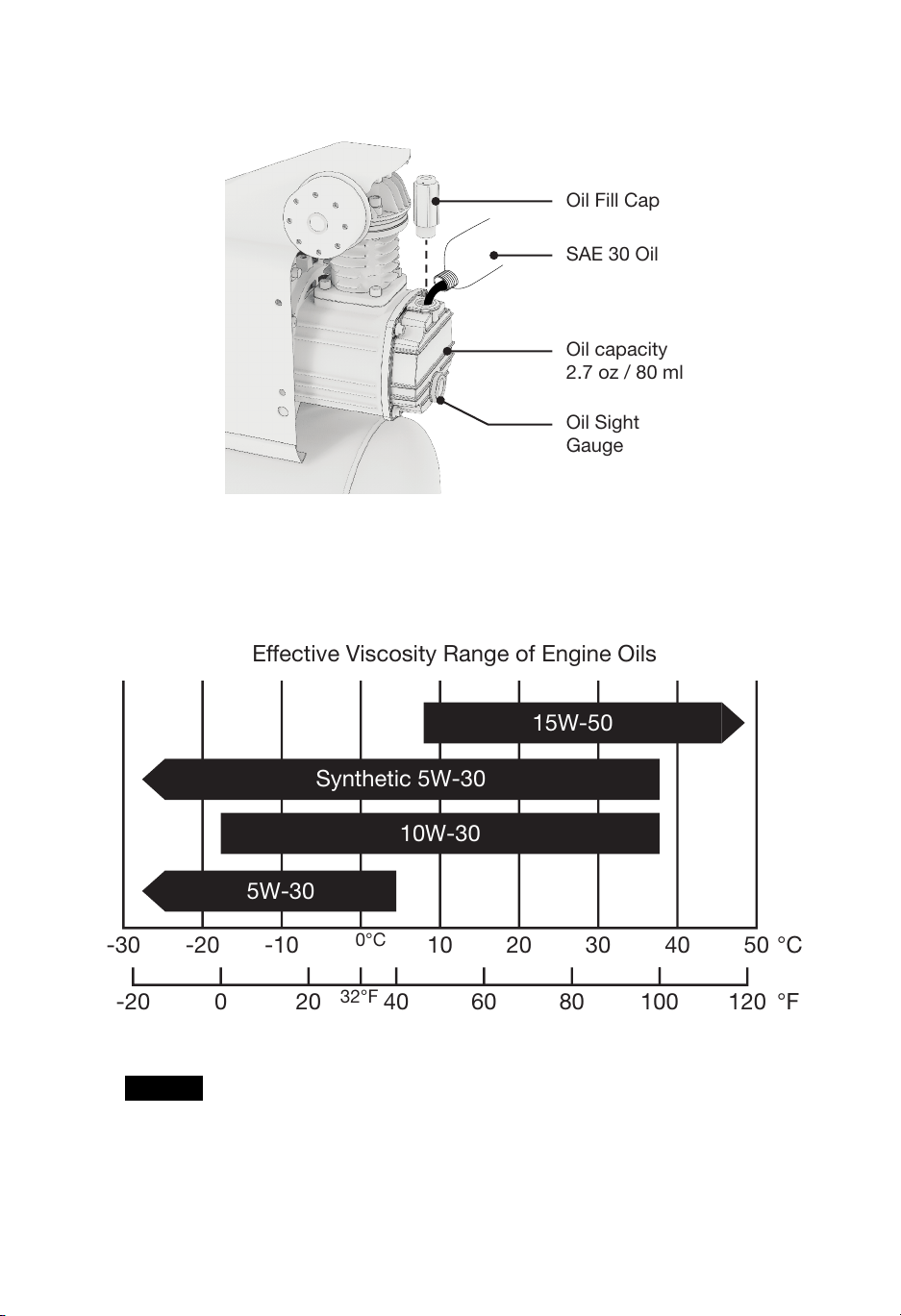

3.2.2 ADD OIL
1. Remove the oil ll cap.
2. Fill until the oil reaches the top of the red dot in the oil sight gauge.
1. Reinsert the oil ll cap.
NOTE
Oil Capacity: 80 mL
DO NOT overll.
SAE 10W-30 or SAE Synthetic 5W-30 is recommended for general use.
Use of synthetic oil does not affect maintenance schedule.
Air Intake
Filter
Air Intake
Port
Oil Sight
Gauge
Oil Fill Cap
SAE 30 Oil
Oil capacity
2.7 oz / 80 ml
0°C 10 20 30 40 50-10-20-30
20 32°F 40 60 80 100 120
°C
°F0-20
15W-50
10W-30
Synthetic 5W-30
5W-30
Effective Viscosity Range of Engine Oils

13
HYUNDAI
4. OPERATION
4.1 STARTING YOUR AIR COMPRESSOR
NOTE
ALWAYS inspect air compressor, air hose, and air tools for damage or
obstruction before each use. Repair or replace damaged items
before use.
1. Place air compressor on a level surface.
2. Make sure the drain valve is closed.
3. Check the oil sight gauge and ensure oil level is aligned with the red dot.
4. Attach an air hose and the desired air tool to the unit by inserting the quick
connect plug on the air hose into the quick connect outlet of the air
compressor.
Grounding Pin
Grounded
AC Outlet
Power
Cord Plug
1 2 3
CLOSED
!
ON
4 5
7 8
6

14 HHC315C
5. Plug the power cord into a properly grounded receptacle.
6. Turn power switch to ON. Allow air compressor to reach the cut-out pressure
of 125-PSI, the air compressor will cut-out automatically.
7. Turn the pressure regulator knob to adjust the outlet pressure, outlet
pressure is shown on the outlet pressure gauge. Set outlet pressure to the
recommended air pressure of the air tool you will be using and ensure the air
hose also supports this air pressure.
8. The air compressor is ready for use.
4.2 STOPPING YOUR AIR COMPRESSOR

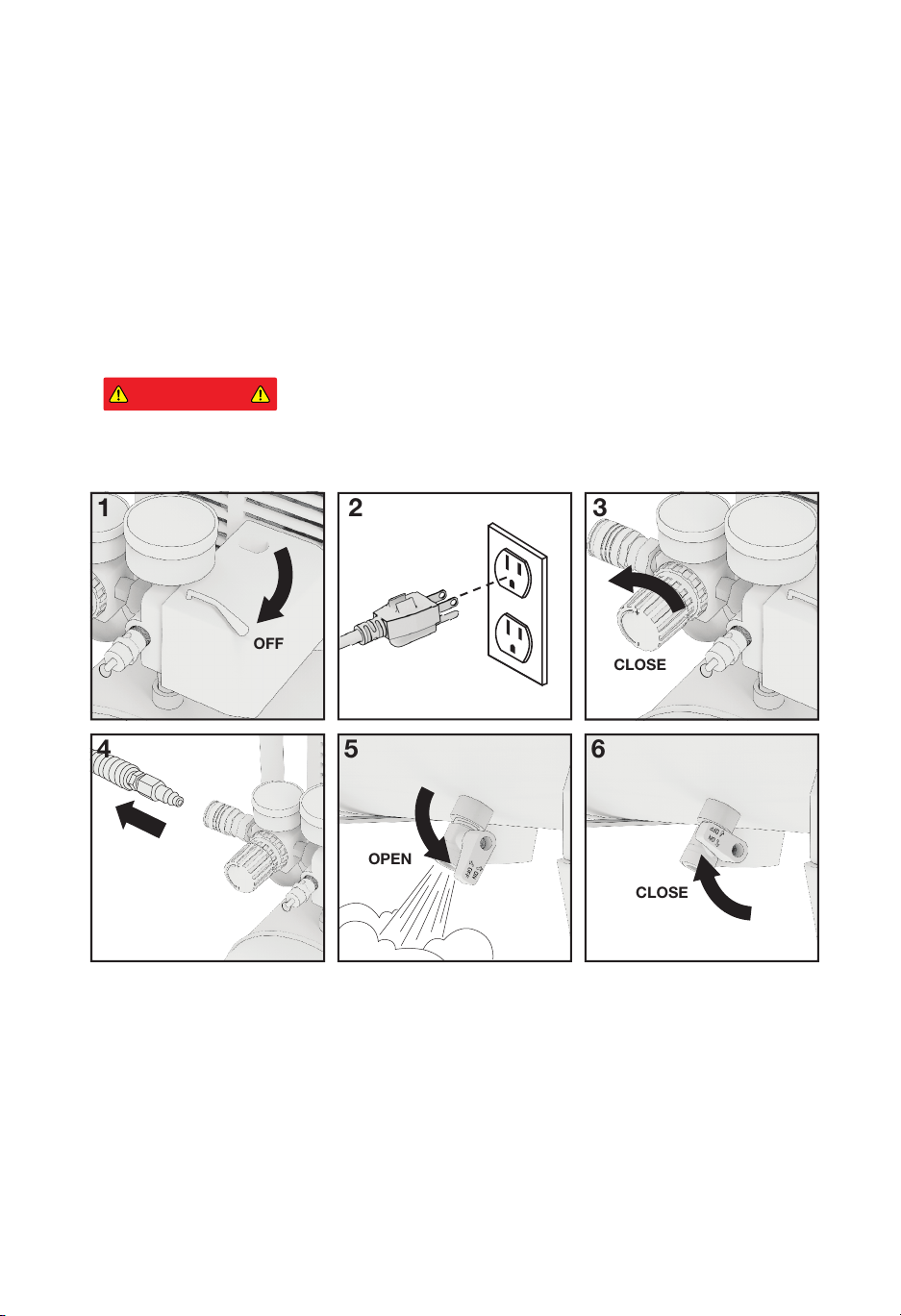

DANGER!
ALWAYS use ear and eye protection when draining the air tank,
escaping air may contain moisture and debris.

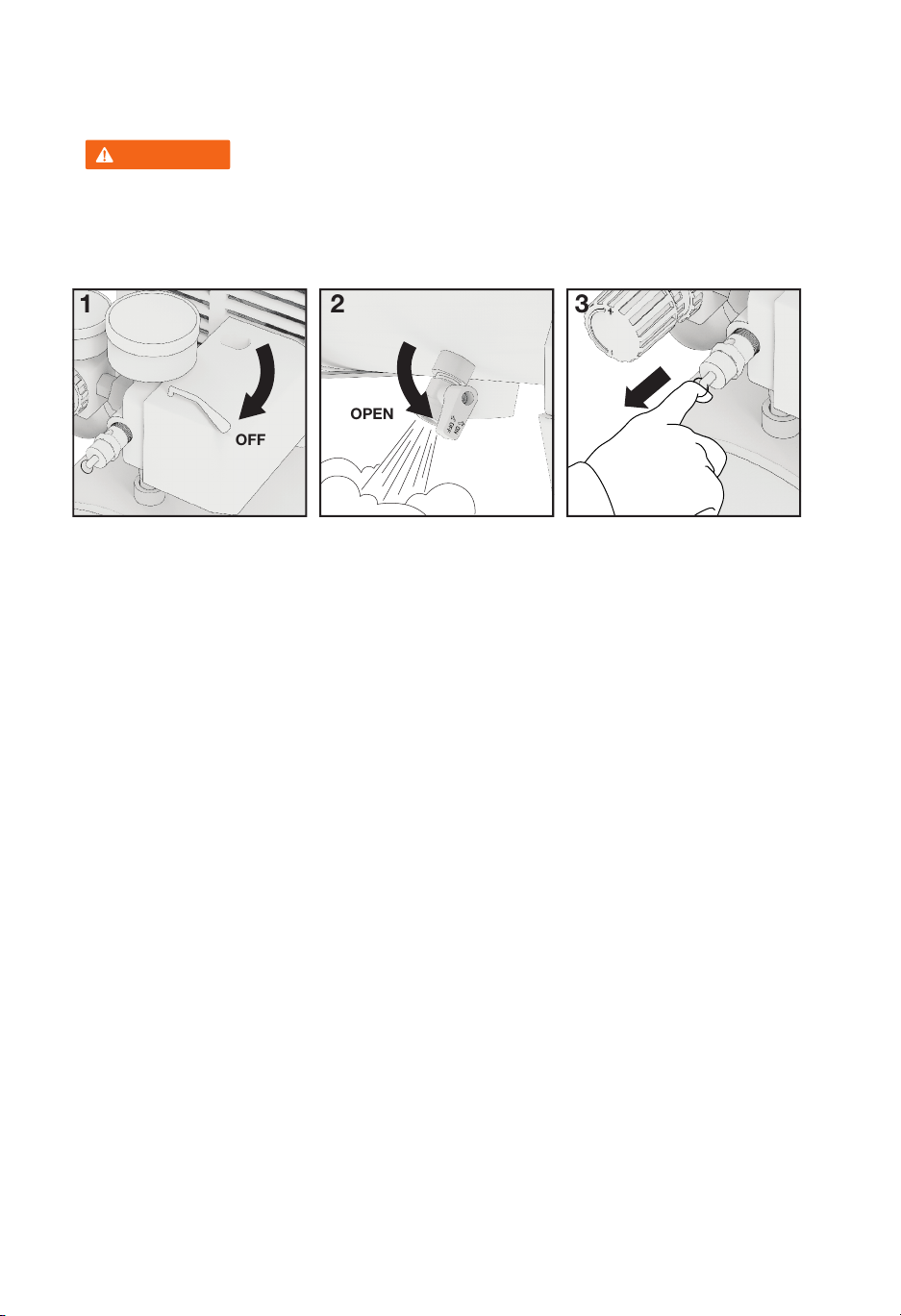

1. Turn power switch to OFF.
2. Unplug the power cord from receptacle.
3. Turn regulator knob counter-clockwise until the outlet pressure gauge reads
0-PSI.
4. Remove the attached air hose.

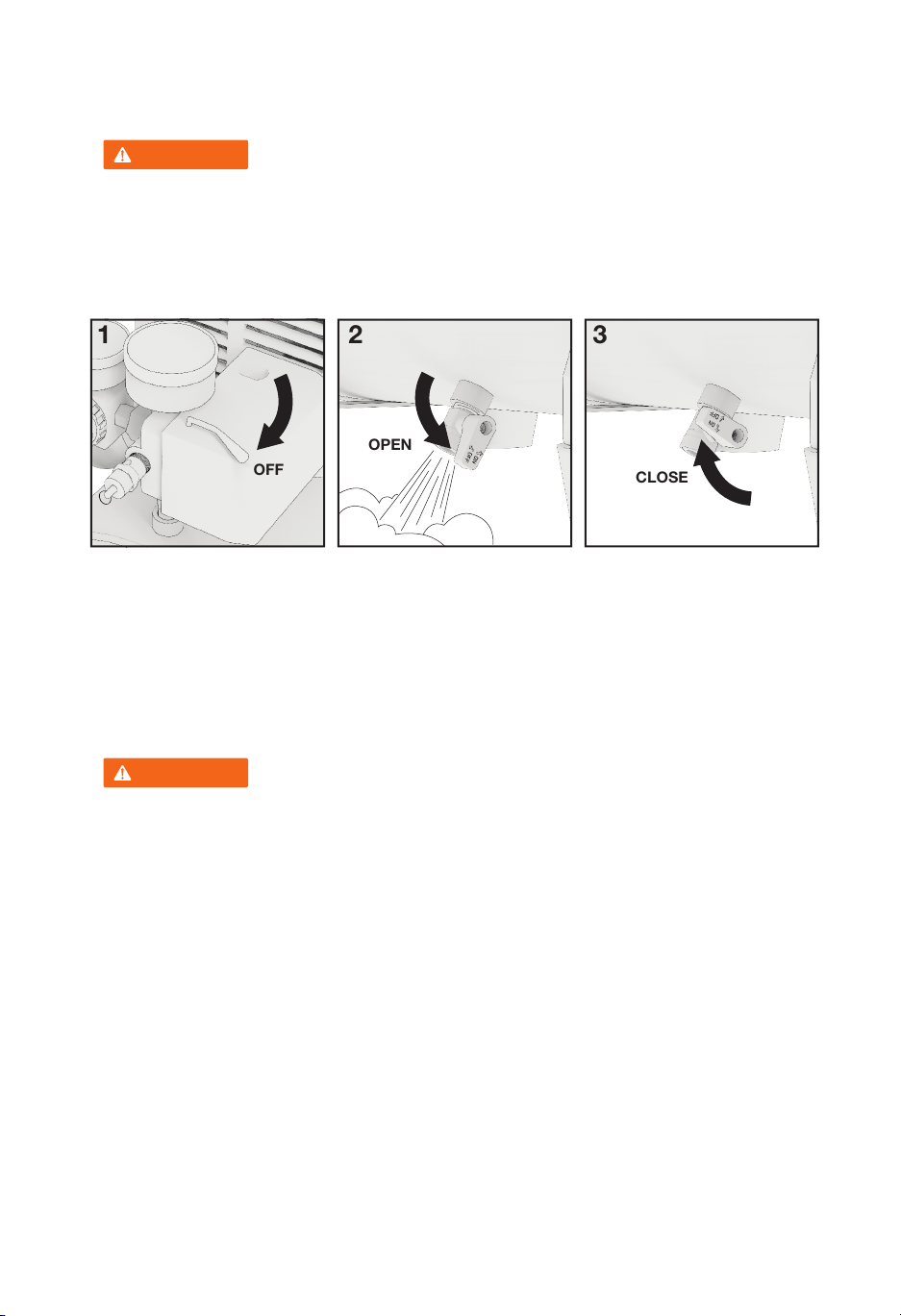

5. Open the drain valve and drain all air and condensed water from the air tank.
6. Close the drain valve.
7. Store in a safe, dry, non-freezing area.
CLOSE
OPEN
CLOSE
CLOSE
1 2 3
OFF
4 5 6
12 3
OFF
OPEN

15
HYUNDAI
5. MAINTENANCE
WARNING!
Shut OFF the air compressor, unplug from the power source,
drain the air tank, and allow one hour to cool after use before any
maintenance is performed.
Proper maintenance is important to ensure safe and trouble-free operation. Improper
maintenance or neglect may cause malfunction leading to serious injuries or death.
Regular maintenance will improve performance and extend the service life of the air
compressor. Maintain the air compressor according to the maintenance schedule
below.
5.1 MAINTENANCE SCHEDULE
NOTE
Service more frequently when used in dusty conditions, high
temperatures, or under heavy loads.
The air compressor should only be serviced by an authorized service
center unless you have the proper tools and are mechanically procient.
Before Each Use or Daily
General Inspection
Check Safety Relief Valve
Check Air Intake Filter
Drain Water Condensation in Air Tank
Check Oil Level
After First 50-hrs, Then Every 100-hrs or Yearly
Change Oil

16 HHC315C
5.2 DRAINING THE AIR TANK
WARNING!
ALWAYS use ear and eye protection when draining the air tank,
escaping air may contain moisture and debris.
Condensation will form inside the air tank. Make sure to completely drain condensed
water from the tank after each use to prevent rust and thinning of air tank.
1. Turn power switch to OFF and unplug the power cord from receptacle.
2. Open the drain valve and drain all air and condensed water from the air tank.
Tilt tank to remove all moisture.
3. Once air tank is fully drained, close the drain valve.
5.3 CHECKING FOR AIR LEAKS
WARNING!
Minor leaks may cause the air compressor to overwork which can
result in premature breakdown or lower performance.
1. Turn power switch to OFF and open drain valve to release all pressure from
the air tank.
2. Apply a water and soap solution to all air line ttings and connections.
3. Turn power switch to ON.
4. If soap bubbles appear or grow on these ttings when compressor reaches
the pressure cut-out limit and the pump turns off, this indicates a leak at that
location.
5. Turn power switch to OFF.
6. Tighten or replace leaking ttings and connections
CLOSE
OPEN
CLOSE
CLOSE
1 2 3
OFF
4 5 6
12 3
OFF
OPEN

17
HYUNDAI
5.4 CHECKING THE SAFETY RELIEF VALVE
WARNING!
The safety relief valve is designed to prevent system failures due
to overpressure and is pre-set by the manufacturer. NEVER modify
the safety relief valve. Replace the valve immediately if it leaks air
continuously.
1. Turn power switch to OFF and unplug the power cord from receptacle.
2. Open drain valve to release all pressure.
3. Grasp the wire ring on the safety relief valve. Pull and release the ring a few
times to ensure that the plunger moves in and out. Replace the safety relief
valve if plunger is difcult to move or does not move at all.
12 3
OFF
OPEN

18 HHC315C
6. STORAGE
NOTE
DO NOT store the compressor in areas that are humid or subject to
temperature uctuations. This may result in excess water condensation in
the tank which will cause rust and thinning of air tank.
DO NOT store in areas with excessive dust.
1. Turn power switch to OFF.
2. Unplug the power cord from receptacle. Secure cord around air compressor.
3. Turn regulator knob counter-clockwise until the outlet pressure gauge reads
0-PSI.
4. Remove the attached air hose.
5. Open the drain valve and drain all air and condensed water from the air tank.
6. Close the drain valve.
7. Store in a safe, dry, non-freezing area.
CLOSE
OPEN
CLOSE
CLOSE
1 2 3
OFF
4 5 6
12 3
OFF
OPEN

19
HYUNDAI
7. TROUBLESHOOTING
Common issues can be xed by following these steps. If the unit will not function
after following these steps, contact customer support before attempting to use or
further repair the product.
Problem Solution
Air leaks from check
valve.
Drain the air tank, then remove and clean the check valve.
Reinstall check valve. If problem persists, replace check
valve.
Air leaks between
pump head and
cylinder.
Be sure of proper torque (7-10 N·m) on head bolts. If
problem persists, contact customer support.
Air leaks from safety
relief valve.
Operate the safety valve manually by pulling on the ring.
If the valve continues to leak when in the closed position,
replace the safety relief valve.
Air leaks from air
tank body.
Never drill, weld, or make any modications of any kind to
the tank or its attachments. Stop using the air compressor
and contact customer support.
Pressure reading on
the outlet pressure
gauge drops when a
tool is used.
It is normal for the gauge to show a minimal pressure
loss during initial use of a tool. First try to adjust the
outlet pressure while the tool is being used, if there is an
excessive amount of pressure drop while the tool is used,
replace the pressure regulator.
Excessive tank
pressure.
Turn power switch to OFF. If the unit does not shut off,
unplug the power cord from receptacle and contact
customer support.
Motor will not start.
Make sure the power cord is plugged in and power switch
is set to ON. Inspect for the proper size circuit breaker in
your electrical panel. If the breaker was tripped, reset, and
restart the unit. If repeated tripping occurs, replace the
check valve, or contact customer support.
Excessive moisture in
the discharge air.
Water condensation occurs normally when compressing
air. Remove water condensation in the tank by draining
after each use. High humidity environments will cause
excessive condensation. Add water lters on your air line
for extra protection from water corrosion.
