1. INTRODUCTION
You just acquired a single-phase compressor and all the team of Europe Projection thanks you for
the condence you have granted us.
Manufacturer of professional equipments for paint and llers, we have put our know-how for 20 years
at the service of the users of our machines.
Our technical and commercial team is at your disposal for any further information you may need about
the machine you just acquired.
EUROPE PROJECTION
Z .I. Rousset Parc Club - 343, avenue Francis Perrin - 13106 Rousset sur Arc Cedex
Tél : [phone] – Fax : [phone]
SAS au capital de 400 000€ - SIREN 394 961 510 – NAF 2892 Z

201411-085C-ENG User manual - EUROPRO 25 & 27 compressors
P5
2. USER MANUAL
2.1. IMPORTANCE OF THE MANUAL
This manual is a key part for the use of your machine. It summarizes the procedures of starting-up,
cleaning and maintenance of the device and also the safety instructions you need to observe.
Read carefully all the working and safety instructions and the warnings included in this manual before
starting your machine.
Most of the accidents are caused by the non-compliance of the safety standards and rules.
This manual must be kept near the machine, within reach of the user and held in good condition until
the nal destruction of the machine.
In case of loss or deterioration of the manual, you can ask the machine manufacturer mentioned on
page 4 for a copy at any moment.
2.2. RECEIVERS OF THE MANUAL
This manual is intended to any staff which will manipulate the machine :
- people in charge of the transport of the machine
- people in charge of the use of the machine
- people in charge of the cleaning and maintenance of the machine
- people in charge of the nal destruction of the machine

User manual - EUROPRO 25 & 27 compressors 201411-085C-ENG
P6
3. WARNING
3.1. SAFETY
Using the machine in an incorrect way or in non-compliance of the safety instructions
indicated in this manual can cause death or serious injuries.
Read carefully all the working and safety instructions and the warnings contained in this
manual before starting your machine.
• Respect all the safety standards before running the equipment.
• Use the equipment only for the applications specied in the manual.
• Always remain alert when using the equipment.
• Transport the machine using the handles or the appropriate grips.
• During the breaks, disconnect electrically the machine.
• Run the equipment to its nominal voltage.
• Let at least 50 cm of free space between the equipment and any obstacle so that the air
ow is not blocked.
• Know how to quickly stop the equipment in case of necessity.
• Never use the equipment while it is running abnormally or it is defective.
• Do not direct a water jet or ammable liquid on the compressor.
• Never direct an air jet or product jet on a person or an animal.
• Do not touch warm surfaces of the equipment.
• Always wear adequate body protections (glasses, gloves, overall and mask) and pay
attention to long hair.
• Never touch moving parts.
• Do not insert any object or the hands inside the protection grids to avoid any accident or
damage to the machine.
• For any outside job, only use appropriate extension cords.
• Maintain the equipment carefully and clean it properly after every use.
• Disconnect the equipment before any intervention.
• Avoid absolutely to unscrew any connection while the machine is under pressure.
• Check the damaged parts.
• Do not clean the plastic parts with solvant.
• In case of damage of the electric cable or the plug, do not run the machine and contact a
licensed After-Sale Service to put genuine parts instead of the defective ones.
• In case of needed After-Sale Service, always specify the machine model and its serial
number.
• For any replacement of parts, only use genuine parts.

201411-085C-ENG User manual - EUROPRO 25 & 27 compressors
P7
3. WARNING (continued)
3.1. SAFETY (continued)
• Do not cut or dismantle the protection grids.
• Do not transport the compressor when it is working or under pressure.
• Do not modify the machine. Especially puncture holes, weld and voluntarily deform the
compressed air reserve.
WORKSPACE
• Maintain the workspace clean and clear.
• Ambient operating temperature must be from 5°C and 35°C.
• Do not use the equipment in a potentially explosive area.
• Do not place any potentially inammable objects in close proximity to the machine.
• Take away every not qualied person from the working area of the machine, as well as children
and animals.
• In case of installation of the machine on scaffolding or a plan above ground level, attach the machine
to avoid any fall while operating.
• Do not install the equipment on an inclined surface to avoid the risks of unexpected moves or falls.
HOSES
• Always use hoses and connections adapted to the used product (genuine parts), do not try to x it.
• Do not walk on the hoses, do not bend them.
• Do not use the hoses to pull the machine.
• Do not use the hoses with other materials, especially materials with higher pressure.
STORAGE
• After every use of the compressor, drain the tank to empty the water inside of it.
• Keep the equipment in a clean and clear area in which the temperature does not exceed +35°C.
IN CASE OF NECESSITY, WE SAVE OURSELVES THE RIGHT TO MAKE ANY USEFUL
MODIFICATION WITHOUT ADVANCED NOTICE.

User manual - EUROPRO 25 & 27 compressors 201411-085C-ENG
P8
3. WARNING (continued)
3.2. ELECTRIC CONNECTION
The electric connection of the machine must be on a 16A - 230V plug with a differential circuit
breaker.
Before any intervention on the machine, make sure that every energy supply is cut (air and
electricity).
GROUND CONNECTOR
All the machines must be connected to the ground when they work to protect the operator from electric
shocks. Our machines are all equipped with standardized connection plugs.
Electric connection must be made by a qualied technician. It is fobidden to modify or dismantle the
machine, especially the electric box.
Repairs must be made by an authorized center or our After-sale Service.
During any intervention on the machine, make sure that the ground is well reconnected.
EXTENSION CORDS
During the use of an extension cord, make sure that it is not crushed or damaged and that it contains a
ground. Check that the section of the used extension cord is sufcient to support the machine when it
is working. A too thin extension cord can cause voltage drops or overheating of the machine.
In case of use of a cable reel, it is imperative to unwind it entirely, otherwise, the equipment can be
damaged. The section must be proportional to the length of the cord.
3.3. END OF LIFE OF THE PRODUCT
At its end-of-life, the machine must not be eliminated with the other household waste. The
uncontrolled elimination of waste can harm the environment or human health. Individuals are
invited to contact the distributor which sold them the product or to inquire with their city hall
to know where and how to get rid of the product so it can be recycled while respecting the
environment.
Under the regulation of Waste of Electrical and Electronic Equipments (WEEE), we undertake
to process the used EEEs according to the following provisions: applicable only to products on
the market since 08/13/05, under the brands EUROPE PROJECTION or VOLUMAIR, products
of other brands sold by our company (upon presentation of the corresponding invoices),
products that operate using electrical energy (for example, thermal washers or compressors
do not fall into this category).
Treatment modality
WEEE returns collected by our clients/distributors at their own expense to our collection points
in Antony (92) or Rousset sur Arc (13). Upon receipt, the products are sorted by our employees
and directed to the most appropriate processing channels.
For any further information, please contact our hotline to [e-mail] or
04 42 29 08 96.

201411-085C-ENG User manual - EUROPRO 25 & 27 compressors
P9
4. YOUR COMPRESSOR
4.1. DESCRIPTIF
The Europro 25 & 27 compressors are ideal for small jobs.
Equipped with 4 rubber feet, a lter regulator protected with a quick-connect coupling, an air output
with a quick-connect half-coupling and a pressure switch that controls the air pressure rise in the tank.
These compressors can be used with : spray-guns for slurry products and paint, inators, staplers…
Do not use the compressor for dietary or medical applications.
In certain applications, the addition of an air dryer and/or oil separator can be necessary.
4.2. TECHNICAL CHARACTERISTICS
EUROPRO 25 EUROPRO 27
Rotation speed 2850 RPM 2850 RPM
Flow-rate of air absorbed 235 L/min - 14 m3/h 284 L/min - 17 m3/h
Quantity of oil (crankcase) 0,35 L 0,35 L
Oil consumption 0,5 g/h 0,5 g/h
Motor power 1,8 kW / 2,5 HP 2,2 kW / 3 HP
Electrical supply 230 V 230 V
Frequency 50 Hz 50 Hz
Current 10 A 10 A
Thermal protection yes yes
Safety valve yes yes
Tank capacity 2 L 2 L
Maximum pressure 10 bar 10 bar
Air coupling quick-connect quick-connect
Dimensions (L x w x h) 65 x 36 x 54 cm 55 x 31 x 50 cm
Weight 24 kg 24 kg
Noise level 92 Lwa 92 Lwa

User manual - EUROPRO 25 & 27 compressors 201411-085C-ENG
P10
4. YOUR COMPRESSOR (continued)

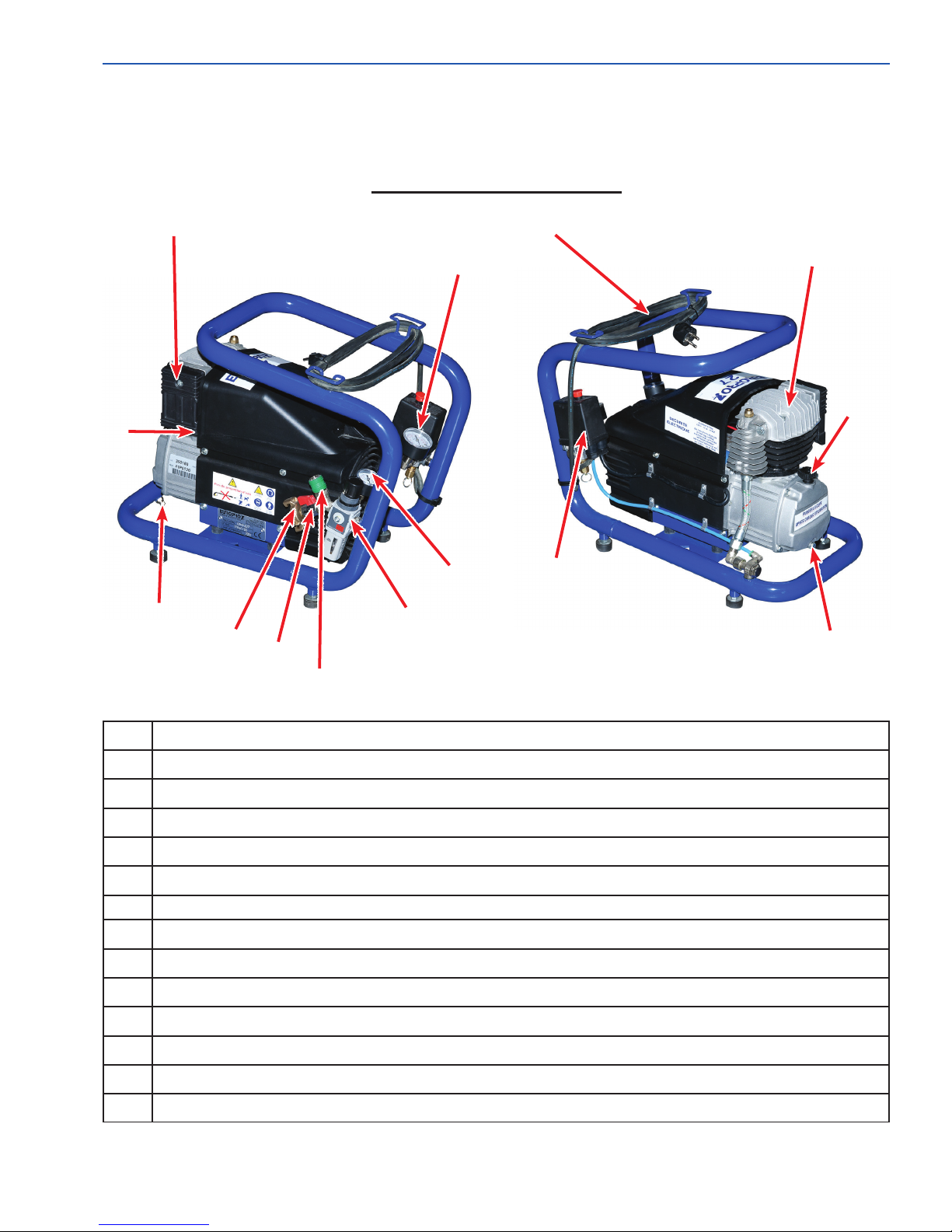

4.3. IDENTIFICATION OF THE COMPONENTS OF THE COMPRESSOR
EUROPRO 25
AAir lter
BThermal circuit-breaker
CDrain screw
DFemale quick-connector 1/4" Ø6
ERegulator lter 1/4"
FAir outlet pressure manometer
GTank pressure manometer
HPower cable
ICompressor head
JOil dipstick
KPressure switch
LDrain plug
The complete list of the components of the machine is available on our website
www.euromair.com
A
B
C
G
F
E
D
K
J
I
H
L

201411-085C-ENG User manual - EUROPRO 25 & 27 compressors
P11
4. YOUR COMPRESSOR (continued)
4.3. IDENTIFICATION OF THE COMPONENTS OF THE COMPRESSOR
EUROPRO 27
AAir lter
BThermal circuit-breaker
CDrain screw
DFemale quick-connector 1/4" Ø6
ERegulator lter 1/4"
FAir outlet pressure manometer
GTank pressure manometer
HPower cable
ICompressor head
JOil dipstick
KPressure switch
LDrain plug
MDrain valve
NQuick-connector 1/4"
The complete list of the components of the machine is available on our website
www.euromair.com
A
B
C
G
F
E
D
K
J
L
I
H
M
N

User manual - EUROPRO 25 & 27 compressors 201411-085C-ENG
P12
5. USE OF THE MACHINE
5.1. PREREQUISITES
• The electric connection has to be 230 V - 16 A - 50 or 60 Hz with a 3 x 2,5 mm cable reel of 40m
maximum, completely unreeled.
• The compressor is equipped with a thermal circuit breaker which stops the engine when it has
reached a temperature which is too high.
If the compressor fuse has blown wait several minutes to let it cool down, then reset the main circuit
breaker by pressing the button (B).
Reduce the length of the electrical cord or use a cable with a bigger cross-section.
If the defect persists, contact our After Sales Service
5.2. STARTING UP
Before every utilization, verify the oil level with the dipstick (J). Rell if needed with
the oil ISO 68INH (ref. 80043) until you reach the level "Max" of the dipstick.
1. Drain the air in the tank using the drain screw (C) or the drain valve (M) (Europro 27 compressor
only).
2. Connect the compressor electrically.
3. Close the drain screw or valve.
4. Pull up the pressure switch (K) button to start the compressor.
5. Wait until the pressure of the manometer reaches 10 bars. Once this maximum pressure has been
reached, the compressor stops*.
6. Set the outlet air pressure with the regulator (E). Pull up the knurl and choose the desired pressure with
help of the + and - indicators.
7. Once the outlet air pressure is set, push the knurl back to block the setting.
8. Connect the equipment (spraying machine, spray-gun, etc…) to the compressor on the quick-connector
(D) (or the quick-connector (N) for the Europro 27 compressor).
9. Start to use your equipment.
*NB: during the use of the equipment, the pressure in the tank will fall. The motor of the compressor will restart
automatically when this pressure will reach 8 bars.
5.3. STOPPING OF THE COMPRESSOR
1. Detach the equipment linked to the compressor.
2. Open the drain screw and let the compressor for about 2 minutes to evacuate all the condensation
which was created in the tank.
3. Push down the red button of the pressure switch (K) to shut down the compressor.
4. Close the drain screw (C).
5. Disconnect electrically the compressor.

201411-085C-ENG User manual - EUROPRO 25 & 27 compressors
P13
6. MAINTENANCE AND SERVICING
Disconnect the plug of the machine from the electrical network before any intervention..
6.1. ONCE PER WEEK
Blasting air lters
Unscrew the air lter (A) and blast it with help of a pressure cleaner.
Cleaning of the lter regulator
1. Unscrew the bowl from the lter regulator an eight of a turn and pull it down to detach it.
2. Clean the lter and the bowl with help of a sponge.
6.2. EVERY 200 WORKING HOURS
Replace the air lters
Unscrew the air lter (A) and replace it.
Oil change
Contact our After-Sale Service : [phone].
Used oil must not be spilled into the environment or the sewage system, but into a
specialized collection site.
In case of the intensive utilization of the compressor, repeat the above mentioned
operations more regularly.

User manual - EUROPRO 25 & 27 compressors 201411-085C-ENG
P14
7. DEFECTS AND REMEDIES
Defect Cause Remedy
The compressor short
circuits cuts out
• Bad power supply
• Defective circuit breaker
• Defective circuit cutout
• Reset the circuit breaker or the circuit
cutout (replace if necessary)
• Verify the current, change the plug
on the site
• Verify the cross-section of the
extension cable
The pressure of the
compressor does not go up
• Filter is clogged up
• Drain screw is open
• Air leakage
• Broken valve plate
• Replace the lter
• Screw up or replace the drain screw
• Verify that there is no leakage
• Replace the regulator lter
• Contact the After-Sale Service
The engine roars but does
not start
• Blown condenser
• Lack of oil
• Replace the condenser
• Verify the oil level
The compressor loses
pressure
• Suction lter is clogged
up
• Clean the lter or replace it if it is
damaged
In case of an unknown defect or a doubt on the good running of the machine, do not try to
repair it by yourself or to dismantle it.
Contact an authorized After-Sale Service or our hotline : [phone].

201411-085C-ENG User manual - EUROPRO 25 & 27 compressors
P15

User manual - EUROPRO 25 & 27 compressors 201411-085C-ENG
P16
8. DECLARATION OF CONFORMITY
THE MANUFACTURER : EUROPE PROJECTION
Z.I Rousset Parc Club
343 bd Francis Perrin
13106 ROUSSET CEDEX
DECLARES THAT THE EQUIPMENT DESIGNATED BELOW :
Trademark : EUROPE PROJECTION
Type : Compressor
Model : EUROPRO 25 or EUROPRO 27
COMPLIES WITH THE ARTICLE:
• the R.233-73 article of the Labour Code
THE DIRECTIVES :
• Machines 2006/42/CE
• Low voltage 2014/35/UE
•CEM 2014/30/UE
• ROHS 2011/65/UE
• Noise emissions 2005/88/CE
AND WITH THE STANDARDS:
• NF EN ISO 12100
• NF EN 60204-1
• NF EN ISO 13857
ROUSSET, APRIL 21th 2016
Patrick BOREL
President
Distributed by : EUROMAIR DISTRIBUTION
Z .I. Rousset Parc Club, 343 boulevard Francis Perrin - 13106 Rousset sur Arc Cedex
Tél : [phone] – Fax : [phone]
SAS au capital de 40 000€ - SIREN 444 797 310 000 – NAF 4673 B

201411-085C-ENG User manual - EUROPRO 25 & 27 compressors
P17
9. WARRANTY
9.1. WARRANTY CONDITIONS
• The manufacturer guarentees the products in case of a defect in design or manufacture for a period
of 12 months from the date of invoice.
• The wearing parts are excluded from the warranty.
• Any warranty intervention must be exclusively performed by the manufacturer or an authorized
After-Sale Services.
• The shipping of any product to the manufacturer, for whatever the type of warranty service, is
subject to its acceptance.
• The warranty covers the free of charge repair or the replacement of the defective components
identied by our technicians.
• The warranty is void in case of damages caused by an accident, resulting from negligence, an
incorrect use or installation, improper or not in accordance with the warnings contained in the user
manual.
• The warranty is also void in case of modication or repairs performed by unauthorized staff.
• The warranty excludes any type of compensation in case of damage to persons or problems caused
by incorrect or inappropriate use.
•
This warranty will be applied only to buyers who have complied with the contracual and administrative
standards and will be able to present a specic documentation mentioning the date of purchase.
• This is the only valid warranty recognized by the manufacturer. No one is allowed to deliver another
one, oral or written, or modify its terms.
All our terms of sales and shipping are available on our general catalogue of the ongoing
year and also on our website www.euromair.com.

User manual - EUROPRO 25 & 27 compressors 201411-085C-ENG
P18

201411-085C-ENG User manual - EUROPRO 25 & 27 compressors
P19
9. WARRANTY (continued)
9.2. CERTIFICATE OF WARRANTY
IT IS COMPULSARY TO RETURN THIS DOCUMENT DULY COMPLETED
BY E-MAIL : [e-mail] OR BY FAX : [phone]
IMPERATIVE
The manual must be provided to the user of the equipment.
It must be read before starting up the machine.
For any intervention under warranty, the purchase invoice must be presented.
WARRANTY
Each product is delivered inspected and tested.
Moreover, it is guaranteed for 12 months from the date of purchase.
This guarantee only applies if the buyer respects the safety regulations, contractual and administrative
standards and if the use was in conformity with the instructions present in the user manual.
Based on this warranty, the manufacturer will repair or replace free of charge any part that can deteriorate
itself or be defective during this period.
The "nal judgment" rests solely with our After-Sale Service technicians.
The guarantee does not cover parts which, because of their specic use, are subject to wear and tear.
If the identied defects could not be attributed to our liability, costs will be charged to the buyer.
MODEL : Compressor EUROPRO 25 or EUROPRO 27
SERIAL NUMBER :
DELIVERY NUMBER :
Rousset, dated
Signature of the dealer Signature of the nal user Stamp of the nal user
Distributed by : EUROMAIR DISTRIBUTION
Z .I. Rousset Parc Club, 343 boulevard Francis Perrin - 13106 Rousset sur Arc Cedex
Tél : [phone] – Fax : [phone]
SAS au capital de 40 000€ - SIREN 444 797 310 000 – NAF 4673 B

User manual - EUROPRO 25 & 27 compressors 201411-085C-ENG
P20
EUROPE PROJECTION - Z .I. Rousset Parc Club - 343, avenue Francis Perrin - 13106 Rousset sur Arc Cedex
Tél : [phone] – Fax : [phone]
SAS au capital de 400 000€ - SIREN 394 961 510 – NAF 2892 Z
