EUROPRO 50TR User manual

EUROPE PROJECTION - 228, avenue Olivier Perroy 13790 ROUSSET - Tél : [phone] – Fax : [phone]
SAS au capital de 400 000 € - RCS Aix-en-Provence B 394 961 510 - NAF 2892 Z - Intracom : FR 54 394 961 510
EUROPRO 50TR & 100TR
Réf. 90469 / 90284
User manual
Edition of 30/07/2020
More information on www.euromair.com

User manual - EUROPRO 50TR / EUROPRO 100TR 202007-477-ENGP2
You just acquired one of our
machines and all the team
of Europe Projection thanks
you for the condence
you have granted us.
Manufacturer of professional
equipments for paint and
llers, we have put our
know-how for 25 years
at the service of the
users of our machines.
Our technical & commercial
team is at your disposal
for any further information
you may need about the
machine you just acquired.
EUROPE PROJECTION
228, avenue Olivier Perroy
13790 ROUSSET
Tél : [phone]
[e-mail]
SUMMARY
1. USER MANUAL............................................................. p. 3
1.1. Importance of the manual .........................................p. 3
1.2. Receivers of the manual............................................p. 3
2. WARNING .................................................................... p. 4
2.1. Safety .....................................................................p. 4
2.2. Electric connection ...................................................p. 6
2.3. End-of-life of the product ..........................................p. 6
3. YOUR MACHINE ........................................................... p. 7
3.1. Description..............................................................p. 7
3.2. Technical characteristics ...........................................p. 7
3.3. Identication of the components EUROPRO 50TR .......p. 8
3.4. Identication of the components EUROPRO 100TR .....p. 9
4. USE OF THE MACHINE ................................................. p.10
4.1. Prerequisites............................................................p.10
4.2. Starting up ..............................................................p.10
4.3. Stopping of the compressor .......................................p.10
5. DEFECTS AND REMEDIES............................................. p.11
6. MAINTENANCE............................................................. p.12
6.1. Once per week.........................................................p.12
6.2. Every 200 working hours ..........................................p.12
7. DECLARATION OF CONFORMITY ................................... p.13
8. WARRANTY CONDITIONS.............................................. p.15

202007-477-ENG User manual - EUROPRO 50TR / EUROPRO 100TR P3
1. USER MANUAL
1.1. IMPORTANCE OF THE MANUAL
This manual is a key part for the use of your machine. It summarizes the procedures of starting-up, cleaning
and maintenance of the device and also the safety instructions you need to observe.
Read carefully all the working and safety instructions and the warnings included in this manual before
starting your machine.
Most of the accidents are caused by the non-compliance of the safety standards and rules.
This manual must be kept near the machine, within reach of the user and held in good condition until the
nal destruction of the machine.
In case of loss or deterioration of the manual, you can ask the machine manufacturer mentioned on page
4 for a copy at any moment.
1.2. RECEIVERS OF THE MANUAL
This manual is intended to any staff which will manipulate the machine :
- people in charge of the transport of the machine
- people in charge of the use of the machine
- people in charge of the cleaning and maintenance of the machine
- people in charge of the nal destruction of the machine

User manual - EUROPRO 50TR / EUROPRO 100TR 202007-477-ENGP4
2. WARNING
2.1. SAFETY
Using the machine in an incorrect way or in non-compliance of the safety instructions indicated in
this manual can cause death or serious injuries.
Read carefully all the working and safety instructions and the warnings contained in this manual
before starting your machine.
• Respect all the safety standards before running the equipment.
• Use the equipment only for the applications specied in the manual.
• Always remain alert when using the equipment.
• Transport the machine using the handles or the appropriate grips.
• During the breaks, disconnect electrically the machine.
• Run the equipment to its nominal voltage.
• Let at least 50 cm of free space between the equipment and any obstacle so that the air ow
is not blocked.
• Know how to quickly stop the equipment in case of necessity.
• Never use the equipment while it is running abnormally or it is defective.
• Do not direct a water jet or ammable liquid on the machine.
• Never direct an air jet or product jet on a person or an animal.
• Do not touch warm surfaces of the equipment.
• Always wear adequate body protections (glasses, gloves, overall and mask) and pay attention
to long hair.
• Never touch moving parts.
• Do not insert any object or the hands inside the protection grids to avoid any accident or
damage to the machine.
• For any outside job, only use appropriate extension cords.
• Maintain the equipment carefully and clean it properly after every use.
• Disconnect the equipment before any intervention.
• Avoid absolutely to unscrew any connection while the machine is under pressure.
• Check the damaged parts.
• Do not clean the plastic parts with solvant.
• In case of damage of the electric cable or the plug, do not run the machine and contact a
licensed After-Sale Service to put genuine parts instead of the defective ones.
• In case of needed After-Sale Service, always specify the machine model and its serial number.
• For any replacement of parts, only use genuine parts.
• Do not cut or dismantle the protection grids.
• Do not transport the compressor while it is under pressure or in operation.
• Do not make any modications to the machine. In particular, do not drill holes, weld or
deliberately deform the compressed air tank.

202007-477-ENG User manual - EUROPRO 50TR / EUROPRO 100TR P5
IN CASE OF NECESSITY, WE SAVE OURSELVES THE RIGHT TO MAKE ANY USEFUL
MODIFICATION WITHOUT ADVANCED NOTICE.
2. WARNING (continued)
2.1. SAFETY (continued)
WORKSPACE
• Maintain the workspace clean and clear.
• Ambient operating temperature must be from 5°C and 35°C.
• Do not use the equipment in a potentially explosive area.
• Do not place any potentially inammable objects in close proximity to the machine.
• Take away every not qualied person from the working area of the machine, as well as children and
animals.
• In case of installation of the machine on scaffolding or a plan above ground level, attach the machine
to avoid any fall while operating.
• Do not install the equipment on an inclined surface to avoid the risks of unexpected moves or falls.
HOSES
• Always use hoses and connections adapted to the used product (genuine parts), do not try to x it.
• Do not walk on the hoses, do not bend them.
• Do not use the hoses to pull the machine.
• Do not use the hoses for other materials, especially at higher pressures.
STORAGE
• Keep the equipment in a clean and clear area in which the temperature does not exceed +35°C.
• After each use of the compressor, drain the tank to empty the water inside.

User manual - EUROPRO 50TR / EUROPRO 100TR 202007-477-ENGP6
2. WARNING (continued)
2.2. ELECTRIC CONNECTION
The electric connection of the machine must be on a 16A - 230V plug with a differential circuit
breaker.
Before any intervention on the machine, make sure that every energy supply is cut (air and
electricity).
GROUND CONNECTOR
All the machines must be connected to the ground when they work to protect the operator from electric
shocks. Our machines are all equipped with standardized connection plugs.
Electric connection must be made by a qualied technician. It is fobidden to modify or dismantle the
machine, especially the electric box.
Repairs must be made by an authorized center or our After-sale Service.
During any intervention on the machine, make sure that the ground is well reconnected.
EXTENSION CORDS
During the use of an extension cord, make sure that it is not crushed or damaged and that it contains a
ground. Check that the section of the used extension cord is sufcient to support the machine when it is
working. A too thin extension cord can cause voltage drops or overheating of the machine.
In case of use of a cable reel, it is imperative to unwind it entirely, otherwise, the equipment can be
damaged. The section must be proportional to the length of the cord.
2.3. END OF LIFE OF THE PRODUCT
At its end-of-life, the machine must not be eliminated with the other household waste. The
uncontrolled elimination of waste can harm the environment or human health. Individuals are
invited to contact the distributor which sold them the product or to inquire with their city hall
to know where and how to get rid of the product so it can be recycled while respecting the
environment.
Under the regulation of Waste of Electrical and Electronic Equipments (WEEE), we undertake to
process the used EEEs according to the following provisions: applicable only to products on the
market since 08/13/05, under the brands EUROPE PROJECTION or VOLUMAIR, products of other
brands sold by our company (upon presentation of the corresponding invoices), products that
operate using electrical energy (for example, thermal washers or compressors do not fall into this
category).
Treatment modality
WEEE returns collected by our clients/distributors at their own expense to our collection points in
Antony (92) or Rousset sur Arc (13). Upon receipt, the products are sorted by our employees and
directed to the most appropriate processing channels.
For any further information, please contact our hotline [phone] or [e-mail].

202007-477-ENG User manual - EUROPRO 50TR / EUROPRO 100TR P7
3. YOUR MACHINE
3.1. DESCRIPTION
Compressors designed for intensive use on all types of jobs.
They operates on a three-phase electrical supply. They are equipped with a phase inverter, an automatic
valve that controls the pressure in the tank, an air outlet with quick-connect half-coupling and 4 folding
transport arms.
TO USE WITH
Spraying machine, sandblaster, slurry & paint spray-gun, pneumatic tools…
3.2. TECHNICAL CHARACTERISTICS
EUROPRO 50TR EUROPRO 100TR
Rotation speed 1215 RPM 1300 RPM
Flow-rate of air absorbed 820 L/min (49 m3/h) 1080 L/min (65 m3/h)
Quantity of oil (crankcase) 1,4 L 1,6 L
Oil consumption 1,5 g/h 1,2 g/h
Motor power 5,5 kW 7,5 kW
Transmission by belt
Electrical supply 400 V
Frequency 50 Hz
Current 12,2 A 16,8 A
Thermal protection yes
Safety valve yes
Tank capacity 1,64 L 2,64 L
Maximum pressure 10 bar
Air coupling quick-connect
Dimensions (L x w x h) 98 x 69 x 73 cm 109 x 70 x 85 cm
Weight 118 kg 177 kg
Noise level 99 Lwa 101 Lwa
Do not use the compressor for food or medical applications.
In some applications, the addition of an air dryer and/or oil separator may be necessary.

DA
I
C
G
H
F
J
E
B
User manual - EUROPRO 50TR / EUROPRO 100TR 202007-477-ENGP8
3. YOUR MACHINE (continued)

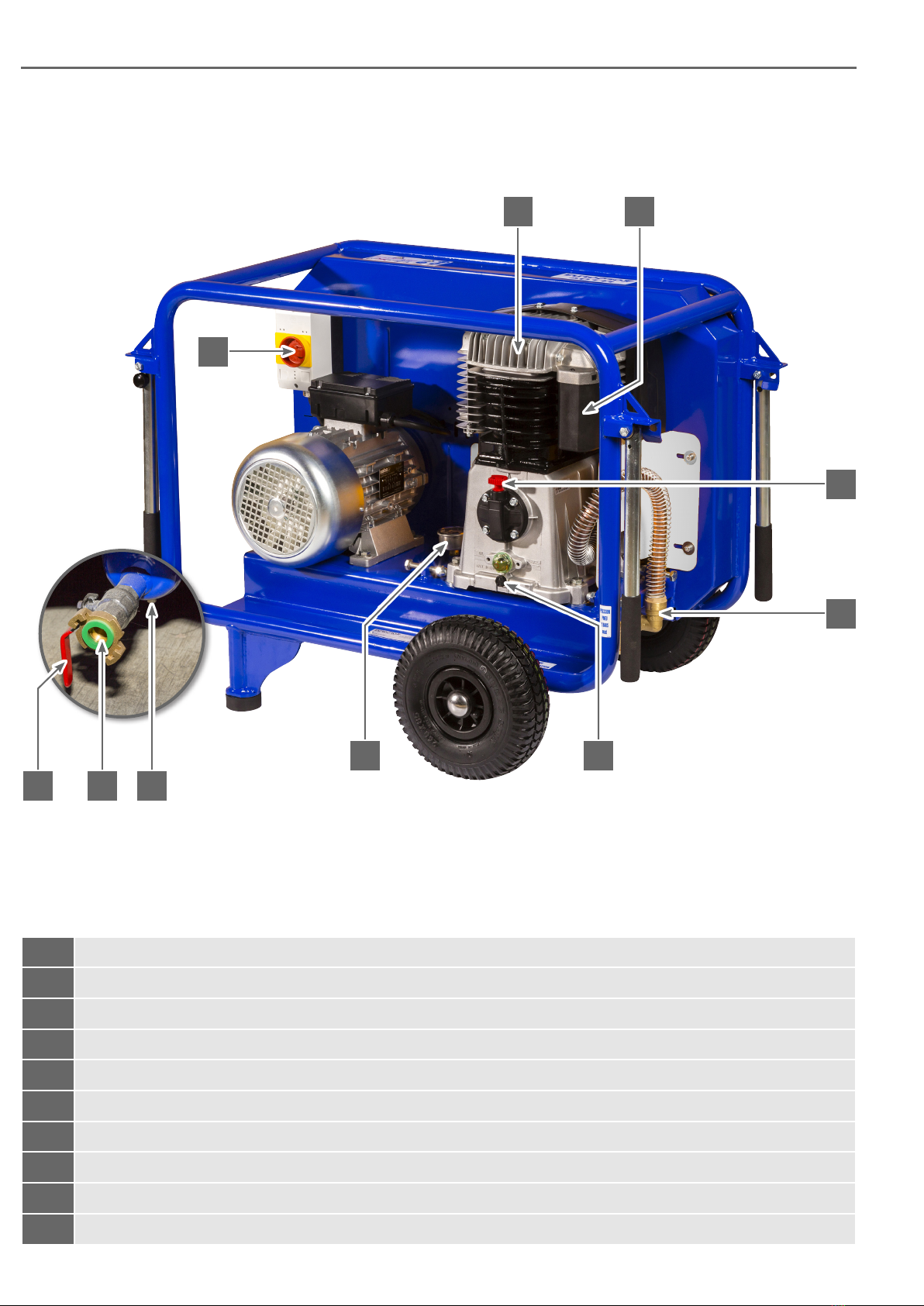

3.3. IDENTIFICATION OF THE COMPONENTS EUROPRO 50TR
ACompression head
BOil dipstick
CDrain plug
DAir lter
EAutonomous valve
FExpress coupling
GAir valve
HTank pressure manometer
IDrain screw
JBox and switch

DA
C
I
F
J
E
B
H
G
202007-477-ENG User manual - EUROPRO 50TR / EUROPRO 100TR P9
3. YOUR MACHINE (continued)
3.3. IDENTIFICATION OF THE COMPONENTS EUROPRO 100TR
ACompression head
BOil dipstick
CDrain plug
DAir lter
EAutonomous valve
FExpress coupling
GAir valve
HTank pressure manometer
IDrain screw
JBox and switch

K L
User manual - EUROPRO 50TR / EUROPRO 100TR 202007-477-ENGP10
4. USE OF THE MACHINE
4.1. PREREQUISITES
• For EUROPRO 50TR, the electric connection has to be 400 V - 16 A - 50 or 60 Hz with a 4 x 2,5 mm²
cable reel of 40m maximum, completely unreeled.
• For EUROPRO 100TR, the electric connection has to be 400 V - 32 A - 50 or 60 Hz with a 6 x 2,5
mm² cable reel of 40m maximum, completely unreeled.
• The compressor is equipped with a thermal circuit breaker that stops the motor when it reaches too
high a temperature. If the compressor is stopped, the switch (J) turns to OFF, wait a few minutes for it
to cool down, then reset the circuit breaker by turning the switch (J) to the ON position.
4.2. STARTING UP
1. Drain the air in the tank with the drain screw (I).
2. Connect the compressor electrically.
3. Close the drain screw.
4. Turn the switch (J) to the ON position to start the compressor.
5. Fully charge the tank, the pressure on the manometer (H) must reach 8 bar. Once this maximum load
has been reached, the autonomous valve will decompress.
6. Connect the device (spraying machine, stapler, etc...) to the compressor on the express coupling (F),
then open the valve (G). The exact setting of the output pressure will be done on the connected device.
7. Start using your device.
4.3. STOPPING OF THE COMPRESSOR
1. Close the valve (G), then drain the air in the hose.
2. Disconnect the device connected to the compressor.
3. Open the drain screw (I) and let the compressor run for about 2 minutes to drain off the condensation
that has formed in the tank.
4. Turn the switch (J) to the OFF position to turn off the compressor.
5. Close the drain screw (I).
6. Disconnect the compressor electrically.
Before each use, check the oil level with the dipstick (B). Fill if necessary with ISO 68INH
oil until the MAX level of the dipstick is reached.
Before use, it is imperative to connect and start the compressor, check that the direction of
rotation of the motor propeller is in accordance with the direction of the arrow (photo K). If
not, stop the compressor, unplug it, then reverse the phases in the plug using a screwdriver
(photo L).

202007-477-ENG User manual - EUROPRO 50TR / EUROPRO 100TR P11
5. DEFECTS AND REMEDIES
Defects Causes Remedies
• Compressor's breaking down.
• Bad supply.
• Faulty circuit breaker.
• Faulty switch.
• Reset circuit breaker or switch
(replace if necessary).
• Check the power supply,
change the mains plug.
• Check the extension section.
• Compressor doesn't gain
pressure.
• Clogged lter.
• Drain open.
• Air leakage.
• Broken valve plate.
• Replace the lters.
• Screw back in or replace
purge.
• Check for leaks.
• Replace the regulating lter.
• Contact the After-Sales
Service.
• Engine rumbles but won't
start.
• Capacitor burned out.
• Lack of oil.
• Replace the capacitor.
• Check the oil level.
• Compressor loses pressure. • Suction lter clogged. • Clean the lter or replace it if
it is damaged.
In case of an unknown defect or a doubt on the good running of the machine, do not try to
repair it by yourself or to dismantle it.
Contact an authorized After-Sale Service or our hotline : [phone].

User manual - EUROPRO 50TR / EUROPRO 100TR 202007-477-ENGP12
6. MAINTENANCE
6.1. ONCE PER WEEK
Air lter blowing
EUROPRO 50TR: unscrew then unclip the air lter (D) and blow it out with a blower to clean it.
EUROPRO 100TR: unclip the air lter (D) and blow it out with a blower to clean it.
6.2. EVERY 200 WORKING HOURS
Replacing air lter
Unscrew or unclip the air lter (D) and replace it.
Changing oil
Contact our After-Sales Service: 04 42 29 08 96.
Disconnect the machine from the power supply before any intervention.
Used oil must not be discharged into the environment or sewers, but to a specialised waste
disposal service.
If the compressor is used intensively, repeat these operations more frequently.

202007-477-ENG User manual - EUROPRO 50TR / EUROPRO 100TR P13
7. DECLARATION OF CONFORMITY
THE MANUFACTURER : EUROPE PROJECTION
228, avenue Olivier Perroy
13790 ROUSSET
DECLARES THAT THE EQUIPMENT DESIGNATED BELOW :
Trademark : EUROPE PROJECTION
Type : Three-phased compressor
Model : EUROPRO 50TR / EUROPRO 100TR
COMPLIES WITH THE ARTICLE:
• the R.233-73 article of the Labour Code
THE DIRECTIVES :
• Machines 2006/42/CE
• Low voltage 2014/35/UE
• CEM 2014/30/UE
• ROHS 2011/65/UE
• Noise emissions 2005/88/CE
AND WITH THE STANDARDS:
• NF EN ISO 12100
• NF EN 60204-1
• NF EN ISO 13857
ROUSSET, JANUARY 20th 2020
Patrick BOREL
President
EUROPE PROJECTION - 228, avenue Olivier Perroy 13790 ROUSSET
Tél : [phone] – Fax : [phone]
SAS au capital de 400 000 € - RCS Aix-en-Provence B 394 961 510 - NAF 2892 Z - Intracom : FR 54 394 961 510

User manual - EUROPRO 50TR / EUROPRO 100TR 202007-477-ENGP14

202007-477-ENG User manual - EUROPRO 50TR / EUROPRO 100TR P15
8. WARRANTY CONDITIONS
Each product is delivered inspected and tested.
We exclude any warranty for visible defects for which the customer did not claim within 48 hours.
The equipments sold are covered by the warranty during the period dened by the manufacturer from
the date of purchase, the date on the original proof of purchase being authentic and under the conditions
dened by the manufacturer.
This warranty covers any equipment against any manufacturing or material defect of for normal use and
service. Insofar as the customer is presumed to be a professional of the same specialty, the guarantee
covers only the lack of realization of the equipment rendering it unt for its use not likely to be detected by
a professional buyer.
The defects or deteriorations caused by natural wear, external accident or a modication, use, storage or
treatment of equipments not planned by the manufacturer, nor specied by ourselves, are excluded from
any warranty.
Are expressly excluded from the warranty the defects coming from: a bad use, the application of abrasive
or corrosive products, an inappropriate installation, the negligence, an insufcient maintenance or cleaning
chemical, electrochemical or electric inuences, any change in the normal process of use.
The following wearing parts are not covered by the warranty: rotors, stators, driving shafts, connecting rods,
seals, cleaning balls, spray guns, lance, nozzle, hose, needle kits, cylinders, piston rods, prime/spray valve
assy, seal kits, membranes, suction and delivery valves, carding machine vanes, lters, oils.
The warranty also excludes the equipments: on which the serial number was erased or made illegible, on
which unauthorized people made attempts of repair which were totally or partially dismantled.
Defective equipment will be removed by us. Any shipment of equipment by the customer will be at its own
expense. The guarantee will be subject to the presentation of the purchase invoice. We will then be able to
perform an equipment analysis to determine if the defect is covered by the warranty.
If the defective equipment is covered by the warranty, it will be repaired or replaced free of charge. Repaired
equipment (under warranty) will be delivered to the customer free of charge.
If the defective equipment is not covered by the warranty, we will issue a quote for the repair that we will
submit to the customer’s agreement. The costs of removal and shipping of equipment not covered by the
warranty will be charged to the customer, whether or not the latter accepts the repair estimate.
Except as otherwise required by law, this warranty is exclusive of all other warranties, including the statutory
warranty of hidden defects.
In case of intervention of our services on a breakdown caused by the customer or an outage excluded in the
conditions referred to above, the costs of repair and transport will be billed to the customer.
We exclude all liability for indirect damages suffered by the customer, such as, but not limited to, loss of
income, turnover, loss of prots, loss of image, of any kind whatever.
In all cases, our liability shall be limited to the amount paid by the customer for non-compliant equipment.
Any action of the customer against us relating to the guarantee of the equipments will be prescribed within
the period of 1 year as from the day of the discovery of the defect. It is up to the customer to prove the day
of this discovery.
Our equipments are covered by a warranty (parts and labour) of 12 months following the purchase.
The duration of this warranty can be extended by 6 months by completing the warranty extension
form within 4 weeks after purchasing on our website www.euromair.com (section Warranty).

EUROPE PROJECTION - 228, avenue Olivier Perroy 13790 ROUSSET - Tél : [phone] – Fax : [phone]
SAS au capital de 400 000 € - RCS Aix-en-Provence B 394 961 510 - NAF 2892 Z - Intracom : FR 54 394 961 510
User manual - EUROPRO 50TR / EUROPRO 100TR 202007-477-ENGP16
More information on www.euromair.com
