1. INTRODUCTION
You just acquired a JETPRO atomizer and all the team of Europe Projection thanks you for the
condence you have granted us.
Manufacturer of professional equipments for paint and llers, we have put our know-how for 20 years
at the service of the users of our machines.
Our technical and commercial team is at your disposal for any further information you may need about
the machine you just acquired.
EUROPE PROJECTION
228, avenue Olivier Perroy 13790 ROUSSET
Tél : [phone] – Fax : [phone]
SAS au capital de 400 000€ - SIREN 394 961 510 – NAF 2892 Z

201902-338-ENG User manual - JETPRO 80, 100, 120 P5
2. USER MANUAL
2.1. IMPORTANCE OF THE MANUAL
This manual is a key part for the use of your machine. It summarizes the procedures of starting-up,
cleaning and maintenance of the device and also the safety instructions you need to observe.
Read carefully all the working and safety instructions and the warnings included in this manual before
starting your machine.
Most of the accidents are caused by the non-compliance of the safety standards and rules.
This manual must be kept near the machine, within reach of the user and held in good condition until
the nal destruction of the machine.
In case of loss or deterioration of the manual, you can ask the machine manufacturer mentioned on
page 4 for a copy at any moment.
2.2. RECEIVERS OF THE MANUAL
This manual is intended to any staff which will manipulate the machine :
- people in charge of the transport of the machine
- people in charge of the use of the machine
- people in charge of the cleaning and maintenance of the machine
- people in charge of the nal destruction of the machine

User manual - JETPRO 80, 100, 120 201902-338-ENGP6
3. WARNING
3.1. SAFETY
Using the machine in an incorrect way or in non-compliance of the safety instructions
indicated in this manual can cause death or serious injuries.
Read carefully all the working and safety instructions and the warnings contained in this
manual before starting your machine.
• Respect all the safety standards before running the equipment.
• Use the equipment only for the applications specied in the manual.
• Always remain alert when using the equipment.
• Transport the machine using the handles or the appropriate grips.
• During the breaks, disconnect electrically the machine.
• Run the equipment to its nominal voltage.
• Let at least 50 cm of free space between the equipment and any obstacle so that the air
ow is not blocked.
• Know how to quickly stop the equipment in case of necessity.
• Never use the equipment while it is running abnormally or it is defective.
• Do not direct a water jet or ammable liquid on the machine.
• Never direct an air jet or product jet on a person or an animal.
• Do not touch warm surfaces of the equipment.
• Always wear adequate body protections (glasses, gloves, overall and mask) and pay
attention to long hair.
• Never touch moving parts.
• Do not insert any object or the hands inside the protection grids to avoid any accident or
damage to the machine.
• For any outside job, only use appropriate extension cords.
• Maintain the equipment carefully and clean it properly after every use.
• Disconnect the equipment before any intervention.
• Avoid absolutely to unscrew any connection while the machine is under pressure.
• Check the damaged parts.
• Do not clean the plastic parts with solvant.
• In case of damage of the electric cable or the plug, do not run the machine and contact a
licensed After-Sale Service to put genuine parts instead of the defective ones.
• In case of needed After-Sale Service, always specify the machine model and its serial
number.
• For any replacement of parts, only use genuine parts.

201902-338-ENG User manual - JETPRO 80, 100, 120 P7
3. WARNING (continued)
3.1. SAFETY (continued)
• Do not modify the machine.
• Do not cut or dismantle the protection grids.
• Do not open the electric box.
WORKSPACE
• Maintain the workspace clean and clear.
• Ambient operating temperature must be from 5°C and 35°C.
• Do not use the equipment in a potentially explosive area.
• Do not place any potentially inammable objects in close proximity to the machine.
• Take away every not qualied person from the working area of the machine, as well as children
and animals.
• In case of installation of the machine on scaffolding or a plan above ground level, attach the machine
to avoid any fall while operating.
• Do not install the equipment on an inclined surface to avoid the risks of unexpected moves or falls.
HOSES
• Always use hoses and connections adapted to the used product (genuine parts), do not try to x it.
• Do not walk on the hoses, do not bend them.
• Do not use the hoses to pull the machine.
STORAGE
• Keep the equipment in a clean and clear area in which the temperature does not exceed +35°C.
• After every use, necessarily grease the pump with a mixture of water + storage liquid to avoid it
blocking up. The storage of a not greased pump can damage it seriously.
IN CASE OF NECESSITY, WE SAVE OURSELVES THE RIGHT TO MAKE ANY USEFUL
MODIFICATION WITHOUT ADVANCED NOTICE.

User manual - JETPRO 80, 100, 120 201902-338-ENGP8
3. WARNING (continued)
3.2. ELECTRIC CONNECTION
The electric connection of the machine must be on a 16A - 230V plug with a differential circuit
breaker.
Before any intervention on the machine, make sure that every energy supply is cut (air and
electricity).
GROUND CONNECTOR
All the machines must be connected to the ground when they work to protect the operator from electric
shocks. Our machines are all equipped with standardized connection plugs.
Electric connection must be made by a qualied technician. It is fobidden to modify or dismantle the
machine, especially the electric box.
Repairs must be made by an authorized center or our After-sale Service.
During any intervention on the machine, make sure that the ground is well reconnected.
EXTENSION CORDS
During the use of an extension cord, make sure that it is not crushed or damaged and that it contains a
ground. Check that the section of the used extension cord is sufcient to support the machine when it
is working. A too thin extension cord can cause voltage drops or overheating of the machine.
In case of use of a cable reel, it is imperative to unwind it entirely, otherwise, the equipment can be
damaged. The section must be proportional to the length of the cord.
3.3. END OF LIFE OF THE PRODUCT
At its end-of-life, the machine must not be eliminated with the other household waste. The
uncontrolled elimination of waste can harm the environment or human health. Individuals are
invited to contact the distributor which sold them the product or to inquire with their city hall
to know where and how to get rid of the product so it can be recycled while respecting the
environment.
Under the regulation of Waste of Electrical and Electronic Equipments (WEEE), we undertake
to process the used EEEs according to the following provisions: applicable only to products on
the market since 08/13/05, under the brands EUROPE PROJECTION or VOLUMAIR, products
of other brands sold by our company (upon presentation of the corresponding invoices),
products that operate using electrical energy (for example, thermal washers or compressors
do not fall into this category).
Treatment modality
WEEE returns collected by our clients/distributors at their own expense to our collection points
in Antony (92) or Rousset sur Arc (13). Upon receipt, the products are sorted by our employees
and directed to the most appropriate processing channels.
For any further information, please contact our hotline to [e-mail] or
[phone].

201902-338-ENG User manual - JETPRO 80, 100, 120 P9
4. YOUR MACHINE
4.1. DESCRIPTION
JETPRO is a machine for applying thin lms of ller.
It uses a valveless pump, is easy to maintain, with a round stainless steel tank for easy cleaning, a
Ø35mm drain plug. It is equipped with large diameter, at prole, inatable tyres for better stability.
The JETPRO can atomize various types of plaster : smoothing plaster, skimming plaster, droplet ller,
etc.
Do not use products with grain size (unless with droplet kit up to 3mm of grain size), mortars,
lime based renders, technical or special coatings with heavy loadings
4.2. TECHNICAL CHARACTERISTICS
JETPRO 80 JETPRO 100 JETPRO 120
Maximum working pressure 80 bar 120 bar 120 bar
Maximum product ow-rate 6 L/min 7 L/min
Electric motor 1,85 kW 2,2 kW 3 kW
Power 230 V / 50 and 60 Hz
Type of pump volumetric screw
Pump JET 1 JET 2 JET 3
Tank capacity 40 L 76 L
Maximum nozzle size (new) 0,045" 0,055"
Dimensions (L x w x h) 113 x 61 x 78 cm 128 x 65 x 89 cm
Weight 80 kg 83 kg 116 kg
Noise level 91 Lwa
Delivered with
- a Ø19 x 10 m hose
- a Ø13 x 2,5 m easy handling exible hose
- a spray-gun
- a TT3 443 nozzle
- a nozzle holder
- a Ø19 x 30 m hose
- a Ø16 x 2,5 m easy handling exible
hose
- a wireless remote control
- a 1L bottle of storage liquid
- a toolbox containing :
• a spray-gun
• a TT3 443 nozzle
• a nozzle holder
• two cleaning balls
• a tube brush
• a 8mm Allen key

User manual - JETPRO 80, 100, 120 201902-338-ENGP10
4. YOUR MACHINE (continued)
4.3. IDENTIFICATION OF THE COMPONENTS

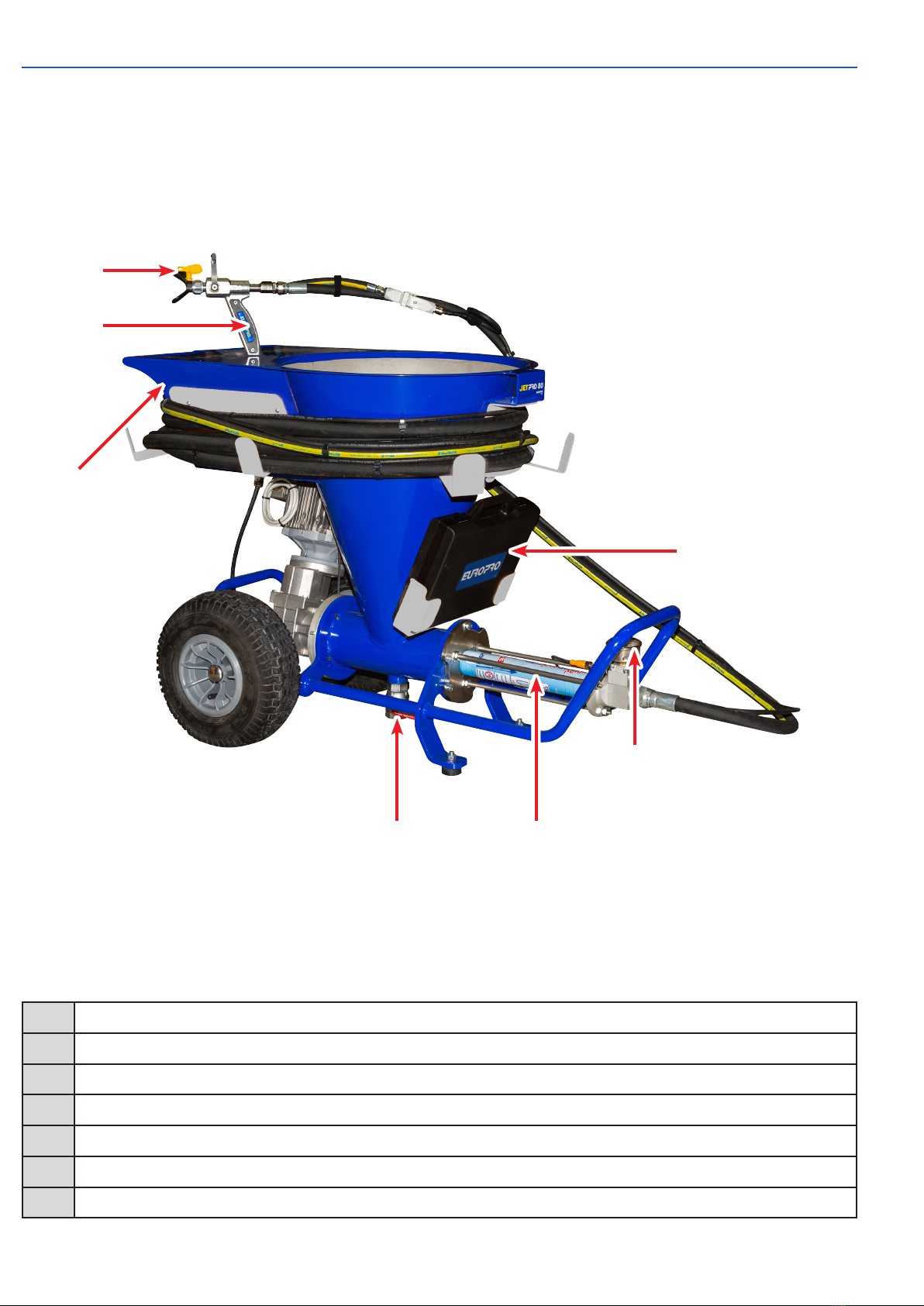

AToolbox
BManometer
CPump
DDrain valve
ESpray-gun
FNozzle
GControl panel (see next page)
B
E
F
G
D C
A

201902-338-ENG User manual - JETPRO 80, 100, 120 P11
4. YOUR MACHINE (continued)
4.3. IDENTIFICATION OF THE COMPONENTS (continued)
1
2
3
4
5
6
L2
L1
L3
L4
L5
L6
AU
A1
B1
ON/OFF : Start / Stop
MANU/AUTO : Choice of MANU or AUTO mode
REVERSE : Runs the pump backwards only while you press
+ : increases the motor speed
- : decreases the motor speed
PRIMING / SPRAYING :
choice of PRIMING or SPRAYING mode
Emergency stop
Light Power on
Light Manual process is selected
Light Automatic process is selected
Light backwards running
Light pump is priming
Light pump is running under pressure
Shows upon: running speed of motor or pump pressure in %
Shows Network Voltage (do not run below 200V)
1
AU A1 B14 5
32 6L2L3 L5L1 L4 L6

User manual - JETPRO 80, 100, 120 201902-338-ENGP12
5. USE OF THE MACHINE
5.1. PREREQUISITES
• The electric connection has to be 230 V - 16 A - 50 or 60 Hz with a 3 x 2,5 mm cable reel of 40m
maximum, completely unreeled.
• The selection of the working mode is done by pushing the button (6), the warning lights (L5) or
(L6) indicate the selected working mode. The display (A1) indicates the set value of the instruction
"PRIMING" or "SPRAYING".
• In PRIMING mode, the display (A1) indicates the setting of the speed of the rotation of the pump in %.
• In SPRAYING mode, the display (A1) indicates the setting of the working pressure in % (100% = 80
bar on Jetpro 80 // 100% = 120 bar on Jetpro 100 and 120).
• In AUTO mode (warning light L3 is on), the starting up of the machine happens automatically in
SPRAYING mode when opening the lance (warning light L6 is on).
• Always carry out the starting up of the machine in PRIMING mode.
• During the starting up of the machine, it is important to respect the following stages mentioned below :
- turn the machine on
- push the button (1)
- set the display (A1) to 50 with help of the buttons +/- (4) & (5)
- push the button (2) to verify the correct start-up
• After a prolonged standstill, it is possible that the pump might be blocked. If this is the case, proceed
by start and stop. Put water and stocking liquid into the tank. Alternately turn the pump forwards
and backwards for 5 second sequences. As soon as the engine starts to turn normally, the pump is
unblocked. Empty the water.
• On the JETPRO 120: check every month that the machine’s automatic lubricator is working properly.
The level of grease in the cartridge should decrease steadily. The absence of grease can seriously
damage the machine.
It is imperative to replace the automatic motor ange lubricator every 6 months.
5.2. STARTING UP
Work / Stop
• Once the machine is plugged in, the machine is in the stop mode, the display (A1) indicates "OFF"
and the display (B1) indicates the mains voltage.
• If "AU" is shown, unscrew the emergency stop button a quarter of a turn.
• One push of the button "ON/OFF" (1), the warning light (L1) lights up, the machine is ready to work.
• One push of the button "ON/OFF" (1), when the machine is ready to work (warning light (L1) is on),
the machine will switch off, the display (A1) indicates "OFF" (warning light (L1) is off)

201902-338-ENG User manual - JETPRO 80, 100, 120 P13
5. USE OF THE MACHINE (continued)
Start-up
1. Put soapy water into the tank.
2. Plug in the machine.
3. Disconnect the electric connector which is at the spray-gun (plug beneath the electric box)
4. Open the spray-gun.
5. Set the product ow-rate on the display (A1) to 30 with help of the buttons +/- (4) or (5).
6. Push the button MANU/AUTO (2) the warning light (L2) lights up. The drive shaft at the bottom of
the tank must turn. If this is not the case, see 5.1. on page 12.
7. Push once again on the button MANU/AUTO (2) to switch to AUTO mode, the warning light (L3)
lights up.
8. Put your product in the tank.
9. Switch the machine to MANU mode until the product comes out of the spray-gun.
10.As soon as the product comes out of the spray-gun, switch to AUTO mode.
11. Close the spray-gun, reconnect the electric connector
12.Put the nozzle-carrier onto the spray-gun and use the desired nozzle for the used product.
13.Set the working pressure on the display (A1) to 60 with help of the buttons +/- (4) or (5).
14.Open the spray-gun and verify that the warning light (L6) lights up, then start to atomize.
15.Adjust the pressure to your needs.
5.3. ERROR CODES
The different error codes show up on the display (A1).
CODES DEFINITION TO DO
No display. Plug the machine into the power supply, assure the power supply is
230 V, verify the fuse in the electric box.
Emergency stop is
on.
Unlock the emergency stop button (AU).
Machine is in the
stop mode.
Switch the machine on by pressing on the button (1).
Default control
engine.
Set the machine to "OFF" for one minute and then switch it back on.
Default command
departure.
Verify that the lance is closed when the macine is switched on.
If the problem persists or if in doubt about the correct working of the machine, do not try to repair the
machine yourself or to dismantle it.
Contact an authorized After-Sale Service or our hotline on : [phone].

User manual - JETPRO 80, 100, 120 201902-338-ENGP14
6. MAINTENANCE
Disconnect the plug of the machine from the mains voltage before any intervention.
Before unscrewing the hose, make sure it is not under pressure anymore.
6.1. CLEANING PROCEDURE
1. Open the bottom drain valve.
2. Empty the tank.
3. Clean with water.
4. Unscrew the connector on the side of the pump and on the lance.
5. Proceed to cleaning the pump as shown on the photos here after (page 15 to 18).
6. After having cleaned the pump and remounted it, put the cleaning ball into to the pump outlet and
then screw back the hose.
7. Fill the tank with water.
8. Push the button "MANU/AUTO" to put the machine in MANU mode, the warning light (L2) lights up.
9. Set the display (A1) to 50 with help of the buttons +/- (4) & (5).
10.Wait until the cleaning ball comes out of the hose (carry out operations 6 to 10 twice).
11. Clean the lance.
12.Screw the hose back onto the lance.
13.Put stocking liquid into the tank according to the recommended dilution on the product bottle.
14.Push the button "MANU/AUTO" (2) to switch to the MANU mode, the warning light (L2) lights up and
make the pump turn for about 15 seconds.
15.Electrically disconnect the Jetpro.
The direct projection of water under pressure onto the control panel has to be
stopped at the risk of water inltration into the electric box. Proceed by simply
cleaning with a humid sponge.

201902-338-ENG User manual - JETPRO 80, 100, 120 P15
6. MAINTENANCE (continued)

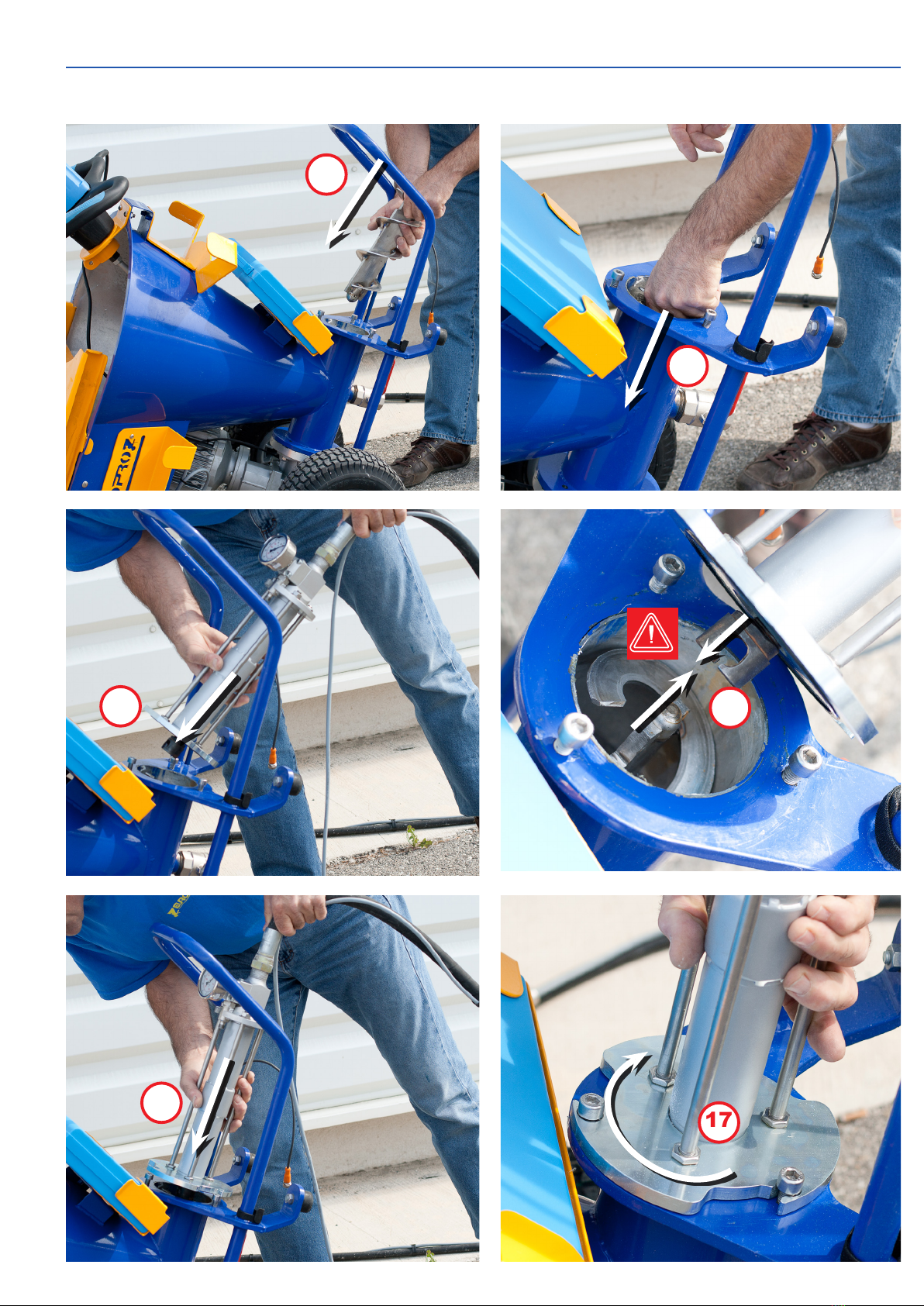

6.2. DISMANTLING
1
3
4
2
5
6
7
8
8mm
9
10

User manual - JETPRO 80, 100, 120 201902-338-ENGP16
11
12
6. MAINTENANCE (continued)
6.2. DISMANTLING (continued)

201902-338-ENG User manual - JETPRO 80, 100, 120 P17
17
13
14
15
16
15
6. MAINTENANCE (continued)
6.3. REASSEMBLY

User manual - JETPRO 80, 100, 120 201902-338-ENGP18
25
23
22
24
21
18 19
20
6. MAINTENANCE (continued)
6.3. REASSEMBLY (continued)

201902-338-ENG User manual - JETPRO 80, 100, 120 P19
7. FAILURES AND REMEDIES
Failure Remedy
The display does not light up (no display). • Verify the power supply.
The display indicates an error code. • See table page 13.
The pump is blocked. • After a prolonged standstill, the pump might be
blocked. See procedure 5.1. page 12.
The machine does not start at the opening
of the lance. • Verify that the connectors are well connected.
The pressure is insufcient.
• Verify that the setting is strong enough.
• Verify that the nozzle is not too big or too worn out.
• Verify the wear of the pump.
In case of an unknown defect or a doubt on the good running of the machine, do not try to
repair it by yourself or to dismantle it.
Contact an authorized After-Sale Service or our hotline : [phone].

User manual - JETPRO 80, 100, 120 201902-338-ENGP20
8. MACHINE DECLARATION OF CONFORMITY
THE MANUFACTURER : EUROPE PROJECTION
228, avenue Olivier Perroy
13790 ROUSSET
DECLARES THAT THE EQUIPMENT DESIGNATED BELOW :
Trademark : EUROPE PROJECTION
Type : Atomizer
Model : JETPRO 80, 100, 120
COMPLIES WITH THE ARTICLE:
• the R.233-73 article of the Labour Code
THE DIRECTIVES :
• Machines 2006/42/CE
• Low voltage 2014/35/UE
• CEM 2014/30/UE
• ROHS 2011/65/UE
AND WITH THE STANDARDS:
• NF EN ISO 12100
• NF EN 60204-1
• NF EN ISO 13857
• NF EN 1953
ROUSSET, APRIL 20th 2018
Patrick BOREL
President
Distributed by : EUROMAIR DISTRIBUTION
228, avenue Olivier Perroy 13790 ROUSSET
Tél : [phone] – Fax : [phone]
SAS au capital de 400 000€ - SIREN 394 961 510 – NAF 2892 Z
