Eurospec BTL1 User manual

TLE TUBULAR LATCH
FITTING INSTRUCTIONS
[phone]
Carlisle Brass Ltd, Parkhouse Road, Carlisle, CA3 0JU
[email protected]
www.carlislebrass.com
FITCB0178 | Revision A
We recommend consulting a professional if you are unfamiliar with installing hardware xtures.
Page 1 of 2
Carlisle Brass Ltd
Parkhouse Road,
Carlisle,
CA3 0JU
2812 - CPR - AG5228 21
EN 12209: 2003 / AC 2005 Classication 1121
Lock Information - Accreditation, Performance & Suitability for use on Fire Doors
Item CE Ref
Declaration
of
Performance EN 12209 : 2003 classication
Intumescent
Requirements
FD30 & FD60
Timber Doors
BTL1
AG5228 CBB213
NPD A 7 1 0 C - B 0 NPD 0
0.8mm
Intercalated
Graphite
intumescent sheet
BTL2 NPD A 7 1 0 C - B 0 NPD 0
BTL3 NPD A 7 1 0 C - B 0 NPD 0
BTL4 NPD A 7 1 0 C - B 0 NPD 0
BTL25 NPD A 7 1 0 C - B 0 NPD 0
BTL30 NPD A 7 1 0 C - B 0 NPD 0
Tools required: Drill & 25.4mm (1”) drill bit, Mallet, Chisel, Posidrive
Screwdriver, Pencil, Masking Tape
The mortice must always be aligned horizontally and vertically
in order for all relevant components to operate as intended.
Misalignment of any single component can lead to the breakdown of
complete door set operation.
It is recommended to pilot all xing screw locations prior to nal
tting to prevent excess strain on the xings.
Using a pencil, mark the door edge for the height and width of the
mortice, and also for the forend. Use these markings as your visual
guide to ensure you cut the mortice to the correct dimensions.
Using a 1” drillbit, drill the mortice accordingly, ensuring any
shavings or swarf are removed and the mortice is smooth.
Note: Use tape to mark the correct depth of the drill bit. The required
depth is the latch/deadbolt body length + Fixed forend + Loose Face
Plate.
Insert latch body into mortice and draw around the faceplate. Chisel
out to the required depth (which will include the loose faceplate).
Preparation And Installation

TLE TUBULAR LATCH
FITTING INSTRUCTIONS
[phone]
Carlisle Brass Ltd, Parkhouse Road, Carlisle, CA3 0JU
[email protected]
www.carlislebrass.com
FITCB0178 | Revision A Page 2 of 2
PLEASE LEAVE THESE INSTRUCTIONS WITH THE END USER

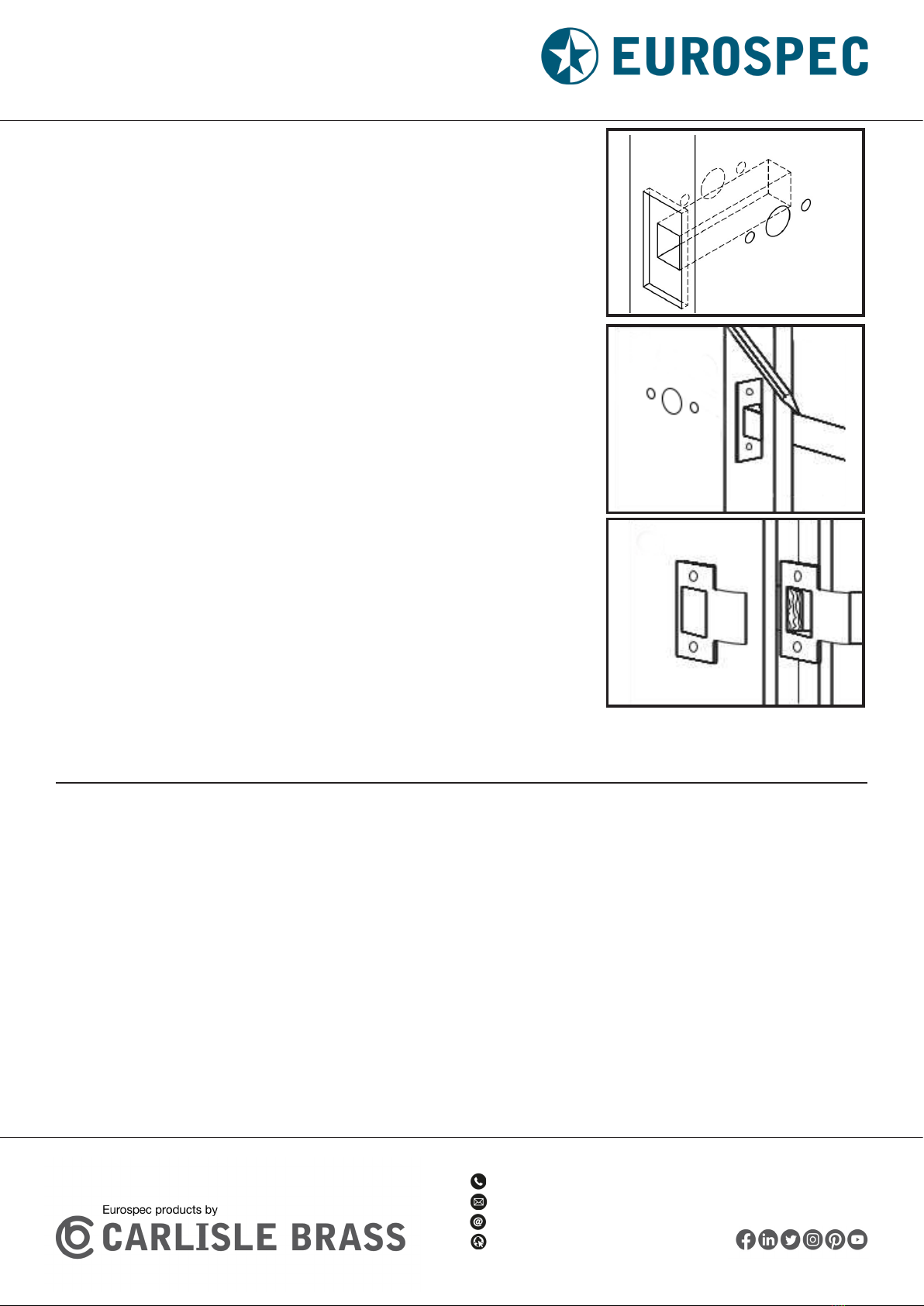

On either face of the door, mark any required hole centres for follower
and accessory bolt through xings, and drill accordingly. Remove any
swarf from the mortice.
Note: Never drill any holes while the latch is in the door.
Insert the latch, including loose faceplate into the mortice. Ensure the
bevelled face of the latch is facing the frame direction. Fix in place
with included screws.
Check operation prior to preparing the frame for the strike plate.
With the latch tted and the door in the open position, close the door
gently against the frame and mark the top and bottom edge of the
latch/deadbolt on the door frame.
Transfer these two marks across to the inside of the door frame
rebate. Mark an additional horizontal line approximately 2mm above
the top line.
This line represents the top inside edge of the aperture within the
strike plate and will provide operating clearance.
Identify where the resting position of the latch will be, and draw
around the strike plate accordingly.
Chisel out accordingly for the strike plate with sufcient mortice for
the dust box ensuring, when tted, the strike plate is ush with the
frame.
Close door to check proper operation. Adjust anti-rattle tabs as
necessary.
A care and Maintenance Schedule should be carred out regularly.
Check that the lock and the strike plate are correctly aligned and that the xing screws are tight.
After 20,000 operations, apply ne machine oil, or GT85 (or similar) PTFE lubricant to the latchbolt and
deadbolt slots, operate a few times to work the lubricant into the components, wiping away any excess.
Ensure that any door or frame nishes are protected. Repeat after each additional 20,000 operations.
Declarations of Performance and other information can be downloaded from the below website and
searching under knowledge centre.
http://www.carlislebrass.com
CARE AND MAINTENANCE
