EV LIGHT EV BM1012 User manual

USER MANUAL
Please read it carefully
EV BM1012
13211072211
01010107210
7par3108
EV LIGHT
R
Appearance patent No.:201330085957.7

INDEX
1、 SAFETY GUIDELINE··················································································· - 2 -
2、 TECHNICAL PARAMETER ·········································································· - 3 -
3、 LIGHTING INSTALLATION ·········································································· - 4 -
4、 POWER SUPPLY-CONTROL SIGNAL CONNECTIONS ···································· - 5 -
5、 OPERATION MENU··················································································· - 6 -
6、
MAINTENANCE ························································································ - 8 -
7、
TROUBLESHOOTING················································································· - 8 -
8、
DMX PROTOCOL ···················································································· - 9 -
These items are packed together with the lighng ，please check：
Name Quanty Unit Remark
This manual 1 Pc
The power cord 1 Pc
ACCESSORIES
CONTRL PANEL
9、
························································································ - 7 -

SAFETY GUIDELINE
Please keep this manual in a safe place for further reference. Please make sure
they also have this user manual if you sell this lighting to other users. Every unit
is packed properly by the manufacturer. Please operate this lighting according to
the user manual. Any damage caused by improper use will not be assumed by the
manufacturer.
When receiving the lighng ，please dispose the carton, check and inspect there is any
damage or not. Should there be any damage caused by transportaon，do not use the lighng
and consult your dealer or the manufacturer.
This lighng can be used indoors, IP20.
The lighng is only intended for installaon and operaon by qualified personnel.
Do not mount the lighng directly onto inflammable surface.
Ensure power supply voltage correspond to device requirements before running.
It is essenal that each lighng is correctly earthed and that electrical installaon conforms
to all relevant standards.
When the lighng is hanged to a high place, please use a safety cord provided to pass
through the lighng handles as a secondary safety fixing for safety seasons. For details, refer to
“LIGHTING INSTALLATION” secon.
Avoid direct exposure to the light from the lamp（specially for people with epilepsy）. The light
is harmful to eyes.
Do not project the beam onto inflammable surfaces. The minimum distance between the
lighng and irradiated object should be 1 m.
Exterior surface temperature of the lighng will be 65℃when working，please do not touch
it with bare hands .
To prevent electric shocking, please do not touch the power cord when the lighng is
running.
Never let the power cord mix with other cables.
The LED lens should be changed if deeply scratched or cracked.
There is no user serviceable parts inside the lighng. Before using the device, please check
whether the covers or housing are well installed or not, and whether the screws are installed firmly
or not. Do not open the housing and never operate the lighng with the covers removed.
Always disconnect a lighting from the power supply when the device is not in use or
before cleaning it or before attempting any maintenance work!
Electrical connecon must only be carried out by qualified personnel.
Please use the original packing material for second transportaon.

-2-
If you have any quesons or suggesons,please do not hesitate to consult your dealer or factory.

TECHNICAL PARAMETER
Input Voltage：AC100V-AC240V，50/60HZ；
Power Consumpon：135W ;
Lamp Specificaons：12 pcs four in one (RGBW) CREE 10W LED,rated life 50000 hours;
Lens Angle：8º
Spot Angle：15º；
Color：RGBW linear color mixing；
Color Temperature：color cast calibraon seng、color temperature output inside device；
Dimmer：0-100% linearly dimming，5 types dimmer modes，smooth dimming, flicker-free；
Shuer：independent electronic strobe；
Control Mode：
Standard DMX512，3 pin interfaces；
4 channel modes；
Master/slave mode，no need to set up the master and slave manually, will receive the main
engine data automacally;
5 auto-running modes，rainbow channel and rainbow effect；
Other Funcons：
Self-programming funcon, 5 chases，each chase has 20 scenes，fade funcon;
Lighng seng data、self-programming data can be downloaded each other;
Temperature Control Protecon：both of lamp holder and base have temperature control
protecon;
Waterproof Grade：IP20；
Work Environment Temperature：-20°C～40°C；
Net Weight：5.6Kg;

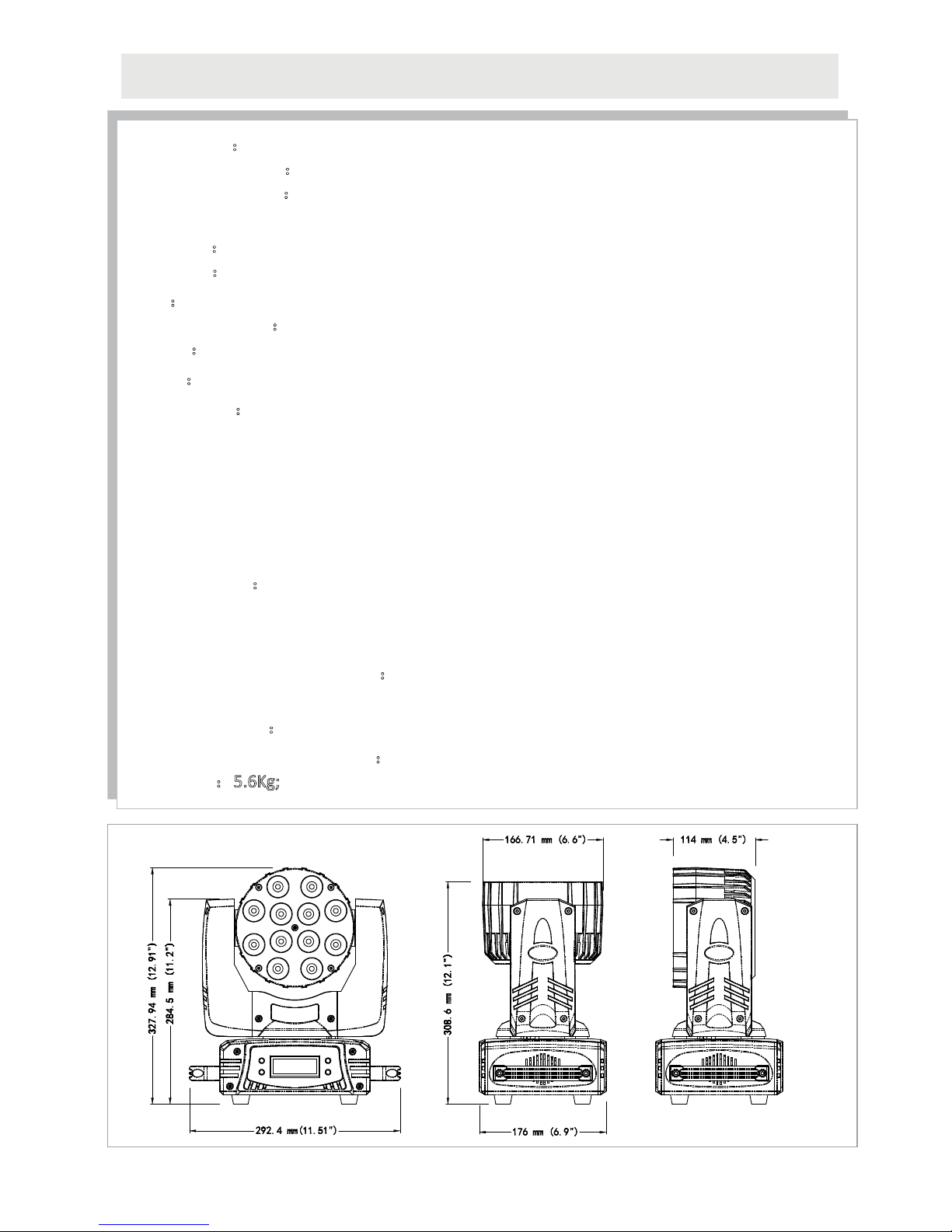

DIMENSION
-3-

3、 LIGHTING INSTALLATION

The lighng also can be used on the ground,as showed in picture 2.
Note:


PICTURE ONE
PICTURE TWO
-4-
The lighng can be hanged on the high place with using the lamp hooks (as showed in
picture 1). Use the safety cord provided to pass through the boom safe ring and hang it
as a second safety fixing.
Ensure support loading ability at least 10 mes more than product weightand make sure
lighng be firmly installed.
The lighng must be installed by the qualified personnel. Please install it at the place where
no one goes through.
SAFETY
CORD
SAFETY
RING
LAMP HOOK

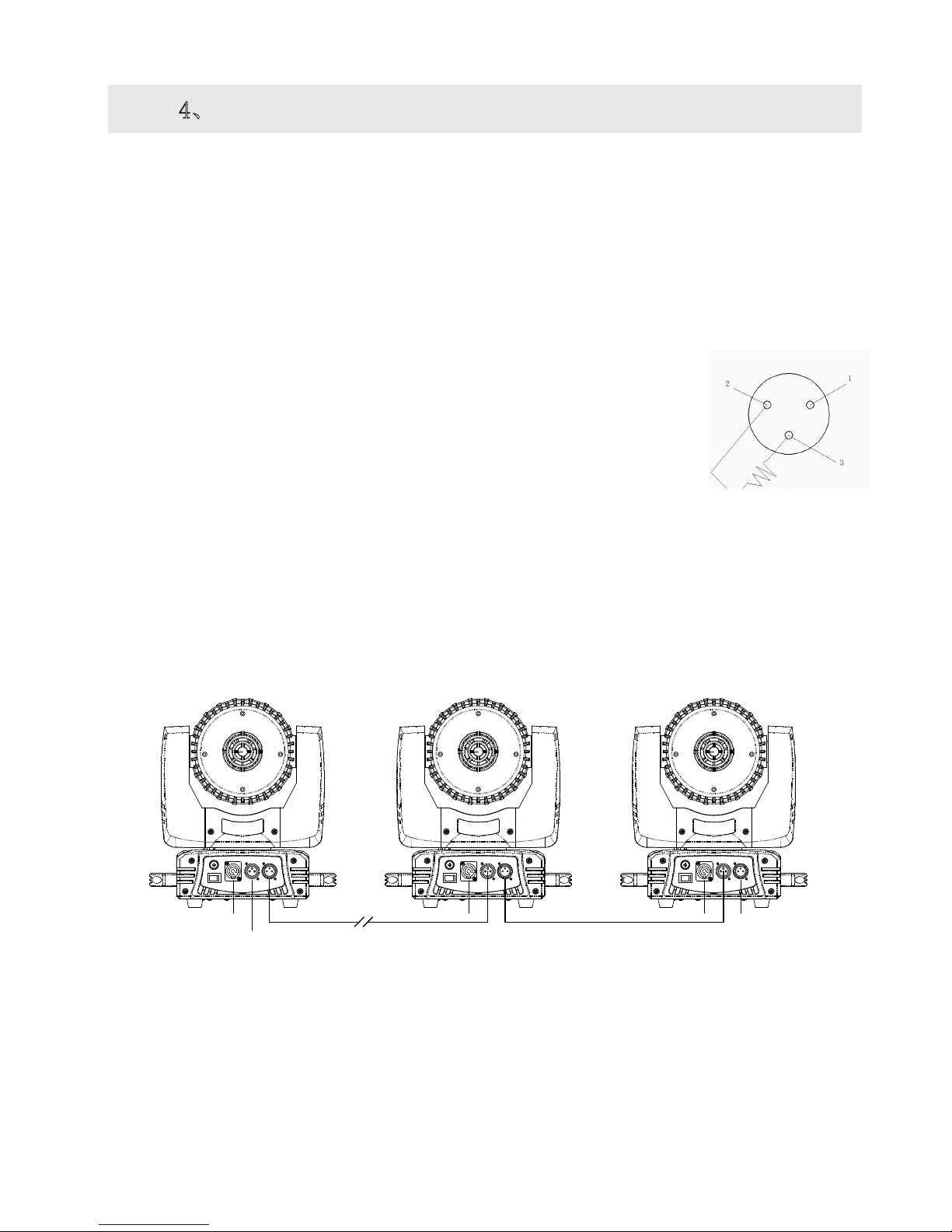

4、 POWER SUPPLY-CONTROL SIGNAL CONNECTIONS
Make the XLR signal line connect with the lighng, one port connects with the output port of
lighng, another one connects with the input port of another lighng.
Due to the output and input of the lighng keep connecng all the me, so the DMX circuit
sll can be keep connecng when the power of certain unit occurs turn-off.
XLR signal line only can be used in series connecon paern(the amount of the lighng can
not be more than 32 PCS), not available in parallel connecon paern. Must add a signal
amplifier if the length of signal line exceeds 60M between controller and lighng or between
two lighngs.
In the controller mode, at the last fixture in the chain, the DMX output
has to be connected with a DMX terminator. The DMX terminator is
simply a connector with a resistor about 120Ω（OHM）connected
across pins 2 and 3 of the Canon plug（please see the picture
in the right）.It can prevent the noise and reflecon caused by DMX
512 signal during transmission.
The transmission speed of DMX 512 signal is very quick. It will affect the signal transmission if
any damage of the signal line, the weld is not firm or bad connecon etc
The connector with 3 pins XLR is more universal than the one with 5 pins XLR.
3 pins XLR：PIN 1：GND，PIN 2：- signal，PIN 3：+ signal.
5 pins XLR：PIN 1：GND，PIN 2：- signal，PIN 3：+ signal，PIN4/PIN5：UNUSED.
There can’t be more than 16 PCS of lighngs for series connecon paern when using 220V
AC; it can’t exceed 8 PCS lighngs for series connecon paern when using 110V AC.
-5-
POWER IN DMX COMSOLE
TO TERMINATOR 󰷅
POWER IN POWER IN
󰷅

5、 OPERATION MENU
-6-
Illustraons：
When the menu is set as the informaon of * posion, the projector will
be set automacally to be the main engine and then send data to external.
Other projectors can receive these data and run synchronously with the
main engine. It sll be run according to these seng parameter even if
power reconnecon aer power off .
When seng YES in【Resume default】menu, The parameter will
bereset to be the factory default value as which with underline of above
chart.
Tab Level 1 Level 2
DMX address 001-512
Pan invert Yes/No
Tilt invert Yes/No
P/T swap Yes/No
P/T Feedback Yes/No
Dimmer mode Dimmer1-4
CH mode 10CH/13CH
X -127-128
Y -127-128
Language English
Lightness 01-30
Backlight Permanently on/2 Minutes off
Red 0-255 *
Green 0-255 *
Blue 0-255 *
White 0-255 *
Shut 0-255 *
Colour wheel 0-255 *
Pan 0-255 *
Pan Fine 0-255 *
Tilt 0-255 *
Tilt Fine 0-255 *
Speed 0-255 *
Sound Running... *
Auto Running... *
Power reduction 100%/80%/50%
Resume default Yes/No
Send parameter Yes/No
Sending current settings to other
fixtures,when receive sucessfully will
generate a reset.
Fixture reset Yes/No
Option
Display
Manual control
Test operation
(Calibrate XY)

-7-

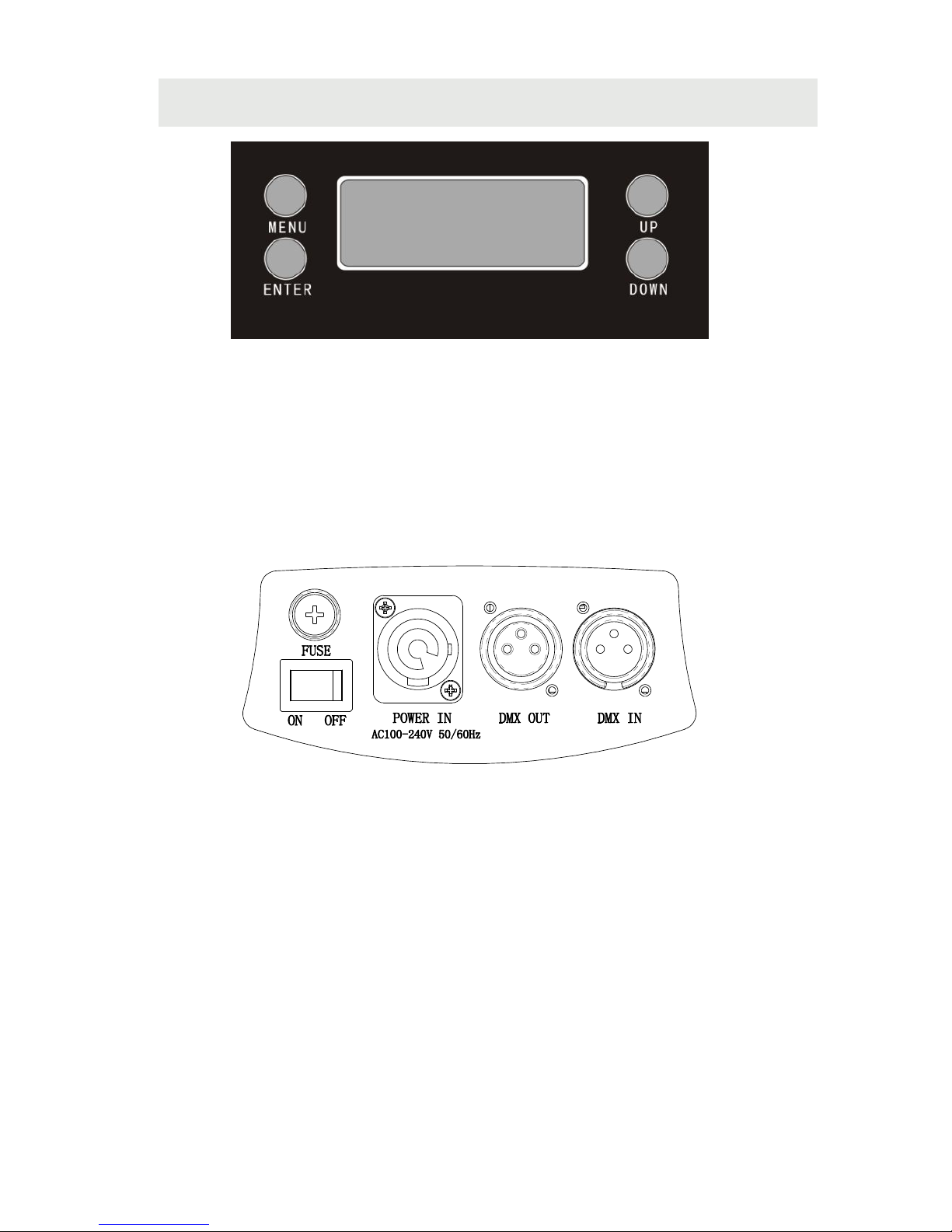

6CONTRL PANEL
DISPLAY SCREEN
Display funcon menu and selecon menu
BUTTON OPERATION
1) MENUReturn to previous menu.
2) ENTEREnter to the next menu or save.
3) UPMenu selecon or increasing the parameter.
4) DOWNMenu selecon or decreasing the parameter.
POWER INPUT
Supply power
SINGNAL INPUT
Connect forward lighng with 3 XLR signal wire , then input DMX512 signal.
SINGNAL OUTPUT
Connect next lighng with 3 XLR signal wire , then output DMX512 signal.
POWER SWITCH:
ON/OFF
PROTECTION:
Current excessive protecon

-8-
7、 MAINTENANCE
8、 TROUBLESHOOTING
PROBLEM REASON AND ACTION
The lighng can’t be
started normally
Check the power connecon is correct or not.
Please detect the voltage.
Power supply is damaged or incorrect connected. Call a qualified
personnel to fix it.
Connecon of control board is not correct. Call a qualified personnel
to fix it.
Out of console’s
control
Please check the DMX connector and the power connecon is
connected correctly or not. It means having signal if it shows twinkling
of the decimal point which in the lower right corner of the screen
when exing the screen saver.
Please check the DMX address seng of lighng is correct or not.
Check【CH mode】seng is correct or not.
Please check whether the DMX line is near to the high voltage wire or
not. In that case, it will damage or interfere the DMX electric circuit.
The beam appears
dim ,the brightness
declines obviously

To prolong the life of lighting, it is very important to do the
maintenance work. If the lighting is idle for a long time, damp, dust
can cause greater accumulation of dirt on its cover or housing. So it
should be cleaned to maintain an optimum light output and at the same
time to prevent it from corrupted by dust and acid gas.
Cleaning frequency depends on the lighting operation frequency and the
environment in which the fixture operates. Soft cloth and typical glass
cleaning products should be used for cleaning. It is recommended to
clean lighting at least once every 20 days.
Do not use any organic solvent,e.g.alcohol, to clean housing of the
apparatus.
Check whether thePOW reduconis in over temperature
protecon situaon or not, if yes, please take measures for
venlaon.

Pan or Tilt rotang
not work properly
Check whether lead-wire of motor or feedback posion
damage

9DMX PROTOCOL
10CH 13CH Value Function
CH1 CH1 0-255 Dim all
CH2 CH2 0-255 Red
CH3 CH3 0-255 Green
CH4 CH4 0-255 Blue
CH5 CH5 0-255 White
0-10 No strobe
11-90 Strobe，slow->fast
91-170 Random Strobe，slow->fast
171-255 Electronic Squarewave，slow->fast
Virtual colour wheel
0-10 No effect
11 Blue (Blue=full, Red+Green+White=0)(step)
12-50 Red=0, Green->up,Blue =full, White=0(proportional)
51 Light Blue (Red=0, Green=full, Blue =full, White=0)(step)
52-90 Red=0, Green=full, Blue->down, White=0(proportional)
91 Green (Red=0, Green=full, Blue =0, White=0)(step)
92-130 Red->up, Green=full, Blue=0, White=0(proportional)
131 Yellow (Red=full, Green=full, Blue=0, White=0)(step)
132-170 Red=full, Green->down, Blue=0, White=0(proportional)
171 Red(Red=full, Green=0, Blue=0, White=0)(step)
172-210 Red=full, Green=0, Blue->up, White=0(proportional)
211 Magenta (Red=full, Green=0, Blue=full, White=0)(step)
212-250 Red -> down, Green=0, Blue=full, White=0(proportional)
251 Blue (Red=0, Green=0, Blue=full, White=0)(step)
252-255 Sound control colour
CH7 CH8 0-255 Pan
- CH9 0-255 Pan Fine
CH8 CH10 0-255 Tilt
- CH11 0-255 Tilt Fine
CH9 CH12 0-255 Speed(Fast->Slow)
0-10 use menu setting dimmer
11-20 Dimmer off
21-30 Dimmer 1
31-40 Dimmer 2
41-50 Dimmer 3
51-60 Dimmer 4
61-254 Use menu setting dimmer
255 Reset（at least 5S）
CH6 CH6
- CH7
CH10 CH13
-9-

EV LIGHT(GUANGZHOU) CO.,LTD.
ADD:󰷅󰷅󰷅󰷅󰷅󰷅
󰷅󰷅󰷅󰷅󰷅󰷅󰷅󰷅󰷅
TEL:󰷅󰷅󰷅󰷅󰷅
FAX:
WEBSITE:󰷅󰷅
