RGBW TRACE™ Horizontal Installation Instructions
7101009
Page 1 of 8
Copyright © 2020 Tivoli 06.23.20
Please verify the contents of the packages!
Please read instructions entirely before starting
installation
Be sure power is turned off before installing the system
Call Tivoli, LLC tech support with questions
Caution: TRACE™ RGBW is designed to work with listed Class 2
24V DC transformers only. Use of any other power source will
cause damage, shorten the life of the fixture and will void the
warranty.
Consult any and all applicable local and national codes for
installation.
Do not conceal or extend exposed conductors through a building
wall as per local electrical code.
Warning: With any luminaire for any application, basic safety
precautions should always be followed to reduce the risk of fire,
electric shock and personal injuries. This lighting system should be
installed by a certified professional.
TRACE™ is an indoor/outdoor low voltage lighting system
used primarily for direct or indirect lighting designs.
Proles:
/”
/”
/”
/”
/”
/”
/”
/”
TRACE™ Horizontal
IP67 R
X
Trace™ Horizontal
Do not allow to twist or bend in the wrong direction.
WARNINGS
Keep Trace™ from twisting or bending in the wrong direction.
Two person installation.
WARNING! Risk of product damage.
Longer runs of Trace™ lighting strands must be installed by at least
two people.
IMPORTANT! The Trace™ luminaire must not be allowed to bend or
hang down. That way, the bending limit will not be inadvertently
exceeded, resulting in product damage.
TRACE™ RGBW MAY BE EASILY DAMAGED! The reliability of
the product can only be ensured if these warnings and cautions
are complied with faithfully. Keep these instructions for future
maintenance work.
Warning! Risk of product damage.
Trace™ RGBW Horizontal must not be bent at less than 2.0” diameter or damage will result. Do not allow Trace™ to twist or bend in the wrong
direction.
WARNING! Risk of Damage.
Insert Trace™ RGBW Horizontal into
channel evenly and gradually
to keep twisting and
bending to a minimum.
Bending
Diameter
2.0”

www.tivolilighting.com tel: [phone] fax: [phone]
RGBW TRACE™ Horizontal Installation Instructions
7101009
Page 2 of 8
Copyright © 2020 Tivoli 06.23.20
Overview: Read Before Installing Luminaire
Installation Notes:
Step 1: Measure run area where Trace™ RGBW is to be installed.
Locate power feed end at highest point of the run to minimize
exposure to water run off.
Step 2: A Mounting Channel is recommended for outdoor
applications. Lay channel along desired area and attach with screws
(by others) every 18 to 24 inches. If the design requires creating
bends and arcs, it is recommended that the Horizontal Notched
Channel be used. Mounting Clips are for use on indoor applications
only.
Note: Minimum bending diameter for the notched channel is 11”.
Trace™ Horizontal must not be bent less than 2” diameter or damage
will result.

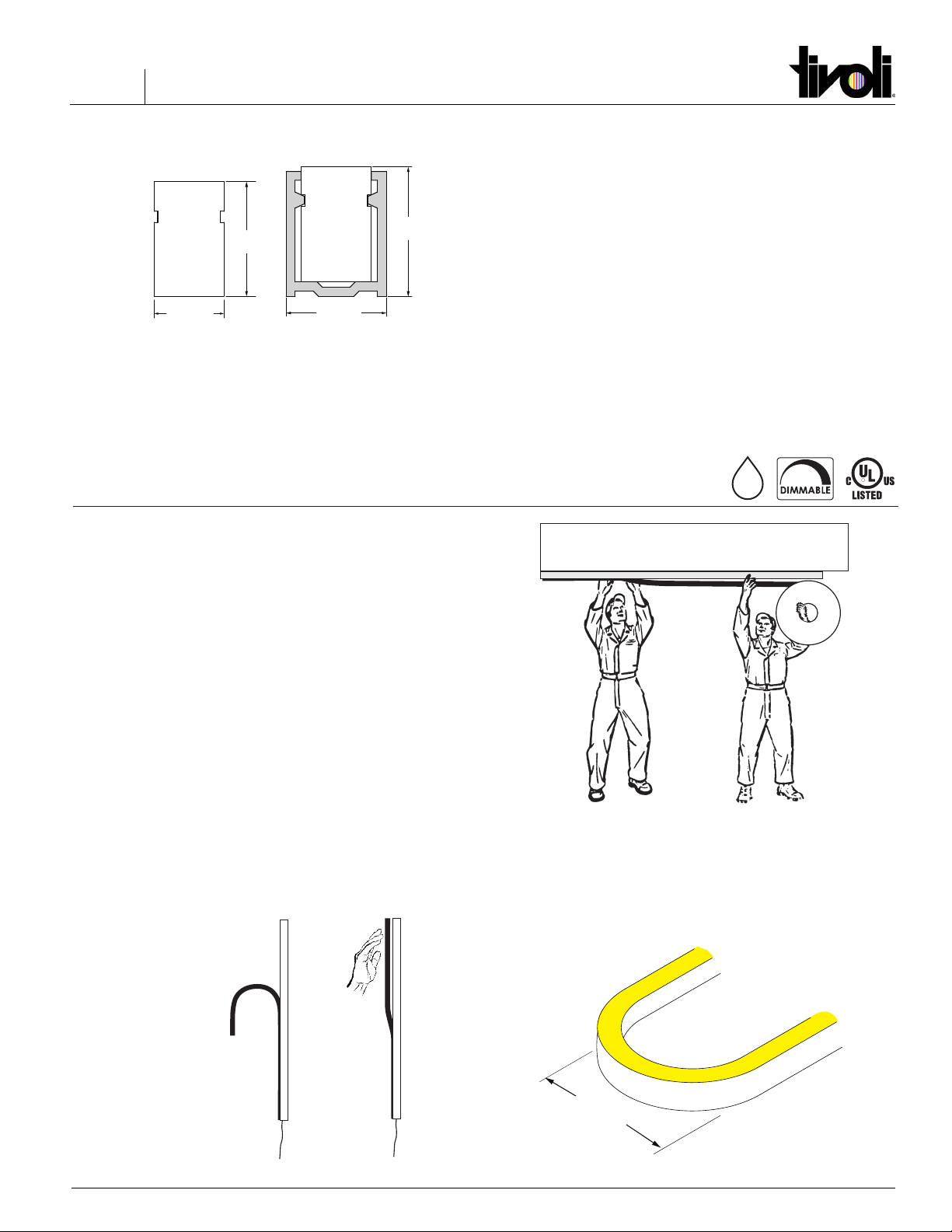

Step 3: Trace™ must be installed with two people. One to press
the luminaire into the channel and the other to hold the spool and
unroll it while keeping the Trace™ flex body straight.
Warning: Risk of Product damage.
Do not stretch, pull, or yank. Doing so can damage the Trace™
internal connections and void the warranty.
Step 4: Insert Trace™ into mounted channel starting from power
connector end. The End Cap and Power Feed Connector do not fit
within the channel, so cut the Mounting Channel so that connectors
and End Caps will overhang outside the ends of the Channel. Trace™
should be pressed into the channel carefully and gradually, without
excessive bending or damage will result.
Note: We recommend using a dry spray lubricant, such as 3M Spray
Lubricant or WD-40 Specialist for all Trace™ installations to insure the
luminaire fits into the channel without damage. Additionally, when
installing with Mounting Clips, Silicone Sealant (FLXD-SIL-GE-10)
may be applied to the inside bottom surface.
Step 5: Secure power connection to building with use of C-clamp
(by others) or mount connection inside J-Box.
Connect to 24V DC power supply according to supplied wiring
diagrams.
Straight
Channel
Notched
Channel
Mounting
Clip

www.tivolilighting.com tel: [phone] fax: [phone]
RGBW TRACE™ Horizontal Installation Instructions
7101009
Page 3 of 8
Copyright © 2020 Tivoli 06.23.20
Trace RGBW Mounting Options
Screws
(Included)
Mounting Clip
Bending direction for Trace™ Horizontal
Tape Light
Trace™ Horizontal with Mounting Clips
Warning: Risk of Product Damage.
Only bend the Trace™ RGBW Horizontal so the lens bends side to side.
See diagram below.
Note: Minimum bending diameter for Trace™ Horizontal is 2” in the
horizontal direction only.

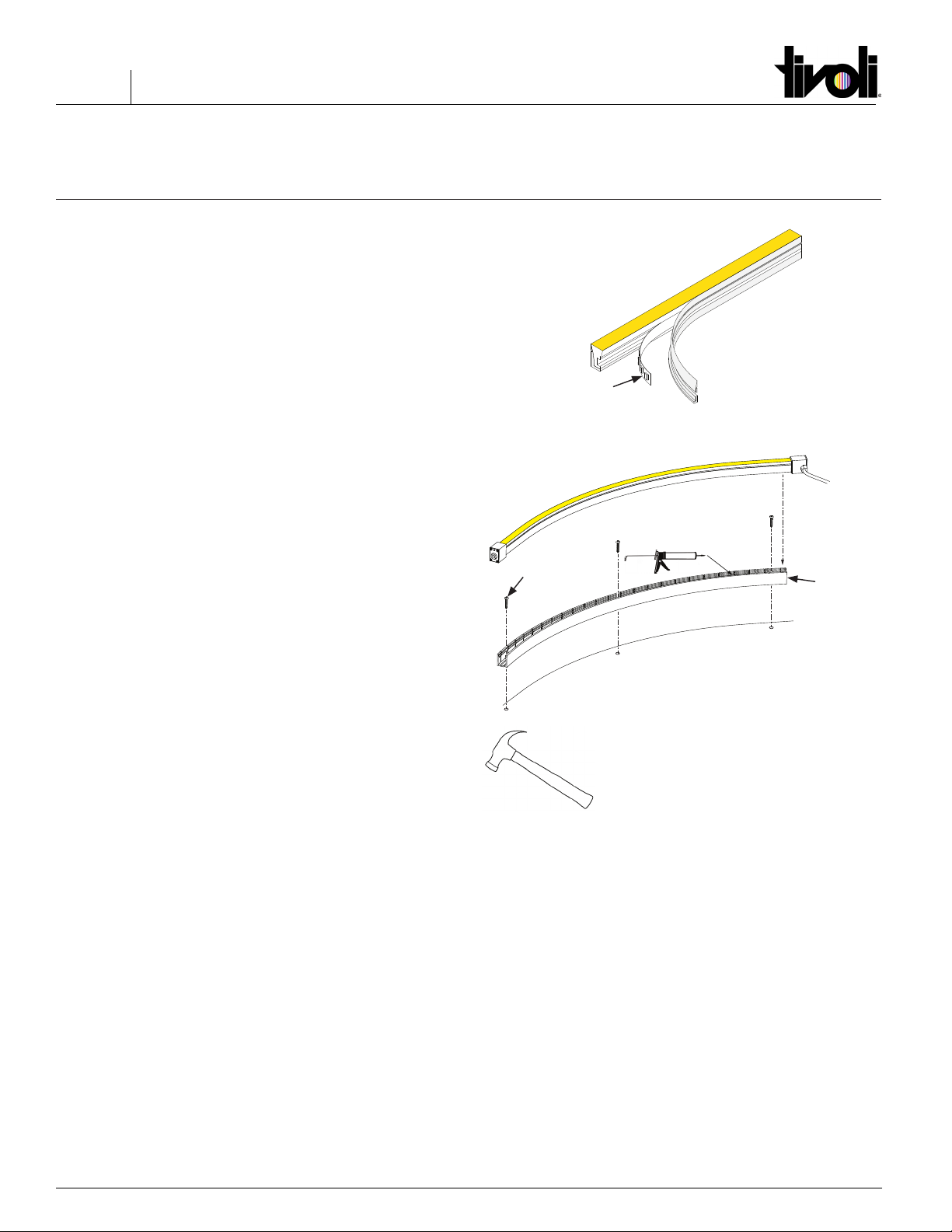

Step 1: Determine where the Mounting Clips will need to be installed
to achieve the desired shape.
Step 2: Position the Mounting Clips and attach with screws
(Included).
Step 3: Lay a bead of Silicone Adhesive (LFXD-SIL-GE-10) to the
inside bottom surfaces of the Mounting Clips, as shown.
Step 4: Spray Dry Lubricant on a rag and wipe the inside upper
surfaces of the mounting clips, as shown, to allow the Trace™ xture
to slide more easily into the mounting clip. 3M Spray Lubricant or
WD-40 Specialist is recommended.
Warning! Risk of Product Damage.
Regular WD40 490002 will stress craze, crack or swell the Trace™
Silicone covering. Do not use!
Step 5: Trace™ must be installed with two people. One to press
the luminaire into the channel and the other to hold the spool and
unroll it while keeping the Trace™ flex body straight.
Step 6: Press Trace™ into the Mounting Clip carefully and gradually,
without excessive bending or damage will result.
WARNING! Risk of Product Damage.
Do not hammer or pound the luminaire into the channel. Once
inserted, do not pull or yank on the xture. Trace™ will be damaged
unless it is handled carefully.
Step 7: Connect to power.
Bending Limitations
Warning! Risk of Product Damage.
Trace™ RGBW Horizontal can only be bent in the direction that does
not twist the Tape Light.
X

www.tivolilighting.com tel: [phone] fax: [phone]
RGBW TRACE™ Horizontal Installation Instructions
7101009
Page 4 of 8
Copyright © 2020 Tivoli 06.23.20
Horizontal
Notched
Channel
Bending direction for Trace Vertical
Tape Light
Screws
(by others)
Trace RGBW Mounting Options (Continued)
Install Trace™ Horizontal in Notched Mounting Channel
Warning: Risk of Product Damage.
Only bend the Trace™ Horizontal so the lens bends side to side so as
not to twist the Tape Light. See diagram.
Note: Minimum bending diameter for the notched channel is 11”.
However, the minimum bending diameter for Trace™ Horizontal is 2”
in the horizontal direction only.

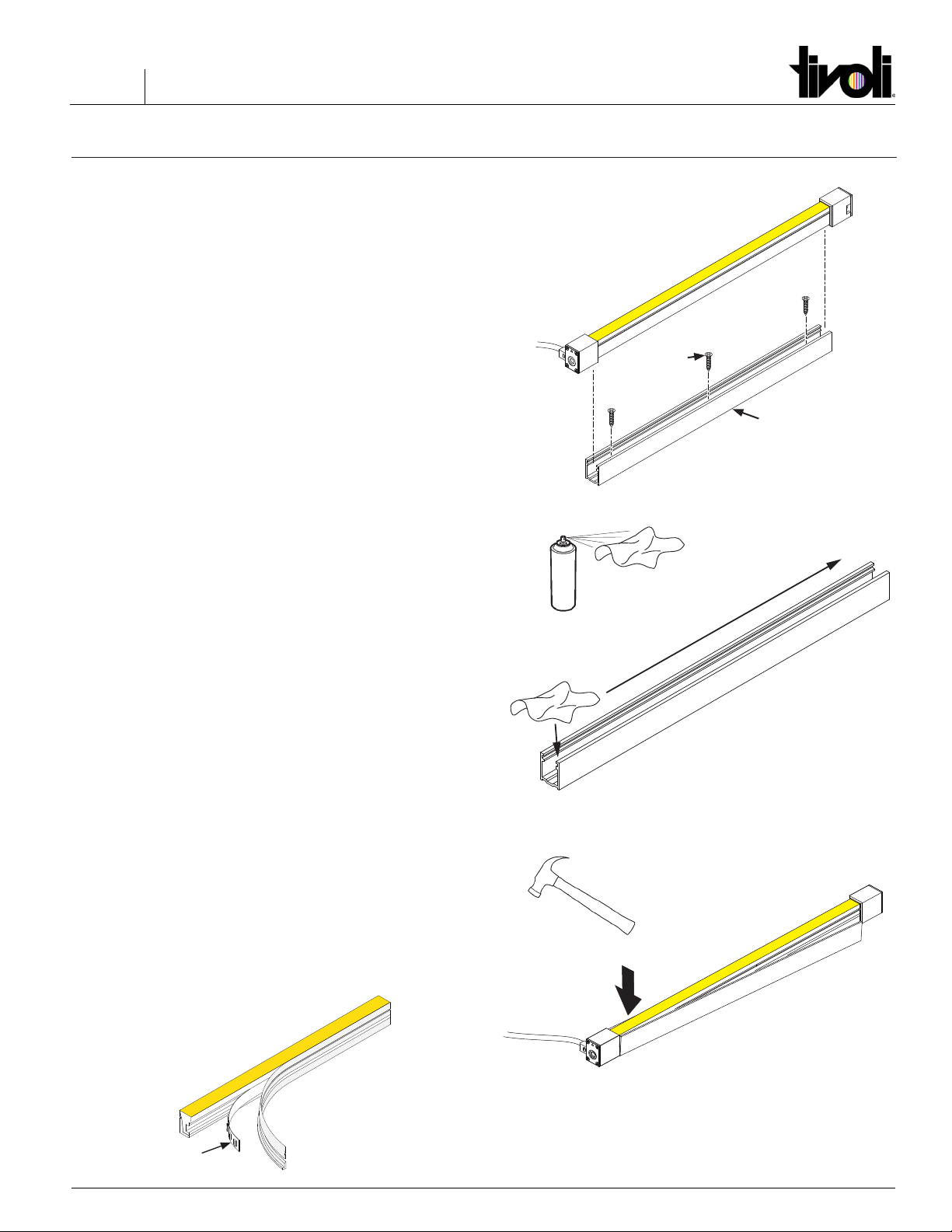

Step 1: Determine Channel mounting Location.
Step 2: Drill a hole 3” from each end of the Channel and 18”-24”
along length of Channel.
Step 3: Position the Notched Channel and attach with screws
(Included).
Step 4: Spray dry lubricant on a rag and wipe along the inside upper
surfaces of the extrusion. We recommend using a dry spray lubricant,
such as 3M Spray Lubricant or WD-40 Specialist for all Trace™
installations to insure the luminaire fits into the channel without
damage.
Step 5: Start by orienting the Trace™ with the Lens facing away from
the Channel, as shown.
Step 6: Trace™ must be installed with two people. One to press
the luminaire into the channel and the other to hold the spool and
unroll it while keeping the Trace™ flex body straight.
Step 7: Insert the Trace™ body into the Channel one ex section at a
time. Start at one end and and press it down carefully and gradually,
working along the Channel, inserting the Trace™ body into each
section until the entire Trace™ xture is securely mounted in the
channel.
WARNING! Risk of Product Damage.
Do not hammer or pound the luminaire into the channel. Once
inserted, do not pull or yank on the xture. Trace™ will be damaged
unless it is handled carefully.
Step 8: Connect to power.
Bending Limitations
Warning! Risk of Product Damage.
Trace™ RGBW Horizontal can only be bent in the direction that does
not twist the Tape Light.
X

www.tivolilighting.com tel: [phone] fax: [phone]
RGBW TRACE™ Horizontal Installation Instructions
7101009
Page 5 of 8
Copyright © 2020 Tivoli 06.23.20
Trace RGBW Mounting Options (Continued)
Bending direction for Trace™ Horizontal
Tape Light
X
Straight Channel for Trace™RGBW Horizontal Installation
Step 1: Prepare Straight Mounting Channel for installation cutting it
to the correct length, keeping in mind that the End Caps will not t
inside the Channel, and by drilling screw holes 3”from each end and
additional holes approximately every 18” along the channel.
Step 2: Place Straight Channel on the mounting surface and mark
the hole locations.
Step 3: Remove the Channel and drill pilot holes at all hole locations.
Step 4: Place the Channel into position and secure with screws (not
included).
Note: Screws should be appropriate for the mounting location.
(ie: wood screws for wood, etc.)
Step 5: Spray dry lubricant on a rag and wipe along the inside upper
surfaces of the extrusion. We recommend using a dry spray lubricant,
such as 3M Spray Lubricant or WD-40 Specialist for all Trace™
installations to insure the luminaire fits into the channel without
damage.
Step 6: Trace™ must be installed with two people. One to press
the luminaire into the channel and the other to hold the spool and
unroll it while keeping the Trace™ flex body straight.
Step 7: Start by orienting the Trace™ with the Lens facing away from
the Channel, as shown.
Step 8: IMPORTANT! Insert the Trace™ body into the Channel. Start
at one end and and press it down carefully and gradually, working
along the Channel, inserting the Trace™ body along the channel until
the entire Trace™ xture is securely mounted in the channel.
WARNING! Risk of Product Damage.
Do not hammer or pound the luminaire into the channel. Once
inserted, do not pull or yank on the xture. Trace™ will be damaged if
it is not handled carefully.
Step 9: Connect to power.
Bending Limitations
Warning! Risk of Product Damage.
Trace™ RGBW Horizontal can only be bent in the direction that does
not twist the Tape Light.
Screws
(by others)
Straight
Channel

www.tivolilighting.com tel: [phone] fax: [phone]
RGBW TRACE™ Horizontal Installation Instructions
7101009
Page 6 of 8
Copyright © 2020 Tivoli 06.23.20
Trace™ RGBW Mounting Options (Continued)
Note: Trace™ Mounting Channel can be mounted on horizontal or
vertical surfaces.
Product Specication Guide
LUMINAIRE POWER CONSUMPTION MAX RUN LENGTH*
Trace RGBW, Low Output 1.5W 58’
Trace RGBW, Standard 3W 29’
Trace RGBW, High Output 4.5W 19’

www.tivolilighting.com tel: [phone] fax: [phone]
RGBW TRACE™ Horizontal Installation Instructions
7101009
Page 7 of 8
Copyright © 2020 Tivoli 06.23.20

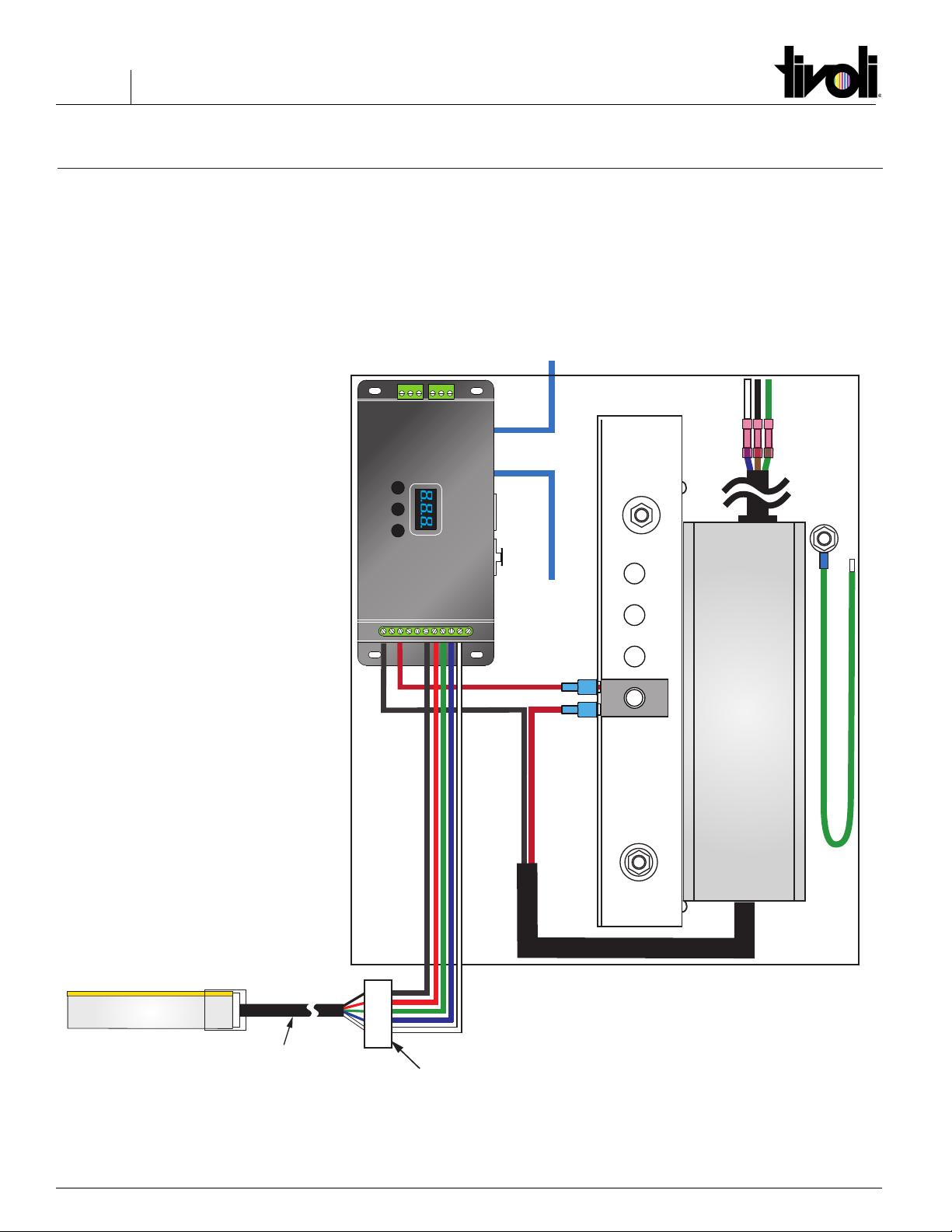

Driver
Output
Power
Input
D+D-D- D+ v+ v+ 1 2 3 4 5
DMX in DMX outDMX in DMX out
RJ45 To Master
DMX Controller
(By Others)
RJ45 To next
Sub-Controller
(By Others)
Note: Connectors located inside box
14ga
Wire
14ga Wire
Settings
Display
DMX512 & RDM Decoder
To Power Supply (Neg. Wire)
To Circuit Breaker (Pos. Wire)
XLR DMX in/out RJ45 DMX in/out
Output for LED
DC Power Input
Screw DMX in/out
Digital Display
Lead Wire
Trace™ RGBW Flex Light
BLK (+)
RED
GREEN
BLUE
WHITE
• DMX512 RDM decoder, RDM function can provide the
interface between DMX master and decoder.
• OLED Display
for example, DMX decoder’s address may be set from DMX
master console.
• Multiple kinds of DMX in/out ports: RJ 45, XLR , normal screws.
• Total 5 PWM output channels, common anode. DMX channel
quantity from 1CH~5CH programmable
• PWM output resolution ratio 8bit , 16bit settable.
• Output dimming curve gamma value from 0.1 ~ 9.9 settable.
• Programmable Decoding mode.
Safety and Warnings:
• Do not install with power applied to device.
• Do not expose to moisture.
Note: The Installation Instructions for your power supply includes
DMX programming instructions.
Trace™ RGBW Basic Wiring Diagram
Elecrical Connections for Trace™ RGBW
Step 1: Turn power o before beginning electrical installation.
Note: Contacting hot wires against the Trace™ leads may damage the
product and void the warranty.
Step 2: Connect Trace™ lead wires to RGBW-Sub-Controller, or
if using our ADUL-DIN series transformers, connect to pre-wired
connectors which are found inside the power supply box. Refer to
diagram below and on Page. Make sure each lead wire is connected
to the correct terminal, as follows:
LEAD WIRE
COLOR
SUB-CONTROLLER TERMINAL OR
ADUL-DIN CONNECTOR WIRE COLOR
Black Black (+)
White Blue
Red Red
Green Green
White White
Step 3: Connect to a listed Class 2, 24V DC transformer only. See list
of approved transformers.
Step 4: Optionally, Trace™ RGBW may be dimmed using an MLV or
ELV dimmer that is suitable for the power supply. Please contact our
technical support sta for more information.
Connect to
Tivotape
Driver
Output
Power
Input
V+
XLR ConnectorsRJ45 Connectors
DMX
in/out
DMX
in/out
Hard Wire
Connection

www.tivolilighting.com tel: [phone] fax: [phone]
RGBW TRACE™ Horizontal Installation Instructions
7101009
Page 8 of 8
Copyright © 2020 Tivoli 06.23.20
Power Supply with Sub-Controller Sample Wiring Diagram
There are many possible options for controlling Trace™ RGBW. See the specication Sheet for more information. The following
wiring diagram is for reference only. Please refer to the Installation Instruction for the Power Supply you choose for detailed
wiring instructions.
Driver
Output
Power
Input
D+D-D- D+ v+ v+ 1 2 3 4 5
DMX in DMX outDMX in DMX out
POWER
SUPPLY
Input
Output
RJ45 to next
Sub-Controller
(By Others)
or End Cap
RJ45 From
DMX Controller
(By Others)
14ga
Wire
Incoming Power
RGB
Sub-Controller
Note: Connectors located inside box
BLK (+)
RED
GREEN
BLUE
WHITE
Lead Wire
Trace™ RGBW Flex Light
See chart on Page 6 for
maximum run lengths
