DAVIS LARISSA GEN 2 LA30 User manual

Installation Instruction
LARISSA GEN 2 LED WALLPACK
Models:
LA30
LA50
DIMENSION:
CAUTIONS:
Installation is to be completed by a competent licensed electrician, in accordance with these instructions and
relevant local regulations.
Electronic control equipment must not be subjected to high voltages, DO NOT EGGER between Live and
Neutral.
All cable/conduit terminations must be installed in accordance with the designated IP rating of this product.
Suitable installation fastening methods should be employed to ensure the mounting points are not damaged
when subjected to vibration and or movement.
As is the case with all electronic components, it is advisable to fit appropriate surge protection to final sub
circuits.
Choose an installation place capable to withstand 10 times the weight of the product to ensure safety.

Read all instructions prior to installing
See product label for supply specification

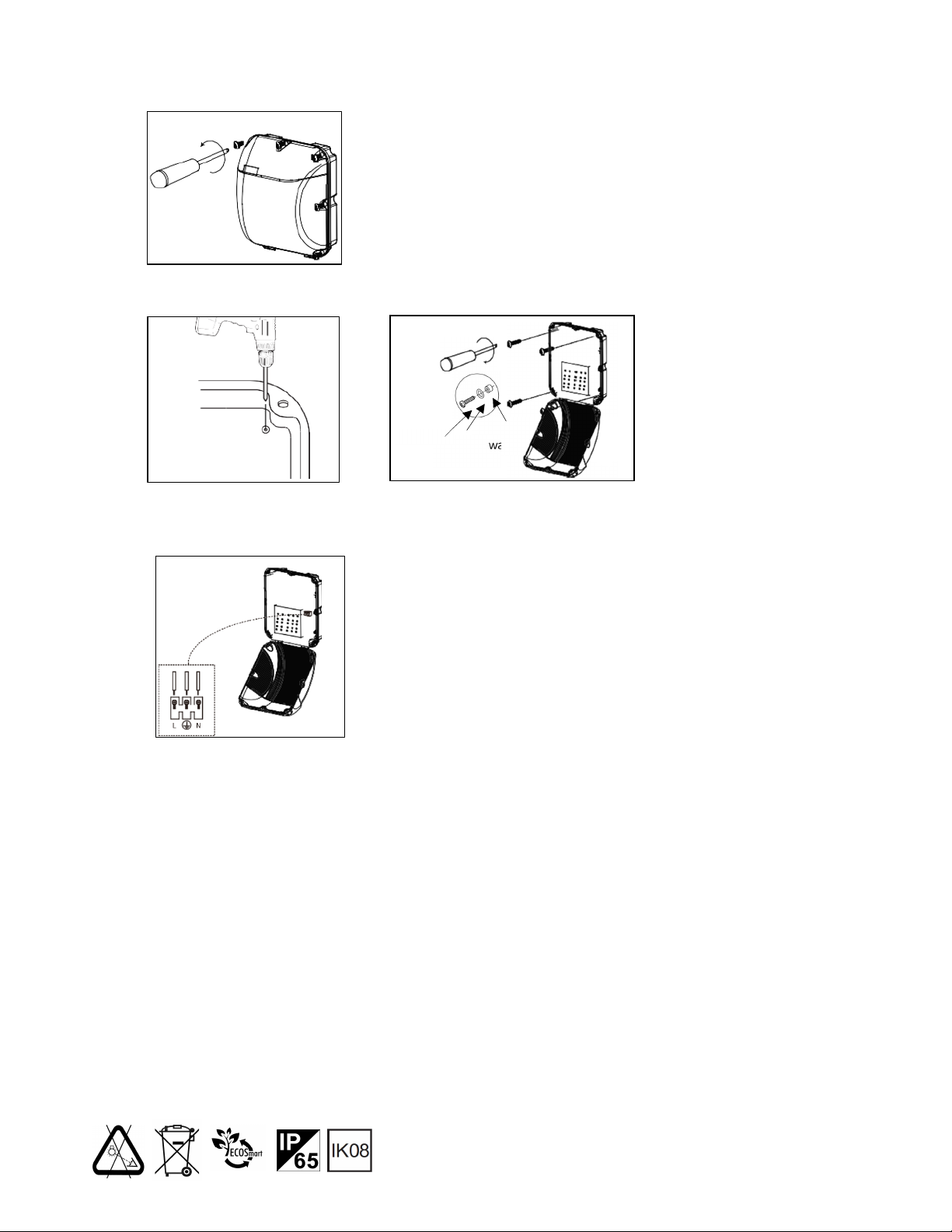

INSTALLTION:
1. Remove cover by loosening all the screws.
2. Mark and drill holes on wall. Insert wall plug as supplied.
3. Connect cable Live (Brown) Neutral (Blue) and Earth (Yellow/Green) to the terminal block. Close cover and
tighten all screws.
MAINTENANCE:
The supply must be isolated before opening or accessing the luminaire. Product maintenance is critical to the product
designed performance. The product is to be maintained in accordance with the manufacturer’s instructions. For the
latest product maintenance guides please go to www.davislighting.com. Davis Lighting is not responsible for any
product not maintained in accordance with the recommended procedure or intervals. For recommended LAMP / LED
maintenance guides please refer to the lamp installation guidelines supplied with the lamp product or the nominated
lamp manufacturer’s website. Products supplied with visors or covers must not be operate with a damaged visor or
cover; it is recommended damaged visors or covers be replaced by a competent person immediately.
Warning: Maximum loading of earth leakage and circuit protection device.
Note
The maximum number of ballasts/drivers connected to earth leakage circuit protection device shall not be greater
than 6 units for fixed output on MCB 16A or that as recommended by the protective device supplier/manufacturer
whichever is the smaller number.
The maximum loading of automatic circuit breakers shall not be greater than those shown in the table supplied by
the control gear manufacturer or that as recommended by the protective device supplied/manufacturer whichever
is the smaller number.
Rubber
washer
Flat
washer
Screw
