EVEBASE MOVE 300 User manual
USER MANUAL
POWER STATION MOVE 300
SAFETY INSTRUCTIONS
Please read this manual carefully. The user of this product takes full responsibility for the operation and usage of
this product. Please check the local regulations in the area of usage of the product. The user of this product is
solely responsible for the usage of this product according to all relevant regulations.
1. In order to ensure the safety of this product during transportation, this product is only charged about 30%
when it is packaged. Please recharge when you get the product. When not using this product, please turn off
the power and unplug the power cord.
2. Only official parts or accessories can be used with this product. If any accessories need to be replaced, please
contact Evebase for more information. Do not charge the product with a charging device that does not meet
the specified parameters and please do not use extension cords and cable taps.
3. Do not disassemble the product and don’t perforate it with sharp objects.
4. A high environmental temperature while using the power station may result in fire or an explosion. Therefore
please follow the maximum operating temperature as specified further in this manual. If the temperature is
too low, the performance of the product will go down or the product will stop working.
5. Only use and store the product in dry and ventilated areas and avoid dust. Please ensure that the air intake
and outlet are unblocked when using.
6. Strictly avoid contact of the product with any liquid. Do not immerse the product into water and make sure it
doesn't get wet. Avoid the usage in rainy or humid places.
7. In case the power station has fallen into water or is wet, place it in an open area and keep a safe distance until
it has dried entirely. As soon as the product is dry again, it can’t be used anymore and has to be disposed
according to the applicable local regulations. In case the power station catches fire, it has to be extinguished
in the next order: water →sand →fire blanket →dry powder →carbon dioxide fire extinguisher.
8. Only use the product on flat surfaces in order to protect the product from falling over. Immediately stop
operating/using the product after falling or other external impact on the power station and avoid strong
vibrations during use. Turn of the power supply immediately after any strong impact and place the battery in
a safe and open area. Finally, dispose the product according to the local regulations.
9. Only use a dry textile to clean the outside of the product.
10. Please keep the product out of reach from children and pets.
11. In case the product is used for the operation of standard medical equipment, please make sure the power
status is monitored carefully, in order to prevent that the power runs out. Please contact Evebase about any
restrictions for the use with medical equipment.
12. Please make sure there is a safe distance between medical implants and the power station, as this product
will generate an electromagnetic field. Please contact Evebase if you need more information about any
restrictions.
13. Avoid usage in a strong static electric/ magnetic field.
14. Avoid usage/ storage near any heat source (fire, car in direct sunlight etc.).
15. Don’t use any wires or metal objects that can result in a short circuit.
16. No items can be stacked on top of the product.
17. If the battery is swollen, leaking or smelly, stop using it immediately.
18. Please make sure the power station is completely discharged before disposal in an official battery recycling
bin. It is prohibited to dispose the product in a standard trash can. Please follow the local regulations.
19. Please contact a professional battery recycling company in case the power station can’t be discharged
completely due to a failure.
20. For long-term storage, please consume power from full power to no power once every 3 months, and then
recharge to about 50%.
21. Please avoid shipping a product with a battery power level higher than 30% and don’t take it on a plane.
AC OUTPUT PARAMETER
Type of AC port AC output
US/JP 100V~120V 50/60Hz
CH 220V 50Hz
UK 230V 50Hz
EU 220V~240V 50Hz
KR 220V 60Hz
PRODUCT INTRODUCTION
This product is a portable power station, suitable for family emergency power cuts, outdoor travel, emergency
relief, field work and other scenarios. The product has a built-in lithium battery, which supports adapter, car
charger, photo-voltaic panel and other charging methods. The AC output voltage corresponds to different national
specifications (see previous page) and a number of USB ports supply for lighting, ventilator, electric fan, router,
notebook and other equipment.

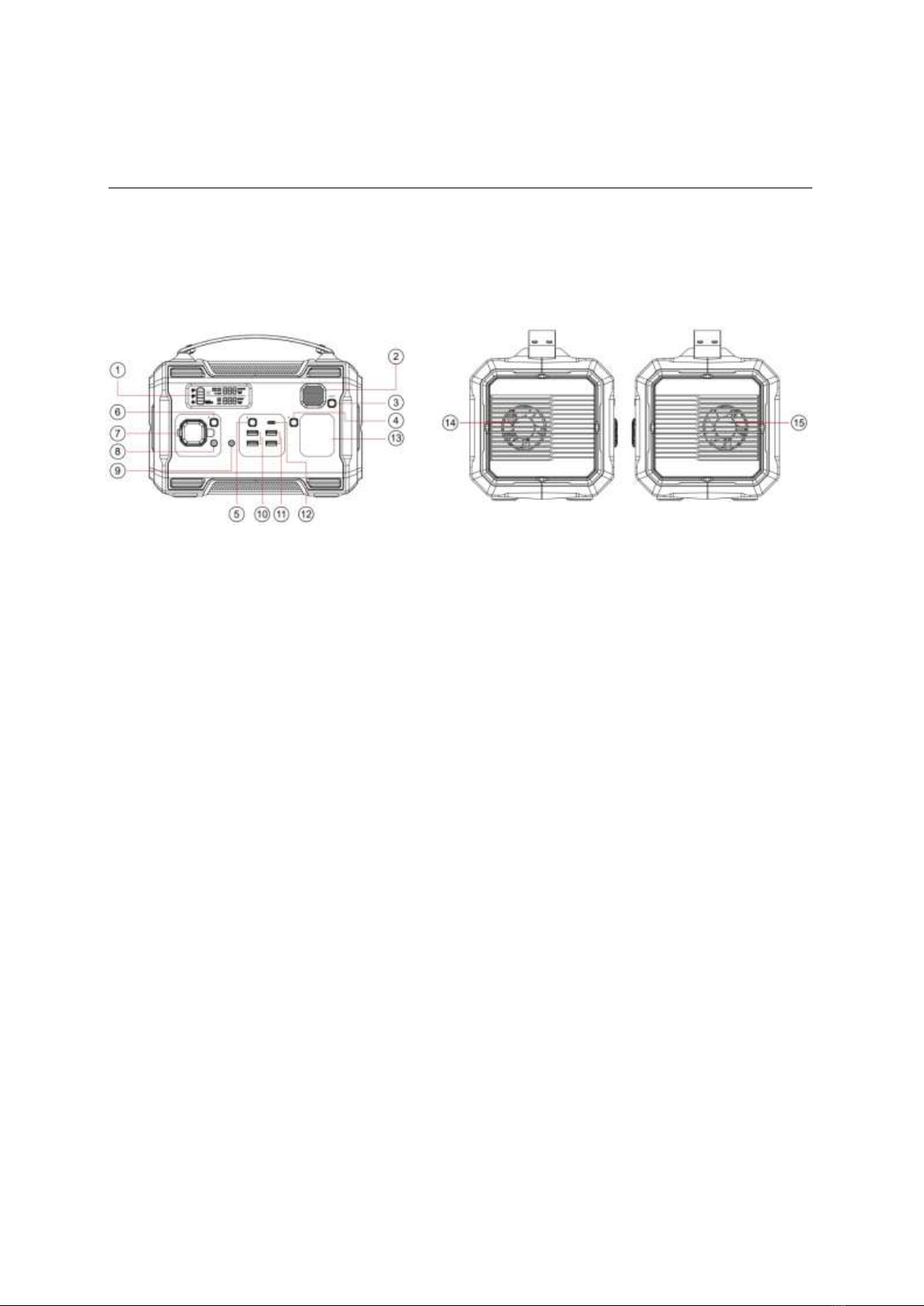

1
LCD Screen
6
DC button
11
QC 3.0 port
2
LED
7
Car Port
12
Type-C port
3
Light button
8
DC port
13
AC port
4
AC button
9
DC input
14
Air intake
5
USB button
10
USB port
15
Air outlet

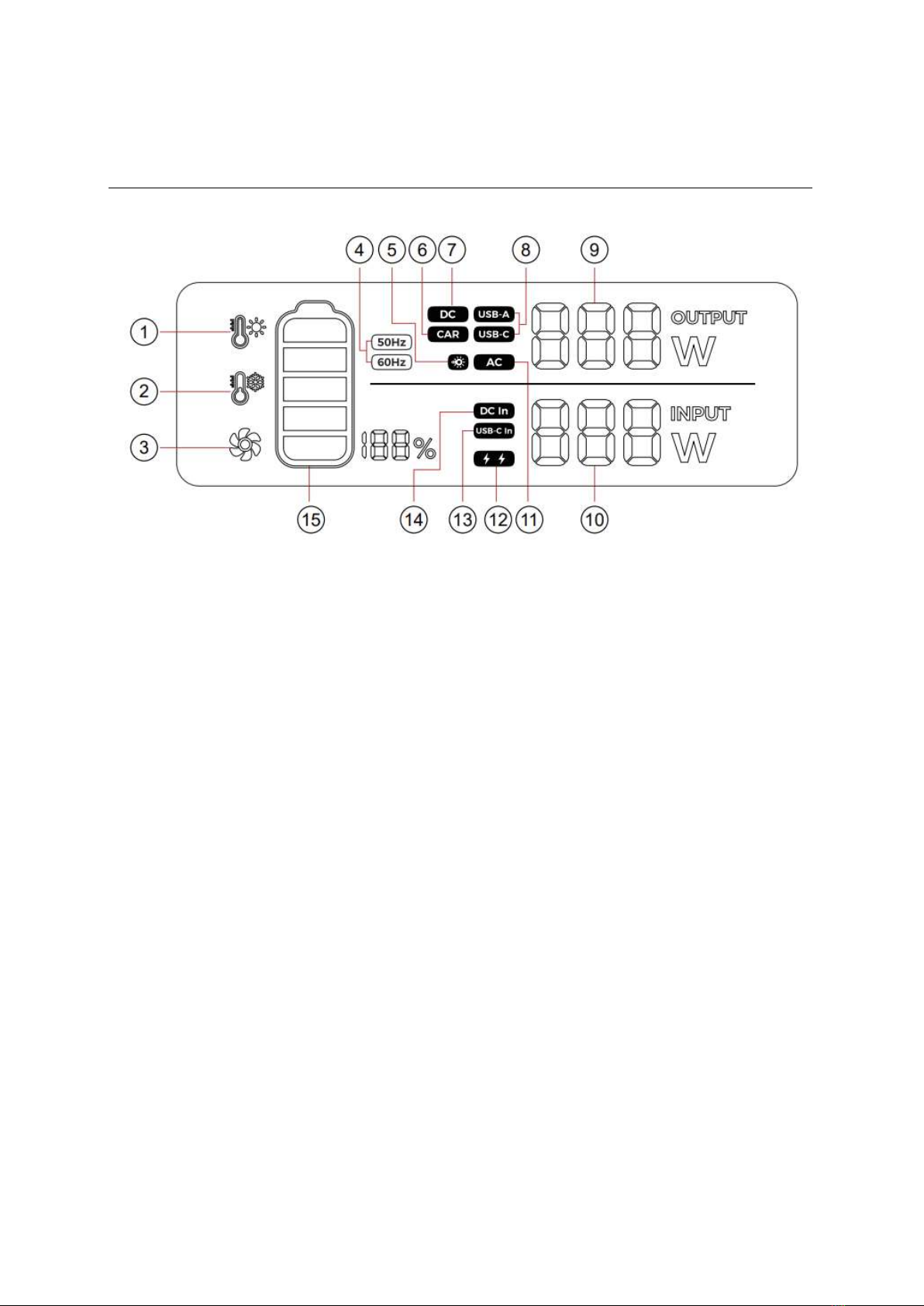

LCD DISPLAY
1
High temperature protection
6
Car port output indicator
11
AC output indicator
2
Low temperature protection
7
DC port
12
USB-C input + DC input
3
Fan status
8
USB output indicator
13
USB-C input + DC input
4
Output frequency
9
Discharge power
14
DC input
5
LED indicator
10
Charging power
15
Battery indicator
OPERATION INSTRUCTION
1. How to turn on the system and check the battery?
Shortly press any button on the power station to turn on the system, you can check the remaining battery power
and switch on the corresponding port output.
During the first use after a long-term non-use situation it may happen that any button fails to turn on the system
In order to solve this, please plug the power station into a charger for charging and try again.
2. How to recharge the device?
DC port charging:
Please plug the standard adapter into the DC Input port. The LCD screen will light up automatically, indicating
the current charging power. In the meantime, the battery indicator icon blinks and the icon lights up. The LCD
screen will turn off automatically when charging is finished (the battery percentage is 100%).
The use of non-standard adapters, such as an optional car charger or a photo-voltaic panel, need to be equipped
with a DC5521 adapter. Charging voltage range is 13-30V. The maximum charging power of the DC port is 80W.
3. How to use the AC function?
-Shortly press the AC button to turn it on, the icon lights up, meaning that the device is ready for
supplying power. Press the AC button again to turn it off, the icon light off.
-Support rated AC up to 300W.
1) After using the AC function, please make sure it is turned off properly.
2) When the output is overloaded or short-circuiting, flashes and the alarm is buzzing.
4. How to use the Car Port Output and DC Output Port?
-Plug the qualified cigarette lighter into the Cigarette Port and press the DC button. The Cigarette Port
icon and DC icon on the screen will light up together, which means that the device is ready
for supplying power. Shortly press the DC button to turn off both ports.
-When the Car Port Outlet and DC6530 Port output are used at the same time, the maximum total
output power is 120W (12V/10A).
When the output is overloaded or short-circuiting, and are flashing and the alarm is buzzing.
5. How to use USB and TYPE-C output ports?
Shortly press the USB button to turn on USB-A/TYPE-C ports , which are used for digital devices such as mobile
phones, cameras, tablets and so on. When the device is fully charged or plugged out, it will turn off automatically.
When the output is overloaded or short-circuiting, flashes and the alarm is buzzing.
When the output is overloaded or short-circuiting, flashes and the alarm is buzzing.
6. How to use the lights?
Shortly press the light switch to turn on the LED light (normal mode). After that, each short press on the light
switch will change the LED mode from normal mode to SOS mode, flash mode and turns off the LED light. A long
press on the light switch turns off the LED Light in any mode.
7. How to turn off all outputs?
Press the AC button and DC button simultaneously to turn off all outputs.
PRODUCT SPECIFICATIONS
Product name
EveBase Power Station Move 300W
Product dimensions
L*W*H = 248*164*169mm
Product net weight
3,65 kg
Rated capacity
276Wh rated voltage 10.8V
Charging input
13-30V 80W Max
Charging mode
DC port:
1. adapter output 13-30V (current above 1A can be used;
The maximum power of the photo-voltaic panel within 30V.
Solar panels: the charging time depends on the power of the solar
panels and the intensity of sunlight.
AC output
300W (600W peak)
QC 3.0 output
5V/9V/12V (18W)
USB output
5V/2.4A (4 USB ports total, maximum output current is 3A)
Type-C output
5-20V/5.0A, 100W max (PD 3.0)
DC output
12V/8A
Car port output
12V/10A
Stand-by current
<800uA
Operating temperature
-10°C ~ 40°C
Charging temperature
0°C ~ 40°C
Working environment humidity
<90%RH
BATTERY PACK SPECIFICATIONS
Type of battery
18650 ternary lithium battery
Single cell rated voltage
3.6V
Single cell rated capacity
3200mAh
Battery pack rated voltage
10.8V
Battery pack output voltage range
9.0-12.6V
Battery pack rated capacity
276Wh
Battery pack maintenance
If not used for 3 months, product should be recharged.
PROBLEMS AND RESOLUTIONS
Status
Possible cause
Resolution
Access load buzzer alarm.
The connected load exceeds the
output capacity of the interface, or is
short-circuited, triggering the overload
protection.
The power of the connected device shall
not exceed the power of the output
interface.
Buzzer sound during use,
temperature icon flashes.
The equipment temperature is too
high or too low.
1. Please check if the fan is running
normally and is ventilated.
2. Please turn off the output and restart
the machine when it is cooled down.
3. Place the equipment in a -10°C ~ 40°C
environment.
Unable to charge.
The adapter has a poor connection.
Please check if the adapter is properly
connected to the charging port.
EveBase Tech B.V.
Oostwal 2
1747 EZ
Tuitjenhorn
The Netherlands
www.evebase.com
Designed in NL. Made in PRC.
