Event Lighting M37W15RGBW User manual

1
WASH MOVING HEAD
M37W15RGBW
USER MANUAL
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to
change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. Please consult Event Lighting
for any clarification or information regarding this item.
www.event-lighting.com.au V1.1

2
Safety Instructions
WARNING
•Do not open this device, there is no user-serviceable parts inside. Risk of electric shock.
•Do not look at the light source when the device is on.
•CAUTION: This unit's housing may be hot during and after operation.
•Install this device in a location with adequate ventilation, at least 20 inch (50 cm) from adjacent surfaces.
•Do not leave any flammable material within 50 cm of this unit while operating or connected to power.
•Use a safety chain when mounting this device overhead.
•Do not operate this device outdoors or in any location where dust, excessive heat, water, or humidity may affect it.
•Do not operate this device if the housing, lenses, or cables appear damaged.
•Do not connect this device to a dimmer or rheostat.
•ONLY connect this device to a grounded and protected circuit.
•ONLY use the hanging bracket to carry this device.
•In case of a serious operating problem, stop using immediately.
•The maximum ambient temperature is 104° F (40° C). Do not operate this device at higher temperatures.
Power Input & Power Linking
This device has an auto-switching power supply work with input voltage range of 100~240 VAC, 50/60 Hz.
Link up to the maximum 8A. DO NOT exceed this.
Fuse Replacement
If the fine-wire fuse of the device fuses, only replace the fuse by a fuse of same type and rating.
Before replacing the fuse, unplug mains lead.
Procedure:
Step 1: Unscrew the fuse holder on the rear panel with a fitting screwdriver from the housing (anticlockwise).
Step 2: Remove the old fuse from the fuse holder.
Step 3: Install the new fuse in the fuse holder.
Step 4: Replace the fuse holder in the housing and fix it.
Product Installation
This device can be mounted in many orientations provided each
individual device is secured by the use of correct mounting bracket.
Use a safety chain when mounting this device overhead.

3

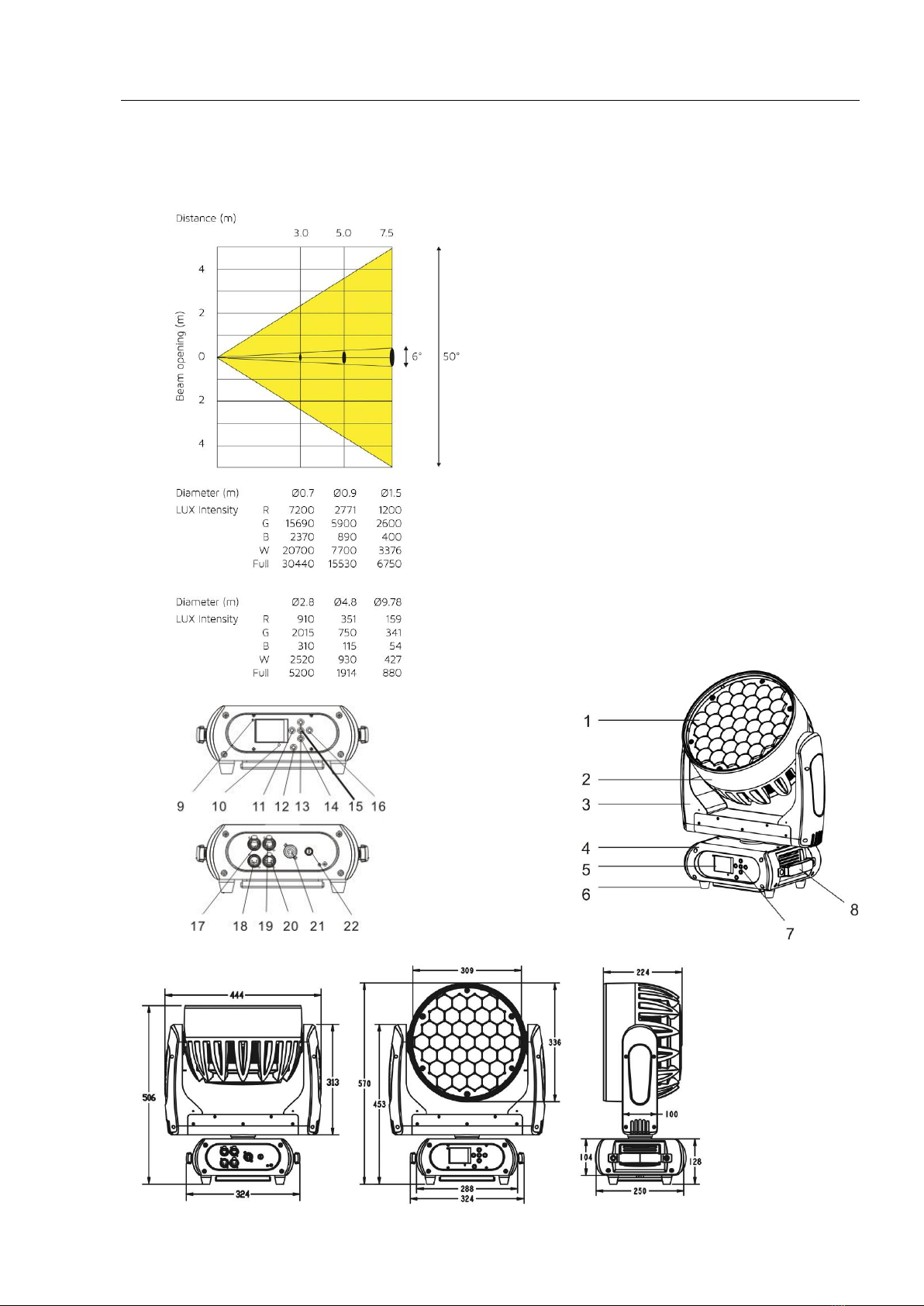

Product appearance, LUX chart, Dimensions
1. Project lens
2. Head
3. Arm
4. Base
5. Display
6. Foot stand
7. Operation button
8. Handle
9. Wireless indicator
10. Mic
11. Left Button
12. Battery Indicator
13. Enter Button
14. Down Button
15. Up Button
16. Right Button
17. Ethernet Out
18. 5-pin DMX in
19. Ethernet In
20. 5-pin DMX in
21. Powercon in
22. Fuse holder

4

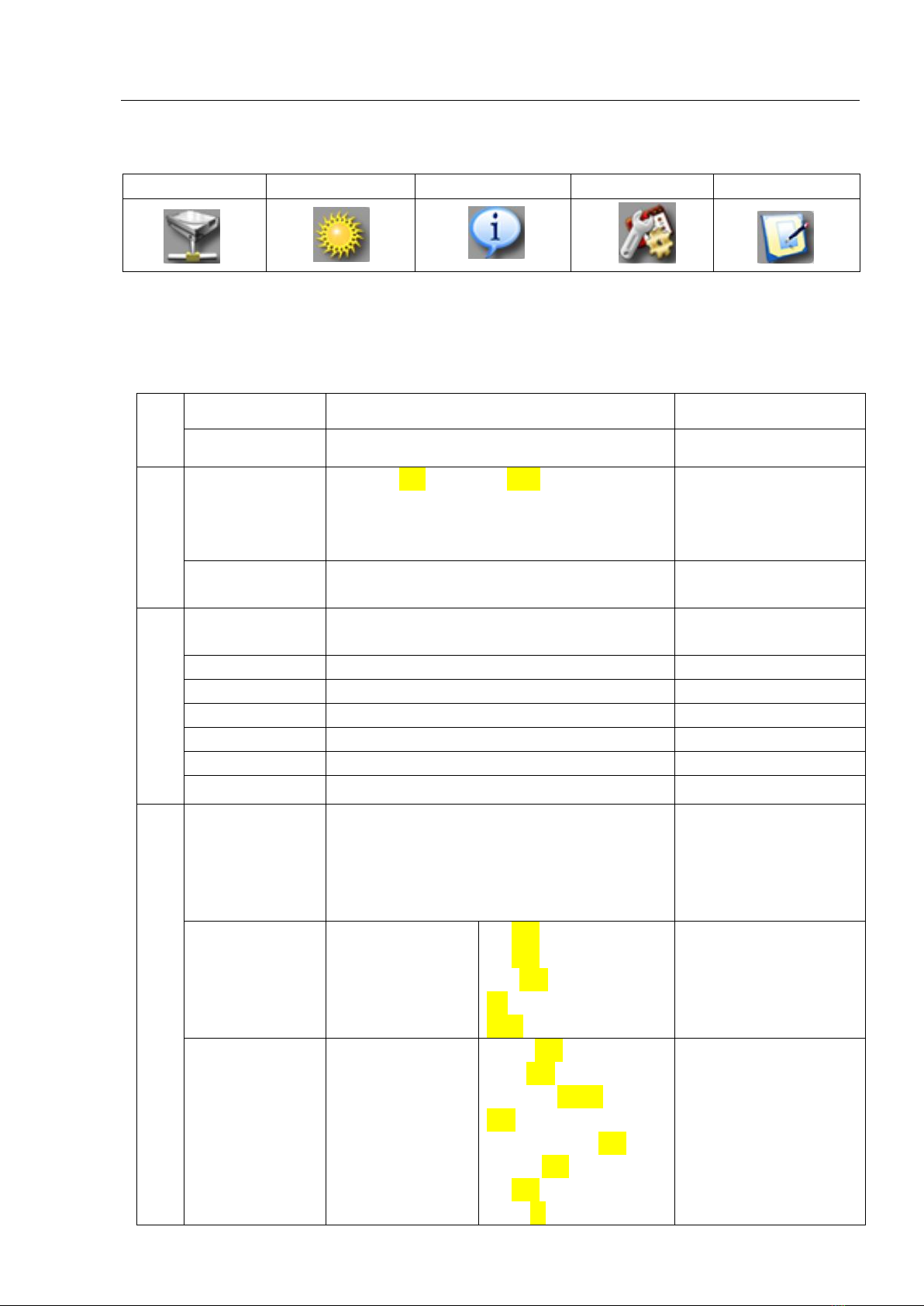

Menu operation
Description of icons in the menu
CONNECT
LIGHT
INFOMATION
SET
PROGRAM
Menu
Default setting shadowed. Mark with ①can be basic reloaded, ②be program reloaded, ③can be private reloaded.
CONNECT
DMX Address①
XXX
DMX address setting
Wireless①
Wireless Enabled
LIGHT
Max Temperature①
80~139℃, 90℃(176~282℉, 194℉)
Lamp will switch off when
temperature continuously
over max temperature for
5 minutes
Lamp Adjust①
Adjust value of each
channels
INFORMATION
Time Info.
Current XXXX(Hours)
Fixture Life XXXX(Hours)
Fixture boot time
Fixture total run time
Temperature
Near Lamp Temp (depends on fixture)
Temperature Sensors
Fans Speed
Near Lamp Fan (depends on fixture)
Fan speed Sensors
Channel Value
Display value of channel
Error Message
Error channels
Fixture Model
M1S150W
Display brand and model
Software Ver
1U01 V1.0.00
Version of each IC
SET
Reset
All
Pan&Tilt
Colors
Gobos
Others
Reset all
Reset Pan&Tilt
Reset Colors
Reset Gobos
Reset Others
Movement
Pan Reverse①
Tilt Reverse①
Pan Degree①
Encoders①
Pan/Tilt Mode①
ON/OFF
ON/OFF
630°/540°
ON/OFF
Stand/Smooth
Pan Reverse
Tilt Reverse
Choose Pan Degree
Encoder wheel on/off
Choose pan/tilt mode
UI Set
Mic Sens. ③
No Signal①
Temperature. C/F①
Fans Mode①
Hibernation①
Backlight①
Flip Display①
Display Bright③
0~99%,60%
Close/Hold/Auto/Music
Fahrenheit/Celsius
Auto / High Speed
OFF, 01M~99M，15M
02~60m 02m
ON/OFF
00~31 10
Sensitivity of Mic
Mode when no signal
Temperature at ℃/℉
Fans mode
Sleeping mode
Show backlight time
Display 180°reverse
Display Brightness

5
Brand Show①
Key Lock①
Language①
ON/OFF
ON/OFF
En/简/繁/Fr/Sp
Show brand or not
Key lock on/off
Language Select
Users
User Mode①
Standard
Extended
Basic-8bit
Basic-16bit
User
Standard mode
Extended mode
Basic mode-8bit
Basic mode-16bit
User program mode
Edit User③
Max Channel = XX
PAN = CH01
:
Edit users mode
Calibration③
-Password-
Color
:
=XXX
=XXX
:
Password: 050
Calibrate channel value
Fixture ID③
Name
-Password-
PID Code
Name
Password: 050
Set PID of RDM
Wireless Set①
DMX On Cable
Reset Connect
ON/OFF
ON/OFF
DMX Send Out
Reset Connect
Reload Default
Basic Reload(①)
Program Reload(②)
---Password---
Private Reload(③)
All Reload
ON/OFF
ON/OFF
XXX
ON/OFF
ON/OFF
Basic Reload
Program Reload
Password: 050
Private Reload
All Reload
PROGRAM
Play①
DMX Receive
Slave Receive
Sequence
Music
Slave Receive 1,2,3
Master / Alone
Master / Alone
DMX Receive
Choose slave position
Run Sequence
Music mode
Select Chase②
Chase Part 1
Chase Part 2
Chase Part 3
Chase 1 ~ 8 Chase 1
Chase 1 ~ 8 Chase 2
Chase 1 ~ 8 Chase 3
Select and run auto
program
Edit Chase②
Chase 1
:
:
Chase 8
Chase Test
Step 01
:
Step 64
=SCxxx
:
=SCxxx
Test
Beginning scene
:
Ending scene
Edit Scenes②
Edit Scene 001
~ Edit Scene 250
Pan,Tilt,……
Fade Time--
Secne Time--
DMX Input
=xxx
=xxx
=xxx
Input manual scene
Modify manually fading time
Modify manually scene time
Input scene from exterior
controller
Scenes Record
ScXX=>ScXX
Auto Input scenes

6
DMX Chart
Channel
Name
Function
Min
DMX
Max
DMX
St
Ex1
Ex2
Ba1
Ba2
1
1
1
1
1
Pan
Pan Coarse
0
255
2
2
2
Pan fine
Pan Fine
0
255
2
3
3
2
3
Tilt
Tilt Coarse
0
255
4
4
4
Tilt fine
Tilt Fine
0
255
3
5
5
3
5
Movement
Speed
Fastest to slowest
0
255
6
6
Movement
Function
Normal
0
15
Movement With Blackout
16
31
TBD
32
255
4
7
7
4
6
Shutter
Function
Normal Shutter Functions
0
15
Pulse-effect Forward
16
31
Pulse-effect Reverse
32
47
Random Strobe
48
63
TBD
64
255
5
8
8
5
7
Shutter
Normal Shutter Functions
Close
0
31
Strobe Rate (slow to fast)
32
223
Open
224
255
Pulse-effect Forward
Close
0
31
Strobe Rate (slow to fast)
32
223
Open
224
255
Pulse-effect Reverse
Close
0
31
Strobe Rate (slow to fast)
32
223
Open
224
255
Random Strobe
Close
0
31
Strobe Rate (slow to fast)
32
223
Open
224
255
6
9
9
6
8
Dimmer
Dimmer (0 - >100%)
0
255
7
10
10
7
9
Virtual Color
Function
On Function
0
15
CTC Function
16
31
Forward Spin
32
47
Reverse Spin
48
63
Continuous
64
79
Color Bounce
80
111
TBD
112
255

7
8
11
11
8
10
Virtual Color
1
CTC Function
Colour Temperature Correction
2000K->2700K
0
223
White 3200K
224
231
White 4200K
232
239
White 5600K
240
247
White 8000K
248
255
Forward Spin Rainbow Effect (Slow->Fast)
0
255
Reverse Spin Rainbow Effect (Slow->Fast)
0
255
Continuous & Color Bounce
Black
0
0
Red
1
1
Green
2
2
Blue
3
3
White
4
4
Red=0, Green->up, Blue=full, White=0
5
46
Red=0, Green=full, Blue->down, White=0
47
88
Red->up, Green=full, Blue=0,White=0
89
130
Red=full, Green->down, Blue=0,White=0
131
172
Red=full, Green=0,Blue->up, White=0
173
214
Red->down, Green=0,Blue=full, White=0
215
255
9
12
12
9
11
Virtual Color
2
(Only On
Color
Bounce)
Color Bounce
Black
0
0
Red
1
1
Green
2
2
Blue
3
3
White
4
4
Red=0, Green->up, Blue=full, White=0
5
46
Red=0, Green=full, Blue->down, White=0
47
88
Red->up, Green=full, Blue=0,White=0
89
130
Red=full, Green->down, Blue=0,White=0
131
172
Red=full, Green=0,Blue->up, White=0
173
214
Red->down, Green=0,Blue=full, White=0
215
255
10
13
13
10
12
Red-All
Red 0->100%
0
255
11
14
14
11
13
Green-All
Green 0->100%
0
255
12
15
15
12
14
Blue-All
Blue 0->100%
0
255
13
16
16
13
15
White-All
White 0->100%
0
255
14
17
17
14
16
Zoom
Big angle -> Small angle
0
255
15
18
18
15
17
Foreground
No Function
0
15
Foreground Color
16
255
16
19
19
16
18
Background
No Function
0
15
Background color
16
255
17
20
20
17
19
Pattern
On Pattern
0
12
Pattern control
13
25
Pattern Effect 1~18
26
255

8
18
21
21
18
20
Pattern
Speed
Pattern control
Picture Effect
0
255
Pattern Effect
Slow-> Fast
0
255
22
Pattern
Byte 1
Direct access to Pattern of LED 1&LED 2
0
255
Bit 0
Bit0=Led1 Red Switch
0
1
Bit 1
Bit1=Led1 Green Switch
0
2
Bit 2
Bit2=Led1 Blue Switch
0
4
Bit 3
Bit3=Led1 White Switch
0
8
Bit 4
Bit4=Led2 Red Switch
0
16
Bit 5
Bit5=Led2 Green Switch
0
32
Bit 6
Bit6=Led2 Blue Switch
0
64
Bit 7
Bit7=Led2 White Switch
0
128
23
Pattern
Byte 2
Direct access to Pattern of LED 3&LED 4
0
255
24
Pattern
Byte 3
Direct access to Pattern of LED 5&LED 6
0
255
25
Pattern
Byte 4
Direct access to Pattern of LED 7&LED 8
0
255
26
Pattern
Byte 5
Direct access to Pattern of LED 9&LED 10
0
255
27
Pattern
Byte 6
Direct access to Pattern of LED 11&LED 12
0
255
28
Pattern
Byte 7
Direct access to Pattern of LED 13&LED 14
0
255
29
Pattern
Byte 8
Direct access to Pattern of LED 15&LED 16
0
255
30
Pattern
Byte 9
Direct access to Pattern of LED 17&LED 18
0
255
31
Pattern
Byte 10
Direct access to Pattern of LED 19&LED 20
0
255
32
Pattern
Byte 11
Direct access to Pattern of LED 21&LED 22
0
255
33
Pattern
Byte 12
Direct access to Pattern of LED 23&LED 34
0
255
34
Pattern
Byte 13
Direct access to Pattern of LED 25&LED 26
0
255
35
Pattern
Byte 14
Direct access to Pattern of LED 27&LED 28
0
255
36
Pattern
Byte 15
Direct access to Pattern of LED 29&LED 30
0
255
37
Pattern
Byte 16
Direct access to Pattern of LED 31&LED 32
0
255
38
Pattern
Byte 17
Direct access to Pattern of LED 33&LED 34
0
255

9
39
Pattern
Byte 18
Direct access to Pattern of LED 35&LED 36
0
255
40
Pattern
Byte 19
Direct access to Pattern of LED 37
0
255
22
Red Pixel 1
Led Off
0
127
Led On
128
255
23
Green Pixel
1
Led Off
0
127
Led On
128
255
24
Blue Pixel 1
Led Off
0
127
Led On
128
255
25
White Pixel 1
Led Off
0
127
Led On
128
255
:
165
Red Pixel 37
Led Off
0
127
Led On
128
255
167
Green Pixel
37
Led Off
0
127
Led On
128
255
168
Blue Pixel 37
Led Off
0
127
Led On
128
255
169
White Pixel
37
Led Off
0
127
Led On
128
255
19
41
170
19
21
Control
Normal
0
7
Reset All
8
15
Pan&Tilt Reset
16
23
TBD
24
47
Other Reset
48
55
Display Off
56
63
Display On
64
71
TBD
72
79
TBD
80
87
Hibernation
88
95
TBD
96
255
- The device is controlled by universal DMX 512 protocol, DMX address is the start channel used to receive
instructions from the external controller. For independent control, each fixture must be assigned its unique address
control channels. For example, this device has four channel modes: 19/50/18/20, if we set the mode at standard 20
channels mode, and there are several models need to be independently controlled, we just simply address first
fixture at 1, and second fixture at 21, third one at 41, etc.
- If the devices have the same address, they will behave synchronically.
- Display is flashing when no DMX signal is received.

10
More functions
- RDM. RDM stands for “Remote Device Management”, with this function, users can realize remote control of the
device, such as remotely changing DMX address, reverse pan/tilt setting, check a lot of useful information such as
temperature, power consumption, fan speed. Etc. Every single device has a unique RDM code programmed at
manufacture to distinguish from each other. It is not recommended for users to change this code.
- Software upgrade function via DMX cable. If there is any new firmware for this device, it can be upgraded simply via
a software upgrade box, no need to change any mechanical parts. The upgrade box is not included in the package,
if need any further assistance please just contact your authorized dealer.
- Hibernation. The device will enter sleeping mode if activated after a period of disconnecting DMX signal to save the
power consumption, and will return immediately as soon as the DMX signal is sent again.
- Display back-up communication IC. There is a back-up communication IC installed in the display PCB, so users
could replace at once if the original one is broken.
- Display flip. By press up and down button for more than 3 seconds, the display will flip automatically, this function is
useful to read menu conveniently when device is hanged.
Technical Specifications
- Input Voltages: 100V~240V A, 50/60Hz
- Power Consumption: 520W
- Light source: 37 pcs Osram 15W RGBW LED
- Power Connection: Neutrik® Powercon input and output connection
- LED life: 60,000 hours
- Lux: 13,500 lumen, 30,440 lux RGBW full on @3M at 6°, 5,200 lux RGBW full on @3M at 50°
- Beam angle: 6°to 50°
- PWM: 1,200Hz
- Colors: full color
- Pixel control
- Dimmer: 0-100% dimmer
- Strobe: 0.5 - 26 Hz
- Zoom: 6°to 50°
- Head movement: Pan: 630°(2.2 sec)or 540°(2.0 sec), Tile 265°(0.85 sec).16-bit resolution, auto repositioning
- Control: DMX512, 5-pin XLR & Ethernet interfaces, 19/41/170/19/21 channel mode
- Other function: wireless DMX is available
- 2.4 inch colour LCD display with back-up power.
- Thermostat Controlled, variable speed fan
- RDM and software upgrade via DMX.
- Net weight: 17Kg
- Overall Size: 444x250x506mm
- Rigging: 2pcs omega brackets with 1/4 –turn quick locks
- Road case available
