Saxby Lighting Seran 55689 Manual

Instruction leaflet
Seran Bulkhead
55689, 55690, 55691, 55692
www.saxbylighting.com
For your safety, always switch off the supply before cleaning.
Waste electrical products should not be disposed of with household waste. Please recycle where facilities
exist. Check with your Local Authority or retailer for recycling advice.
Recycling advice
Safety information
Saxby Lighting Ltd. BH23 3PE
We recommend cleaning with a soft dry cloth.
Do not use solvents or abrasive cleaners as these could
damage the finish.
Fitting/replacing bulbs
Iss.2 12102015
• The LED module in these products is non replaceable
Thank you for purchasing this light fitting. Please read the instructions carefully before use to ensure safe and
satisfactory operation of this product. Please retain these instructions for future reference.
Warning
Layout
• Plan the desired layout of this fitting carefully,
ensuring the cables will reach the distance between
the junction box and the light fitting.
• Avoid locating any cables in positions that would
cause a hazard. Position cables and junction boxes
(not supplied) away from areas where they may be
at risk from being cut, trapped or damaged.
• The mains supply cable must have a minimum cross
sectional area of 1.0mm².
• Cables must be protected using suitable conduit or
plastic trunking.
• The products can be wall or ceiling mounted.
Existing fittings must be completely removed before
installation of a new product. Before removing the
existing fitting, carefully note the position of each set
of wires.
• Remove the shade and set aside.
• Undo the screws holding the white cover in place
and set aside.
• Hold the product in place and mark the position of
the holes.
• Ensure the wall is capable of holding the weight
of the product, or if fitting to a ceiling, ensure
there is a joist at the point of fixing to support the
weight of the product. Take care to avoid damaging
any concealed wiring and pipes. The correct
fixings should be used for brick, cavity walls or
plasterboard.
• Fix into position.
• Pierce a hole in the grommet, and pull the cable
through.
• For 55690 and 55692: make sure the LEDs are
positioned at the base so the "eyelid" bezel does not
obscure them when refitted.
Installation
This product is Double Insulated and does
not require connection to an Earth circuit.
Please read these instructions carefully before
commencing any work.
This unit must be fitted by a competent and qualified
electrician.
Install in accordance with IEE Wiring regulations and
current Building Regulations.
To prevent electrocution switch off at mains supply
before installing or maintaining this fitting. Ensure
other persons cannot restore the electrical supply
without your knowledge.
This light fitting should be connected to a fused circuit.
If replacing an existing fitting, make a careful note of
the connections.
This product is not suitable for dimming.
Waste electrical products should not be disposed of
with household waste. Please recycle where facilities
exist. Check with your local authority or retailer for
recycling advice.
If mounting, note the position of the "This Way Up"
label on the back of the product and ensure it is
correctly oriented.
Specification
Voltage: 240V ~ 50Hz
Lamp: 12W LED Module (1080 lm)
IP rating: 44
• Ensure that the screws and cable entry points are
sealed to maintain the IP rating of the product.
• Refit the shade and outer bezel and secure with the
screws. Ensure the seals are correctly located.
• Replace fuse or circuit breaker and switch on. Your
light is now ready for use.
Commissioning
Wiring
This product is double insulated and must not be
earthed. If there are any incoming earth cables, they
must be joined together and well insulated with good
quality insulation tape. This is to ensure earth continuity
throughout your property.

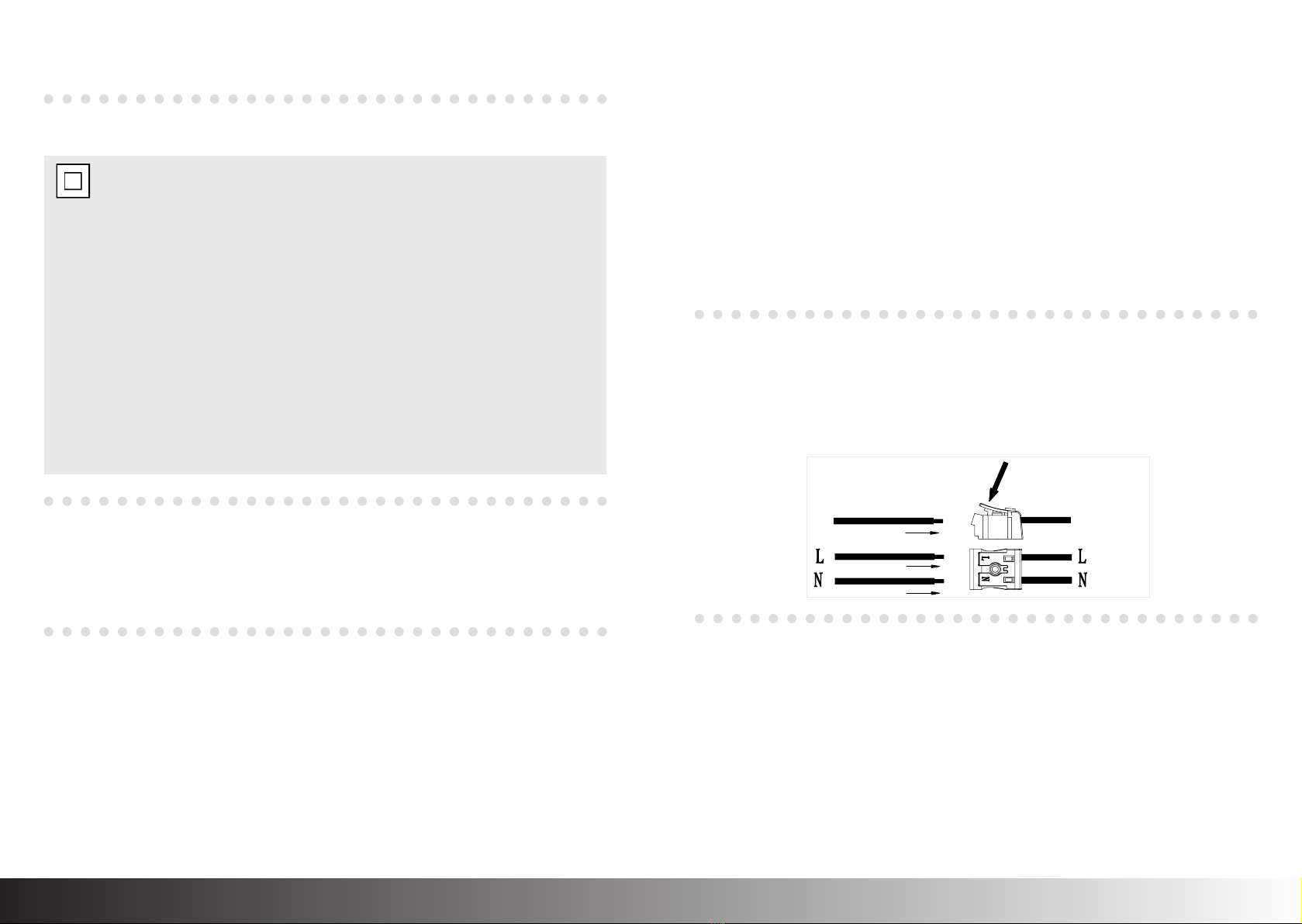

Having correctly identified the wiring from your existing
light fitting,connect to the quick fit connection block in
the following way:
ive
eutral
