Eventide 1745M User manual

Eventide
the next step
INSTRUCTION MANUAL
DIGITAL
LIIME MODEL I745M

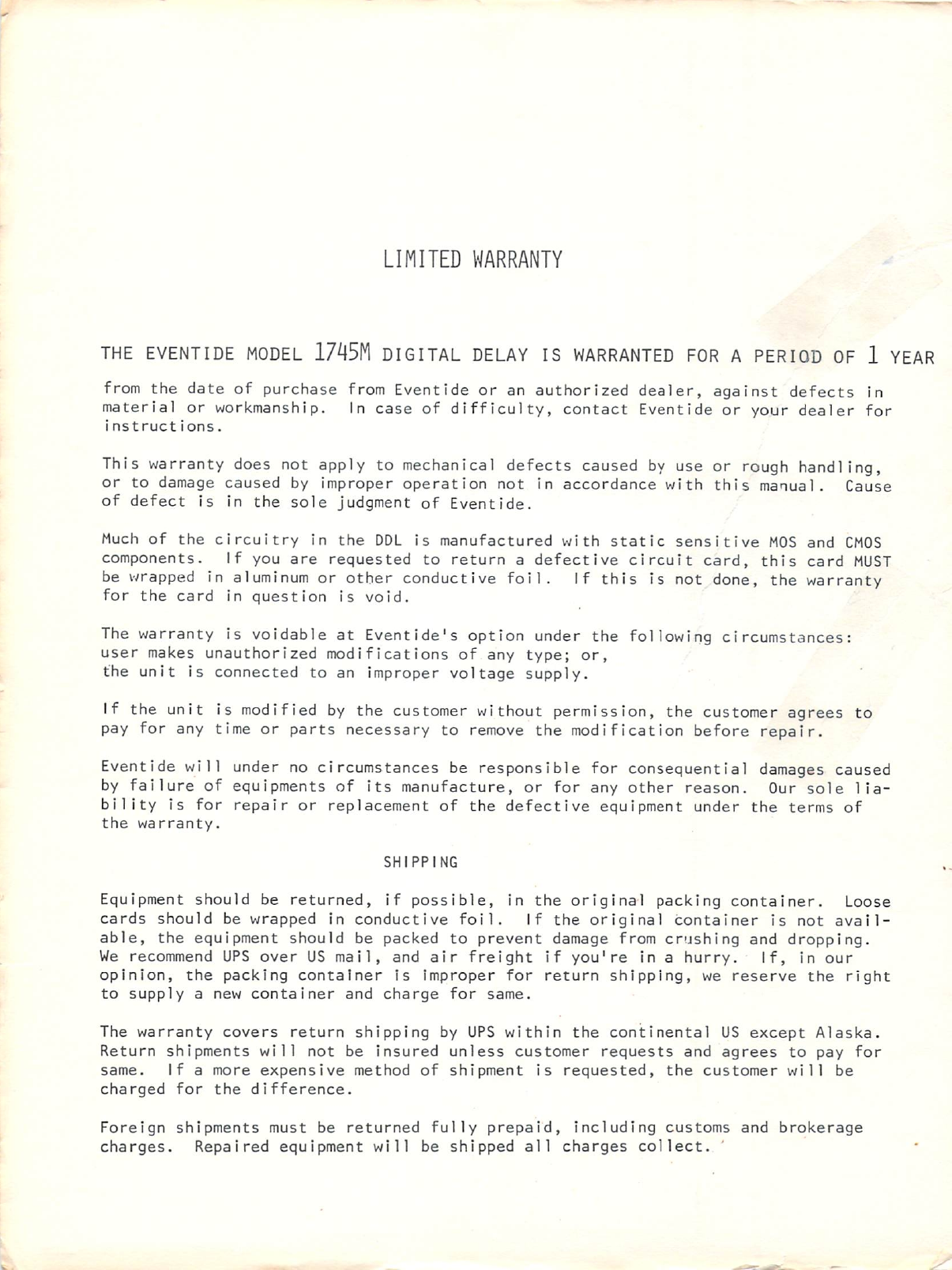

LIMITED WARRANTY
THE EVENTIDE MODEL 1745M DIGITAL DELAY IS WARRANTED FOR A PERIOD OF 1 YEAR
from the date of purchase from Eventide or an authorized dealer, against defects in
material or workmanship. In case of difficulty, contact Eventide or your dealer for
instruct ions.
This warranty does not apply to mechanical defects caused by use or rough handling,
or to damage caused by improper operation not in accordance with this manual. Cause
of defect is in the sole judgment of Eventide.
Much of the circuitry in the DDL is manufactured with static sensitive MOS and CMOS
components. If you are requested to return a defective circuit card, this card MUST
be wrapped in aluminum or other conductive foil. If this is not done, the warranty
for the card in question is void.
The warranty is voidable at Eventide's option under the following circumstances:
user makes unauthorized modifications of any type; or,
the unit is connected to an improper voltage supply.
If the unit is modified by the customer without permission, the customer agrees to
pay for any time or parts necessary to remove the modification before repair.
Eventide will under no circumstances be responsible for consequential damages caused
by failure of equipments of its manufacture, or for any other reason. Our sole lia
bility is for repair or replacement of the defective equipment under the terms of
the warranty.
SHIPPING
Equipment should be returned, if possible, in the original packing container. Loose
cards should be wrapped in conductive foil. If the original container is not avail
able, the equipment should be packed to prevent damage from crushing and dropping.
We recommend UPS over US mail, and air freight if you're in a hurry. If, in our
opinion, the packing container is improper for return shipping, we reserve the right
to supply a new container and charge for same.
The warranty covers return shipping by UPS within the continental US except Alaska.
Return shipments will not be insured unless customer requests and agrees to pay for
same. If a more expensive method of shipment is requested, the customer will be
charged for the difference.
Foreign shipments must be returned fully prepaid, including customs and brokerage
charges. Repaired equipment will be shipped all charges collect.

EVENTIDE CLOCK WORKS INC.
WARRANTY REGISTRATION FORM DIGITAL DELAY LINE 1745M
SERIAL NUMBER _DATE PURCHASED
FROM WHOM PURCHASED
NAME OF PURCHASER.
ADDRESS
CITY STATE ZIP TEL
CONFIGURATION OUTPUTS TRANSFORMERS VOLTAGE
OTHER
THE 17A5M is an expandable system and we would like you to know about new modules as
they become available. To whom should this information be sent?
NAME
Address
OPTIONAL-PLEASE FILL OUT IF YOU HAVE TIME
NATURE OF YOUR BUSINESS
APPLICATION FOR THE DDL. IF SOUND REINFORCEMENT, ADDRESS OF SITE
HOW DID YOU LEARN ABOUT EVENTIDE EQUIPMENT?
IMPORTANT: YOU MUST FILL OUT THIS FORM TO ENSURE WARRANTY PROTECTION!
A BUSINESS REPLY ENVELOPE IS PROVIDED FOR YOUR CONVENIENCE. FORM SHOULD
BE MAILED WITHIN 10 DAYS OF PURCHASE.

u
jj
LI
U
u
u
u
u
u
Li
Li
U
U
U
Li
u
u
TABLE OF CONTENTS
Warranty i
Warranty Registration Form a
Table of Contents jv
OPERATING MANUAL:
What to Do if You Can't Wait! 1
Instruction Manual Manual 2
Specifications 3
Interconnection 4
Control and Indicator Description 5
Input Level Settings 7
Delay Doubling 9
Article: The Digital Delay Line Revisited 10
Applications 17
Article reprint:Phasing and Flanging 19
More Applications 22
TECHNICAL INFORMATION:
Introduction 25
Test Equipment Required 25
Performance Assurance 26
Troubleshooting 27
Trouble indications 29
Alignment Instructions 30
Theory of Operation 32
Mother board 33
Random Access Memory Board 33
Input Filter and Timing Board 35
Input Control Board 38
Output D/A and Control Register Board 38
Output Board Readout Assembly 39
Mechanical Assembly and Access 41
Adding Additional Outputs 42
DRAWINGS:
Mother Board Parts Location 43
Chassis Wiring and Cable Assemblies 44
System Block Diagram 45
Mother Board Power Supply, Data IN/OUT
And Address Wiring 46
Mother Board Audio and Housekeeping 47
Mother Board Wiring List 48
Random Access Memory Board Array Wiring 49
Random Access Memory Board 50
Input and Timing Board 51
Output Board ~* 52
Control and Readout Plug-In Boards 53
System Timing Diagram 54
APPENDIX:
Troubleshooting techniques ' 55-
What to Do if All Else Fails 59
Integrated Circuit Pinout Diagrams
CMOS 60
Random Access Memory m 61
Arithmetic Units, ECL 63
LED's, Schottky, Decoder Drivers 64
Linear Circuits 65
Voltage Regulators, D/A Converter 66

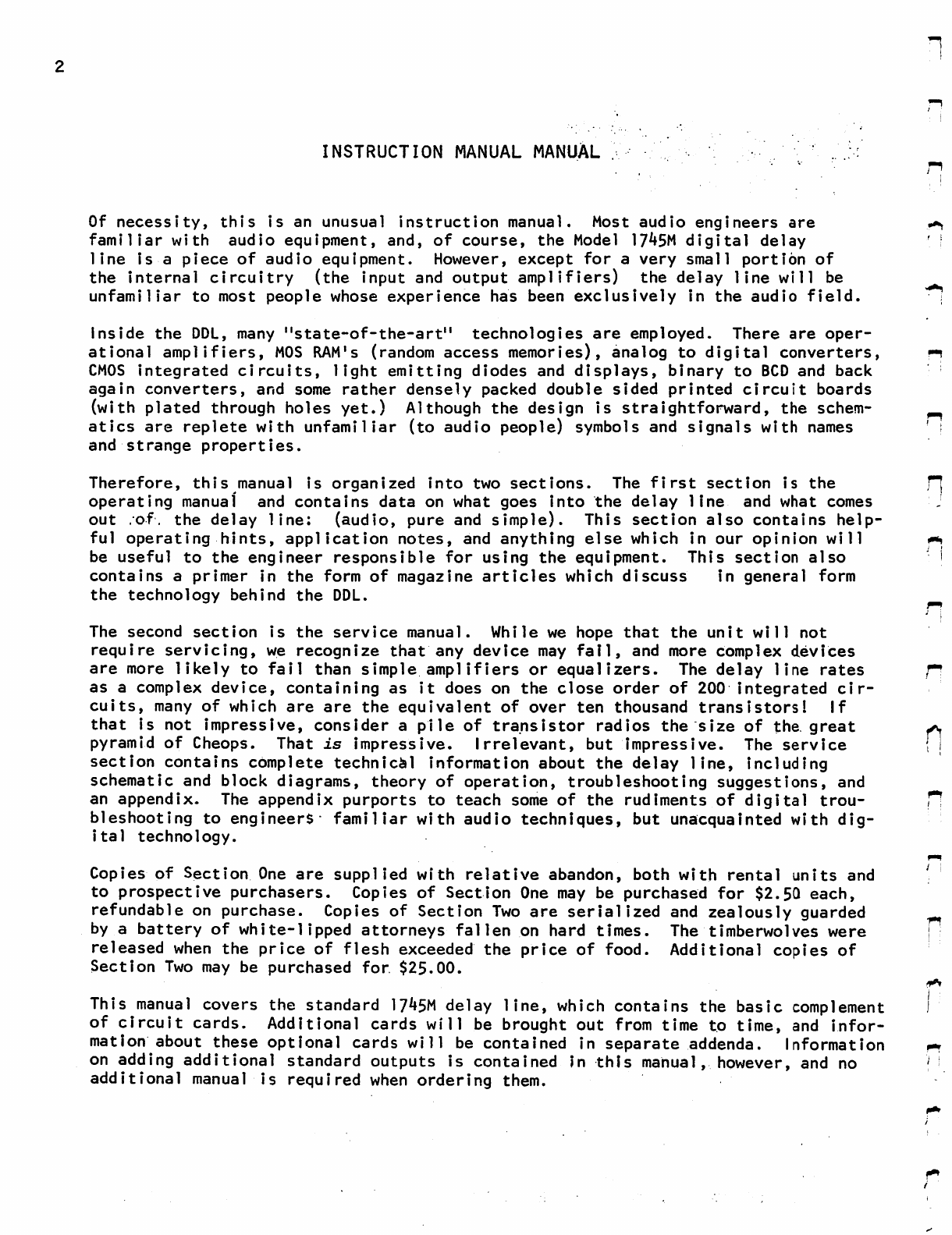

INSTRUCTION MANUAL MANUAL
Of necessity, this is an unusual instruction manual. Most audio engineers are •*,
familiar with audio equipment, and, of course, the Model 17^5M digital delay ' !
line is a piece of audio equipment. However, except for a very small portion of
the internal circuitry (the input and output amplifiers) the delay line will be
unfamiliar to most people whose experience has been exclusively in the audio field. :
inside the DDL, many "state-of-the-art" technologies are employed. There are oper
ational amplifiers, MOS RAM's (random access memories), analog to digital converters, ?-i
CMOS integrated circuits, light emitting diodes and displays, binary to BCD and back
again converters, and some rather densely packed double sided printed circuit boards
(with plated through holes yet.) Although the design is straightforward, the schem-
atics are replete with unfamiliar (to audio people) symbols and signals with names '
and strange properties.
Therefore, this manual is organized into two sections. The first section is the f]
operating manual and contains data on what goes into the delay line and what comes
out .of. the delay line: (audio, pure and simple). This section also contains help
ful operating hints, application notes, and anything else which in our opinion will ^
be useful to the engineer responsible for using the equipment. This section also |
contains a primer in the form of magazine articles which discuss in general form
the technology behind the DDL.
^^
; i
The second section is the service manual. While we hope that the unit will not
require servicing, we recognize that any device may fail, and more complex devices
are more likely to fail than simple amplifiers or equalizers. The delay line rates r"!
as a complex device, containing as it does on the close order of 200 integrated cir
cuits, many of which are are the equivalent of over ten thousand transistors! If
that is not impressive, consider a pile of transistor radios the size of the. great •«.
pyramid of Cheops. That is impressive. Irrelevant, but impressive. The service ,
section contains complete technical information about the delay line, including
schematic and block diagrams, theory of operation, troubleshooting suggestions, and
an appendix. The appendix purports to teach some of the rudiments of digital trou- H
bleshooting to engineers familiar with audio techniques, but unacquainted with dig
ital technology.
Copies of Section One are supplied with relative abandon, both with rental units and '
to prospective purchasers. Copies of Section One may be purchased for $2.50 each,
refundable on purchase. Copies of Section Two are serialized and zealously guarded
by a battery of white-lipped attorneys fallen on hard times. The timberwolves were {
released when the price of flesh exceeded the price of food. Additional copies of
Section Two may be purchased for. $25.00.
***
This manual covers the standard 1745M delay line, which contains the basic complement J
of circuit cards. Additional cards will be brought out from time to time, and infor
mation about these optional cards will be contained in separate addenda. Information **
on adding additional standard outputs is contained in this manual, however, and no }
additional manual is required when ordering them.

SPECIFICATIONS: model 1745M
INPUT LEVEL
OUTPUT LEVEL
IMPEDANCES
FREQUENCY RESPONSE
DISTORTION
DYNAMIC RANGE
DELAY CHARACTERISTICS
DELAY
DELAY MATCH
MINIMUM I/O DELAY
SHORT TERM STABILITY
(wow and flutter)
LONG TERM STABILITY
ACCURACY
PHYSICAL CHARACTERISTICS
HEIGHT
WIDTH
DEPTH BEHIND PANEL
13.3*fcM
58.26cM
38.1OcM
(5-1A")
(19")
(15")
Adjustable by front panel control. -10 to +I6dbm
nominal for full output level as evidenced by illum
ination of red LIMIT indicator
Clipping level +l8dbm. Screwdriver adjust control
accessible from front panel available for small adjust
ments.
INPUT balanced electronically, each line nominal 4.7K
in series with lOOOpf to ground. 600 ohm xfmr optional
OUTPUT unbalanced, 150 ohms nominal. Transformers are
optional, and increase maximum output to +22dbm.
Without transformers, input should not exceed kO\l p-p,
or jJ2V p-p on either line.
jjdb, 3OHz-l6kHz. Extremely rapid rolloff after l6KHz.
Less than .3% THD from just below clipping to -lOdbm
output
between lOOHz and 10kHz. Less than 1% over
remainder of frequency range.
Greater than SOdb between minimum usable signal and
clipping level. Solid state indicator flashes red
nominally 3db below clipping, green nominally 12db
below clipping, and yellow when signal is present.
Variable in 20 microsecond steps to 319.98 milliseconds.
Variable in hO microsecond steps to 636.96 milliseconds
in DOUBLE mode, reduced frequency response.
When outputs set to identical delay, adjacent output
relative delay less than 3us.
Less than 40us.
.001% (1 part in 10-* averaged over 100 ms interval)
.01%/month.
Readout accurate to nearest millisecond. Optional readout
gives delay to nearest lOuSecond. Accurate to .02%.
standard rack dimension*
standard rack dimension
^Normally supplied with rubber feet for tabletop mounting
Feet may be removed for rack mounting.
POWER REQUIREMENTS
U5VAC, 5O-6OHz, nominal 25VA. May be internally wi
for 230VAC. 50-60Hz.
red

INTERCONNECTION
r
The 17^5M is capable of containing 1 INPUT module and up to 5 OUTPUT modules.
Each module position is represented on the rear panel by one 3-conductor audio
connector. These connectors employ the following wiring convention:
BALANCED CONFIGURATION
INPUT OUTPUT
P'N 1 Connected to analog ground Connected to analog ground
PIN 2 Input, -phase Output, -phase
PIN 3 Input, +phase Output, +phase
IMPEDANCE Either HI or 600 ohms depen- 600 ohms
ding upon input resistor
UNBALANCED CONFIGURATION
INPUT OUTPUT
PIN 1 Connected to analog ground Connected to analog ground
PIN 2 Input, -phase Connected to analog ground
PIN 3 Input, +phase Output, +phase
IMPEDANCE HI 15O ohms.
Input connector is female type D3F. Mating cable connector is type A3M.
Output connector is male type D3M. Mating cable connector is type A3F.
Part numbers are Switchcraft. Equivalent connectors are made, by Canon and others
DISPLAY BRIGHTNESS
The delay line is furnished with the displays set at what we believe to be optimum
brightness for typical studio applications. The display brightness can be increased
or decreased by about 50%.
To INCREASE BRIGHTNESS: Remove DDL top cover and place shorting link across diode
in series with PIN V of the readout board socket.
To DECREASE BRIGHTNESS: Remove DDL top cover and connect additional diode in series
with diode 50ing; to. PIN V of the readout board socket.
Caution: Do not decrease brightness by more than one diode to prevent marginal
operation of decoder IC's.
Do not increase brightness if more than 3 outputs with readouts are
installed to prevent possible power supply overload.

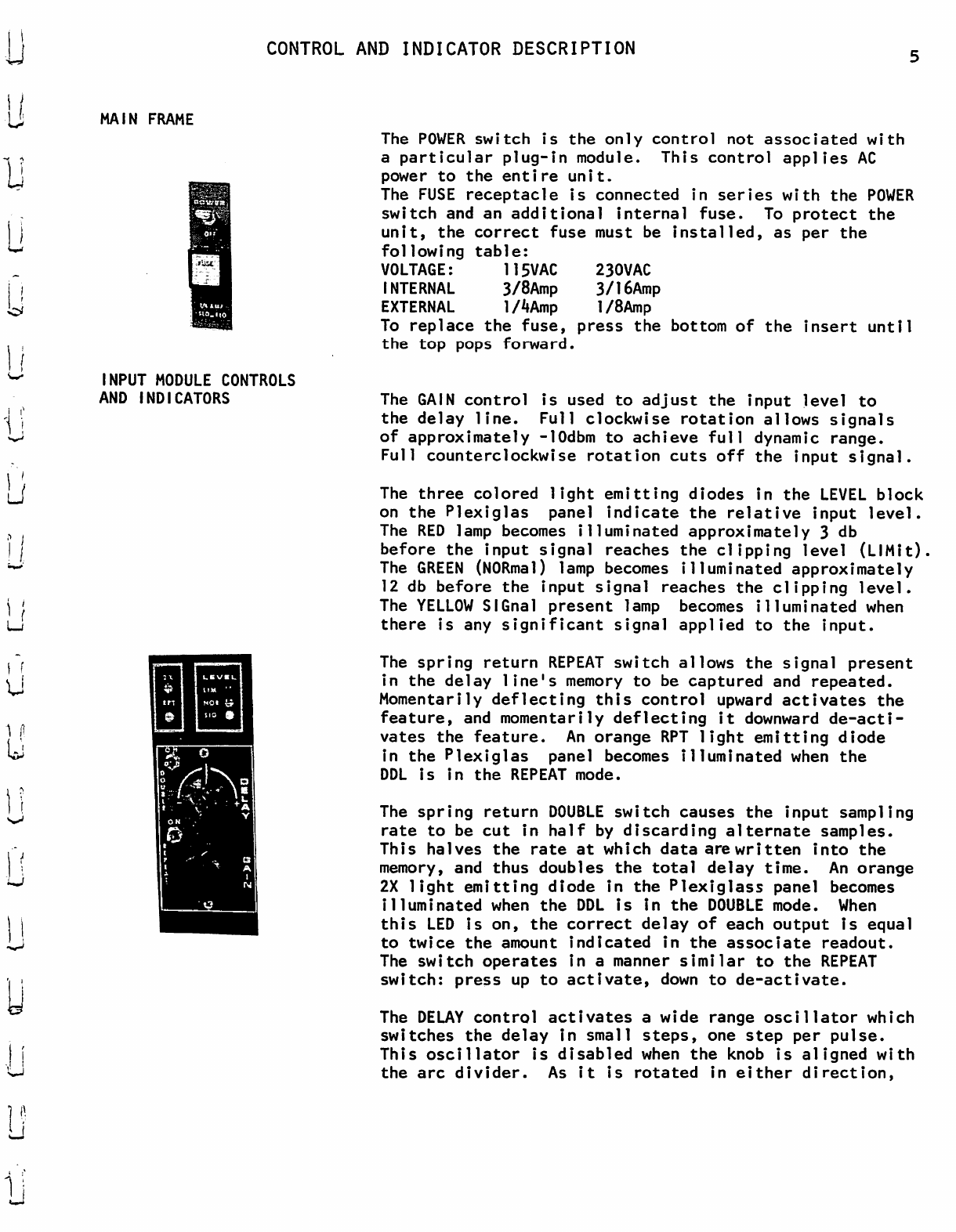

CONTROL AND INDICATOR DESCRIPTION
MAIN FRAME
INPUT MODULE CONTROLS
AND INDICATORS
The POWER switch is the only control not associated with
a particular plug-in module. This control applies AC
power to the entire unit.
The FUSE receptacle is connected in series with the POWER
switch and an additional internal fuse. To protect the
unit, the correct fuse must be installed, as per the
table:
230VAC
3/l6Amp
l/8Amp
press the bottom of the insert until
following
VOLTAGE:
INTERNAL
EXTERNAL
115VAC
3/8Amp
1 AAmp
To replace the fuse,
the top pops forward.
The GAIN control is used to adjust the input level to
the delay line. Full clockwise rotation allows signals
of approximately -lOdbm to achieve full dynamic range.
Full counterclockwise rotation cuts off the input signal.
The three colored light emitting diodes in the LEVEL block
on the Plexiglas panel indicate the relative input level.
The RED lamp becomes illuminated approximately 3 db
before the input signal reaches the clipping level (LIMit).
The GREEN (NORmal) lamp becomes illuminated approximately
12 db before the input signal reaches the clipping level.
The YELLOW SIGnal present lamp becomes illuminated when
there is any significant signal applied to the input.
The spring return REPEAT switch allows the signal present
in the delay line's memory to be captured and repeated.
Momentarily deflecting this control upward activates the
feature, and momentarily deflecting it downward de-acti
vates the feature. An orange RPT light emitting diode
in the Plexiglas panel becomes illuminated when the
DDL is in the REPEAT mode.
The spring return DOUBLE switch causes the input sampling
rate to be cut in half by discarding alternate samples.
This halves the rate at which data are written into the
memory, and thus doubles the total delay time. An orange
2X light emitting diode in the Plexiglass panel becomes
illuminated when the DDL is in the DOUBLE mode. When
this LED is on, the correct delay of each output is equal
to twice the amount indicated in the associate readout.
The switch operates in a manner similar to the REPEAT
switch: press up to activate, down to de-activate.
The DELAY control activates a wide range oscillator which
switches the delay in small steps, one step per pulse.
This oscillator is disabled when the knob is aligned with
the arc divider. As it is rotated in either direction,

H
CONTROL AND INDICATOR DESCRIPTION
the oscillator frequency increases logarithmically. At
the extremes of rotation, pulses are produced at a rate f?'
sufficient to traverse the entire delay length in approx- j
imately 3 seconds. At the slowest setting, the delay
varies at about 1 step per second. A graph showing the jS
control setting versus delay change rate is shown at ;
left.
A steering signal is also produced by the control which H
determines whether the delay is to increase (CW rotation) ' '
or decrease (CCW rotation).
The delay change process is nearly inaudible, except at i
the extremes of rotation, at which point the output signal
appears to suffer a pitch and tempo change. In order to ^
get a feeling for the action of the control, it is recom- ; ^
mended that the instructions in the FLANGING application
sect i on be fo11owed.
OUTPUT MODULE CONTROLS
AND INDICATORS
Each output module has facilities for independent delay '
adjustment (under control of the DELAY control described
above) and level.
The switch marked SET/ZERO tells the module to accept
the oscillator signals when in the SET position, or to
ignore them in the center off position. Each module
may be set independently by placing the switch in the *
SET position, adjusting the delay with the DELAY oscillator
and then centering the switch and proceeding to the next
module. *
Each module may be independently ZEROED by momentarily
deflecting the switch downward. (This is a spring-return A
pos i t i on*)
Each module has power-up-clear circuitry to reset the
delay to zero upon application of power. If more than "
one module is in the SET position and the DELAY control ;
is not centered when power is turned on, it will be
noted that, after a short delay, the outputs will begin ?
to count. Because there is a time delay involved which
is different for each module, the outputs will not track
precisely, nor should they be expected to. In general,
the outputs will only track precisely when they have
been in the SET position the same amount of time, and
subject to the same number of oscillator pulses. It
requires 50 pulses for the readout to change by 1 ms. r
The readout indicates, to the nearest millisecond, the
delay at which the output is set. If the delay is less +
than 10 milliseconds, only one digit is illuminated, if
less than 100 mi 11iseconds, only two digits are on.
The readout will reset above 319 to 0, and below 0 to 319.

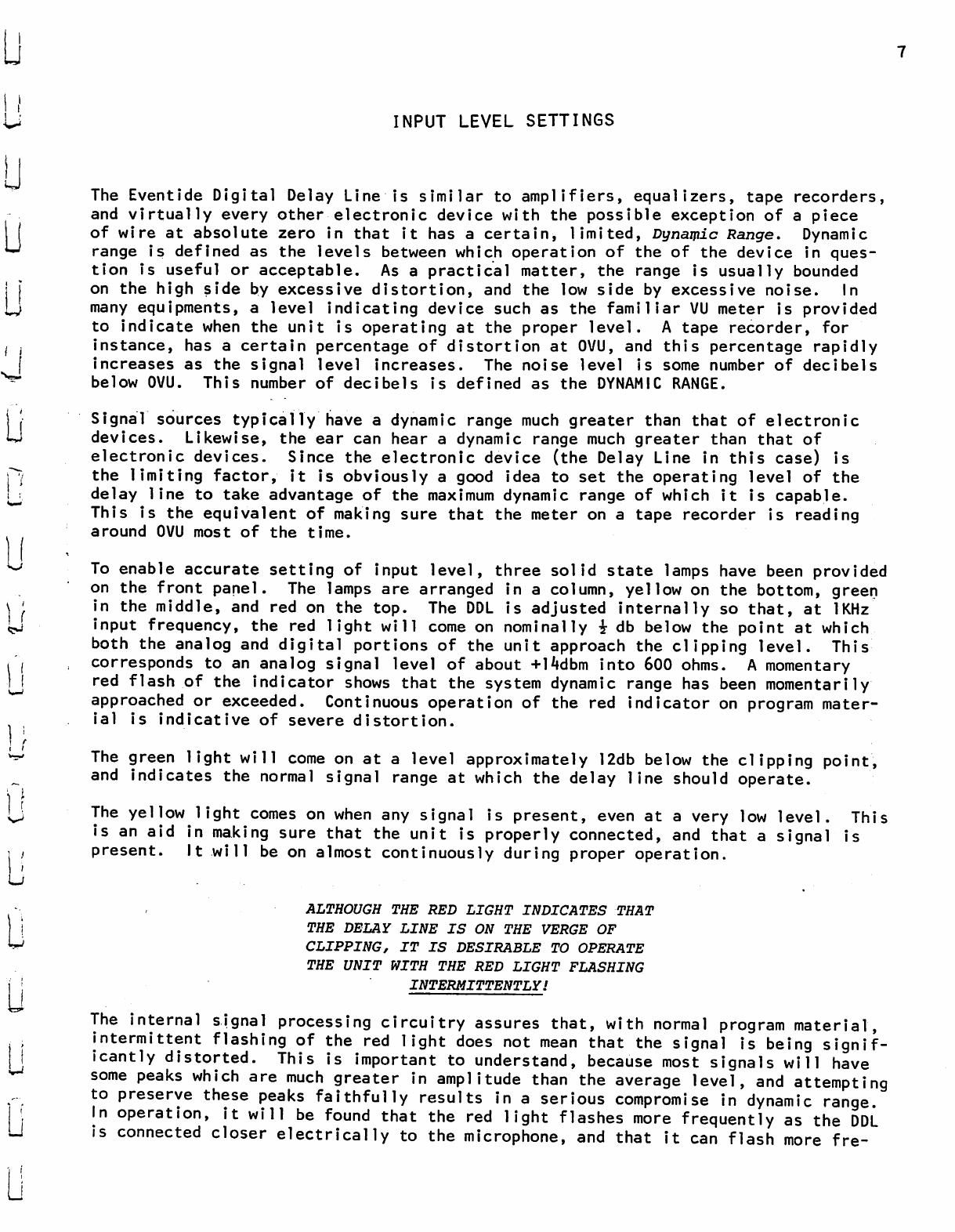

INPUT LEVEL SETTINGS
The Eventide Digital Delay Line is similar to amplifiers, equalizers, tape recorders,
and virtually every other electronic device with the possible exception of a piece
of wire at absolute zero in that it has a certain, limited, Dynamic Range. Dynamic
range is defined as the levels between which operation of the of the device in ques
tion is useful or acceptable. As a practical matter, the range is usually bounded
on the high side by excessive distortion, and the low side by excessive noise. In
many equipments, a level indicating device such as the familiar VU meter is provided
to indicate when the unit is operating at the proper level. A tape recorder, for
instance, has a certain percentage of distortion at OVU, and this percentage rapidly
increases as the signal level increases. The noise level is some number of decibels
below OVU. This number of decibels is defined as the DYNAMIC RANGE.
Signal sources typically have a dynamic range much greater than that of electronic
devices. Likewise, the ear can hear a dynamic range much greater than that of
electronic devices. Since the electronic device (the Delay Line in this case) is
the limiting factor, it is obviously a good idea to set the operating level of the
delay line to take advantage of the maximum dynamic range of which it is capable.
This is the equivalent of making sure that the meter on a tape recorder is reading
around OVU most of the time.
To enable accurate setting of input level, three solid state lamps have been provided
on the front panel. The lamps are arranged in a column, yellow on the bottom, green
in the middle, and red on the top. The DDL is adjusted internally so that, at 1KHz
input frequency, the red light will come on nominally i db below the point at which
both the analog and digital portions of the unit approach the clipping level. This
corresponds to an analog signal level of about +l*»dbm into 600 ohms. A momentary
red flash of the indicator shows that the system dynamic range has been momentarily
approached or exceeded. Continuous operation of the red indicator on program mater
ial is indicative of severe distortion.
The green light will come on at a level approximately 12db below the clipping point,
and indicates the normal signal range at which the delay line should operate.
The yellow light comes on when any signal is present, even at a very low level. This
is an aid in making sure that the unit is properly connected, and that a signal is
present. It will be on almost continuously during proper operation.
ALTHOUGH THE RED LIGHT INDICATES THAT
THE DELAY LINE IS ON THE VERGE OF
CLIPPING, IT IS DESIRABLE TO OPERATE
THE UNIT WITH THE RED LIGHT FLASHING
INTERMITTENTLY!
The internal signal processing circuitry assures that, with normal program material,
intermittent flashing of the red light does not mean that the signal is being signif
icantly distorted. This is important to understand, because most signals will have
some peaks which are much greater in amplitude than the average level, and attempting
to preserve these peaks faithfully results in a serious compromise in dynamic range.
In operation, it will be found that the red light flashes more frequently as the DDL
is connected closer electrically to the microphone, and that it can flash more fre-

8
quently when so connected before the distortion becomes objectionable. This is
so because other equipments in the audio chain have similar peak clipping proper
ties. (And, of course, the ultimate limiting factor is the tape or disk.)
When the GAIN control is properly adjusted, the green light will be on most of the
time, and the red light will be flashing intermittently. This flashing may be
anywhere from several times per second to once every few seconds. The table below
gives a rough indication of proper settings.
INPUT LEVEL SETTING CRITERIA
TYPE OF SIGNAL AND SOURCE
Integrated program (radio)
Integrated program (live mix)
Voice (talking)
Piano
Guitar, acoustic
Guitar, fuzz
Synthesizer
Organ
Drums
YELLOW DUTY CYCLE
100%
100%
75%
100%
75-100%
100%
80%
80%
75-100%
GREEN DUTY CYCLE
80%
50%
30%
30%
30%
60%
80%
80%
20-70%
RED DUTY CYCLE
once per 2 sec
once per second
once per 2 sec
2-3 per second
2 per second
1 per second
infrequent
infrequent
once per wel1-
defined beat.
All the above numbers are approximate. They will vary widely if the signals are
pre-processed through limiters* equalizers, or any other amplitude-distorting pro
cessor.
In general, it is not necessary to be very critical about the level setting, any
more than it really matters if you record at +1 or -1. However, it is always good
practice to get the most from your equipment, and the above settings will give you
the most dynamic range. For most applications, the DDL's 90db dynamic range will
not be the limiting factor in the signal chain.

DELAY DOUBLING
As much as we'd like to, we cannot furnish a 640 millisecond delay line for the
price of a 320 ms unit. There ain't no such thing as a free lunch, and RAM's
cost more than munchies. We can, however, do the next best thing: We have put
a switch on the front panel which says "DOUBLE", and turning this switch will
double the delay capacity of the 17^5M. BUT, at the same time, the frequency
response is degraded. In other words, in the DOUBLE mode, we do not consider the
4 to be a studio quality unit.
The reason for this degradation is inherent in engineering arcana known as "sampling
theory", discussed a bit more technically later on. Suffice it to say that the
DDL looks at the incoming signal at a certain rate known as the "sampling rate",
and transmits these samples through a delay to the output. In the DOUBLE mode,
alternate samples are ignored and are not sent to storage. Since the storage cap
acity remains constant, it is only filled half as fast, and so will store the
signal twice as long, thus doubling the delay. However, since the samples are
taken less frequently, anything occurring between samples (i.e., during the sam
ple which was ignored) is discarded. In practice, this means that high frequency
signals greater than about 10kHz are subject to heterodyning and various forms of
distortion. High frequency sine wave tests produce truly weird results. Fortun
ately, normal program material does not contain high frequency sine waves and so
is only slightly modified. The major difference between modes shows up as a harsh
ness in the treble register. Much of this can be eliminated by EQ'ing down the
highs on both input and output, at the further expense of frequency response.
Don't let the foregoing scare you into not using the delay doubling feature.
Despite the harshness, program quality is perfectly acceptable except for fairly
critical listening. Speech, especially, is relatively unaffected by delay doubling,
as are other signals which do not have a large high frequency content.
APPLICATIONS
The DOUBLE provision is primarily of use in instances where greater than 320 milli
seconds of delay is required and less than optimum quality can be tolerated.
Sound reinforcement applications particularly suggest themselves due to the normally
present high frequency attenuation of the atmosphere, and the fact that it's rarely
possible to listen critically to a PA speaker. The harshness at high frequencies
will usually be inaudible if there is any masking signal present.
Other applications which suggest themselves are special effects and communications
uses in which the signal channel parameters will be more limiting than the DDL
response. Many of the uses of the DOUBLE mode occur in conjunction with the REPEAT
mode. For instance, a signal can be "captured" in the DOUBLE mode and then recir-
culated in NORMAL. If this is done, it will be played back twice as fast, for a
nice Mickey Mouse effect, or a substantial aid to spectrum analysis and voice printing
Further applicationswi 11 be discussed after the recirculation section of this manual.

10
The Digital Delay Line
REVISITED
Remember when the Digital Delay Line was new? You don't have to go back too
far in the audio business to remember the first DDL, complete with such exotic
concepts as an Analog to Digital converter, magnetostrictive delay lines, anti-
aliasing filters, and such marvelous arcana as bits and dodks (which didn't
even tel1 time).
Well, if you've been awake in recent years, you know a bit about digital tech-
nology by now. Your watch is digital, you have a digital calculator (or pocket
computer for a few extra bucks), your voice is frequently digitized on the tele-
phone, your tape machine searches digitally, and you may have aven learned to
count on your fingers. Of course, if you've done any mixing or sound reinforce-
ment work, you've undoubtedly used a digital delay line for the, special effects
or time synchronization of which it is uniquely capable. Somewhat less likely,
you've had occasion to delve into the electronic circuitry by which these units
achieve their delay. The DDL is "transparent" to the end user,i.e., an audio .
signal goes in, and an audio signal comes out somewhat later. Absent curiosity
or malfunction, there is no need for the user to know what goes on inside the
unit. Ask a non-technical person what is going on inside a DDL, and he will
probably make some reference to Analog to Digital converters, Shift Registers,
and Digital to Analog converters. Don't ask any further questions as they will
probably lead to mild embarrassment. They needn't, though, because that last
sentence is a fair summary of what really does go on in a DDL. After a brief
flirtation with magnetostrictive delay lines (very clumsy mechanical delay lines),
the industry universally adopted the integrated circuit shift register as its
method of storing signals to be delayed.
Very briefly, the principle of operation of the DDL is this:
1: An audio signal is low-pass filtered to eliminate super-audible signals
which could cause beat notes and spurious outputs.
2: The signal is then converted into a digital format at a rapid rate, typically
25 to 50 thousand times per second. Each of these 25K to 50K samples is
represented by a digital word, which consists of a group of "l's" and "0's".
The word represents a specific voltage level as present in the original sig-
nai.
3: This word is clocked into a digital storage medium, such as a semiconductor
shift register, in which it is progressively moved towards the output, one
storage location per clock or sample period. The delay is thus determined
by the clock rate and the number of storage locations available by the
rather simple relationship
DELAY= Number of storage locations
Clock or Sampling frequency
4: After the digital word reaches the output of the shift register, it is recon
verted to an analog format and again filtered to remove spurious frequencies,
this time primarily associated with the sampling clock.
5: The signal, thus converted and delayed, is conducted to the outside world,
ready to begin its career.

11
The above admitted oversimplification completely ignores the differences between
delay lines from different manufacturers, which are primarily related to methods
of encoding the analog signals into digital format, and the various control fea
tures of the competing units. The method of signal processing determines the
dynamic range of the unit: depending upon the application, ranges of from 40db
to over 90db are desirable, and it makes little sense to purchase more range than
required because the cost is directly proportional to the dynamic range, as both
the amount of storage and circuit complexity increase with increasing dynamic
range. Likewise, units are available with delay switchable in narrow increments
with great facility, to those in which delay is completely fixed at purchase.
Naturally, you pay for control features, and for delay time. The third major
trade-off is frequency response. Within narrow limits, the frequency response
is afDoqt 1/3 the sampling rate. Doubling the sampling rate doubles the rate
at which the digital samples pass through the shift registers, and thus cuts the
delay time in half. So, one would expect a given delay line to give half as much
delay at JJOkHz as at 25kHz. It is possible to compromise, however, so that a
given delay line may have variable or selectable clock rates to allow longer delays
when wide frequency response is not necessary, such as in some special effect
or sound reinforcement applications.
With all these differences, there has been one unifying and limiting factor in
DDL design: All units have used the shift register as a storage medium. To
see why this is limiting, let's look at the shift register:
The shift register is a serial storage device. It comes in various lengths, from
4 bits to several thousand bits. New technology has recently made I6kilobit
registers possible. At first glance, it would seem that shift registers are ideal
for delay, because of their very structure. They work by transferring a packet
of charge representing a digital 1 or 0 from one internal node to the next. No
additional timing circuitry is necessary-the registers accomplish the delay all
by themselves. Furthermore, they may be connected in series to achieve longer
delays, and the points at which they are connected can be used as delay taps.
If each shift register provides, for example 10 milliseconds of delay, and 20
are connected in series, 200 milliseconds are available in 10 millisecond steps.
As a practical matter, many parallel shift registers are required to handle a
full word, and the switching becomes cumbersome after a few taps are necessary.
There are many techniques for circumventing this problem which add only minimal
complexity to the entire system. So what's the problem? Well, consider how
to vary the time delay. There are two basic choices: one is to switch shift
register taps; the other is to vary the clock rate. Switching taps creates
discontinuities in the signal. Looking at a signal at point A and point B at,
say, 1 millisecond time difference creates a sharp transient at the splicing
point (see figure B). Even if the switching is accomplished electronically,
such as with an optical encoder and digital multiplexers, this transient is
unavoidable, except when the signal level is zero, or the points to be joined
coincidentally have the same amplitude. If the delay is to be changed rapidly,
this becomes a serious detriment, as many of these splices add noise to the sig
nal. Varying the clock rate overcomes this problem, but creates another one, the
inability to vary the delay by more than a certain percentage. The upper limit
of variation is governed by the allowable decrease in frequency response; the lower
limit by the capability of the A to D converter and the timing circuitry. A typical
variation of 50% is insufficient to change from short to long delays, and since
all outputs vary by the same percentage, it is impossible to vary one output with

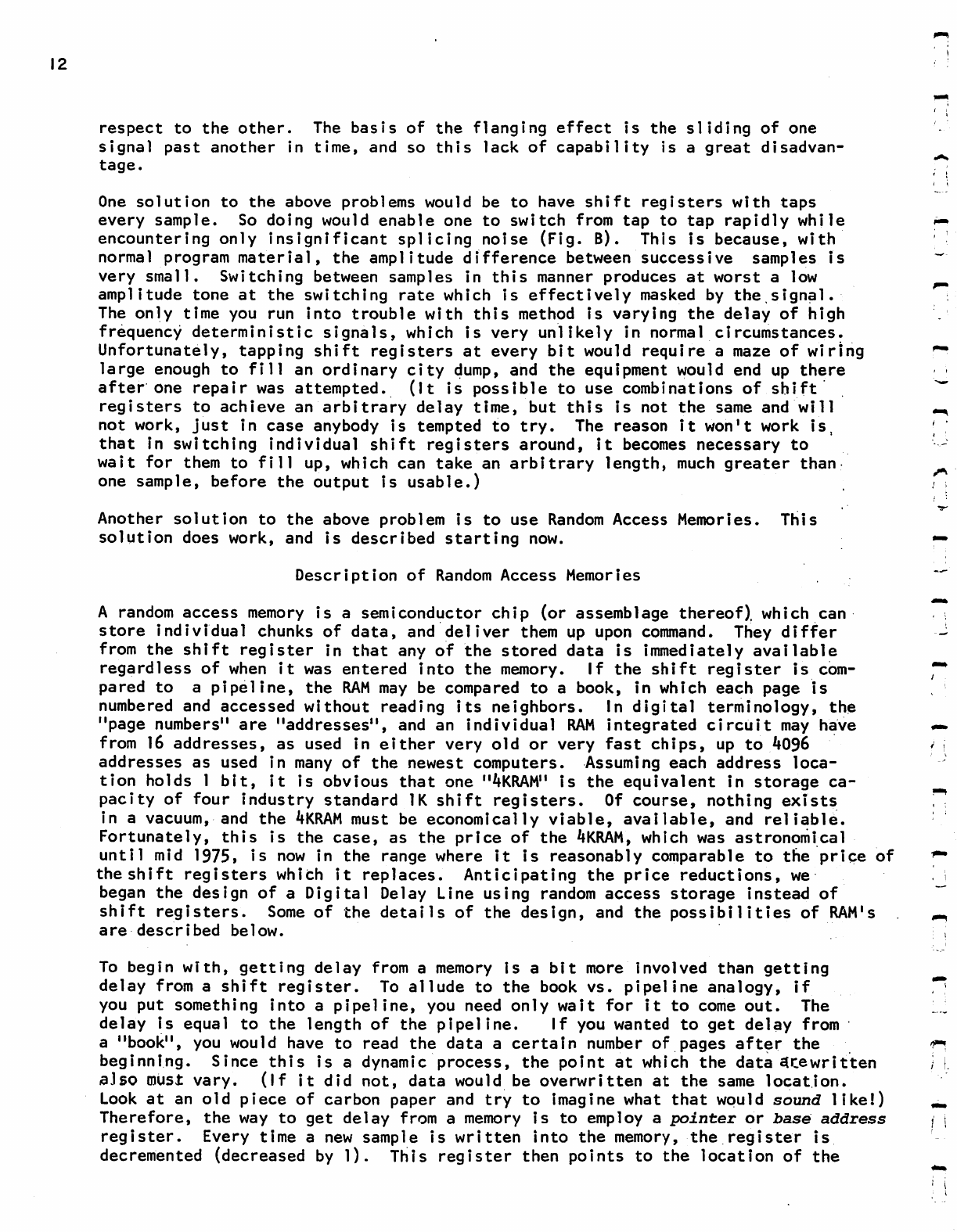

12
respect to the other. The basis of the flanging effect is the sliding of one
signal past another in time, and so this lack of capability is a great disadvan
tage.
One solution to the above problems would be to have shift registers with taps
every sample. So doing would enable one to switch from tap to tap rapidly while
encountering only insignificant splicing noise (Fig. B). This is because, with
normal program material, the amplitude difference between successive samples is
very small. Switching between samples in this manner produces at worst a low
amplitude tone at the switching rate which is effectively masked by the.signal.
The only time you run into trouble with this method is varying the delay of high
frequency deterministic signals, which is very unlikely in normal circumstances.
Unfortunately, tapping shift registers at every bit would require a maze of wiring
large enough to fill an ordinary city dump, and the equipment would end up there
after one repair was attempted. (It is possible to use combinations of shift
registers to achieve an arbitrary delay time, but this is not the same and will
not work, just in case anybody is tempted to try. The reason it won't work is,
that in switching individual shift registers around, it becomes necessary to
wait for them to fill up, which can take an arbitrary length, much greater than
one sample, before the output is usable.)
Another solution to the above problem is to use Random Access Memories. This
solution does work, and is described starting now.
Description of Random Access Memories
A random access memory is a semiconductor chip (or assemblage thereof), which can
store individual chunks of data, and deliver them up upon command. They differ
from the shift register in that any of the stored data is immediately available
regardless of when it was entered into the memory. If the shift register is com
pared to a pipeline, the RAM may be compared to a book, in which each page is
numbered and accessed without reading its neighbors. In digital terminology, the
"page numbers" are "addresses", and an individual RAM integrated circuit may have
from 16 addresses, as used in either very old or very fast chips, up to 4096
addresses as used in many of the newest computers. Assuming each address loca
tion holds 1 bit, it is obvious that one "4KRAM" is the equivalent in storage ca
pacity of four industry standard IK shift registers. Of course, nothing exists
in a vacuum, and the ifKRAM must be economically viable, available, and reliable.
Fortunately, this is the case, as the price of the 4KRAM, which was astronomical
until mid 1975, is now in the range where it is reasonably comparable to the price of
the shift registers which it replaces. Anticipating the price reductions, we
began the design of a Digital Delay Line using random access storage instead of
shift registers. Some of the details of the design, and the possibilities of RAM's
are described below.
To begin with, getting delay from a memory is a bit more involved than getting
delay from a shift register. To allude to the book vs. pipeline analogy, if
you put something into a pipeline, you need only wait for it to come out. The
delay is equal to the length of the pipeline. If you wanted to get delay from
a "book", you would have to read the data a certain number of pages after the
beginning. Since this is a dynamic process, the point at which the data axewritten
aJso roust vary. (If it did not, data would be overwritten at the same location.
Look at an old piece of carbon paper and try to imagine what that would sound like!)
Therefore, the way to get delay from a memory is to employ a pointer or base address
register. Every time a new sample is written into the memory, the register is
decremented (decreased by 1). This register then points to the location of the

most recently written data. Since the register is decremented once each sample
period, adding 1 to the register contents points to a sample that is delayed by
a sample period. If the sampling rate is 50KHz, then, each sample is 20 micro
seconds delayed from the previous one, and if dataarebeing written at address
#150, then data being read at address #200 aVe delayed by 1 millisecond. Fortun
ately, the actual numerical address is irrelevant, as all data storage locations
are identical. Thus, an output can be obtained at an arbitrary delay simply by
generating a number equal to the number of samples difference between input and
output. The "housekeeping" is taken care of by a single register and arithmetic
unit located on the circuit board which contains the memory.
Most delay lines, especially those used in recording studios, have two or more
outputs. Multiple outputs are especially desirable in those applicat ions j-nvolving
choral effects and reverberation. In order to accommodate multiple outputs, it
is necessary to organize the system as a "bus", which means simply that several
different signals can share the same physical connection. Doing this requires
"3 state" logic, which differs from ordinary 2 state digital circuits in that not
only can a 1 or a 0 be output, but the output aj.so.cao be turned "off", in which
case it assumes a high impedance. If multiple outputs are connected together,
but only one is in a low impedance state, then the bus assumes the state of the
low impedance output. By using modular output cards, and activating them sequen
tially, one can access several different addresses during any given sampling inter
val. The number of addresses which can be accessed is determined by the "access
time11 of the memory chip used and the sampling interval, which as stated above is
20 microseconds. Most common 4KRAM's have access times on the order of .2-.k micro
seconds, which should be sufficient for 50 to 100 outputs. However, computing
the proper address also requires time, and common TTL circuits, which are very
fast, consume quite a bit of power. As one of the objectives of the design was
to reduce power consumption, we used all CMOS circuitry, whose power consumption
decreases almost to zero as its speed decreases. Even so, there is plenty of time
to service up to seven outputs, and module positions are provided for up to five,
leaving margin for extra functions.
Another problem arises in that RAM's are universally binary devices, and human
beings are generally decimal. Some provision must be made to allow setting the
delay (and reading it out) in human-decipherable units. Since each sample is
20 microseconds, one could simply convert the binary number representing the delay
to decimal form and multiply by .020 to give milliseconds. Unfortunately, long
binary to decimal conversions are slow or require much hardware. A far simpler
solution involves using a small (0 to 999) decimal to binary converter, and doing
all the output module addressing in decimal form. Each 4KRAM has binary addresses
from 0 through 4095. Then memory locations 0 through 999 (binary) are addressed
for the first 1000 samples of delay. If 1001 samples of delay (20.02 milliseconds)
are required, the next address used would be binary 1024. In effect, for conven
ience, 36 addresses out of every memory are ignored and wasted. These addresses
are still there, by the way, if needed, but it is a lot cheaper to waste them than
to perform the conversions otherwise required. Using this system and sampling
rate, a 16K memory, requiring 40 memory chips gives 319-98 milliseconds of delay
in 20 microsecond steps, as compared to our previous system requiring 108 shift
registers for 199 milliseconds, in 1 millisecond steps. A small additional advan
tage is that no extra shift registers are required for additional outputs. Assuming
comparable reliability between the RAM's and shift registers, the memory design should
be over twice as reliable. Furthermore, the industry has settled on two or three
basic 4KRAM designs, and all are multiply sourced. We opted for the 22pin, non-
multiplexed address configuration for simplicity, and because space saving was
not an urgent criterion. We have evaluated several manufacturers chips and found
all but one acceptable. This, hopefully, will make delivery times independent of

14
Silicon Valley idiosyncrasies.
One final unusual design feature: our 17^5A delay line utilized an optical encoder
(see January 1971* db magazine) for delay switching. This eliminated the need for
coarse and fine delay controls and permitted fully incremental switching in 1
millisecond steps. The control had 20 lines, and produced 20 pulses per revolution,
and could be spun to traverse the whole control range in one spin. To do the same
with a unit which varies in 20 microsecond steps would require an encoder with
1000 lines. Although such devices are producible, and are used in precision
mechanical systems, it was deemed impractical for reasons of cost and ruggedness.
Instead, we designed an oscillator of wide frequency range with a small deadband
in the center of its control range, and with parabolic control taper. The oscillator
frequency range is from 1 Hz to 5kHz, which allows the full range of delay to be
spanned automatically over several seconds to several hours. It should be noted
that although the delay varies in 20 microsecond steps, the readout is only to the
nearest millisecond. If one needs to know the precise delay, the information is
available on data lines which may be connected to readout drivers. Other features
of the 17^5A were duplicated in relatively uninteresting ways. The delay double
feature which allows doubling the delay at the expense of frequency response was
implemented by inhibiting alternate base address decrementing pulses. The repeat
feature was implemented by inhibiting memory write pulses, thus preventing over
writing old data and so saving them.
Superficially, then, we have a new delay line with a bit more delay and a whole
bunch of familiar features implemented in a wholly new way. As stated earlier,
the delay line is and should be transparent to the user in that, regardless of
the implementation, you put audio in and get audio out. What does all this mean
to the user?
Nobody would waste time with RAM's if it didn't mean something: of that you may
be sure. It means:
That true flanging can be accomplished with a single digital delay line. The
fine delay steps allow sweeping a variable output past a fixed output in tiny
increments, thus giving an apparent continuous variation in tonality, as opposed
to the step variations possible with other systems. Unlike analog delay flangers,
the flanging may be performed after any fixed delay. Even "pre-flanging"is possible
with a single delay line, by taking the flanging effect from the first two outputs
and the dry signal from a third at greater delay. Of course, as with all digital
systems, there is no degradation of signal to noise ratio as the delay is increased.
It means:
That continuous doppler shift or pitch change may be introduced into any signal
simply by increasing or decreasing the delay in a continuous fashion (facilitated
by the oscillator control). A rather long period of change is available before
an artifact is introduced by the delay recycling from 319 milliseconds back to
zero, and this can be minimized in certain ways involving interleaving more than
one output.
It means:
That an auxiliary module which computes addresses in accordance with an appro
priate program can be used to obtain an arbitrary pitch change ratio, and main
tain that ratio. ANY ratio can be obtained. By proper address manipulation, it
is possible to read audio out backwards! Think of that, special effects fans!
And of course pitch change can be turned into tempo change in conjunction with a

15
tape player.
It means:
That precise comb filters may be implemented with much finer control of delay.
Since the system is crystal controlled, the delay time will not drift more than
a few parts per million, and so a null can be set for some frequency and that
frequency and its harmonics will be disappeared.
And that largely experimental applications, such as narrow bandwidth speech
scrambling can be reasonably implemented. For instance, construct a card
that will read out addresses 0 to 1000 normally, then jump to 5000 to 6000, then
readout 2000 to 1000 backwards, etc, until the whole capacity is used up! Per
forming the inverse operation at a remote end will descramble the signal. The
whole process, unlike digital encoding, does not significantly increase the
bandwidth of the output, and thus it may be put on ordinary communications channels
such as the telephone. This may also be an aid to communications, by using
the memory delay line in conjunction with several filters, and setting each
filter band at a different time delay. This is known as time-diversity trans
mission and can also be implemented with non-memory delay lines, but sure fits
in with this paragraph.
And that experimental applications requiring digitized audio be available at
various times can be implemented with a convenient test bed. Computer time
need not be taken up implementing A to D routines and housekeeping. Samples
may be withdrawn at any computed delay and used as the experimenter desires.
In addition to the above advantages, there is another capability built in to the
system as a consequence of the memory bus architecture. If one can hang several
outputs on a given bus, why not several inputs as well? Why not indeed! In
fact one can, and so we did. The delay register inputs, normally set sequen
tially by the oscillator, can be set in parallel by placing the desired number
on the address bus and strobing the output card which the engineer wants to set in
the "dead time11 between the last readout and a new sample. Provision has been
made for a remote control module which enables precise setting of any or all
outputs by digital control. Data may be furnished either from a remote console
or from an automated mixdown system. Thus, another component can be operated
in conjunction with automation, leaving the engineer and producer even freer
to listen.

16
FIGURE A: STANDARD DELAY LINE BLOCK DIAGRAM
LOW-PASS
FILTER
ANALOG TO
DIGITAL
CONVERTER
MULTIPLY TAPPED SHIFT
REGISTER STORAGE
JhUU
DELAY SELECTS SWITCH
DIGITAL TO
ANALOG
CONVERTER
LOW-PASS
FILTER
INSTAN-
TANEOUS
AMPLI
TUDE
FIGURE B: DELAY-CHANGE GLITCHES
Large "glitch" clearly
audible
r\
INSTAN
TANEOUS
AMPLI
TUDE
TIME
• VMany small S**"glitches"
* do not / interfere with
\signal y' substantially
TIMF
10K
-160
FIGURE,C:
DELAY CHANGE CONTROL OPERATION
+160
SHAFT ROTATION VS OSCILLATOR
FREQUENCY
ARTICLE ILLUSTRATIONS

COMB FILTERS
RECIRCULATION
FLANGING 17
TUNNELING
PITCH CHANGING
AND GENERAL WEIRDNESS
If you think that you just bought a delay line, think again.
In addition to delay, the unique control features and system architecture of the
17^5M allow you to do all sorts of strange and wondrous things to your unsuspecting
signals. The title of this page is a good beginning.
COHBFILTER
A comb filter is a device which has many frequency rejection notches or many peaks.
Generally, these notches or peaks are evenly spaced , in a manner similar to the
harmonics of a non-sinusoidal signal. A rudimentary comb filter can be made with
a set of filters each adjusted to a different frequency, but this quickly becomes
prohibitive, both in terms of cost and stability. A typical comb filter application
is the rejection of interference in a broadband system. For instance, consider the
case in which a tape made on location somehow picked up a tremendous 60Hz component.
If only 60Hz is present, it can be nulled with a notch filter. More likely, however
in addition to the 60 Hz, there will be 120Hz, 180 Hz, 240Hz, etc. components. SCR
noise is notorious for causing such problems. Removing such noise from a tape can
be accomplished with a comb filter.
The basis of the comb filter is that, if a signal is added to a delayed version of
itself, a regular pattern of nulls and peaks in the frequency domain is produced.
(See graphs and scope photographs). The reason for this is intuitively clear:
Assume a delay of 1 millisecond. Apply a 1kHz signal to the delay line input,
and algebraically add the input to the output. Since the length of a single cycle
of 1kHz signal is 1 ms, the input and output are in phase, and a 6db addition results
Now apply a 500Hz signal to the input. The output will be delayed by ± wavelength,
and out of phase addition will result at every point on the signal, creating a null
in response at 500Hz. The amplitude at any frequency can be calculated by the
following formula:
(Td) (360)
cos +1
Where: 1/f
.f is frequency in Hz
Tj is the delay time in seconds 2
To null any given frequency and all of its harmonics, the delay time should be set
equal to 1/F, and the input and output added out-of-phase.
To null any given frequency and all of its odd harmonics, the delay time should be
set equal to 1/2F, and the outputs added in-phase.
The 1745M delay line is excellent for comb filter use, because it is adjustable
in extremely small steps, all of which are crystal controlled and consequently
stable typically to a few parts per million per day. Several outputs can be
combined with different "weights" and different delays to establish different
filter characteristics, including highly desirable narrow notches, which will
null out given signals with very little effect on the broadband signals.
