Everdure KILN User manual

1
EN
INSTRUCTION
MANUAL
Scan for
further support

2
EN
1 BURNER
GRAPHITE
EKILN1G
1 BURNER
STONE
EKILN1S
1 BURNER
TERRACOTTA
EKILN1T
2 BURNER
GRAPHITE
EKILN2G
2 BURNER
STONE
EKILN2S
2 BURNER
TERRACOTTA
EKILN2T
Note; In this instruction manual, the Everdure Kiln will be referred to as an appliance.
CONTENTS
Important Safety Instructions
Appliance Details
Outdoor Installation Guide
Battery Installation
Operating Instructions
Cooking Hints and Tips KILN S Series - 1 Burner
Cooking Hints and Tips KILN R Series - 2 Burner
Care & Maintenance
Troubleshooting
Specications
Warranty
3
4
5
6
7
8
9
10
12
13
14
* All products, specications and data are subject to change without notice to improve reliability, function, design, or otherwise.

3
EN
Remove all packaging materials and dispose of thoughtfully before rst use.
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT: Read the safety precautions of this booklet carefully before removing the appliance from its carton or connecting
the appliance to its gas supply. If you are unsure about anything regarding your appliance, please contact Everdure in Australia on
1300 437 866 or in New Zealand on [phone] before operating your appliance.
1. This gas appliance is intended for OUTDOOR USE ONLY. This appliance must NOT be used indoors.
2. For your safety and enjoyment, read all operating instructions before lighting.
3. Ensure that all gas connections are tight before operating this appliance (refer to leak testing procedure in this manual). Always
check for leaks when a gas cylinder is replaced or reconnected.
4. Unsupervised children or pets should not be near a appliance while cooking or during warm up or cool down. Ensure children or
pets are kept a distance well away from the appliance whilst it is in use. Ensure that young children do not play with the appliance.
This appliance is not intended for use by young children or inrm persons.
5. Turn gas valve/control knob and gas cylinder valve o after use. Do not allow build-up of unburned gas.
6. Never leave the burners on high for more than 30 minutes unless actually cooking.
7. Do not move this appliance while in use or directly after use, as accessible parts may be very hot. The appliance. Take care that
undue pressure will not be placed on the gas hose, or turn o the gas supply & remove the hose from the cylinder or gas source
(not at the appliance).
8. People with ammable clothing such as nylon etc. should keep well away from the appliance when it is operating.
9. Do not use this appliance for any purpose other than what it is intended for.
10. Ensure that the product has adequate clearance from combustible materials. The appliance is designed so that heat will not
aect the stand. All combustible materials must be kept more than 250mm from the sides and rear of the appliance and more than
1500mm above the cooking surface of the appliance.
11. If a burner makes a hissing sound when lit, it may be burning inside. Turn the burner o, allow to cool, and try ignition again.
Keep your appliance protected against strong wind – if this cannot be avoided, always check that the burners remain alight if
operating the appliance in windy conditions.
12. Do not carry out any servicing on the gas manifold of the appliance yourself – this must only be done by authorised technicians.
13. We recommend that you regularly maintain your appliance and keep it in good condition. This can be achieved by following the
cleaning and maintenance suggestions in this booklet.
14. The appliance is designed to be used with either 4kg or 9kg gas cylinders. Keep the cylinder as far away as the hose will allow
without undue tension on the hose, in a protected spot (so it cannot be accidently knocked over).
15. Do not use or store this appliance in areas of high salt content (a marine environment) or an area with caustic fumes or liquids
(such as a domestic pool), as these chemicals can cause the appliance materials to deteriorate (and void the warranty). Regular
cleaning and covering with a cover can help to reduce this.
IMPORTANT SAFETY INSTRUCTIONS:
DO NOT operate this appliance before reading the instruction booklet.
DO NOT place articles on or against this appliance.
DO NOT store chemical or ammable materials or spray aerosols near this appliance.
DO NOT operate this appliance indoors.
DO NOT use an adapter at the cylinder connection.
WHEN USING AND COOKING IN YOUR EVERDURE KILN OVEN
Do NOT leave the main burner on HIGH setting for over 30 minutes after ignition. Please refer to COOKING HINTS
and TIPS KILN S/R SERIES page in the instruction manual on preheating, cooking and after cooking instructions.

4
EN
PRODUCT DETAILS EKILN1 EKILN2
Dimensions (mm) 740 × 660 × 380 740 × 660 × 380
Weight NW/GW (kg) 26.5 / 33.3 29.2 / 35.0
APPLIANCE DETAILS:
Note: the size of the injector diameter is stamped on the hexagon faces (105 = Ø1.05mm injector).
Appliance inlet connection: 3/8”SAE Flare with 5/8-18 UNF thread.
FOR ULPG CYLINDER CONNECTION:
• For storage and cylinder exchange, disconnect the cylinder only. Do not disconnect hose from the appliance.
• To achieve the optimum performance from your appliance, an approved gas cylinder (Type 27 tting) of 4kg or 9kg capacity must be
used. Take care to keep the hose away from the hot appliance.
• The Length of the hose must not exceed 1.5m.
• Connect the cylinder to the appliance, via the hose and regulator. Firmly tighten joints, but do not overtighten and do not twist. Take
care not to damage the regulator tting. Check that ALL appliance valves are in the O position before opening the gas cylinder.
• Regulator hose must be kept away for sharp object and heat sources.
• When changing cylinders, ensure the gas it turned o before disconnecting the hose & regulator assembly from the cylinder only (not
from the appliance manifold).
LEAK TESTING
• Make sure the gas control knob is O and turn the cylinder valve On.
•Check for leaking joints by brushing with solution of half-liquid detergent and half water. If a leak is present, bubbles will appear
(or you may hear a hissing sound). Retightening connections can generally repair a leaking joint. You must also check the gas hose
and connection at the gas cylinder. If a leak cannot be resolved, do not proceed.
NOTE: Make sure the gas cylinder is fully protected from the elements. Only one gas cylinder should be stored inside the cabinet
at any one time. Do not fully enclose the cylinder.
APPLIANCE EKILN1 EKILN2
GAS TYPE ULPG ULPG
BURNER PRESSURE
PRIMARY 2.75kPA 2.75kPA
SECONDARY - 2.75kPA
INJECTOR DIAMETER
PRIMARY 1.47mm 1.47mm
SECONDRAY - 0.4mm
HEAT INPUT 26mj 28mj

5
EN
OUTDOOR INSTALLATION GUIDE:
This appliance shall only be used in an above ground open-air situation with natural ventilation, without stagnant
areas, where gas leakage and products of combustion are rapidly dispersed by wind and natural convection.
This appliance must not be used indoors. Do not use your appliance in garages, porches, sheds, or other enclosed
areas. The appliance is not intended to be installed in or used on recreational vehicles (e.g., boats, camping vans) and
should not be placed close to or under any surfaces that will burn or are sensitive to heat. Do not block/obstruct the
ow of air and combustion around the appliance housing while in use.

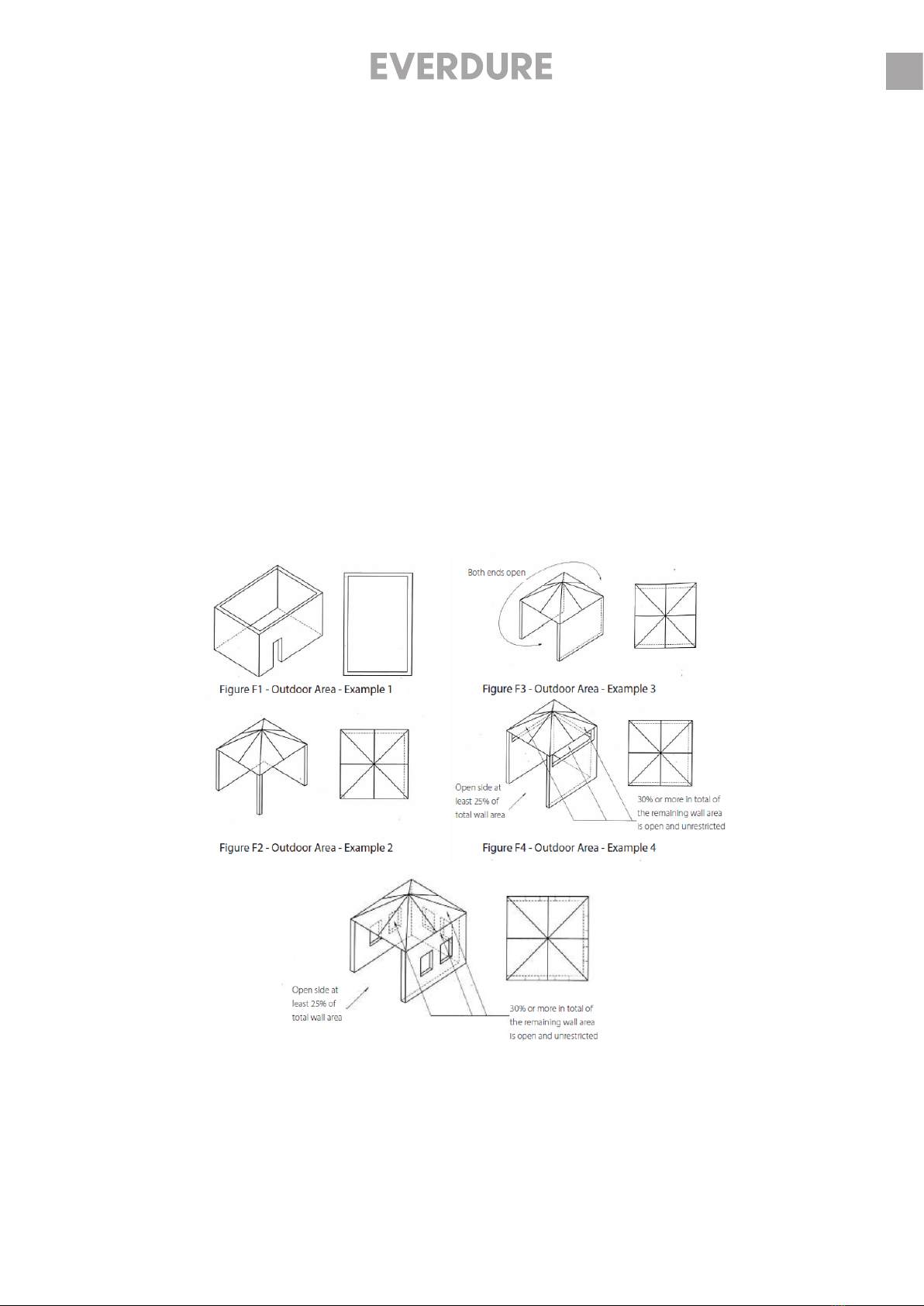

Any enclosure in which the appliance is used shall comply with one of the following:
• An enclosure with walls on all sides, but at least one permanent opening at ground level and no overhead cover.
• Within a partial enclosure that includes an overhead cover and no more than two walls
• Within a partial enclosure that includes an overhead cover and more than two walls, the following shall apply:
a. at least 25% of the total wall area is completely open: and
b. at least 30% of the remaining wall area is open and unrestricted.
In the case of balconies, at least 20% of the total of the side, back and front wall areas shall be and remain open and
unrestricted.

6
EN
BATTERY INSTALLATION
1. Unscrew pulse igniter cap t one new AA battery note the (+) and (–) marking ret the cap.
2. EKILN R Series, Remove the battery compartment cover. Load a set of four new “AA” type batteries so that their
plus (+) and minus (–) ends are facing as indicated by the markings. Ret battery compartment cover.
SAFETY WARNING
Please read these instructions before using your appliance.
This appliance has been tted with the latest design safety device: a Flow Limiting Gas Regulator. This regulator helps
protect the user by reducing the gas ow into the appliance in the case of a gas leak.
For optimum ease of use, please follow the following instructions:
1. Before turning the gas cylinder on, ensure that the appliance and side burner control knobs are all at the OFF position.
2. Slowly turn the gas cylinder on until the valve is fully open, and then ignite the appliance as directed in the appliance
instruction booklet.
Failure to observe these instructions may result in the ow limiting device to lock up at a reduced gas ow rate. This is
generally observed as a reduced ame from the burners or an increase in the cooking time.
If the appliance is found to be operating at a reduced rate, check the following items:
1. Check that there are no gas leaks (follow the instructions in the appliance instruction booklet).
2. Check that the gas cylinder is turned on.
3. Check that the gas cylinder is not empty.
If all three points are ok, follow the following instructions to reset the ow limiting device:
1. Turn all of the appliance controls to OFF.
2. Turn the gas cylinder fully o.
3. Wait 30 seconds for the ow limiting device inside the regulator to reset.
4. Slowly turn the gas cylinder back on until fully open, and then ignite the appliance as directed in your appliance
instruction booklet.
If after following these instructions, you are still having problems with the appliance running at a reduced capacity, please
contact Everdure in Australia on 1300 437 866 or in New Zealand on [phone] before operating your appliance.
Knob of
main burner Switch of
turntable
Knob of
lower burner
Battery
box
AA battery/
DC1.5V x 4pcs
DC power supply
input round hole
DC power supply
input round hole
AA battery /
DC1.5V x 4pcs

7
EN
OPERATING INSTRUCTIONS:
Once your regulator is connected, open the gas from your gas cylinder.
KILN 1 Burner
To ignite the burner, please push the knob in and slowly turn anti clockwise until you hear a click of the ignition. This
should take at least 8-10 seconds as you allow the gas to ow into the burner inside the oven. Hold in for another 10
seconds after ignition, then release. Set the burner to your desired requirement. If the burner does not light, leave the
knob at OFF and wait 5 minutes before retrying.
KILN 2 Burner
To ignite the burners, please push the knob in and slowly turn anti clockwise until you hear a click of the ignition. This
should take at least 8-10 seconds as you allow the gas to ow into the burner inside the oven. Hold in for another 10
seconds after ignition, then release. Set the burner to your desire requirement. Press the button between the 2 knobs
for the turntable to begin rotating inside the oven. If the burner does not light, leave the knob at OFF and wait 5
minutes before retrying.
Symbol Description
Main
burner
Boost
burner
Turntable
rotation
Symbol Function
O
Low
High

8
EN
COOKING HINTS AND TIPS KILN S SERIES  1 BURNER
Preheating
Ignite the appliance and leave it on high for approx. 15 to 20min. This will give you enough time to heat the stone to
your desired cooking temperature.
Cooking
When the appliance has reached your desired cooking temperature, turn the knob to halfway.
After cooking
Once you have cooked on the appliance, just before you go to eat and if you are continuing to cook, turn the main
burner down to the low setting. If you have nished cooking on the appliance, turn the main burner o. Running the
appliance for an extended period of time with the main burner on the high setting could result in damage to your
appliance.

9
EN
COOKING HINTS AND TIPS KILN R SERIES  2 BURNER
Preheating
Start the turntable by pressing the button. Ignite both burners and leave on high for approx. 10min. This will give you
enough time to heat the stone to your desired cooking temperature. Note: the boost burner only has one setting.
Don’t leave the boost burner on without the turntable rotating.
Cooking
When the appliance has reached your desired cooking temperature, turn the main burner knob to halfway.
After cooking
Once you have cooked on the appliance, just before you go to eat and if you are continuing to cook more, turn the
main burner down to the low setting. If you have nished cooking on the appliance, turn both the main and boost
burner o. Running the appliance for an extended period of time with the main burner on high setting could result in
damage to your appliance.

10
EN
CARE & MAINTENANCE:
EXTERNAL CLEANING
• Before cleaning the appliance exterior, ensure the appliance has cooled and is safe to touch.
• Painted and plastic surfaces can be cleaned using a mild household detergent or cleaner and a clean cloth (do not
use scourers or harsh detergents).
• It is advisable to test cleaners on a small section of the appliance rst. NEVER use paint thinners or similar
solvents for cleaning and NEVER pour cold water over hot surfaces.
• Dry the surface afterwards.
INTERNAL CLEANING
• Before cleaning the internal parts of your appliance, ensure the appliance has cooled and is safe to touch.
• The inside of the appliance can be cleaned by using some water, mild detergent and a sponge or mild scouring pad.
• For hard to clean areas, use a little baking soda on a wet sponge. DO NOT use abrasive cleaners.
CORDIERITE PIZZA STONE CARE
• This pizza stone is designed to be used in the Everdure Kiln only.
• Only use water to clean the pizza stone, using soap will leave residue in the pores of the stone.
• Take care of the pizza stone as it is fragile and could break if bumped or dropped.
• Be careful handling the pizza stone as it can retain heat for many hours after cooking.
• DO NOT cool the stone with water when the stone is hot; this could crack and damage the pizza stone.
• After cleaning the pizza stone with water, thoroughly dry the stone before use.
MAINTENANCE
• Regularly check all gas hose and line connections for damage, cuts or cracks each time before use of the
appliance.
• Leak test with soapy water before rst use and at least annually. Always check when replacing the gas cylinder.
• Check the burners regularly for insect mess from spiders, ants etc, if any signs clean before operation.
BOOST BURNER INSPECTION HOLE
Visual inspection hole to check whether the boost burner ame is on or o.
ON OFF

11
EN
BATTERIES DO’S & DO NOT’S
• Dispose of used batteries carefully to ensure that a small child does not consume them.
Please seek doctor - medical attention immediately if batteries are consumed.
• DO NOT mix new batteries with old batteries. This may cause the batteries to overheat and leak.
• DO NOT place non-rechargeable batteries in a charging device.
• DO NOT disassemble, crush, puncture, or otherwise damage batteries. This can result in leakage or rupture.
• DO preserve battery life by switching o a device and removing the batteries when it’s not being used and is not
expected to be used for extended periods of time.
• DO use the specied type of battery (AA Batteries).
• DO insert the batteries properly. Follow the symbols showing the correct way to position the positive (+) and
negative (-) ends of the batteries.
• DO immediately remove exhausted batteries from your device and dispose of them properly.

12
EN
TROUBLESHOOTING:
Burner will not ignite when using the igniter:
Burner ame is erratic:
Gas is leaking from connections:
Turntable not working:
Cylinder valve is not on Turn cylinder valve on
Cylinder is empty Replace with a full cylinder
Igniter button is not working Check battery
Igniter is not sparking Contact the Service Centre
Flame is burning inside burner
(hissing sound) Turn o burner, allow to cool and re-ignite
Regulator is faulty Contact the Service Centre
Injector is partially blocked Clean injector with a toothbrush. Do not drill out or use wire.
Do not remove the injector. Contact the Service Centre
Connections are loose Tighten loose connections (do not over-tighten) and leak test under pressure
with a soapy water solution (page 2)
Hose has deteriorated Replace hose (Contact the Service Centre)
Gas valve is faulty Contact the Service Centre
Threads are damaged Contact the Service Centre
Turntable not turning
Check that the power cord from the power adaptor is connected correctly and
that the power is on at the main power board.
Check if batteries are tted and are properly installed in the battery
compartment.
Check if batteries are full of charge and replace if needed.
Turntable is broken Contact the Service Centre
Switch or wiring damaged Contact the Service Centre

13
EN
SPECIFICATIONS:
PRODUCT 1 BURNER 2 BURNER
Dimensions (mm) 740 × 660 × 380 (mm) 740 × 660 × 380 (mm)
Weight NW / GW 28.5 / 33.3 (kg) 29.2 / 35.0 (kg)
Turntable RPM using the adapter supplied N/A 2.5 rpm
Power supply EKILN2 only:
MODEL SPECIFICATION REMARK
Model: AED09-030GQAAIP44
Input: AC 100~240V ~50/60Hz 0.6A
Output: 3.0V 1000mA
IP44
With plug round hole which match-up
with DC005 / 5.5*2.1 pin

14
EN
WARRANTY
PRIVACY POLICY
Privacy policy: Everdure is committed to protecting your personal privacy. Your personal information that you have
provided in this form (e.g., name, street address, e-mail address and telephone/mobile number) is used solely by
Everdure for the express purpose for which it was collected (e.g., to respond to your enquiry regarding your product).
Your personal information will be processed by Everdure in accordance with the guidelines and requirements of the
Privacy Laws of Australia (Privacy Act 1998).
For a full copy of Everdure’s Privacy Policy, please e-mail [e-mail] in Australia or
[e-mail] in New Zealand or call 1300 766 066 in Australia or [phone] in New Zealand.
STATEMENT OF STANDARD WARRANTY CONDITIONS
AUSTRALIAN CUSTOMERS
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law.
You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable
loss or damage.
You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
NEW ZEALAND CUSTOMERS
Nothing herein contained shall be construed in any way as excluding or limiting your rights under the Consumer
Guarantee Act 1993.
OUR WARRANTY
Subject to the following conditions, this product is also covered by the manufacturer’s warranty from the date of
purchase, covering all parts and labour for the period listed below (Our Warranty). Our Warranty (which is subject to
the conditions below) covers rectication free of charge of any fault arising from defected materials or components,
or faulty workmanship. The product will be repaired or replaced at the option of Everdure, but all costs of installation,
removal, cartage, freight, travel expenses and insurance are to be paid by the claimant. Our Warranty is subject to
products being used for single-family domestic household use.
OUR WARRANTY
operates in additional to (and does not exclude, restrict, or modify) any rights or remedies to which you may already be
entitled to under the Australian Consumer Law or any consumer guarantee law relating to this product.

15
EN
WHAT IS NOT COVERED: BY OUR WARRANTY
1. Any defect or failure caused by the product not being assembled or used in accordance with the instruction/
installation manual provided with the product.
2. Normal fair wear and tear (e.g., surface rust, stone chipping, heat discolouration)
3. Insect or vermin infestation.
4. Unauthorised repairs or use of non-genuine Everdure parts.
5. Products scratches & damage as a result of delivery, installation, or assembly
6. Claims to product surface coatings due to accidental damage, improper or lack of maintenance, damage from
cleaning products not recommended by Everdure.
HOW TO CLAIM WARRANTY
You will need to contact Everdure in Australia or New Zealand using the enclosed contact details.
Please make sure you have the following information on hand:
• Product Name/Model Number
• Serial Number
• Purchase Date (as per invoice, or proof of purchase)
• Place of Purchase
WHAT IS COVERED: By Our Warranty
During the warranty period your appliance will be repaired free of charge by Everdure, or its authorised service centre
provided your appliance is delivered to and picked up from Everdure or its authorised service centre, subject to terms
and conditions below.
It is recommended that exposure of the appliance to the elements should be minimised. After your appliance has cooled
and has been cleaned, store it under cover with a weatherproof cover over it.
APPLIANCE COMPONENT WARRANTY PERIOD
Stainless Steel Parts 2 years
Enameled Parts
Powder Coated Panels
Cooking Stone & All Other Assemblies / Parts
2 years
IN AUSTRALIA
Everdure is a division of Shriro Australia Pty Limited
ABN 28 002 386 129
Customer care: 1300 766 066
Email: [e-mail]
IN NEW ZEALAND
Everdure is a division of Monaco Corporation Ltd
(Member of Shriro Australia PTY LTD)
Phone: [phone]
Email: [e-mail]

IM REF: EKILN AU 26/07/2023
www.everdure.au
