EVERVIEW EV2700MDW User manual

MIDDLE FULL-MOTION TV WALL MOUNT
[e-mail]
EV2700MDW

*
*
*
*
*
WARNING! SEVERE PERSONAL INJURY AND PROPERTY DAMAGE CAN RESULT FROM IMPROPER
INSTALLATION OR ASSEMBLY. READ THE FOLLOWING WARNINGS BEFORE BEGINNING.
If you do not understand the instructions or have any concerns or questions, please contact a qualified
installer.
Do not install or assemble if the product or hardware is damaged or missing. Not all parts and hardware
included must be used. If you require replacement parts, contact customer service at
[email protected].
This product has been designed for use on a vertical wall constructed of wood studs. Wood studs being
defined as a wall consisting of a minimum of 2” x 4” studs with a maximum of 24” stud spacing with a
maximum of 1/2” of wall covering (drywall, lath, plaster).For custom installations please contact a
qualified installer.
This product may contain moving parts. Use with caution.
DO NOT EXCEED THE MAXIMUM WEIGHT CAPACITY FOR THIS PRODUCT.
CAUTION!MAXIMUM WEIGHT CAPACITY
!132 lbs
(60kgs)
WARNING!

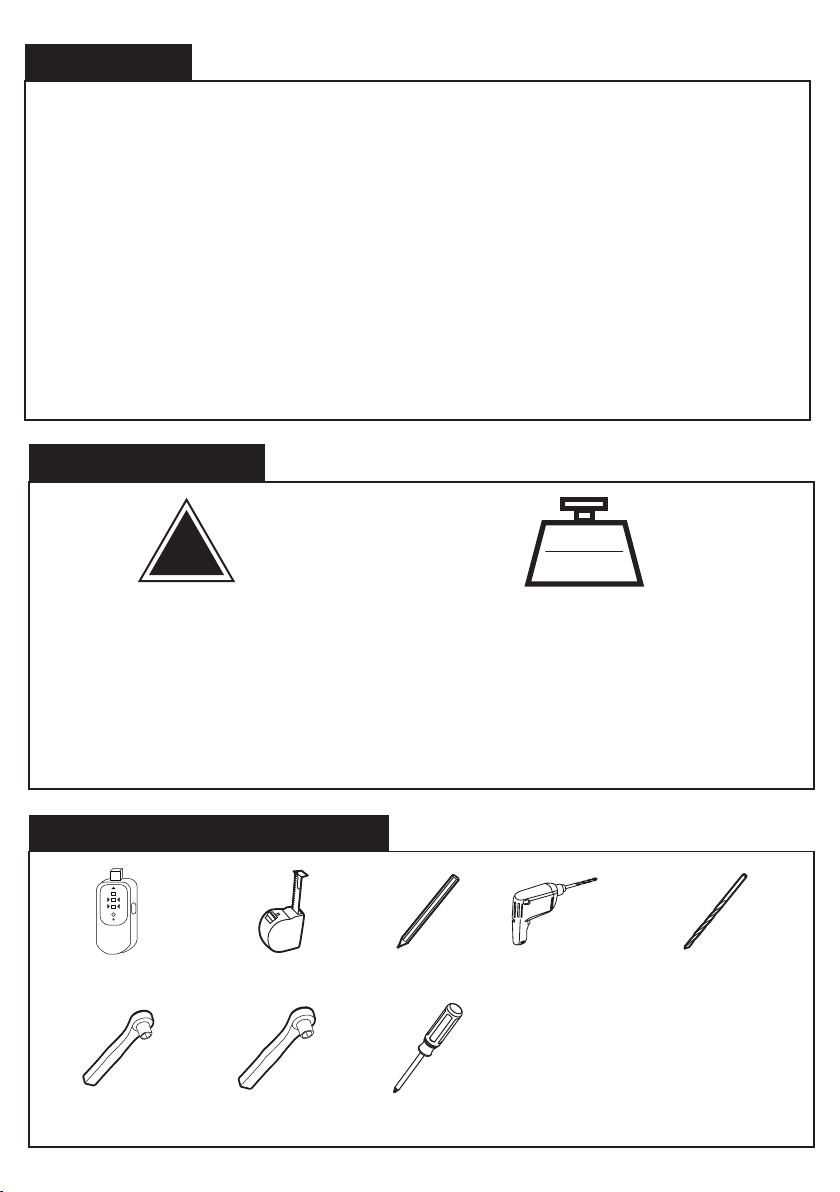

Tools Needed (Not Included)
Weight Capacity
USE WITH PRODUCTS LARGER THAN THE MAXIMUM WEIGHT AND SIZE MAY RESULT IN
INSTABILITY CAUSING POSSIBLE INJURY. USER MUST REMOVE TELEVISION OR OBJECT
OFF THE BRACKET BEFORE ADJUSTING. NOT SUITABLE FOR A TV THAT SURPASSES THE
TELEVISION MAXIMUM WEIGHT CAPACITY AND RECOMMENDED DIAGONAL MEASURED TV
SIZE!
Tape Measure Pencil Drill
1/2 in. (13 mm)
7/32 in. (5.5mm)
Wood Drill
Screw Driver
Socket Wrench
Stud Finder
25/64 in. (10 mm)
Metric Wrench

Philips Screws
M4 x 12mm
M4 x 30mm
C2 C3
x4 x4
TV Bracket
Wall Extension A
07x2
Wall Extension B
08x2
02 x2
Arm and
Wall Plate 01 x1
Supplied Hardware
B2
Spacers
L15mm
B1
Washers
ø6mm
C1
Spacers
L5mm
5/16 x 2⅜ in
Lag Bolts Washers
ø8mm
x4
A1 A2
x4
x8
D1 D2
Philips Screws
M6 x 12mm
M6 x 30mm
x4 x4
E1 E2
Philips Screws
M8 x 25mm
M8 x 50mm
x4 x4x8x8
M8x20M6x10
x4
F1 F2
x8
Arm Extensions 03x4
04x1
05x2
allen wrench 5x5
06x1

Measure the distance between the holes located
at the back of your TV(these measures may form
the shape of a square , or a rectangle) and check
that these taken measures are within the VESA(*)
range for this wall mount.
(*) VESA : International standard established by the
TV manufacturers used to determine if LCD/LED
TVs are compatible with wall mounts.
Step 1 Before TV Bracket Installation
75 mm ≈ 2 7/8 in
100 mm ≈ 4 in
200 mm ≈ 7 7/8 in
300 mm ≈ 11 3/4 in
400 mm ≈ 15 3/4 in
Max 400mm (15 3/4 in)
Max 600mm（23 5/8 in）
Check TV Screws
Please select the proper screw length for your
TV by hand tightening to check your plat panel
thread depth.
When attaching brackets to the TV, be careful not to over tighten screws and be sure
that screws do not bottom out in the mounting holes.
600 mm ≈ 23 5/8 in

Step 2
step 2 tight the two screw together
step 1
tight the two screw together
04
06
03
05
06x1
F1
F2
B1

For Flat Screen TV
For Curved TV
Step 3 Install TV Bracket
03
*for your reference
03
*for your reference TV
C2
B1
TV
B1
D1
C3
D2
M4 x 12mm
M6 x 12mm
M4 x 30mm
M6 x 30mm
TV
B2
E1 M8 x 25mm
B2
C1
or
TV
E2
B2
TV
B1
B2
C1
or
C1
C3
D2
M4 x 30mm
M6 x 30mm
M8 x 50mm

d
07
08
01
07
08
for 18”to 24”space studs
for studs with the sapce between 16.5” to 18”
Step 4 Attach the Extensions to the Wall Plate
Only one side need to attach each of
extensions A and B.
Extension A
Extension BExtension BExtension B
cd
a
step2
b
step1
a
M6
a(12PCS)
M6X12MM
b(4PCS)
M6X14MM
c(8PCS)
M6
d(8PCS)
allen wrench
4x4
e(1PC)
allen wrench
f(1PC)

Use wall plate to mark mounting location x4
locations for 24” space studs.
Use a stud finder (not included) to locate wood
studs. Mark the edge and center locations.
16in to 24in
Step 4A
4-1
4-2
Ensure marking at the
center of the stud.
Holes pattern for
16.5” to 18”space
studs.
Mark the 4 inside holes for
18” space studs.
right
left

right
left
Drill 4 pilot holes using a 7/32 in. (5.5 mm) diameter drill
bit. Make sure the depth is not less than 2 3/8” (60mm).
A
4-4
4-3
1/2 in. (13 mm)
socket wrench
Secure the lag bolts to pilot holes for
24”space studs. Secure the lag bolts to 4 inside holes
for 18”space studs.
Secure the lag bolts to 4 inside
holes for 16.5”to 18”space studs.
Mount wall plate using 4 sets of 5/16 lag bolts and washers
B with a 1/2 in. socket wrench (not included).
B
7/32 in.
ø5.5 mm
2⅜ in.(60mm)

Step 5 Hang TV
Step 6 Secure TV
Hang TV with brackets onto the wall plate .
02 01
Secure TV with brackets
01
02
02
02

If needed, the TV can be leveled +/-3 degrees.
Step 7 Tilt Adjustment
Step 8 Level Adjustment
metric wrench
25/64 in.
(10mm)
Tilt adjustment
-3°
+12°
03
If mount can not tilt freely,
pls adjust the hardness of
nut in both sides.
