EVGA 80 PLUS BRONZE 500 BQ User manual

500W / 600W 700W Bronze Power Supply User Manual
Introduction...................................................................................................2
Safety Information........................................................................................2
Features........................................................................................................3
Installation.....................................................................................................3
Q&A................................................................................................................4
EVGA 500BQ / 600BQ / 700BQ Cable Configuration..................................5
EVGA 500BQ / 600BQ / 700BQ Specification..............................................6
Table of Contents
English
1

EVGA 500W BRONZE
EVGA 600W BRONZE
EVGA 700W BRONZE
500W / 600W 700W Bronze Power Supply User Manual
Introduction: Premium Power
Thank you for purchasing an EVGA BQ 80 PLUS®BRONZE series power supply. The 500BQ / 600BQ / 700BQ is a
high quality power supply that offers great value to gamers / system builders. The modular design provides custom
cable configurations for any application, and due to the ultra silent 120mm fan, the 500BQ / 600BQ / 700BQ series
reduces heat during heavy load while keeping the decibel level down. Designed with stability and durability in mind,
the 500BQ / 600BQ / 700BQ series is the perfect choice to power your systems.
Safety Information
WARNING 1: This unit has no user-serviceable parts inside. Opening the casing presents a risk of electrocution and will
void the product’s warranty. EVGA will not be responsible for any result of improper use, including but not limited to,
any use of the product outside of its intended purpose or use inconsistent with the warranty terms available online.
(Warranty information is available at www.evga.com/support/warranty and this manual is available at
www.evga.com/manuals).
English 2
WARNING 2: Only use included cables or cables purchased from EVGA.com that are specifically labeled for your PSU.
Using incorrect cables runs the risk of catastrophic failure.

500W / 600W 700W Bronze Power Supply User Manual
Installation
STABLE POWER
The 500BQ / 600BQ / 700BQ has outstanding electrical performance with ultra stable voltage and extremely clean
power output. This can help you achieve the highest possible overclock (optional) and provide the most stable
and reliable power to all components. The 500BQ / 600BQ / 700BQ also provides up to 85% (115VAC) / 88%
(220VAC~240VAC) efficiency and is 80 PLUS®BRONZE certified.
TOP QUALITY PROTECTIONS
The 500BQ / 600BQ / 700BQ comes equipped with the most comprehensive protection set possible, including Over Voltage
Protection (OVP), Under Voltage Protection (UVP), Over Power Protection (OPP), Short Circuit Protection (SCP),
and Over Current Protection (OCP). 500BQ/600BQ is also covered by a 3-year warranty and 700BQ is covered by
a 5- year warranty with EVGA’s legendary customer service and support.
MODULAR DESIGN
Reduce clutter in the case, improve ambient temperatures with better airflow overall and provide a clean look to
any system. Modular PSU designs allow the user to disconnect the cable from the power supply side if they
are not needed for the specific configuration. This can help free up space inside the case and improve cable
management as well as airflow throughout the system.
Features
1. Remove the power supply from its packaging.
2. Use the screws provided with your case to install the power supply into
your computer. NOTE: It is recommended to install the power supply with
the fan facing down. However, if your case places the power supply at the
bottom of the case and there are no ventilation holes available, it may be
best to install the power supply with the fan facing up for greater efficiency
and reliability.
3. Connect the 20+4-Pin ATX cable to the motherboard.
English
3

500W / 600W 700W Bronze Power Supply User Manual

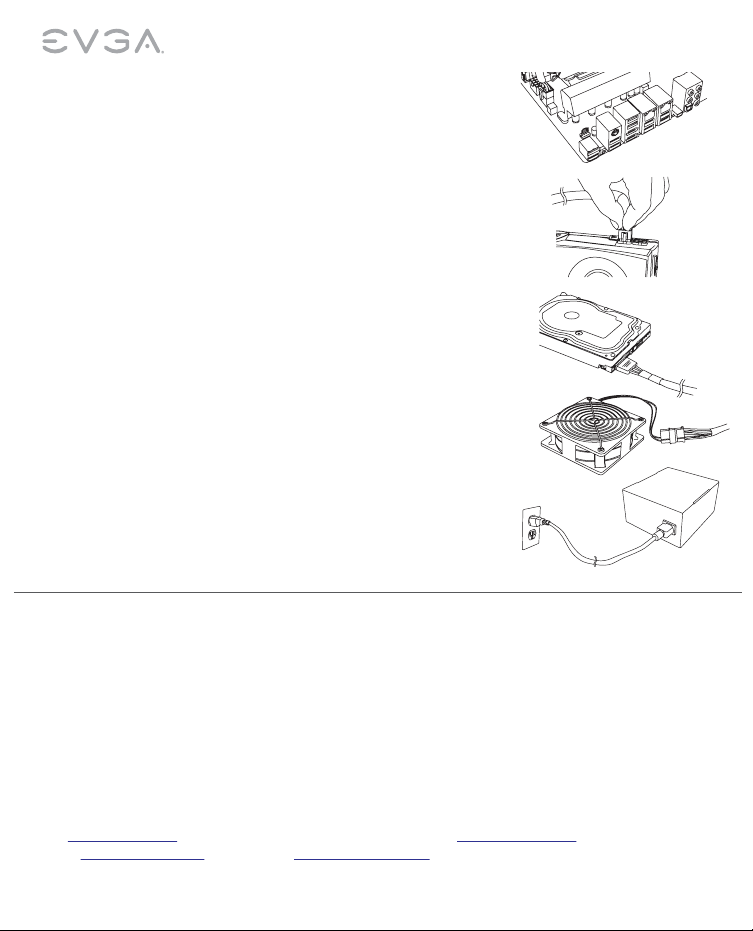

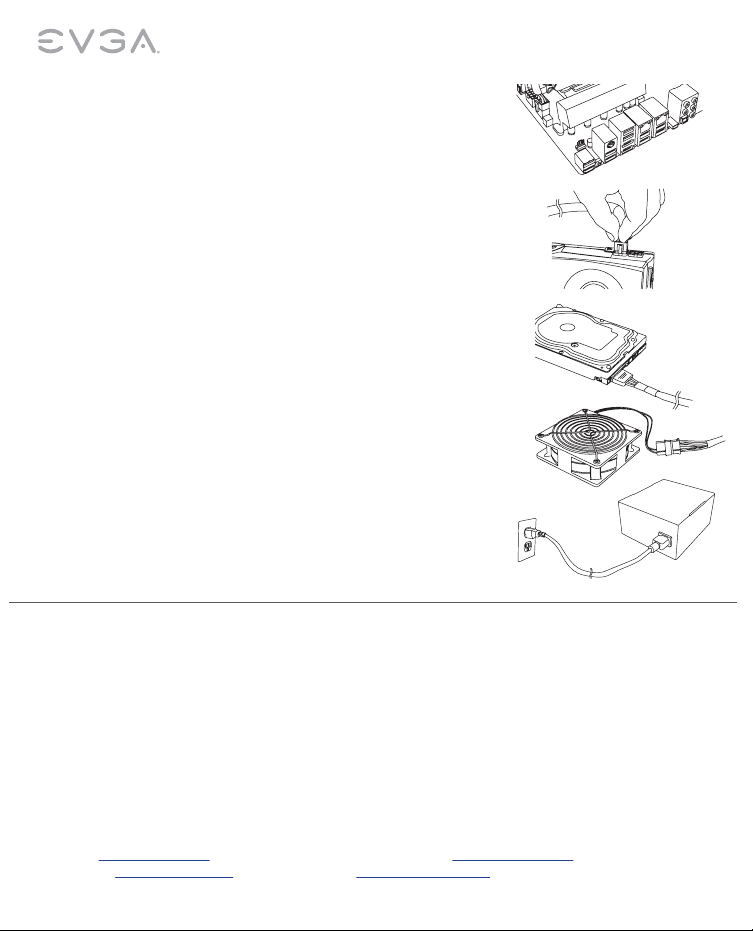

4. Connect the 4+4-Pin EPS12V cable to the motherboard.
5. Connect the 6/6+2-Pin PCI-E cables to your graphic card(s).
NOTE: Do not attempt to plug an 8-Pin PCI-E cable into a 6-Pin
connector without first detaching the two extra pins.
6. Connect SATA power cables to all data drives or optical drives.
(hard drives, solid state drives, optical drives)
7. Connect the peripheral “Molex” 4-Pin connectors for fans, pumps,
legacy components and other devices/adapters.
8. Connect the AC power cord to your power supply and to the wall.
Check all connections to assure a solid connection and turn the
power switch on the power supply to the ON position.
Q&A
English 4
Q: I see there are more than four screw holes on the back of the power supply, but the packaging only offers (4)
screws, are some missing?
A: Nothing is missing; you will only need to attach the EVGA power supply to the case with four screws. The
power supply offers more than (4) holes to provide optimal compatibility for today’s varied case designs.
Q: What if I want to use power adapters for my video card(s)/motherboard/peripherals?
A: EVGA always recommends the use of direct power connections from the power supply to power all
components.
Q. If I have an issue or a question, can I get support?
A.
ALL EVGA products are backed by top tier warranties as well as 24/7 technical support. Support can be reached
for your power supply at:
- USA: [phone] option 1, option 3. or contact us via email at [email protected].
- Europe: [phone] or by email via eu.evga.com/support.
