evoheat 270 User manual

Operation & Installation Manual
HOT WATER HEAT PUMP
270

Preface
Due to continuous produvct improvement, this manual is be subject to change without prior
notice.
When installing the hot water cylinder, please follow the Instructions as documented in this
manual.
A maintenance programme must be carried out as recommended in this manual to ensure
ongoing reliability.
Failure to comply with these recommendations could void the warranty and cause injury or
death.
It is important that the installation and operational instructions laid out in this manual are
strictly adhered to.
Evo Industries Australia Pty Ltd will not be held responsible for any damages or injuries
caused by the incorrect Installation of this hot water system.
This manual includes all the necessary information regarding the Installation, operation
and maintenance of this product. Please take the time to read it through before installing or
operating the heat pump.
Once the Installation is complete, check that all connections are secure before the power is turned
on.
The installer is to explain to the end user how to operate and maintain the unit in accordance with
this Instruction manual.
Contents
Contents
1. Safety Precautions
1
2. Specifications
3
2.1) Appearance
3
2.2) Characteristics
3
2.3) Operational Principle
4
2.4) Dimensions
5
2.5) Technical Data
6
3. System Features
7
4. Installation
8
4.1) Pipeline connection sketch
8
4.2) Handling and transportation
9
4.3) Installation clearances
10
4.4) Cable connection
13
4.5) Trial running
13
5. Operation
14
5.1) Function of wire controller
14
5.2) Controller Operation
16
6. Maintenance and repair
27
7.1) Unit parameters
28
7. Appendix
28
6.2) Troubleshooting guide
27
6.1) Maintenance
27
7.2) PCB Description
28
7.3) Detailed parts overview
29
7.4) Caution
31
7.5) Earthing methodology
32
32
7.6) Use of the P&T valve
33
7.7) Use of the overheating protector
Warranty
34
33
7.8) Draining the water tank

Preface
Due to continuous produvct improvement, this manual is be subject to change without prior
notice.
When installing the hot water cylinder, please follow the Instructions as documented in this
manual.
A maintenance programme must be carried out as recommended in this manual to ensure
ongoing reliability.
Failure to comply with these recommendations could void the warranty and cause injury or
death.
It is important that the installation and operational instructions laid out in this manual are
strictly adhered to.
Evo Industries Australia Pty Ltd will not be held responsible for any damages or injuries
caused by the incorrect Installation of this hot water system.
This manual includes all the necessary information regarding the Installation, operation
and maintenance of this product. Please take the time to read it through before installing or
operating the heat pump.
Once the Installation is complete, check that all connections are secure before the power is turned
on.
The installer is to explain to the end user how to operate and maintain the unit in accordance with
this Instruction manual.
Contents
Contents
1. Safety Precautions
1
2. Specifications
3
2.1) Appearance
3
2.2) Characteristics
3
2.3) Operational Principle
4
2.4) Dimensions
5
2.5) Technical Data
6
3. System Features
7
4. Installation
8
4.1) Pipeline connection sketch
8
4.2) Handling and transportation
9
4.3) Installation clearances
10
4.4) Cable connection
13
4.5) Trial running
13
5. Operation
14
5.1) Function of wire controller
14
5.2) Controller Operation
16
6. Maintenance and repair
27
7.1) Unit parameters
28
7. Appendix
28
6.2) Troubleshooting guide
27
6.1) Maintenance
27
7.2) PCB Description
28
7.3) Detailed parts overview
29
7.4) Caution
31
7.5) Earthing methodology
32
32
7.6) Use of the P&T valve
33
7.7) Use of the overheating protector
Warranty
34
33
7.8) Draining the water tank

1
1.Safety Precautions
!
To prevent personal injury and avoid causing damage to the unit, please take the time to
read the information documented in this manual.
Icon Meaning
Failure to pay attention to this may lead to serious injury or death.
Failure to pay attention to this may lead to injury or loss of material.
WARNING
INSTALLATION WARNING
Icon Meaning
Compulsory - The listed action must be implemented.
Please pay attention to what is indicated.
Prohibited (Next to this icon)
The heat pump must be installed by qualified persons. Improper
installation could result in electrical shock /water leakage or fire.
Please ensure that the unit and power connections have a good
earth. Failure to do this may cause electrical shock.
Professional installer
required
Earthing is required
ATTENTION
Check drainage fittings Before installation, make sure there are no leaks on the plumbing
and drainage fittings.
1.Safety Precautions
2
Installation position
Fixing the unit
Circuit breaker required
The unit MUST NOT be installed near flammable gas.
Ensure that the base you are installing on is level and stable.
This unit requires a circuit breaker. failure to do so could result in an
electrical shock or fire.
OPERATION WARNING
Prohibited
Shut off the power
Do not put fingers or any other objects into the fan. Children should be
kept clear of this appliance.
In the event of a unit malfunction please shut the power off and contact your service
engineer.
MOVE AND REPAIR
Important
If the heat pump needs to be relocated or installed again, only use an authorised
dealer or qualified persons.
It is prohibited for the end user to repair the unit . Failure to use a qualified
technician may lead to serious injury and/or damage to the unit.
Should the heat pump need to be repaired, only use an authorised dealer or
qualified technician.
Prohibited
Important
OPERATION ATTENTION
Shut off the power
Turn the power off before cleaning the unit.
Prohibited
Do not spay flammable aerosols onto the unit, as this could result in a fire.
USAGE WARNING
Usage warning
Danger - High temperature water and hot fittings. Do not touch.
Setting the water temperature too high can cause burns and scalds.
Do not attempt to repair yourself - contact Evoheat for advice.

1
1.Safety Precautions
!
To prevent personal injury and avoid causing damage to the unit, please take the time to
read the information documented in this manual.
Icon Meaning
Failure to pay attention to this may lead to serious injury or death.
Failure to pay attention to this may lead to injury or loss of material.
WARNING
INSTALLATION WARNING
Icon Meaning
Compulsory - The listed action must be implemented.
Please pay attention to what is indicated.
Prohibited (Next to this icon)
The heat pump must be installed by qualified persons. Improper
installation could result in electrical shock /water leakage or fire.
Please ensure that the unit and power connections have a good
earth. Failure to do this may cause electrical shock.
Professional installer
required
Earthing is required
ATTENTION
Check drainage fittings Before installation, make sure there are no leaks on the plumbing
and drainage fittings.
1.Safety Precautions
2
Installation position
Fixing the unit
Circuit breaker required
The unit MUST NOT be installed near flammable gas.
Ensure that the base you are installing on is level and stable.
This unit requires a circuit breaker. failure to do so could result in an
electrical shock or fire.
OPERATION WARNING
Prohibited
Shut off the power
Do not put fingers or any other objects into the fan. Children should be
kept clear of this appliance.
In the event of a unit malfunction please shut the power off and contact your service
engineer.
MOVE AND REPAIR
Important
If the heat pump needs to be relocated or installed again, only use an authorised
dealer or qualified persons.
It is prohibited for the end user to repair the unit . Failure to use a qualified
technician may lead to serious injury and/or damage to the unit.
Should the heat pump need to be repaired, only use an authorised dealer or
qualified technician.
Prohibited
Important
OPERATION ATTENTION
Shut off the power
Turn the power off before cleaning the unit.
Prohibited
Do not spay flammable aerosols onto the unit, as this could result in a fire.
USAGE WARNING
Usage warning
Danger - High temperature water and hot fittings. Do not touch.
Setting the water temperature too high can cause burns and scalds.
Do not attempt to repair yourself - contact Evoheat for advice.

Smart and efficient unit
The operational costs can be up to 75% less than that of an electric water heater, and can
be installed in locations which are unsuitable for solar hot water heating.
2.2 Characteristics
Easy to operate
Featuring an easy to use timer for both start and stop operations, with a controller to set the
desired water temperature.
Safe and environmentally friendly
Produces no harmful gases along with no open flame, making the unit safe to work with
when installing.
4
2. Specs
2.3 Operational Principle
4
Air from
outside
Hot water
Low temp.
Compressor
Compressor
Thermal
expansion
valve
Water supply
Tank
Picture 2
Air
exchanger Water
exchanger
Heat Pump System Theory:
(1) Using a small power input to drive the compressor, the power used is Q1.
(2) While the unit is running, the power that comes ambient air is Q2 (from the refrigerant
transformation).
(3) The energy that the water gets from the unit is Q3.
(4) According to the law of conservation of energy:
﹛Sum of input power = sum of output power Q1+Q2 = Q3
﹛In standard working conditions, the power that heat pump gets from the environment is about
3.2 times the power input, Q2 = 3.2 x Q1
so: Q3 = Q1+Q2 = Q1+3.2Q1= 4.2Q1
Which means you can get 4.2Q1 from heat pump if you spend Q1 energy. Which means the
energy that you can get from heat pump after using 1 kW of electricity is equal to the energy that
you get from electrical element heater after using 4.2 kW of electricity. This makes the hot water
heat pump is one of the most energy efficient heating equipment available on the market today..

Smart and efficient unit
The operational costs can be up to 75% less than that of an electric water heater, and can
be installed in locations which are unsuitable for solar hot water heating.
2.2 Characteristics
Easy to operate
Featuring an easy to use timer for both start and stop operations, with a controller to set the
desired water temperature.
Safe and environmentally friendly
Produces no harmful gases along with no open flame, making the unit safe to work with
when installing.
4
2. Specs
2.3 Operational Principle
4
Air from
outside
Hot water
Low temp.
Compressor
Compressor
Thermal
expansion
valve
Water supply
Tank
Picture 2
Air
exchanger Water
exchanger
Heat Pump System Theory:
(1) Using a small power input to drive the compressor, the power used is Q1.
(2) While the unit is running, the power that comes ambient air is Q2 (from the refrigerant
transformation).
(3) The energy that the water gets from the unit is Q3.
(4) According to the law of conservation of energy:
﹛Sum of input power = sum of output power Q1+Q2 = Q3
﹛In standard working conditions, the power that heat pump gets from the environment is about
3.2 times the power input, Q2 = 3.2 x Q1
so: Q3 = Q1+Q2 = Q1+3.2Q1= 4.2Q1
Which means you can get 4.2Q1 from heat pump if you spend Q1 energy. Which means the
energy that you can get from heat pump after using 1 kW of electricity is equal to the energy that
you get from electrical element heater after using 4.2 kW of electricity. This makes the hot water
heat pump is one of the most energy efficient heating equipment available on the market today..

2. Specifications
5

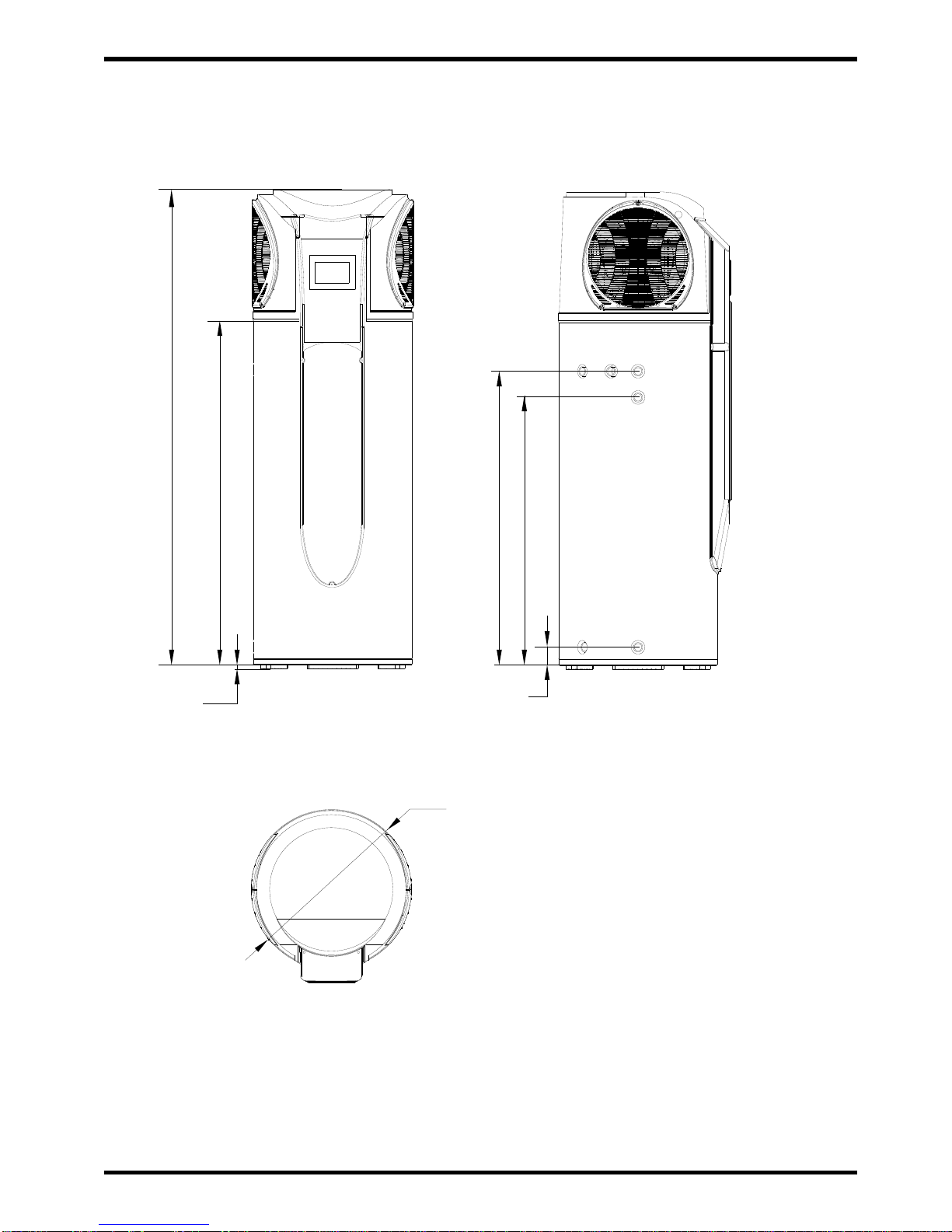

2.4 dimensions
unit-mm
MODEL: EVOHEAT 270
2. Specifications
2.5 performance parameters
6
Working Temp Range
(1).Ambient temperature is -7deg to 43deg(Heat Pump)
(2).The max temperature of water tank is 70
Measurement conditions:
Instant heating: Ambient temperature15DB/13WB,Water inlet 15 Water outlet 45
Operating parameters
The range of the operating water pressures: 0.15~0.7MPa
Model
Heating capacity
Water tank capacity
Power input
Running current
Power supply
Compressor Number
Compressor
Rated outlet water Temp.
Air volume
Nosie
Water inlet/outlet size
*Hydroboost Power heat
Net dimensions
Shipping dimensions
Net weight
Shipping weight
kW
kW
A
Deg C
3
m /h
dB(A)
inch
kW
mm
mm
kg
kg
EVOHEAT270 (PASHW015-270LD)
3.4
270
0.94
3.92
240V~/50Hz
1
rotary
55
450
49
3/4
1.5
See the drawing
135
175
720x760x2040
Picture 3
¦640
16 99
1435
1955
1194
1094

2. Specifications
5
2.4 dimensions
unit-mm
MODEL: EVOHEAT 270
2. Specifications
2.5 performance parameters
6
Working Temp Range
(1).Ambient temperature is -7deg to 43deg(Heat Pump)
(2).The max temperature of water tank is 70
Measurement conditions:
Instant heating: Ambient temperature15DB/13WB,Water inlet 15 Water outlet 45
Operating parameters
The range of the operating water pressures: 0.15~0.7MPa
Model
Heating capacity
Water tank capacity
Power input
Running current
Power supply
Compressor Number
Compressor
Rated outlet water Temp.
Air volume
Nosie
Water inlet/outlet size
*Hydroboost Power heat
Net dimensions
Shipping dimensions
Net weight
Shipping weight
kW
kW
A
Deg C
3
m /h
dB(A)
inch
kW
mm
mm
kg
kg
EVOHEAT270 (PASHW015-270LD)
3.4 Heat Pump
270
0.94 Heat Pump
3.92 Heat Pump + 6.5 Hydroboost
240V~/50Hz
1
rotary
55
450
49
3/4
1.5
See the drawing
135
175
720x760x2040
Picture 3
¦640
16 99
1435
1955
1194
1094

3.Operation
3 min safety protect
If the unit stops and you re start the unit or turn it on manually, the unit will not start to run
again for approx 3 minutes. This is a protection feature to safe guard the compressor.
In low ambient conditions the heating output decreases. See page __ for further
information.
Heating capacity
In order to use the unit correctly, please run the unit at environment temperature -7→-43→.
The unit includes sophisticated electronic devices, prohibited to use water from lake, untreated
river water and groundwater!
Working conditions
Defrosting
In heating mode the unit will defrost automatically, maximizing the heating efficiency (Lasting 2 -
10 minutes).
The fan motor will stop running whilst the unit is defrosting.
Overheating protection
When the water temperature reaches 75deg C, the power of the unit will be cut and must be
manually reset. See page __ for more information.
Water pressure protectiontemperature or
A P&T valve MUST be installed in the tank. When the tank pressure reaches 0.85MPa or
when the tank temperature reaches 93deg C, the P&T valve will open automatically so as
to reduce the pressure or temperature decrease.
8
4.1 Pipeline connection sketch
4. Installation
Picture 4
ATTENTION
Pipeline connection explanation
Installation of the water inlet or outlet pipes: The specification of the water inlet and
outlet thread is BSP3/4”(internal thread).Pipes must be heat-resistant and durable.
Installation of the pipe for P&T valve: The spec of the valve connecting thread is
BSP3/4”(internal thread).After installation, please confirm that the plumbing outlet is
exposed to the air. When flexible plumbing is connected to the pressure relief
outlet of this valve, please confirm that the plumbing is vertical and exposed to the
air.
Water Inlet
Y-shaped Filter
Tap Water
Thermal expansion tank
(if required)
Barrel-drain
Drainpipe
Condensate Outlet
P&T Valve
Water Outlet
Notice:
Tempering valve required
Magnesium
Anode
ATTENTION: The P&T valve attached to the unit MUST be installed, or it will cause
damage to the unit and pose a serious risk to passersby.
Installation MUST comply with AS/NZS3500.4 and all other relevant Australian
Standards and Industry Codes.
Do not use stainless steel fittings to connect directly with other metals to prevent
galvanic corrosion.
If installed outdoors all fittings and insulation must be weather resistant
.
7
Sanitech high temp sanitization
The Evoheat 270 is fitted with Sanitech. the Sanitech system will heat the tank water to 70
degrees for one 30min period every week at midnight. Please be aware of very high
temperature water outlet at this time.

3.Operation
3 min safety protect
If the unit stops and you re start the unit or turn it on manually, the unit will not start to run
again for approx 3 minutes. This is a protection feature to safe guard the compressor.
In low ambient conditions the heating output decreases. See page __ for further
information.
Heating capacity
In order to use the unit correctly, please run the unit at environment temperature -7→-43→.
The unit includes sophisticated electronic devices, prohibited to use water from lake, untreated
river water and groundwater!
Working conditions
Defrosting
In heating mode the unit will defrost automatically, maximizing the heating efficiency (Lasting 2 -
10 minutes).
The fan motor will stop running whilst the unit is defrosting.
Overheating protection
When the water temperature reaches 75deg C, the power of the unit will be cut and must be
manually reset. See page __ for more information.
Water pressure protectiontemperature or
A P&T valve MUST be installed in the tank. When the tank pressure reaches 0.85MPa or
when the tank temperature reaches 93deg C, the P&T valve will open automatically so as
to reduce the pressure or temperature decrease.
8
4.1 Pipeline connection sketch
4. Installation
Picture 4
ATTENTION
Pipeline connection explanation
Installation of the water inlet or outlet pipes: The specification of the water inlet and
outlet thread is BSP3/4”(internal thread).Pipes must be heat-resistant and durable.
Installation of the pipe for P&T valve: The spec of the valve connecting thread is
BSP3/4”(internal thread).After installation, please confirm that the plumbing outlet is
exposed to the air. When flexible plumbing is connected to the pressure relief
outlet of this valve, please confirm that the plumbing is vertical and exposed to the
air.
Water Inlet
Y-shaped Filter
Tap Water
Thermal expansion tank
(if required)
Barrel-drain
Drainpipe
Condensate Outlet
P&T Valve
Water Outlet
Notice:
Tempering valve required
Magnesium
Anode
ATTENTION: The P&T valve attached to the unit MUST be installed, or it will cause
damage to the unit and pose a serious risk to passersby.
Installation MUST comply with AS/NZS3500.4 and all other relevant Australian
Standards and Industry Codes.
Do not use stainless steel fittings to connect directly with other metals to prevent
galvanic corrosion.
If installed outdoors all fittings and insulation must be weather resistant
.
7
Sanitech high temp sanitization
The Evoheat 270 is fitted with Sanitech. the Sanitech system will heat the tank water to 70
degrees for one 30min period every week at midnight. Please be aware of very high
temperature water outlet at this time.

9
4. Installation
4.2 Freight and Transportation
As a rule, the unit should be stored and/or transported in its shipping container in an upright
position and without water charge. For transport over short distances, and provided due care
is exercised, an inclination angle of up to 30 degrees is permitted. During transport and
storage, ambient temperatures of - 10 to +60deg C are permissible.
4.2.1 Transport using a forklift
When transported by a fork lift, the unit must remain mounted on the pallet. The lifting speed
should be kept to a minimum. Due to its top-heaviness, the unit must be secured against
tipping over. To prevent any damage or injury, the unit must be placed on a level surface.
4.2.2 Manual transport
For the manual transport, the wooden pallet can be used for bottom part.
Using ropes or carrying straps, a second or third handling configuration is possible. With this
type of handling, care must be taken that the maximum permissible inclination angle of 60
degrees is not exceeded. If transport in an inclined position cannot be avoided, the unit should
be left to rest at least one hour after it has been moved into final position before operation.
CAUTION! High center of gravity, Place on a level surface!
Picture 5
Air outlet
Display
Air inlet
Barrier
Picture 6
500 1000
300
500
1000
600
10
4. Installation
4.3 Outdoor Installation clearances

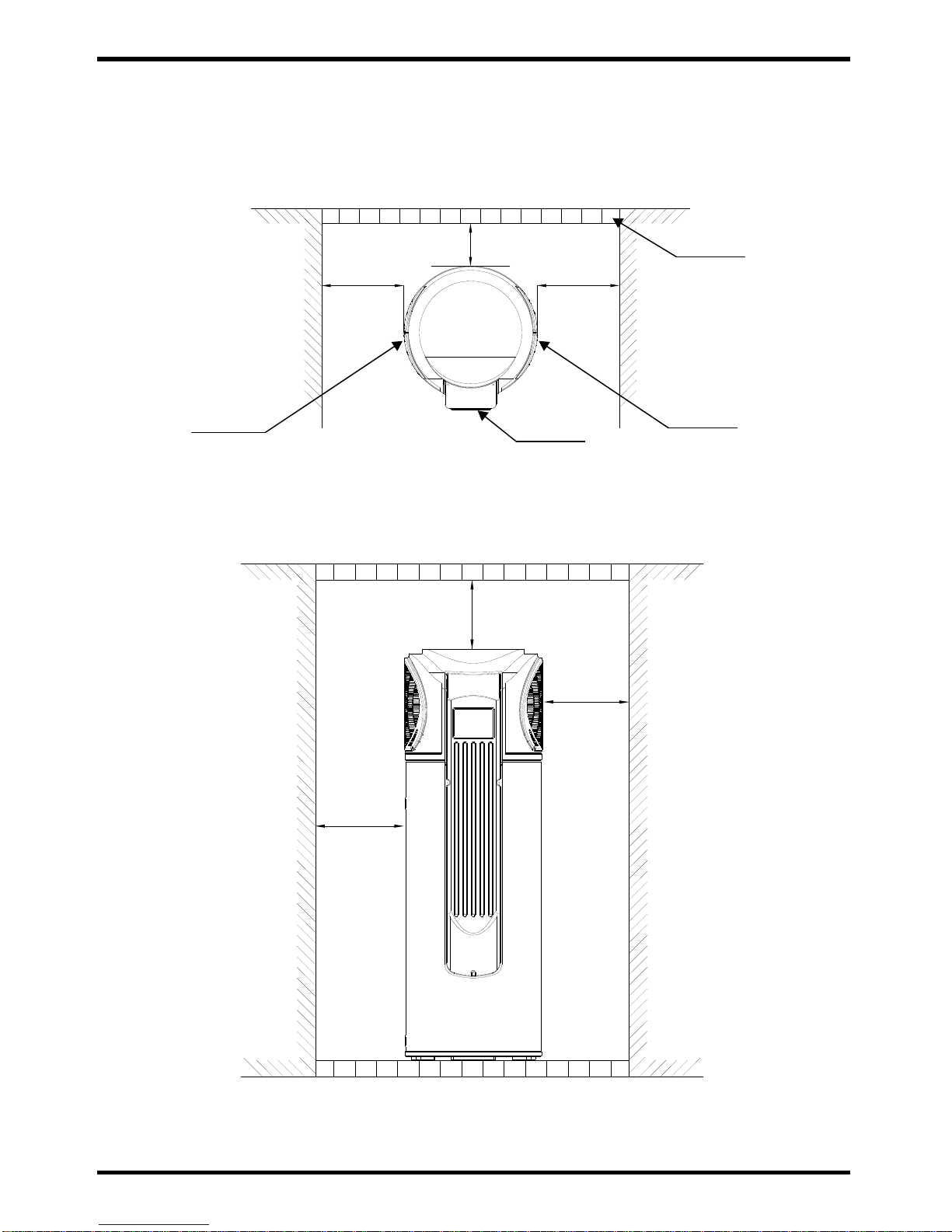

Before installation, please ensure that you leave space as shown below for maintenance
The unit must be installed on the ground on a solid level surface capable of holding the full weight of
the unit.
Picture 7
Unit:mm
4.2A Recommended household size
The below recommendations are based on heat pump only mode.
Higher occupancy levels are able to be achieved with the
Hydroboost heater activated
Notice: High usage of hot water and other factors could affect this
recommendation.Please consult your dealer if you have special requirements.
Household Size
Up to 6 people
model
Evoheat 270

9
4. Installation
4.2 Freight and Transportation
As a rule, the unit should be stored and/or transported in its shipping container in an upright
position and without water charge. For transport over short distances, and provided due care
is exercised, an inclination angle of up to 30 degrees is permitted. During transport and
storage, ambient temperatures of - 10 to +60deg C are permissible.
4.2.1 Transport using a forklift
When transported by a fork lift, the unit must remain mounted on the pallet. The lifting speed
should be kept to a minimum. Due to its top-heaviness, the unit must be secured against
tipping over. To prevent any damage or injury, the unit must be placed on a level surface.
4.2.2 Manual transport
For the manual transport, the wooden pallet can be used for bottom part.
Using ropes or carrying straps, a second or third handling configuration is possible. With this
type of handling, care must be taken that the maximum permissible inclination angle of 60
degrees is not exceeded. If transport in an inclined position cannot be avoided, the unit should
be left to rest at least one hour after it has been moved into final position before operation.
CAUTION! High center of gravity, Place on a level surface!
Picture 5
Air outlet
Display
Air inlet
Barrier
Picture 6
500 1000
300
500
1000
600
10
4. Installation
4.3 Outdoor Installation clearances
Before installation, please ensure that you leave space as shown below for maintenance
The unit must be installed on the ground on a solid level surface capable of holding the full weight of
the unit.
Picture 7
Unit:mm
4.2A Recommended household size
The below recommendations are based on heat pump only mode.
Higher occupancy levels are able to be achieved with the
Hydroboost heater activated
Notice: High usage of hot water and other factors could affect this
recommendation.Please consult your dealer if you have special requirements.
Household Size
Up to 6 people
model
Evoheat 270

11
4. Installation 4.Installation
12

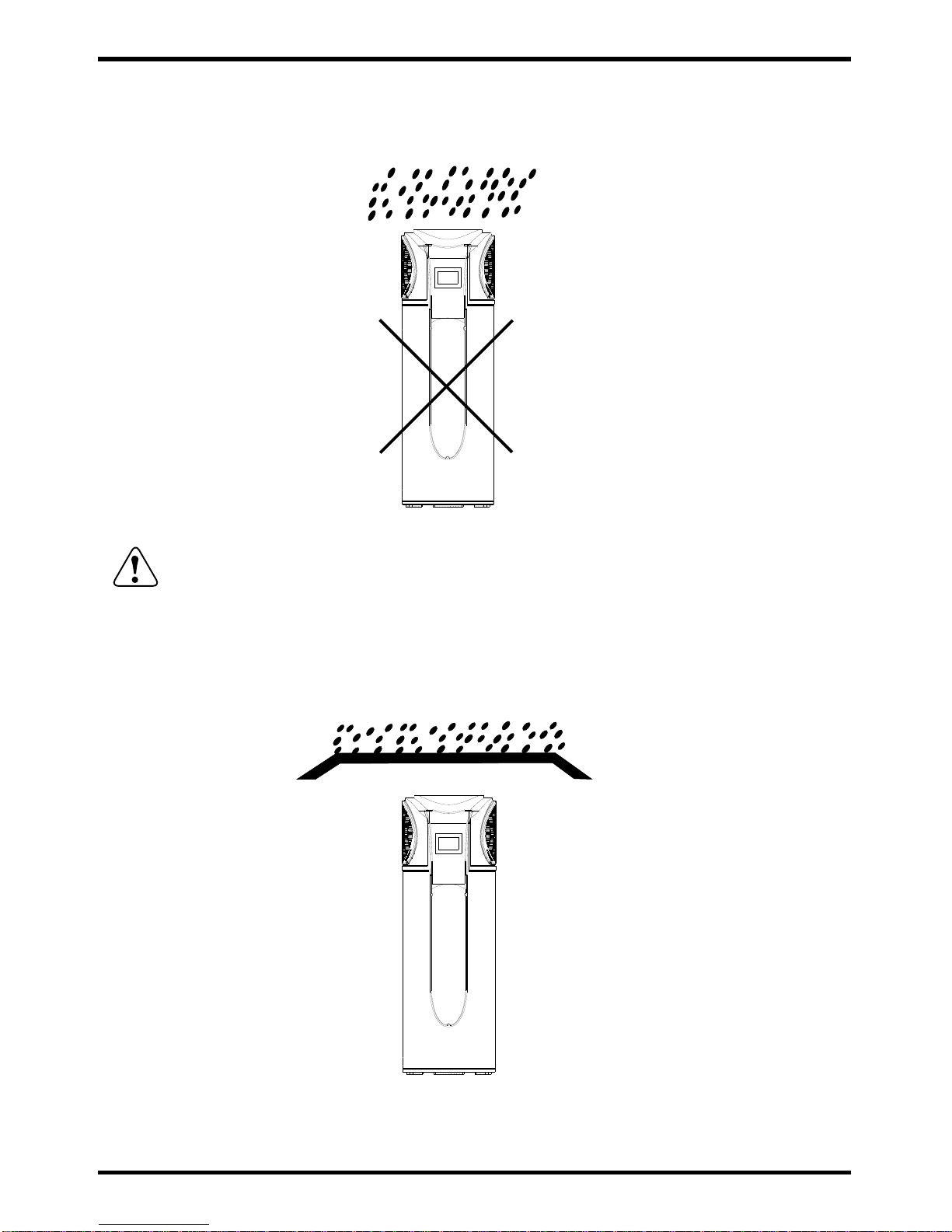

Although the unit should be installed outside, rain should be prevented from falling directly
onto the heat pump.
Main unit
Rain
Picture 8
Rain entering into internal components of the main unit may
cause damage to equipment.
ATTENTION
In order to prevent rainentering into the unit, it is suggested to install a canopy on top of main
unit as below. Installing the unit under the eaves of a house will also suffice.
Main unit
Rain
Picture 9
Weather shed
Indoor Installation Recommendations
To cool the room using the Evoheat 270.
Heat pumps operate most efficienctly with warmer air temperatures, and the outlet air from
the unit will be colder than the inlet air. Therefore it is advisable to install the unit so it
recieves the warmest air temperatures possible and the cold air is not able to recirculate
back into the unit.
The unit may be able to be installed in an unventilated room exceeding 25m3 in volume.
Venting of cold air is always advisable to prevent the air temperature dropping and lowering the
efficiency of the unit.
Think of the unit as a 3kW airconditioner for the effect it will have on a closed room.
Install the unit so the outlet from the heat pump is blowing INTO the room. The room MUST
have some form of air outlet otherwise the performance of the unit will suffer significantly
To maintain the room at normal temps using the Evoheat 270.
Install the unit so the outlet from the heat pump is blowing OUTSIDE the room. The room
MUST have some form of air inlet otherwise the performance of the unit will suffer
significantly
PLEASE CONTACT EVOHEAT FOR TECHNICAL
ADVICE IF UNSURE
1. This unit must be installed, operated and maintained in good order and in accordance with
these instructions.
2. If water supply exceeds rated pressure a pressure reducing valve is to be fitted.
3. Water may discharge from the drain pipe and this must be left open to atmosphere
4. The pressure relief valve must be operated at least every 6 months to ensure correct
operation. The drain pipe from this valve should not allow water to collect in pipework.
5. Facilities for draining and filling the unit must be provided for maintenance. Drain points
must be at the lowest point of the system.
6. Check before installation that your water pressure is within required limits. Use a filter and
pressure relief valve on the inlet as required.A water softening device will also be required in
hard water areas.
7. This heat pump must be installed by a licenced contractor. Do not attempt to install yourself
if you are not qualified.The Evoheat 270 must be installed to conform to all relevantAustralian
Standards and Industry Codes including but not limited to:
Electrical and Electrical Safety
Plumbing and Hot Water Storage
Heat Pump Installation and Operation
Installation must also comply with any local, sate or federal codes at the installation site.
Failure to comply can void your warranty, damage your unit and cause possible injury or death.
Plumbing must comply withAS/NZS3500.4

11
4. Installation 4.Installation
12
Although the unit should be installed outside, rain should be prevented from falling directly
onto the heat pump.
Main unit
Rain
Picture 8
Rain entering into internal components of the main unit may
cause damage to equipment.
ATTENTION
In order to prevent rainentering into the unit, it is suggested to install a canopy on top of main
unit as below. Installing the unit under the eaves of a house will also suffice.
Main unit
Rain
Picture 9
Weather shed
Indoor Installation Recommendations
To cool the room using the Evoheat 270.
Heat pumps operate most efficienctly with warmer air temperatures, and the outlet air from
the unit will be colder than the inlet air. Therefore it is advisable to install the unit so it
recieves the warmest air temperatures possible and the cold air is not able to recirculate
back into the unit.
The unit may be able to be installed in an unventilated room exceeding 25m3 in volume.
Venting of cold air is always advisable to prevent the air temperature dropping and lowering the
efficiency of the unit.
Think of the unit as a 3kW airconditioner for the effect it will have on a closed room.
Install the unit so the outlet from the heat pump is blowing INTO the room. The room MUST
have some form of air outlet otherwise the performance of the unit will suffer significantly
To maintain the room at normal temps using the Evoheat 270.
Install the unit so the outlet from the heat pump is blowing OUTSIDE the room. The room
MUST have some form of air inlet otherwise the performance of the unit will suffer
significantly
PLEASE CONTACT EVOHEAT FOR TECHNICAL
ADVICE IF UNSURE
1. This unit must be installed, operated and maintained in good order and in accordance with
these instructions.
2. If water supply exceeds rated pressure a pressure reducing valve is to be fitted.
3. Water may discharge from the drain pipe and this must be left open to atmosphere
4. The pressure relief valve must be operated at least every 6 months to ensure correct
operation. The drain pipe from this valve should not allow water to collect in pipework.
5. Facilities for draining and filling the unit must be provided for maintenance. Drain points
must be at the lowest point of the system.
6. Check before installation that your water pressure is within required limits. Use a filter and
pressure relief valve on the inlet as required.A water softening device will also be required in
hard water areas.
7. This heat pump must be installed by a licenced contractor. Do not attempt to install yourself
if you are not qualified.The Evoheat 270 must be installed to conform to all relevantAustralian
Standards and Industry Codes including but not limited to:
Electrical and Electrical Safety
Plumbing and Hot Water Storage
Heat Pump Installation and Operation
Installation must also comply with any local, sate or federal codes at the installation site.
Failure to comply can void your warranty, damage your unit and cause possible injury or death.
Plumbing must comply withAS/NZS3500.4

13
5.Operation
5.1 Controller Button Descriptions
1£Function of key
NO. Button Name Function
1
2
3
4
5
6
ON/OFF
Mode
Electric
Heater
Up
Down
Turn on/off the unit.
Switch unit running modes or save setting parameters.
Set the clock or the timer.
Turn on/off the electric heater or switch fan modes.
Move up or increase parameter values.
Move down or decrease parameter values.
Clock
1 2 3456
Main display
area
Auxiliary display
area
4.Installation
4.4 Cable connection
4.5 Trial running
The power cable is stored in the back of the unit, it's for power supply of the unit. The spec
of the cable is AWG12.
This unit requires an isolating switch as required by local by laws.
4.5.1 Inspection before trial running
Check the water supply to the tank and pipe connections for possible leaks.
Check that the following devices are installed and operating correctly
Drain pipes
P&T Valve
Filter on inlet
Water softening and pressure reducing devices if required
Check that all power connections are secure before switching on.
Check the installation space is adequate
4.5.2 Trial running
Switch on the unit using the controller£
In the case of any unusual noise, switch the power off and consult your provider;
If the power cord is damaged, It must be replaced by a qualified electrician.
The parameters have been pre set to a temperature of 55 degrees. Check that the unit is
operating by looking for an increase in water temperature over time.
13 14
4.4.2 Filling the tank
Open a hot water tap inside the house
Open the cold water inlet valve into the Evoheat 270 to fill the tank. When water begins
flowing out of the hot water tap inside the premesis turn off the hot water tap.

13
5.Operation
5.1 Controller Button Descriptions
1£Function of key
NO. Button Name Function
1
2
3
4
5
6
ON/OFF
Mode
Electric
Heater
Up
Down
Turn on/off the unit.
Switch unit running modes or save setting parameters.
Set the clock or the timer.
Turn on/off the electric heater or switch fan modes.
Move up or increase parameter values.
Move down or decrease parameter values.
Clock
1 2 3456
Main display
area
Auxiliary display
area
4.Installation
4.4 Cable connection
4.5 Trial running
The power cable is stored in the back of the unit, it's for power supply of the unit. The spec
of the cable is AWG12.
This unit requires an isolating switch as required by local by laws.
4.5.1 Inspection before trial running
Check the water supply to the tank and pipe connections for possible leaks.
Check that the following devices are installed and operating correctly
Drain pipes
P&T Valve
Filter on inlet
Water softening and pressure reducing devices if required
Check that all power connections are secure before switching on.
Check the installation space is adequate
4.5.2 Trial running
Switch on the unit using the controller£
In the case of any unusual noise, switch the power off and consult your provider;
If the power cord is damaged, It must be replaced by a qualified electrician.
The parameters have been pre set to a temperature of 55 degrees. Check that the unit is
operating by looking for an increase in water temperature over time.
13 14
4.4.2 Filling the tank
Open a hot water tap inside the house
Open the cold water inlet valve into the Evoheat 270 to fill the tank. When water begins
flowing out of the hot water tap inside the premesis turn off the hot water tap.

16
5.Operation
Outlet water temperature
Press " " and hold for 0.5s.
Water in the top
of the tank
Heating mode
Standby screen
Running screen

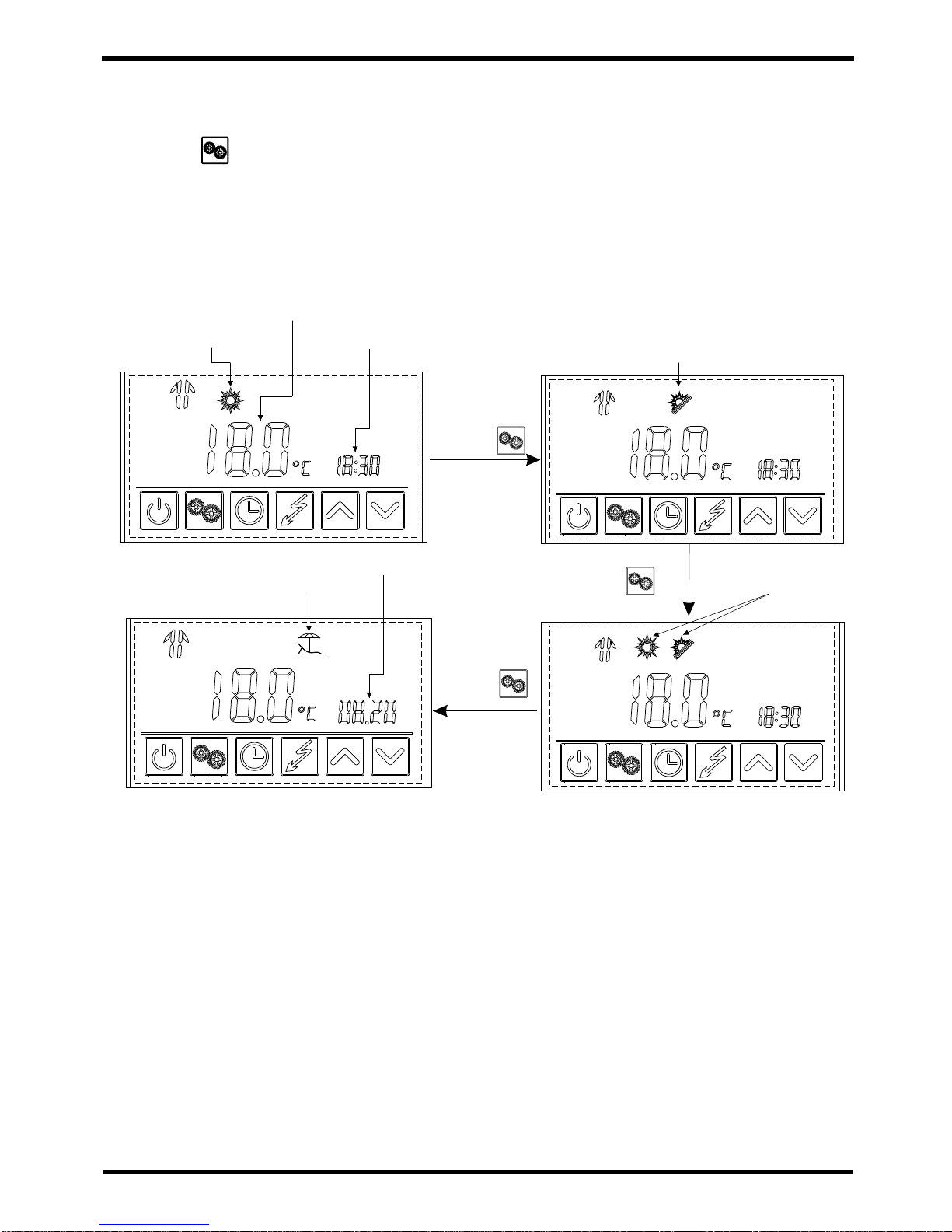

5.3 Turning the unit ON and OFF
Press " " and hold for 0.5s in the standby screen of the wire controller to turn on the
unit. The main display now shows the water outlet temperature.
Press " " and hold for in the running screen of the wire controller to turn off the
unit. OFF.
Note: The ON/OFF button can only be used to turn on/off the unit in standby or running
screen of the wire controller.
0.5s
The main display now shows
5.Operation
15
Hydroboost
heater
Fan
Shows that the Hydroboost electric heater is on.
Shows that the fan is on and the speed of the fan.
Set temperature
achieved Shows that the water temperature has reached the target
point and the unit shut off automatically.
Timer & ON
Timer & OFF Shows that the unit will be turned off by the timer
automatically.
Shows that the unit will be turned on by the timer
automatically.
Minute Shows that the main display area displays the minute.
Second Shows that the main display area displays the second.
Centigrade Shows that the temperature in Main display area orAuxiliary
display area is in celcius.
Fahrenheit Shows that the temperature in Main display area orAuxiliary
display area is in farenheight.
Parameter
setting Shows that the parameter is adjustable.
Lock Shows that the keyboard is locked.
5.2 Icon Descriptions
Status
icon What it means
Heating
Vacation
Shows that the unit is in heating mode.
Shows that the unit is in vacation mode.
heating.Eco
Temperature Shows that the temperature is
(measured value). non-adjustable
Shows that the unit is in cooling mode.
Cooling
Name
Shows that the unit is in e mode.co.heating

16
5.Operation
Outlet water temperature
Press " " and hold for 0.5s.
Water in the top
of the tank
Heating mode
Standby screen
Running screen
5.3 Turning the unit ON and OFF
Press " " and hold for 0.5s in the standby screen of the wire controller to turn on the
unit. The main display now shows the water outlet temperature.
Press " " and hold for in the running screen of the wire controller to turn off the
unit. OFF.
Note: The ON/OFF button can only be used to turn on/off the unit in standby or running
screen of the wire controller.
0.5s
The main display now shows
5.Operation
15
Hydroboost
heater
Fan
Shows that the Hydroboost electric heater is on.
Shows that the fan is on and the speed of the fan.
Set temperature
achieved Shows that the water temperature has reached the target
point and the unit shut off automatically.
Timer & ON
Timer & OFF Shows that the unit will be turned off by the timer
automatically.
Shows that the unit will be turned on by the timer
automatically.
Minute Shows that the main display area displays the minute.
Second Shows that the main display area displays the second.
Centigrade Shows that the temperature in Main display area orAuxiliary
display area is in celcius.
Fahrenheit Shows that the temperature in Main display area or Auxiliary
display area is in farenheight.
Parameter
setting Shows that the parameter is adjustable.
Lock Shows that the keyboard is locked.
5.2 Icon Descriptions
Status
icon What it means
Heating
Vacation
Shows that the unit is in heating mode.
Shows that the unit is in vacation mode.
heating.Eco
Temperature Shows that the temperature is
(measured value). non-adjustable
Shows that the unit is in cooling mode.
Cooling
Name
Shows that the unit is in e mode.co.heating

5.Operation
18
Outlet water temperature
Time Target temperature
¡ ¡
¡ ¡
Press or again to change
the target temperature.
Press
to confirm
or to
cancel, then
return to the
previous
interface.
Press once
to check the
target
temperature.
or
5.5 Target temperature checking and setting
In the standby or running interface, press " " or " " once to check the target temperature
of the outlet water. Press " " or " " again to change the target temperature.After making
the changes to the parameter, press " " to confirm or " " to cancel the changes, then
return to the previous interface. If no operations are performed on the keypad for 5s, the
controller exits the parameter modification menu by timeout and the changes are confirmed.
Example: Change the target temperature from 50deg to 55.5deg when the actual outlet water
temperature is 18deg.
5.6 Time setting
In the standby or running interface, do as follows to set the time when in heating mode. When
press " " once, the time parameter will flash. When press " " again, the hour parameter
will flash then press " " or " " to change it. After making the changes to the parameter,
press" " to confirm, then change the minute parameter as well as the date parameter in the
same way.
If no operations are performed on the keypad for 10s, the controller exits the parameter
modification menu by timeout and the changes are confirmed.
Note: Set the date in the same way when in vacation mode.
17
5.Operation
5.4 Mode selection
Press " " to select the mode from Heating ,Eco.heating , , Vacation in
standby or running Intelligent
Heating mode
Outlet water
temperature
Time Eco.heating mode
modeIntelligent
Press ¡
Vacation mode Date
Press¡ ¡
Press ¡
Mode Descriptions
Eco Mode
This mode does not use the Hydropower element boost and is the most economical mode.
Start with this mode initially and if you encounter water which is cold or warm switch to
Intelligent mode.
Intelligent Mode
This mode analyses ambient temperature at 10am each day and decides the best operating
mode from Eco or Heating.
Heating Mode
This mode uses the heat pump as the main heat source. The Hydroboost starts after a 40min
delay to give high recovery rates. Use this mode if you have very high hot water usage. The
Hydroboost start times and temps are all fully customisable.
You can also manually switch on the Hydroboost element at any time by pressing the
Hydroboost button on the controller.
Setting the timer to allow the unit to run for longer periods will also help to ensure you never
run out of hot water.
