EvoHeat CS-i Commercial Inverter Series Heat Pump
Contents
1. Introduction__________________________________________________________________________________ 2
2. Unit Dimensions ______________________________________________________________________________ 3
3. Safety Instructions_____________________________________________________________________________ 4
4. Installation ___________________________________________________________________________________ 5
4.1 System Installation _________________________________________________________________________ 5
4.2 Location Recommendations __________________________________________________________________ 6
4.3 Airflow Clearances__________________________________________________________________________ 6
4.4 Adequate Water Flow _______________________________________________________________________ 7
4.5 Rubber Feet _______________________________________________________________________________ 7
4.6 Drainage & Condensation ____________________________________________________________________ 7
4.7 Plumbing _________________________________________________________________________________ 7
4.8 Electrical Connection________________________________________________________________________ 8
4.9 Initial Start-up _____________________________________________________________________________ 8
5. Operation____________________________________________________________________________________ 9
5.1 Main Controller Interface ____________________________________________________________________ 9
5.2 Functions of the Controller ___________________________________________________________________ 9
5.2.1 Start-up & Shut-Down ___________________________________________________________________ 9
5.2.2 Switching Modes & Setting the Target Temperature ___________________________________________ 9
5.2.3 Clock Settings _________________________________________________________________________ 10
5.2.4 Silent Setting & Silent Timing _____________________________________________________________ 10
5.2.5 Fault History __________________________________________________________________________ 11
5.2.6 Colour Display Calibration _______________________________________________________________ 11
5.2.7 Temperature Curve ____________________________________________________________________ 11
5.2.8 Boost Mode __________________________________________________________________________ 11
6. Troubleshooting _____________________________________________________________________________ 12
6.1 Error Codes ______________________________________________________________________________ 14
7. Appendix ___________________________________________________________________________________ 16
7.1 Parameter List ____________________________________________________________________________ 16
7.2 Cable Specifications________________________________________________________________________ 16
7.3 Wiring Diagrams __________________________________________________________________________ 17
7.3.1 CS-i 65 _______________________________________________________________________________ 17
7.3.2 CS-i 130 ______________________________________________________________________________ 18
8. Maintenance ________________________________________________________________________________ 20
8.1 Energy Saving Tips _________________________________________________________________________ 20
9. Warranty ___________________________________________________________________________________ 21

2
EvoHeat CS-i Commercial Inverter Series Heat Pump

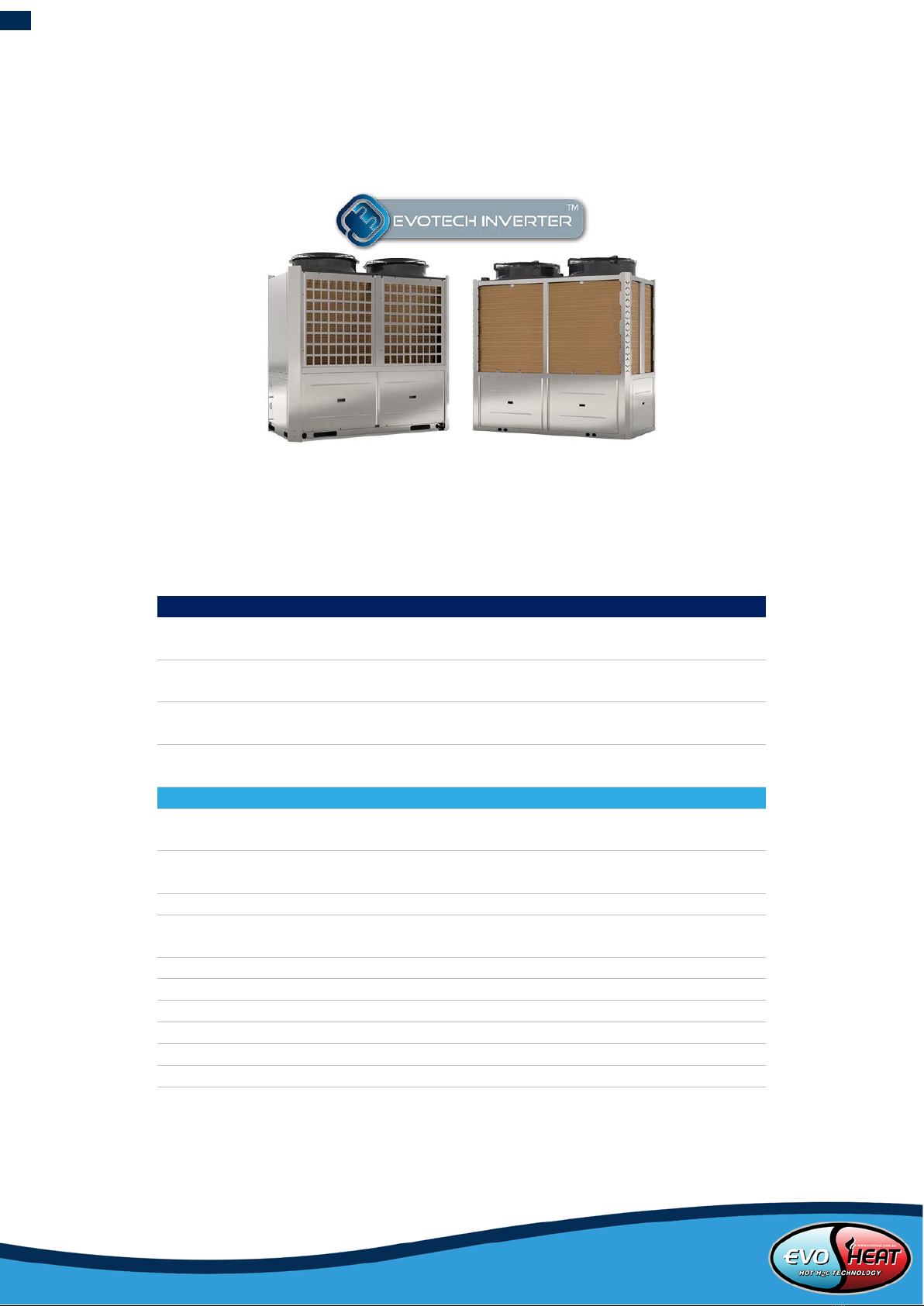

1. Introduction
This manual contains all the necessary information in regard to the installation, troubleshooting, operation and
maintenance of this unit. Ensure instructions in this manual are adhered to at all times. Failing to comply with these
recommendations will invalidate the warranty. This manual and all others are available for download on our website.
Engineered to meet the demands of any commercial application, the Evo CS-i is the most reliable and efficient way
to heat a commercial pool. Designed with the latest full inverter technology and exclusive smart features, the Evo
CS-i delivers reliable year round performance with the lowest running costs.
MODEL
EVO CS-i 65
EVO CS-i 130
Heat output at 27°C air 26°C
water (kW)
65 130
Heat output at 15°C air 26°C
water (kW)
50 100
Cooling output at 55°C air
35°C water (kW)
15 54
Cooling output at 45°C air
26°C water (kW)
30 73
C.O.P. AT 27°C AIR
16.10 - 6.10
16.00 - 6.20
POWER BOOST MODE AT 27
DEG AIR
80kW 175kW
Consumed power at 27 deg air
(kW)
0.76-10.65 1.76-20.97
Power supply
380-415/3/50
380-415/3/50
*Max running current AMPS
per phase
19.74 41
Compressor type
Mitsubishi DC
Mitsubishi DC
Refrigerant
R410A
R410A
PVC water connection (mm)
63
110
Water flow rate (L/min)
458
883
Noise dB(A) at 1M
47-62
59-64
Gross dimensions L/W/H (mm)
1865/945/1925
2290/1305/2270
Weight packed (kg)
400
700
*The data above is based on the EVO heat pump only, it does not include auxiliary devices. Product specification information provided above is
correct at the date ofprinting, this data may change without notice. Please speak with an EvoHeat Specialist for the most current product
specifications.

3
EvoHeat CS-i Commercial Inverter Series Heat Pump
2. Unit Dimensions
Evo CS-i 65 unit:mm
Evo CS-i 130
A (L)
B (W)
C (H)
Water inlet/outlet
CS-i 65
1750mm
830mm
1750mm
Ø50
CS-i 130
2260mm
1160mm
2127mm
100mm flange

4
EvoHeat CS-i Commercial Inverter Series Heat Pump
3. Safety Instructions
•Installation, repair or relocations must be done by a fully qualified person and not by the customer. If done
incorrectly it may cause fire, electric shock, water leakage and other hazards.
•Maintenance and operation must be carried out according to the recommended time and frequencies, as
stated in this manual.
•To avoid risk of electrical shock, the unit must have a good power connection and earthing.
•If the supply cord is damaged, it must be replaced.
•Use genuine standard spare parts only.
•When an abnormality (smell of burning, etc.) occurs, stop the unit and disconnect the power or turn off the
breaker. If the unit continues to be operated in an abnormal condition, it may cause a fire or hazards.
•Do not insert fingers or objects into the fans or evaporator of the unit.
•The unit is equipped with an over-load protection system. After a previous stoppage, the unit will not start
for at least 3 minutes.
•For unit cleaning or maintenance, switch off and disconnect the power of the unit.
•Do not install the unit near flammable gas or spray flammable substances near it.
•Ensure the heat pump is installed on a strong and stable platform.
•A circuit breaker must be installed for the unit.
•Use supply wires suitable for 75°C
•The appliance must be fitted with means for disconnection from the supply mains having a contact
separation in all poles that provides full disconnection under overvoltage category III conditions, these
means must be incorporated in the fixed wiring in accordance with the wiring rules.
•An all-pole disconnection switch having a contact separation of at least 3mm in all poles should be
connected in fixed wiring.
•Directive 2002/95/EC (RoHs): This product is compliant with directive 2002/95/EC (RoHs) concerning
restrictions for the use of harmful substances in electric and electronic devices
* Caution: Single wall heat exchanger, not suitable for potable water connection.

5
EvoHeat CS-i Commercial Inverter Series Heat Pump
4. Installation
4.1 System Installation
I

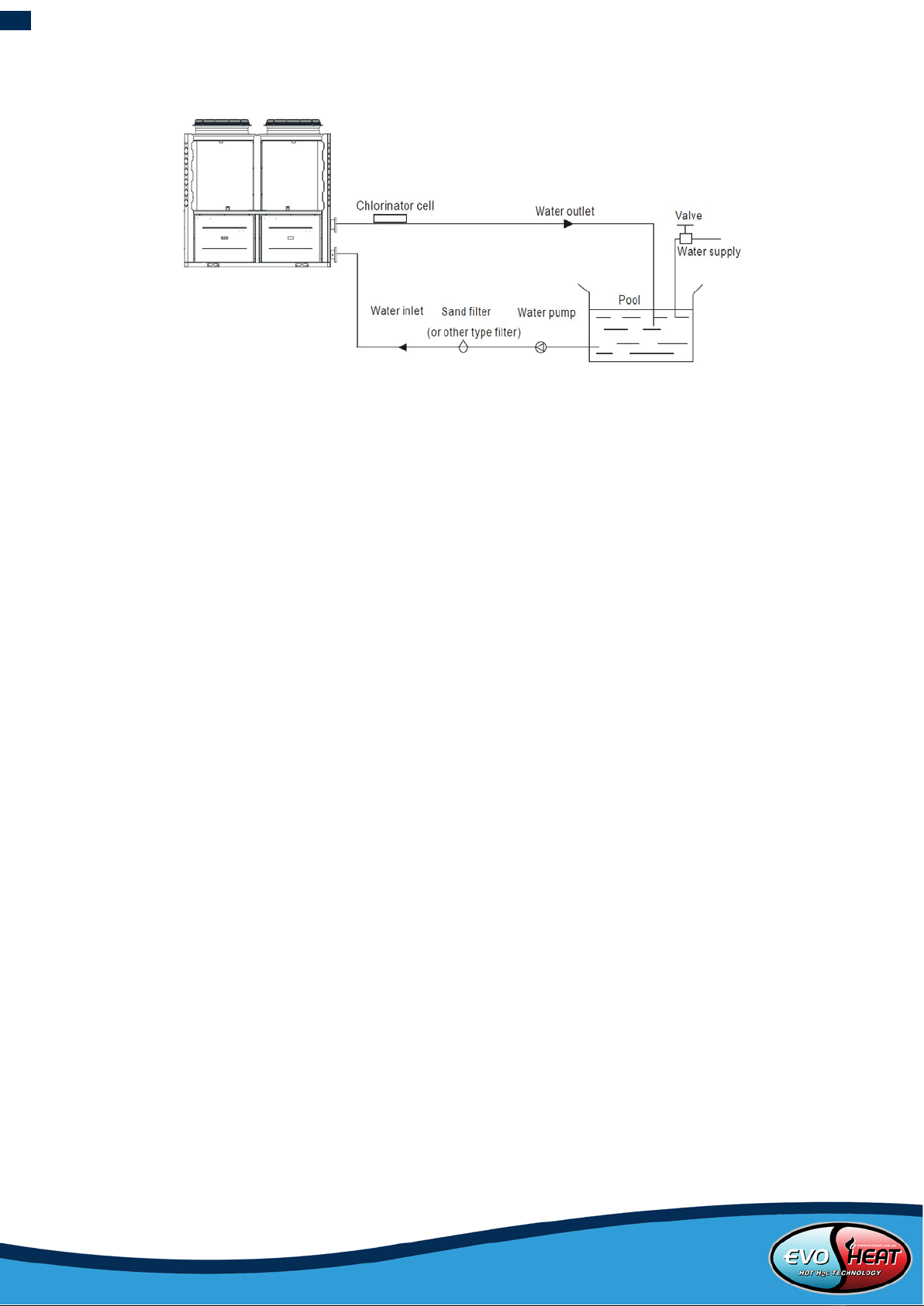

The schematic diagram is for reference only. Please check the water inlet/outlet label on the heat pump while
plumbing the unit.
INSTALLATION ITEMS
EvoHeat only provide the main EvoHeat unit and EvoHeat accessories; other items in the illustration above should be
provided by the user or the installer.
EVOHEAT ACCESSORIES – DO NOT THROW AWAY
All EvoHeat units are provided with rubber feet, controller and leads for the controller– do not throw them away as
they are required as part of the installation.
CHECK HEATER CONDITION ON ARRIVAL
Check the heater packaging upon delivery for any obvious signs of damage. Inform your supplier IMMEDIATELY if
there is any evidence of rough handling. When the heater has been removed from the packaging check the
refrigerant gauge on the front panel of the unit. The gauge should be showing a pressure of approx 10-20 on the
outside red band – any less than this figure means there may be a leak in the refrigerant system, and you should
immediately contact your EvoHeat Dealer.
General installation information disclaimer: Install your EVOHEAT heat pump in accordance with the procedures in
the product manual. Always check that your installation will comply with local building and council regulations.
IMPORTANT: EvoHeat heat pumps MUST be connected by a licensed electrician. Under no circumstances should an
unlicensed person attempt to install or repair an EvoHeat heat pump themselves. Heater electrical installation
undertaken by an unlicensed installer will void the warranty. Correct installation is required to ensure safe and
efficient operation of your pool heater.
Before installation it is very important to ensure 5 variables are carefully checked to allow the unit to operate
correctly.
•Location
•Clearances & Air Flow
•Adequate water flow & plumbing
•Correct electrical connection & supply

6
EvoHeat CS-i Commercial Inverter Series Heat Pump
4.2 Location Recommendations
Installation and service must be performed by a qualified installer.
Evo recommend the heat pump should be installed in an outdoor location with appropriate ventilation. Installing the
heater indoors without adequate ventilation, or in a poorly ventilated enclosed space, will result in very poor
performance and can, in extreme cases, damage the heater. Ensure the heater is installed in a well-ventilated area
with plenty of fresh air.
Evo recommend the heat pump should ONLY be installed in a location with appropriate ventilation.
If installing the heater on an existing pump/filtration system, the heater must be installed AFTER the filter and
BEFORE the chlorinator/sanitizer.
The heat pump should be installed on a flat level surface as close as possible to the pool.
The Evo pool heat pump should be installed with a minimum clearance of at least 3.5m to the water’s edge.
Furthermore, EvoHeat recommend installing the heat pump no greater than 7.5 meters away from the water’s edge
due to heat loss from the piping.
A rough estimate of heat loss over a 30m pipe run can be as high as 600 Watts per hour per 5 degrees of
temperature difference between the air/ground and the pool water. These losses need to be taken into account over
long distances and piping may need to be insulated to reduce heat leakage.
The heat pump should be installed a maximum of 5m below the water level of the pool/spa. If further than 5M
please discuss with your EvoHeat specialist for the best advice.
Make sure the heat pump is not located where large amounts of water may run-off from a roof into the unit. Sharp
sloping roofs without gutters will allow excessive amounts of rainwater mixed with debris from the roof to be forced
through the unit. A water deflector may be needed to protect the heat pump.
4.3 Airflow Clearances
The heat pump unit needs continuous fresh air
whilst running. The heater draws up to 47000 m3/h
ambient air through the sides and discharges
through the top fan cowl.
Installing the heater indoors or in an enclosed
space will result in very poor performance and can
in extreme cases damage the heater. Ensure the
heater is installed in a well-ventilated area with
plenty of fresh air, a minimum gap between
walls/fences etc of 1000mm on the sides and
3500mm overhead clearance.
When units of a similar height are placed side by
side, EvoHeat recommend a 1500mm clearance between units.
*Fan discharge distance can be reduced by adding a Plenum to alter the air flow direction. Contact EvoHeat or a
HVAC specialist for further advice. If you do not have a location with these suggested clearances, please contact our
EvoHeat Tech Support Specialist to discuss appropriate installation locations.
Leave sufficient space for unobstructed airflow into and out of the heater. Do not locate the heater in an enclosed
area, or the discharged cold air will recirculate into the unit and consequently lower the heating efficiency as well as
possible icing up.

7
EvoHeat CS-i Commercial Inverter Series Heat Pump
4.4 Adequate Water Flow
All EVOHEAT heat pumps have a factory preset internal water flow switch. If there is insufficient water flow the
heater will not operate.
It is CRITICAL that there is sufficient water flow to the unit. Incorrect water flow can cause a loss of efficiency and
possible damage to the unit. Optimal water flow rates are listed in the EvoHeat manual. It is imperative that water
flow is kept as close as possible to these flow rates. Correct water flow not only offers optimal heater performance,
but may also prevent possible damage to your heater.
Before connecting the heater to the plumbing, all piping must be thoroughly flushed to ensure no debris can enter
the heater. Failure to remove pipe debris can jam or damage the flow switch and may cause damage to the heater.
When cleaning the pool it is advisable to turn off your heater as restricted water flow may cause the heater to shut
down and indicate low water flow fault (E03 error) or high pressure fault (E01 Error).
IMPORTANT: A Variable speed pump or bypass valve and plumbing MUST be fitted to allow water flow to be
adjusted through the heater. Do not direct connect a water pump with higher flow than required to the heat
pump.
4.5 Rubber Feet
All EvoHeat units are provided with rubber feet which EvoHeat highly recommend being installed. The rubber feet
help reduce vibration of the unit and help provide a space below the heat pump to install the drainage barbs.
4.6 Drainage & Condensation
Whilst the heater is operating, water in the air condenses on the fins of the evaporator. During times of high
humidity, the condensate may be several litres per hour. This may give the impression that the heater is leaking,
however this is a normal function of heat pumps. The heat pump can also automatically activate the reverse cycle
defrost feature when required which increases condensation produced.
Ensure CS series heat pumps are installed level so condensate is not allowed to pool at one end of the condensate
tray!
Removal of condensation can be achieved via the installation of a condensate pan or by plumbing to a waste
water drain. If plumbing, EvoHeat recommend raising the heat pump of the ground approximately 100mm to
allow enough space to connect the condensate lines under the heat pump together, then drain to a wastewater
drain.
4.7 Plumbing
The Swimming Pool Heat Pumps exclusive rated flow titanium heat exchanger requires no special plumbing
arrangements except bypass (please set the flow rate according to the nameplate). The water pressure drop is less
than 10kPa at max.
Flow rate: Since there is no residual heat or flame
Temperatures, the unit does not need copper heat sink
piping. PVC pipe can be run straight into the unit.
Location: Connect the unit in the pool pump discharge
(return) line downstream of all filter and pool pumps, and
upstream of any chlorinators, ozonators or chemical pumps.
The CS-i65 comes supplied with barrel unions for the
Inlet/Outlet connections which accepts 50mm PVC pipe.
The CS-i130 has 100mm PVC flange connections for the Inlet/Outlet connections.
Give serious consideration to adding a quick coupler fitting at the unit inlet and outlet to allow easy draining of unit
for winterizing and to provide easier access should servicing be required.

8
EvoHeat CS-i Commercial Inverter Series Heat Pump
4.8 Electrical Connection
IMPORTANT: Always use a qualified Electrician to perform any electrical work. A licensed electrician must read the
information before connecting.
Ensure the power cable and circuit breaker are of a suitable size for the heater being installed. Also check that there
is adequate voltage and current available at the heater connection to run the unit.
Voltage range should be 220-230 volts for single phase, and 380-400 volts for 3 phase units. Voltage ranges outside
these parameters will cause heater damage and void your warranty.
1. Ensure power is disconnected during installation or service.
2. Always comply with the national and local electrical codes and standards.
3. Ensure electrical cable size is adequate for heater requirements at the installation location.
4. The heater must be equipped with a circuit breaker and isolation device.
5. Circuit breaker must be installed between the heater and the water circulation pump if the water pump is
hard-wired into the heater. Please note recommended circuit breaker sizes make no allowance for a water
pump hard wired into the heater.
6. The unit must be well earthed. Remove the front panel to access the electrical connection terminals of the
heater. The electrical wiring diagram is affixed to the inside of the front panel.
4.9 Initial Start-up
Note: in order for the unit to heat the pool or spa, the filter pump must be running to circulate water through the heat exchanger.
After installation is completed, follow the steps below:
1. Turn on your filter pump. Check for water leaks and verify flow to and from the pool.
2. Turn on the electrical power supply to the unit, then press the key ON/OFF of wire controller, it should start after
several seconds.
3. After running a few minutes make sure the air leaving the top of the unit is cooler (between 5-10 ℃)
4. With the unit operating turn the filter pump off. The unit should also turn off automatically.
5. Allow the unit and pool pump to run 24 hours per day until desired pool water temperature is reached. (Note:
this may take up to several days depending on the initial water temperature and the size and location of the
pool). When the water-in temperature reaches the set temperature the unit will shut off. The unit will now
automatically restart (as long as your pool pump is running) when the pool temperature drops more than 1℃
below the set temperature.
TIME DELAY
The unit is equipped with a 3-minute built-in solid-state restart delay included to protect control circuit components
and to eliminate restart cycling and contactor chatter. This time delay will automatically restart the unit
approximately 3 minutes after each control circuit interruption. Even a brief power interruption will activate the
solid state 3-minute restart delay and prevent the unit from starting until the 5-minute countdown is completed.
Power interruptions during the delay period will have no effect on the 3-minute countdown.

9
EvoHeat CS-i Commercial Inverter Series Heat Pump
5. Operation
Scan the QR Code or head to our YouTube channel for step by step videos.
https://www.youtube.com/evoheat
5.1 Main Controller Interface
Number
Name
Button Function
1
ON/OFF
Press to turn the unit on or off.
2
Parameter
Press to view the unit state and the parameter.
3 CLOCK Press to set the clock, the timer on or off. When the timer is in use, the
button will be green.
4
Fault Display
Click to view fault history.
5
Silent Setting
Click to turn on/off the silent function and to set timing Low speed function.
6
MODE
Click to enter mode setting and the target temperature interface.
7
Temperature Curve
Click to view the temperature and power curve.
8
Water Inlet
Temperature
Press to enter mode setting and the target temperature interface.
9 LOCK
Click to lock the screen. To unlock, press this button again and enter the
code “22”.
5.2 Functions of the Controller
5.2.1 Start-up & Shut-Down
To turn the unit on or off, press the power button symbol (1).
5.2.2 Switching Modes & Setting the Target Temperature
In the main interface, click the mode (6) button or inlet water
temperature setting button (8) to get the following menu:
Choose from the modes: refrigeration mode (1), automatic mode
(2) or heating mode (3).
Note: When the unit is designed for single automatic mode or single
thermal mode, the mode cannot be switched.
From this screen, pressing the temperature (4) will allow you to
adjust it as desired.

10
EvoHeat CS-i Commercial Inverter Series Heat Pump
5.2.3 Clock Settings
After clicking the Clock button, a menu will appear where you can choose to adjust either Time or Timer settings.
Setting the Date & Time
Click the value you wish to change to set the time directly. Press confirm to save the settings.
For example, if the setup time were 23/11/2016 at 1:00pm; you would input: 23-11-16 13:00:00. Be aware that if the
input format is incorrect, pressing the confirm button will save the wrong time.
Timer Settings
No.
Name
Button Colour
Function
1 Timing Start Button
Start: Green
End: Grey
Click this button to start or end the timing start setting function
2
Timing On Setting
Click to set the start time of the timer.
3 Timing End Button
Open: Red
End: Grey
Click this button to start or end the timing end setting function.
4
Timing Off Setting
Click to set the end timer of the timer.
When the timer is on, the clock button will be green on the main interface.
5.2.4 Silent Setting & Silent Timing
Pressing the silent button (5) from the main menu will bring up the silent settings. Press the left-hand fan symbol to
enable silent mode. To exit silent mode, follow the steps and press the button again.
Pressing the alarm clock symbol will display the screen shown above on the right.

11
EvoHeat CS-i Commercial Inverter Series Heat Pump
No.
Name
Colour
Function
1
Timing silent off
Used: Red
Unused: Grey
Click to use or unused timing off function
2
Timing silent on
Used: Green
Unused: Grey
Click to use or unused timing silent function
3
Timing silent start time
Click this button to set the timing silent start time
4
Timing silent end time
Click this button to set the timing silent end time
The start and end time values me be within the range of 0:00 – 23:00; the value can be precise to the hour digit.
Example: Click ‘ON’ to use timing silent. The unit will begin silent mode from 0:00 and end at 4:00. Click ‘OFF’ to turn
off the timing silent manually, however the unit will turn off this setting once it reaches the end time.

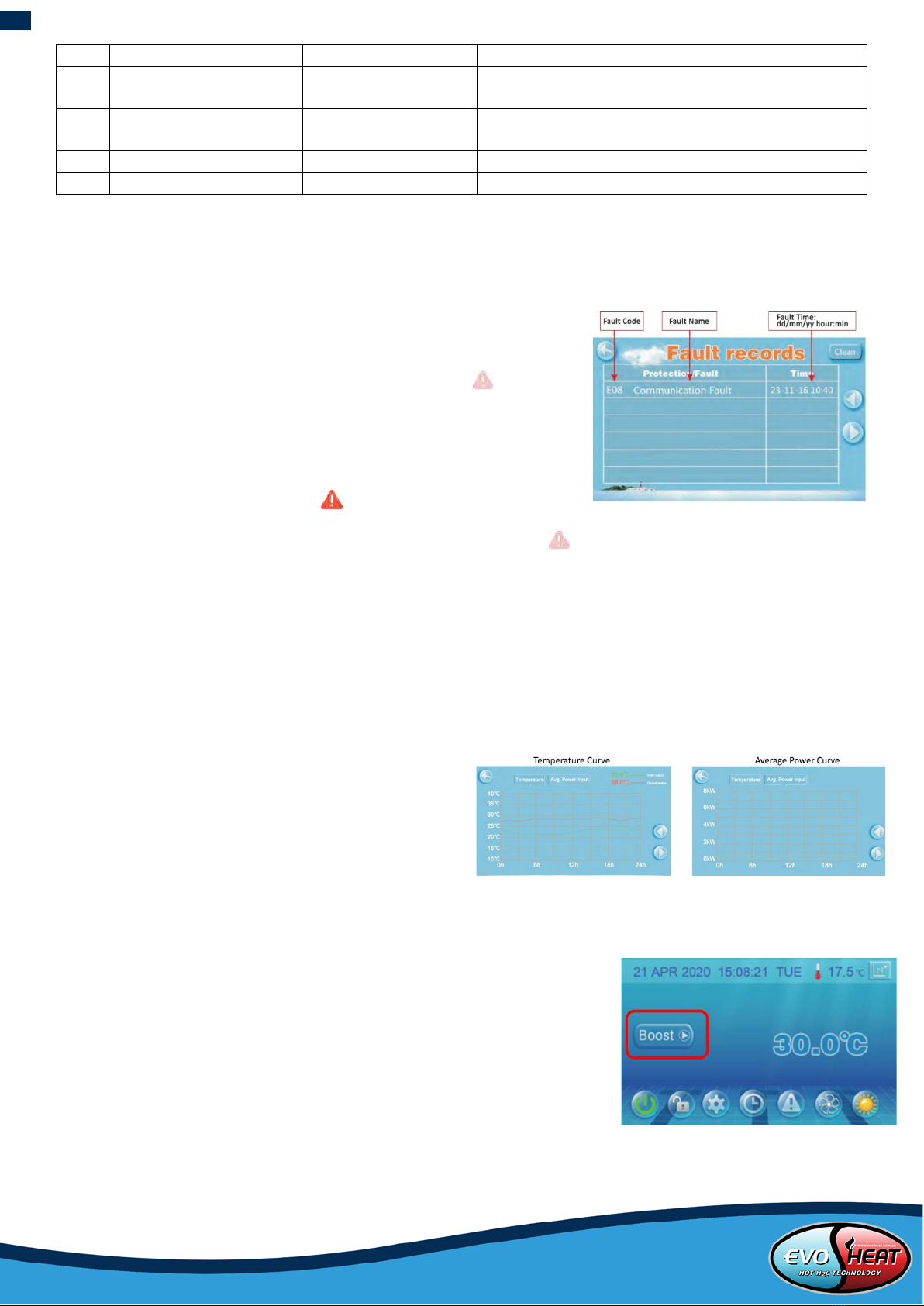

5.2.5 Fault History
To view the fault records, press (4).
If there is no failure, the main interface will display a static “ ”
When a fault occurs, the fault icon will flash. When this occurs, the failure
interface will record the time, code and name of the fault.
After troubleshooting, if you do not check the failure record, the main
interface will display a static symbol: “ “
If you check the failure record, the main interface will display a static: “ ”
The failure record is in reverse order according to the time of occurrence. Press the clean key to delete all fault
records.
5.2.6 Colour Display Calibration
Keep clicking quickly on the blank area at any interface until you hear a long beep. You will then enter the calibration
interface. Click “+” to start calibration. When you hear the beep again, you will finish calibration and exit.
Note: The wire controller can display the temperature unit as ‘°F’ or ‘°C’ according to the model you bought.
5.2.7 Temperature Curve
Press the TEMP CURVE (7) button to view the
temperature curve & average power curve.
The temperature curve automatically updates every hour
and will be stored for 60 days.
If the unit is powered off after less than 1 hour of operation, the data in this period will not be saved.
5.2.8 Boost Mode
The CSi system is capable of operating in high output Boost mode to assist in
reaching the desired target temperature faster.
You can activate boost mode by simply pressing the “Boost” button in the
display.
When the target water temperature is reached, the system will automatically
deactivate Boost mode and retrain to normal operation.
Alternatively, Boost mode can be manually deactivated by simply pressing the
“Boost” button again to turn it off.

12
EvoHeat CS-i Commercial Inverter Series Heat Pump
6. Troubleshooting
EvoHeat have developed a YouTube Channel where you will find useful videos - from setting up
your timers to setting up the EvoHeat app. View it to see resolutions to some of our most asked,
yet easily solved questions: https://www.youtube.com/channel/UCfYiOxHuybBuC1NZcqUnrcA
IF YOUR HEAT PUMP ISN’T WORKING, CHECK THE FOLLOWING…
• Is the screen of control panel lit?
If not, make sure the electrical wires and cables are correctly connected and the power is on. Ensure any circuit
breaker devices are set to the ON position and press the ON button on your controller. Check your controller cable is
plugged in and is not damaged. If the unit has been shut off or the power has been interrupted the heater will not
restart for a 5-minute period to protect the compressor. Wait 5 minutes before attempting a restart.
• Is there enough water flow?
If the screen displays a water flow related error check the water flow. Is the water pump in operation and the system
free of debris that may cause a blockage? Disconnect pool cleaners to ensure proper water flow.
• Is the current pool/spa water temperature higher than the set temperature on the controller?
If so the unit will not operate until the pool/spa water temperature falls below the set temperature on the
controller.
• Is your heat pump set to run at the correct time and date?
Please check your current timing or temperature modes on your controller – you may have programmed the unit to
turn on at a different time.
• Does your heat pump have an error message on the screen?
If yes, refer to the error code table 19.
IF YOUR HEAT PUMP IS RUNNING BUT NO HEATING, CHECK THE FOLLOWING…
• Is the fan functioning?
If not contact EvoHeat tech support on 1300 859 933
• Is the air discharged from the top of the fan noticeably cooler than the ambient temperature?
If not, check the refrigerant gauge on the bottom panel of the heater. Another way to determine if the heater is
working correctly is to look at the controller’s screen and check to see if the WATER OUT temp is higher than the
WATER IN temp. Check also the INLET WATER TEMP is lower than the HEAT TEMP set point.
If the gauge shows less than 0.8MPA contact EvoHeat tech support to check the refrigerant system.

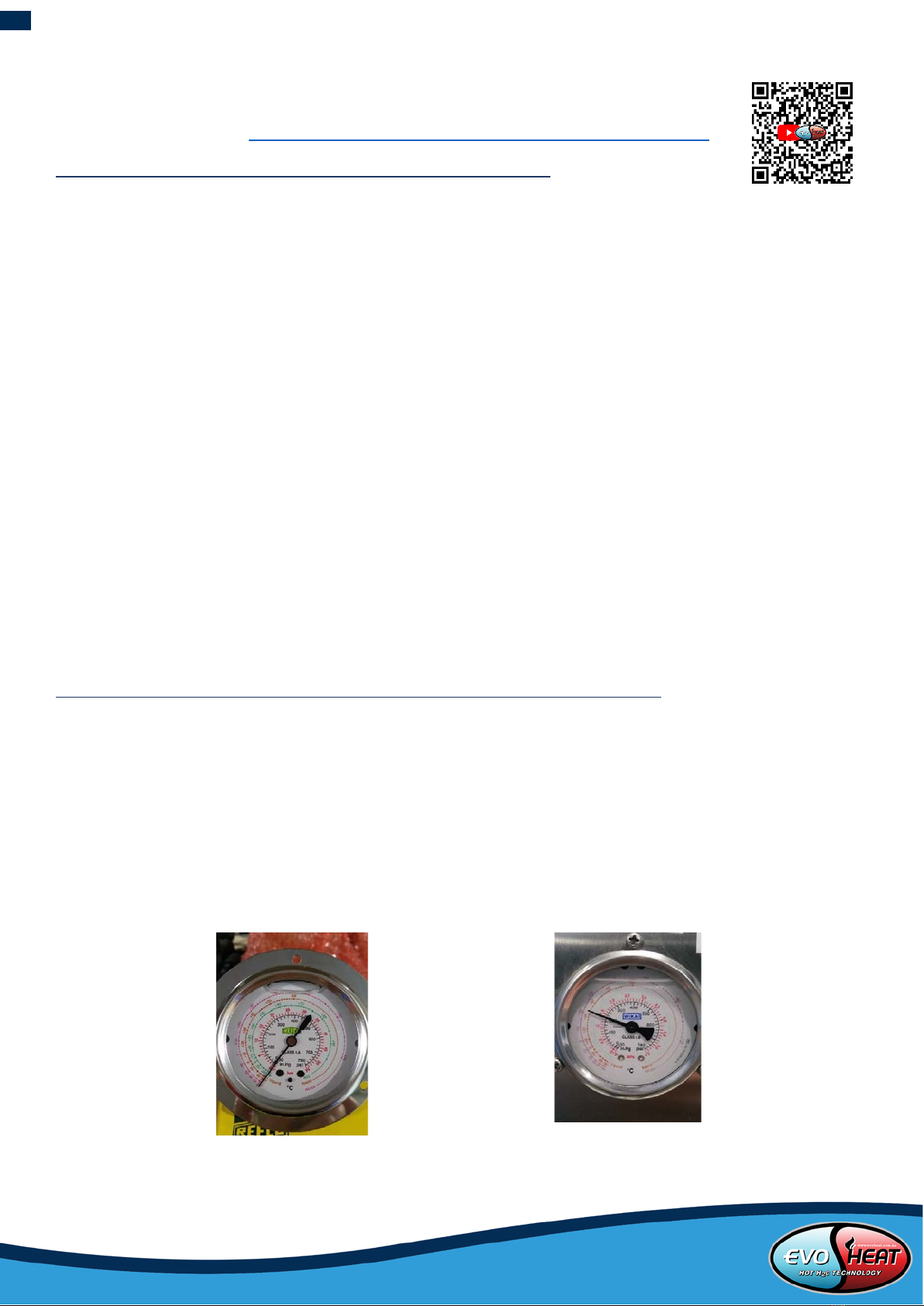

Example of empty (loss of refrigerant)
Example of normal
(Note: can vary based on ambient
temperature)

13
EvoHeat CS-i Commercial Inverter Series Heat Pump
Ensure sufficient fresh airflow around the unit as per installation instructions.
Make sure cold air discharged does not recycle back through the heater. Check the condenser fins. If they are dirty
or blocked use a low flow garden hose only (Pressurised water may cause damage to the heater).
• The unit will periodically defrost when the ambient air temperature is lower than 8 degrees C.
IF YOUR HEAT PUMP IS RUNNING CONTINUOUSLY, CHECK THE FOLLOWING…
• Check the set temperature is at your desired level and that the pool water temperature is at or below this set
point.
• Alternatively, this could be a possible electrical component failure – contact EvoHeat tech support on 1300 859 933
IF YOUR HEAT PUMP HAS WATER APPEARING AROUND THE BASE OF THE UNIT, CHECK THE
FOLLOWING…
The water appearing around the base of your heat pump could be condensation or a possible water leak. To
determine, check the following:
• Check the discharge for the presence of chlorine.
If the water has no chlorine then it is condensation and is it normal – see drainage and condensation for more
information. If the water has chlorine, it is a water leak and you need to contact EvoHeat tech support on 1300 859
933. Or…
• Turn the heater off and run the water pump continuously for a period of 2-4 hours.
If the water dries out, then it was condensation – see drainage and condensation for more information. If there is a
continuous leak contact EvoHeat tech support on 1300 859 933.
DRAINAGE & CONDENSATION
Whilst the heater is operating, water in the air condenses on the fins of the evaporator. In the instance of high
humidity, the condensate may be several litres per hour. This may give the impression that the heater is leaking,
however this is a normal function of heat pumps.
The heater will automatically activate reverse cycle or de-icing mode when required which also increases condensate
discharge. This normally occurs at temperatures below 8°C. The condensate water will discharge through the base of
the heater. As an option a pipe can be connected to the drain on the base of the unit to direct condensate water to
an appropriate location.
NOTE: A quick way to verify that the water is condensation is to shut off the unit and keep the pool pump running. If
the water stops running out of the basepan, it is condensation. AN EVEN QUICKER WAY IS to TEST THE DRAIN WATER
FOR CHLORINE – if the is no chlorine present, then it’s condensation.

14
EvoHeat CS-i Commercial Inverter Series Heat Pump
6.1 Error Codes
Electronic Control Fault Table
Protect/fault
Fault
display
Reason Elimination methods
Inlet Temp. Sensor Fault
P01
The temp. Sensor is broken or short circuit
Check or change the temp. Sensor
Outlet Temp. Sensor Fault
P02
The temp. Sensor is broken or short circuit
Check or change the temp. Sensor
Ambient Temp. Sensor Fault
P04
The temp. Sensor is broken or short circuit
Check or change the temp. Sensor
Coil 1 Temp. Sensor Fault
P05
The temp. Sensor is broken or short circuit
Check or change the temp. Sensor
Coil 2 Temp. Sensor Fault
P15
The temp. Sensor is broken or short circuit
Check or change the temp. Sensor
Suction Temp. Sensor Fault
P07
The temp. Sensor is broken or short circuit
Check or change the temp. Sensor
Discharge Temp. Sensor Fault
P081
The temp. Sensor is broken or short circuit
Check or change the temp. Sensor
Exhaust Air over Temp Prot. P082 The compressor is overload
Check whether the system of the
compressor running normally
Antifreeze Temp. Sensor Fault P09
Antifreeze temp sensor is broken or short
circuited
check and replace this temp sensor
Pressure sensor Fault PP The pressure Sensor is broken
Check or change the pressure Sensor
or pressure
High Pressure Prot. E01 The high-pressure switch is broken
Check the pressure switch and cold
circuit
Low Pressure Prot. E02 Low pressure1 protection
Check the pressure switch and cold
circuit
Flow Switch Prot. E03 No water/little water in water system
Check the pipe water flow and water
pump
Waterway Anti-freezing Prot.
E05
Water temp. or ambient temp. is too low
Inlet and outlet temp. too big E06 Water flow is not enough and low
differential pressure
Check the pipe water flow and
whether water system is jammed or
not
Anti-freezing Prot. E07 Water flow is not enough
Check the pipe water flow and
whether water system is jammed or
not
Primary Anti-freezing Prot.
E19
The ambient temp. Is low
Secondary Anti-freezing Prot.
E29
The ambient temp. Is low
Comp. Overcurrent Prot. E051 The compressor is overload
Check whether the system of the
compressor running normally
Communication Fault E08 Communication failure between wire
controller and mainboard
Check the wire connection between
remote wire controller and main
board
Communication Fault (speed
control module)
E081
Speed control module and main board
communication fail
Check the communication
connection
Low AT Protection
TP
Ambient temp is too low
EC fan feedback Fault F051
There is something wrong with fan motor
and fan motor stops running
Check whether fan motor is broken
or locked or not
Fan Motor1 Fault F031
1. Motor is in locked-rotor state
2. The wire connection between DC-fan
motor module and fan motor is in bad
contact
1. Change a new fan motor
2. Check the wire connection and
make sure they are in good contact
Fan Motor2 Fault
F032
1. Motor is in locked-rotor state
2. The wire connection between DC-fan
motor module and fan motor is in bad
contact
1. Change a new fan motor
2. Check the wire connection and
make sure they are in good contact

15
EvoHeat CS-i Commercial Inverter Series Heat Pump
Frequency Conversion Board Fault Table
Protect/fault
Fault
display
Reason Elimination methods
Drv1 MOP alarm
F01 MOP drive alarm Recovery after the 150s
Inverter offline
F02
Frequency conversion board and
main board communication failure
Check the communication connection
IPM protection
F03 IPM modular protection Recovery after the 150s
Comp. Driver Failure
F04
Lack of phase, step or drive
hardware damage
Check the measuring voltage check
frequency conversion board hardware
DC Fan Fault F05
Motor current feedback open circuit
or short circuit
Check whether current return wires
connected motor
IPM Overcurrent
F06 IPM Input current is large Check and adjust the current measurement
Inv. DC Overvoltage
F07
DC bus voltage>Dc bus over-voltage
protection value
Check the input voltage measurement
Inv. DC Less voltage
F08
DC bus voltage<Dc bus over-voltage
protection value
Check the input voltage measurement
Inv. Input Less volt.
F09
The input voltage is low, causing
the input current is high
Check the input voltage measurement
Inv. Input Overvolt. F10
The input voltage is too high,
more than outage protection
current RMS
Check the input voltage measurement
Inv. Sampling Volt.
F11 The input voltage sampling fault Check and adjust the current measurement
Comm. Err DSP-PFC
F12 DSP and PFC connect fault Check the communication connection
Input Over Cur.
F26 The equipment load is too large
PFC fault
F27 The PFC circuit protection
Check the PFC switch tube short circuit or
not
IPM Overheating F15 The IPM module is overheat Check and adjust the current measurement
Weak Magnetic Warn F16
Compressor magnetic force is not
enough
Inv. Input Out Phase F17 The input voltage lost phase Check and measure the voltage adjustment
IPM Sampling Cur. F18 IPM sampling electricity is fault Check and adjust the current measurement
Inv. Temp. Probe Fail F19 Sensor is short circuit or open circuit Inspect and replace the sensor
Inverter Overheating F20
The transducer is overheat
Check and adjust the current measurement
Inv. Overheating Warn F22 Transducer temperature is too high Check and adjust the current measurement
Comp. Over Cur. Warn F23
Compressor electricity is large The compressor over-current protection
Input Over Cur. Warn F24
Input current is too large
Check and adjust the current measurement
EEPROM Error Warn F25 MCU error
Check whether the chip is damaged Replace
the chip
V15V over/undervoltage
fault
F28
The V15V is overload or
undervoltage
Check the V15V input voltage in range
13.5v~16.5v or not

16
EvoHeat CS-i Commercial Inverter Series Heat Pump
7. Appendix
7.1 Parameter List
Meaning
Default
Remarks
Refrigeration target temperature set point
27°C
Adjustable
Heating the target temperature set point
27°C
Adjustable
Automatic target temperature set point
27°C
Adjustable
7.2 Cable Specifications
Single Phase Unit
Nameplate maximum
current
Phase line
Earth line
MCB
Creepage Protector
Signal Line
No more than 10A
2 x 1.5mm2
1.5mm2
20A
30mA less than 0.1 sec
n x 0.5mm2
10~16A
2 x 2.5mm2
2.5mm2
32A
30mA less than 0.1 sec
16~25A
2 x 4mm2
4mm2
40A
30mA less than 0.1 sec
25~32A
2 x 6mm2
6mm2
40A
30mA less than 0.1 sec
32~40A
2 x 10mm2
10mm2
63A
30mA less than 0.1 sec
40~63A
2 x 16mm2
16mm2
80A
30mA less than 0.1 sec
63~75A
2 x 25mm2
25mm2
100A
30mA less than 0.1 sec
75~101A
2 x 25mm2
25mm2
125A
30mA less than 0.1 sec
101~123A
2 x 35mm2
35mm2
160A
30mA less than 0.1 sec
123~148A
2 x 50mm2
50mm2
225A
30mA less than 0.1 sec
148~186A
2 x 70mm2
70mm2
250A
30mA less than 0.1 sec
186~224A
2 x 95mm2
95mm2
280A
30mA less than 0.1 sec
Three Phase Unit
Nameplate maximum
current
Phase line
Earth line
MCB
Creepage Protector
Signal Line
No more than 10A
3 x 1.5mm2
1.5mm2
20A
30mA less than 0.1 sec
n x 0.5mm2
10~16A
3 x 2.5mm2
2.5mm2
32A
30mA less than 0.1 sec
16~25A
3 x 4mm2
4mm2
40A
30mA less than 0.1 sec
25~32A
3 x 6mm2
6mm2
40A
30mA less than 0.1 sec
32~40A
3 x 10mm2
10mm2
63A
30mA less than 0.1 sec
40~63A
3 x 16mm2
16mm2
80A
30mA less than 0.1 sec
63~75A
3 x 25mm2
25mm2
100A
30mA less than 0.1 sec
75~101A
3 x 25mm2
25mm2
125A
30mA less than 0.1 sec
101~123A
3 x 35mm2
35mm2
160A
30mA less than 0.1 sec
123~148A
3 x 50mm2
50mm2
225A
30mA less than 0.1 sec
148~186A
3 x 70mm2
70mm2
250A
30mA less than 0.1 sec
186~224A
3 x 95mm2
95mm2
280A
30mA less than 0.1 sec
If the unit is to be installed outdoors, ensure that a UV resistant cable is used.

17
EvoHeat CS-i Commercial Inverter Series Heat Pump
7.3 Wiring Diagrams
7.3.1 CS-i 65

18
EvoHeat CS-i Commercial Inverter Series Heat Pump
7.3.2 CS-i 130

19
EvoHeat CS-i Commercial Inverter Series Heat Pump
Number
Sign
Meaning
01
OUT1
Compressor (output 220-230VAC)
02
OUT2
Water pump (output 220-230VAC)
03
OUT3
4-way valve (output 220-230VAC)
04
OUT4
High speed of fan (output 220-230VAC)
05
OUT5
Low speed of fan (output 220-230VAC)
06
AC-L
Live wire (input 220-230VAC)
07
AC-N
Neutral wire (input 220-230VAC)
08
AI/DI01
Emergency switch (input)
09
AI/DI02
Water flow switch (input)
10
AI/DI03
System low pressure ¬¬(input)
11
AI/DI04
System high pressure (input)
12
AI/DI05
System suction temperature (input)
13
AI/DI06
Water input temperature (input)
14
AI/DI07
Water output temperature (input)
15
AI/DI08
System fan coil temperature (input)
16
AI/DI09
Ambient temperature (input)
17
AI/DI10
Mode switch (input)
18
AI/DI11
Master-slave machine switch/antifreeze temperature (input)
19
AI12 (50K)
System Exhaust temperature (input)
20
0_5V_IN
Compressor current detection/pressure sensor (input)
21
PWM_IN
Master-slave machine switch/feedback signal of EC fan (input)
22
PWM_OUT
AC fan control (output)
23
0_10V_OUT
EC fan control (output)
24
+5V
+5V (output)
25
+12V
+12V (output)
26
CN2
Frequency conversion board communications
27
CN8
Color line controller communication
28
CN9
Electronic expansion valve
29
CN13
The port for centralized control
