This manual includes all the necessary information about installation, debugging,
discharging and maintenance. Please read this manual carefully before you open or
maintain the unit.
Read these operating and installation instructions carefully and keep them safe. Should
the equipment change hands, pass these instructions to the subsequent owner. Pass them
to the trained contractors for servicing purposes. Positioning, installation and
commissioning must be carried out by trained personnel working in accordance with these
operating and installation instructions.
When the product is delivered to the users, please check whether there is any damage on
the unit during transportation; If any please talk with the forwarder or the contractor.
If the heat pump unit can just be installed a while latter, please keep it free from damage,
rust or abrasion by following methods.
1. all the access like the water connections must be sealed correctly;
2. the unit must be free from sunshine, and placed under 45℃;
3. the unit must be free from heavy dust to avoid dirty on the evaporator;
4. the unit must be placed free from chaos to avoid accident;
The pictures and drawings in this manual are for your information only. The manufacturer
has the right to chance or improve the product when it is needed, without prior notification
to the users of this device.
1.Preface
It is vital that the below instructions are adhered to at all times to keep the warranty.
—The unit can only be opened or repaired by qualified installer or an authorised dealer.
—Maintenance and operation must be carried out according to the recommended time and
frequency, as stated in this manual.

1 Preface
2 Safety Precaution
2.1
2.2
2.3 Warning
2.4 Caution
3 Specification
3.1
3.2
4
5 Installation
5.1
5.2
5.3
5.4
5.6
5.7
5.8
6.Usage
6.1 Function of wire controller
6.2 Usage of wire controller
7.1 Malfunction table
8.Appendix
8.1 Connection of PCB illustration
8.3 Appendix
Marking Description
Icon Description
Performance Parameter List
Outline Dimensional Drawing
Unit Function Description
Installation Space
Installation Schematic Diagram
Model Selection
Selection of the Installation Position
5.5 Installation Mode
Water Pipe Connection
Electrical Wiring
Moving
5.9Trial Operation
7.Maintenance and inspection
8.2 Caution & Warning
CONTENT
1
2
2
2
3
4
5
5
6
7
8
8
8
9
9
10
11
11
13
13
15
15
16
15
27
28
28
30
31
1
This manual includes all the necessary information about installation, debugging,
discharging and maintenance. Please read this manual carefully before you open or
maintain the unit.
Read these operating and installation instructions carefully and keep them safe. Should
the equipment change hands, pass these instructions to the subsequent owner. Pass them
to the trained contractors for servicing purposes. Positioning, installation and
commissioning must be carried out by trained personnel working in accordance with these
operating and installation instructions.
When the product is delivered to the users, please check whether there is any damage on
the unit during transportation; If any please talk with the forwarder or the contractor.
If the heat pump unit can just be installed a while latter, please keep it free from damage,
rust or abrasion by following methods.
1. all the access like the water connections must be sealed correctly;
2. the unit must be free from sunshine, and placed under 45℃;
3. the unit must be free from heavy dust to avoid dirty on the evaporator;
4. the unit must be placed free from chaos to avoid accident;
The pictures and drawings in this manual are for your information only. The manufacturer
has the right to chance or improve the product when it is needed, without prior notification
to the users of this device.
1.Preface
It is vital that the below instructions are adhered to at all times to keep the warranty.
—The unit can only be opened or repaired by qualified installer or an authorised dealer.
—Maintenance and operation must be carried out according to the recommended time and
frequency, as stated in this manual.

2
2.Safety Precaution
2.1 Marking Description
Marking Description
Mis-operation (misuse) may cause death or serious injury.
Mis-operation (misuse) may cause personal harm or
material damage.
Warning
Caution
2.2 Icon Description
It indicates prohibition. Detailed prohibitions are represented
by graphics or words in or near the icon.
It indicates mandatory (execution).
Detailed mandatory items are represented by graphics or
words in or near the icon.
It indicates caution (including warning).
Detailed cautions are represented by graphics or words in or
near the icon.
To prevent the user himself or others from personal and property damage and ensure correct and
safe use of the unit, please read the important contents described in this Manual carefully. Read the text
with full understanding of the following contents (marking and icon), and follow the following precautions.
Marking Description
1. The above-mentioned harm in the Description refers to the harm that does not
require hospitalization or long-term treatment, and refers to injuries, burns and electric
shock in general.
2. The above-mentioned material damage refers to losses of property and materials.
3
2.Safety Precaution
Please entrust the professionals for installation.
The installation by others may cause installation
imperfections, resulting in water leakage, electric
shock or fire.
Verify whether the grounding is proper.
Improper grounding may cause electric shock.
Installation Warning
Verify the ground wire
2.3 Warning
Description
Use Warning Description
Prohibit
Cut off the
manual power
Do not put your fingers, sticks and other objects into
the air outlet or the air inlet.
Because the wind wheel operates at high speed inside,
it may cause injury.
When abnormal conditions (burning smell) occur,
immediately cut off the manual power switch to stop
running and contact the dealer.
Continuing abnormal conditions may cause electric
shock or fire.
Moving and Repair
Warning
Entrust
Prohibit
Entrust
If it is necessary to move and re-install the air
conditioning, entrust the dealer or professionals for
implementation.
Improper installation may cause electric shock, fire,
injury, water leakage and other accidents.
It is prohibited to repair the unit by the user himself, otherwise
electrical shock or fire may be occur.
For repair, entrust the dealer or professionals.
Improper repair may cause fire, electrical shock, injury,
water leakage and other accidents.
Entrust the professionals
for installan
Description

2
2.Safety Precaution
2.1 Marking Description
Marking Description
Mis-operation (misuse) may cause death or serious injury.
Mis-operation (misuse) may cause personal harm or
material damage.
Warning
Caution
2.2 Icon Description
It indicates prohibition. Detailed prohibitions are represented
by graphics or words in or near the icon.
It indicates mandatory (execution).
Detailed mandatory items are represented by graphics or
words in or near the icon.
It indicates caution (including warning).
Detailed cautions are represented by graphics or words in or
near the icon.
To prevent the user himself or others from personal and property damage and ensure correct and
safe use of the unit, please read the important contents described in this Manual carefully. Read the text
with full understanding of the following contents (marking and icon), and follow the following precautions.
Marking Description
1. The above-mentioned harm in the Description refers to the harm that does not
require hospitalization or long-term treatment, and refers to injuries, burns and electric
shock in general.
2. The above-mentioned material damage refers to losses of property and materials.
3
2.Safety Precaution
Please entrust the professionals for installation.
The installation by others may cause installation
imperfections, resulting in water leakage, electric
shock or fire.
Verify whether the grounding is proper.
Improper grounding may cause electric shock.
Installation Warning
Verify the ground wire
2.3 Warning
Description
Use Warning Description
Prohibit
Cut off the
manual power
Do not put your fingers, sticks and other objects into
the air outlet or the air inlet.
Because the wind wheel operates at high speed inside,
it may cause injury.
When abnormal conditions (burning smell) occur,
immediately cut off the manual power switch to stop
running and contact the dealer.
Continuing abnormal conditions may cause electric
shock or fire.
Moving and Repair
Warning
Entrust
Prohibit
Entrust
If it is necessary to move and re-install the air
conditioning, entrust the dealer or professionals for
implementation.
Improper installation may cause electric shock, fire,
injury, water leakage and other accidents.
It is prohibited to repair the unit by the user himself, otherwise
electrical shock or fire may be occur.
For repair, entrust the dealer or professionals.
Improper repair may cause fire, electrical shock, injury,
water leakage and other accidents.
Entrust the professionals
for installan
Description

4
2.Safety Precautions
Use
precautions
Check the
installation bench
Cut off the manual
power switch
Prohibit
Prohibit
For long-term use, check whether the installation
bench is firm and intact.
If installation bench is damaged or weak, the
outdoor unit may fall, causing casualties.
Stop the operation during cleaning, and cut off the
manual power switch.
If the machine does not stop operation, it may
cause injury due to the wind wheel running at a
high speed inside.
Use the appropriate fuse.
If copper or iron wires are used, it may cause
malfunction or fire.
Do not spray the combustible spray directly to
the outdoor unit; otherwise, this may easily
Installation
precaution
Do not install it in a place where flammable gas leak
easily occurs.
Once the flammable gas leaks and stays around the
outdoor unit, this may cause a fire.
Verify whether the leakage protection switch has
been installed.
If the leakage protection switch is not installed, this
may cause electric shock or fire.
Verify whether the installation base is solid.
If the base is not solid, the outdoor unit may fall and
then result in accidents.
2.4 Caution
Verify the
installation site
Verify the
fixing means
Verify the leakage
protection switch
5
3.Specification
o o
Testing condition: ambient temperature DB/WB 20 C/15 C;
o o
outlet water 65 C, inlet water (return) 55 C;
117.0
37.5
70.0
ALLHT1170R134
kW
kW
A
Heating Output
Power Input
Running Current
Unit Model
Recycled-heating
2
2000×2
920
75
380V/3N～/50Hz
(Subject to data on the package)
Nameplate
W
RPM
dB(A)
mm
mm
kg
kg
Power Supply
Scroll
Compressor Type
4
Compressor Quantity
Fan Quantity
Fan power input
Fan speed
Noise
Water pipe connection
Unit dimension (L/W/H)
Package size(L/W/H)
Net Weight
Gross weight
DN80
Refrigerant Type
R134a
Package
(Subject to drawings of the heat pump)
3.1Performance Parameter List

4
2.Safety Precautions
Use
precautions
Check the
installation bench
Cut off the manual
power switch
Prohibit
Prohibit
For long-term use, check whether the installation
bench is firm and intact.
If installation bench is damaged or weak, the
outdoor unit may fall, causing casualties.
Stop the operation during cleaning, and cut off the
manual power switch.
If the machine does not stop operation, it may
cause injury due to the wind wheel running at a
high speed inside.
Use the appropriate fuse.
If copper or iron wires are used, it may cause
malfunction or fire.
Do not spray the combustible spray directly to
the outdoor unit; otherwise, this may easily
Installation
precaution
Do not install it in a place where flammable gas leak
easily occurs.
Once the flammable gas leaks and stays around the
outdoor unit, this may cause a fire.
Verify whether the leakage protection switch has
been installed.
If the leakage protection switch is not installed, this
may cause electric shock or fire.
Verify whether the installation base is solid.
If the base is not solid, the outdoor unit may fall and
then result in accidents.
2.4 Caution
Verify the
installation site
Verify the
fixing means
Verify the leakage
protection switch
5
3.Specification
o o
Testing condition: ambient temperature DB/WB 20 C/15 C;
o o
outlet water 65 C, inlet water (return) 55 C;
117.0
37.5
70.0
ALLHT1170R134
kW
kW
A
Heating Output
Power Input
Running Current
Unit Model
Recycled-heating
2
2000×2
920
75
380V/3N～/50Hz
(Subject to data on the package)
Nameplate
W
RPM
dB(A)
mm
mm
kg
kg
Power Supply
Scroll
Compressor Type
4
Compressor Quantity
Fan Quantity
Fan power input
Fan speed
Noise
Water pipe connection
Unit dimension (L/W/H)
Package size(L/W/H)
Net Weight
Gross weight
DN80
Refrigerant Type
R134a
Package
(Subject to drawings of the heat pump)
3.1Performance Parameter List

6

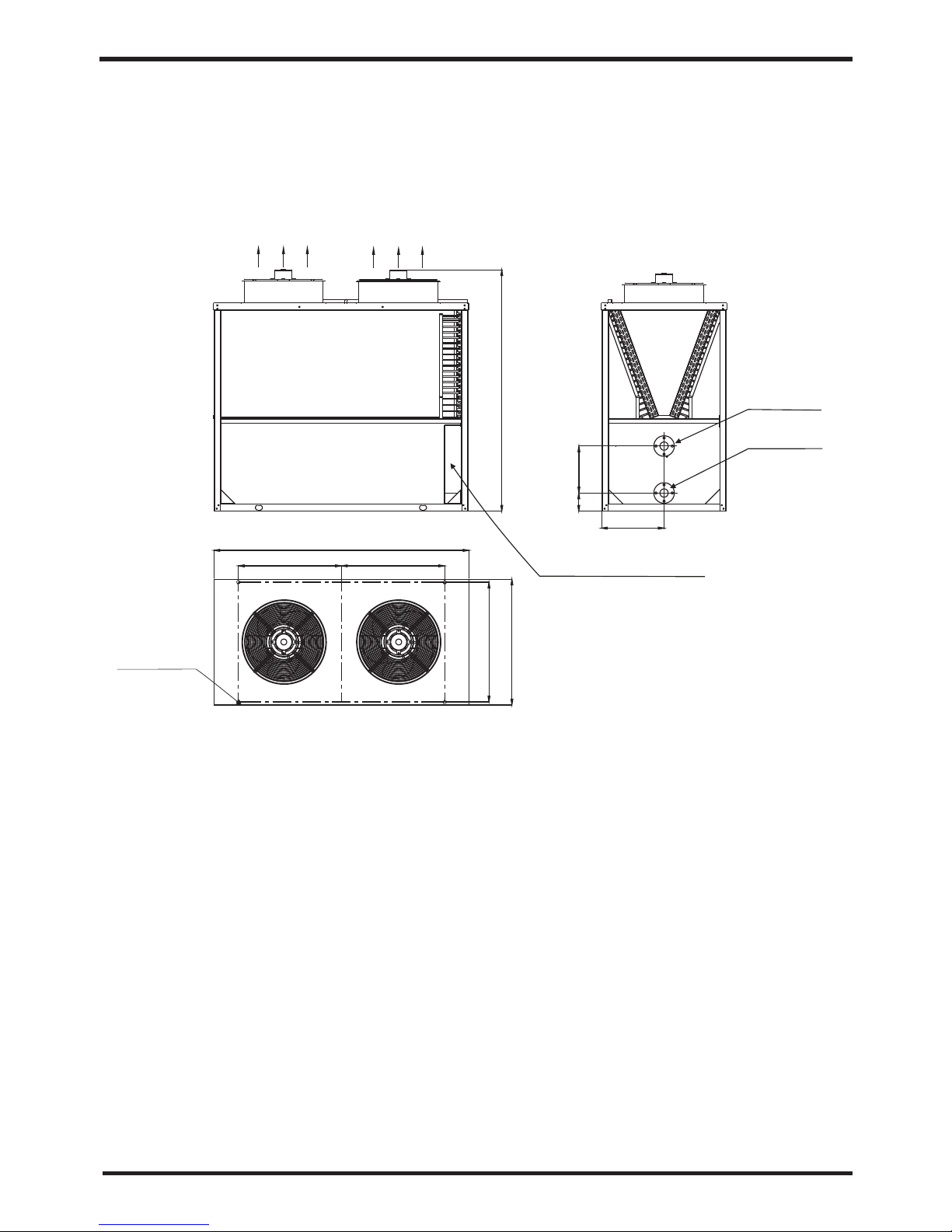

3.2
Outline Dimensional Drawing
3.Specification
Air-out direction
Installation
Bottom Outlet
Water outlet
DN80 flange
Electrical control box
4-Φ16
2030
2180
900 900
1080
1020
400
175
530
Water inlet
DN80 flange
Models: ALLHT1170R134
7
4.Unit Function Description
The unit absorb energy from outside and release the heat according to the heat
exchanger, if the environment temperature is low, the heating capacity will be
attenuation.
Heating capacity
3 minutes protection
When the unit stop, if you restart the unit or turn on the manual switch, the unit will not run
in 3 minutes, it's the protection for the compressor.
If the environment temperature is too high, the unit will stop running to protect the
compressor.
Defrosting
Under the heating mode, the unit will defrost automatic to make sure the heating
efficiency (it will last 2-10 minutes).
Working condition
In order to use the unit correctly, please run the unit at environment temperature -7℃-43.
The unit includes sophisticated electronic devices, prohibited to use water from lake,
untreated river water and groundwater!
Power off
If the power supply is off, the unit will stop running. If the running unit is disturbed by
lightning, car radio, power grid fluctuations please cut off the manual power switch , and
then power on, press the on / off button.
leakage current protection
There is a leakage current action protection comes with the power supply wire.
Electric heating protection
When the water temperature reach 94℃, electric heating fuse will melt off (can not be
restored).
Hight pressure protection

6
3.2
Outline Dimensional Drawing
3.Specification
Air-out direction
Installation
Bottom Outlet
Water outlet
DN80 flange
Electrical control box
4-Φ16
2030
2180
900 900
1080
1020
400
175
530
Water inlet
DN80 flange
Models: ALLHT1170R134
7
4.Unit Function Description
The unit absorb energy from outside and release the heat according to the heat
exchanger, if the environment temperature is low, the heating capacity will be
attenuation.
Heating capacity
3 minutes protection
When the unit stop, if you restart the unit or turn on the manual switch, the unit will not run
in 3 minutes, it's the protection for the compressor.
If the environment temperature is too high, the unit will stop running to protect the
compressor.
Defrosting
Under the heating mode, the unit will defrost automatic to make sure the heating
efficiency (it will last 2-10 minutes).
Working condition
In order to use the unit correctly, please run the unit at environment temperature -7℃-43.
The unit includes sophisticated electronic devices, prohibited to use water from lake,
untreated river water and groundwater!
Power off
If the power supply is off, the unit will stop running. If the running unit is disturbed by
lightning, car radio, power grid fluctuations please cut off the manual power switch , and
then power on, press the on / off button.
leakage current protection
There is a leakage current action protection comes with the power supply wire.
Electric heating protection
When the water temperature reach 94℃, electric heating fuse will melt off (can not be
restored).
Hight pressure protection

8

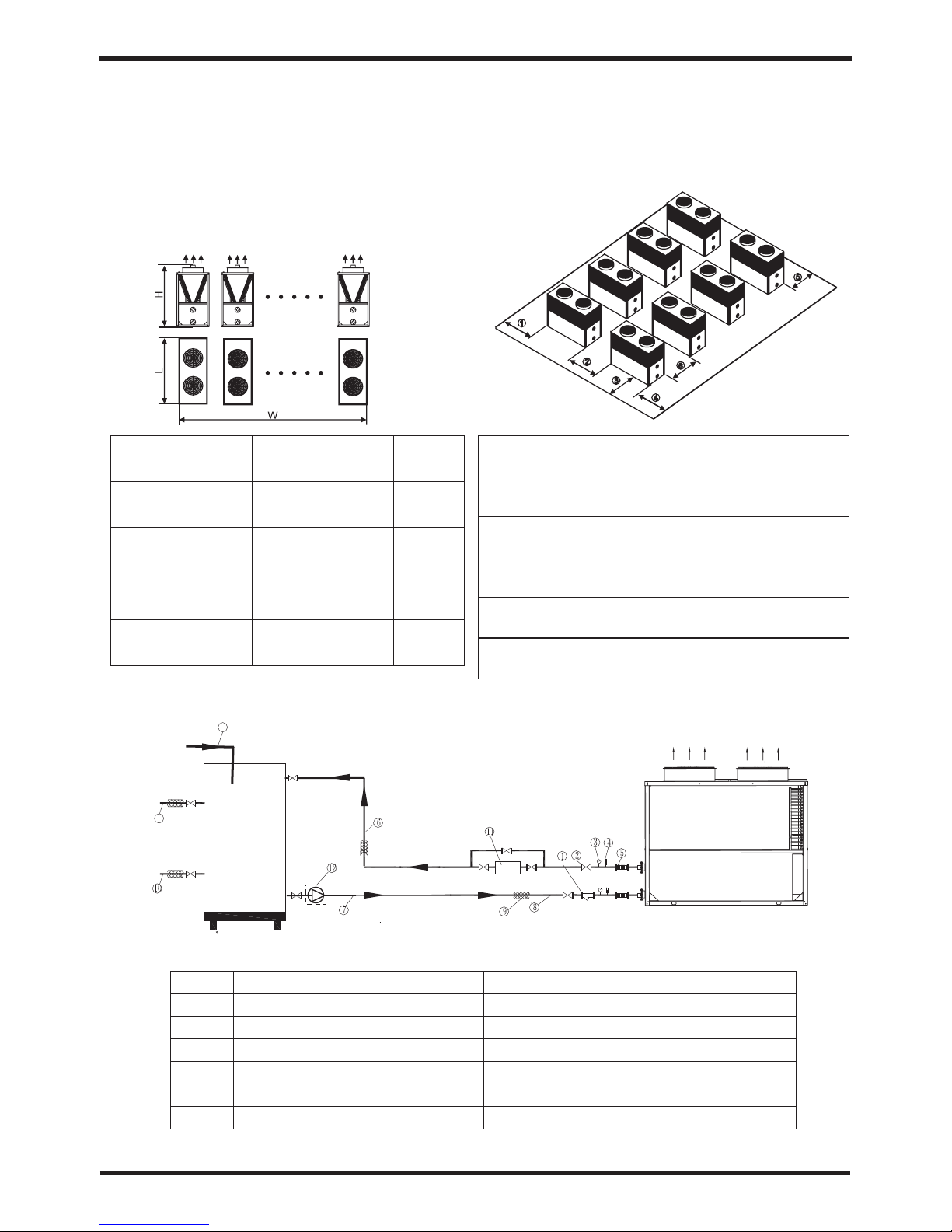

5.Installation
5.2 Installation Schematic Diagram
1
3
5
7
Y-type filter
Thermometer (0-100℃)
Connecting hose
Hot Water Circulating Pipe
2
4
6
8
Shut-off valve
Pressure gauge (0-1.0MPa)
Hot Water Circulating Pipe
Water supply pipes
Water Tank
Air-out direction
1
3
8
Thermal insulation Hot Water Supply Pipe
Electric auxiliary heater
Water pump
Hot Water Return Pipe
910
11 12
13
5.1Installation Space
2180
2180
2180
2180
3160
5240
7320
9400
2030
2030
2030
2030
Dimensions
Outline Dimensional
Drawing - Parallel Units
Schematic Diagram of Unit
Installation Position
Air-out direction
Parallel Mode
Double-
connected unit
Tripartite-
connected
Quadruple-
connected
Quintuplicate-
connected unit
L(mm) L(mm) L(mm) 1
2
3
4
5
6
Maintenance space above 1800mm
Unit spacing above 1500mm
Maintenance space above 1500mm
Maintenance space above 1500mm
Maintenance space above 1800mm
Maintenance space above 1000mm
9
5.Installation
5.3 Model Selection
(1)Make comprehensive consideration of the required refrigerating (heating) capacity per unit
area according to climatic conditions, building use and heat preservation;
(2)Calculate the total load according to the unit load and the total area;
(3)Select the appropriate unit based on the total load and the application scope of the unit.
(4)Application occasions:
5.4Selection of the Installation Position
The unit can be installed on balconies, roofs, floors, or any other places easy to install
and reliable for load-bearing;
Air circulated places;
Places without thermal radiation or other heat sources;
Install a snow shed in winter;
Places without obstruction near the suction inlet or the exhaust outlet;
Places where the exhaust outlet is free from heavy winds;
Drainage channels shall be equipped around the machine to drain the condensed
water;
Enough space should be remained around the machine.

8
5.Installation
5.2 Installation Schematic Diagram
1
3
5
7
Y-type filter
Thermometer (0-100℃)
Connecting hose
Hot Water Circulating Pipe
2
4
6
8
Shut-off valve
Pressure gauge (0-1.0MPa)
Hot Water Circulating Pipe
Water supply pipes
Water Tank
Air-out direction
1
3
8
Thermal insulation Hot Water Supply Pipe
Electric auxiliary heater
Water pump
Hot Water Return Pipe
910
11 12
13
5.1Installation Space
2180
2180
2180
2180
3160
5240
7320
9400
2030
2030
2030
2030
Dimensions
Outline Dimensional
Drawing - Parallel Units
Schematic Diagram of Unit
Installation Position
Air-out direction
Parallel Mode
Double-
connected unit
Tripartite-
connected
Quadruple-
connected
Quintuplicate-
connected unit
L(mm) L(mm) L(mm) 1
2
3
4
5
6
Maintenance space above 1800mm
Unit spacing above 1500mm
Maintenance space above 1500mm
Maintenance space above 1500mm
Maintenance space above 1800mm
Maintenance space above 1000mm
9
5.Installation
5.3 Model Selection
(1)Make comprehensive consideration of the required refrigerating (heating) capacity per unit
area according to climatic conditions, building use and heat preservation;
(2)Calculate the total load according to the unit load and the total area;
(3)Select the appropriate unit based on the total load and the application scope of the unit.
(4)Application occasions:
5.4Selection of the Installation Position
The unit can be installed on balconies, roofs, floors, or any other places easy to install
and reliable for load-bearing;
Air circulated places;
Places without thermal radiation or other heat sources;
Install a snow shed in winter;
Places without obstruction near the suction inlet or the exhaust outlet;
Places where the exhaust outlet is free from heavy winds;
Drainage channels shall be equipped around the machine to drain the condensed
water;
Enough space should be remained around the machine.

10
5.Installation
5.5 Installation Mode
The unit is directly secured to the cement base with the expansion bolts.
Use channel steel to make the installation base, place shockproof rubber pads on
the ground or the roof, and ensure that the unit is placed levelly.
Air-out direction
1500mm

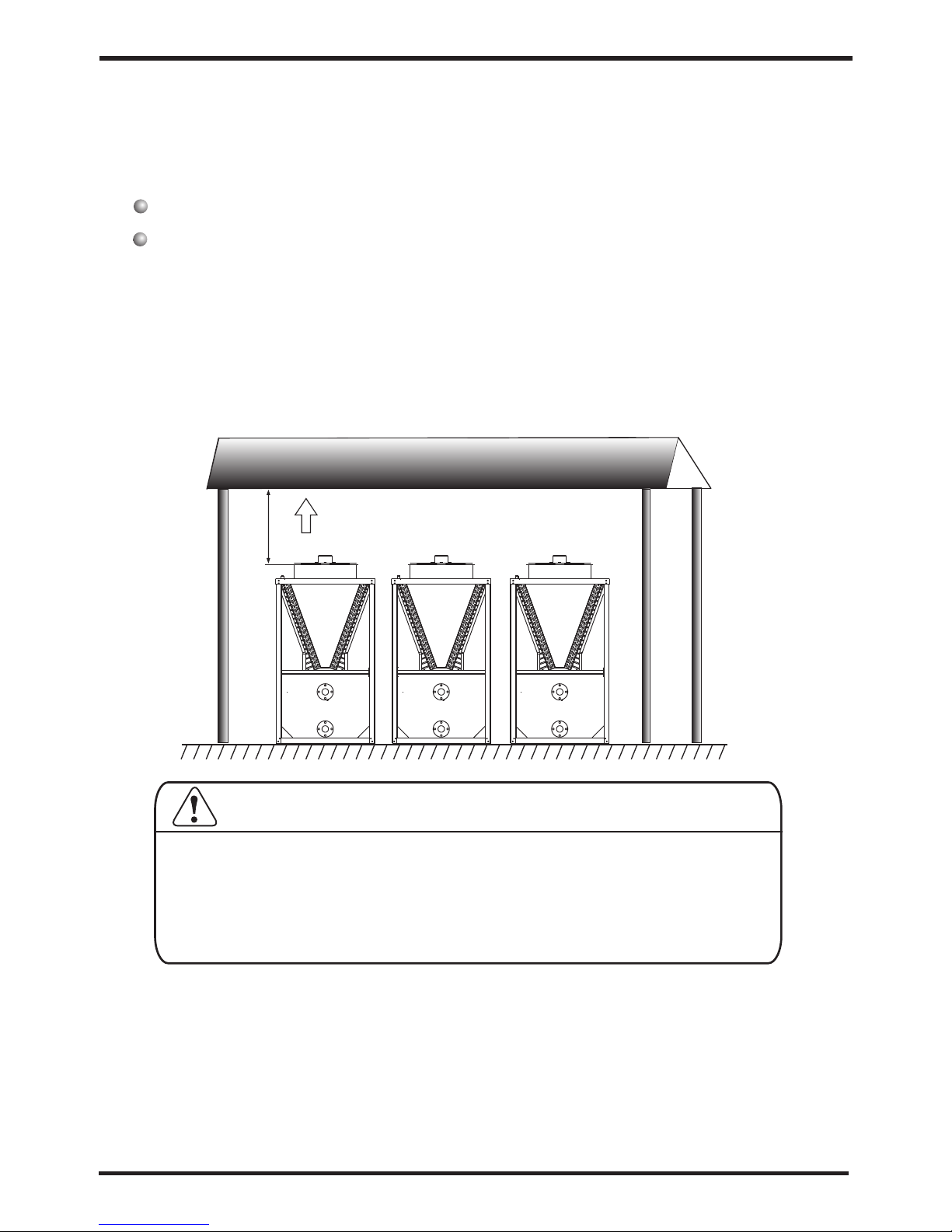

Figure 1 Installation Schematic Diagram of Snow Shed
To ensure the proper functioning of the unit in cold
areas in winter, the snow shed must be installed
during the engineering installation.
Caution
5.6 Water Pipe Connection
Note the following items during connection of water inlet and outlet pipes:
`
Minimize the resistance of the water pipe outside the unit.
The entire piping system should be clean and free of dirt and rust to prevent pipe
clogging. Test for leakages after the pipes are installed to ensure that the entire
piping system is free of leakage, and then coat with the insulating layer.
The pipeline should be conducted with a pressure test separately, rather than
together with the air conditioning main engine.
An expansion water tank should be installed at the highest point of the water
distribution pipeline, where the highest point of the water level in the expansion water
tank is at least 0.5 meters higher than the water distribution pipe.
Flexible joints should be used between the unit interface and the field piping to
reduce the vibration spread to both buildings and equipment. Both the pipe and the
fittings must be independently supported, but should not be supported by the unit.
The thermometer and the pressure gauge should be installed at the water inlet and
outlet pipes of the unit to facilitate the inspection during operation.
Drainage interfaces should be installed at all low positions of the water system (the
unit has a drain port to facilitate drainage; interfaces will be added in other positions
on site) so that the water in the system will be completely drained if it is not used in
winter; automatic exhaust valves should be installed at all high positions so as to
facilitate to exhaust the air from the pipeline. No insulation is provided for both the
exhaust valves and the drain port for easy maintenance.
5.7 Electrical Wiring
Open the panel, and open the power line hole
Thread the power line through the hole and connect it to the power line terminal; and
the three-core control line of the remote controller shall be plugged with the three-core
signal line on the main board according to the wiring diagram.
For an external water pump, thread the power line of the water pump through the hole
and connect it to the water pump terminals.
If it is necessary to automatically control the auxiliary heat source, connect the control
output signal of the auxiliary heat source to the start switch of the auxiliary heat source.
If it is necessary to automatically control mode of the air conditioning terminal, connect
the mode control signal to the mode control switch on each indoor air conditioning
terminal.
5.Installation
11

10
5.Installation
5.5 Installation Mode
The unit is directly secured to the cement base with the expansion bolts.
Use channel steel to make the installation base, place shockproof rubber pads on
the ground or the roof, and ensure that the unit is placed levelly.
Air-out direction
1500mm
Figure 1 Installation Schematic Diagram of Snow Shed
To ensure the proper functioning of the unit in cold
areas in winter, the snow shed must be installed
during the engineering installation.
Caution
5.6 Water Pipe Connection
Note the following items during connection of water inlet and outlet pipes:
`
Minimize the resistance of the water pipe outside the unit.
The entire piping system should be clean and free of dirt and rust to prevent pipe
clogging. Test for leakages after the pipes are installed to ensure that the entire
piping system is free of leakage, and then coat with the insulating layer.
The pipeline should be conducted with a pressure test separately, rather than
together with the air conditioning main engine.
An expansion water tank should be installed at the highest point of the water
distribution pipeline, where the highest point of the water level in the expansion water
tank is at least 0.5 meters higher than the water distribution pipe.
Flexible joints should be used between the unit interface and the field piping to
reduce the vibration spread to both buildings and equipment. Both the pipe and the
fittings must be independently supported, but should not be supported by the unit.
The thermometer and the pressure gauge should be installed at the water inlet and
outlet pipes of the unit to facilitate the inspection during operation.
Drainage interfaces should be installed at all low positions of the water system (the
unit has a drain port to facilitate drainage; interfaces will be added in other positions
on site) so that the water in the system will be completely drained if it is not used in
winter; automatic exhaust valves should be installed at all high positions so as to
facilitate to exhaust the air from the pipeline. No insulation is provided for both the
exhaust valves and the drain port for easy maintenance.
5.7 Electrical Wiring
Open the panel, and open the power line hole
Thread the power line through the hole and connect it to the power line terminal; and
the three-core control line of the remote controller shall be plugged with the three-core
signal line on the main board according to the wiring diagram.
For an external water pump, thread the power line of the water pump through the hole
and connect it to the water pump terminals.
If it is necessary to automatically control the auxiliary heat source, connect the control
output signal of the auxiliary heat source to the start switch of the auxiliary heat source.
If it is necessary to automatically control mode of the air conditioning terminal, connect
the mode control signal to the mode control switch on each indoor air conditioning
terminal.
5.Installation
11

5.Installation
12

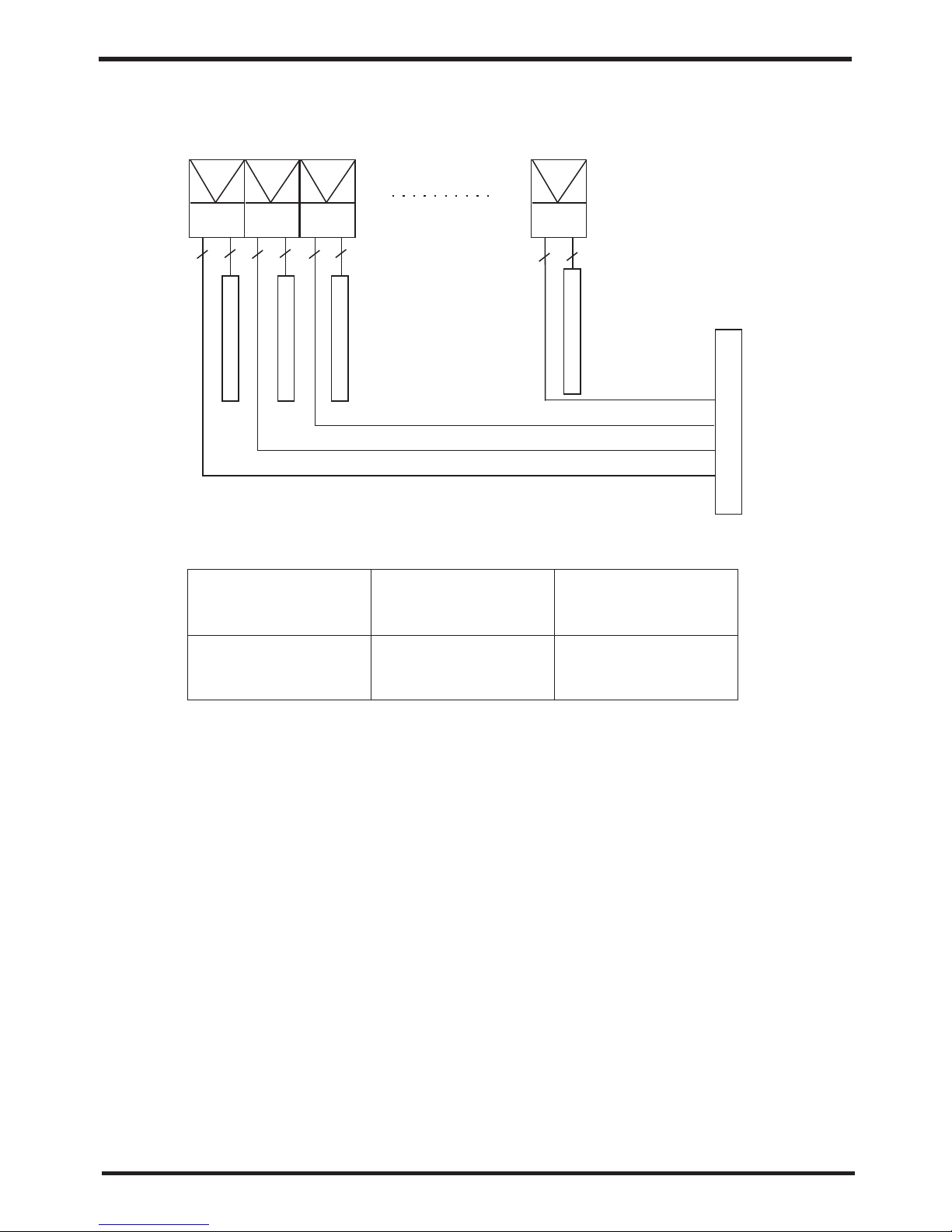

The master air switch
3
5
Wire controller
3
5 5 3
5
3
Wire controller
Wire controller
Wire controller
Power cablee
Model
(R,S,T,N, ground)
576S-V
Three-core signal line
2
3×0.5mm
Notes:
（1）The unit uses the three-phase power supply, and the cable specification in the
table above refers to the cable specification of each phase.
2
（1）Both the neutral line and the ground line use the 4mm cables, and both the
2
three-core signal line and the defrosting coordination line use the 0.5mm wires.
2 2
3×16mm +2×25mm
5.8 Moving
Warning
Do not touch the radiating fins behind the machine
by hand or with other objects!
Picture 2

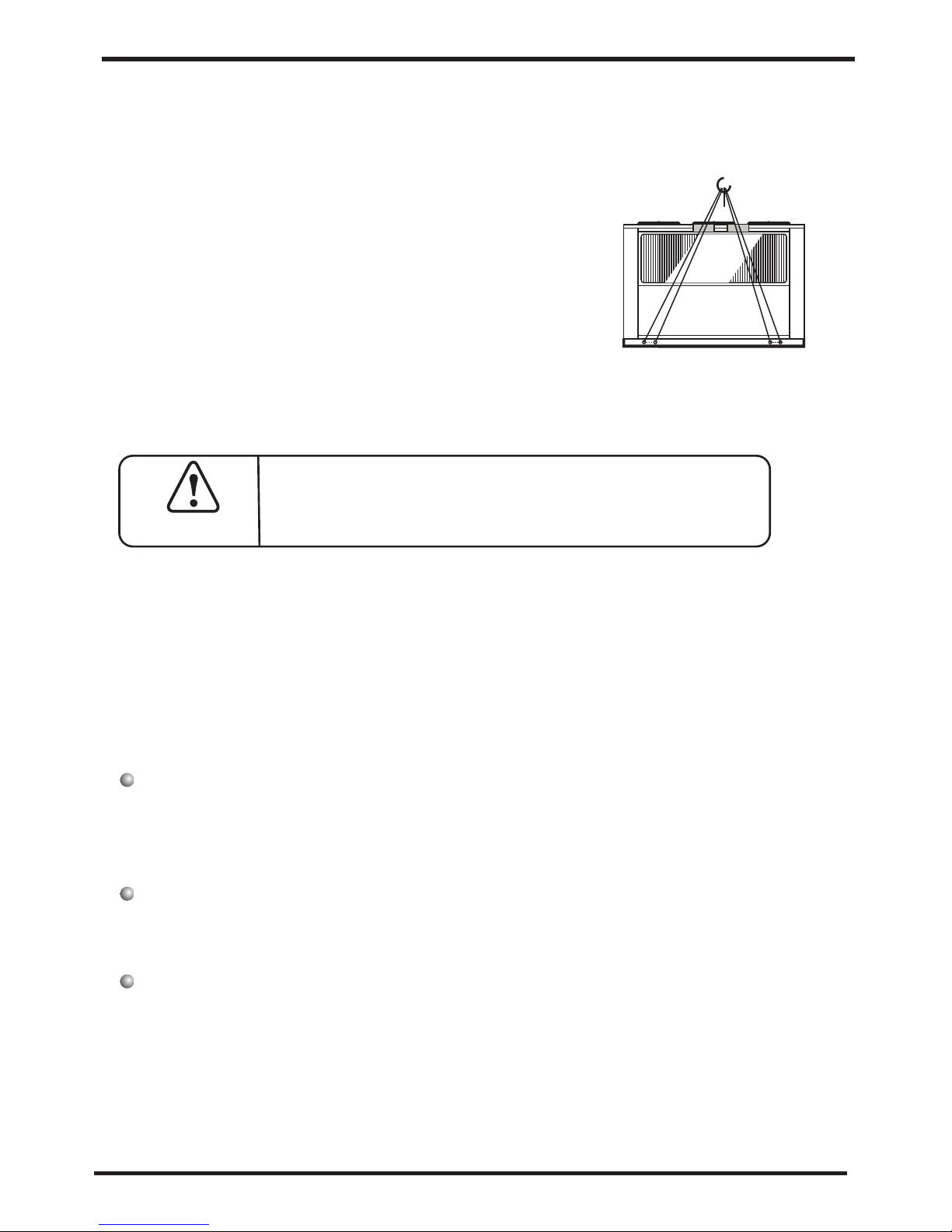

When lifting is needed, use four sling wires
longer than 8m for lifting; during the lifting, use the
special lifting hole (hook) on the unit base. Pads
shall be provided at the contact between the
housing and the sling to prevent the damage to the
housing, as shown in Figure 2.
5.Installation
5.9Trial Operation
Check the piping system. Check whether the expansion water tank is filled with sufficient
water and whether the water supply for supplement is normal. Check whether the entire
piping system is full of water and whether the air is completely exhausted. Check
whether all valves in the system are opened. Check whether the pipelines are well
insulated.
Check the power distribution system. Check whether all power supplies have normal
voltage. Check whether screws of each power distribution part are locked, and whether
the power is distributed to the circuit according to the distribution wiring diagram. Check
whether the ground line is well connected.
Check the water chilling unit. Check whether all fastening screws and screws on the
mechanical parts of the unit are firm. Check whether there is any fault indication on the
operation lights on the outdoor control main board. Connect the pressure gauge to the
fluoridated inlet to detect the system pressure during operation.
5.9.1 Check prior to trial operation
13

5.Installation
12
The master air switch
3
5
Wire controller
3
5 5 3
5
3
Wire controller
Wire controller
Wire controller
Power cablee
Model
(R,S,T,N, ground)
576S-V
Three-core signal line
2
3×0.5mm
Notes:
（1）The unit uses the three-phase power supply, and the cable specification in the
table above refers to the cable specification of each phase.
2
（1）Both the neutral line and the ground line use the 4mm cables, and both the
2
three-core signal line and the defrosting coordination line use the 0.5mm wires.
2 2
3×16mm +2×25mm
5.8 Moving
Warning
Do not touch the radiating fins behind the machine
by hand or with other objects!
Picture 2
When lifting is needed, use four sling wires
longer than 8m for lifting; during the lifting, use the
special lifting hole (hook) on the unit base. Pads
shall be provided at the contact between the
housing and the sling to prevent the damage to the
housing, as shown in Figure 2.
5.Installation
5.9Trial Operation
Check the piping system. Check whether the expansion water tank is filled with sufficient
water and whether the water supply for supplement is normal. Check whether the entire
piping system is full of water and whether the air is completely exhausted. Check
whether all valves in the system are opened. Check whether the pipelines are well
insulated.
Check the power distribution system. Check whether all power supplies have normal
voltage. Check whether screws of each power distribution part are locked, and whether
the power is distributed to the circuit according to the distribution wiring diagram. Check
whether the ground line is well connected.
Check the water chilling unit. Check whether all fastening screws and screws on the
mechanical parts of the unit are firm. Check whether there is any fault indication on the
operation lights on the outdoor control main board. Connect the pressure gauge to the
fluoridated inlet to detect the system pressure during operation.
5.9.1 Check prior to trial operation
13

5.Installation
Turn on the machine with on the remote controller, and then immediately
check whether the water pump operates normally; if it is normal, observe the water
flow switch and the water pressure gauge of the water system: when the water flow
switch is in the ON state, the water pressure gauge shall show the water pressure of
about 0.2MPa.
After the water pump has operated for some time, the compressor will start. Judge
whether there is any abnormal sound in the unit during operation with the sense of
hearing; if there is any abnormal sound, immediately cut off the power and check the
unit; if there is no abnormal sound, continue the operation and then note whether
the pressure of the refrigerating system is normal.
Check whether the input power and the current of the unit are consistent with the
performance data list in the Manual; in case of incompliance, stop the unit for check.
Adjust the water supply valve in each room, so that the temperature of each room
meets the use requirements.
Observe whether the outlet water temperature is normal.
Parameters of the remote controller have been set in the factory, and the user shall
not adjust it without permission.
5.9.2 Trial Operation
14
6.Usage
Welcome
V1.0
v1.0
Loading......
Press the button to set the clock,
the timer on or timer off
Press this button to check button function
or system state.
Press this button to confirm current operation.
ON/OFF Press this button to start up/shut off the unit,
cancel current operation or back to upper interface.
HELP
MODE
CLOCK
Button Name Function
6.1 Function of wire controller
Press this key to select the upward option or increase
the parameter value.
Press this key to select the downward option or
decrease the parameter value.
Up
Down
15

5.Installation
Turn on the machine with on the remote controller, and then immediately
check whether the water pump operates normally; if it is normal, observe the water
flow switch and the water pressure gauge of the water system: when the water flow
switch is in the ON state, the water pressure gauge shall show the water pressure of
about 0.2MPa.
After the water pump has operated for some time, the compressor will start. Judge
whether there is any abnormal sound in the unit during operation with the sense of
hearing; if there is any abnormal sound, immediately cut off the power and check the
unit; if there is no abnormal sound, continue the operation and then note whether
the pressure of the refrigerating system is normal.
Check whether the input power and the current of the unit are consistent with the
performance data list in the Manual; in case of incompliance, stop the unit for check.
Adjust the water supply valve in each room, so that the temperature of each room
meets the use requirements.
Observe whether the outlet water temperature is normal.
Parameters of the remote controller have been set in the factory, and the user shall
not adjust it without permission.
5.9.2 Trial Operation
14
6.Usage
Welcome
V1.0
v1.0
Loading......
Press the button to set the clock,
the timer on or timer off
Press this button to check button function
or system state.
Press this button to confirm current operation.
ON/OFF Press this button to start up/shut off the unit,
cancel current operation or back to upper interface.
HELP
MODE
CLOCK
Button Name Function
6.1 Function of wire controller
Press this key to select the upward option or increase
the parameter value.
Press this key to select the downward option or
decrease the parameter value.
Up
Down
15

16
6.Usage
6.2.1 The way to use
You can use “ ”at any interface, it will show relevant button function of current interface.
You can press “ ”to exit the "help" interface.
For example：
Press “ ”at main interface, system will show all button function; Press “ ”at clock
interface, system will show“ ”、“ ” 、“ ”and“ ”button function.
ON：Heating
Inlet temp.: 35.0℃
Outlet temp.: 65.0℃
1.
Pressing this key could turn
on/off the unit, cancel the
current operation or return
to the former interface.
Press“ ”
This symbol means
you can page up
2.
Pressing this key could
select the upward option or
increase the value of a
certain parameter.
3.
Pressing this key could
select the downward option
or decrease the value of a
certain parameter.
4.
Pressing this key could
switch unit mode, enter
into the next interface or
save settings.
5.
Pressing this key could set
the system time, or time for
regular shutdown or
restart.
6.
Pressing this key could
check the unit state or
show you the key
functions.
Mode
Both are OK when system show ON or OFF
ON：Eco.heating
Inlet temp.: 25.0℃
Outlet temp.: 25.0℃
31/03/2011 09:10 THU.
Press“ ”
Press“ ”
Press“ ”
Press“ ”
Press“ ”
Press“ ”
6.2 Usage of wire controller
In the boot state
In the boot state
2016/07/20 08:40 MON.
17
6.Usage
Press “ ”at clock interface, the screen shows as follow:
Date： 20/07/2016
Time： 08：40
Week： Monday
Timer
Date format
Both are OK when system shows ON or OFF
Press“ ”
to enter
1. Up or down arrow
selects items
2. Clock key changes
status
3. On/off key exits
Press“ ”to show
relevant button function
Press“ ”
to exit
6.2.2 Starting up and shutting down
Press “ ”in the shutdown state for 1s to start up the system;
Press “ ”in the startup state for 1s to shut down the system.
For example：
Press“ ”
for 1s
Running state
MODE
（By actual state）
Month
Date
Time Week
ON：Heating
Inlet temp.: 35.0℃
Outlet temp.: 65.0℃
OFF：Heating
Inlet temp.: 25.0℃
Outlet temp.: 25.0℃
Year
ON：Heating
Inlet temp.: 35.0℃
Outlet temp.: 65.0℃
In the shutdown state In the startup state
2016/07/20 08:40 MON.
ON：Heating
Inlet temp.: 35.0℃
Outlet temp.: 65.0℃
2016/07/20 08:40 MON.
2016/07/20 08:40 MON.
2016/07/20 08:40 MON.

16
6.Usage
6.2.1 The way to use
You can use “ ”at any interface, it will show relevant button function of current interface.
You can press “ ”to exit the "help" interface.
For example：
Press “ ”at main interface, system will show all button function; Press “ ”at clock
interface, system will show“ ”、“ ” 、“ ”and“ ”button function.
ON：Heating
Inlet temp.: 35.0℃
Outlet temp.: 65.0℃
1.
Pressing this key could turn
on/off the unit, cancel the
current operation or return
to the former interface.
Press“ ”
This symbol means
you can page up
2.
Pressing this key could
select the upward option or
increase the value of a
certain parameter.
3.
Pressing this key could
select the downward option
or decrease the value of a
certain parameter.
4.
Pressing this key could
switch unit mode, enter
into the next interface or
save settings.
5.
Pressing this key could set
the system time, or time for
regular shutdown or
restart.
6.
Pressing this key could
check the unit state or
show you the key
functions.
Mode
Both are OK when system show ON or OFF
ON：Eco.heating
Inlet temp.: 25.0℃
Outlet temp.: 25.0℃
31/03/2011 09:10 THU.
Press“ ”
Press“ ”
Press“ ”
Press“ ”
Press“ ”
Press“ ”
6.2 Usage of wire controller
In the boot state
In the boot state
2016/07/20 08:40 MON.
17
6.Usage
Press “ ”at clock interface, the screen shows as follow:
Date： 20/07/2016
Time： 08：40
Week： Monday
Timer
Date format
Both are OK when system shows ON or OFF
Press“ ”
to enter
1. Up or down arrow
selects items
2. Clock key changes
status
3. On/off key exits
Press“ ”to show
relevant button function
Press“ ”
to exit
6.2.2 Starting up and shutting down
Press “ ”in the shutdown state for 1s to start up the system;
Press “ ”in the startup state for 1s to shut down the system.
For example：
Press“ ”
for 1s
Running state
MODE
（By actual state）
Month
Date
Time Week
ON：Heating
Inlet temp.: 35.0℃
Outlet temp.: 65.0℃
OFF：Heating
Inlet temp.: 25.0℃
Outlet temp.: 25.0℃
Year
ON：Heating
Inlet temp.: 35.0℃
Outlet temp.: 65.0℃
In the shutdown state In the startup state
2016/07/20 08:40 MON.
ON：Heating
Inlet temp.: 35.0℃
Outlet temp.: 65.0℃
2016/07/20 08:40 MON.
2016/07/20 08:40 MON.
2016/07/20 08:40 MON.

6.Usage
6.2.3 The operation of system state
At any interface, you can enter system working state by pressing“ ”twice, press“ ”
（pageup）or “ ” （pagedown）to select the needing parameter, press“ ”to enter, and
press “ ”to exit.
For example：
Press“ ”
Temperature
Switch
Output
Press“ ”
T01 Inlet water 55.0℃
T02 Outlet water 65.0℃
T03 Ambient 30.5℃
T04 Coil 1 30.5℃
T05 Coil 2 45.5℃
T06 Suction L1 65.5℃
T07 Suction H1 25.5℃
T08 Deice 1 65.5℃
Press“ ”
Press“ ”
Press“ ”
ON：Heating
Inlet temp.:25.0℃
Outlet temp.:25.0℃
1.
Pressing this key could turn
on/off the unit, cancel the
current operation or return
to the former interface.
Temperature
Switch
Output
ON：Heating
Inlet temp.: 35.0℃
Outlet temp.: 65.0℃
2016/07/20 08:40 MON.
2015/07/20 08:40 MON.
18 19
6.Usage
6.2.4 The operation of parameter
At main interface, press“ ”or“ ”to enter parameter setting interface, press
“ ”（increasing）or“ ”（decreasing）can change parameter value, press“ ”to save the
setting and exit . Press“ ”can not save the setting but exit.（You can refer to parameter table
to set relevant temperature.）
Heating set point：
75.0℃
Press“ ”
or“ ”
Press“ ”
or“ ”
Press“ ”
to save the
setting
6.2.5 The operation of clock
At main interface, press“ ”to enter clock setting interface, select the needing parameter
and press“ ”，at this time, parameter value flashing, press“ ”(increasing)or“ ”
(Decreasing) can change parameter value, then press“ ”to save, press“ ”can cancel the
setting or back to the main interface.（“timer setting”refer to timer operation）
Press“ ”
to enter clock
interface
Press“ ” to select
the needing parameter
Date： 16/07/2016
Time： 05：55
Week： Thursday
Timer
Date format
ON：Heating
Inlet temp.: 35.0℃
Outlet temp.: 65.0℃
ON：Heating
Inlet temp.: 35.0℃
Outlet temp.: 65.0℃
ON：Heating
Inlet temp.: 35.0℃
Outlet temp.: 65.0℃
2016/07/20 08:40 MON.
2016/07/20 08:40 MON.
Heating set point：
75.5℃
2016/07/16 05:55 THU.
