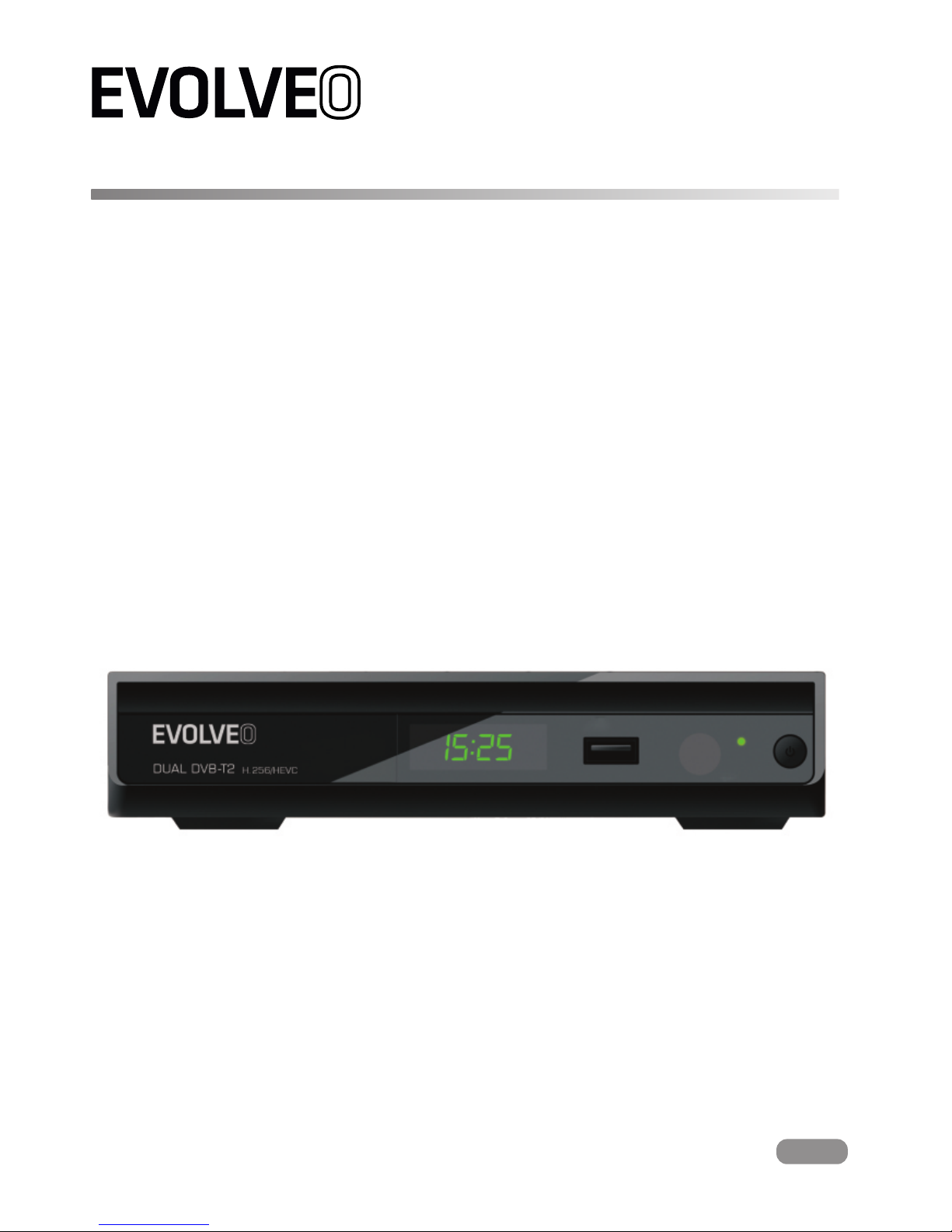

Evolveo GAMMA T2 User manual

English
www.evolveo.com
GAMMA T2
HD DVB-T2 H.265/HEVC recorder

TV
Front panel
Rear panel
INTRODUCTION
1
English
1
RF Loop through
for an external device
HDMI Output
TV Scart
for connection to the TV
Remote sensor
USB port
Display
Power
USB port
Power indicator
Antenna
Digital Audio Output
DC Power input

INTRODUCTION
1
English
2
STANDBY INFO SUBTITLE
OK
AUDIOUSB TV/RADIO
BACK
VOL+ VOL-
CH+
CH-
TTX TIMER FAV
MUTE
MEDIA
RES
EXIT
MENU
RECORD
DF00
EPG
Remote control
1
2
3
4
5
6
15
18
19
12
20
21
22
7
8
9
10
11
13
14
16
17
23
24
26
25
1
2
3
STANDBY
(switch the STB on and standby)
INFO
(Press for current channel information)
PLAY
26
OK button
(Confirm a selection within a menu)
Numeric entry
(Enter numeric values and select the channel
directly by entering it's number)
AUDIO
(Select audio mode and audio track)
SUBTITLE (Set up the Subtitle)
8
9
11
10
12
13
15
14
4
5
6
7
16
17
18
19
20
21
22
23
24
25
BACK
(Switch to previous channel)
EPG
(Open up Electronic Program Guide Menu)
RECORD
(Record the TV program)
Search backward/forward
FAV
(Open the Favorite list)
RED/GREEN/YELLOW/BLUE Buttons
(For interactive function/Submenu
function buttons)
PAUSE(Pause/Active timeshift function)
Previous/Next
STOP
(Stop program playback or recording)
TV/RADIO
(Switch between TV and Radio)
MUTE (Turn off/on the volume)
MEDIA
(Enter Record menu)
USB
(Enter the Video menu)
TIMER
(Enter Timer Setting menu)
Menu
(Open and close the menu screen)
EXIT (Exit from menu)
RES (Switch HDMI resolution)
Cursor
(used to navigate menu's items)
TTX (On/Off teletext)

TV
SYSTEM CONNECTION
1
English
3
RF cable
Scart cable
Aerial
There are many different types of TV and other equipment that you can connect to the BOX. In this
manual you will see some of the most common ways to connect your equipment.
HDMI TV
HDMI cable
Stereo Amplifier
NOTE: 1. Do not plug/unplug HDMI connector while the BOX power is on.
2. Power indicator will turn green when the BOX power on, and
turn red when the BOX goes standby.

Welcome
If you use the STB for the first time, the "Welcome" menu appears.
Press cursor button to setup the "Region", "Language",
"Display Mode", "Aspect Mode".
Highlight "OK" and press the "OK" button to start channel search.
GETTING STARTED
Installation
Highlight "Channel Scan", press the "OK" button to enter the
Channel Scan menu.
Press the cursor button to set Scan mode, Scan Band ,Channel No.,
Frequency, Bandwidth and Network Search.
Highlight "Search", press "OK" button to start channel scan manually.
1
1
2
2
4
1
2
3
1
English
4
Auto Scan
Channel Scan
LCN
Press the "MENU" button to enter main menu.
Press "UP" or "DOWN" button to highlight "Installation", press
"RIGHT" button to enter the "Installation" menu.
Press "UP" or "DOWN" button to highlight the desired item and
press "OK" button to enter the sub-menu .
Press "EXIT" button to exit.
Highlight the "Auto Scan", press "OK" button to enter the
Auto Scan menu.
Press the cursor button to set "FTA Only" /" T2 Signal Only".
Highlight "Search", press the "OK" button to start channel scan
automatically.
This menu allows you to activate/disactivate the LCN function.
If LCN (Logical Channel Number)Select function is activated,You can't change the
original number of TV channels by scanning .
"Installation" menu allows you to set up channel search and LCN
option.
3
3
Welcome
OK
Region
Language
Display Mode
Aspect Mode
New Password
Confirm Password
Czech
English
1080i@50HZ
16:9 full-screen
----
----
Channel Scan
Signal Intensity
Signal Quality
100%
100%
Scan Mode
Scan Band
Channel No.
Frequency
Bandwidth
Network Search
Search
By Channel
UHF
CH37(666000KHz)
666000KHz
8MHz
No
Auto Scan
FTA Only
T2 Signal Only
Search
No
No
Installation
Auto Scan
Channel Scan
LCN
"Auto Scan" menu allows you to set up automatic channel search.
"Channel Scan" menu allows you to set up manual channel search.

OPERATION
Channel List
1
English
5
Accessing the Electronic Program Guide (EPG)
Accessing the EPG of all channels:
1Press the "EPG" button to enter the EPG menu, and a
preview of your current channel will be displayed in
the top right corner of the screen.
Press "UP" or "DOWN" button to select the desired channel,
Press "LEFT" or "RIGHT" button to select the desired event,
Press "GREEN" button to timer the event.
Press "RED" button to show the "Time bar" menu, you can
select the way showing time and move time by pressing
"OK" button.
Press the "OK" button to display the information about
the selected event.
Press "EXIT" button to back to the previous menu.
3/19 01:30 02:00 02:30 03:00
The Recor
Auntie's War on Smut
This is CBeebies!
The Re
Commons Questions
Proms on FOUR
01:39 4/4
0010 BBC NEWS 24
EPG
0008
0009
0010
0011
0012
Interecon
BBC Parl
BBC NEWS
CBeebie
301
TimerTime
2
3
0010 BBC NEWS 24
NowLanguage
BBC News
02: 00~02:30
News
eng(1/1)
Cancel Next
Exit time bar.
Back to the current time.
Jumps time forward or backward every half an hour.
Jumps time forward or backward every 2 hours.
Jumps time forward or backward every 24 hours.
In "Time bar" menu:
4
3/19 01:30 02:00 02:30 03:00
The Recor
Auntie's War on Smut
This is CBeebies!
The Re
Commons Questions
Proms on FOUR
01:39 4/4
0010 BBC NEWS 24
EPG
0008
0009
0010
0011
0012
Interecon
BBC Parl
BBC NEWS
CBeebie
301
5
You can access the Channel list by pressing "OK" button.
Press the cursor buttons to select the channel you want to view.

Edit Channel menu
EDIT CHANNEL
TV / Radio Channel list
In the Edit Channel menu, highlight "TV Channel List" or "Radio
channel List", press "OK" button to enter TV channel list/Radio
Channel list menu.
Press "UP" or "DOWN" button to highlight the desired channel,
press the "OK" button, a preview of the channel will be displayed
in the top right corner of the screen.
1
2
Use this menu to set up Favourite, lock, skip, move, sort, delete and
rename for the selected TV/Radio channels.
Press "FAV" button, then press "OK" button to set the FAV channels.
Press "Red" button to activate "Lock" function, then press "OK"
button, you will be asked to input the password then the selected
Channel will be locked.
Press "Green" button to activate "Skip" function, press "OK"
button to skip the desired channel.
Press "Yellow" button to activate "Move" function, highlight the
desired channel and press "OK" button to confirm. Press "UP" or
"DOWN" button to select the new position and press "OK"
button, the channel will be moved to the new position.
Press "Blue"button to enter Edit channel sub menu.
Press "OK" button again to cancel the corresponding function.
Press "colour" buttons again to exit the corresponding function.
1
English
6
4
1
2
3
Press the "MENU" button to enter main menu.
Press "UP" or "DOWN " button to highlight "Edit Channel", press
"RIGHT" button to enter the Edit Channel menu.
Press "UP" or "DOWN" button to highlight the desired item and
press "OK" button to enter the sub-menu .
Press "EXIT" button to exit.
Press "Exit" button to save and back to "Edit Channel" menu
3
Basically, the operation of "Radio Channel List" is the same as "TV Channel List",
but there is one point different: In "Radio Channel List" mode, there is no video
information, so it will always display Radio's logo in the right side preview window.
NOTE:
Delete All
1
2A warning window appears.
Select "Yes", press "OK" button to delete all channels.
Select "No", Press "OK" button to cancel deleting.
In the Edit Channel menu, highlight "Delete All", press "OK"
button. You are asked to input a password.
TV Channel List
Radio Channel List
Delete All
Edit Channel
TV Channel List
All TV
FAV Lock Skip
Move Edit
0001 No Name
0002 YooPlay Ga
0003 E4+1
0004 Telecinco
0005 SKY THREE
0006 Sky Spts Ne
0007 Sky News
DVBT
Telecinco
498167KHZ/8K/64QAM
PID:203/303/203
GI:1/32 FEC:3/4
DVBT
Telecinco
498167KHZ//
PID:203/303/203
GI: FEC:1/2
Edit Channel
All TV
Sort
Rename Delete
0001 No Name
0002 YooPlay Ga
0003 E4+1
0004 Telecinco
0005 SKY THREE
0006 Sky Spts Ne
0007 Sky News
Warning! Do you really want to
delete all channels?
No
Yes

System setup menu
Language
This menu allows you to set Language of system, Audio, Subtitle and
Teletext and to set subtitle function.
SYSTEM SETUP
TV System
This menu allows you to set Video Resolution, Aspect Mode,
Video Out and Digital Audio Out.
Local Time Setting
This menu allows you to set the region and the local time.
Region:
GMT Usage:
GMT Offset:
Summer Time:
Date/Time:
Use this menu to change the region.
Use this menu to open the usage of GMT by
Region/User Define.
Also to close the usage of GMT.
The GMT offset range is "-11:30 ~ +12:00",
increasing every half hour progressively.
(Only valid in "User Define" mode for GMT
Usage.)
On/Off
Press numeric button to set the date/time.
(Only valid in "Off" mode for GMT Usage.)
Video Resolution:
Aspect Mode:
Video Out:
Digital Audio Out:
1
English
7
4
1
2
3
Press the "MENU" button to enter the main menu.
Press "UP" or "DOWN" button to highlight "System Setup",
press "RIGHT" button to enter the System Setup menu.
Press "UP" or "DOWN" button to highlight the desired
item and press "OK" button to enter the sub-menu.
Press "EXIT" button to exit.
Set up Various video resolutions.
4:3PS/4:3LB/16:9PB/16:9PS/4:3 full-screen/
16:9 full-screen
CVBS/RGB
BS Out/LPCM Out
Many aspects of your STB can be set to reflect your circumstances
and preference.
Subtitle: Off/Normal/Hard of Hearing
System Setup
Language
TV System
Local Time Setting
Timer Setting
Parental Lock
OSD Setting
Favorite
Audio Description Setting
Other
Language
Language
First Audio
Second Audio
Subtitle Language
Teletext
Subtitle
Mp4 Subtitle CodePage
English
Czech
Czech
Czech
Czech
Off
Windows-1250
Video Resolution
Aspect Mode
Video Out
Digital Audio Out
720p@50HZ
4:3 full-screen
CVBS
LPCM Out
TV System
Local Time Setting
Region
GMT Usage
GMT Offset
Summer Time
Date
Time
United Kingdom
By Region
GMT+ 00:00
On
12/07/2016
01:51
Reykjavik,Casablanca,Lisbon,Dublin,London
Mp4 Subtitle CodePage: Windows-1250/ISO8859

OSD Setting
This menu allows you to set the time of OSD Timeout and OSD
Transparency .
This menu allows you to rename the favorite group.
OSD Timeout:
OSD Transparency:
1-10
Off/10%/20%/30%/40%.
SYSTEM SETUP
Parental Lock
In "System Setup" menu, highlight "parental Lock" and press "OK"
button, you are asked to input a password.
After inputting the correct password by pressing numeric buttons,
the parental lock menu appears.
1
2
Menu Lock:
Rating Lock:
New Password:
Confirm Password:
1
English
8
To lock the Edit channel/ Installation menu.
You can set menu lock to on/off.
Off/AGE 4~AGE 18.
To change the password.
To confirm the new password.
This menu allows you to lock the menu and the channels, set Rating
Lock and change the Password.
Favorite
In "System Setup" menu, highlight "Favorite", press "OK" button to
enter Favorite menu.
Select the favourite group you want to change, press "OK" button
to open the mock keypad. Input letter and numeric one by one by
pressing the cursor buttons and press "OK" button to select, after
finished input, press "Blue" button, you changed Favorite group
name successfully.
Press "EXIT" button to quit the group rename menu.
1
2
3
Timer Setting
This menu allows you to set the program timer. You can set 8 timers.
Timer Mode:
Timer Service:
Wakeup Channel:
Wakeup Date:
On Time:
Duration:
Off/Once/Daily/Weekly/Monthly
Channel/Record
Set a desired channel as the wakeup channel.
Set Wakeup Date by pressing numeric button.
Set On Time by pressing numeric button.
Set Duration by pressing numeric button.
Save Cancel
14:55 12-07-2016
Timer Mode
Timer Service
Wakeup Channel
Wakeup Date
On Time
Duration
Off
Channel
BBC FOUR
12/07/2016
16:00
02:00
Parental Lock
Menu Lock
Rating Lock
New Password
Confirm Password
Off
Off
----
----
OSD Setting
OSD Timeout
OSD Transparency
5
Off
Favorite
1
2
3
4
5
6
7
8
Favorite 1
Favorite 2
Favorite 3
Favorite 4
Favorite 5
Favorite 6
Favorite 7
Favorite 8
A
G
M
S
Y
4
SP
B C D E F
K LH J I
N
T
Z
5
O
U
0
6
?
P
V
1
7
<-
Q
W
2
8
OK
R
X
3
9
Rename
Favorite 1
DEL OK
CAPS

SYSTEM SETUP
Audio Description Setting
On/Off
On/Off
-3~3
AD Service:
Use AD as default:
AD Volume Offset:
This menu allows you to set up Audio Description Setting.
1
English
9
Other
Antenna Power:
Channel Play Type:
Auto Standby:
Loopthrough In Standby:
This menu allows you to set Antenna Power, Channel Play Type,
Auto Standby and Loopthrough In Standby.
On (STB will provide 5V power to antenna)
Off (STB will not provide 5V power to antenna)
All/Free/Scrambled
30 Min/1 Hour/2 Hours/3 Hours/Off
On/Off
Audio Description Setting
AD Service
Use AD as default
AD Volume Offset
Off
Off
0
Other
Antenna Power
Channel Play Type
Auto Standby
Loopthrough In Standby
Off
All
3 Hours
Off
TOOLS
Information
In "Tools" menu, highlight "Information", press "OK" button to open
information window.
Press "EXIT" button to exit "Information" menu.
1
2
Tools main menu
4
1
2
3
Press the "MENU" button to enter main menu.
Press "UP" or "DOWN" button to highlight "Tools", press "RIGHT"
button to enter the Tools menu.
Press "UP" or "DOWN" button to highlight the desired item and
press "OK" button to enter the sub-menu.
Press "EXIT" button to exit.
You will find here important information about the hardware and
embedded software.
Tools
Information
Factory Setting
Software upgrade by USB
Remove USB device safely
Information
Receiver
Hardware
Software
Build Date
EVOLVEO Gamma T2
EVOLVEO Gamma T2
H265 V1.2.7
May 19 2017

1
English
10
Factory Setting
This menu allows you to re-set the STB back to the factory settings,
clear all existed channels.
In the "Tools" menu, highlight "Factory Setting", press "OK" button.
1
2A confirmation window is displayed.
Select "Yes" to return back to factory settings and clear all channels.
Select "No" to cancel back to factory settings.
Press "EXIT" button to exit "Factory Setting" menu.
3
Software Upgrade
Press "EXIT" button to exit "Upgrade by USB" menu.
In the "Tools" menu, highlight
"Upgrade by USB", press "OK" button, Software Upgrade menu
is shown.
1
2Press cursor button to select the desired item, then highlight
"Start" and press "OK" button to start upgrade.
3
This menu allows you to upgrade software version by USB.
Factory Setting
"This operation will load default and erase all
the channels that user added, continue?"
Yes No
Software upgrade by USB
Upgrade Mode
Upgrade File
Start
AllCode
xxx
0%
Tools
Remove USB device safely
In "Tools" menu, highlight "Remove USB device safely".
Press "OK" button to confirm. Then a window is displayed.
Select "OK" button to remove the USB device.
Select "Cancel" button to cancel the operation.
This menu allows you to remove the external USB device safely.
1
2
Disk Remove
Remove USB Disk A-3 GB
OK Cancel

Media Player main menu
Media Player
1
English
11
4
1
2
3
Press the "MENU" button to enter main menu.
Press "UP"or "DOWN" button to highlight "Media Player", press
"RIGHT" button to enter the Media Player menu.
Press "UP" or "DOWN" button to highlight the desired item
and press "OK" button to enter the sub-menu.
Press "EXIT" button to exit.
Ensure to insert an external Mass Storage Device on the USB port.
Media Playback
Media Player
Record
Video
Music
HDD Information
DVR Setting
Music Image Video Record
USB1
1.
2.
3.
4.
5.
/..
MP3
MP3
MP3
MP3
MP3
840.mp3
I swear.mp3
Why.mp3
Lonely.mp3
Because.mp3
/xx/xxx/Music
Play List
Switch
1
Sort
FAV
2
Repeat
FAV All
INFO
Edit
Exit
EXIT
840.mp3
3319KB
00:03:32
00:03:3200:00:40
Music:
Image:
Press "RED" button to show Play List.
Move the highlight to the file which you want to add to play list, then press
"Green" button to add. It will mark a favorite icon on the file.
Press "Yellow" button to add all file of current directory to play list. Press again to
delete all file of current directory from the play list.
Press "Blue" button to enter to edit sub-menu.
Press to switch TAB between Music/Image/Video/Record.
Press "2" button to open the sort window.
You can sort by Name/Time/Size/Favorite.
Press "INFO" button to set repeat mode. The option is Repeat Folder/
Random Folder/Repeat One.
Return to the upper directory.
Press "Red" button to show play list.
Move the highlight to the file which you want to add to play list, then press
"Green" button to add. It will mark a favorite icon on the file.
Press "Yellow" button to add all file of current directory to play list. Press again to
delete all file of current directory from the play list.
Press "Blue" button to enter to edit sub-menu.
Press to switch TAB between Music/Image/Video/Record.
Press "2" button to open the sort window.
You can sort by Name/Time/Size/Favorite.
Press "INFO" button to open image setup
Press "3" button to view image in multi view mode
Return to the upper directory.
"RED" button:
"GREEN" button:
"YELLOW" button:
"BLUE" button:
"1" button:
"2" button:
"INFO" button:
"EXIT" button:
"RED" button:
"GREEN" button:
"YELLOW" button:
"BLUE" button:
"1" button:
"2" button:
"INFO" button:
"3" button:
"EXIT" button:
3
In "Media player" menu, highlight "Record", "Video", "Music" or
"Image".
Press "OK" button to enter Media Playback menu.
Press "UP" or "DOWN" button to select a desired media file,
and press "OK" button to play the files.
Press "EXIT" button to exit.
1
2
This function allows you to play the media files from the USB HDD.
4

This menu allows you to set the DVR Settings.
DVR Setting
1
English
12
Media Player
HDD Information
Record
Press to Rename the selected recording file.
Press to Lock the selected recording file.(The password is necessary for the
operation),
Press again to unlock the recording file.
Press to delete the selected recording file.
Press to switch TAB between Music/Image/Video/Record.
Return to the upper directory.
Video:
"RED" button:
"GREEN" button:
"YELLOW" button:
"1" button:
"EXIT" button:
Press to enter to edit sub-menu for the selected file.
Press to switch TAB between Music/Image/Video/Record.
Press to sort the files of the current directory by Name/Time/Size.
Press to set repeat mode (Repeat Folder/Repeat One).
Return to the upper directory.
"BLUE" button:
"1" button:
"2" button:
"INFO" button:
"EXIT" button:
In "Media Player" menu, highlight "DVR Setting",
press "OK" button to enter "DVR Setting" menu.
Press "UP" or "DOWN" button to highlight the desired
item and press "LEFT" or "RIGHT" button to change the setting.
Press "EXIT" button to exit.
1
2
3
Timeshift:
Jump:
After Recording:
Pause/Off/Auto
30 sec/1 min/5 min/10 min/15 min/20 min/30 min
Watch TV/Go to Standby-mode
Format DVR Set
HDD Information
Volume:
Total Size:
Free Size:
Rec Size:
TMS Size:
File System:
xxxx
xxxx bytes
xxxx bytes
xxxx bytes
xxxx bytes
NTFS
USB Disk A: xxxG bytes
Format
Disk Mode FAT
OK
Cancel
DVR Setting
Timeshift
Jump
After Recording
Pause
30sec
Go to Standby-mode
DVR Set
DVR Type REC & TMS
OK
Cancel
DVR Set REC&TMS/Record/Timeshift
Press BLUE button to open DVR Set menu.
Press "LEFT" or "RIGHT" button to change DVR Type.
Press "OK" button to format. Press "Cancel" button to cancel.
Press YELLOW button to open Format menu.
Press "LEFT" or "RIGHT" button to change Disk Mode.
Press "OK" button to format. Press "Cancel" button to cancel.
Format FAT/NTFS
In "Media Player" menu, highlight "HDD Information",
press "OK" button to open HDD information window.
Press "EXIT" button to exit.
This menu can display some parameters of Removable HDD.
1
2

Press "PAUSE" button to pause the playback.
Press "FORWARD" button to fast forward the playback.
Press "BACKWARD" button to rewind the playback.
Press "STOP" button to stop TimeShift playback and return to Live programme.
During the playback, it is possible to perform the following actions :
Instant record:
Press "RECORD" button again can input duration.
Press "STOP" button to stop recording, then a confirmation window appears.
Select "Yes" to stop recording. Select "No" to continue recording.
In full screen mode, press "RECORD" button to record the current programme instantaneously.
1
English
13
Initiate:
Time Shift can be done in full screen mode by pressing the
"PAUSE" button.
Press "RIGHT" or "LEFT" button to select the time you want to start.
Press "OK" button to start timeshift playback.
Playback
Timer record
You can enter timer setting menu to set a timer record by EPG or System set up option.
TIMESHIFT/RECORD
Timeshift
Record
Plugging an external Mass Storage Device on the USB port gives you access to Time Shift/Record
a broadcast programme.
Pause a broadcast programme and continue watching it later (Time Shift )
Record a broadcast programme.
When the space available on the Mass Storage Device runs out, recording operation of
broadcast will stop.
Please use USB 2.0 disk when recording or timeshift.
For timeshift and recording feature, you need take bigger size USB driver or HDD (>2GB).
NOTE:
M6
17/11 01:36
Play 00:02:37 00:05:37
412412412 188 188
100%
TS
This product allows you to record two channels from different frequency
at the same time.
NOTE:

In some region, the digital terrestrial signal may be weak. So you'd better use the antenna in
which the booster was built, for watching the weak signal channels.
TROUBLESHOOTING
Problem
Standby light not lit
No signal found
Channel search is not
working.
Coded channel alert.
No response to remote
control
No password is listed
anywhere.
There is no sound.
After moving your player to
another room, you've found
that you no longer receive
a digital signal.
Possible cause What to do
Mains lead unplugged
1. The antenna is not properly
aligned.
2. The signal is too weak.
The channel is encoded.
The receiver has no power cord in
the socket.
The driver is not properly
pointing.
The front of the player is
shaded.
The batteries are exhausted.
The selected channel has a signal
but no sound.
By moving, the signal strength
received by the player may be
reduced.
Connect the main power cable.
1. Adjust the direction of the
antenna.
2. Get a stronger antenna or
antenna amplifier.
Be sure to set the antenna
in the player's main menu is correct.
Select alternative channel
Plug the main power cord into the
socket.
Point the driver to the front of the
player.
Loosen the space in front of the
front of the player.
Replace the batteries.
The default password is always
0000.
Press the Audio button to make
sure the selected channel has
sound.
The antenna cable must ideally
have the same length as the
previous room, or use an amplifier
signal or use a signal amplifier
1
English
14

TUNER & CHANNEL RF INPUT CONNECTOR x1
(IEC-TYPE, IEC169-2, FEMALE)
RF OUTPUT CONNECTOR x1
(IEC-TYPE, IEC169-2, MALE (LOOPTHROUGH))
FREQUENCY RANGE:
174MHz~230MHz(VHF)
470MHz ~862MHz (UHF)
SIGNAL LEVEL:
-15 ~ -80 dbm
DECODER
Video decoder
Audio decoder
VIDEO FORMATS
MODULATION
VIDEO OUTPUT
INPUT RATE MAX. 48Mbit/s
4:3/,16:9 SWITCHABLE
HDMI, CVBS,RGB
QPSK,16QAM,64QAM, 256QAM
CONNECTION
TUNER
POWER SUPPLY
1
English
15
MPEG-2 MP@HL, AVC/H.264 HP @L4.1
MPEG-4 ASP SUPPORTED,HEVC/H.265 MP@L4.1
MPEG-1 Layer 1,2/PCM/HE-AAC V1.0
ICE958 SPDIF/Dolby D+ and Dolby D
SPECIFICATIONS
HDMI
DATA PORT
SCART
SPDIF
INPUT VOLTAGE
ANTENNA INPUTx1, RF OUTPUT x1
HDMI OUTPUT x1
USB slot x2
TV OUTPUT x1
COAXIAL OUTPUT x1
12V 1A
Hereby, the company Abacus Electric, s.r.o. declares that the EVOLVEO Gamma T2 is in compliance
with the requirements of the standards and regulations, relevant for the given type of device.
DECLARATION OF CONFORMITY
Find the complete text of Declaration of Conformity at ftp://ftp.evolveo.com/ce
Copyright © Abacus Electric, s.r.o.
www.evolveo.com
www.facebook.com/EvolveoEU
All rights reserved.
Design and specification may be changed without prior notice.
