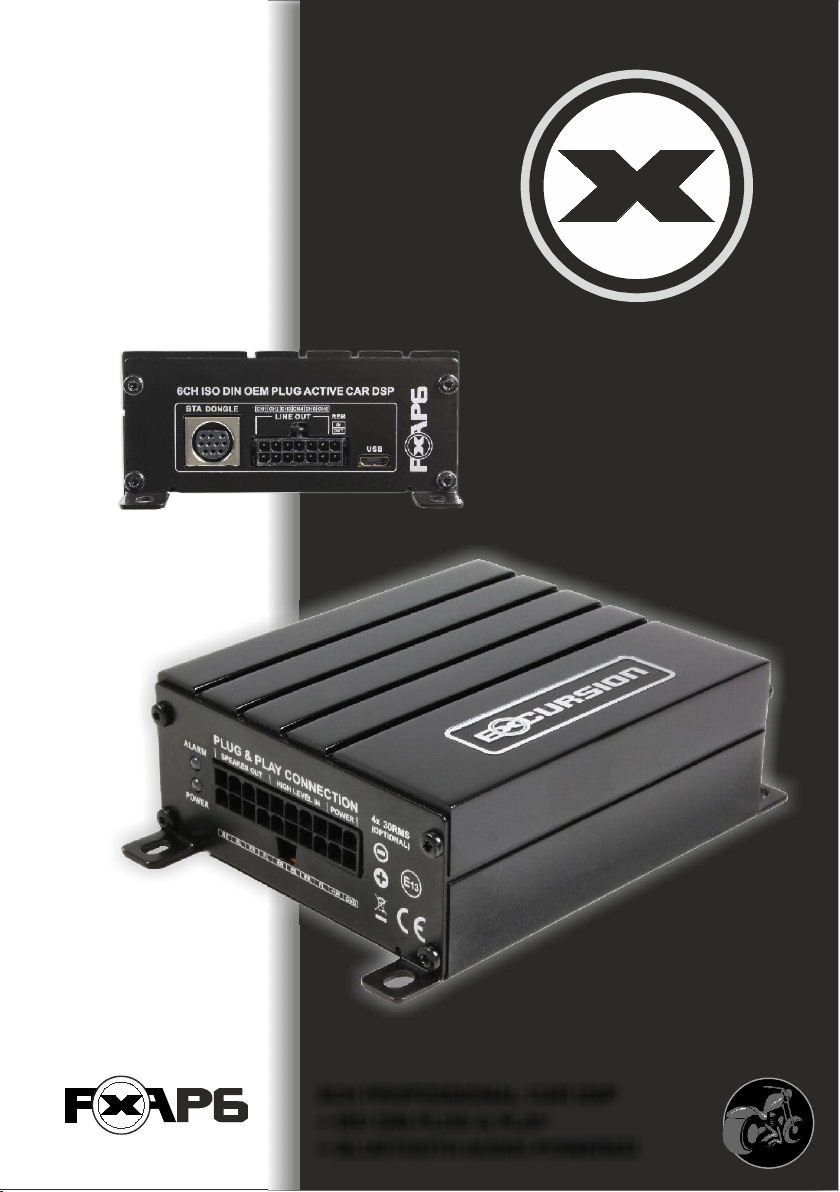

EXCURSION PXA P6 User manual

...is all you need
6CH PROFESSIONAL CAR DSP
+ ISO DIN PLUG & PLAY
+ BLUETOOTH AUDIO POWERED

CONGRATULATIONS !
Dealer's Name____________________________
Date of Purchase__________________________
Installaon Shop__________________________
Installaon Date __________________________
CAUTION !
Connous exposure to sound pressure levels in excess of 100dB can cause permanent hearing loss. EXCURSION Products are capable
of producing sound pressure levels well over 170dB. Please observe all local sound ordinances while listening to your EXCURSION System.
EXCURSION Intl. acceptss no liability for hearing loss, bodily injury, or property damage due to the result of use or missuse of this product.
CONGRATULATIONS !
Dealer's Name____________________________
Date of Purchase__________________________
Installaon Shop__________________________
Installaon Date __________________________
CAUTION !
1
EXCURSION
You now own an EXCURSION PXA Plug & Play Series DSP, the product of an
uncompromising design and german engineering philosophy. A product made
from Car Audio fanacs who truely believe in the relentless pursuit of perfecon.
EXCURSION DSP & Amps are the result of several decades of product improvements,
compeon, innovaon and highest quality parts and control standards in industry.
When properly installed these products will provide you with many years of
listening pleasure and are the perfect balance between high fidelity, extreme
performance and long-lasng reliabilty.
Should your EXCURSION product ever need a service, Please record your informaon
on the following lines to refer to in the event that you may need it later.
At EXCURSION Intl. we are confident you will have many years of outstanding
enjoyment from your high performance investment. For maximum performance
we recommend that you have your new EXCURSION PXA DSP installed by
an exclusive Authorizied EXCURSION Dealer
To learn more about EXCURSION, please visit us on the World Wide Web at
hp://www.excursion.us

2
FEATURES
Built-in 6CH professional Digital Audio Signal Processor
Designed for OEM Upgrade via ISO DIN Plug & Play Connecon.
4CH High Level + 2CH BT Input with Auto Turn ON/OFF funcon.
4CH sufficient Output Power easily drive orign OEM speaker.
6CH 4Volt PreOut via RCA harness for supply Car Audio Amplifier(s).
REM OUT for Amplifier(s) Turn ON/OFF adjustable delay 0-10 Sec.
BT-Audio Ready via oponal available Bluetooth Dongle.
BT-Audio Priority Mode. REM OUT/IN allow PXA P6 use as stand
alone head unit or Motorcycle or Boat or other mobile audio fields.
Lossless BT Audio SQ-Module Design using CSR, effect the audio signal
route direct to DSP without modulaon D/A to A/D for best resoluon.
FRD Chip Technology - 4Ohm stable. Four layer circuit board design.
Intelligent protecon circuit design: Short-circuit, Overload, High Temp.
Professional PC tuning soware with full funcon plaorm.
„Run configuraon wizard“ mode for rapid configuraon, simply, clear.
3 different Setup Presets can be switched in real me instantly.
Wireless full funcon Remote Controle. Synchronizing remote controle
with smart phone player when smart phone Bluetooth plays music.
On seperate purchase, according demand, PXI 6 (1.8m) or PXI 15 (4.5m)
ISO DIN Plug to 20 POL wire harness ensure fast and easy OEM Plug
installaon of PXA P6. ISO DIN is the industrial standard in the OEM.
A standard to meet most car Plug adapon or via another car specific
to ISO Adapter. Therefor, according demand, PXI QLA (QuadLock
Adapter) is one kind to OEM Plug most of the latest car models.
Please ask your authorizied EXCURSION retail specialist your fact car
demand for easy Plug&Play install and purchase exact : „all you need“

3
EXCURSION
PXA P6
DC8.5 -16V
0.32A
2.5mA<
9-16V
DC12.8V(380mA)
0.02％
20 ÷ 19.5K Hz
97dB
0 dB8
mV - V600 15
0Ω5
V4
4 Channel Max
tereo2 Channel S
6 C Maxhannel
0Wrms4x 3
Full / HPF / LPF / BPF
12/24 dB
6/12/18/24 dB
10 ÷ 20K
0° / 180°
96x85x38mm
.450 KG
Power supply
Working voltage:
Idling current:
Standby current:
Remote IN voltage:
Remote OUTvoltage:
Signal Processor
Distoron - THD @ 1 kHz, 1 VRMS Output:
Bandwidth@ -3 dB:
S/N rao@ Aweighted(High level input):
Channel Separaon@ 1 kHz:
Input sensivity ( Level)High :
Input impedance (High Level):
Max Output Level(RMS) @ 0.1% THD:
Input/output
High level:
Bluetooth input:
Line Output:
4 Ohm (Stereo) Powe r:
Crossover
Filter type:
Filter mode and slope
Linkwitz:
Buerworth:
Crossover Frequency 70 steps:
Phase control:
Size
L x W x H :
Weight:

4
1. 20 POL PLUG & PLAY CONNECTION
Matching dedicated ISO DIN Plug & Play harness for different cars. Makes sure that
you connect your PXA P6 directly to your factory head unit while keeping orign status.
On extra purchase you can choose suitable between PXI 6 (1,8m) and PXI (4,5m).
Cauon: When connecng the dedicated harness, please check whether the line order of the wire
harness is consistent with the orignal line sequence in order to avoid damage to other equipment.
2. ALARM (Protecon Indicator)
The red ALARM LED indicator will light up and flash if there is fault presented
like short circuit, overheat or under voltage protecon. PXA P6 will stop working.
2. POWER (Working Indicator)
When PXA P6 turn on the blue indicator flashes three mes and go into constant
light state. Aer self-checked into normal working state, the blue working indicator
is in constant light state.
3. BLUETHOOTH INPUT
PXA P6 is Bluetooth Audio ready. On extra purchase PXI BTD Bluetooth Dongle
the PXA P6 can receive stereo digital signals from Bluetooth Output Source. For
BT Connecon with BT Output Source the firmware password is saved : 8888
4. LINE OUT
Is provided with 6CH RCA Low Level signal Output. REM OUT to turn ON/OFF
external amplifier. REM IN to turn ON/OFF PXA P6 if used as Head Unit device.
5. USB
Use USB cable from accessory to connect PC to PXA P6 to adjust 6CH DSP sengs.
FRONT PANEL LAYOUT REAR PANEL LAYOUT
6CH ISO DIN OEM PLUG ACTIVE CAR DSP

5
EXCURSION

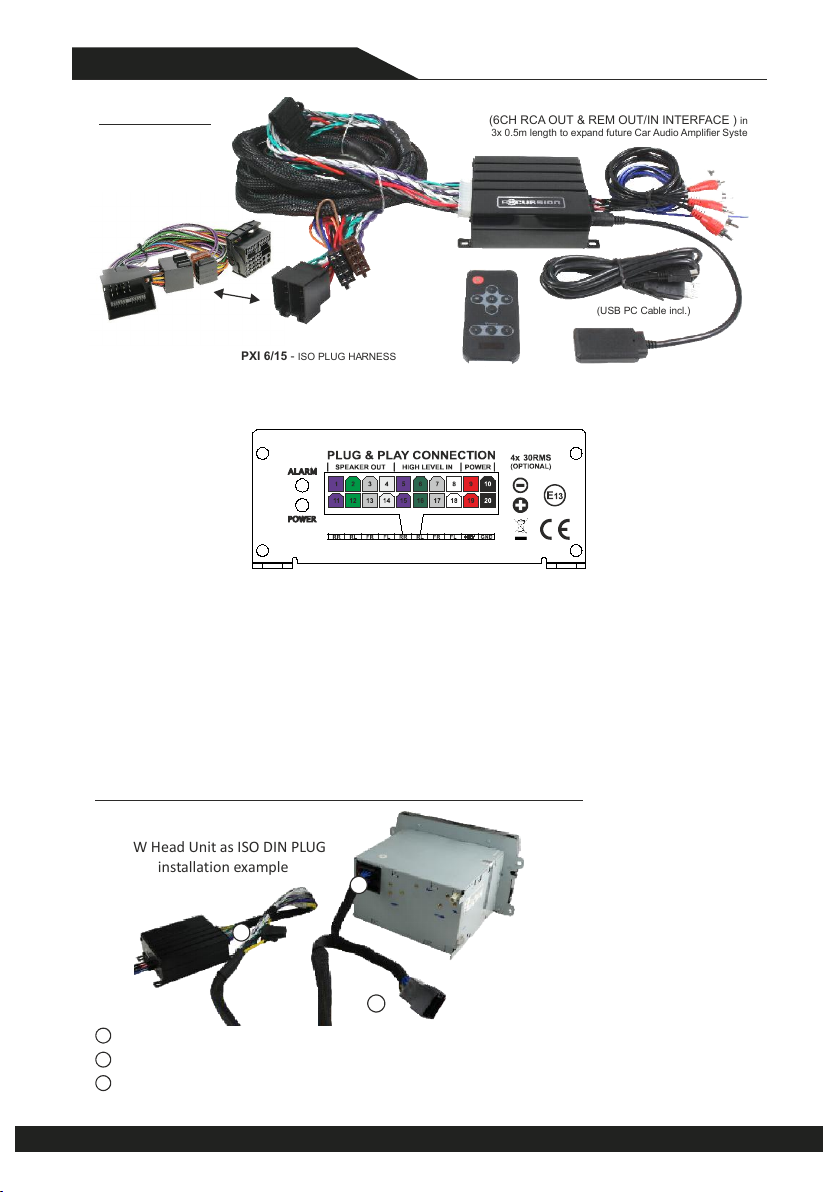

(6CH RCA OUT & REM OUT/IN INTERFACE ) incl.
3x 0.5m length to expand future Car Audio Amplifier System
PXI 6/15 - ISO PLUG HARNESS
(excl. for exact length purchase)
PXI 6 = 1.8m length
PXI 15 = 4.5m length
(USB PC Cable incl.)
PXI BTD - Bluetooth Dongle
(excl. purchase on demand)
Wireless Remote Controle
(incl. synchronize BT Player)
1. Loudspeaker output real right (-)
2. Loudspeaker output real left (-)
3. Loudspeaker output front right (-)
4. Loudspeaker output front left (-)
5. High-level loudspeaker input real right (-)
6. High-level loudspeaker input real left (-)
7. High-level loudspeaker input front right (-)
8. High-level loudspeaker input front left (-)
9. Power supply +12V
10. Ground
11. Loudspeaker output real right (+)
12. Loudspeaker output real left (+)
13. Loudspeaker output front right (+)
14. Loudspeaker output front left (+)
15. High-level loudspeaker input real right (+)
16. High-level loudspeaker input real left (+)
17. High-level loudspeaker input front right (+)
18. High-level loudspeaker input front left (+)
19. Power supply +12V
20. Ground
VW ead nitH U as ISO DIN PLUG
installation e exampl
3
PXA P6 - ISO DIN OEM PLUG CONNECTION INSTRUCTION
PXI QLA
Quadlock to ISO DIN Adapter
(excl. purchase on demand -
latest car models on market)
Installaon
Aenon:
If you car does not meet
meet ISO DIN or Quadlock
standard please ask your
local authorizied EXCURSION
purchase retailer about your
individuell OEM car standard
for easy OEM Plug Installaon
of your PXA Series product.
1 These Plugs are used to connect the OEM car spaker and Power Supply to Headunit wire socket.
2 Female jack is insterted into ISO Plugs for Speaker & Power of the car. Former inserted to Headunit.
3 The 20Pol plug of PXI 6 or PXI 15 harness is inserted into the corresponding jack of the PXA P6
2
1

146
1. Soware download and installaon instrucons:
Download PXA DSP Soware from official EXCURSION website: www.excursion.us
Follow hint complete installaon and double click the shortcut icon to start operaon.
As shown :
2. Precauons for soware installaon:
Please download & install PXA DSP Soware first before connect PXA P6 to PC.
Soware works on Windows Operaon System PC with following configuraon:
OS : Windows XP / Windows VISTA / Windows 7 / Windows 8 / Windows 10
CPU : 1.6 GHZ minimum
Memory : 1 GB minimum
Hard Disk : 512 MB minimum
Graphic Card : 1280*768 pixel resoluon minimum
Note: Windows 7, VISTA, XP require installaon of Microso Net Framework 4 tool
before installaon PXA DSP Soware to the PC =
5
4

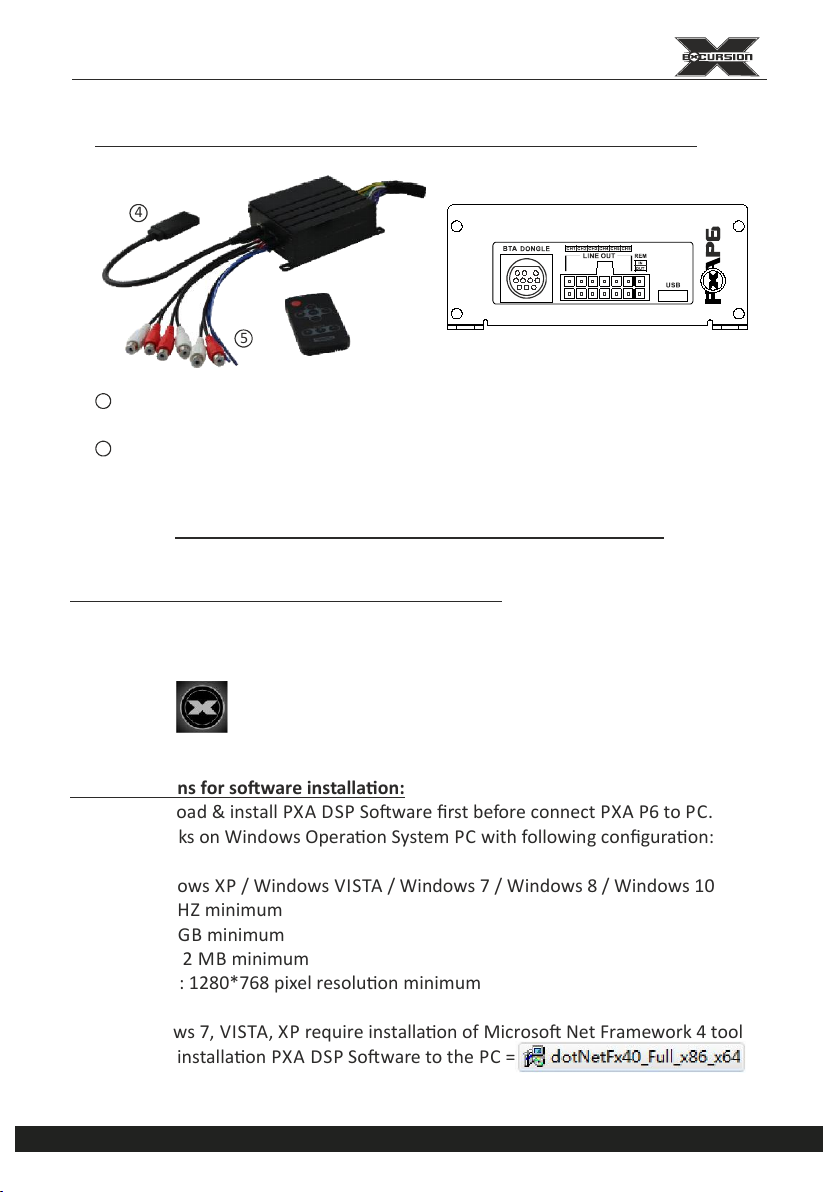

PXA P6 - BLUETOOTH/LOW LEVEL SIGNAL CONNECTION INSTRUCTION
4 Bluetooth stereo signal input terminal is to connect to our dedicated BT-3.
The interface adopts fool-proof design. Please pay aenon to its direcon when install it.
5 Low Level signal input terminal. Convenient for future expansion and upgrading.
6CH ISO DIN OEM PLUG ACTIVE CAR DSP
EXCURSION PXA DSP SOFTWARE DESCRIPTION

7
EXCURSION

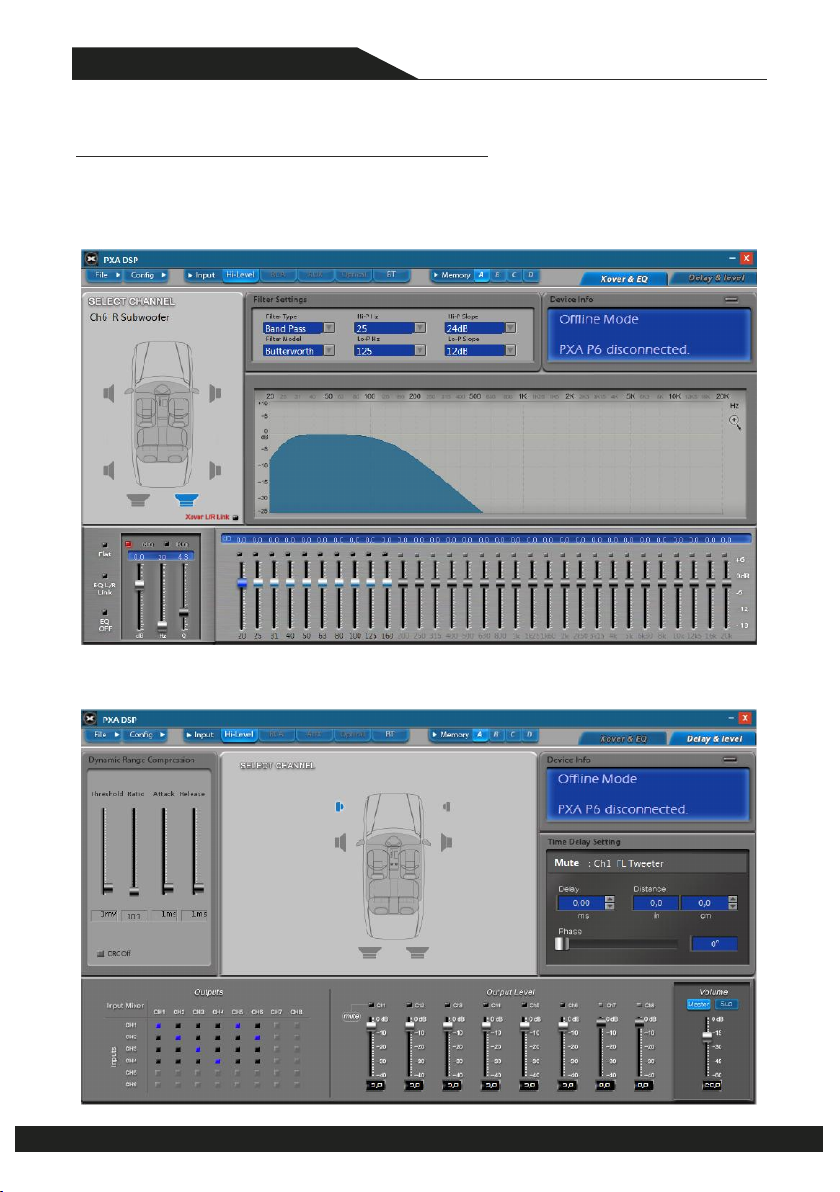

3. Introducon PXA DSP Soware main interface:
PXA DSP tuning soware has 2 main tuning control interfaces:
A) X-over and Equalizer Setup (default access aer start soware)
B) Time Delay and Level Setup

EXCURSION LIMITED WARRANTY POLICY
EXCURSION Intl. offers limited warranty on EXCURSION products under normal use on the following terms:
.EXCURSION DSP & Amplifier are to be free of defects in material & workmanship for a period of one year
This warranty applies only to EXCURSION products sold to consumers by Authorizied EXCURSION Dealers
in Germany. Products purchased by consumers from an EXCURSION dealer in another country are covered
only by that country´s Distributor and not by EXCURSION Intl.
This warranty covers only the original purchaser of EXCURSION product. In order to receive service, the
purchaser must provide EXCURSION with the receipt stang the consumer name, dealer, product and date
of purchase.
Products found to be defecve during the warranty period will be repaired or replaced (with a product
deemed to be equivalent) at Excursion`s discreon and will not be liable for incidental or consequenal
damages. EXCURSION will not warranty this product under the following situaons:
* DSP and Amplifiers received with apparent rust or corrosion
* Any evidence of liquid damage or exposure to excessive heat
* Aempted repairs or alteraons of any nature
* Product that has not been installed according to this owner manual
Any implied warranes including warranes of fitness for use and merchantability are limited in duraon
to the period of the express warranty set forth above. No person is authorizied to assume for EXCURSION
any other liability in connecon with the sale of this product.
Please call prior your authorizied EXCURSION dealer the product got purchased. In case they
are not accessible call 0961-416-0420 for EXCURSION Customer Service. You must obtain an RA#
(Return Authorizaon Number) to return any product to EXCURSION Intl. The RA number must
be prominently marked on the outside of the shipping carton or the delivery will be refused.
Please pack your return carefully! We are not responsibile for items damaged in shipping.
Return the defecve product along with a copy of the original dated retail sales receipt, plus 10,- EUR
for handling and diagnosc evaluaon to:
EXCURSION Intl. - A Division of CHPW
An: Returns (RA# ........................ )
Neustaedter Str. 20
D-92685 Floss / Germany
148
