Vais Technology SEER User manual

Installation Manual
VAIS TECHNOLOGY
www.vaistech.com
Copyright (C) 2003-2020 VAIS Technology Published July 1, 2020
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
!
SEER-MAN-001

Before You Start
WARNING
DO NOT DISASSEMBLE OR ALTER THE MODULE
Doing so may result in an accident, re, or electric shock.
DO NOT BLOCK THE AIRBAG
Do not mount product or any added equipment where it can obstruct the operation of
any safety devices such as the airbag.
DISTRACTION WARNING
Do not let product or any added equipment distract you while you are driving.
BEFORE WIRING, DISCONNECT THE CABLE FROM THE NEGATIVE BATTERY TERMINAL
Before starting any installation work, you must wait 90 seconds after turning the ignition switch to the LOCK position
and disconnecting the negative (-) terminal from the battery. The supplemental restraint system (airbag) is equipped
with a backup power source. If installation work is started less than 90 seconds after disconnection of the negative (-)
battery terminal, the SRS may deploy. When the negative (-) terminal cable is disconnected from the battery, the clock
and audio system’s memory will be erased. Before starting installation work make a record of the clock and audio
system’s memory settings. When installation is complete, reset the clock and audio systems to their previous settings.
Check that power tilt, power telescopic steering column, front power seats, power mirrors, and power shoulder belt
anchorage are equipped with a memory function. When installation is complete, it is necessary to readjust the features
to their previous settings. Never use a backup power supply (such as another battery) during installation work to avoid
losing these memory settings.
CAUTION
DO NOT SPLICE INTO ELECTRICAL CABLES
Never cut away cable insulation to supply power to other equipment. Doing so will exceed the current carrying capacity
of the wire and result in re or electric shock.
DO NOT ALLOW CABLES TO BECOME ENTANGLED IN SURROUNDING OBJECTS
Cables or wiring that obstruct or get caught on places such as the steering wheel, shift lever, brake pedals, etc. can be
extremely hazardous.
DO NOT INSTALL IN LOCATIONS WITH HIGH MOISTURE OR DUST
Moisture or dust may result in product failure.
HAVE THE WIRING AND INSTALLATION DONE BY EXPERTS
The wiring and installation of this product requires special technical skills and experience.
USE ONLY SPECIFIED ACCESSORY PARTS
Use of other than specied parts may damage product internally.
FOLLOW THE OPERATIONAL AND INSTALLATION MANUALS
YOU SHOULD READ AND FAMILIARIZE YOURSELF THOROUGHLY WITH THE FOLLOWING INFORMATION PRIOR TO
INSTALLING AND USING THIS UNIT. IN ADDITION, YOU MUST CAREFULLY READ AND FOLLOW THE INSTALLATION
SCHEMATICS/INSTRUCTIONS FOR THE PRODUCT AND THE VEHICLE IN WHICH IT IS BEING INSTALLED. FAILURE TO
FOLLOW INSTALLATION INSTRUCTIONS MAY DAMAGE THE PRODUCT AND THE VEHICLE, WILL VOID THE PRODUCT
WARRANTY, AND MAY VOID THE VEHICLE WARRANTY.
TROUBLESHOOTING
Should this product fail to operate properly, please contact your Dealer or our Customer Service Department at
[email protected]
Liability Disclaimer: This application guide is based on the testing results at the time of publishing. VAIS Technology can
not be held liable for damages or injuries caused by, or resulting from use of this guide. Strictly adhere to all car
manufacturer warnings that pertain to the disassembly, maintenance, or servicing of the vehicle and any of its
associated part systems. VAIS Technology can not be responsible for discrepancies, or inconsistencies that may occur
due to automobile manufacturing changes.
!
!

2
What’s Included
Installation
Standard Integration
CAN bus Integration
Tips & Tricks
Example Diagram
Customization & Templates

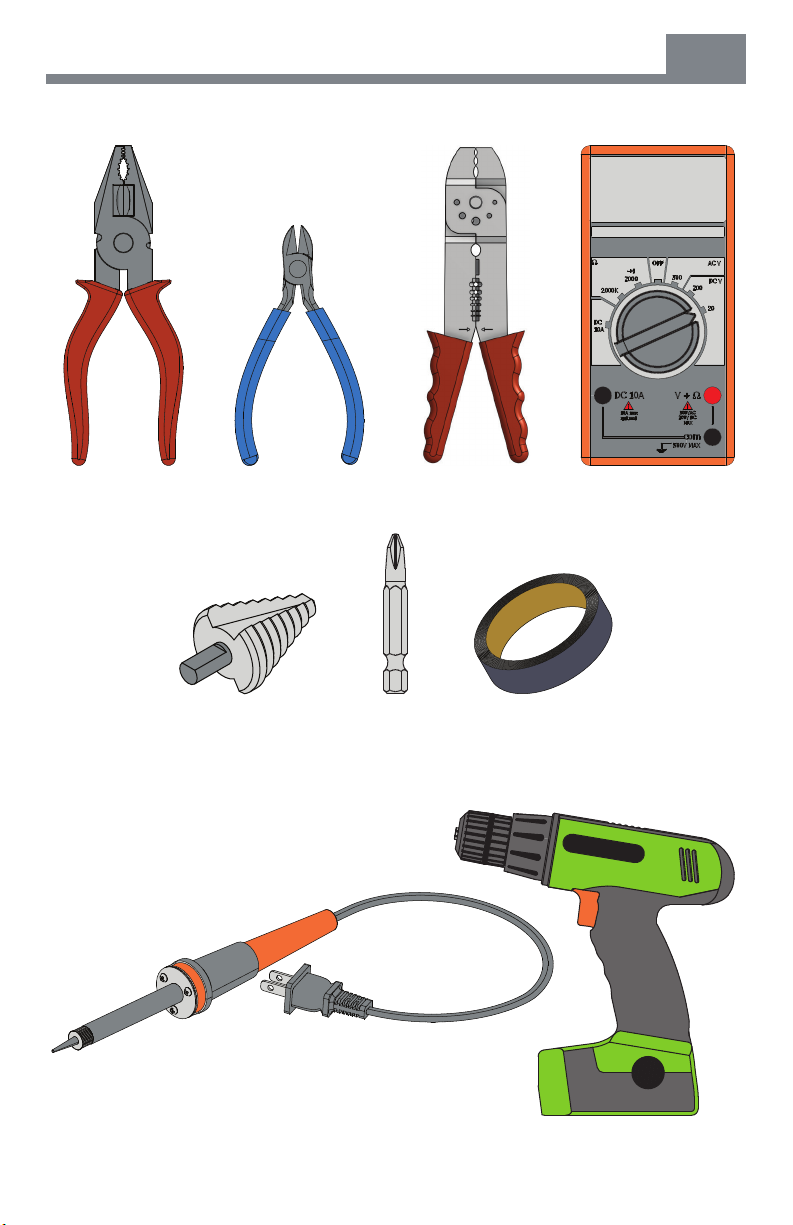

Tools Required 1
3
10
12
13
14
15

Tools Required 1
VAIS TECHNOLOGY

* Washer x2
* Bolt x2
Control Module
(SEER-XX-ECU)
Battery
(CR1632)
Power Harness
(SEER-HNS-001)
Input / Output Harness
(SEER-ZZ-HNS-002)
Antenna x2
(SEER-ZZ-ANT-001)
Antenna Bracket x2
(SEER-ZZ-BRK-001)
Antenna Harness
(SEER-ZZ-HNS-003)
Fuse Link
(SEER-ZZ-IFS-001)
4a
4a Fuse
What’s Included
2
* Replacement Bolt (92750A716) and Washer (95060A330) are available at McMaster Carr.
** 8ft Antenna Extension (SEER-ZZ-HNS-004), 20ft Antenna Extension (SEER-ZZ-HNS-005)
**Antenna
Extension x2
Key Tag
(SEER-XX-TAG)
Programming
Mode Button

8ft. (243cm)
Use for Front
Installation - ‘Antenna Extension’ 3
Option A ‘Control Module’installed behind the dash
Option B ‘Control Module’installed in vehicle rear
Control
Module 20ft. (609cm)
Use for Rear
20ft. (609cm)
Use for Front
8ft. (243cm)
Use for Rear
Antenna
Antenna
Control
Module
Use the appropriate ‘Antenna
Extension’based on where the
‘Control Module’will be located.
See examples below.
20ft. (609cm)
8ft. (243cm)
ATTENTION
!
Antenna
Antenna

!ATTENTION Avoid electrical contact
when mounting to Aluminum
Bend tabs for extra mounting
or break o when not needed
Use universal mounting tabs
or template holes to secure
‘Antenna Bracket’ to the vehicle
x2
Use ‘Antenna Bracket(s)’
to secure each‘Antenna’
Installation - ‘Antenna’ Mounting
4
1
2
3
Double-Sided Tape
√
Aluminum Surface
Antenna Bracket
x
Aluminum Surface
Antenna Bracket

Installation - ‘Antenna’ Mounting & Extension Routing 5
Vehicle Firewall
Use a factory boot or grommet to pass
‘Antenna Extension’ into vehicle interior
To Interior
Grommet
Secure ‘Antenna’ to
‘Antenna Bracket’
using supplied hardware
ANTENNA FRONT
Side tabs can be used
for wire management.
Option B Ax ‘Antenna’ front to ‘Antenna Bracket’
Option A Ax ‘Antenna’ rear to ‘Antenna Bracket’
4
Route to‘Antenna Harness’inside vehicle.
Connect ‘Antenna’ to
‘Antenna Extension’
5
6

Installation - Connecting the Extensions
Cut excess wire once
inside the cabin to
avoid wire coiling
6
Route each ‘Antenna Extension’to the planned
mounting location of the‘Control Module’.
• Mount in dry and safe location
• Secure the ‘Control Module’ in place
• DO NOT block BT Cover (See Pg. 9)
From Front ‘Antenna’ From Rear ‘Antenna’
‘Antenna Extension’ ‘Antenna Extension’
Antenna Extension(s)
Shield Wire Shield Wire
To AntennaTo Antenna
Shield WireShield Wire
7
8
9ATTENTION
!
Connect a ‘Terminal
Lead’to only one end
of the shield wires on
each ‘Antenna Extension’
Terminal Lead

Connect both extension ‘Antenna Extension(s)’
to each pair of leads as shown
(Pairs are separated by tape. DO NOT mix pairs.)
Installation - Connecting the Extensions 7
To AntennaTo Antenna
Option B: Ground
Antenna 2Antenna 1
Antenna Harness
(Top View)
Connect only Option A Ground or Option B Ground
DO NOT CONNECT BOTH
ATTENTION
!
CONNECT TOGETHER
10
Antenna 1Antenna 2
Antenna Harness
(Front View)
Option A: GroundOption A: Ground
Option B: Ground

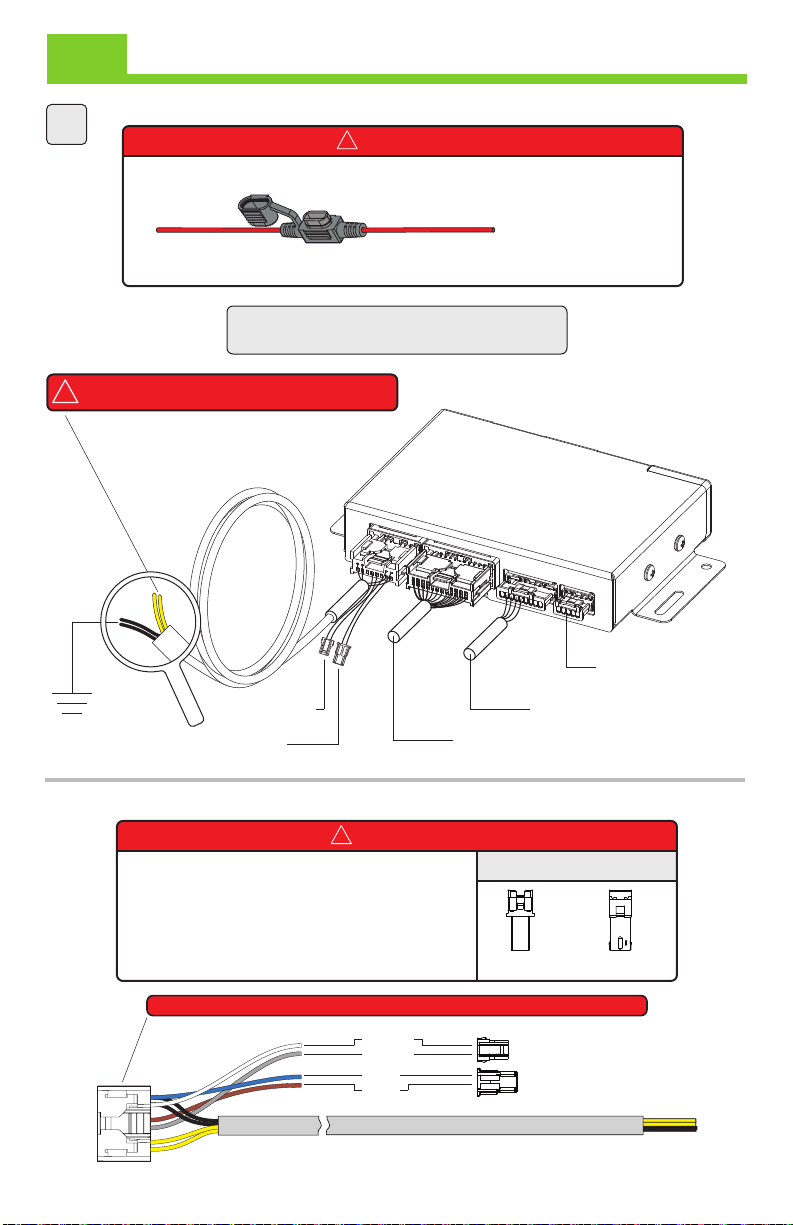

Assemble all connectors to‘Control Module’
and connect Constant Power and Ground.
Installation - Connecting the ‘Control Module’
8
Use the supplied
‘Fuse Link’ when
connecting to 12V
ATTENTION
!
Buzzer +
Buzzer -
LED -
LED +
11
CONSTANT BATTERY POWER ONLY
!
GND I/O Harness
Antenna Harness
Expansion (Not Used)
LED
Buzzer
Buzzer and LED are not included.
If your application calls for either option you
may order the mating connectors shown or
*cut o the existing connectors and use the
diagram above to make your connections. TE 1969442-2 Molex 0512270200
ATTENTION
!
Mating Connectors
*DISCONNECT MAIN POWER HARNESS CONNECTOR BEFORE CUTTING

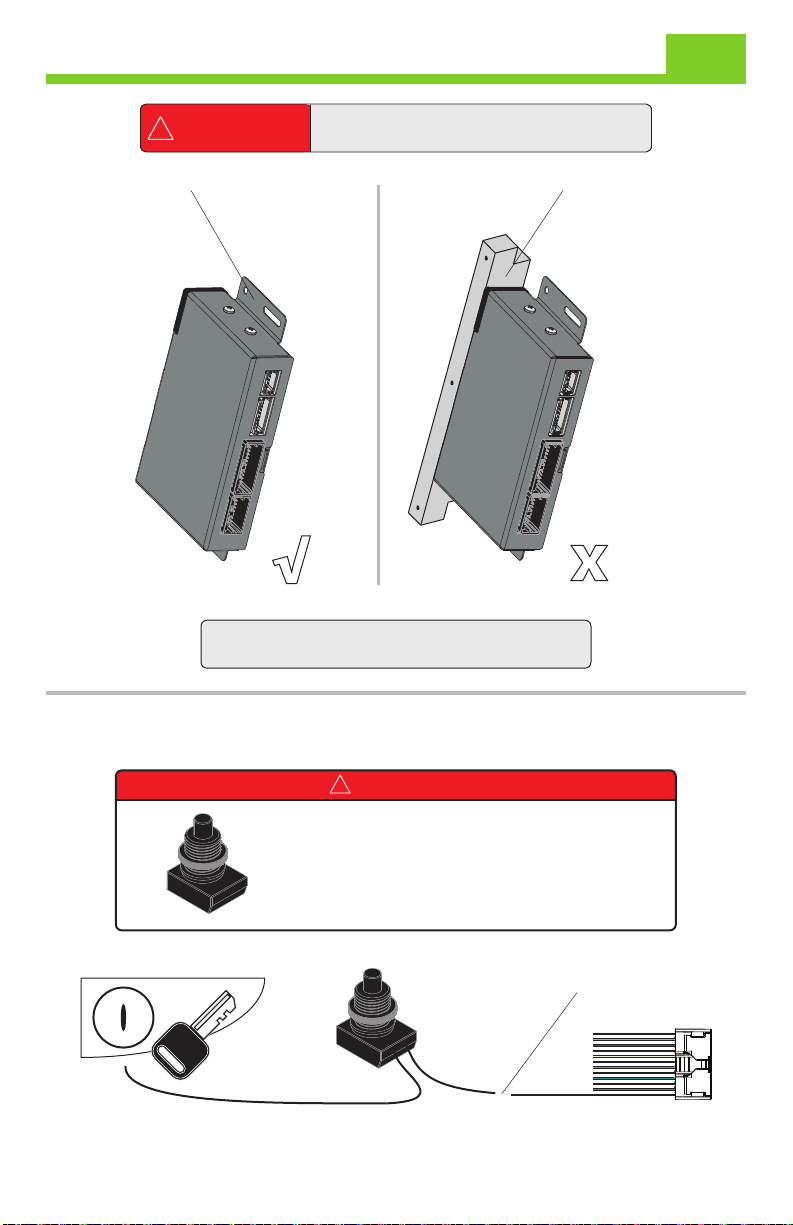

Installation - ‘Control Module’ Mounting & Programming 9
ATTENTION
!Avoid blocking receiver / transmitter cover
and keep it away from metal or obstruction
Mount the ‘Control Module’ as high up as possible
with the transmitter cover facing up and forward
√
Use mounting tabs
x
Avoid metal obstruction
Use the supplied‘Programming Mode Button’
to connect one lead to Ignition and one lead to
Input #0 (Solid White Wire) on the I/O Harness.
ATTENTION
!
See the SEER Flow Editor tutorial for more information on programming mode
PROGRAMMING MODE BUTTON
Connect to:
Input #0 (Solid White Wire)
START
Vehicle Ignition

INPUTS
Standard Integration
10
ATTENTION
!
Each Input wire can be connected with any 12V source to sense an Event.
Connect each of the desired inputs to the particular event you want to sense.
18
920
Connector A
Pin# Wire ColorWire Color
1
Blue
2Orange
3 Violet
4Gray
5
Green
6 Pink
7 Brown
8 White
5
IN 7
IN 6
IN 5
IN 4
IN 1
IN 2
IN 3
NOT USED
Marker indicates advanced capabilities
See SEER Flow Editor Expert Mode for Details
12V vehicle Sources include:
• Ignition
• Accessory
• Individual Door Triggers
• Dome Light Supervision
• Parking Brake Wire
SEER Inputs accept:
• Trigger Events (+/-)
• Impulse Events (+/-)
• Application Sensors (+/-)
Input Range: 9.0V - 14.0V

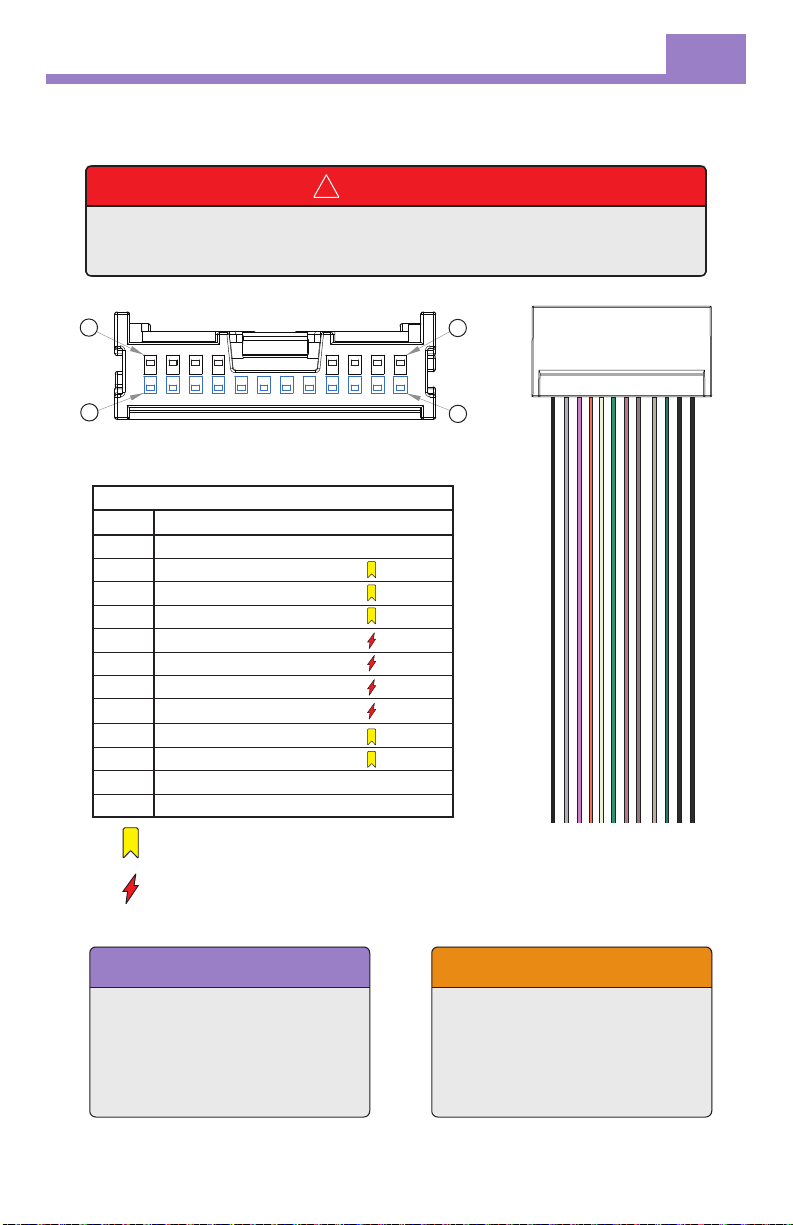

OUTPUTS
Standard Integration 11
ATTENTION
!
Each Output (-) wire can be connected to vehicle functions to trigger an Action.
Connect each of the desired outputs to the function you want to trigger.
18
920
9Black
10 Gray/Red
Connector A
Pin# Wire ColorWire Color
11 Violet/Red
12 Orange/Red
13 White/Blue
14 Green/Blue
Pink/Blue
16 Brown/Blue
17 White/Red
18 Green/Red
19 Black
20 Black/Blue
15
Ground
OUT 4
OUT 5
OUT 6
OUT 0
OUT 1
OUT 2
OUT 3
OUT 7
OUT 8
Ground
Ground
Marker indicates advanced capabilities
See SEER Flow Editor Expert Mode for details
Marker indicates high current capabilities
See SEER Flow Editor Expert Mode for details
STANDARD INTEGRATION
Outputs can be connected directely
to vehicle functions that are activated
with GND (-).
See Tips & Tricks page for relay
wiring diagrams. (See Pg. 14)
CAN bus INTEGRATION
Outputs can be connected directely to
CAN bus integration modules.
(See Pg. 12)
See CAN bus module’s installation
manual for details. (Not Provided)

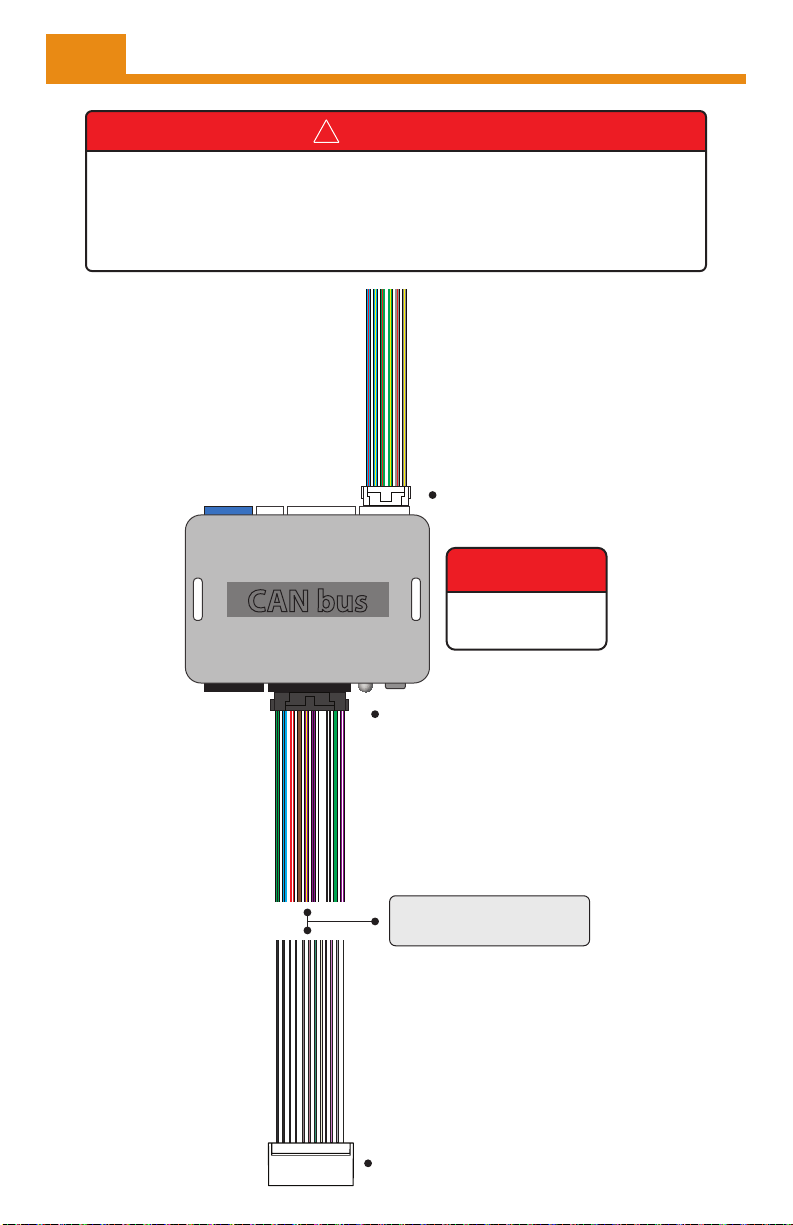

CAN bus Integration
12
CAN bus
Outputs (To Car)
Inputs
From SEER Control Module
Connect only wires used
to trigger an action
CAN bus Module
is Not Included
OPTIONAL
ATTENTION
!
CAN BUS MODULE IS NOT INCLUDED.
SEER can be connected directly to many industry standard CAN bus
integration modules. Refer to 3rd party module wiring diagram for details.

CAN bus
GND12V (+)
Power Harness
Antenna Harness
Antenna Extension
Antenna
Connect Together
Buzzer
LED
CAN bus Module
Outputs (To Car)
5a
(See Pg. 5)
Antenna Bracket
(See Pg. 4)

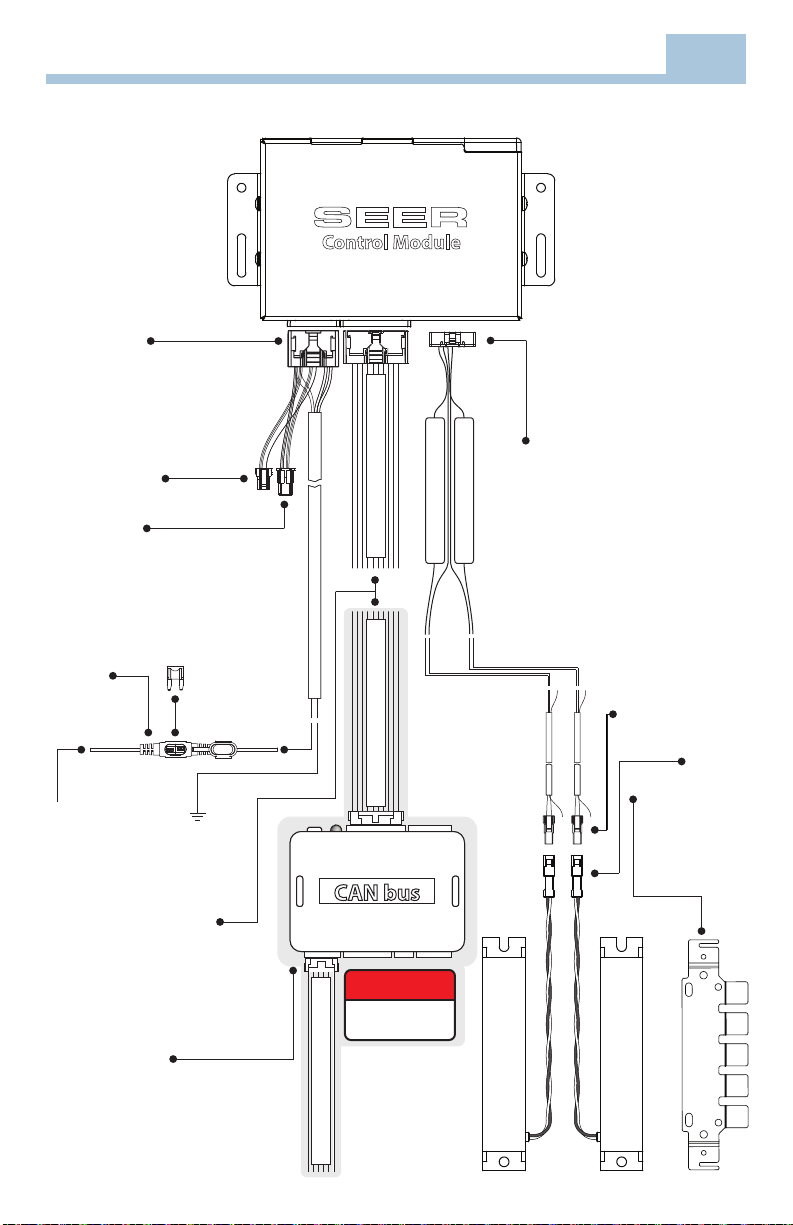

Example Diagram 13
Control Module Outputs
CAN bus Module Inputs
Control Module
CAN bus Module Outputs
Fuse
Fuse Link
CAN bus Module
is Not Included
OPTIONAL

Fused 12v(+)
(-) Unlock Output
(-) Lock Output
GND
To Lock Actuator
To Lock Actuator
87
87a
86 85
30
Fused 12V (+)
(-) Negative Trigger
12V (+) Output
Fused 12V (+)
Negative Output (-)
Right Lamp (+)
Left Lamp (+)
LIGHT FLASH
87
87
87a
87a
86
86
30
30
85
85
87 87
87a 87a
86 86
30 30
85 85
Tips & Tricks - Relays
14
REVERSE POLARITY
DOORLOCK ACTUATORS

Customization & Templates 15
ATTENTION
!
SEER Control Module ships with a standard prole template
that will t most basic vehicle applications.
Refer to the Insert Diagram for template wiring details.
FLOW EDITOR
SEER Flow Editor is used to customize and congure the module
to t your custom vehicle application needs. (See Example Below)
Refer to the tutorial training for further details.
Go to www.vaistech.app to create an account.
Email or Username
Password
LOGIN
LOGIN
I forgot my password
Dont have an account? Sign Up
Remember Me
Enter your credentials here.
Create an account here.
EXAMPLE FLOW DIAGRAM

VAIS Technology, 8811 American Way, Englewood, CO 80112
www.vaistech.com | 720-733-2348 | [email protected]
Warranty is available for download: https://www.vaistech.com/download/15244
To request a paper warranty copy please contact us:
VAIS Technology
Warranty Department
8811 American Way
Unit 125
Englewood, CO 80112
720-733-2348
[email protected]
SEER-MAN-001
VAIS Technology is not responsible for or liable for any installation cost, property loss, damages whatsoever, including but not limited
to, any consequential damages, incidental damages, loss of time, loss of earnings, commercial loss, loss of economic opportunity and
the like that may or may not be resulted from the operation of the SEER product(s). Manufacturer does oer a limited warranty to
replace or repair the control module. See Warranty for more information.
