EXE ERT-100 User manual

• Introduction
This ERT-100 Rhythm Trainer has been developed for Guitarist , Bassist &
Drummer. By using ERT-100, guitarist & bassist will have their rhythm partner in
their hand, in addition player can set a unique rhythm for himself at home, small
showroom & when they practice alone.
• Parts name & Function
• Introduction of Buttons
1) Power Switch
2) DC-IN
3) PHONE INPUT
User can use Headphone or Earphone.
4) AMP OUTPUT
Line-out to Amplifier so sound comes out from the Amplifier. Also User can use this as output when he set this
rhythm trainer with effectors.
RHYTHM TRAINER
Warning
• Using incorrect battery is prohibited and will cause defective.
• Please off the power when you change battery.
• Please remove the battery if you don't use for a long time.
• Please don't push the button so hard.

5) INPUT
Guitar/Bass inputs here and sounds bypasses to amplifier when output cable connected to amplifier
6) Volume
This Dial button is used for adjust main Volume
7) HI-HAT Button
User pushes this button when they want to set HI-HAT rhythm More functional introduction will be explained in
"Operation" below
8) SNARE Button
User pushes this button when they want to set SNARE rhythm More functional introduction will be explained in
"Operation" below
9) KICK Button User pushes this button when they want to set KICK rhythm More functional introduction will be
explained in "Operation" below
10) LIGHT Button
When user pushes this button back light on & off
11) FUNCTION Button
User can choose Rhythm trainer, Metronome & Tuner function by using this button First function is Rhythm trainer when
power on, and next Metronome mode, Tuner mode
12) TAP Button
Used in Metronome mode and it is same function like all other metronomes Use can set a tempo optionally by pushing
TAP button
13) SELECT Button
This ERT-100 Rhythm trainer has 10 different Drum Sound Set for various expression. So user can choose one of the
SET for drum sound. When user puts SELECT button, SOURCE is on-and-off on LCD Then user can dail the DIAL
button to find a figure from 0-9 and this number means the SET OF DRUM sound.
If user pushes SELECT button again, setting's done and assigned drum sound comes out DRUM SOUND SET is as
below:
0: ROCK 1
1: ROCK 2
2: ROCK 3
3: ROCK 4
4: JAZZ 1
5: JAZZ 2
6: POP1
7: POP2
8: LATIN 1
9: LATIN 2
14) DIAL Button
• When dial button: TEMPO control
• When push button: START / STOP control of rhythm trainer
• When dial after push HI-HAT button: Searching for HI-HAT rhythm
• When dial after push SNARE button : Searching for SNARE rhythm
• When dial after push KICK button: Searching for KICK rhythm
• When dial after push SELECT button : Searching for DRUM SOUND SOURCE
• When dial after push LOAD button: Searching for saved drum patch number which user saved before
• When dial after push SAVE button: Searching for patch number to save after user make own rhythm
15) LOAD Button
• When user pushes button, LOAD is on-and-off and user can find saved rhythm
• Then dial the DIAL button then you can find saved patch numbers
• When user want to use the chosen rhythm, push LOAD button with long push
• User can load total 20 different patch
16) SAVE Button
• When user pushes button, SAVE is on-and-off on LCD and user can find patch number to save the rhythm
• Then dial the DIAL button then you can find patch numbers to save and push SAVE button longly
• When user saves a rhythm to a certain patch number, previous information for the patch will be erased
• User can save total 20 different patch
17) MUTE Button
• This is only for sounds off while operating
18) SPEAKER
• The sound comes out through the 2 installed speakers without input cable

• Speakers are Front & back of the body and user can control the volume with volume switch
• When user input the cable , then user can plays with the drum sound through the speakers
• Specification
• Plug & Play
• Easy Setting
• Real Sound
• Comfortable &Portable
• Various Tones & Save/Load
• With Tuner & Metronome
• You can use this with Headphone & line out to amplifier, mixer &speaker.
• True bypass for guitar line in
You can put this machine at the end of your effector line and just plug it to line in then you will experience a reliable drum
partner from your amplifier.
• Operation
1) Rhythm Making

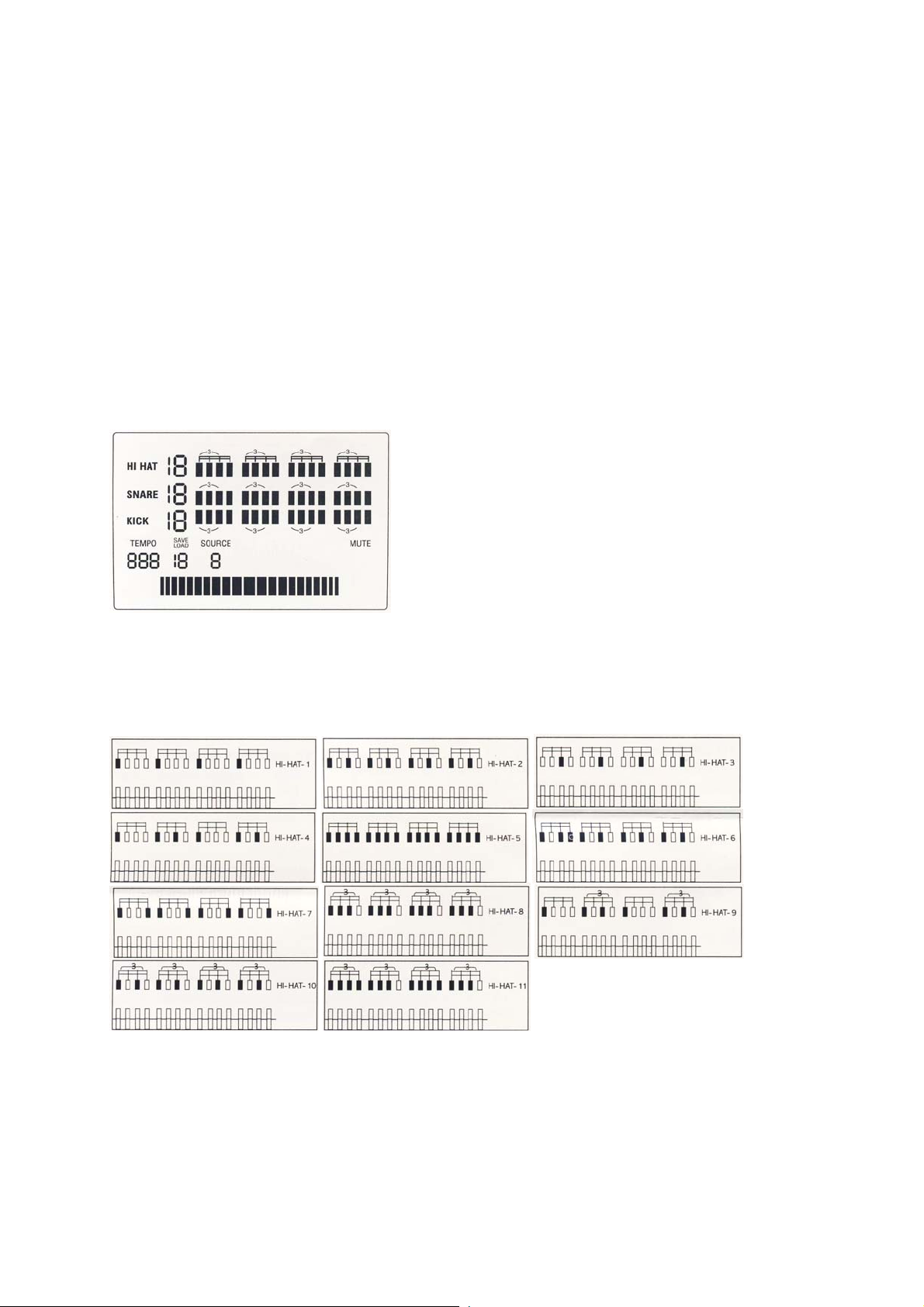

When the power on I LED is like below status
User can change the rhythm by using HI-HAT, SNARE, KICK rhythm at this step
2) Selecting HI-HAT Rhythm
• If you push HI-HAT button , HI-HAT letters is on-and-off on LCD
• Then dial the DIAL button to find different HI-HAT rhythm pattern
• Then push HI-HAT button again after find the rhythm , and HI-HAT rhythm setting is done
• 10 seconds without push button, the rhythm will be back to previous rhythm
• There are 11 different HI-HAT rhythm in the program and you can check this one by one

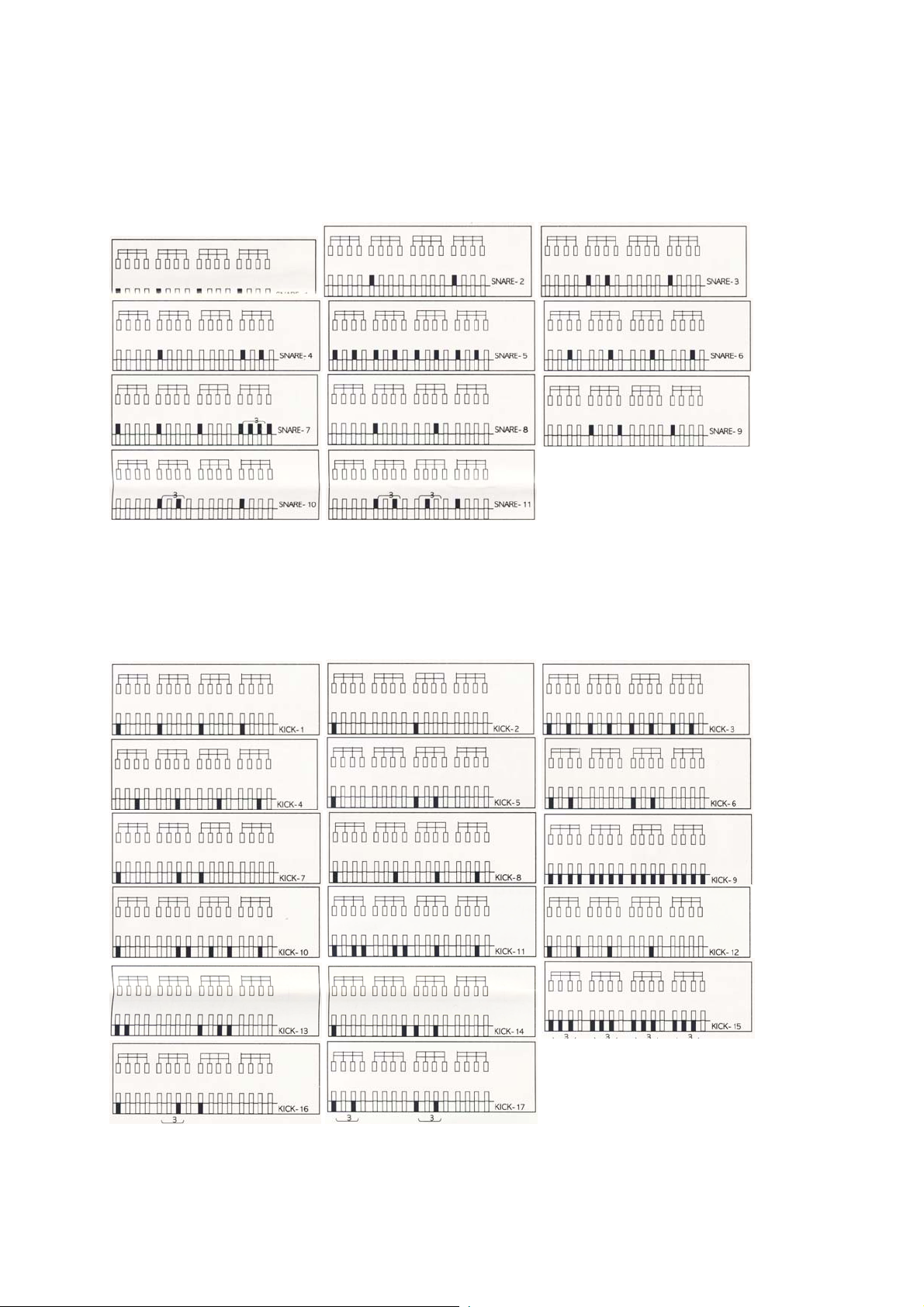

3) Selecting SNARE Rhythm
• If you push SNARE button, SNARE letters is on-and-off on Leo
• Then dial the DIAL button to find different, SNARE thythm pattern
• Then push SNARE button again after find the rhythm, and SNARE rhythm setting is done
• 10 seconds without pushing button, the rhythm will be back to previous rhythm
• There are 11 different SNARE rhythm in the program and you can check this one
4) Selecting KICK Rhythm
• If you push KICK button, KICK letters is on-and-off on LCD
• Then dial the DIAL button to find different KICK rhythm pattern
• Then push KICK button again after find the rhythm, and KICK rhythm selling is done
• 10 seconds without pushing button, the rhythm will be back to previous rhythm
• There are 17 different KICK rhythm in the program and you can check this one by one
User can make various kind of rhythm combination with above 3 individual rhythm setting
And use can save after he make the rhythm and load the rhythm later

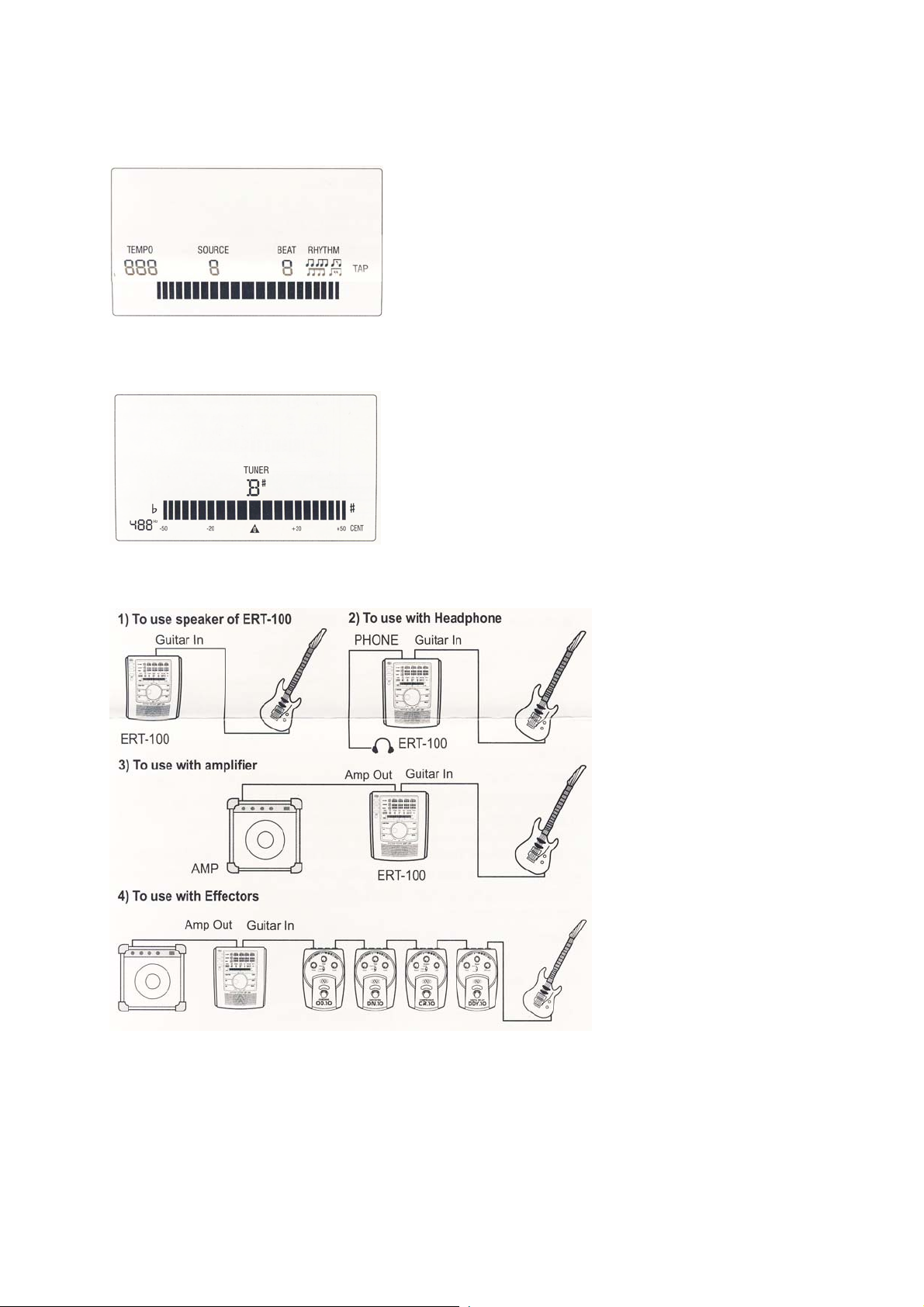

Metronome Mode
User can use this machine as normal metronome like drawing
TunerMode
User can use this machine as normal tuner
HOW TO USE
