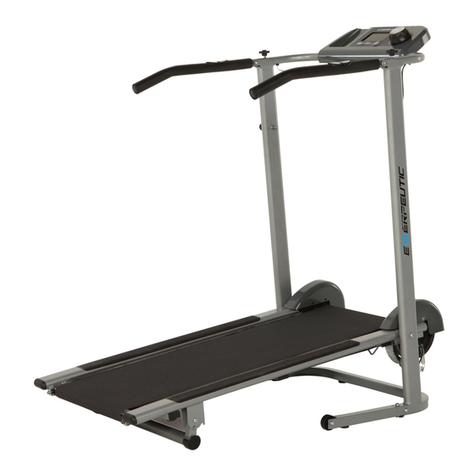

Exerpeutic Treadmill with Pulse User manual

Manual Treadmill with Pulse

SERVICE ------------------------------------------------------------------------ 2
IMPORTANT LABELS -------------------------------------------------------- 3
PRODUCT SAFETY ---------------------------------------------------------- 4
PART DRAWING -------------------------------------------------------------- 5
PART LIST ---------------------------------------------------------------------- 6
HARDWARE PACKING LIST & TOOLS --------------------------------- 8
ASSEMBLY --------------------------------------------------------------------- 9
COMPUTER ---------------------------------------------------------------------16
STORAGE ----------------------------------------------------------------------- 17
ADJUSTMENTS --------------------------------------------------------------- 18
LUBRICATION ----------------------------------------------------------------- 19
TROUBLE SHOOTING & MAINTENANCE ---------------------------- 20
WARM UP ---------------------------------------------------------------------- 21
WARRANTY -------------------------------------------------------------------- 22
FAX FORM ---------------------------------------------------------------------- 23
Item
#1005
OWNER’S
MANUAL
TABLE OF
CONTENTS
1

IMPORTANT: FOR NORTH AMERICA ONLY
To request product service and order
replacement parts, please call our
customer service department at:
1-866-924-1688
Monday through Friday, 8:00 AM-5:00 PM Pacific Standard Time,
or email us at: [email protected]
Please visit our website at www.paradigmhw.com.
Please have the following information ready when requesting for service:
Your name
Phone number
Model number
Serial number
Part number
Proof of Purchase
*Before returning this product to the store please contact
customer service at the contact number.
Paradigm Health & Wellness, Inc.
1189 Jellick Ave, City of Industry, CA 91748, USA
SE VICE

2
IMPO TANT
LABELS

Basic precautions should always be followed, including the following
safety instructions when using this manual treadmill: Read all
instructions before using this manual treadmill.
1. Check every part of the equipment before exercise. If there is any
defective component, replace it immediately; keep the equipment out of
use until repair.
2. Make sure all parts, bolts and nuts are well assembled and locked before
exercise.
3. Never insert any object into any opening.
4. Never operate this manual treadmill if it is not working properly. If it has
been dropped or damaged, or been exposed to water, return the
appliance
to a service center for examination and repair.
5. Do not attempt any maintenance or adjustments other than those
described in this manual. Should any problems arise, discontinue use and
3
P ODUCT SAFETY

consult an Authorized Service Representative.
6. Wear comfortable and suitable clothing when using the treadmill. Do not
use the treadmill barefoot, in only socks or in sandals, always wear
athletic shoes. Never wear loose clothing because it could run the risk of
getting caught in the treadmill.
7. Keep children and pets away from the equipment while in use.
8. Do not use the treadmill outdoors. This manual treadmill is for household
use only.
9. Only one person should be on the treadmill while in use.
10. Keep the manual treadmill on a solid, level surface with the minimum
safety area clearance of 78.7” x 118” of the manual treadmill. Be sure the
area around the treadmill remains clear during use and has adequate
clearance.
11. Hold the handlebar with your hands when starting or stopping exercise
and increasing or decreasing the speed.
12.If feeling chest pains, nausea, dizziness, or short of breath, you should
stop exercising immediately and consult your physician before continuing.
13. The maximum weight capacity for this product is 260 lbs.
WARNING:Before beginning any exercise program consult your
physician. This is especially important for the persons who are over 35
years old or who have pre-existing health problems. Read all instructions
before using any fitness equipment.
CAUTION:Read all instructions carefully before operating this
product. Retain this Owner’s Manual for future reference.
4
PA T D AWING

5
PA T LIST

No. Description Qty No. Description Qty
001 Rear Roller Ø60x395 1 026 Safety Tube B (□25x460) 1
002 Running Deck 1020x407x12 1 027 Spring Knob Ø8 1
003 Front Roller Ø60x395 1 028 Transport Wheel Ø50 2
004 Running Belt 2400x335x1.2 1 029 Square End Cap (□38) 2
005 Main Frame 1 030 Rubber Pad 4
006 Protective Cover 1 031 Extension Sensor Wire III
(180mm) 1
007 Base Frame 1 032 Sensor with Wire 1
008 Left Handlebar 1 033 Extension Sensor Wire I
(1250mm) 1
009 Right Handlebar 1 034 Extension Sensor Wire II
(250mm) 1
010 Left Handlebar Support Tube 1 035 Extension Hand Pulse Sensor Wire
(250mm) 2
011 Right Handlebar Support Tube 1 036 Wire Plug (Ø6xØ21x10) 1
012 Hand Pulse Sensor with Wire 2 037R Right Side Rail (950mm) 1
013 Handlebar Adorner 2 037L Left Side Rail (1020mm) 1
014 Computer Bracket Ø28 1 038 Magnet with Magnet Bracket 1
015 Computer (HR-1566SP) 1 039 Screw ST3x6 2
016 Rear Roller Adjustment Bolt
Plate 2 040 Rear Roller Adjustment Bolt M6x50mm 2
017R Right Incline Adjuster 1 041 Hexagon Head Bolt M6x25 6
017L Left Incline Adjuster 1 042 Screw ST4x16 8
018 Incline Adjuster End Cap Ø50 2 043 Bolt M8x40mm 5
019 Incline Adjuster End Cap Ø38 2 044 Bolt M8x35mm 1
020 Locking Pin Ø8x60 2 045 Bolt M8x45mm 4
021 Main Frame End Cap T65x25 3 046 Bolt M8x55mm 4
022 Square End Cap (□25.4) 3 047 Bolt M8x16mm 4
023 Square End Cap (□20) 2 048 Washer Ø12.5xØ22 3
024 Safety Tube A (□20x500) 1 049 Sleeve Ø16xØ12.5x9mm 1
025 Safety Tube B Bushing
(F23xF20.3x42) 1 050 Bolt M10x55mm 2

No. Description Qty No. Description Qty
051 Handlebar Support Tube End
Cap Ø28
2 058 Screw ST3x12 2
052 Bolt M5x10mm 2 059 Washer M8 6
053 C Clip Ø12 3 060 Washer M10 2
054 Nylon Washer Ø8.2xØ16x2T 2 061 Computer Bracket Foam Grip
Ø23x3Tx390
2
055 Washer M6 8 062 Handlebar Foam Grip Ø23x3Tx580 2
056 Spring Washer M6 6 063 Screw ST4x12 2
057 Nylon Nut M8 10
6
PA T LIST

7
HA DWA E PACKING LIST &
TOOLS
Allen Wrench 6M
1 PC
Allen Wrench with Phillips Screwdriver 5M
1 PC
Wrench
1 PC
(63) Screw ST4x12
2 PCS
(46) Bolt M8x55mm
4 PCS (47) Bolt M8x16mm
2 PCS
(50) Bolt M10x55mm
2 PCS
(57) Nylon Nut M8
4 PCS
(59) Washer M8
4 PCS
(60) Washer M10
2 PCS
(45) Bolt M8x45mm
4 PCS

Step 1
Attach both Left/Right Handlebar Support Tubes (10, 11) onto the Base
Frame (7) with four M8x55mm Bolts (46), four M8 Nylon Nuts (57), and four
M8 Washers (59). Tighten bolts and nylon nuts with the 5M Allen Wrench
with Phillips Screwdriver and Wrench provided.
ASSEMBLY
8
Allen Wrench with
Phillips Screwdriver 5M
Tool:
Wrench

NOTE: PLEASE DO NOT FULLY TIGHTEN HARDWARE IN STEP 1
UNTIL STEP 5 IS COMPLETED.
Hardware:
9
ASSEMBLY
(46) Bolt M8x55mm
4 PCS
(57) Nylon Nut M8
4 PCS
(59) Washer M8
4 PCS

Step 2
Attach the Protective Cover (6) onto the Main Frame (5) with two ST4x12
Screws (63). Tighten screws with the 5M Allen Wrench with Phillips
Screwdriver provided.
Hardware:
(63) Screw S4x12
2 PCS
Allen Wrench with
Phillips Screwdriver 5M
Tool:

.
10
ASSEMBLY
Wrench
Allen Wrench 6M
Tool:
Allen Wrench with
Phillips Screwdriver 5M

Step 3
Lift the front end of Main Frame (5) up by two or more people and then
attach the Main Frame (5) onto the Left/Right Handlebar Support Tubes
(10, 11) with two M10x55mm Bolts (50) and two M10 Washers (60).
Tighten bolts with the 6M Allen Wrench provided. Please do not fully
tighten the bolts until the handlebars are installed.
Connect the Sensor Wire (32) from the Main Frame (5) to the Extension
Sensor Wire I (33) from the Right Handlebar Support Tube (11).
Remove one M8x35mm Bolt (44), one Ø8.2xØ16x2T Nylon Washer
(54),
and one M8 Nylon Nut (57) from the Safety Tube A (24). Remove bolt
and nylon nut with the 5M Allen Wrench with Phillips Screwdriver and
Wrench provided.
Remove one M8x40mm Bolt (43), one Ø8.2xØ16x2T Nylon Washer
(54),
and one M8 Nylon Nut (57) from the Safety Tube B (26). Remove bolt
and nylon nut with the 5M Allen Wrench with Phillips Screwdriver and
Wrench provided.
Fold up the Main Frame (5) and hold it by one person, release the
Spring
Knob (27) by the other person and pull the Safety Tube A (24) to
stretched-out. Attach the Safety Tube B (26) onto the L-plate on the
Base Frame (7) with one M8x40mm Bolt (43), one Ø8.2xØ16x2T Nylon
Washer (54), and one M8 Nylon Nut (57) that were removed.
Tighten bolt and nylon nut with the 5M Allen Wrench with Phillips
11
ASSEMBLY

Screwdriver and Wrench provided.
Attach the Safety Tube A (24) onto the Main Frame (5) with one
M8x35mm Bolt (44), one Ø8.2xØ16x2T Nylon Washer (54), and one M8
Nylon Nut (57) that were removed. Tighten bolt and nylon nut with the
5M Allen Wrench with Phillips Screwdriver and Wrench provided.
NOTE: It is recommended that you always use the aid of a second
person when assembling the treadmill.
Hardware:
(50) Bolt M10x55mm
2 PCS
(60) Washer M10
2 PCS

Step 4
Connect the Hand Pulse Sensor Wire (12) and Extension Sensor Wire III
(31) from the Right Handlebar (9) to the Extension Hand Pulse Sensor
Wire (35) and Extension Sensor Wire II (34) from the Computer Bracket
(14).
Connect the Hand Pulse Sensor Wire (12) from the Left Handlebar (8) to
the Extension Hand Pulse Sensor Wire (35) from the Computer Bracket
(14).
12
ASSEMBLY
Allen Wrench with
Phillips Screwdriver 5M
Tool:

Then install the Computer Bracket (14) to both Left/Right Handlebars
(8, 9) by inserting the Computer Bracket (14) onto both Left/Right
Handlebars (8, 9), using two M8x16mm Bolts (47). Tighten bolts with
the 5M Allen Wrench with Phillips Screwdriver provided.
IMPORTANT: While installing the computer bracket onto the right and
left
handlebars, make sure the wires are installed inside the right and left
handlebars and pay attention not to pinch the wires.
Hardware:
(47) Bolt M8x16mm
2 PCS
13
ASSEMBLY

Step 5
Connect the Extension Sensor Wire I (33) from the Right Handlebar
Support Tube (11) to the Extension Sensor Wire III (31) from the Right
Handlebar (9).
Attach both Left/Right Handlebars (8, 9) onto both Left/Right Handlebar
Support Tubes (10, 11) with two Handlebar Adorners (13) and four
M8x45mm Bolts (45). Tighten bolts with the 5M Allen Wrench with
Phillips Screwdriver provided.
IMPORTANT: While installing the both left/right handlebars onto both
left/right handlebar support tubes, make sure the wires are installed
inside the right handlebar support tube and pay attention not to pinch the
wires.
Allen Wrench with
Phillips Screwdriver 5M
Tool:

NOTE: PLEASE FULLY TIGHTEN ALL HARDWARE INSTALLED IN
STEP 1 TO STEP 5 WITH THE TOOLS PROVIDED.
Hardware:
(45) Bolt M8x45mm
4 PCS
ASSEMBLY
Allen Wrench with
Phillips Screwdriver 5M
Tool:
14
